MOOC课程信息爬取

时间：2019-10-12

一、任务与目标

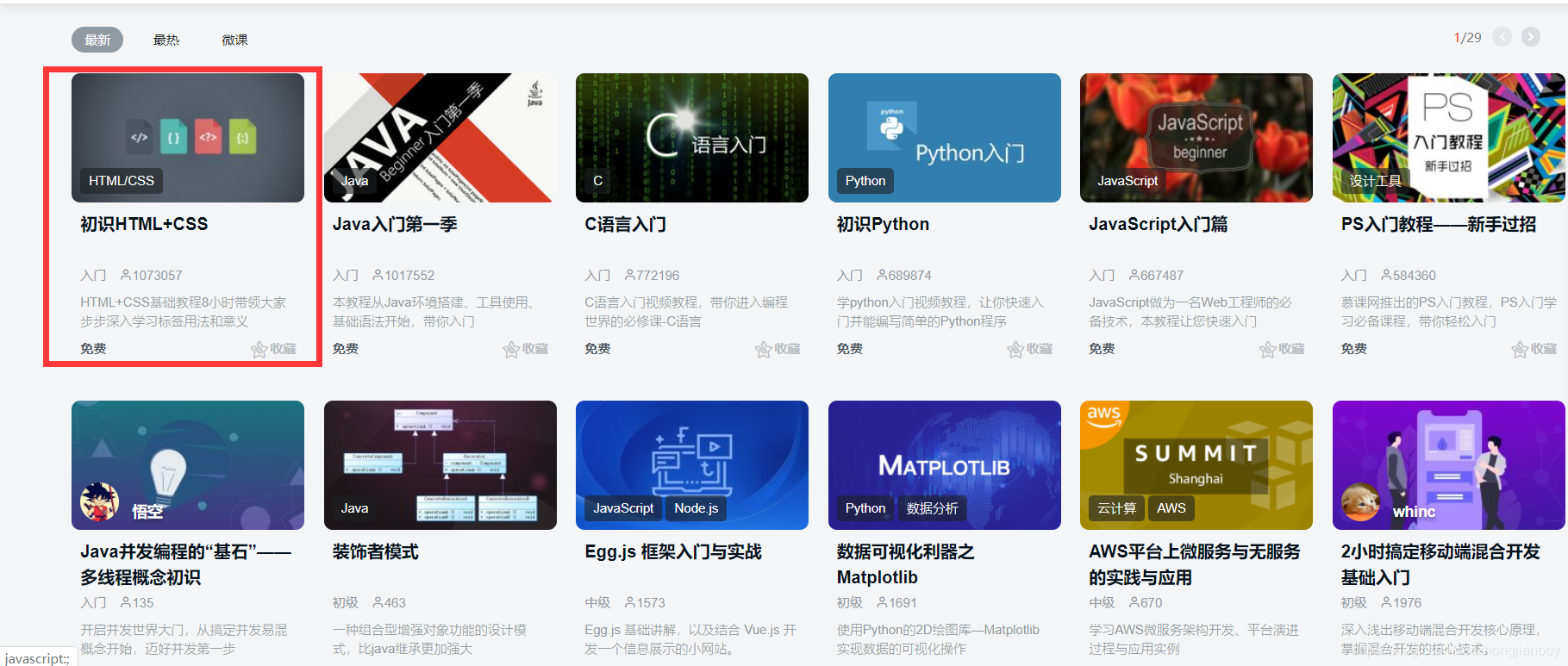

网站地址
```
http://www.imooc.com/course/list/
```

在这里插入图片描述
2. 采用scrapy爬虫框架

爬取信息包括：课程名称，课程图片地址，学习人数，课程的学习人数及最后下载课程的图片。
信息保存格式：josn
信息全面：爬取所有都课程信息。

二、爬虫相关文件准备与安装

python版本：Python 3.7.4 官网下载
操作系统：window 10

scarapy爬虫框架安装

直接打开cmd 输入：

pip install scrapy

如果无法安装建议更新pip

python -m pip install -U pip

在这里插入图片描述

三、爬虫项目的部署

注意：scrapy爬虫的创建与启动都采用命令输入。

第一步电脑搜索cmd进入命令行输入：

cd 你准备放置爬虫的文件夹
例如：cd C:\Users\zhong\Desktop\scrapy\mooc

在这里插入图片描述

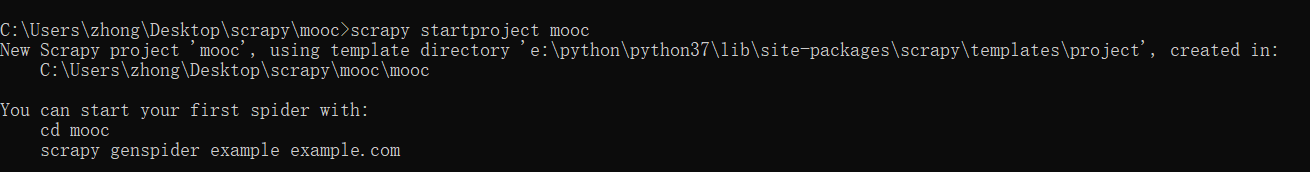

第二步建立scrapy项目 cmd输入：

scrapy startproject mooc

在这里插入图片描述
mooc 是你的项目名。

切换的mooc

cd mooc

第三步创建我们的第一个爬虫

scrapy genspider moocscrapy "http://www.imooc.com/course/list/"

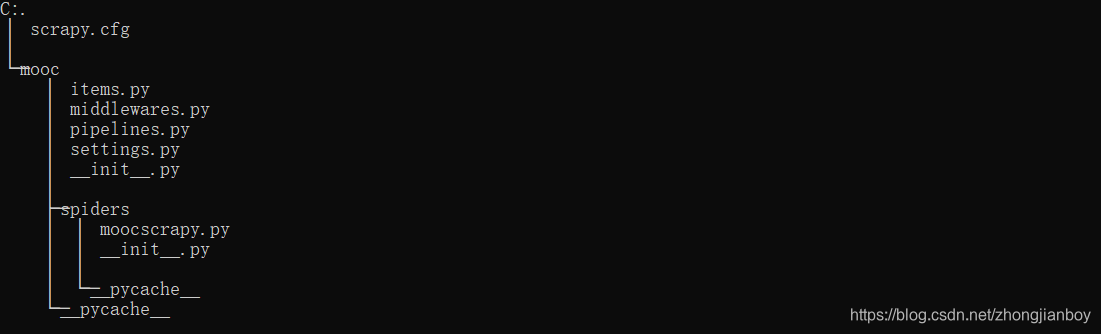

打开对应的文件夹,cmd输入：tree /f 生成以下结构树
在这里插入图片描述

scrapy.cfg: 项目的配置文件
scrapytest/: 该项目的python模块。之后将在此加入代码。
scrapytest/items.py: 项目中的item文件.
scrapytest/pipelines.py: 项目中的pipelines文件.
scrapytest/settings.py: 项目的设置文件.
scrapytest/spiders/: 放置spider代码的目录.

这就是我们爬虫项目的文件布局了！

四、设计爬虫，爬取信息

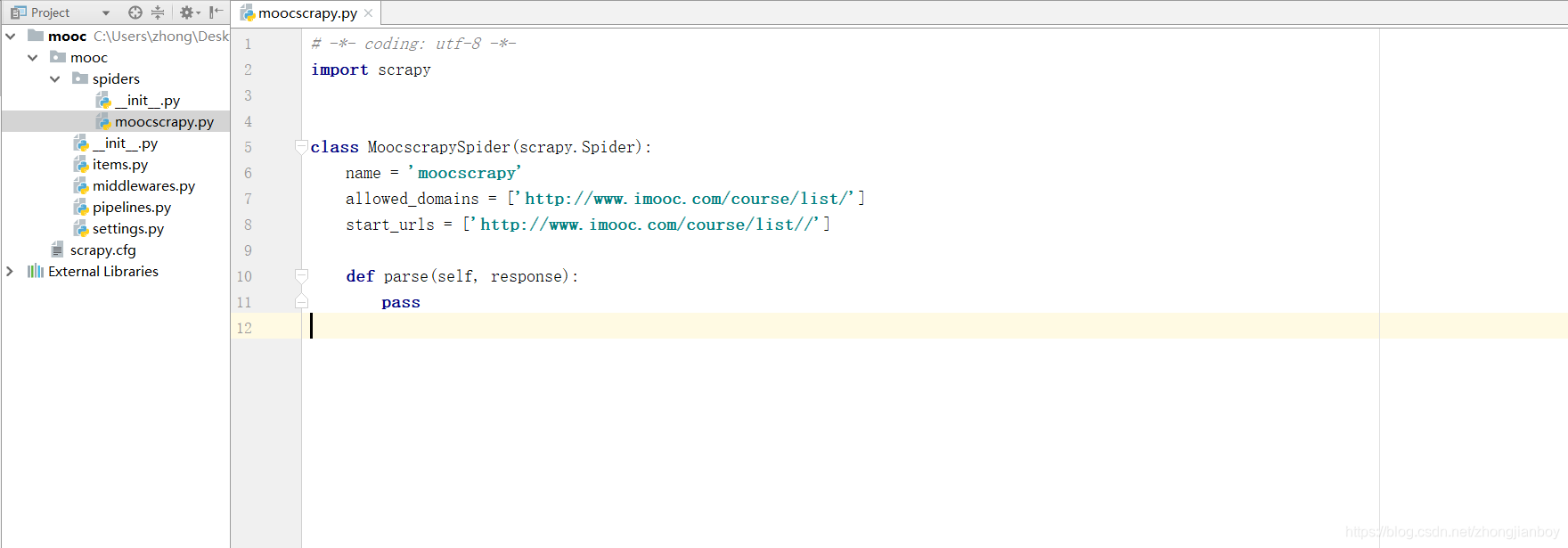

编写代码建议使用编辑器（推荐使用Pycharm）

在这里插入图片描述

注意：

-name: 用于区别Spider。该名字必须是唯一的，不可以为不同的Spider设定相同的名字。
-start_urls: 包含了Spider在启动时进行爬取的url列表。因此，第一个被获取到的页面将是其中之一。后续的URL则从初始的URL获取到的数据中提取。
-parse() 是spider的一个方法。被调用时，每个初始URL完成下载后生成的 Response 对象将会作为唯一的参数传递给该函数。该方法负责解析返回的数据(response data)，提取数据(生成item)以及生成需要进一步处理的URL的 Request 对象。

第一步创建一个容器储存爬取的数据,打开item.py

import scrapy

class MoocItem(scrapy.Item):
    # 课程标题
    title = scrapy.Field()
    # 课程url
    url = scrapy.Field()
    # 课程标题图片
    image_url = scrapy.Field()
    # 课程描述
    introduction = scrapy.Field()
    # 学习人数
    student = scrapy.Field()
    # 图片地址
    image_path = scrapy.Field()

第二步编写 Moocscrapy.py文件

#-*- coding: utf-8 -*-
import scrapy
from mooc.items import MoocItem

class MoocscrapySpider(scrapy.Spider):
    name = 'moocscrapy'
    allowed_domains = ['http://www.imooc.com/course/list/']
    start_urls = ['http://www.imooc.com/course/list/']

    def parse(self, response):
        # 实例化
        item = MoocItem()
        # 先获取每个课程的div
        for box in response.xpath('//div[@class="course-card-container"]/a[@target="_blank"]'):
            # 获取每个div中的课程路径
            item['url'] = 'http://www.imooc.com' + box.xpath('.//@href').extract()[0]
            # 获取div中的课程标题
            item['title'] = box.xpath('.//div[@class="course-card-content"]/h3[@class="course-card-name"]//text()').extract()[0]
            # 获取div中的标题图片地址
            item['image_url'] = "http:" + box.xpath('.//img[@class="course-banner lazy"]/@data-original').extract()[0]
            # 获取div中的学生人数
            item['student'] = box.xpath('.//span[2]/text()').extract()[0]
            # 获取div中的课程简介
            item['introduction'] = box.xpath('.//p/text()').extract()[0].strip()
            # 返回信息
            yield item

注：这里用到了xpath方式来获取页面信息。

在parse()方法中response参数返回一个下载好的网页信息，我们然后通过xpath来寻找我们需要的信息。

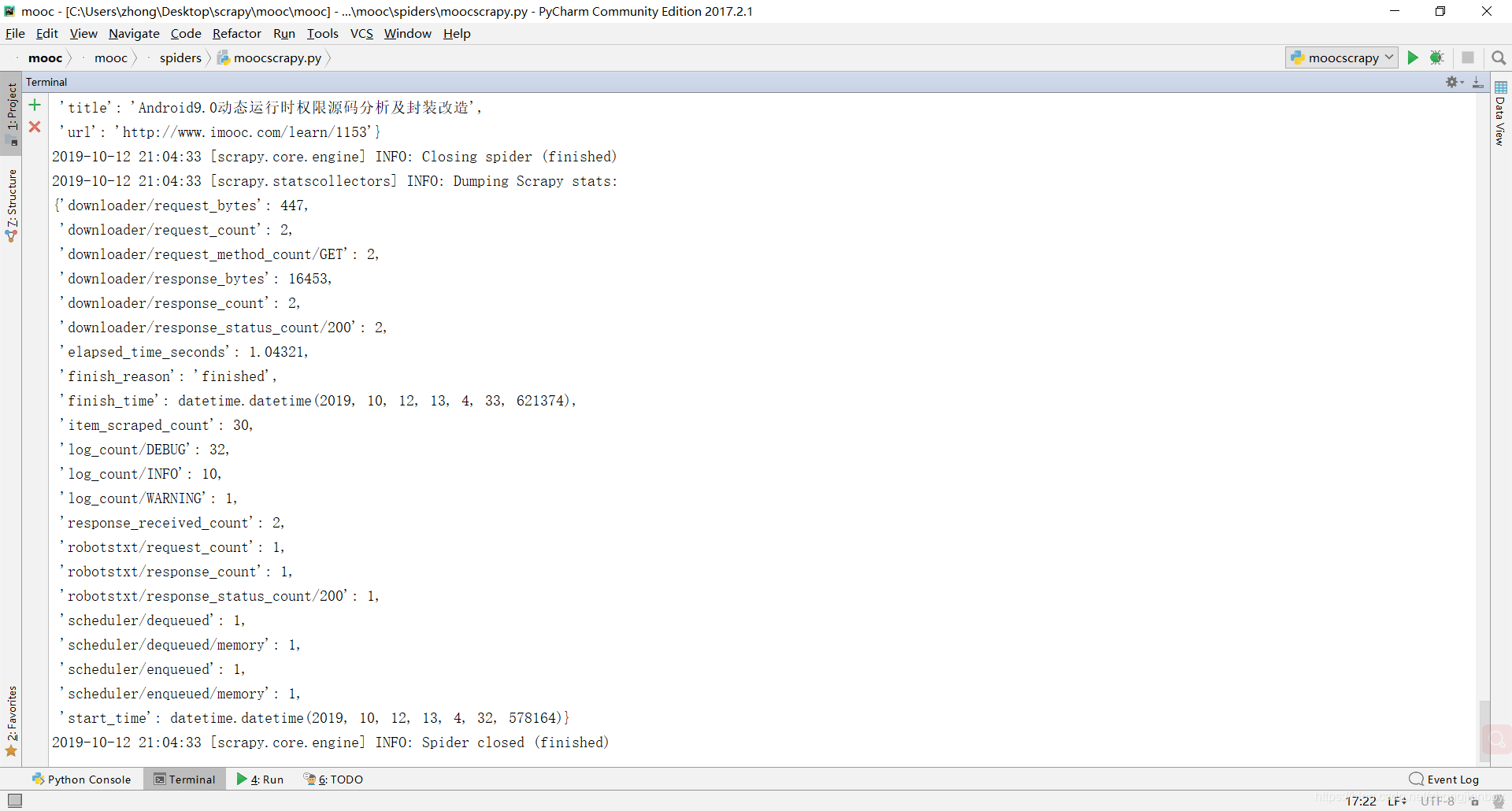

在执行完以上步骤之后，我们可以运行一下爬虫，看看是否出错。在命令行下进入工程文件夹，然后运行:

scrapy crawl moocscrapy

就可以得到以下结果：

在这里插入图片描述

第三步保存爬取到的数据

这时候我们已经成功了一半了！我需要把item的数据写入文件中便于储存。

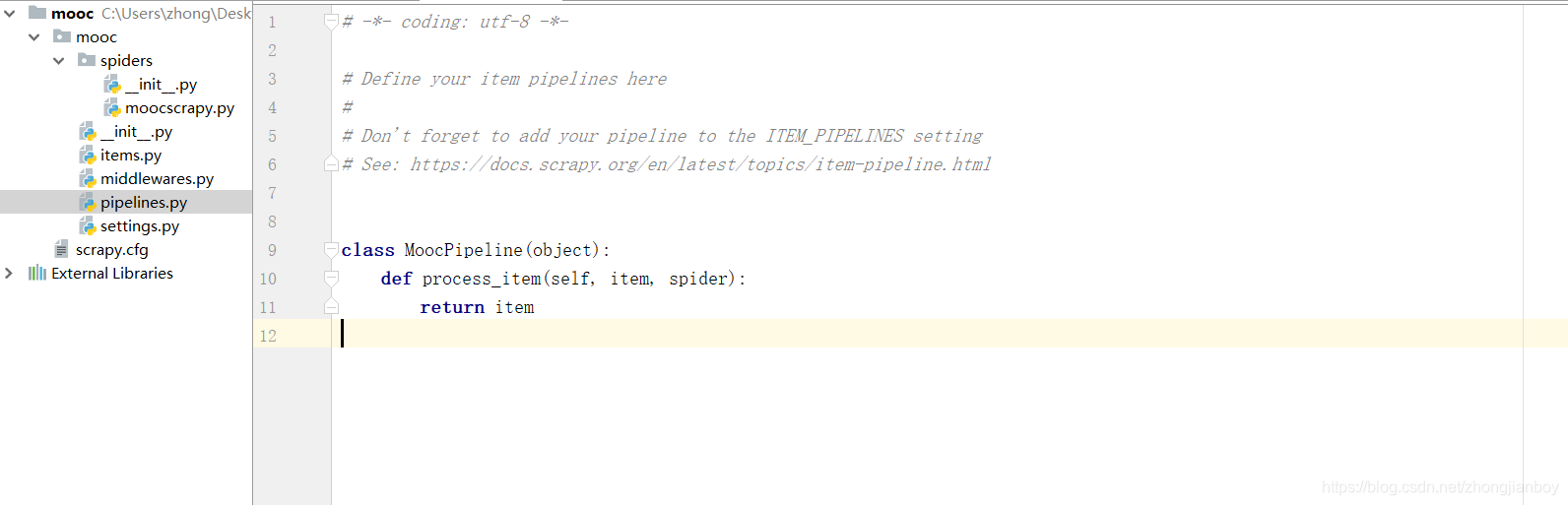

现在我们需要打开用于数据处理储存的pipelines.py

下面我们将进行数据处理工作

在这里插入图片描述

便于处理我们将爬取到的文件写入到data.josn文件中

代码如下：

from scrapy.exceptions import DropItem
import json

class MoocPipeline(object):
    def __init__(self):
        # 打开文件
        self.file = open('data.json', 'w', encoding='utf-8')
        # 该方法用于处理数据

    def process_item(self, item, spider):
        # 读取item中的数据
        line = json.dumps(dict(item), ensure_ascii=False) + "\n"
        # 写入文件
        self.file.write(line)
        # 返回item
        return item
        # 该方法在spider被开启时被调用。

    def open_spider(self, spider):
        pass
        # 该方法在spider被关闭时被调用。

    def close_spider(self, spider):
        pass

要使用Pipeline，首先要注册Pipeline

找到settings.py文件,这个文件时爬虫的配置文件

在其中添加

ITEM_PIPELINES = {
    'mooc.pipelines.MoocPipeline': 1,
}

上面的代码用于注册Pipeline，其中mooc.pipelines.MoocPipeline为你要注册的类，右侧的’1’为该Pipeline的优先级，范围1～1000，越小越先执行。

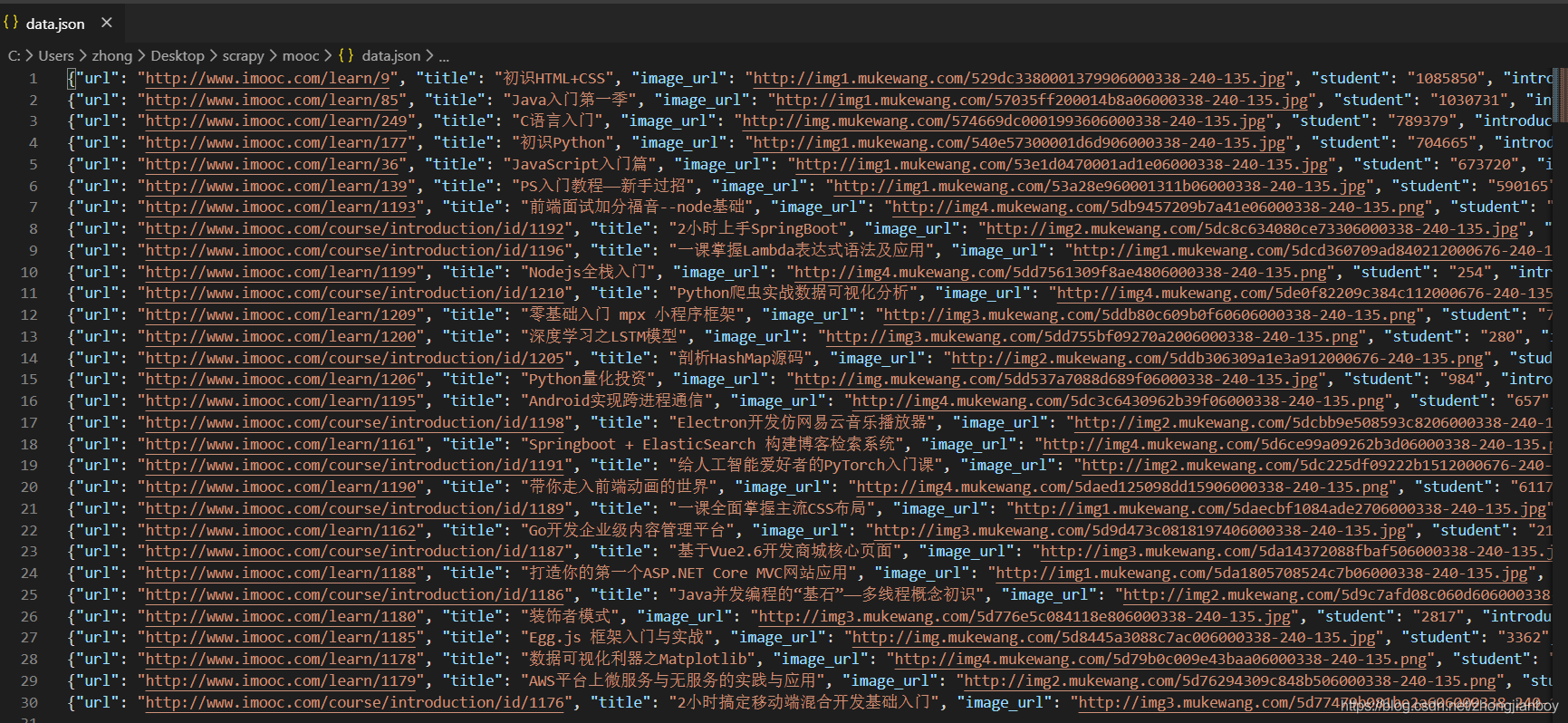

进行完以上操作，我们的一个最基本的爬取操作就完成了

这时我们再运行

scrapy crawl MySpider

在这里插入图片描述

第四步 URL跟进

通过我们的观察一共有29页的数据，而后分析url得出

        if self.n<28:
            self.n = self.n+1
            newurl = 'http://www.imooc.com/course/list/?page='+str(self.n)

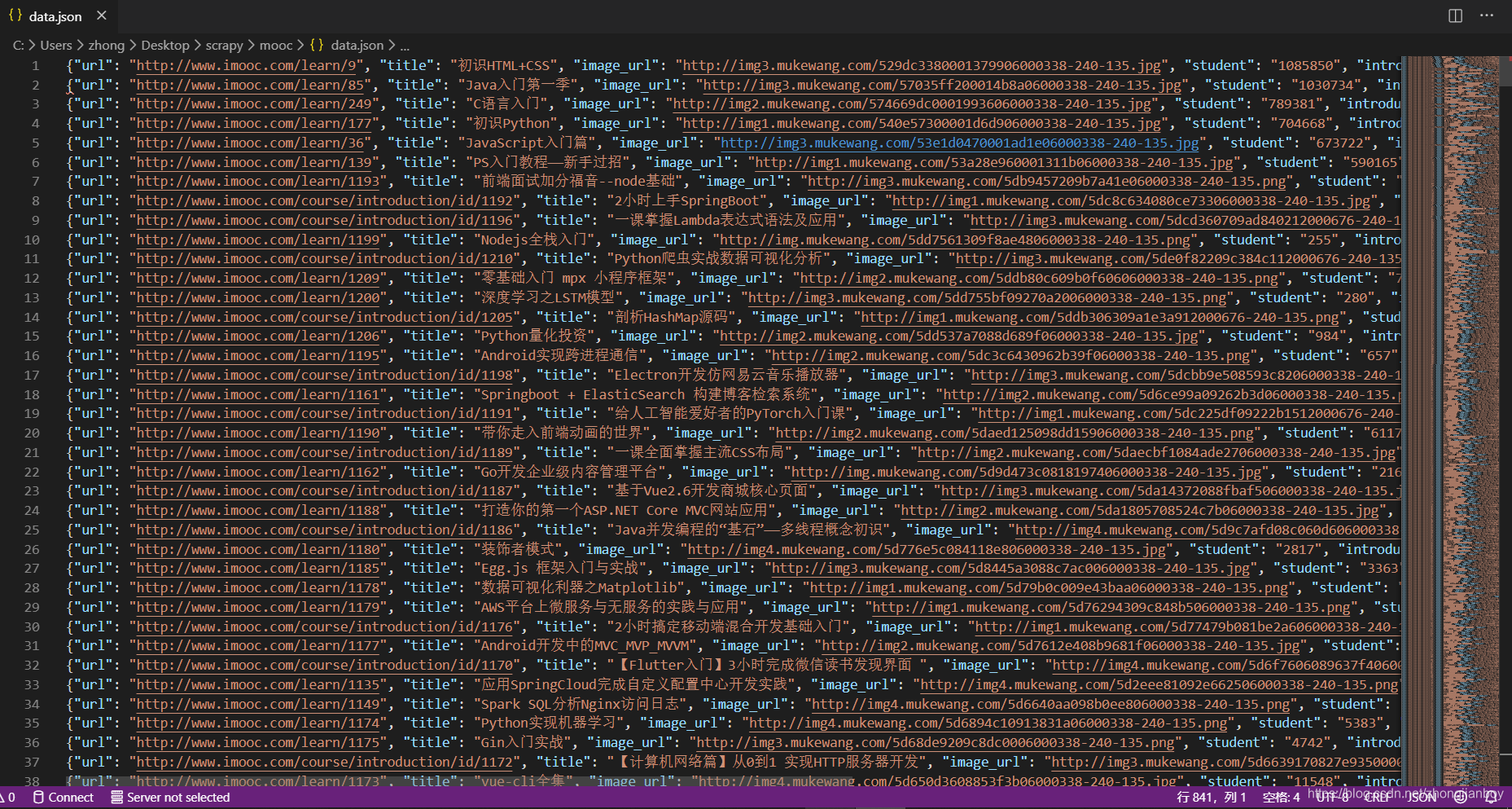

然后再运行,查看结果：
在这里插入图片描述

以上源码：

mooc/spiders/moocscrapy.py

#-*- coding: utf-8 -*-
import scrapy
from mooc.items import MoocItem

class MoocscrapySpider(scrapy.Spider):
    name = 'moocscrapy'
    allowed_domains = ['imooc.com']
    start_urls = ['http://www.imooc.com/course/list/']
    n = 1
    def parse(self, response):
        # 实例化
        item = MoocItem()
        # 先获取每个课程的div
        for box in response.xpath('//div[@class="course-card-container"]/a[@target="_blank"]'):
            # 获取每个div中的课程路径
            item['url'] = 'http://www.imooc.com' + box.xpath('.//@href').extract()[0]
            # 获取div中的课程标题
            item['title'] = box.xpath('.//div[@class="course-card-content"]/h3[@class="course-card-name"]//text()').extract()[0]
            # 获取div中的标题图片地址
            item['image_url'] = "http:" + box.xpath('.//img[@class="course-banner lazy"]/@data-original').extract()[0]
            # 获取div中的学生人数
            item['student'] = box.xpath('.//span[2]/text()').extract()[0]
            # 获取div中的课程简介
            item['introduction'] = box.xpath('.//p/text()').extract()[0].strip()
            # 返回信息
            yield item
        #url跟进
        if self.n<28:
            self.n = self.n+1
            newurl = 'http://www.imooc.com/course/list/?page='+str(self.n)
            yield scrapy.Request(newurl,callback=self.parse)

mooc/items.py

import scrapy

class MoocItem(scrapy.Item):
    # 课程标题
    title = scrapy.Field()
    # 课程url
    url = scrapy.Field()
    # 课程标题图片
    image_url = scrapy.Field()
    # 课程描述
    introduction = scrapy.Field()
    # 学习人数
    student = scrapy.Field()
    # 图片地址
    image_path = scrapy.Field()

mooc/middlewares.py

# -*- coding: utf-8 -*-

# Define here the models for your spider middleware

#

# See documentation in:

# https://docs.scrapy.org/en/latest/topics/spider-middleware.html

from scrapy import signals
import random


class UserAgentDownloadMiddleWare(object):
    USER_AGENTS = [
        'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/70.0.3538.77 Safari/537.36',
        'Mozilla/5.0 (Windows NT 6.2; WOW64) AppleWebKit/537.36 (KHTML like Gecko) Chrome/44.0.2403.155 Safari/537.36',
        'Mozilla/5.0 (Macintosh; U; PPC Mac OS X; pl-PL; rv:1.0.1) Gecko/20021111 Chimera/0.6',
        'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_10_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/41.0.2227.1 Safari/537.36',
        'Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/41.0.2227.0 Safari/537.36',
        'Mozilla/5.0 (Macintosh; U; PPC Mac OS X; en) AppleWebKit/418.8 (KHTML, like Gecko, Safari) Cheshire/1.0.UNOFFICIAL',
        'Mozilla/5.0 (X11; U; Linux i686; nl; rv:1.8.1b2) Gecko/20060821 BonEcho/2.0b2 (Debian-1.99+2.0b2+dfsg-1)'
    ]

    def process_request(self, request, spider):
        user_agent = random.choice(self.USER_AGENTS)
        request.headers['User-Agent'] = user_agent



class MoocSpiderMiddleware(object):
    # Not all methods need to be defined. If a method is not defined,
    # scrapy acts as if the spider middleware does not modify the
    # passed objects.

    @classmethod
    def from_crawler(cls, crawler):
        # This method is used by Scrapy to create your spiders.
        s = cls()
        crawler.signals.connect(s.spider_opened, signal=signals.spider_opened)
        return s

    def process_spider_input(self, response, spider):
        # Called for each response that goes through the spider
        # middleware and into the spider.

        # Should return None or raise an exception.
        return None

    def process_spider_output(self, response, result, spider):
        # Called with the results returned from the Spider, after
        # it has processed the response.

        # Must return an iterable of Request, dict or Item objects.
        for i in result:
            yield i

    def process_spider_exception(self, response, exception, spider):
        # Called when a spider or process_spider_input() method
        # (from other spider middleware) raises an exception.

        # Should return either None or an iterable of Request, dict
        # or Item objects.
        pass

    def process_start_requests(self, start_requests, spider):
        # Called with the start requests of the spider, and works
        # similarly to the process_spider_output() method, except
        # that it doesn’t have a response associated.

        # Must return only requests (not items).
        for r in start_requests:
            yield r

    def spider_opened(self, spider):
        spider.logger.info('Spider opened: %s' % spider.name)


class MoocDownloaderMiddleware(object):
    # Not all methods need to be defined. If a method is not defined,
    # scrapy acts as if the downloader middleware does not modify the
    # passed objects.

    @classmethod
    def from_crawler(cls, crawler):
        # This method is used by Scrapy to create your spiders.
        s = cls()
        crawler.signals.connect(s.spider_opened, signal=signals.spider_opened)
        return s

    def process_request(self, request, spider):
        # Called for each request that goes through the downloader
        # middleware.

        # Must either:
        # - return None: continue processing this request
        # - or return a Response object
        # - or return a Request object
        # - or raise IgnoreRequest: process_exception() methods of
        #   installed downloader middleware will be called
        return None

    def process_response(self, request, response, spider):
        # Called with the response returned from the downloader.

        # Must either;
        # - return a Response object
        # - return a Request object
        # - or raise IgnoreRequest
        return response

    def process_exception(self, request, exception, spider):
        # Called when a download handler or a process_request()
        # (from other downloader middleware) raises an exception.

        # Must either:
        # - return None: continue processing this exception
        # - return a Response object: stops process_exception() chain
        # - return a Request object: stops process_exception() chain
        pass

    def spider_opened(self, spider):
        spider.logger.info('Spider opened: %s' % spider.name)

      ```

**mooc/pipelines.py**

     ```python

from scrapy.exceptions import DropItem
import json

class MoocPipeline(object):

    def __init__(self):
        # 打开文件
        self.file = open('data.json', 'w', encoding='utf-8')
        # 该方法用于处理数据

    def process_item(self, item, spider):
        # 读取item中的数据
        line = json.dumps(dict(item), ensure_ascii=False) + "\n"
        # 写入文件
        self.file.write(line)
        # 返回item
        return item
        # 该方法在spider被开启时被调用。

    def open_spider(self, spider):
        pass
        # 该方法在spider被关闭时被调用。

    def close_spider(self, spider):
        pass

mooc/setting.py

# -*- coding: utf-8 -*-

# Scrapy settings for mooc project
#
# For simplicity, this file contains only settings considered important or
# commonly used. You can find more settings consulting the documentation:
#
#     https://docs.scrapy.org/en/latest/topics/settings.html
#     https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
#     https://docs.scrapy.org/en/latest/topics/spider-middleware.html

BOT_NAME = 'mooc'

SPIDER_MODULES = ['mooc.spiders']
NEWSPIDER_MODULE = 'mooc.spiders'

ITEM_PIPELINES = {
    'mooc.pipelines.MoocPipeline': 1,
}
# Crawl responsibly by identifying yourself (and your website) on the user-agent
#USER_AGENT = 'mooc (+http://www.yourdomain.com)'

# Obey robots.txt rules
ROBOTSTXT_OBEY = False
DOWNLOADER_MIDDLEWARES = {
   'mooc.middlewares.UserAgentDownloadMiddleWare': 543,
}
# Configure maximum concurrent requests performed by Scrapy (default: 16)
#CONCURRENT_REQUESTS = 32

# Configure a delay for requests for the same website (default: 0)
# See https://docs.scrapy.org/en/latest/topics/settings.html#download-delay
# See also autothrottle settings and docs
#DOWNLOAD_DELAY = 3
# The download delay setting will honor only one of:
#CONCURRENT_REQUESTS_PER_DOMAIN = 16
#CONCURRENT_REQUESTS_PER_IP = 16

# Disable cookies (enabled by default)
#COOKIES_ENABLED = False

# Disable Telnet Console (enabled by default)
#TELNETCONSOLE_ENABLED = False

# Override the default request headers:
#DEFAULT_REQUEST_HEADERS = {
#   'Accept': 'text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8',
#   'Accept-Language': 'en',
#}

# Enable or disable spider middlewares
# See https://docs.scrapy.org/en/latest/topics/spider-middleware.html
#SPIDER_MIDDLEWARES = {
#    'mooc.middlewares.MoocSpiderMiddleware': 543,
#}

# Enable or disable downloader middlewares
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html
#DOWNLOADER_MIDDLEWARES = {
#    'mooc.middlewares.MoocDownloaderMiddleware': 543,
#}

# Enable or disable extensions
# See https://docs.scrapy.org/en/latest/topics/extensions.html
#EXTENSIONS = {
#    'scrapy.extensions.telnet.TelnetConsole': None,
#}

# Configure item pipelines
# See https://docs.scrapy.org/en/latest/topics/item-pipeline.html
#ITEM_PIPELINES = {
#    'mooc.pipelines.MoocPipeline': 300,
#}

# Enable and configure the AutoThrottle extension (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/autothrottle.html
#AUTOTHROTTLE_ENABLED = True
# The initial download delay
#AUTOTHROTTLE_START_DELAY = 5
# The maximum download delay to be set in case of high latencies
#AUTOTHROTTLE_MAX_DELAY = 60
# The average number of requests Scrapy should be sending in parallel to
# each remote server
#AUTOTHROTTLE_TARGET_CONCURRENCY = 1.0
# Enable showing throttling stats for every response received:
#AUTOTHROTTLE_DEBUG = False

# Enable and configure HTTP caching (disabled by default)
# See https://docs.scrapy.org/en/latest/topics/downloader-middleware.html#httpcache-middleware-settings
#HTTPCACHE_ENABLED = True
#HTTPCACHE_EXPIRATION_SECS = 0
#HTTPCACHE_DIR = 'httpcache'
#HTTPCACHE_IGNORE_HTTP_CODES = []
#HTTPCACHE_STORAGE = 'scrapy.extensions.httpcache.FilesystemCacheStorage'
