Windows RabbitMQ-c 消息处理流程
RabbitMQ-c Demo
- 项目需求：
多个app同时发送消息被多个app同时接收。生产者-消费者模式。 - 开发环境：
Windows 11
visual studio 2017
camke 3.27.0
Erlang 24.0
rabbitmq-server-3.9.7 - Rabbit MQ的安装
RabbitMQ的安装需要依赖Erlang。安装之前，先安装Erlang。Erlang与Rabbit的版本不是所有的都匹配。所有安装的时候注意两者版本要匹配。查看版本匹配。
Erlang下载地址
RabbitMQ下载地址
- 配置设置

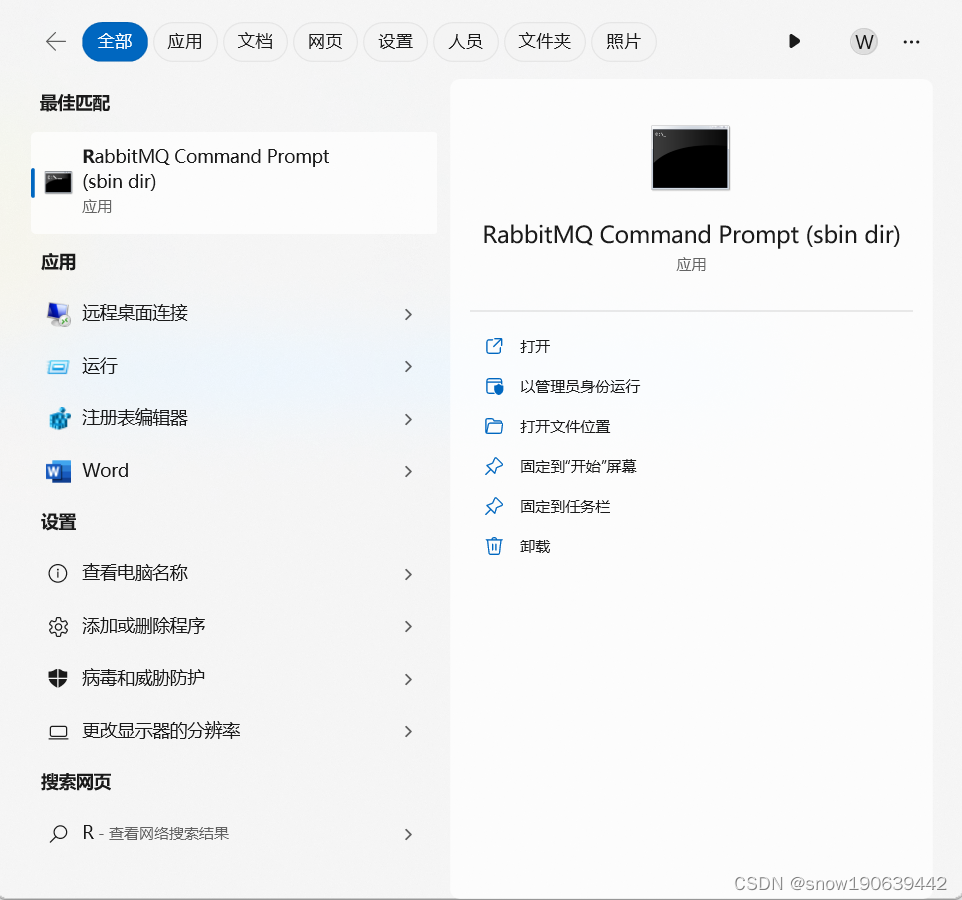

RabbitMQ安装完成后开启插件节点，运行下图的软件，设置节点。

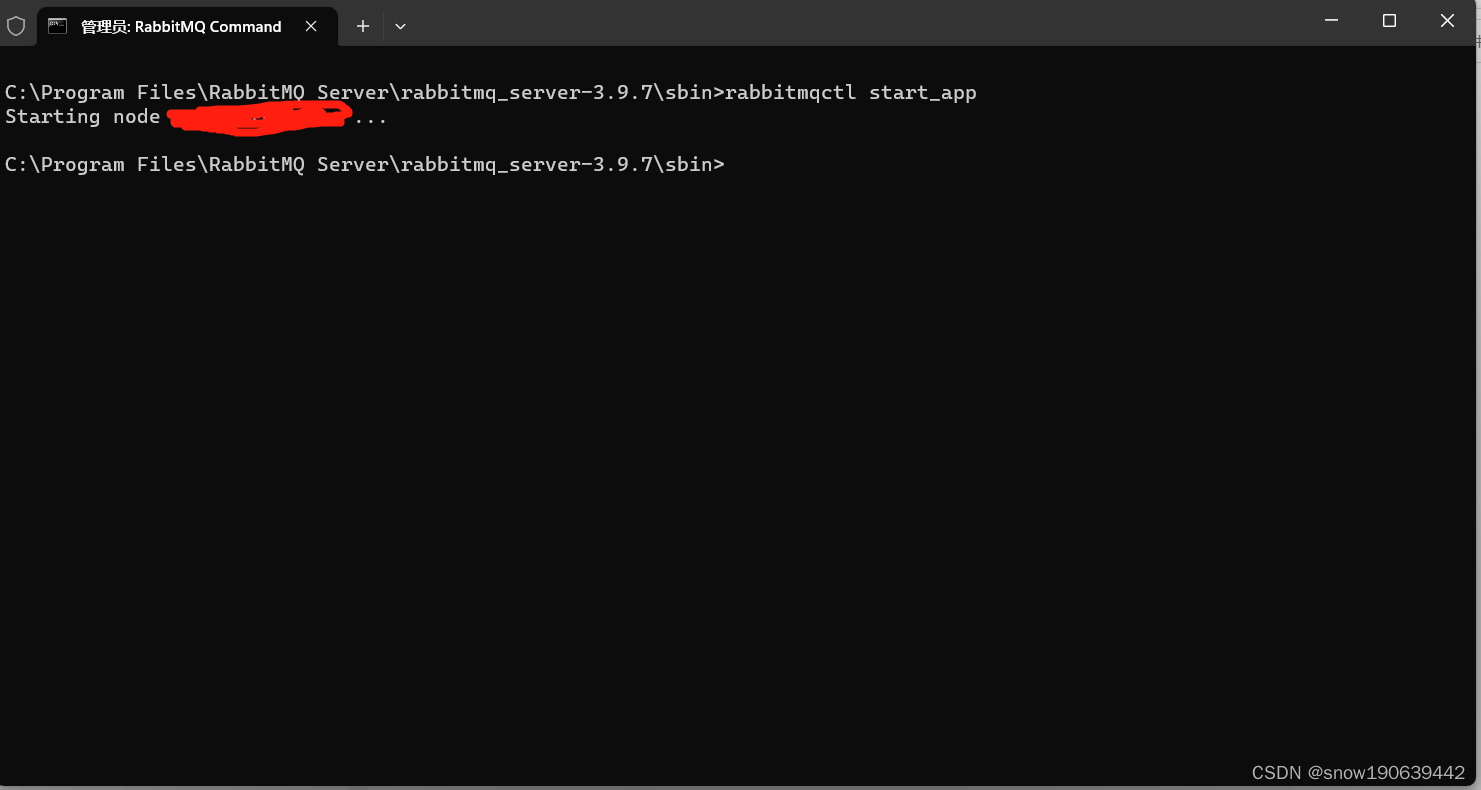

输入开启节点的指令：rabbitmqctl start_app

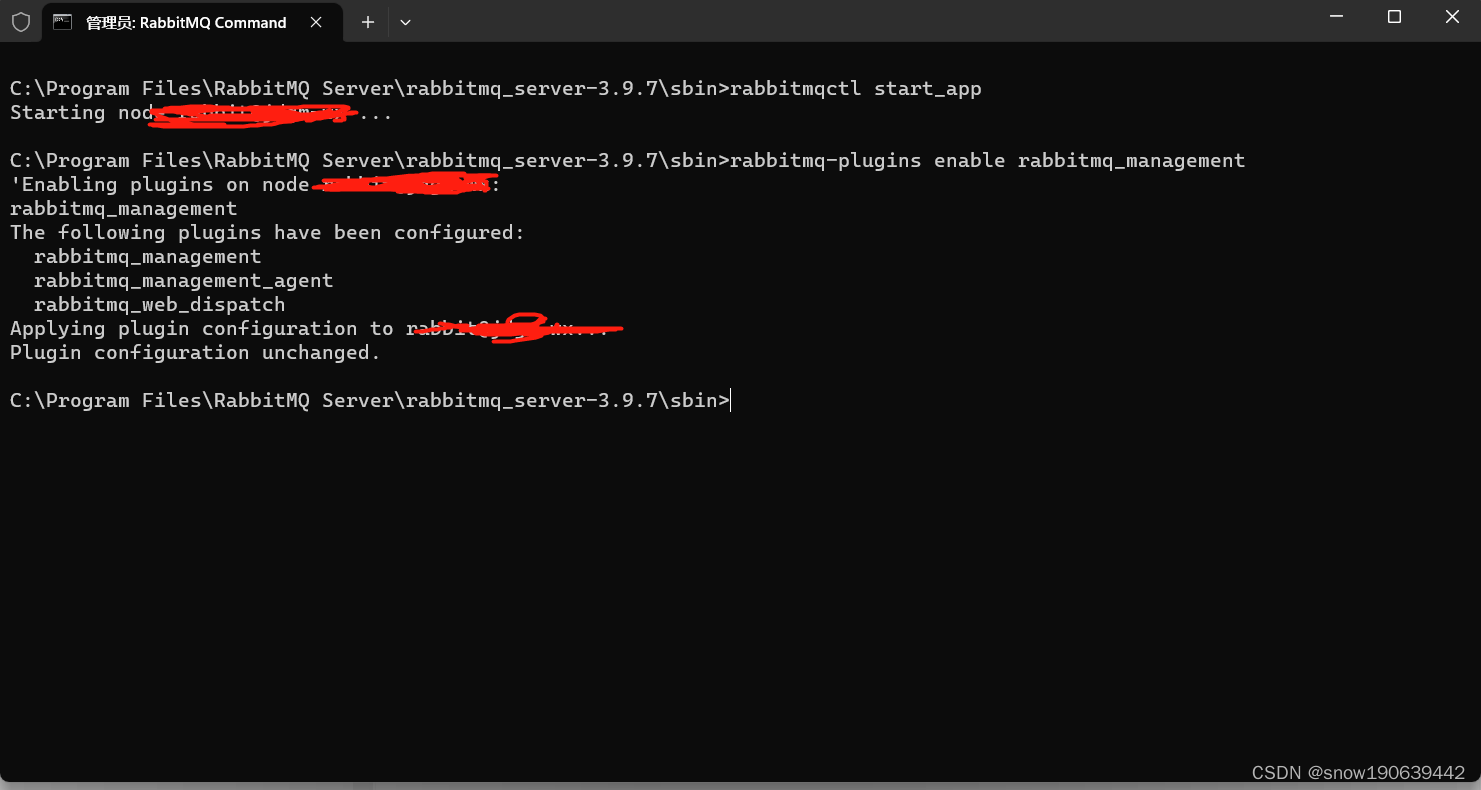

开启RabbitMQ管理模块的插件，并配置到RabbitMQ节点上：rabbitmq-plugins enable rabbitmq_management

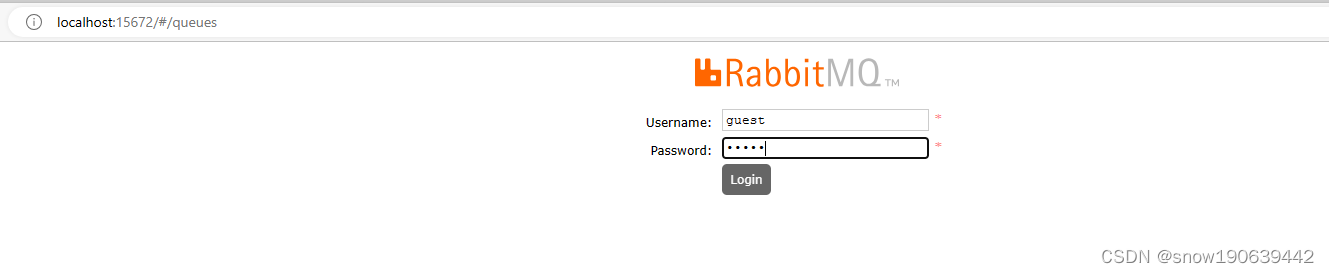

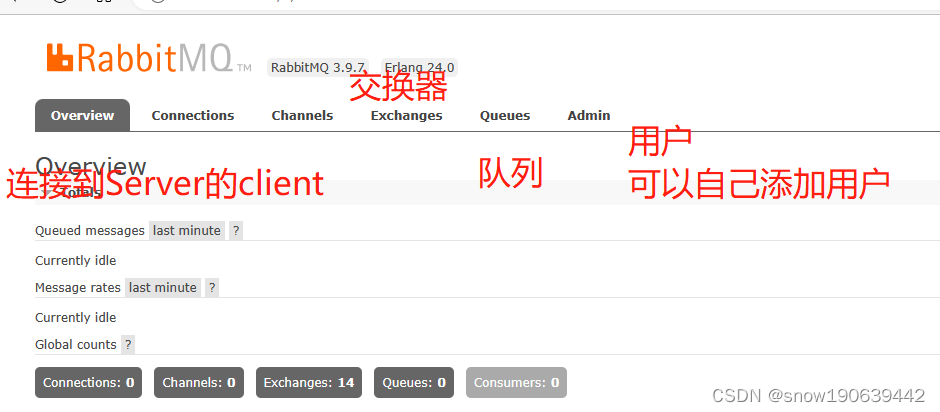

通过浏览器访问RabbitMQ web管理软件：localhost:15672
用户名：guest，密码：guest
- RbbitMQ-c 库的编译

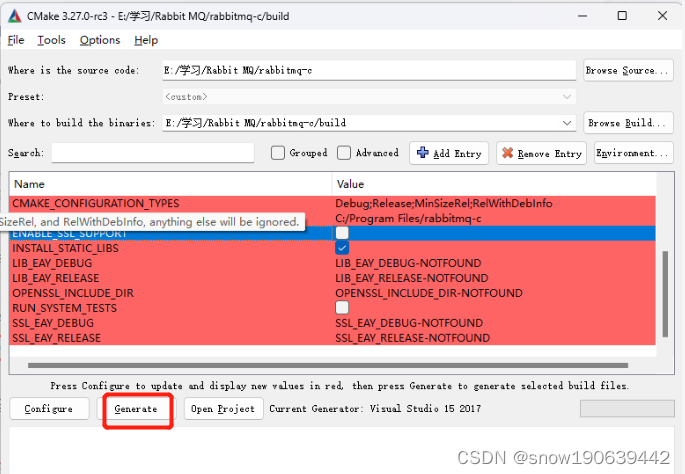

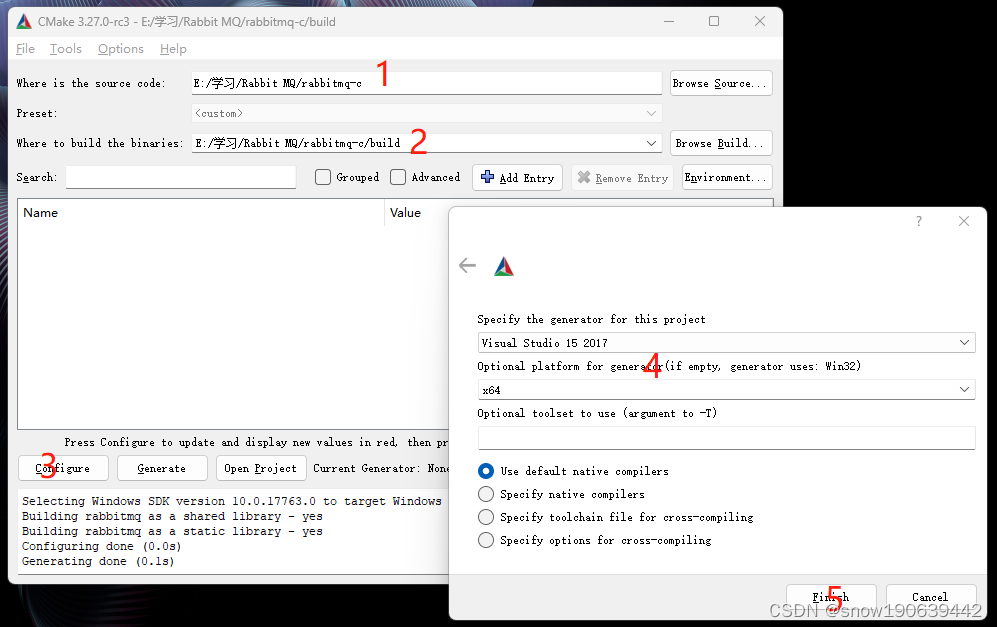

从github下载 源码，用cmake生成.sln,再编译lib。

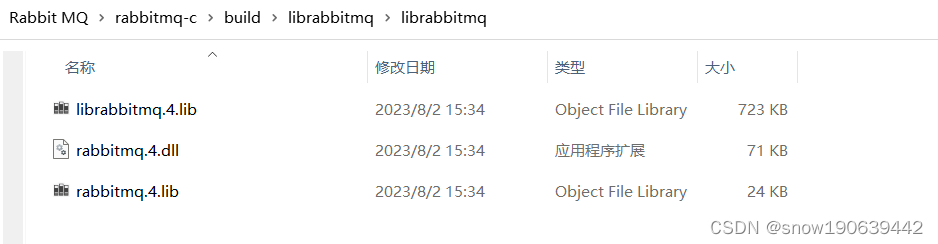

备注：将生成的库引入demo - 编写Client demo
分为publish demo 和 consumer demo ，封装共同访问类CRabbitClient。
#pragma once
#include <string>
#include <vector>
#include <amqp.h>
#include <amqp_tcp_socket.h>
#include <thread>
using RecvCallBack = std::function<void(const std::string& )>;
class CRabbitmqClient
{
public:
CRabbitmqClient();
~CRabbitmqClient();
/*
* 连接RabbitMQ Server
* @param [in] strExchange:交换器名称
* @param [in] strType：交换器类型 ，常见的如 fanout（广播） direct（点对点） topic（订阅）
* @param [in] isPassive：检测exchange是否存在。false：不存在会创建，true:不存在不会创建
* @param [in] isDurable：是否永久化。永久化：将队列信息写入磁盘，RabbitMQ Server重启后，队列不会丢失
* @param [in] isAutoDelete：当没有队列和交换器绑定时，交换器是否自动删除
* @param [in] internal: 设置是否内置的, true表示是内置的交换器, 客户端程序无法直接发送消息到这个交换器中, 只能通过交换器路由到交换器这个方式
* @returns 设置结果
*/
int Connect(const std::string &strHostname, int iPort, const std::string &strUser, const std::string &strPasswd);
int Disconnect();
/*
* 声明交换器
* @param [in] strExchange:交换器名称
* @param [in] strType：交换器类型 ，常见的如 fanout（广播） direct（点对点） topic（订阅）
* @param [in] isPassive：检测exchange是否存在。false：不存在会创建，true:不存在不会创建
* @param [in] isDurable：是否永久化。永久化：将队列信息写入磁盘，RabbitMQ Server重启后，队列不会丢失
* @param [in] isAutoDelete：当没有队列和交换器绑定时，交换器是否自动删除
* @param [in] internal: 设置是否内置的, true表示是内置的交换器, 客户端程序无法直接发送消息到这个交换器中, 只能通过交换器路由到交换器这个方式
* @returns 声明结果
*/
int ExchangeDeclare(const std::string &strExchange,const std::string& strType,bool isPassive =false,
bool isDurable =false,bool isAutoDelete = false,int internal =0);
/*
* 声明队列
* @param [in] strQueueName:队列名称
* @param [in] isPassive：检测exchange是否存在。false：不存在会创建，true:不存在不会创建
* @param [in] isDurable：是否永久化。永久化：将队列信息写入磁盘，RabbitMQ Server重启后，队列不会丢失
* @param [in] isExclusive：只有自己的用户对该队列可见
* @param [in] isAutoDelete：当没有队列和交换器绑定时，交换器是否自动删除
* @returns 声明结果
*/
int QueueDelare(const std::string& strQueueName, bool isPassive = false,
bool isDurable = false, bool isExclusive =false, bool isAutoDelete = false );
/*
* 将队列绑定到交换器
* @param [in] strQueueName:队列名称
* @param [in] strExchange：交换器名称
* @param [in] strBindKey：路由键
* @returns 绑定结果
*/
int QueueBind(const std::string &strQueueName, const std::string &strExchange, const std::string &strBindKey);
int QueueUnbind(const std::string &strQueueName, const std::string &strExchange, const std::string &strBindKey);
int QueueDelete(const std::string &strQueueName, int iIfUnused);
/*
* 发布消息
* @param [in] strMessage:需要发送的消息
* @param [in] strExchange：交换器名称
* @param [in] strBindKey：路由键
* @returns 发布结果
*/
int Publish(const std::string &strMessage, const std::string &strExchange, const std::string &strRoutekey);
int Consumer(const std::string &strQueueName, RecvCallBack func);
private:
int ErrorMsg(amqp_rpc_reply_t x, char const *context);
void StartRecvThread();
void run();
private:
std::string m_strHostname{"127.0.0.1"}; // amqp主机
int m_iPort{5672}; // amqp端口
std::string m_strUser{"guest"};
std::string m_strPasswd{"guest"};
int m_iChannel=2;
amqp_socket_t *m_pSock{ nullptr };
amqp_connection_state_t m_pConn{ nullptr };
std::unique_ptr<std::thread> m_pRecvThread{ nullptr };
bool m_isRun{ false };
RecvCallBack m_recvFunc{ nullptr };
};
#include "CRabbitmqClient.h"
CRabbitmqClient::CRabbitmqClient()
{
}
CRabbitmqClient::~CRabbitmqClient()
{
}
int CRabbitmqClient::Connect(const std::string &strHostname, int iPort, const std::string &strUser, const std::string &strPasswd)
{
m_strHostname = strHostname;
m_iPort = iPort;
m_strUser = strUser;
m_strPasswd = strPasswd;
m_pConn = amqp_new_connection();
if (m_pConn == nullptr)
{
return -1;
}
m_pSock = amqp_tcp_socket_new(m_pConn);
if (m_pSock == nullptr)
{
return -2;
}
int status = amqp_socket_open(m_pSock, m_strHostname.c_str(), m_iPort);
if(status<0)
{
return -3;
}
if (0 != ErrorMsg(amqp_login(m_pConn, "guest", 0, 131072, 0, AMQP_SASL_METHOD_PLAIN, m_strUser.c_str(), m_strPasswd.c_str()), "Logging in")) {
return -4;
}
return 0;
}
int CRabbitmqClient::Disconnect()
{
if (m_pConn != nullptr)
{
if (0 != ErrorMsg(amqp_connection_close(m_pConn, AMQP_REPLY_SUCCESS), "Closeing connectiong"))
{
return -1;
}
if (amqp_destroy_connection(m_pConn) < 0)
{
return -2;
}
m_pConn = nullptr;
}
return 0;
}
int CRabbitmqClient::ExchangeDeclare(const std::string &strExchange, const std::string& strType, bool isPassive,
bool isDurable , bool isAutoDelete, int internal )
{
amqp_channel_open(m_pConn, m_iChannel);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "open channel")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -1;
}
amqp_bytes_t exchange = amqp_cstring_bytes(strExchange.c_str());
amqp_bytes_t type = amqp_cstring_bytes(strType.c_str());
amqp_exchange_declare(m_pConn,m_iChannel,exchange,type, isPassive, isDurable, isAutoDelete, internal,amqp_empty_table);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "exchange_declare")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -2;
}
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return 0;
}
int CRabbitmqClient::QueueDelare(const std::string& strQueueName, bool isPassive ,bool isDurable , bool isExclusive, bool isAutoDelete )
{
if (m_pConn == nullptr)
{
return -1;
}
amqp_channel_open(m_pConn, m_iChannel);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "open channel")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -2;
}
amqp_bytes_t queue = amqp_cstring_bytes(strQueueName.c_str());
amqp_queue_declare(m_pConn, m_iChannel,queue, isPassive, isDurable, isExclusive, isAutoDelete, amqp_empty_table);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "queue_declare")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -3;
}
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return 0;
}
int CRabbitmqClient::QueueBind(const std::string &strQueueName, const std::string &strExchange, const std::string &strBindKey)
{
if (m_pConn == nullptr)
{
return -1;
}
amqp_channel_open(m_pConn, m_iChannel);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "open channel")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -2;
}
amqp_bytes_t queue = amqp_cstring_bytes(strQueueName.c_str());
amqp_bytes_t exchange = amqp_cstring_bytes(strExchange.c_str());
amqp_bytes_t routkey = amqp_cstring_bytes(strBindKey.c_str());
amqp_queue_bind(m_pConn, m_iChannel, queue, exchange, routkey, amqp_empty_table);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "queue_bind")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -3;
}
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return 0;
}
int CRabbitmqClient::QueueUnbind(const std::string &strQueueName, const std::string &strExchange, const std::string &strBindKey)
{
if (m_pConn == nullptr)
{
return -1;
}
amqp_channel_open(m_pConn, m_iChannel);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "open channel")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -2;
}
amqp_bytes_t queue = amqp_cstring_bytes(strQueueName.c_str());
amqp_bytes_t exchange = amqp_cstring_bytes(strExchange.c_str());
amqp_bytes_t routkey = amqp_cstring_bytes(strBindKey.c_str());
amqp_queue_unbind(m_pConn, m_iChannel, queue, exchange, routkey, amqp_empty_table);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "queue_unbind")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -3;
}
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return 0;
}
int CRabbitmqClient::QueueDelete(const std::string &strQueueName, int iIfUnused)
{
if (m_pConn == nullptr)
{
return -1;
}
amqp_channel_open(m_pConn, m_iChannel);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "open channel")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -2;
}
if(0!= ErrorMsg(amqp_get_rpc_reply(m_pConn), "delete queue")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -3;
}
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return 0;
}
int CRabbitmqClient::Publish(const std::string &strMessage, const std::string &strExchange, const std::string &strRoutekey)
{
if (m_pConn == nullptr)
{
return -1;
}
amqp_channel_open(m_pConn, m_iChannel);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "open channel")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -2;
}
amqp_bytes_t message_bytes;
message_bytes.len = strMessage.length();
message_bytes.bytes = (void *)(strMessage.c_str());
amqp_bytes_t exchange = amqp_cstring_bytes(strExchange.c_str());
amqp_bytes_t routekey = amqp_cstring_bytes(strRoutekey.c_str());
//if (0 != amqp_basic_publish(m_pConn, m_iChannel, exchange, routekey, 0, 0, &props, message_bytes)) {
if (0 != amqp_basic_publish(m_pConn, m_iChannel, exchange, routekey, 0, 0, NULL, message_bytes)) {
fprintf(stderr, "publish amqp_basic_publish failed\n");
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "amqp_basic_publish")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -3;
}
}
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
}
int CRabbitmqClient::Consumer(const std::string &strQueueName, RecvCallBack func)
{
if (m_pConn == nullptr)
{
return -1;
}
if (m_recvFunc == nullptr)
{
m_recvFunc = func;
}
amqp_channel_open(m_pConn, m_iChannel);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "open channel")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -2;
}
amqp_basic_qos(m_pConn, m_iChannel, 0, 1, 0);
int ack = 1; // no_ack 是否需要确认消息后再从队列中删除消息
amqp_bytes_t queuename = amqp_cstring_bytes(strQueueName.c_str());
amqp_basic_consume(m_pConn, m_iChannel, queuename, amqp_empty_bytes, 0, ack, 0, amqp_empty_table);
if (0 != ErrorMsg(amqp_get_rpc_reply(m_pConn), "Consuming")) {
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
return -3;
}
StartRecvThread();
return 0;
}
int CRabbitmqClient::ErrorMsg(amqp_rpc_reply_t x, char const *context) {
switch (x.reply_type) {
case AMQP_RESPONSE_NORMAL:
return 0;
case AMQP_RESPONSE_NONE:
fprintf(stderr, "%s: missing RPC reply type!\n", context);
break;
case AMQP_RESPONSE_LIBRARY_EXCEPTION:
fprintf(stderr, "%s: %s\n", context, amqp_error_string2(x.library_error));
break;
case AMQP_RESPONSE_SERVER_EXCEPTION:
switch (x.reply.id) {
case AMQP_CONNECTION_CLOSE_METHOD: {
amqp_connection_close_t *m = (amqp_connection_close_t *)x.reply.decoded;
fprintf(stderr, "%s: server connection error %uh, message: %.*s\n",
context, m->reply_code, (int)m->reply_text.len,
(char *)m->reply_text.bytes);
break;
}
case AMQP_CHANNEL_CLOSE_METHOD: {
amqp_channel_close_t *m = (amqp_channel_close_t *)x.reply.decoded;
fprintf(stderr, "%s: server channel error %uh, message: %.*s\n",
context, m->reply_code, (int)m->reply_text.len,
(char *)m->reply_text.bytes);
break;
}
default:
fprintf(stderr, "%s: unknown server error, method id 0x%08X\n",
context, x.reply.id);
break;
}
break;
}
return -1;
}
void CRabbitmqClient::StartRecvThread()
{
if (m_pRecvThread == nullptr)
{
m_pRecvThread = std::make_unique<std::thread>(&CRabbitmqClient::run, this);
m_isRun = true;
}
}
void CRabbitmqClient::run()
{
std::chrono::milliseconds interval{ 1000 };
amqp_rpc_reply_t res;
amqp_envelope_t envelope;
while (true)
{
amqp_maybe_release_buffers(m_pConn);
res = amqp_consume_message(m_pConn, &envelope, nullptr, 0);
if (AMQP_RESPONSE_NORMAL != res.reply_type)
{
fprintf(stderr, "Consumer amqp_channel_close failed\n");
amqp_channel_close(m_pConn, m_iChannel, AMQP_REPLY_SUCCESS);
break;
}
std::string str((char *)envelope.message.body.bytes, (char *)envelope.message.body.bytes + envelope.message.body.len);
if (m_recvFunc)
{
m_recvFunc(str);
}
amqp_destroy_envelope(&envelope);
std::this_thread::sleep_for(interval);
}
amqp_channel_close(m_pConn, 1, AMQP_REPLY_SUCCESS);
amqp_connection_close(m_pConn, AMQP_REPLY_SUCCESS);
amqp_destroy_connection(m_pConn);
}
publish
// RabbitMQPublish.cpp : 此文件包含 "main" 函数。程序执行将在此处开始并结束。
//
#include <iostream>
#include "CRabbitmqClient.h"
int main()
{
CRabbitmqClient objRabbitmq;
std::string strIP = "127.0.0.1";
int iPort = 5672;
std::string strUser = "guest";
std::string strPasswd = "guest";
int iRet = objRabbitmq.Connect(strIP, iPort, strUser, strPasswd);
printf("Rabbitmq Connect Ret: %d\n", iRet);
std::string strExchange = "ExchangeTest1";
std::string strRoutekey = "routekeyTest1";
std::string strQueuename1 = "queueTest1";
std::string strQueuename2 = "queueTest2";
iRet = objRabbitmq.ExchangeDeclare(strExchange, "fanout");
printf("Rabbitmq ExchangeDeclare Ret: %d\n", iRet);
iRet = objRabbitmq.QueueDelare(strQueuename1);
printf("Rabbitmq QueueDeclare1 Ret: %d\n", iRet);
iRet = objRabbitmq.QueueDelare(strQueuename2);
printf("Rabbitmq QueueDeclare2 Ret: %d\n", iRet);
iRet = objRabbitmq.QueueBind(strQueuename1, strExchange, strRoutekey);
printf("Rabbitmq QueueBind1 Ret: %d\n", iRet);
iRet = objRabbitmq.QueueBind(strQueuename2, strExchange, strRoutekey);
printf("Rabbitmq QueueBind2 Ret: %d\n", iRet);
// Send Msg
while (true)
{
std::string temp;
std::cin >> temp;
std::string strSendMsg = temp;
iRet = objRabbitmq.Publish(strSendMsg, strExchange, strRoutekey);
printf("Rabbitmq Publish 1 Ret: %d\n", iRet);
}
objRabbitmq.Disconnect();
return 0;
}
consumer
// RabbitMQConsumer.cpp : 此文件包含 "main" 函数。程序执行将在此处开始并结束。
//
#include <iostream>
#include "CRabbitmqClient.h"
void RecvFunc(const std::string& message)
{
std::cout << message<<std::endl;
}
int main()
{
CRabbitmqClient objRabbitmq;
std::string strIP = "127.0.0.1";
int iPort = 5672;
std::string strUser = "guest";
std::string strPasswd = "guest";
int iRet = objRabbitmq.Connect(strIP, iPort, strUser, strPasswd);
printf("Rabbitmq Connect Ret: %d\n", iRet);
std::string strExchange = "ExchangeTest1";
std::string strRoutekey = "routekeyTest1";
std::string strQueuename = "queueTest1";
iRet = objRabbitmq.Consumer(strQueuename, RecvFunc);
printf("Rabbitmq Consumer Ret: %d\n", iRet);
std::chrono::milliseconds interval{ 1000 };
while (true)
{
std::this_thread::sleep_for(interval);
}
return 0;
}
腾讯云面向开发者汇聚海量精品云计算使用和开发经验，营造开放的云计算技术生态圈。
更多推荐
1
0- 0
已为社区贡献1条内容
所有评论(0)
