apiVersion: v1
kind: PersistentVolume
metadata:
  name: task-pv-volume
  labels:
    type: local
spec:
  storageClassName: manual
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Recycle
  hostPath:
    path: /Users/work/code/sample/data/neo4j"

---

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: task-pv-claim
spec:
  storageClassName: manual
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 3Gi

apiVersion: apps/v1beta1
kind: StatefulSet
metadata:
  name: neo4j-core
  namespace: neo4j
  labels:
    app: neo4j-core
spec:
  replicas: 2
  selector:
    matchLabels:
      app: neo4j-core
  serviceName: neo4j-core
  template:
    metadata:
      labels:
        app: neo4j-core
    spec:
      containers:
      - name: neo4j-core
        image: neo4j:3.5.5-enterprise   # 官方镜像，3.5.5企业版
        imagePullPolicy: IfNotPresent
        env:    # 这里通过env，配置镜像环境参数，这是因为此镜像是通过这样来进行配置参数的
          - name: NEO4J_ACCEPT_LICENSE_AGREEMENT    # 接受证书协议，必须的
            value: "yes"
          - name: NEO4J_dbms_connectors_default__advertised__address  # 指定自身pod的ip地址，默认为localhost，在集群中必须注明自身地址，这里直接用ip
            valueFrom:
              fieldRef:
                fieldPath: status.podIP
          - name: NEO4J_dbms_mode  # 节点的模式，选择CORE，就是核心节点
            value: "CORE"
          - name: NEO4J_AUTH   # 一定要自定义初始验证的用户名/密码
            value: "neo4j/password"
          - name: NEO4J_causal__clustering_minimum__core__cluster__size__at__formation
            value: "2"
          - name: NEO4J_causal__clustering_minimum__core__cluster__size__at__runtime
            value: "2"
          - name: NEO4J_causal__clustering_discovery__type  # 默认集群发现方式为LIST，这里写不写都行
            value: "LIST"
          - name: NEO4J_causal__clustering_initial__discovery__members  # 手动写明集群中所有成员的ip:port，5000端口为集群发现端口
            value: "neo4j-core-0.neo4j-core.neo4j.svc.cluster.local:5000,neo4j-core-1.neo4j-core.neo4j.svc.cluster.local:5000"
          - name: NEO4J_causal__clustering_discovery__advertised__address  # 下面这三个必须定义，为节点自身的ip:port，相当于节点自身的名称，因为默认是会用自身hostname，但是在k8s中，无法单单通过hostname解析到ip地址，这样定义的自身地址会无法识别
            value: $(NEO4J_dbms_connectors_default__advertised__address):5000
          - name: NEO4J_causalClustering_transactionAdvertisedAddress
            value: $(NEO4J_dbms_connectors_default__advertised__address):6000
          - name: NEO4J_causalClustering_raftAdvertisedAddress
            value: $(NEO4J_dbms_connectors_default__advertised__address):7000
        volumeMounts:
        - name: neo4j-core
          mountPath: /data/neo4j
      volumes:
      - name: neo4j-core
        persistentVolumeClaim:
          claimName: task-pv-claim
---
apiVersion: v1
kind: Service
metadata:
  name: neo4j-core
  namespace: neo4j
spec:
  selector:
    app: neo4j-core
  type: NodePort
  ports:
    - protocol: TCP
      name: http
      port: 7474
      nodePort: 31474
      targetPort: 7474
    - protocol: TCP
      name: blot
      port: 7687
      nodePort: 31687
      targetPort: 7687

apiVersion: apps/v1
kind: Deployment
metadata:
  name: neorj-read-replica
  namespace: neo4j
  labels:
    app: neorj-read-replica
spec:
  replicas: 2
  selector:
    matchLabels:
      app: neorj-read-replica
  template:
    metadata:
      labels:
        app: neorj-read-replica
    spec:
      containers:
      - name: neorj-read-replica
        image: neo4j:3.5.5-enterprise
        imagePullPolicy: IfNotPresent
        env:
          - name: NEO4J_ACCEPT_LICENSE_AGREEMENT
            value: "yes"
          - name: NEO4J_dbms_connectors_default__advertised__address
            valueFrom:
              fieldRef:
                fieldPath: status.podIP
          - name: NEO4J_dbms_mode   # 指定模式为只读节点模式
            value: "READ_REPLICA"
          - name: NEO4J_AUTH
            value: "neo4j/password"
          - name: NEO4J_causal__clustering_discovery__type
            value: "LIST"
          - name: NEO4J_causal__clustering_initial__discovery__members
            value: "neo4j-core-0.neo4j-core.neo4j.svc.cluster.local:5000,neo4j-core-1.neo4j-core.neo4j.svc.cluster.local:5000"
---
apiVersion: v1
kind: Service
metadata:
  name: neorj-read-replica
  namespace: neo4j
spec:
  selector:
    app: neorj-read-replica
  ports:
  - protocol: TCP
    port: 7687
    targetPort: 7687

CREATE (n:Person {name:'John'}) RETURN n


CREATE (n:Person {name:'Sally'}) RETURN n
CREATE (n:Person {name:'Steve'}) RETURN n
CREATE (n:Person {name:'Mike'}) RETURN n
CREATE (n:Person {name:'Liz'}) RETURN n
CREATE (n:Person {name:'Shawn'}) RETURN n


CREATE (n:Location {city:'Miami', state:'FL'})
CREATE (n:Location {city:'Boston', state:'MA'})
CREATE (n:Location {city:'Lynn', state:'MA'})
CREATE (n:Location {city:'Portland', state:'ME'})
CREATE (n:Location {city:'San Francisco', state:'CA'})

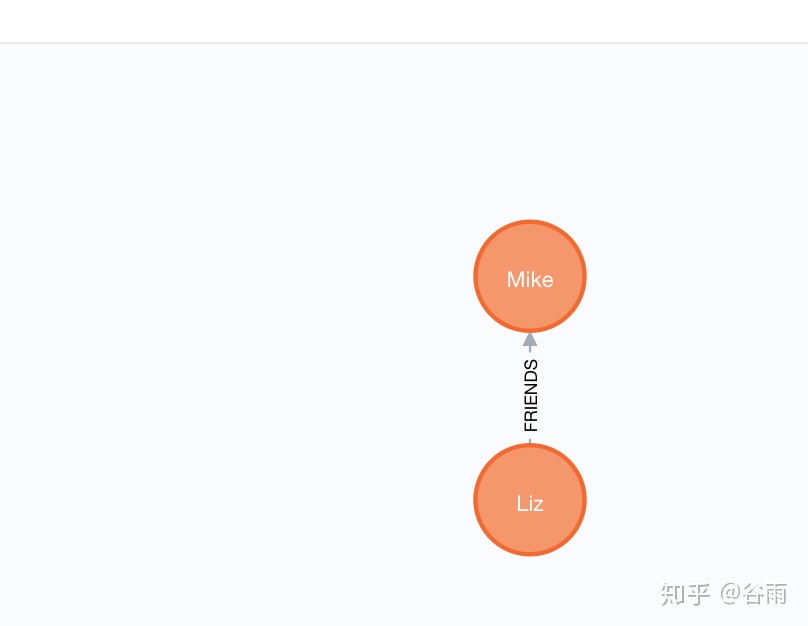

MATCH (a:Person {name:'Liz'}),
      (b:Person {name:'Mike'})
MERGE (a)-[:FRIENDS]->(b)
