一、安装chameleon工具

1.下载源码

git clone git@gitee.com:opengauss/openGauss-tools-chameleon.git

2.创建Python虚拟环境并激活

安装依赖：

yum install mysql-devel gcc gcc-devel python-devel

python3 -m venv venv

source venv/bin/activate

3.进入代码的目录，执行python install命令安装

cd openGauss-tools-chameleon

python3 setup.py install

二、修改mysql端

1.mysql端创建用户usr_replica并授权

mysql -u root -p

创建数据库db_smis

创建用户并授权：

CREATE USER usr_replica IDENTIFIED BY 're@1qazx';

GRANT ALL ON db_smis.* TO 'usr_replica';

GRANT RELOAD ON *.* to 'usr_replica';

GRANT REPLICATION CLIENT ON *.* to 'usr_replica';

GRANT REPLICATION SLAVE ON *.* to 'usr_replica';

2.修改mysql配置文件my.cnf

mysqld节点加入如下内容：

[mysqld]

binlog_format = ROW

log_bin = mysql-bin

server_id = 1

binlog_row_image = FULL

gtid_mode = ON

enforce-gtid-consistency=on

3.重启mysql：systemctl restart mysql。

三、修改chameleon配置文件

1.切换用户smis，创建chameleon配置文件目录

su smis

chameleon set_configuration_files

cd /home/smis/.pg_chameleon/configuration/

复制一份默认的配置文件模板保存为default.yml：

cp config-example.yml default.yml

2.修改配置文件

vim default.yml，修改为如下内容：

---

# global settings

pid_dir: '~/.pg_chameleon/pid/'

log_dir: '~/.pg_chameleon/logs/'

log_dest: file

log_level: info

log_days_keep: 10

rollbar_key: ''

rollbar_env: ''

# type_override allows the user to override the default type conversion

# into a different one.

type_override:

"tinyint(1)":

override_to: boolean

override_tables:

- "*"

# postgres destination connection

pg_conn:

host: "192.168.132.153"

port: "5432"

user: "gaussdb"

password: "gaussdb@1qazx"

database: "db_smis"

charset: "utf8"

sources:

mysql:

readers: 4

writers: 4

db_conn:

host: "192.168.132.153"

port: "3306"

user: "usr_replica"

password: "re@1qazx"

charset: 'utf8'

connect_timeout: 10

schema_mappings:

db_smis: db_smis

limit_tables:

skip_tables:

grant_select_to:

- usr_readonly

lock_timeout: "120s"

my_server_id: 100

replica_batch_size: 10000

replay_max_rows: 10000

batch_retention: '1 day'

copy_max_memory: "300M"

copy_mode: 'file'

out_dir: /tmp

sleep_loop: 1

on_error_replay: continue

on_error_read: continue

auto_maintenance: "disabled"

gtid_enable: false

type: mysql

skip_events:

insert:

- delphis_mediterranea.foo # skips inserts on delphis_mediterranea.foo

delete:

- delphis_mediterranea # skips deletes on schema delphis_mediterranea

update:

keep_existing_schema: No

migrate_default_value: Yes

column_case_sensitive: Yes

mysql_restart_config: Yes

以上配置文件中参数的含义是：

迁移数据时，MySQL侧使用的用户名密码分别是 usr_replica 和 re@1qazx。MySQL服务器的IP和port分别是192.168.132.153和3306，待迁移的数据库是db_smis。

openGauss侧使用的用户名密码分别是 gaussdb和 gaussdb@1qazx。openGauss服务器的IP和port分别是192.168.132.153和5432，目标数据库是db_smis，同时会在db_smis下创建schema：db_smis，迁移的表都将位于该schema下。

3.初始化迁移过程

chameleon create_replica_schema --config default

chameleon add_source --config default --source mysql

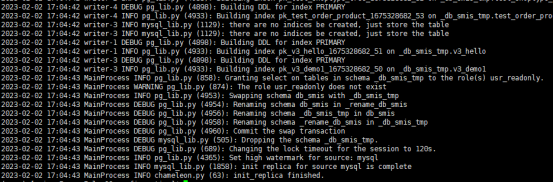

4.复制基础数据。

chameleon init_replica --config default --source mysql --debug

debug参数可以查看执行过程。

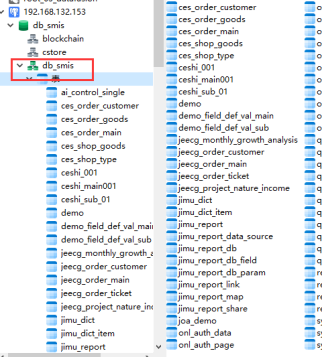

5.schema db_smis已有数据
