react native开发Android 篇——添加阴影效果

elevation

(限Android)使用Android原生的 elevation API来设置视图的高度( elevation API)。这样可以为视图添加一个投影,并且会影响视图层叠的顺序。此属性仅支持Android5.0及以上版本。

react-native-shadow-cards

安装

yarn add react-native-shadow-cards/npm install react-native-shadow-cards --save

使用

import {Card} from 'react-native-shadow-cards';
import React, { Component } from 'react';
export default class DaysScreen extends React.Component {
	render() {
	    return (
	    	<View>
		    	<Card cornerRadius={0} opacity={0.3} elevation={5} style={styles.todayContainer}>
                    <View style={styles.todayDate} >
                        <View style={styles.topLeft}>
                            <Text style={styles.date}>{todayDate}</Text>
                            <Text style={styles.LunarDate}>{todayLunarDate}</Text>
                        </View>
                        <Text style={styles.topRight}>{todayWeek}</Text>
                    </View>
                </Card>
	    	</View>
	    )
	}

参数:

Property Type Default
backgroundColor string ‘#ffffff’
elevation(层级) number 3
cornerRadius(圆角) number 5
opacity number 0.5

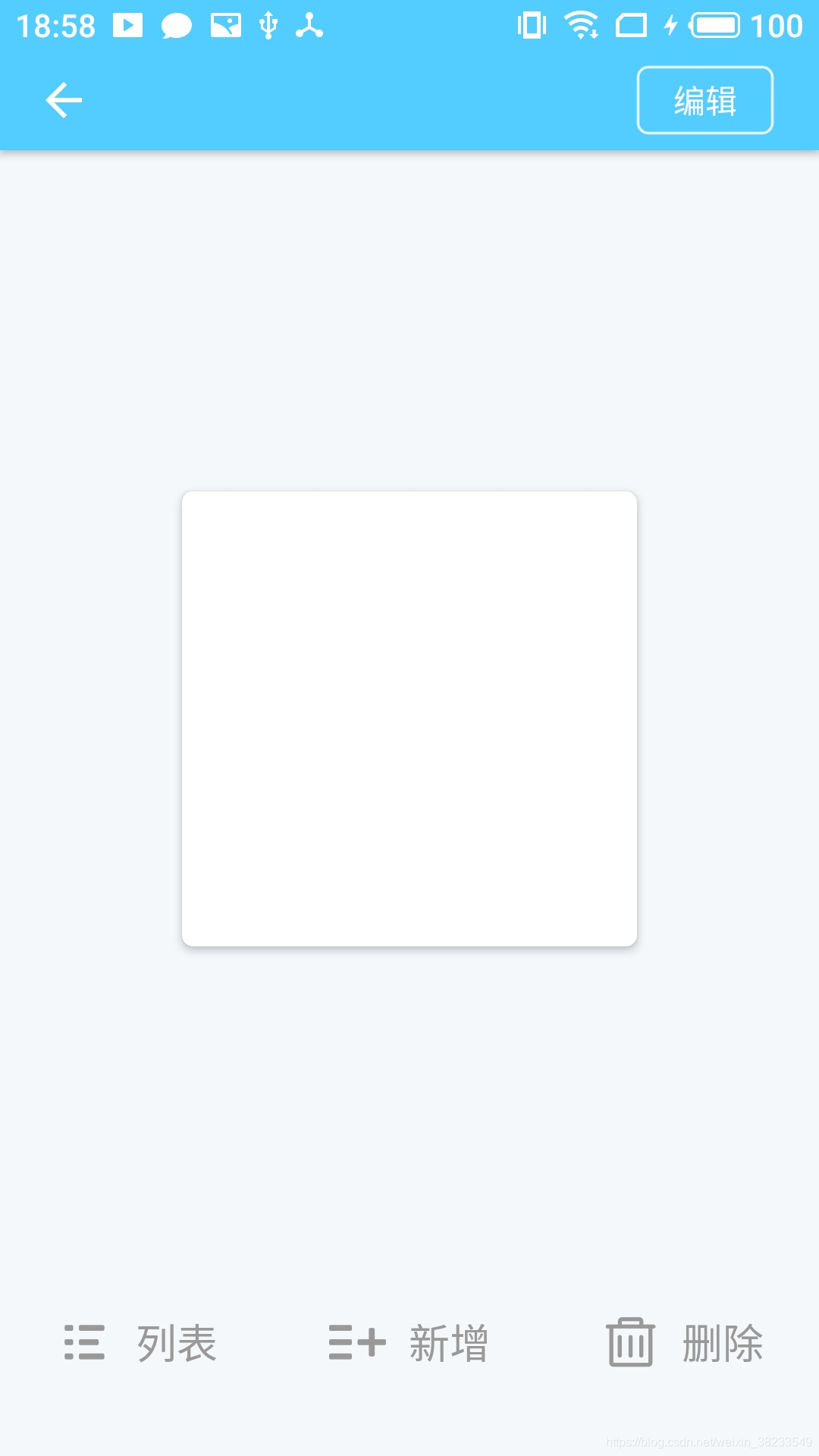

效果图:

react-native-shadow

安装

yarn add react-native-shadow/npm install react-native-shadow --save
yarn add react-native-svg@X.X.X
react-native link react-native-svg

注意:react-native-svg的版本要与与react-native的版本相对应,否则是没有效果的。

svg版本详情

react-native-svg react-native
3.2.0 0.29
4.2.0 0.32
4.3.0 0.33
4.4.0 0.38
4.5.0 0.40
5.1.8 0.44
5.2.0 0.45
5.3.0 0.46
5.4.1 0.47
5.5.1 >=0.50
>=6 >=0.50
>=7 >=0.57.4
>=8 >=0.57.4
>=9 >=0.57.4

使用

import React, { Component } from 'react';
import { Animated, Easing, StyleSheet, View, Text, Button, TouchableHighlight } from "react-native";
import {BoxShadow } from 'react-native-shadow'

export default class IndexScreen extends React.Component {

    constructor(props) {
        super(props);
        this.state = {
        }
    }

    render() {
        return (
            <View style={styles.container}>
                <BoxShadow  setting={{
                    width: 160,
                    height: 170,
                    color: '#84D945',
                    border: 4,
                    radius: 3,
                    opacity: 0.4,
                    x: 1,
                    y: 1,
                    style:{marginVertical:5}
                }} >
                    <TouchableHighlight style={styles.box}>
                        <Text></Text>
                    </TouchableHighlight>
                </BoxShadow>
            </View>
        )
    }
}
var styles = StyleSheet.create({
    container: {
        flex: 1,
        alignItems: 'center',
        justifyContent: "center"
    },
    Shadow:{
        marginVertical:5
    },
    box: {
        position: 'relative',
        width: 160,
        height: 170,
        backgroundColor: '#fff',
        borderRadius: 3,
        overflow: 'hidden',
      },
})

参数详情:https://www.npmjs.com/package/react-native-shadow

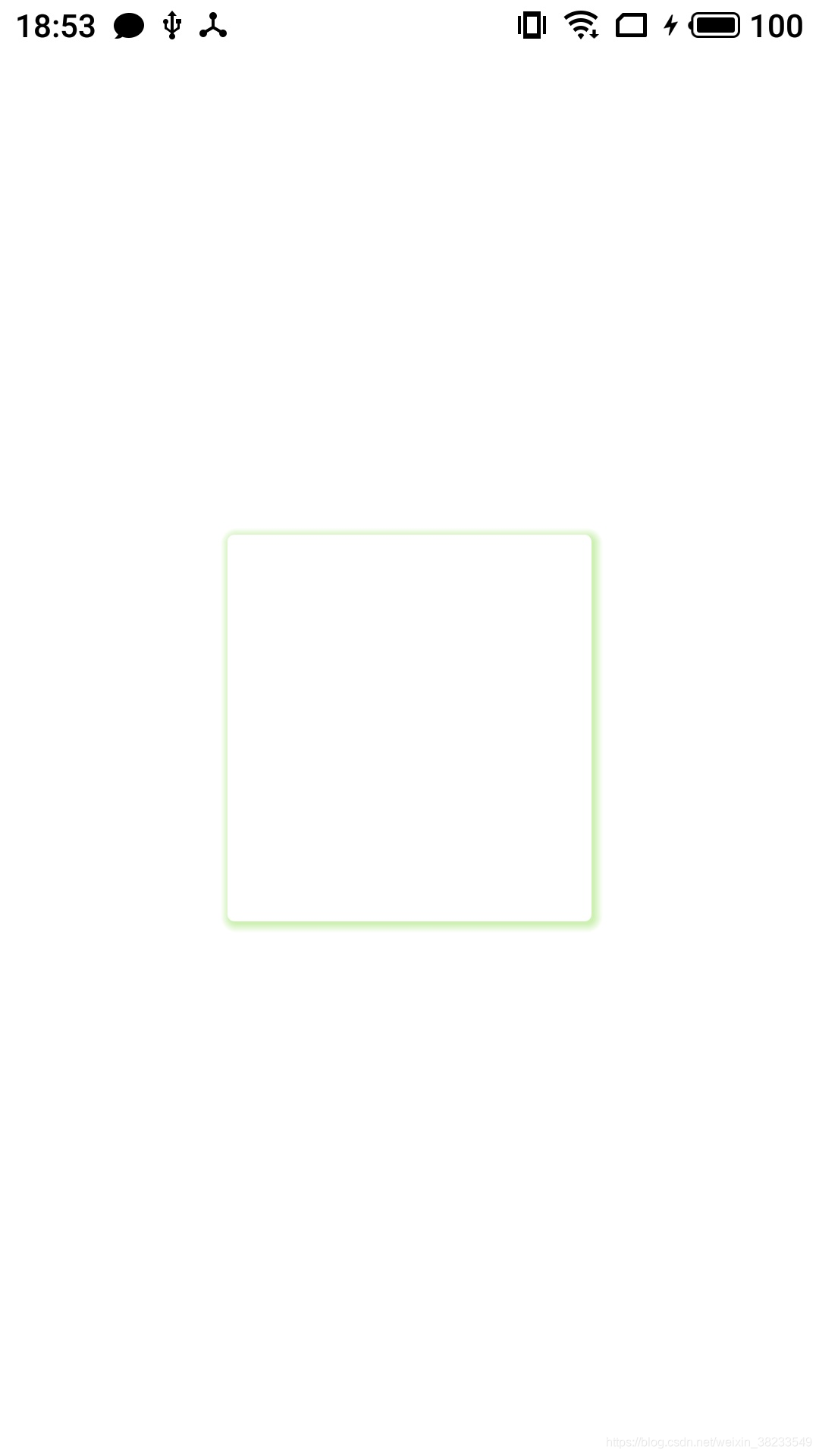

效果图:
