1 前言

1.1 数据领域的兄弟们的自身情况

• 性别比例
• 调查问卷国家分布
• 年龄分布
• 收入情况
• 所学专业
• 从事领域
• 工作满意度
• 最常使用工具
• 常用算法
• 计算平台选择
• 面临挑战

1.2 Python和R哪家强

• 使用人数
• 常用工具
• 不同工种偏好
• 各大领域使用趋势
• 薪资待遇
• 用了多少年
• 重要程度

1.3 数据科学家都在用什么

• 国家分布
• 使用Python or R

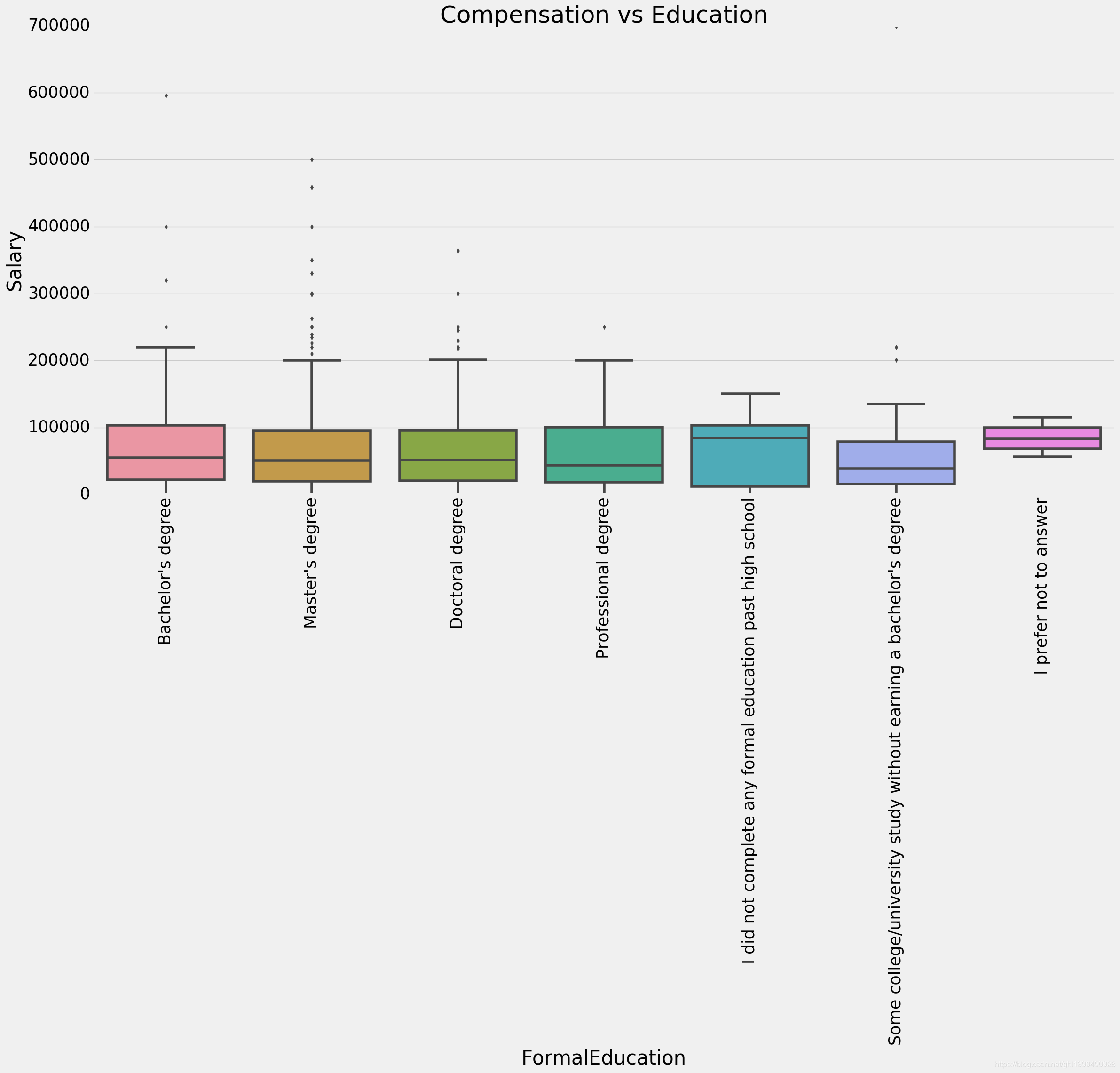

• 工资与学历
• 如何证明自己呢
• 遇到的问题
• 对可视化的重要程度
• 求职的途径
• 前一份工作和现在的对比

2 分析实战

2.1 导入Python包

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
plt.style.use('fivethirtyeight')
import warnings
warnings.filterwarnings('ignore')
import numpy as np
import plotly.offline as py
py.init_notebook_mode(connected=True)
import plotly.graph_objs as go
import plotly.tools as tls
import base64
import io
from imageio import imread
import codecs
from IPython.display import HTML

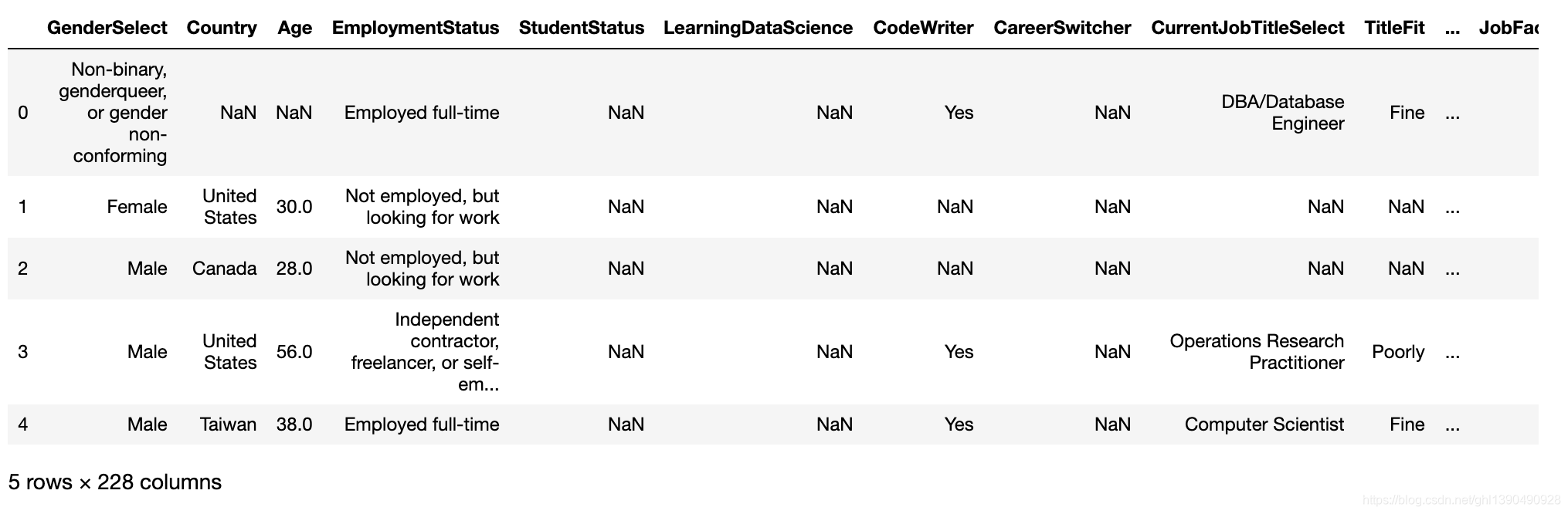

2.2 导入数据

ISO-8859-1和utf8编码不能相互兼容 ==

response=pd.read_csv('multipleChoiceResponses.csv',encoding='ISO-8859-1')
response.head()

2.3 先瞅瞅啥样子

来看看整体吧，一共有多少个国家的兄弟们加入了调查，最多的是哪个国家？最小几岁？最大又是几岁呢？

print('调查对象总数',response.shape[0])
print('一共多少个国家参与了调查:',response['Country'].nunique())
print('参与人数最多的国家是',response['Country'].value_counts().index[0],'人数',response['Country'].value_counts().values[0])
print('最小的选手:',response['Age'].min(),' 最大的选手:',response['Age'].max())

调查对象总数 16716
一共多少个国家参与了调查: 52
参与人数最多的国家是 United States 人数 4197
最小的选手: 0.0 最大的选手: 100.0

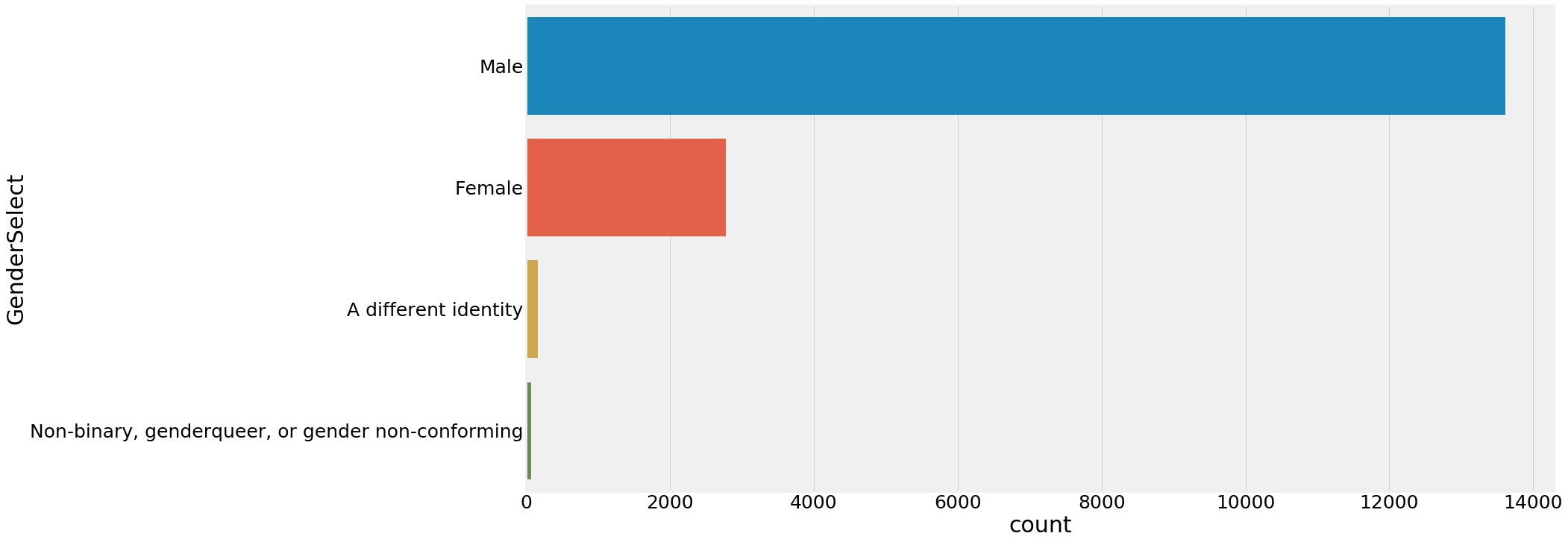

2.4 看看性别的分布

• x: x轴上的条形图，以x标签划分统计个数
• y: y轴上的条形图，以y标签划分统计个数
• hue: 在x或y标签划分的同时，再以hue标签划分统计个数
• order, hue_order分别是对x或y的字段排序，hue的字段排序。排序的方式为列表。
• ax用来指定坐标系。

import matplotlib
matplotlib.rcParams.update({'font.size': 25})   #更新参数

plt.subplots(figsize=(22,12))
sns.countplot(y=response['GenderSelect'],order=response['GenderSelect'].value_counts().index)
plt.show()

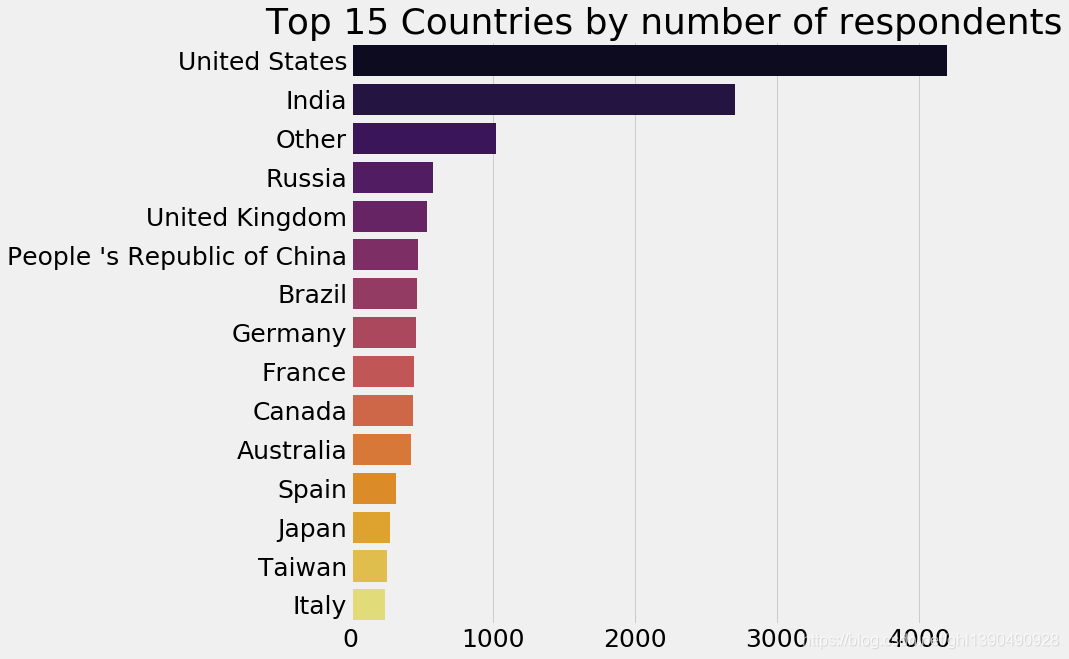

2.5 看看排名人数最多的15个国家

resp_coun=response['Country'].value_counts()[:15].to_frame()
sns.barplot(x=x=resp_coun.Country,y=resp_coun.index,palette='inferno')
plt.title('Top 15 Countries by number of respondents')
plt.xlabel('')
fig=plt.gcf()#获取当前图表对象
fig.set_size_inches(10,10)#设置尺寸大小
plt.show()

2.6 看看各国的收入情况

#有些收入的写法比较特别
response['CompensationAmount']=response['CompensationAmount'].str.replace(',','')
response['CompensationAmount']=response['CompensationAmount'].str.replace('-','')

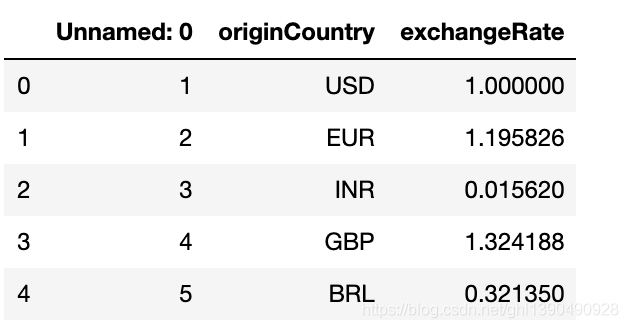

rates=pd.read_csv('conversionRates.csv')
rates.head()

rates.drop('Unnamed: 0',axis=1,inplace=True)

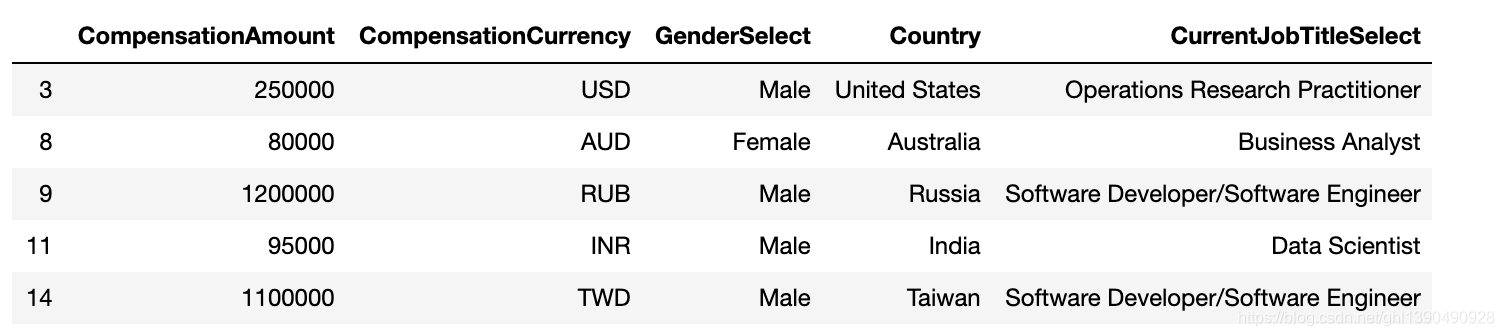

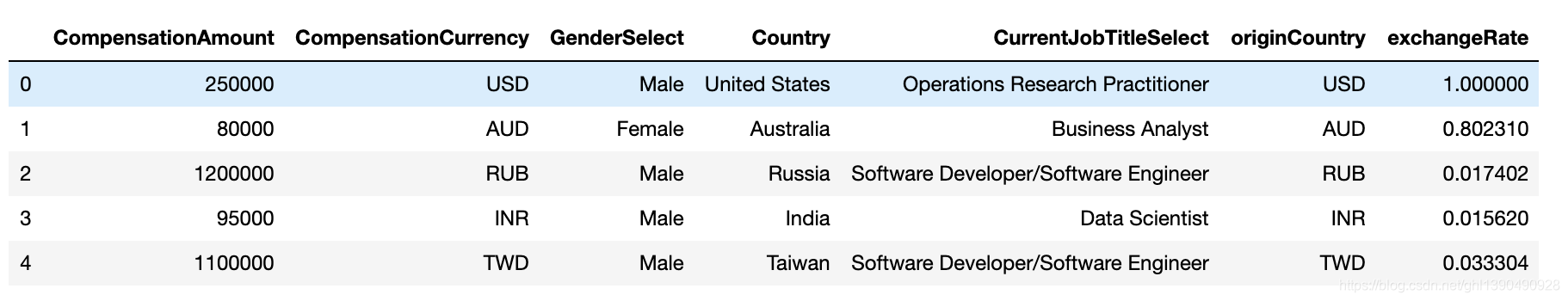

salary=response[['CompensationAmount','CompensationCurrency','GenderSelect','Country','CurrentJobTitleSelect']].dropna()
salary.head()

#salary拼接rates,连接方式为“左连接”。left_on 左侧 dataframe用作连接键的列
# right_on 右侧dataframe用作连接键的列
salary=salary.merge(rates,left_on='CompensationCurrency',right_on='originCountry',how='left')
salary.head()

salary['Salary']=pd.to_numeric(salary['CompensationAmount'])*salary['exchangeRate']
print('Maximum Salary is USD $',salary['Salary'].dropna().astype(int).max())
print('Minimum Salary is USD $',salary['Salary'].dropna().astype(int).min())
print('Median Salary is USD $',salary['Salary'].dropna().astype(int).median())

Maximum Salary is USD $ 28297400000
Minimum Salary is USD $ 0
Median Salary is USD $ 53812.0

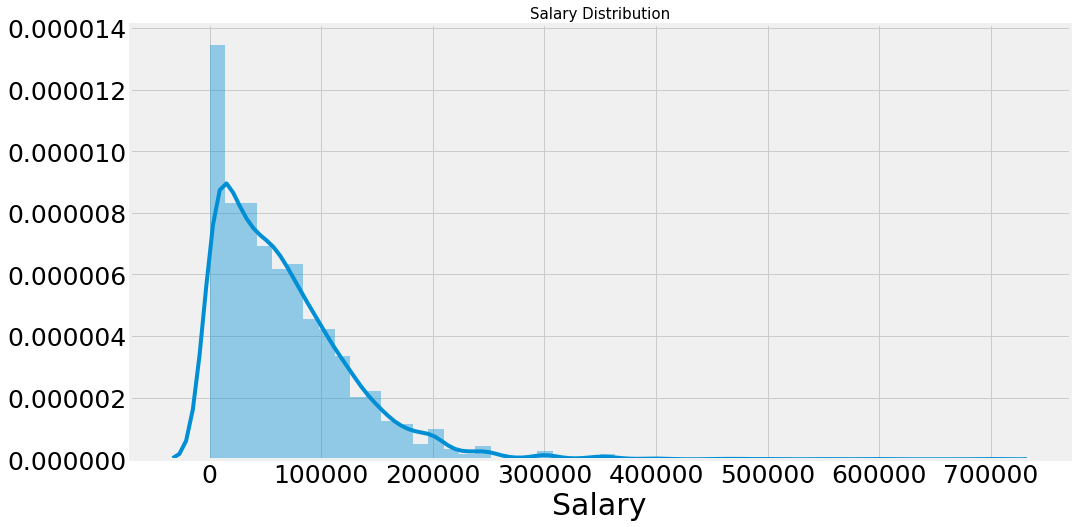

plt.subplots(figsize=(15,8))
salary=salary[salary['Salary']<1000000]
sns.distplot(salary['Salary'])
plt.title('Salary Distribution',size=15)
plt.show()

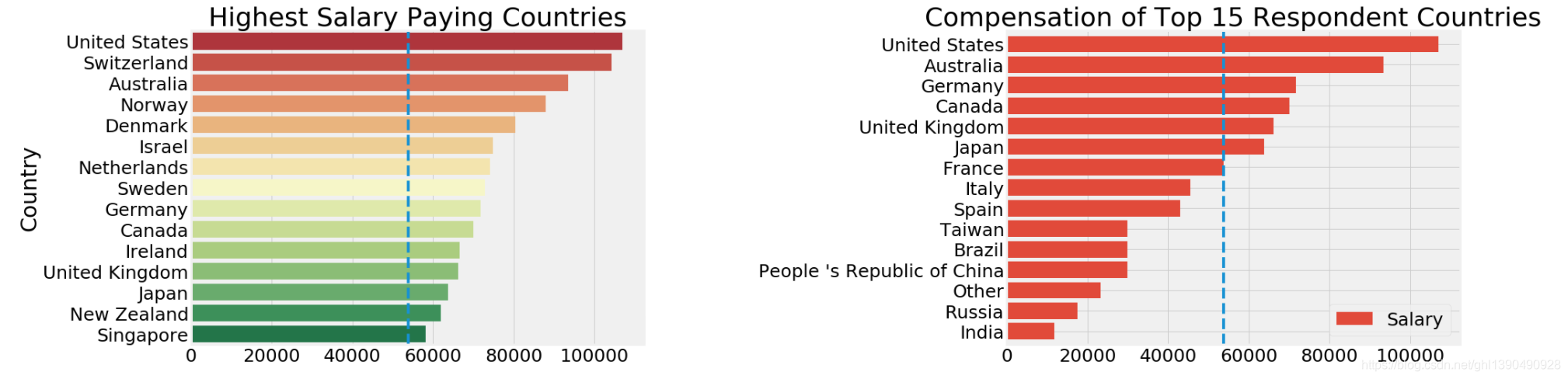

f,ax=plt.subplots(1,2,figsize=(28,8))
sal_coun=salary.groupby('Country')['Salary'].median().sort_values(ascending=False)[:15].to_frame()
sns.barplot(x=sal_coun.Salary,y=sal_coun.index,data=sal_coun,palette='RdYlGn',ax=ax[0])
ax[0].axvline(salary['Salary'].median(),linestyle='dashed')
ax[0].set_title('Highest Salary Paying Countries')
ax[0].set_xlabel('')
max_coun=salary.groupby('Country')['Salary'].median().to_frame()
max_coun=max_coun[max_coun.index.isin(resp_coun.index)]
max_coun.sort_values(by='Salary',ascending=True).plot.barh(width=0.8,ax=ax[1],color=sns.color_palette('RdYlGn'))
ax[1].axvline(salary['Salary'].median(),linestyle='dashed')
ax[1].set_title('Compensation of Top 15 Respondent Countries')
ax[1].set_xlabel('')
ax[1].set_ylabel('')
plt.subplots_adjust(wspace=0.8)
plt.show()

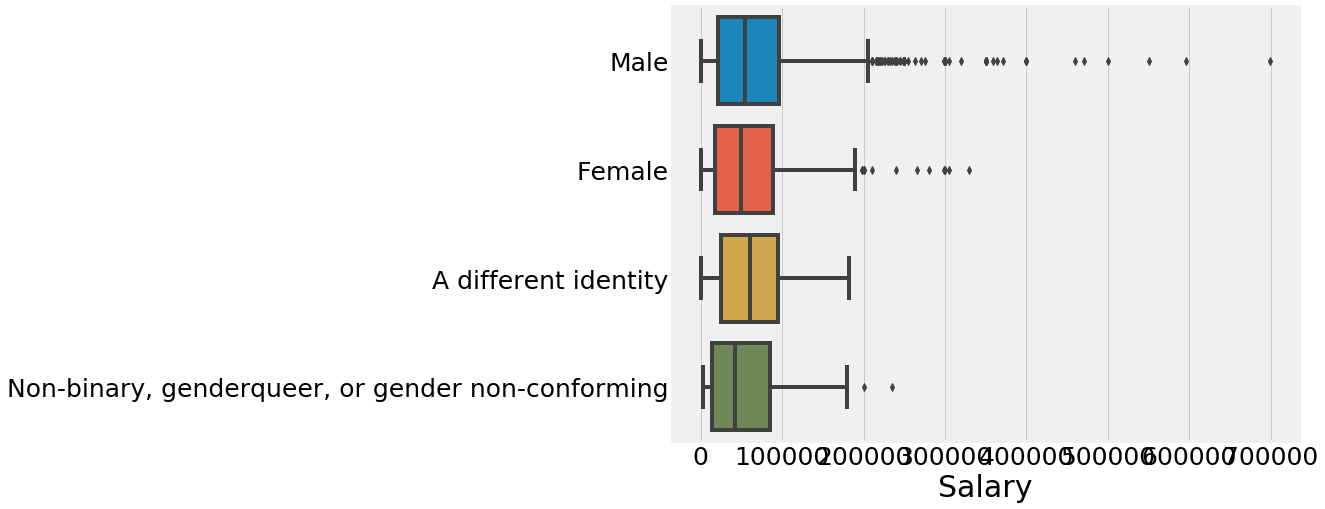

2.7 看看性别对工资的影响

plt.subplots(figsize=(10,8))
sns.boxplot(y='GenderSelect',x='Salary',data=salary)
plt.ylabel('')
plt.show()

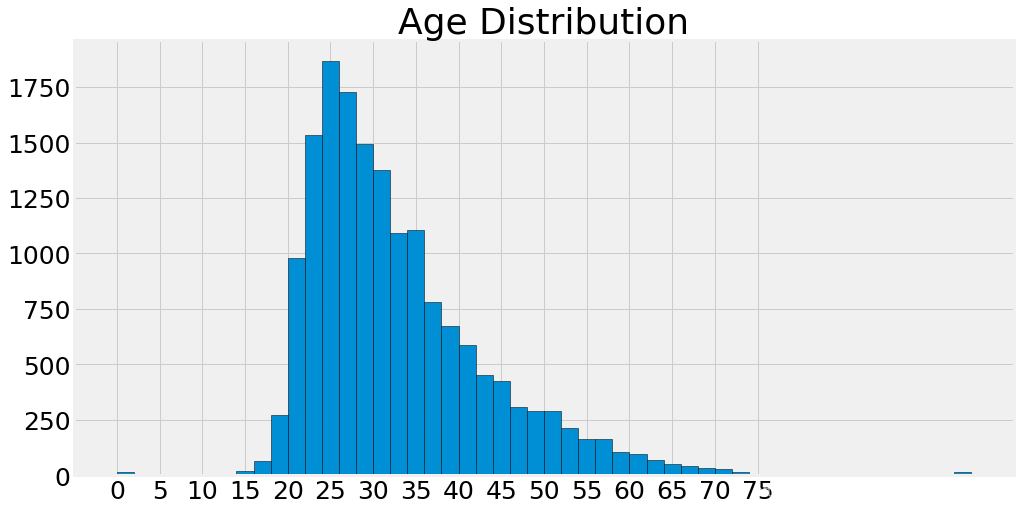

2.8 参与调查的都是年轻人吧

plt.subplots(figsize=(15,8))
response['Age'].hist(bins=50,edgecolor='black')
plt.xticks(list(range(0,80,5)))
plt.title('Age Distribution')
plt.show()

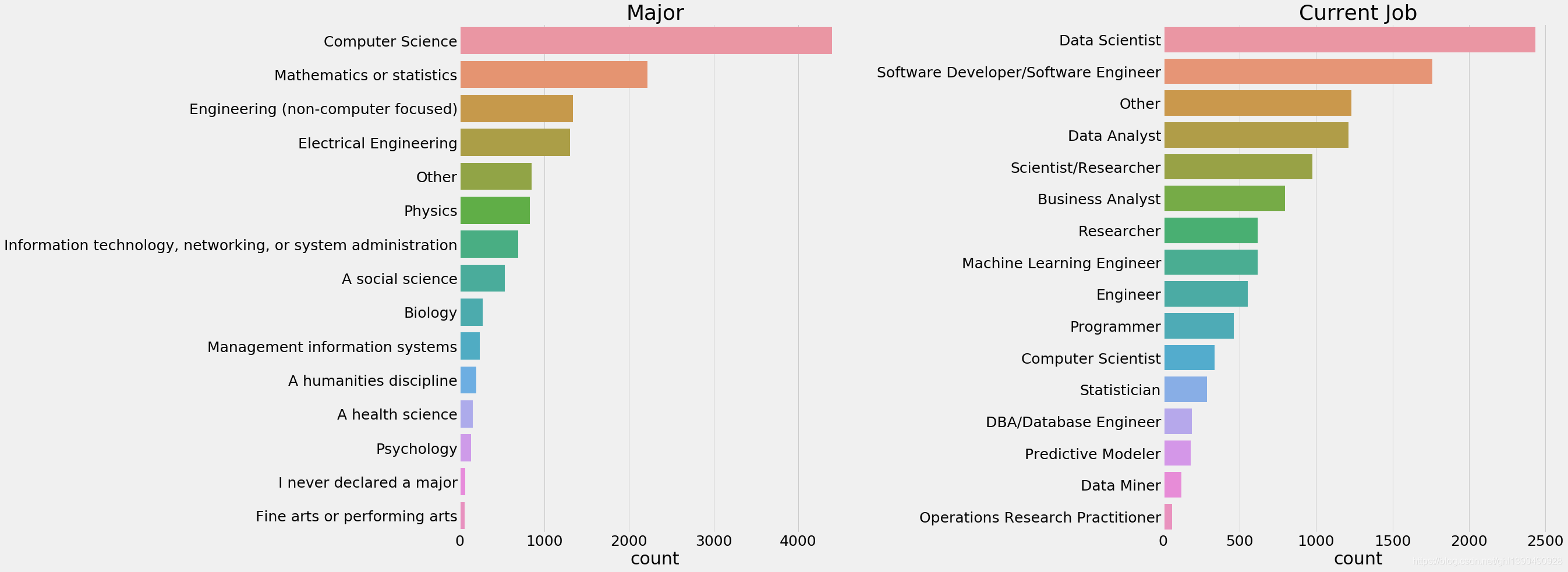

2.9 玩数据的人都是啥专业

f,ax=plt.subplots(1,2,figsize=(30,15))
sns.countplot(y=response['MajorSelect'],ax=ax[0],order=response['MajorSelect'].value_counts().index)
ax[0].set_title('Major')
ax[0].set_ylabel('')
sns.countplot(y=response['CurrentJobTitleSelect'],ax=ax[1],order=response['CurrentJobTitleSelect'].value_counts().index)
ax[1].set_title('Current Job')
ax[1].set_ylabel('')
plt.subplots_adjust(wspace=0.8)
plt.show()

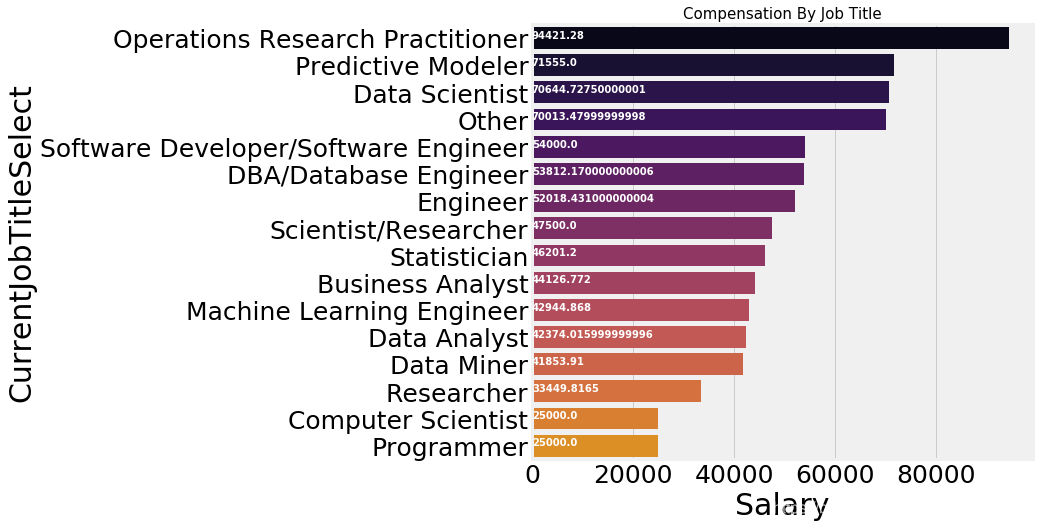

2.10 大家工资怎么样

sal_job=salary.groupby('CurrentJobTitleSelect')['Salary'].median().to_frame().sort_values(by='Salary',ascending=False)
ax=sns.barplot(sal_job.Salary,sal_job.index,palette=sns.color_palette('inferno',20))
plt.title('Compensation By Job Title',size=15)
for i, v in enumerate(sal_job.Salary):
    ax.text(.5, i, v,fontsize=10,color='white',weight='bold')
fig=plt.gcf()
fig.set_size_inches(8,8)
plt.show()

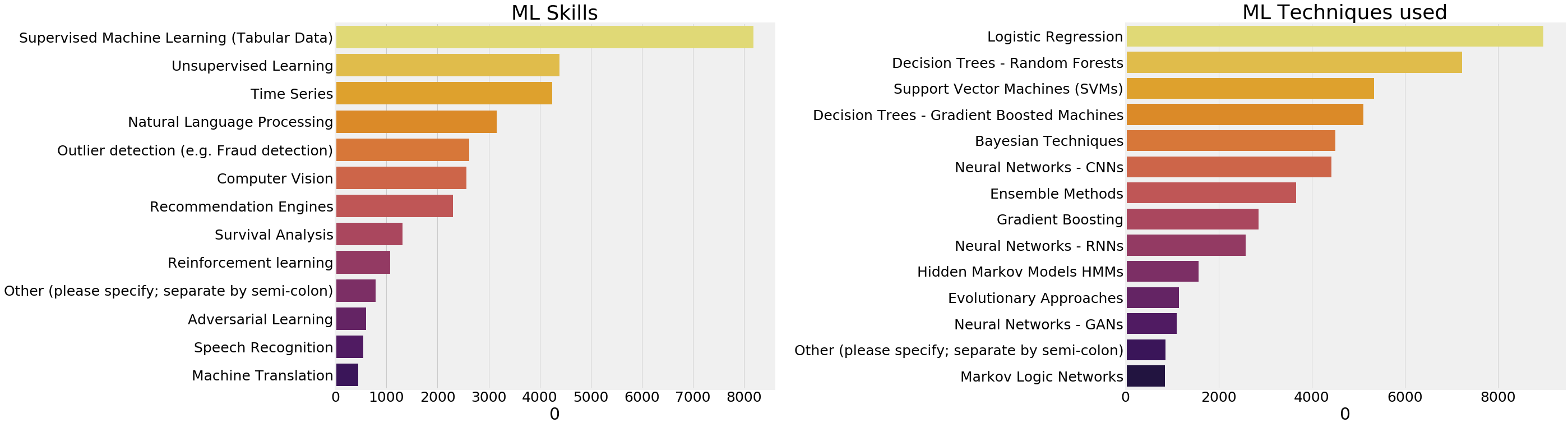

2.11 大家都掌握什么技能

f,ax=plt.subplots(1,2,figsize=(35,12))
skills=response['MLSkillsSelect'].str.split(',')
skills_set=[]
for i in skills.dropna():
    skills_set.extend(i)
plt1=pd.Series(skills_set).value_counts().sort_values(ascending=False).to_frame()
sns.barplot(plt1[0],plt1.index,ax=ax[0],palette=sns.color_palette('inferno_r',15))
ax[0].set_title('ML Skills')
tech=response['MLTechniquesSelect'].str.split(',')  #用','分割
techniques=[]
for i in tech.dropna():
    techniques.extend(i)
plt1=pd.Series(techniques).value_counts().sort_values(ascending=False).to_frame()
sns.barplot(plt1[0],plt1.index,ax=ax[1],palette=sns.color_palette('inferno_r',15))
ax[1].set_title('ML Techniques used')
plt.subplots_adjust(wspace=0.8)
plt.show()

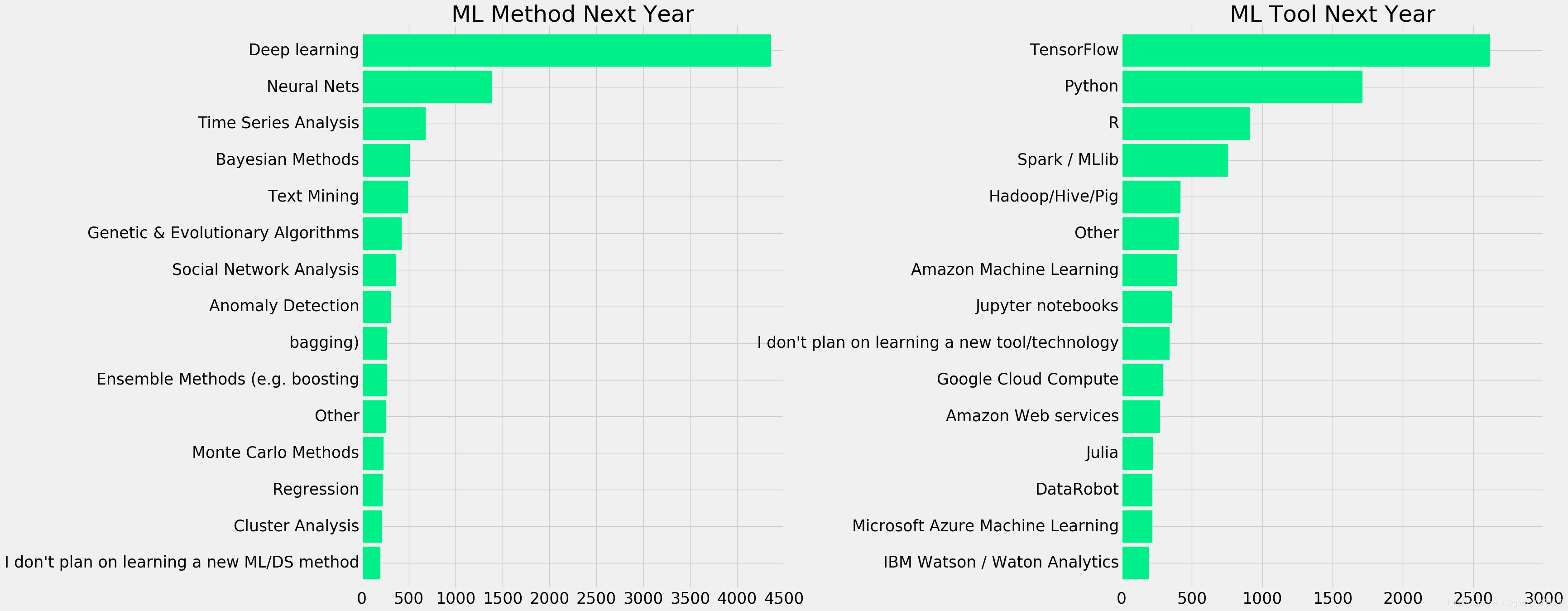

f,ax=plt.subplots(1,2,figsize=(30,15))
ml_nxt=response['MLMethodNextYearSelect'].str.split(',')
nxt_year=[]
for i in ml_nxt.dropna():
    nxt_year.extend(i)
pd.Series(nxt_year).value_counts()[:15].sort_values(ascending=True).plot.barh(width=0.9,color=sns.color_palette('winter_r',15),ax=ax[0])
tool=response['MLToolNextYearSelect'].str.split(',')
tool_nxt=[]
for i in tool.dropna():
    tool_nxt.extend(i)
pd.Series(tool_nxt).value_counts()[:15].sort_values(ascending=True).plot.barh(width=0.9,color=sns.color_palette('winter_r',15),ax=ax[1])
plt.subplots_adjust(wspace=0.8)
ax[0].set_title('ML Method Next Year')
ax[1].set_title('ML Tool Next Year')
plt.show()

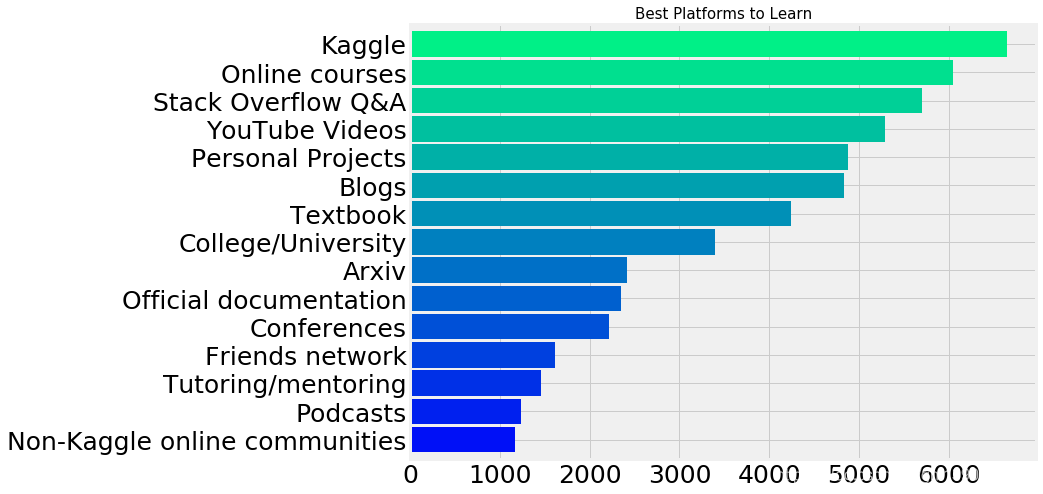

2.12 大家喜欢用什么数据科学平台

plt.subplots(figsize=(10,8))
learn=response['LearningPlatformSelect'].str.split(',')
platform=[]
for i in learn.dropna():
    platform.extend(i)
pd.Series(platform).value_counts()[:15].sort_values(ascending=True).plot.barh(width=0.9,color=sns.color_palette('winter',15))
plt.title('Best Platforms to Learn',size=15)
plt.show()

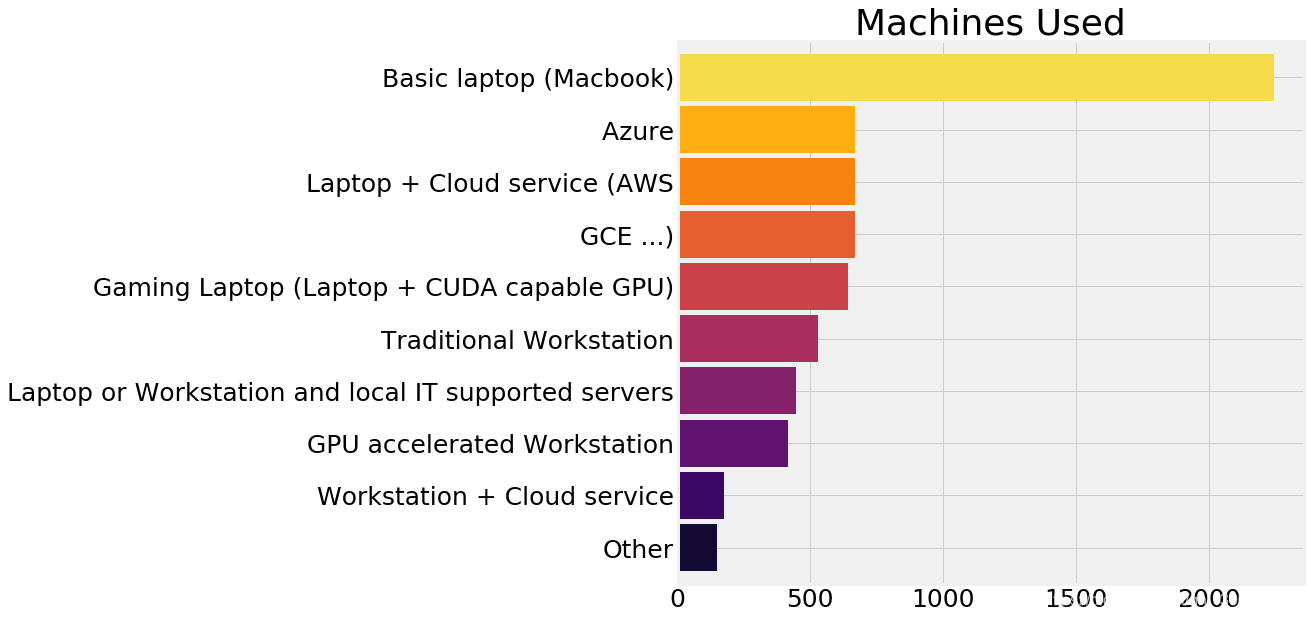

2.13 兄弟们的设备怎么样

plt.subplots(figsize=(10,10))
hard=response['HardwarePersonalProjectsSelect'].str.split(',')
hardware=[]
for i in hard.dropna():
    hardware.extend(i)
pd.Series(hardware).value_counts().sort_values(ascending=True).plot.barh(width=0.9,color=sns.color_palette('inferno',10))
plt.title('Machines Used')
plt.show()

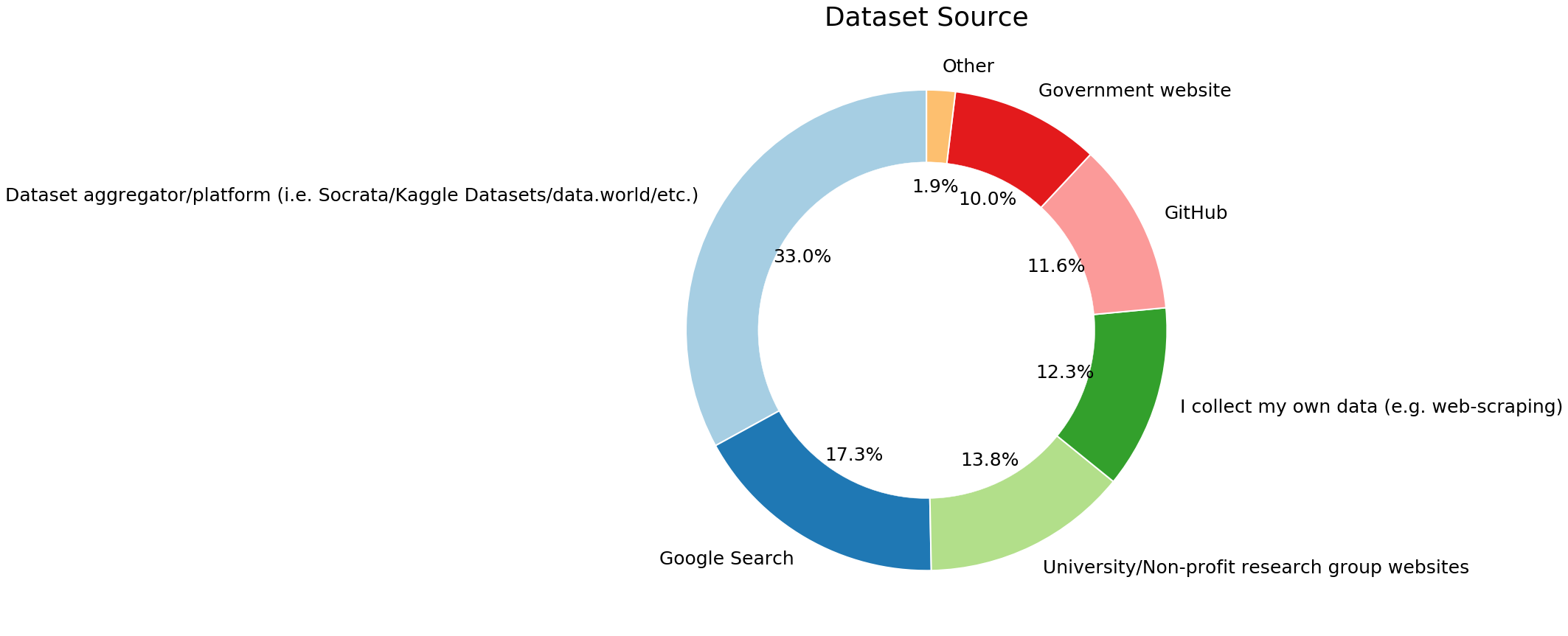

2.14 数据集哪里找

plt.subplots(figsize=(15,15))
data=response['PublicDatasetsSelect'].str.split(',')
dataset=[]
for i in data.dropna():
    dataset.extend(i)
pd.Series(dataset).value_counts().plot.pie(autopct='%1.1f%%',colors=sns.color_palette('Paired',10),startangle=90,wedgeprops = { 'linewidth' : 2, 'edgecolor' : 'white' })
plt.title('Dataset Source')
my_circle=plt.Circle( (0,0), 0.7, color='white')
p=plt.gcf()
p.gca().add_artist(my_circle)
plt.ylabel('')
plt.show()

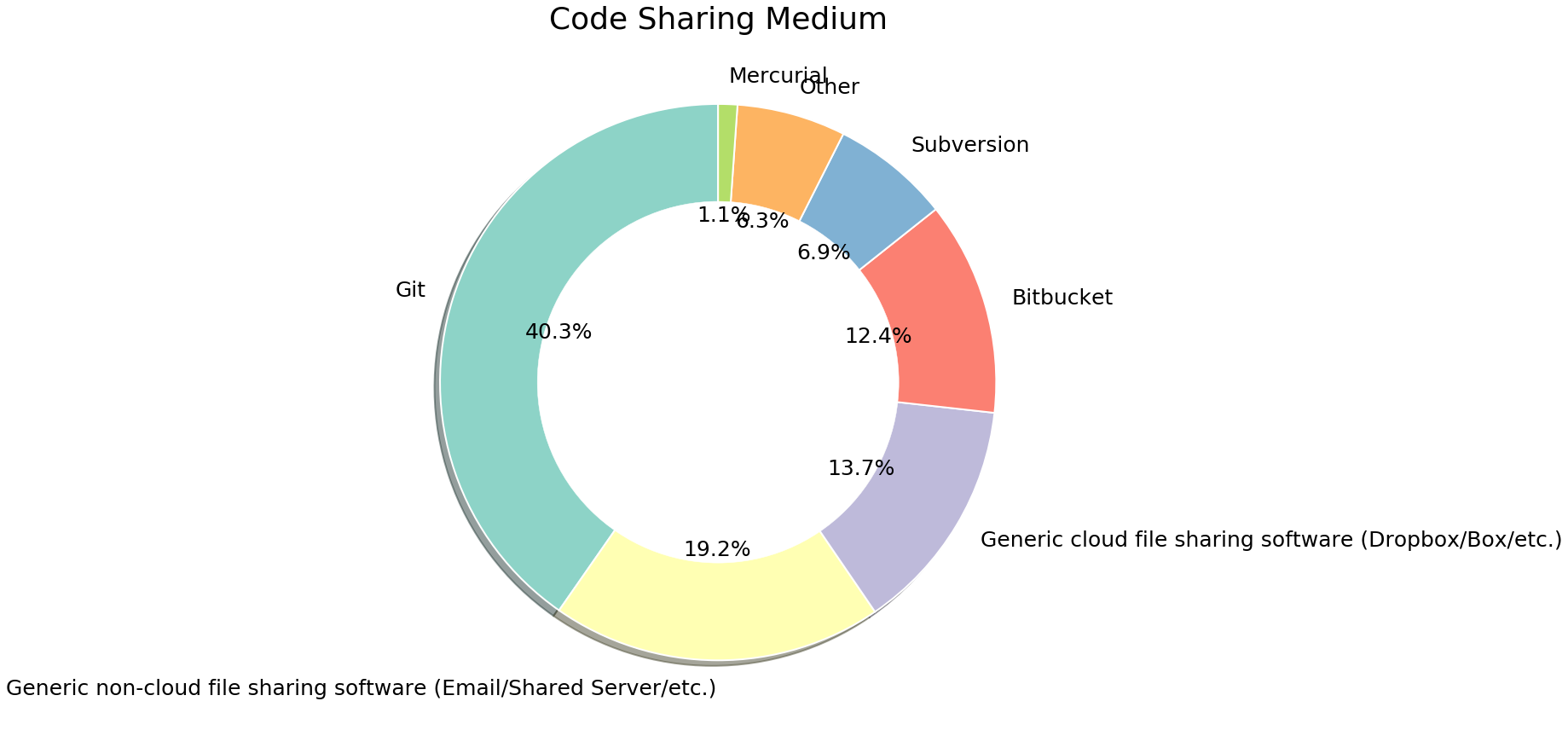

2.15 开源的代码哪里找

plt.subplots(figsize=(15,15))
code=response['WorkCodeSharing'].str.split(',')
code_share=[]
for i in code.dropna():
    code_share.extend(i)
pd.Series(code_share).value_counts().plot.pie(autopct='%1.1f%%',shadow=True,colors=sns.color_palette('Set3',10),startangle=90,wedgeprops = { 'linewidth' : 2, 'edgecolor' : 'white' })
plt.title('Code Sharing Medium')
my_circle=plt.Circle( (0,0), 0.65, color='white')
p=plt.gcf()
p.gca().add_artist(my_circle)
plt.ylabel('')
plt.show()

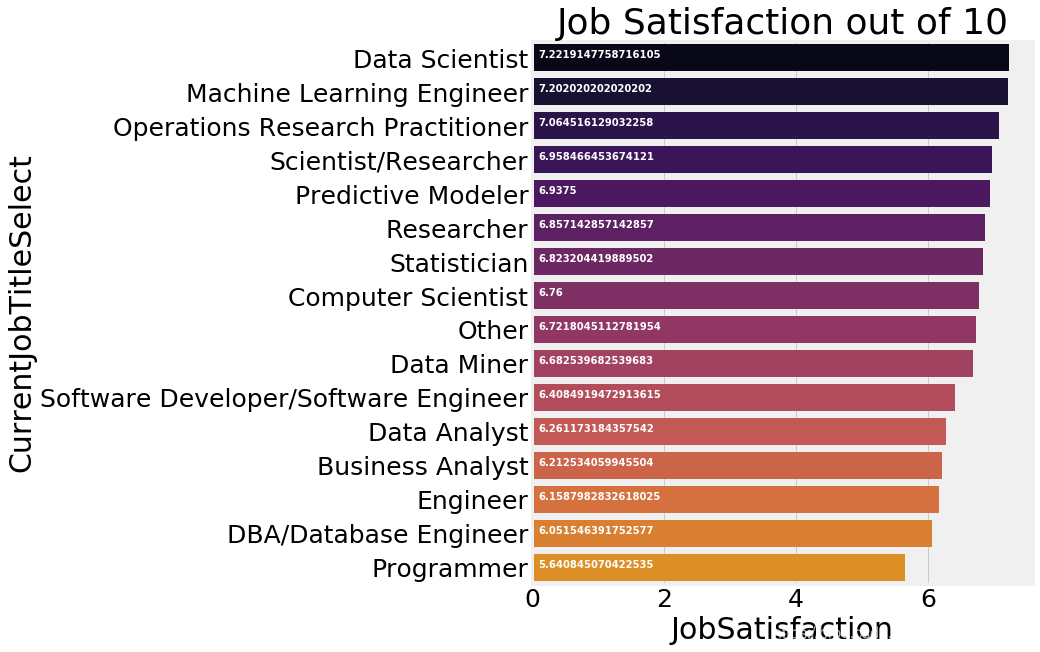

2.16 干这行的兄弟们满意度咋样

satisfy=response.copy()
satisfy['JobSatisfaction'].replace({'10 - Highly Satisfied':'10','1 - Highly Dissatisfied':'1','I prefer not to share':np.NaN},inplace=True)
satisfy.dropna(subset=['JobSatisfaction'],inplace=True)
satisfy['JobSatisfaction']=satisfy['JobSatisfaction'].astype(int)
satisfy_job=satisfy.groupby(['CurrentJobTitleSelect'])['JobSatisfaction'].mean().sort_values(ascending=False).to_frame()
ax=sns.barplot(y=satisfy_job.index,x=satisfy_job.JobSatisfaction,palette=sns.color_palette('inferno',20))
fig=plt.gcf()
fig.set_size_inches(8,10)
for i, v in enumerate(satisfy_job.JobSatisfaction):
    ax.text(.1, i, v,fontsize=10,color='white',weight='bold')
plt.title('Job Satisfaction out of 10')
plt.show()

2.17 Python vs R

resp=response.dropna(subset=['WorkToolsSelect'])
resp=resp.merge(rates,left_on='CompensationCurrency',right_on='originCountry',how='left')
python=resp[(resp['WorkToolsSelect'].str.contains('Python'))&(~resp['WorkToolsSelect'].str.contains('R'))]
R=resp[(~resp['WorkToolsSelect'].str.contains('Python'))&(resp['WorkToolsSelect'].str.contains('R'))]
both=resp[(resp['WorkToolsSelect'].str.contains('Python'))&(resp['WorkToolsSelect'].str.contains('R'))]

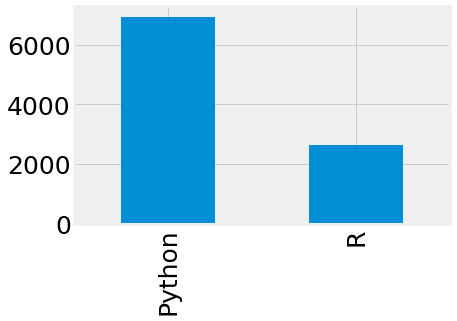

response['LanguageRecommendationSelect'].value_counts()[:2].plot.bar()
plt.show()

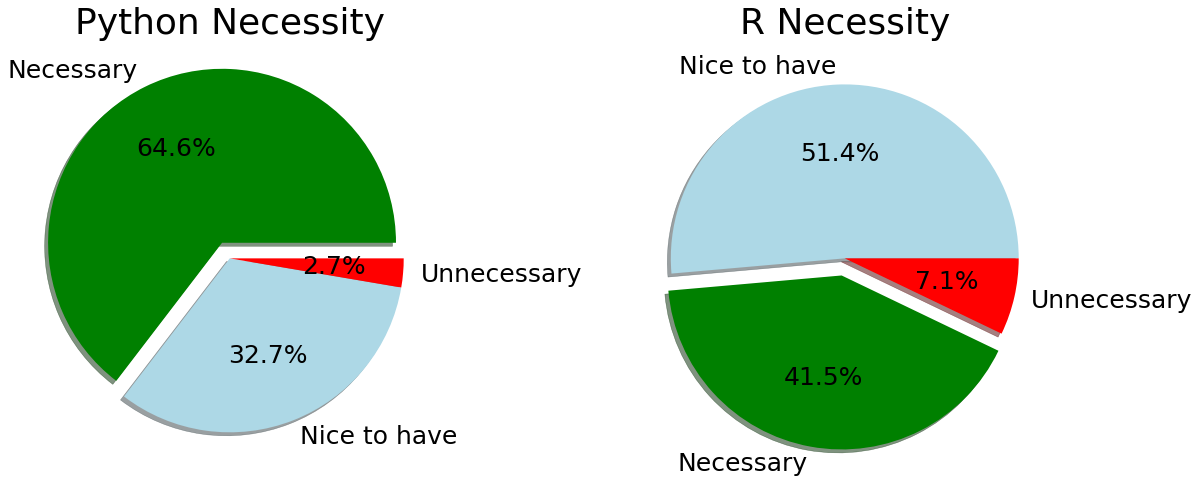

有多大用？大家怎么说？

f,ax=plt.subplots(1,2,figsize=(18,8))
response['JobSkillImportancePython'].value_counts().plot.pie(ax=ax[0],autopct='%1.1f%%',explode=[0.1,0,0],shadow=True,colors=['g','lightblue','r'])
ax[0].set_title('Python Necessity')
ax[0].set_ylabel('')
response['JobSkillImportanceR'].value_counts().plot.pie(ax=ax[1],autopct='%1.1f%%',explode=[0,0.1,0],shadow=True,colors=['lightblue','g','r'])
ax[1].set_title('R Necessity')
ax[1].set_ylabel('')
plt.show()

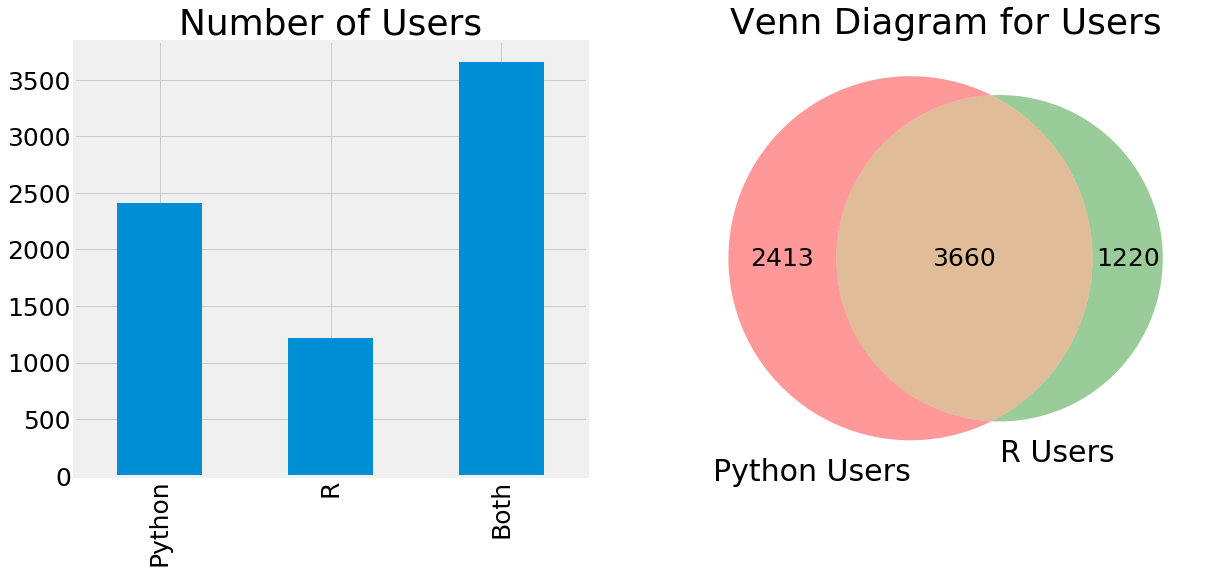

from matplotlib_venn import venn2
# pip install matplotlib_venn 画交集用的
f,ax=plt.subplots(1,2,figsize=(18,8))
pd.Series([python.shape[0],R.shape[0],both.shape[0]],index=['Python','R','Both']).plot.bar(ax=ax[0])
ax[0].set_title('Number of Users')
venn2(subsets = (python.shape[0],R.shape[0],both.shape[0]), set_labels = ('Python Users', 'R Users'))
plt.title('Venn Diagram for Users')
plt.show()

高手的薪资会不会更高？

py_sal=(pd.to_numeric(python['CompensationAmount'].dropna())*python['exchangeRate']).dropna()
py_sal=py_sal[py_sal<1000000]
R_sal=(pd.to_numeric(R['CompensationAmount'].dropna())*R['exchangeRate']).dropna()
R_sal=R_sal[R_sal<1000000]
both_sal=(pd.to_numeric(both['CompensationAmount'].dropna())*both['exchangeRate']).dropna()
both_sal=both_sal[both_sal<1000000]
trying=pd.DataFrame([py_sal,R_sal,both_sal])
trying=trying.transpose()
trying.columns=['Python','R','Both']
print('Median Salary For Individual using Python:',trying['Python'].median())
print('Median Salary For Individual using R:',trying['R'].median())
print('Median Salary For Individual knowing both languages:',trying['Both'].median())

Median Salary For Individual using Python: 48725.600000000006
Median Salary For Individual using R: 48421.99999999999
Median Salary For Individual knowing both languages: 59791.3

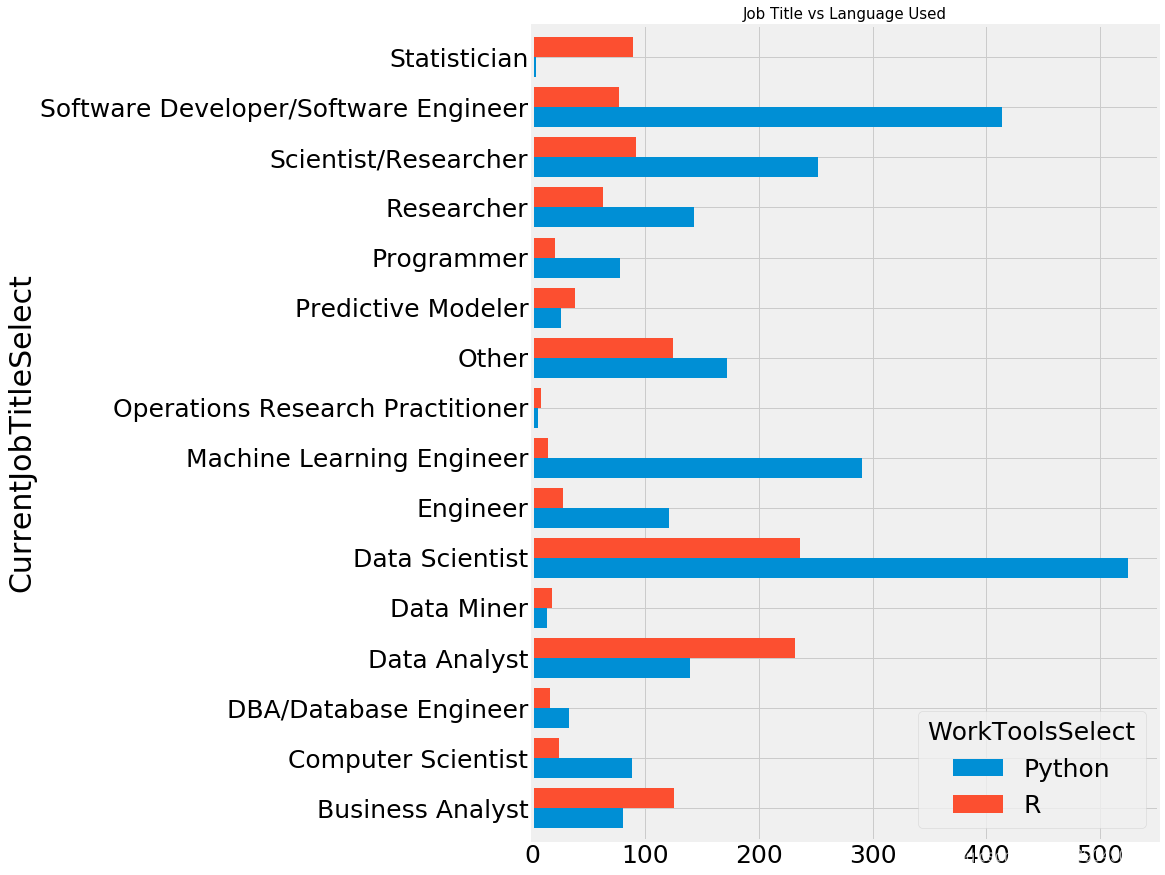

不同工种的偏好

py1=python.copy()
r=R.copy()
py1['WorkToolsSelect']='Python'
r['WorkToolsSelect']='R'
r_vs_py=pd.concat([py1,r])
r_vs_py=r_vs_py.groupby(['CurrentJobTitleSelect','WorkToolsSelect'])['Age'].count().to_frame().reset_index()
r_vs_py.pivot('CurrentJobTitleSelect','WorkToolsSelect','Age').plot.barh(width=0.8)
fig=plt.gcf()
fig.set_size_inches(10,15)
plt.title('Job Title vs Language Used',size=15)
plt.show()

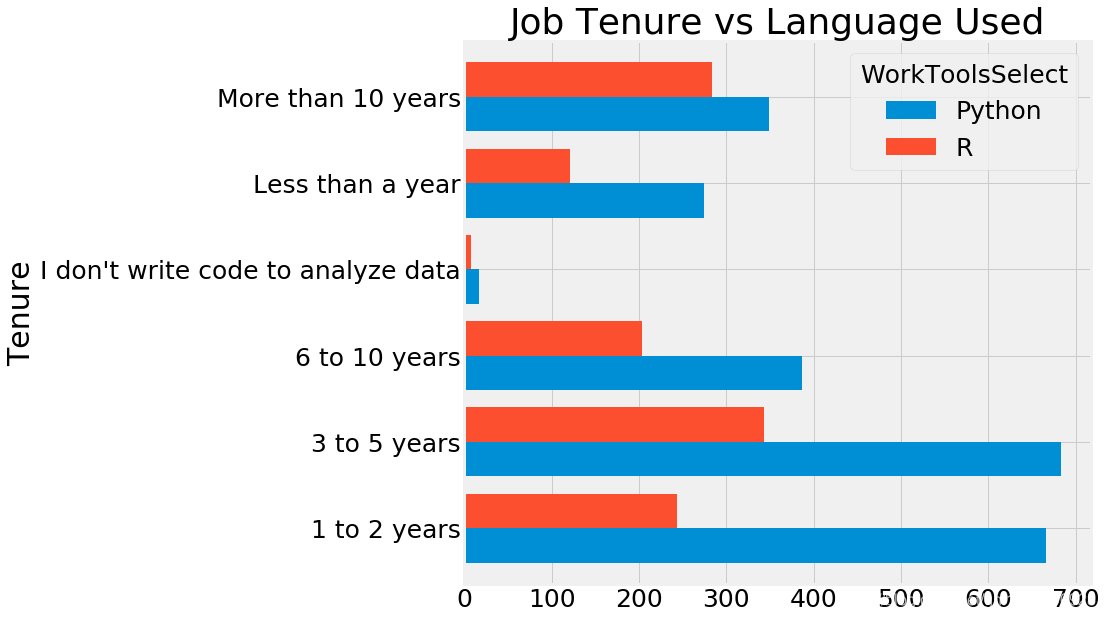

使用语言多少年啦

r_vs_py=pd.concat([py1,r])
r_vs_py=r_vs_py.groupby(['Tenure','WorkToolsSelect'])['Age'].count().to_frame().reset_index()
r_vs_py.pivot('Tenure','WorkToolsSelect','Age').plot.barh(width=0.8)
fig=plt.gcf()
fig.set_size_inches(10,10)
plt.title('Job Tenure vs Language Used')
plt.show()

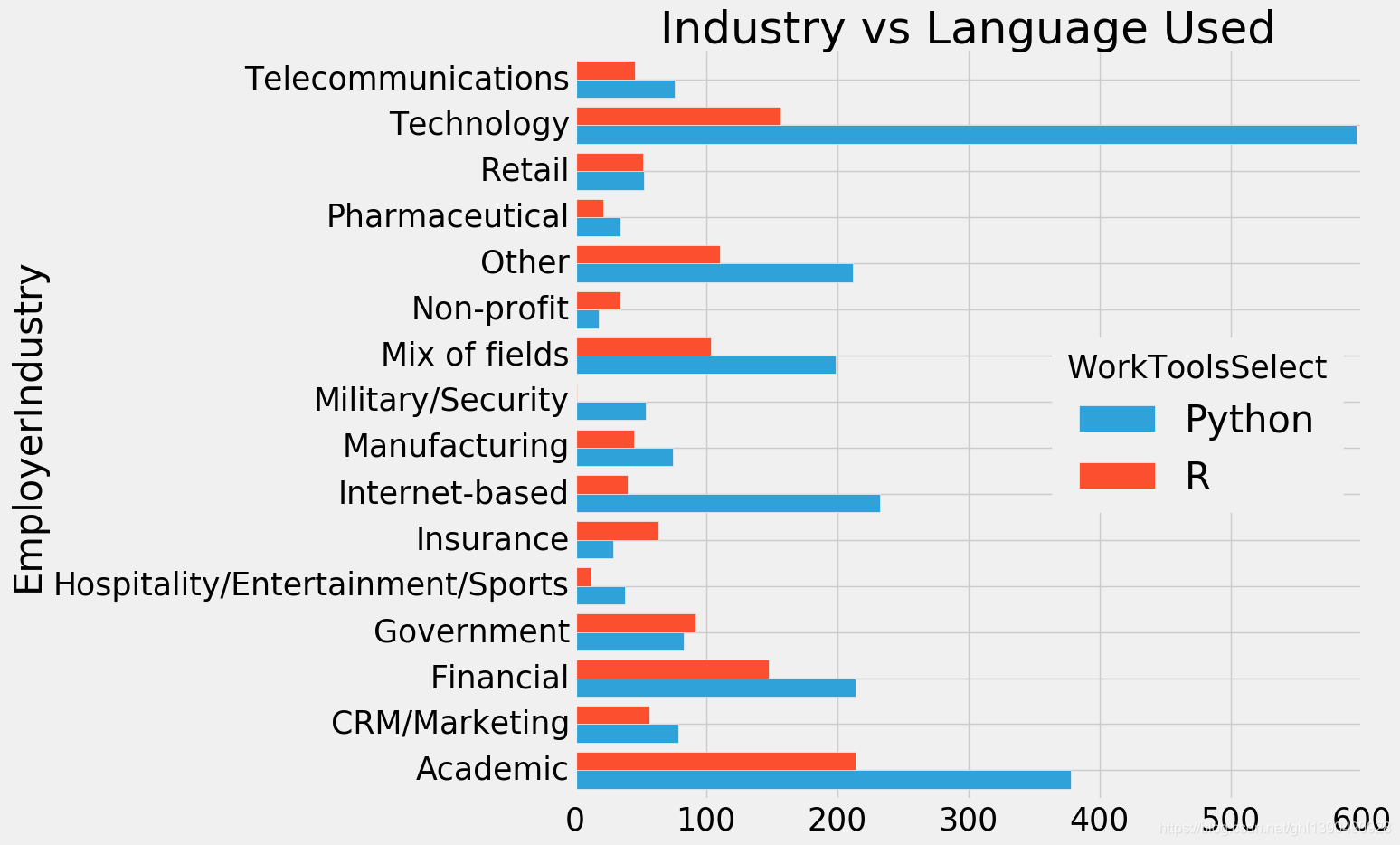

不同行业用哪门语言呢

r_vs_py=pd.concat([py1,r])
r_vs_py=r_vs_py.groupby(['EmployerIndustry','WorkToolsSelect'])['Age'].count().to_frame().reset_index()
r_vs_py.pivot('EmployerIndustry','WorkToolsSelect','Age').plot.barh(width=0.8)
fig=plt.gcf()
fig.set_size_inches(10,10)
plt.title('Industry vs Language Used')
plt.show()

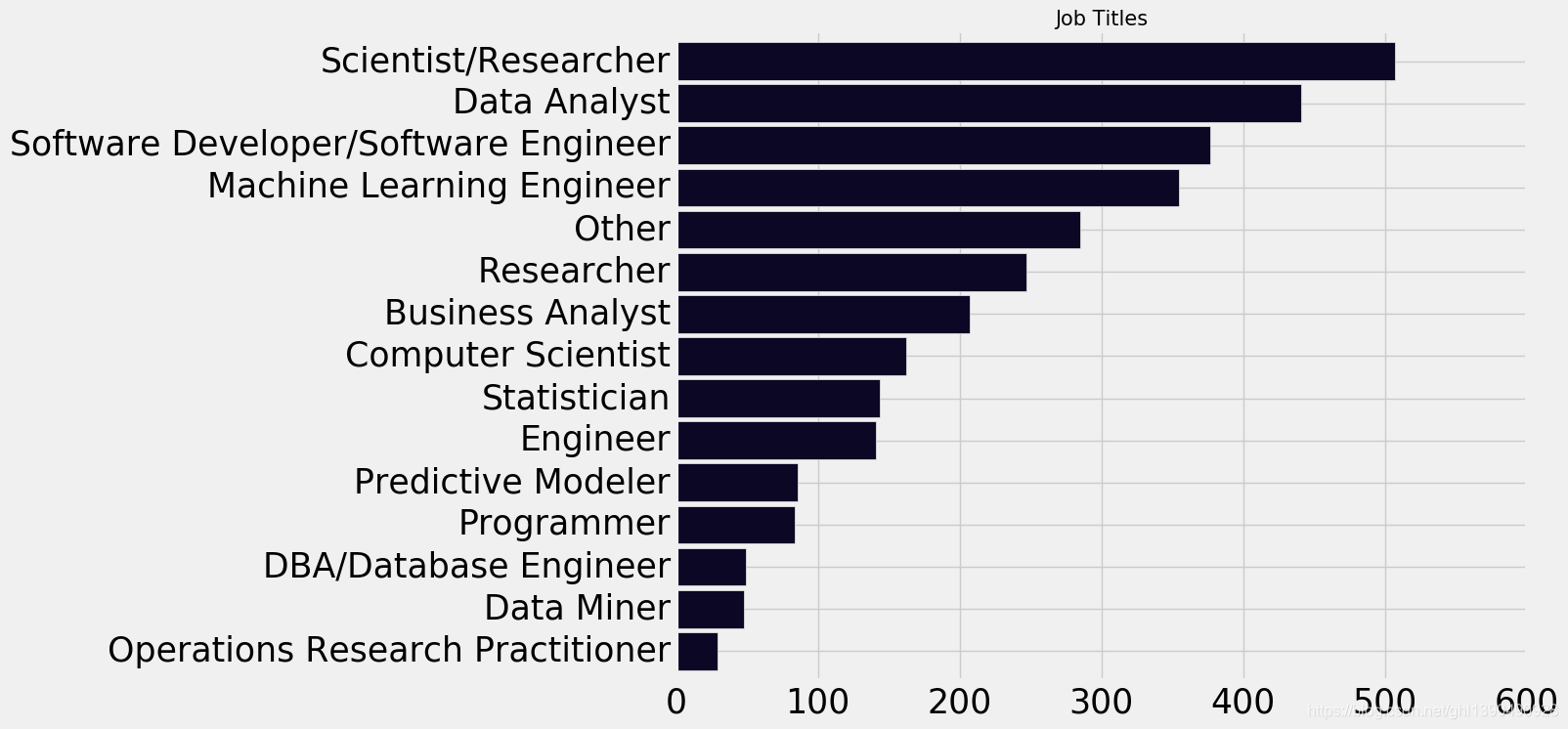

2.18 看看数据科学家都做什么

plt.subplots(figsize=(10,8))
scientist=response[response['DataScienceIdentitySelect']=='Yes']
scientist['CurrentJobTitleSelect'].value_counts().sort_values(ascending=True).plot.barh(width=0.9,color=sns.color_palette('inferno',15))
plt.title('Job Titles',size=15)
plt.show()

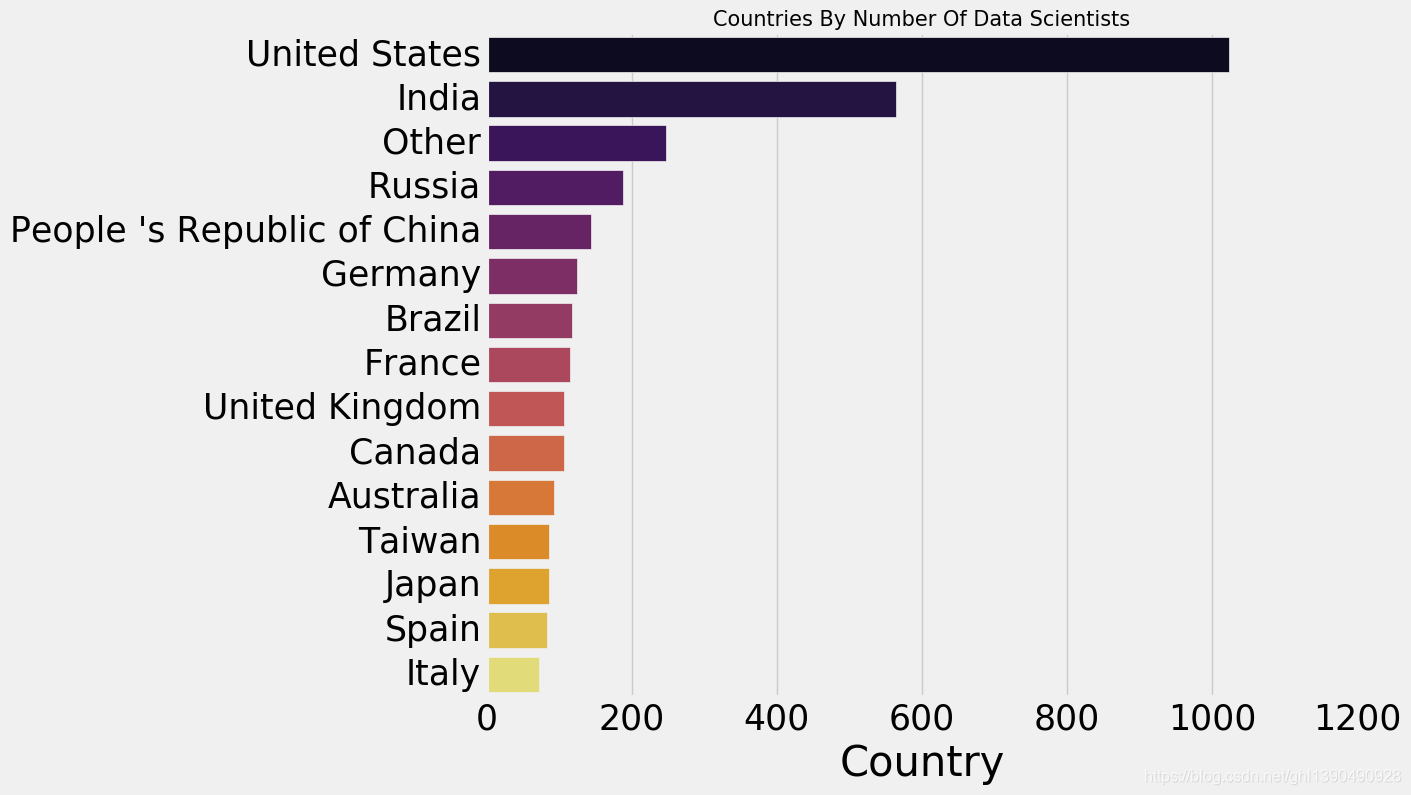

2.19 数据科学家都在哪些国家

plt.subplots(figsize=(10,8))
coun=scientist['Country'].value_counts()[:15].sort_values(ascending=False).to_frame()
sns.barplot(coun.Country,coun.index,palette='inferno')
plt.title('Countries By Number Of Data Scientists',size=15)
plt.show()

2.20 学历跟工资挂钩吗

plt.subplots(figsize=(25,12))
comp_edu=scientist.merge(salary,left_index=True,right_index=True,how='left')
comp_edu=comp_edu[['FormalEducation','Salary']]
sns.boxplot(x='FormalEducation',y='Salary',data=comp_edu)
plt.title('Compensation vs Education')
plt.xticks(rotation=90)
plt.show()
