docker 部署prometheus + grafana

最爱喝酸奶

4350人浏览 · 2020-07-17 19:00:36

最爱喝酸奶 · 2020-07-17 19:00:36 发布

通过docker部署prometheus、node-exporter、alertmanager和grafana。prometheus最新版本：2.19.2

主机说明：

系统	ip	角色	cpu	内存	hostname
CentOS 7.8	192.168.30.135	prometheus、node1	>=2	>=2G	prometheus
CentOS 7.8	192.168.30.136	altermanager、node2	>=2	>=2G	altermanager
CentOS 7.8	192.168.30.137	grafana、node3	>=2	>=2G	grafana

全部关闭防火墙和selinux：

systemctl stop firewalld && systemctl disable firewalld

sed -i 's/=enforcing/=disabled/g' /etc/selinux/config  && setenforce 0

安装docker：

curl http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -o /etc/yum.repos.d/docker.repo

yum makecache fast

yum install -y docker-ce

systemctl start docker && systemctl enable docker

node-exporter：

docker pull prom/node-exporter:latest

docker run -d -p 9100:9100 --name node-exporter prom/node-exporter:latest

docker ps

CONTAINER ID        IMAGE                       COMMAND                CREATED             STATUS              PORTS                    NAMES
95252704e558        prom/node-exporter:latest   "/bin/node_exporter"   3 seconds ago       Up 2 seconds        0.0.0.0:9100->9100/tcp   node-exporter

netstat -lntp |grep docker

tcp6       0      0 :::9100                 :::*                    LISTEN      9076/docker-proxy

alertmanager：

mkdir /home/prom && cd /home/prom

docker pull prom/alertmanager:latest

docker pull timonwong/prometheus-webhook-dingtalk               #钉钉告警

vim config.yml

targets:
  webhook:
    url: https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxx             #修改为钉钉机器人的webhook
    mention:
      all: true

vim alertmanager.yml

global:
  resolve_timeout: 5m
  smtp_smarthost: 'smtp.163.com:465'             #邮箱smtp服务器代理，启用SSL发信, 端口一般是465
  smtp_from: 'alert@163.com'              #发送邮箱名称
  smtp_auth_username: 'alert@163.com'              #邮箱名称
  smtp_auth_password: 'password'                #邮箱密码或授权码
  smtp_require_tls: false

route:
  receiver: 'default'
  group_wait: 10s
  group_interval: 1m
  repeat_interval: 1h
  group_by: ['alertname']

inhibit_rules:
- source_match:
    severity: 'critical'
  target_match:
    severity: 'warning'
  equal: ['alertname', 'instance']

receivers:
- name: 'default'
  email_configs:
  - to: 'receiver@163.com'
    send_resolved: true
  webhook_configs:
  - url: 'http://192.168.30.136:8060/dingtalk/webhook/send'
    send_resolved: true

docker run -d -p 8060:8060 -v /home/prom/config.yml:/etc/prometheus-webhook-dingtalk/config.yml --name alertdingtalk timonwong/prometheus-webhook-dingtalk

docker run -d -p 9093:9093 -p 9094:9094 -v /home/prom/alertmanager.yml:/etc/alertmanager/alertmanager.yml --name alertmanager prom/alertmanager:latest

docker ps

CONTAINER ID        IMAGE                                   COMMAND                  CREATED             STATUS              PORTS                              NAMES
bed08b1b251d        prom/alertmanager:latest                "/bin/alertmanager -…"   3 seconds ago       Up 2 seconds        0.0.0.0:9093-9094->9093-9094/tcp   alertmanager
1449d7d0a445        timonwong/prometheus-webhook-dingtalk   "/bin/prometheus-web…"   21 seconds ago      Up 20 seconds       0.0.0.0:8060->8060/tcp             alertdingtalk
cf90ea931188        prom/node-exporter:latest               "/bin/node_exporter"     23 minutes ago      Up 23 minutes       0.0.0.0:9100->9100/tcp             node-exporter

netstat -lntp |grep docker

tcp6       0      0 :::9100                 :::*                    LISTEN      14970/docker-proxy
tcp6       0      0 :::8060                 :::*                    LISTEN      17666/docker-proxy
tcp6       0      0 :::9093                 :::*                    LISTEN      17808/docker-proxy
tcp6       0      0 :::9094                 :::*                    LISTEN      17794/docker-proxy

prometheus：

mkdir -p /home/prom/data && chmod 777 /home/prom/data && cd /home/prom

docker pull prom/prometheus:latest

vim alert-rules.yml

groups:
  - name: node-alert
    rules:

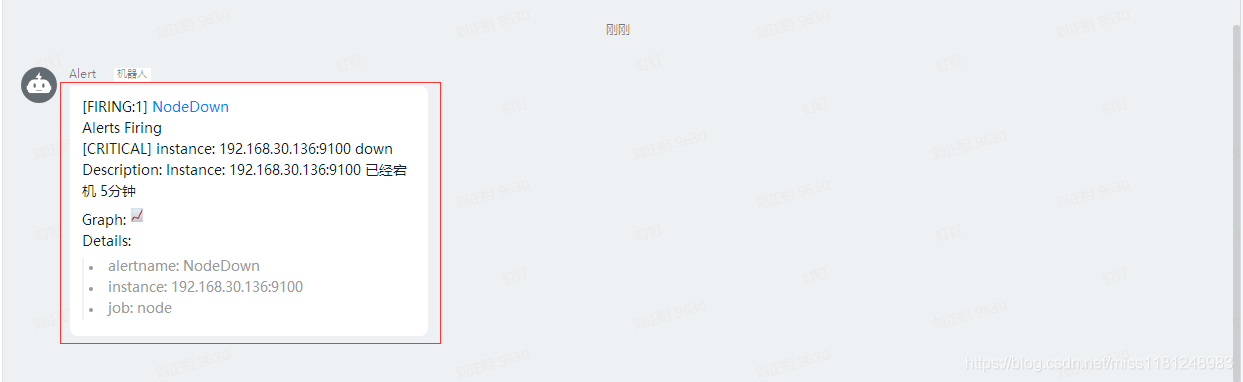

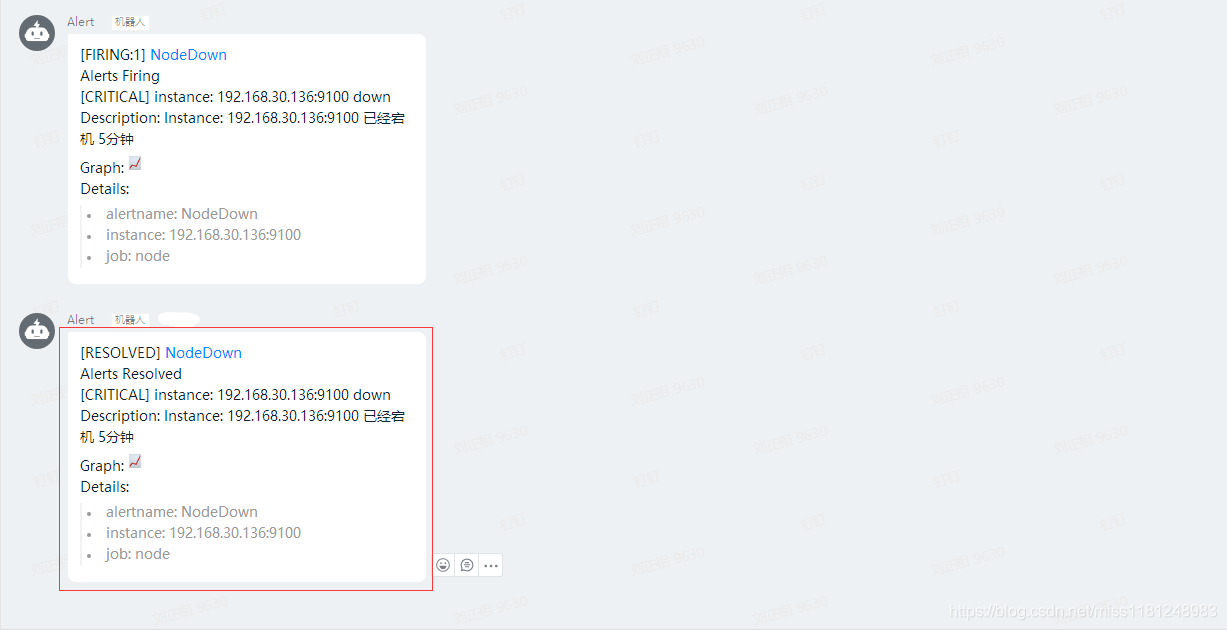

    - alert: NodeDown
      expr: up{job="node"} == 0
      for: 5m
      labels:
        severity: critical
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} down"
        description: "Instance: {{ $labels.instance }} 已经宕机 5分钟"
        value: "{{ $value }}"

    - alert: NodeCpuHigh
      expr: (1 - avg by (instance) (irate(node_cpu_seconds_total{job="node",mode="idle"}[5m]))) * 100 > 80
      for: 5m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} cpu使用率过高"
        description: "CPU 使用率超过 80%"
        value: "{{ $value }}"

    - alert: NodeCpuIowaitHigh
      expr: avg by (instance) (irate(node_cpu_seconds_total{job="node",mode="iowait"}[5m])) * 100 > 50
      for: 5m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} cpu iowait 使用率过高"
        description: "CPU iowait 使用率超过 50%"
        value: "{{ $value }}"

    - alert: NodeLoad5High
      expr: node_load5 > (count by (instance) (node_cpu_seconds_total{job="node",mode='system'})) * 1.2
      for: 5m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} load(5m) 过高"
        description: "Load(5m) 过高，超出cpu核数 1.2倍"
        value: "{{ $value }}"

    - alert: NodeMemoryHigh
      expr: (1 - node_memory_MemAvailable_bytes{job="node"} / node_memory_MemTotal_bytes{job="node"}) * 100 > 90
      for: 5m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} memory 使用率过高"
        description: "Memory 使用率超过 90%"
        value: "{{ $value }}"

    - alert: NodeDiskRootHigh
      expr: (1 - node_filesystem_avail_bytes{job="node",fstype=~"ext.*|xfs",mountpoint ="/"} / node_filesystem_size_bytes{job="node",fstype=~"ext.*|xfs",mountpoint ="/"}) * 100 > 90
      for: 10m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} disk(/ 分区) 使用率过高"
        description: "Disk(/ 分区) 使用率超过 90%"
        value: "{{ $value }}"

    - alert: NodeDiskBootHigh
      expr: (1 - node_filesystem_avail_bytes{job="node",fstype=~"ext.*|xfs",mountpoint ="/boot"} / node_filesystem_size_bytes{job="node",fstype=~"ext.*|xfs",mountpoint ="/boot"}) * 100 > 80
      for: 10m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} disk(/boot 分区) 使用率过高"
        description: "Disk(/boot 分区) 使用率超过 80%"
        value: "{{ $value }}"

    - alert: NodeDiskReadHigh
      expr: irate(node_disk_read_bytes_total{job="node"}[5m]) > 20 * (1024 ^ 2)
      for: 5m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} disk 读取字节数 速率过高"
        description: "Disk 读取字节数 速率超过 20 MB/s"
        value: "{{ $value }}"

    - alert: NodeDiskWriteHigh
      expr: irate(node_disk_written_bytes_total{job="node"}[5m]) > 20 * (1024 ^ 2)
      for: 5m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} disk 写入字节数 速率过高"
        description: "Disk 写入字节数 速率超过 20 MB/s"
        value: "{{ $value }}"

    - alert: NodeDiskReadRateCountHigh
      expr: irate(node_disk_reads_completed_total{job="node"}[5m]) > 3000
      for: 5m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} disk iops 每秒读取速率过高"
        description: "Disk iops 每秒读取速率超过 3000 iops"
        value: "{{ $value }}"

    - alert: NodeDiskWriteRateCountHigh
      expr: irate(node_disk_writes_completed_total{job="node"}[5m]) > 3000
      for: 5m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} disk iops 每秒写入速率过高"
        description: "Disk iops 每秒写入速率超过 3000 iops"
        value: "{{ $value }}"

    - alert: NodeInodeRootUsedPercentHigh
      expr: (1 - node_filesystem_files_free{job="node",fstype=~"ext4|xfs",mountpoint="/"} / node_filesystem_files{job="node",fstype=~"ext4|xfs",mountpoint="/"}) * 100 > 80
      for: 10m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} disk(/ 分区) inode 使用率过高"
        description: "Disk (/ 分区) inode 使用率超过 80%"
        value: "{{ $value }}"

    - alert: NodeInodeBootUsedPercentHigh
      expr: (1 - node_filesystem_files_free{job="node",fstype=~"ext4|xfs",mountpoint="/boot"} / node_filesystem_files{job="node",fstype=~"ext4|xfs",mountpoint="/boot"}) * 100 > 80
      for: 10m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} disk(/boot 分区) inode 使用率过高"
        description: "Disk (/boot 分区) inode 使用率超过 80%"
        value: "{{ $value }}"

    - alert: NodeFilefdAllocatedPercentHigh
      expr: node_filefd_allocated{job="node"} / node_filefd_maximum{job="node"} * 100 > 80
      for: 10m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} filefd 打开百分比过高"
        description: "Filefd 打开百分比 超过 80%"
        value: "{{ $value }}"

    - alert: NodeNetworkNetinBitRateHigh
      expr: avg by (instance) (irate(node_network_receive_bytes_total{device=~"eth0|eth1|ens33|ens37"}[1m]) * 8) > 20 * (1024 ^ 2) * 8
      for: 3m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} network 接收比特数 速率过高"
        description: "Network 接收比特数 速率超过 20MB/s"
        value: "{{ $value }}"

    - alert: NodeNetworkNetoutBitRateHigh
      expr: avg by (instance) (irate(node_network_transmit_bytes_total{device=~"eth0|eth1|ens33|ens37"}[1m]) * 8) > 20 * (1024 ^ 2) * 8
      for: 3m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} network 发送比特数 速率过高"
        description: "Network 发送比特数 速率超过 20MB/s"
        value: "{{ $value }}"

    - alert: NodeNetworkNetinPacketErrorRateHigh
      expr: avg by (instance) (irate(node_network_receive_errs_total{device=~"eth0|eth1|ens33|ens37"}[1m])) > 15
      for: 3m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} 接收错误包 速率过高"
        description: "Network 接收错误包 速率超过 15个/秒"
        value: "{{ $value }}"

    - alert: NodeNetworkNetoutPacketErrorRateHigh
      expr: avg by (instance) (irate(node_network_transmit_packets_total{device=~"eth0|eth1|ens33|ens37"}[1m])) > 15
      for: 3m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} 发送错误包 速率过高"
        description: "Network 发送错误包 速率超过 15个/秒"
        value: "{{ $value }}"

    - alert: NodeProcessBlockedHigh
      expr: node_procs_blocked{job="node"} > 10
      for: 10m
      labels:
        severity: warning
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} 当前被阻塞的任务的数量过多"
        description: "Process 当前被阻塞的任务的数量超过 10个"
        value: "{{ $value }}"

    - alert: NodeTimeOffsetHigh
      expr: abs(node_timex_offset_seconds{job="node"}) > 3 * 60
      for: 2m
      labels:
        severity: info
        instance: "{{ $labels.instance }}"
      annotations:
        summary: "instance: {{ $labels.instance }} 时间偏差过大"
        description: "Time 节点的时间偏差超过 3m"
        value: "{{ $value }}"

vim prometheus.yml

global:
  scrape_interval:     15s
  evaluation_interval: 15s

alerting:
  alertmanagers:
  - static_configs:
    - targets:
      - 192.168.30.136:9093

rule_files:
  - "*rules.yml"

scrape_configs:
  - job_name: 'prometheus'
    static_configs:
    - targets: ['192.168.30.135:9090']

  - job_name: 'node'
    static_configs:
    - targets: ['192.168.30.135:9100','192.168.30.136:9100','192.168.30.137:9100']

  - job_name: 'alertmanager'
    static_configs:
    - targets: ['192.168.30.136:9093']

docker run -d -p 9090:9090 \
  -v /home/prom/prometheus.yml:/etc/prometheus/prometheus.yml \
  -v /home/prom/alert-rules.yml:/etc/prometheus/alert-rules.yml \
  -v /home/prom/data:/prometheus --name prometheus prom/prometheus:latest

docker ps

CONTAINER ID        IMAGE                       COMMAND                  CREATED             STATUS              PORTS                    NAMES
0a15519b970c        prom/prometheus:latest      "/bin/prometheus --c…"   3 seconds ago       Up 2 seconds        0.0.0.0:9090->9090/tcp   prometheus
95252704e558        prom/node-exporter:latest   "/bin/node_exporter"     16 hours ago        Up 16 hours         0.0.0.0:9100->9100/tcp   node-exporter

netstat -lntp |grep docker

tcp6       0      0 :::9090                 :::*                    LISTEN      9701/docker-proxy
tcp6       0      0 :::9100                 :::*                    LISTEN      9076/docker-proxy

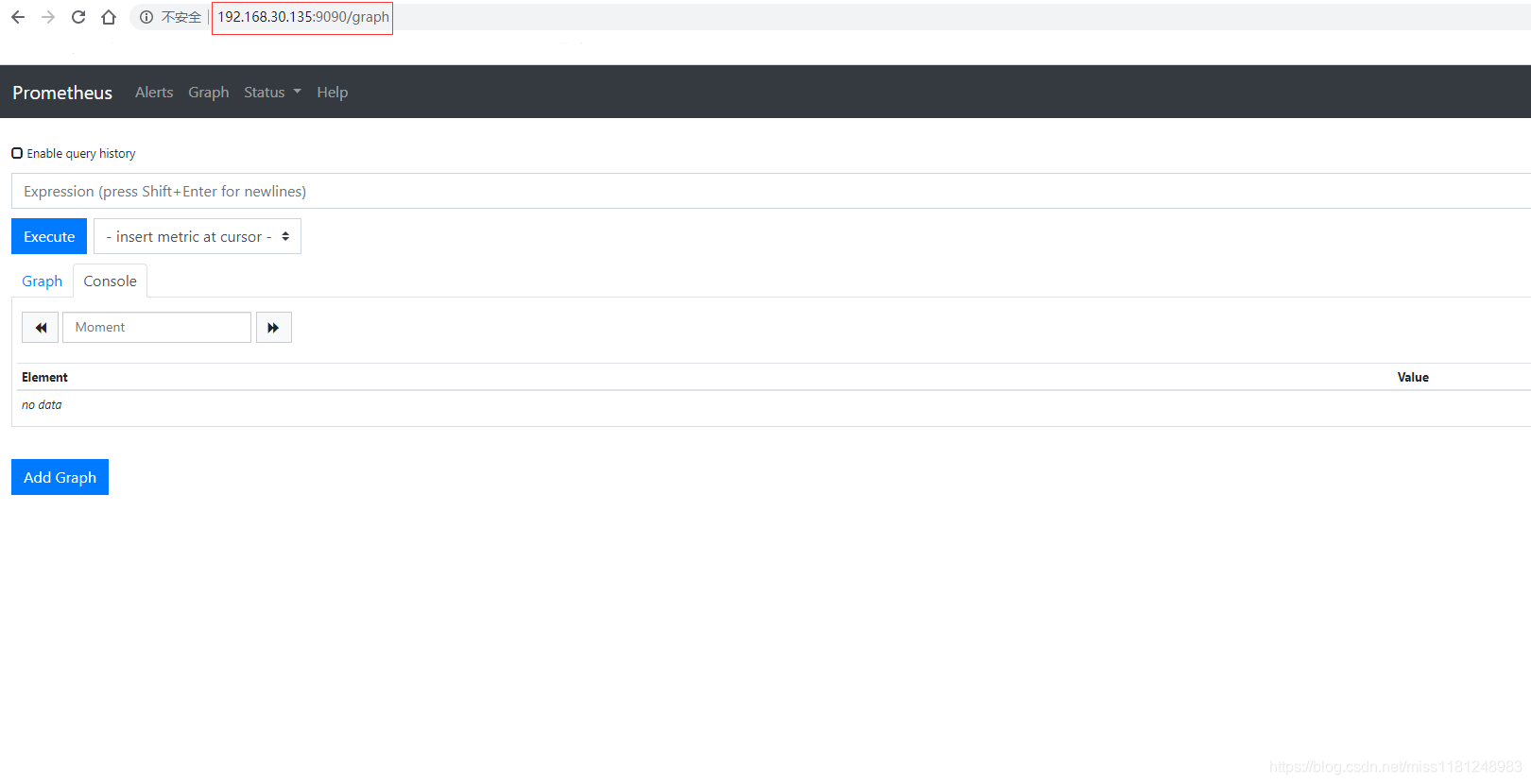

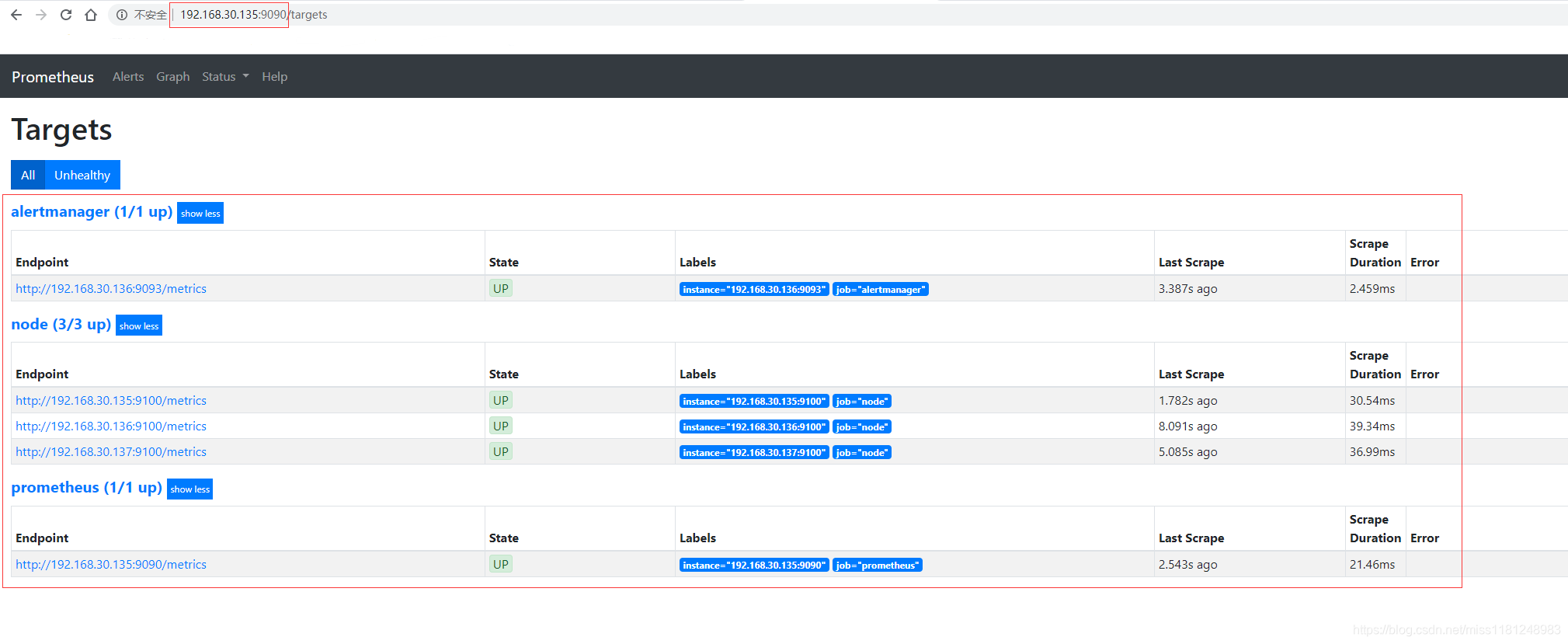

访问ip:9090，

在这里插入图片描述

容器部署完成，且规则配置完毕。接下来部署grafana，图形化展示。

grafana：

mkdir -p /home/prom/grafana && chmod 777 /home/prom/grafana

docker pull grafana/grafana:latest

docker run -d -p 3000:3000 -v /home/prom/grafana:/var/lib/grafana --name=grafana grafana/grafana:latest

docker ps

CONTAINER ID        IMAGE                       COMMAND                CREATED             STATUS              PORTS                    NAMES
17d5c5d415b5        grafana/grafana:latest      "/run.sh"              4 seconds ago       Up 3 seconds        0.0.0.0:3000->3000/tcp   grafana
bd53df9eb9fa        prom/node-exporter:latest   "/bin/node_exporter"   16 hours ago        Up 16 hours         0.0.0.0:9100->9100/tcp   node-exporter

netstat -lntp |grep docker

tcp6       0      0 :::9100                 :::*                    LISTEN      6558/docker-proxy
tcp6       0      0 :::3000                 :::*                    LISTEN      13123/docker-proxy

grafana容器配置文件：/etc/grafana/grafana.ini。

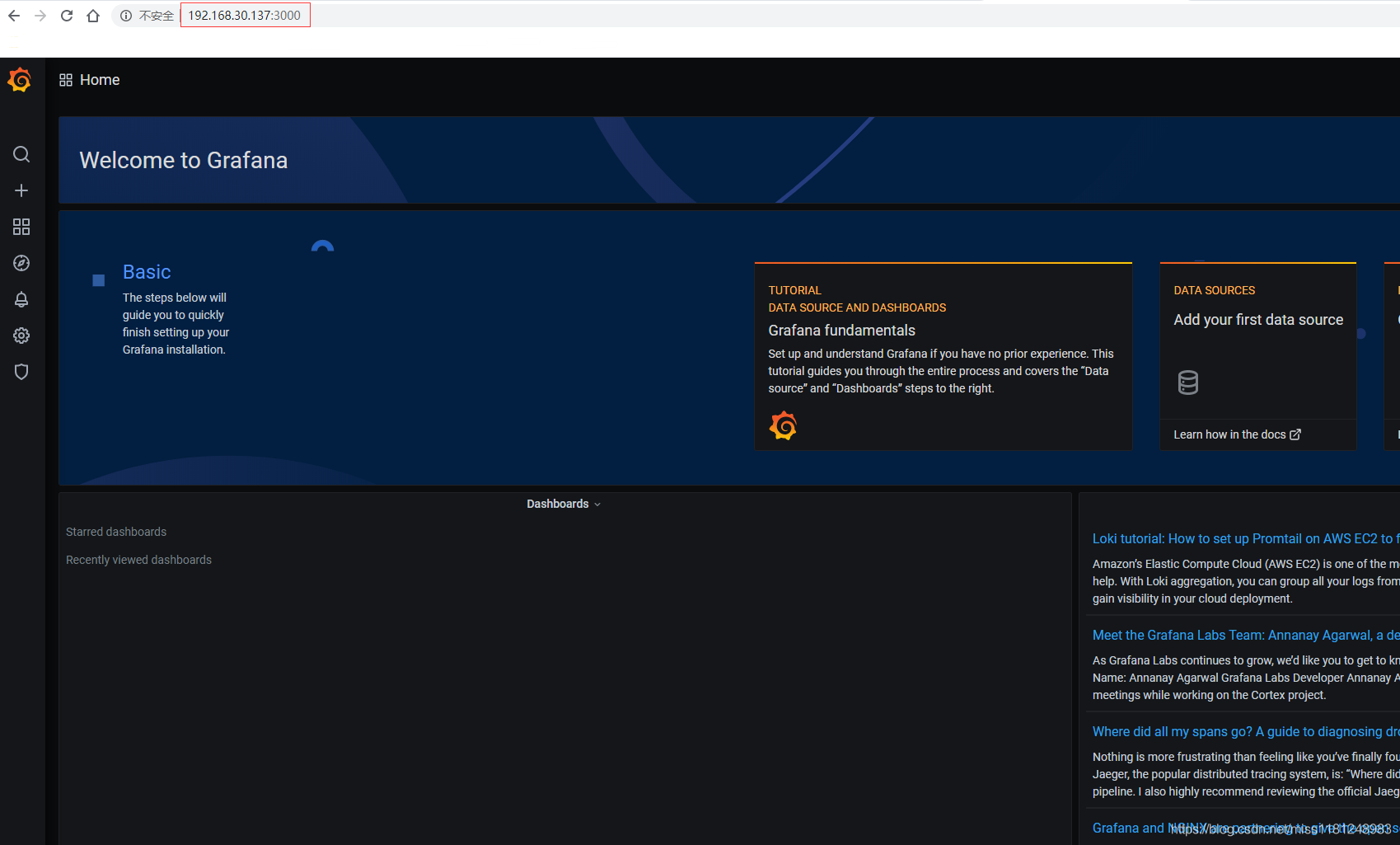

访问ip:3000，初始账号密码为admin/admin，会要求更改密码。

在这里插入图片描述

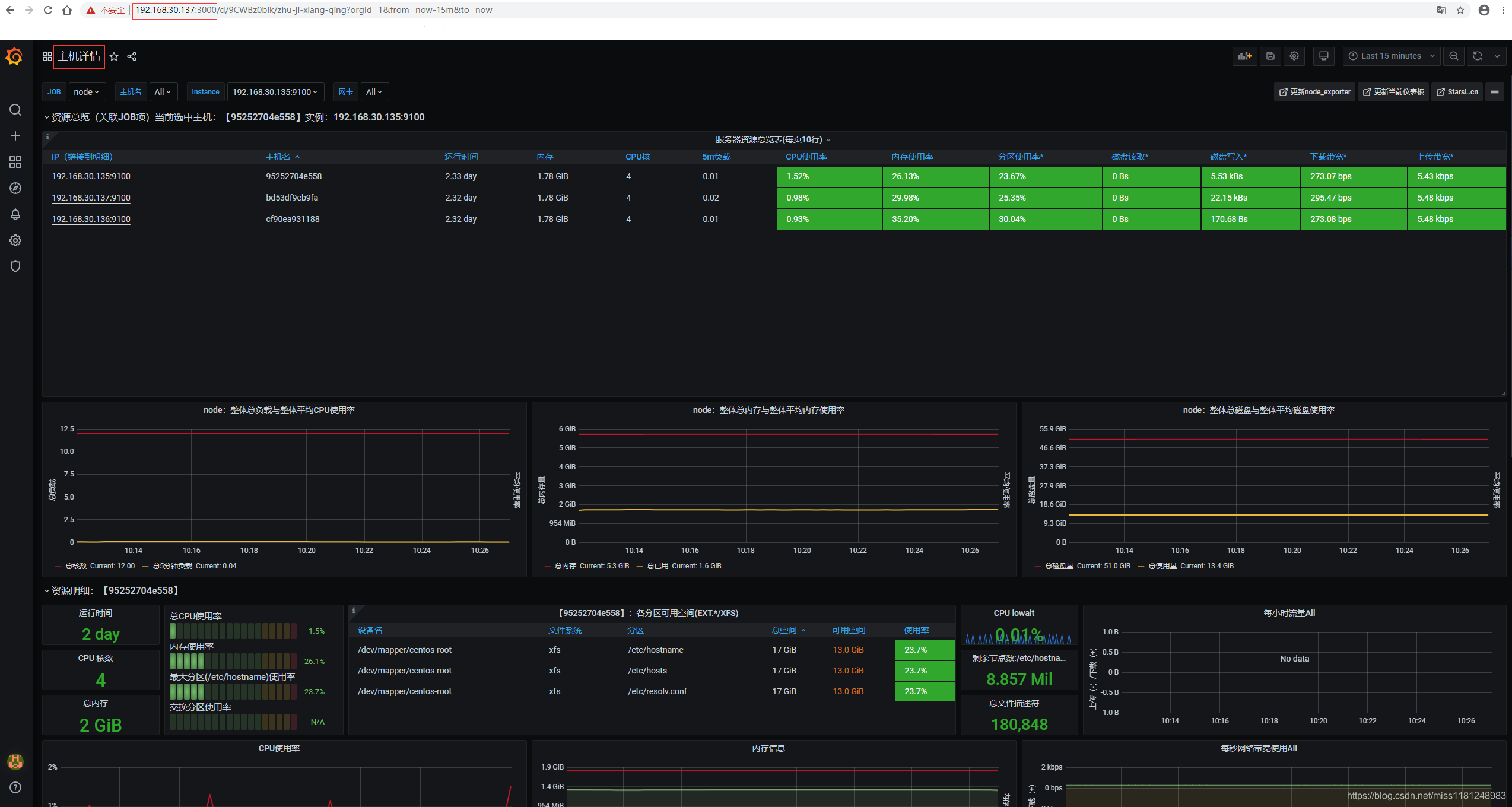

选择数据源Prometheus——http://ip:9090，导入模板8919，

在这里插入图片描述

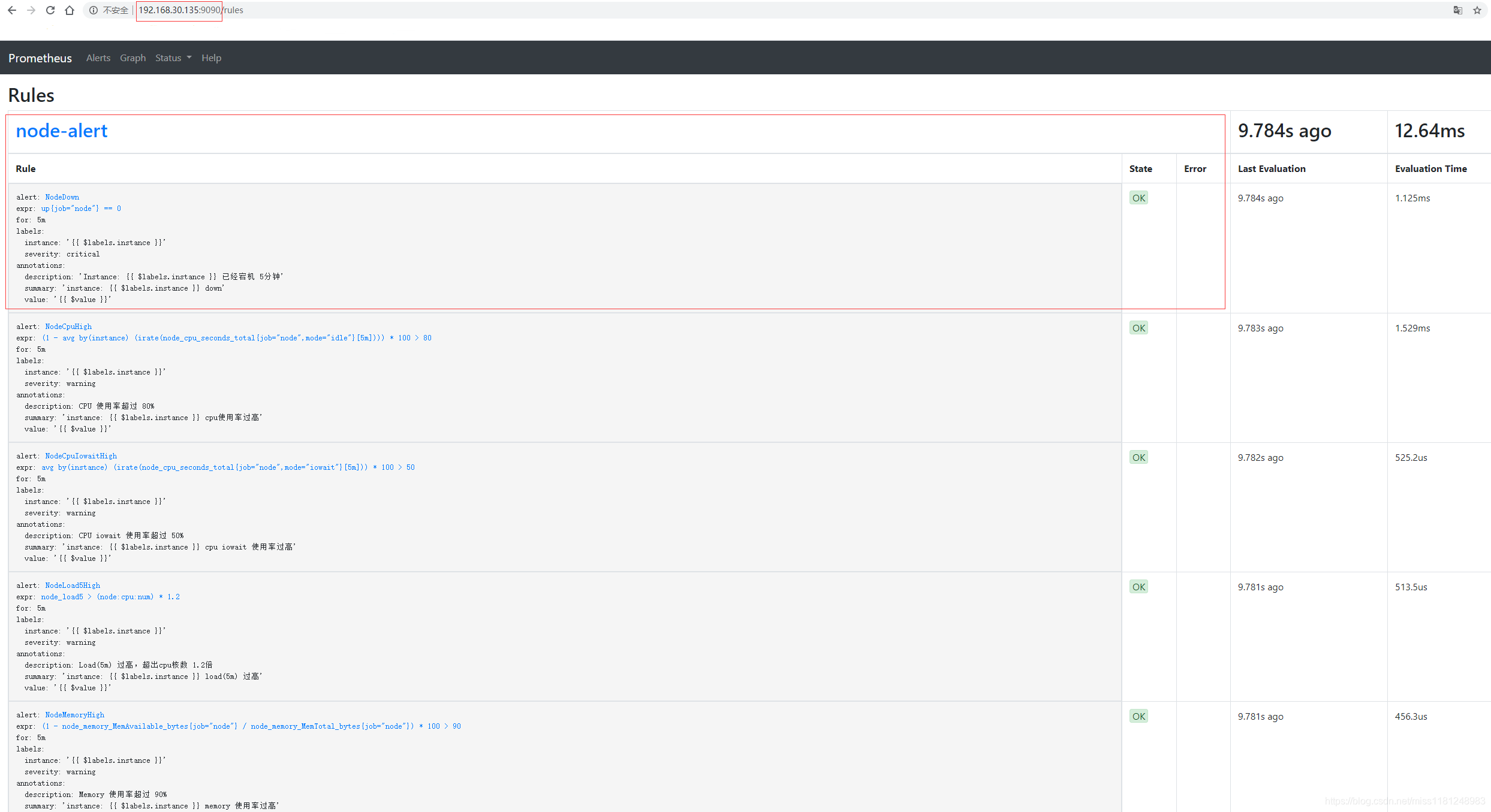

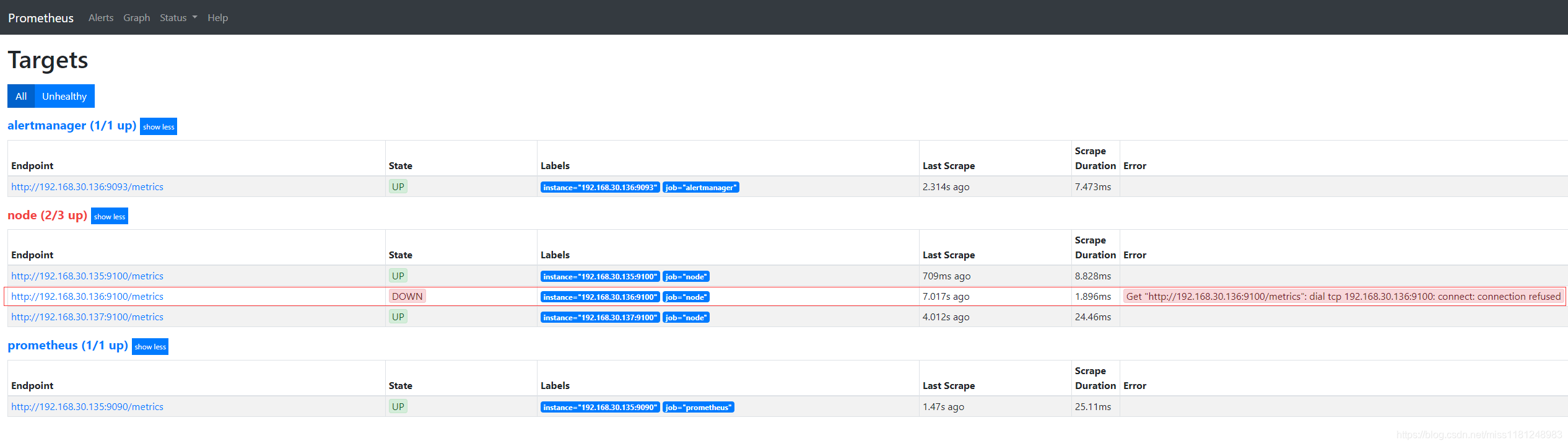

测试告警：

选择alertmanager节点（192.168.30.136），关闭node-exporter容器。

docker stop node-exporter

docker ps

CONTAINER ID        IMAGE                                   COMMAND                  CREATED             STATUS              PORTS                              NAMES
bed08b1b251d        prom/alertmanager:latest                "/bin/alertmanager -…"   38 minutes ago      Up 38 minutes       0.0.0.0:9093-9094->9093-9094/tcp   alertmanager
1449d7d0a445        timonwong/prometheus-webhook-dingtalk   "/bin/prometheus-web…"   38 minutes ago      Up 38 minutes       0.0.0.0:8060->8060/tcp             alertdingtalk

在这里插入图片描述

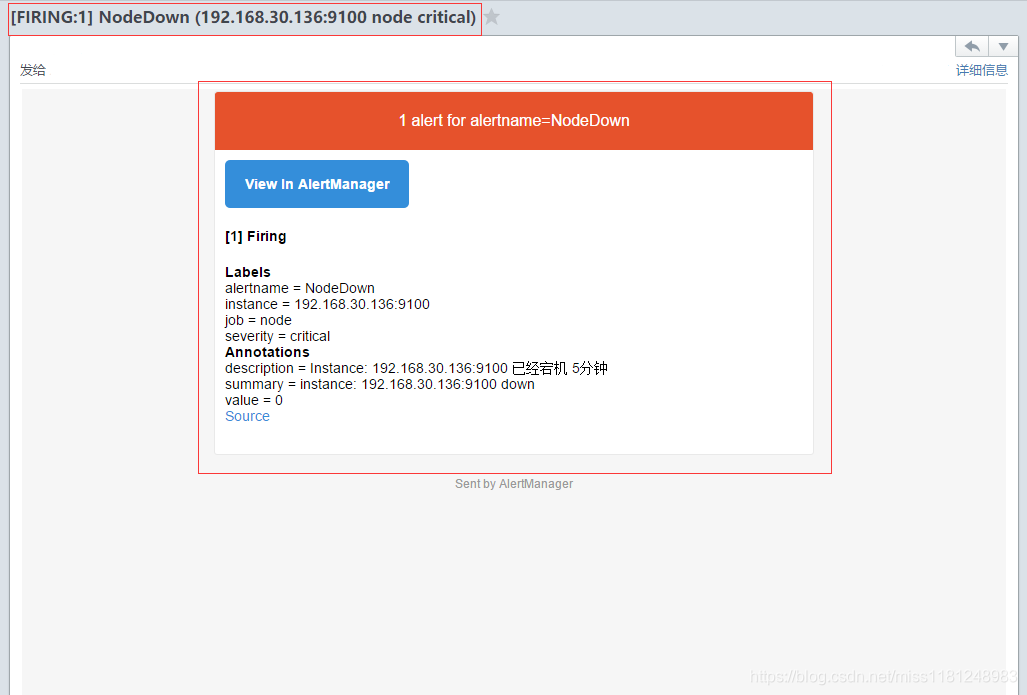

收到钉钉和邮件故障告警，

在这里插入图片描述

docker start node-exporter

docker ps

CONTAINER ID        IMAGE                                   COMMAND                  CREATED             STATUS              PORTS                              NAMES
bed08b1b251d        prom/alertmanager:latest                "/bin/alertmanager -…"   47 minutes ago      Up 47 minutes       0.0.0.0:9093-9094->9093-9094/tcp   alertmanager
1449d7d0a445        timonwong/prometheus-webhook-dingtalk   "/bin/prometheus-web…"   47 minutes ago      Up 47 minutes       0.0.0.0:8060->8060/tcp             alertdingtalk
cf90ea931188        prom/node-exporter:latest               "/bin/node_exporter"     About an hour ago   Up 2 seconds        0.0.0.0:9100->9100/tcp             node-exporter

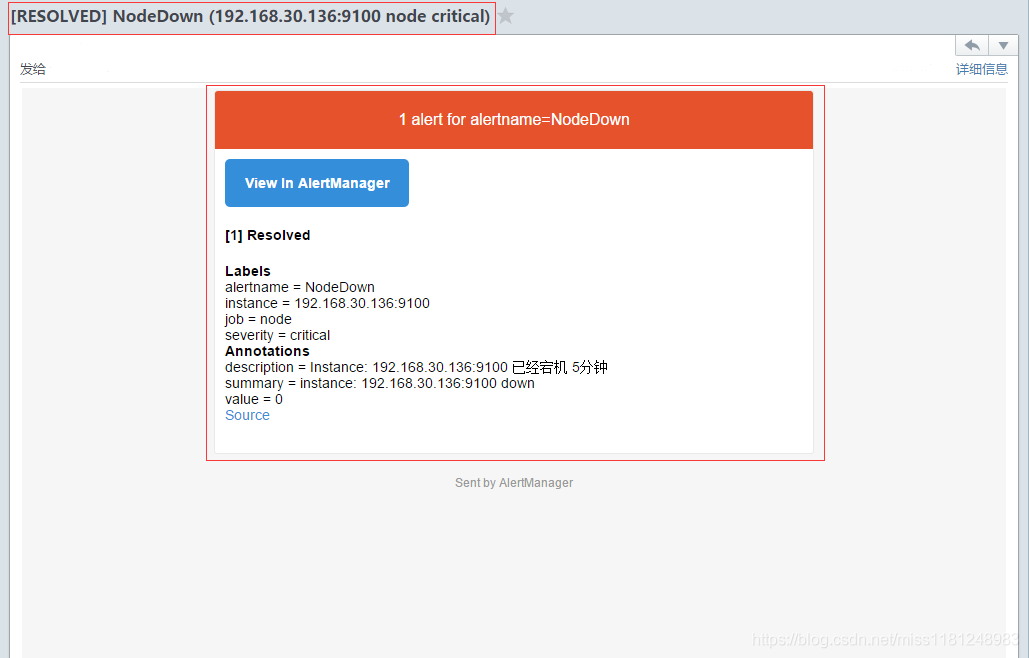

收到钉钉和邮件恢复告警，

在这里插入图片描述

测试宕机完成，告警没有问题。

docker部署 prometheus + grafana 完成，整个部署过程相比传统部署方式要简便很多。

腾讯云开发者社区

腾讯云面向开发者汇聚海量精品云计算使用和开发经验，营造开放的云计算技术生态圈。

更多推荐

Elasticsearch复杂数据类型终极指南：从入门到精通

Elasticsearch作为功能强大的搜索引擎，支持多种复杂数据类型，让开发者能够灵活处理各种结构化和非结构化数据。本文将带你全面了解Elasticsearch中的复杂数据类型，从基础概念到实际应用，助你轻松掌握数据建模的核心技巧。## 内部对象：构建层级化数据结构在Elasticsearch中，对象类型（Object）是最基础的复杂数据类型之一，用于表示具有嵌套关系的数据。例如，我们可

腾讯云开发者社区

终极指南：Flink SQL连接器版本管理从混乱到有序的升级之路

Apache Flink作为流处理领域的佼佼者，其SQL连接器的版本管理一直是开发者面临的核心挑战。本文将系统讲解Flink SQL连接器版本管理的最佳实践，帮助你轻松应对版本兼容性问题，实现从混乱到有序的升级之旅。## 连接器版本管理的常见痛点 😫在Flink应用开发中，连接器版本管理常常让开发者头疼不已。不同版本的连接器可能导致各种兼容性问题，例如API变更、功能差异甚至运行时错误。

腾讯云开发者社区

如何快速搭建Neon无服务器PostgreSQL：面向初学者的完整指南

Neon是一款革命性的无服务器PostgreSQL解决方案，它通过分离存储和计算层，实现了自动扩缩容、类代码式数据库分支以及零级扩展能力。本指南将帮助你从零开始搭建Neon开发环境，体验这款创新数据库的强大功能。## 准备工作：环境要求与依赖项在开始搭建Neon环境前，请确保你的系统满足以下要求：- Linux操作系统（推荐Ubuntu 20.04+或Debian 11+）- Git
