公网防火墙F-100c-A3































#
 version 7.1.064, Release 9524P33
#
 sysname H3C
#
context Admin id 1
#
 telnet server enable
 telnet server acl 2000
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 password-recovery enable
#

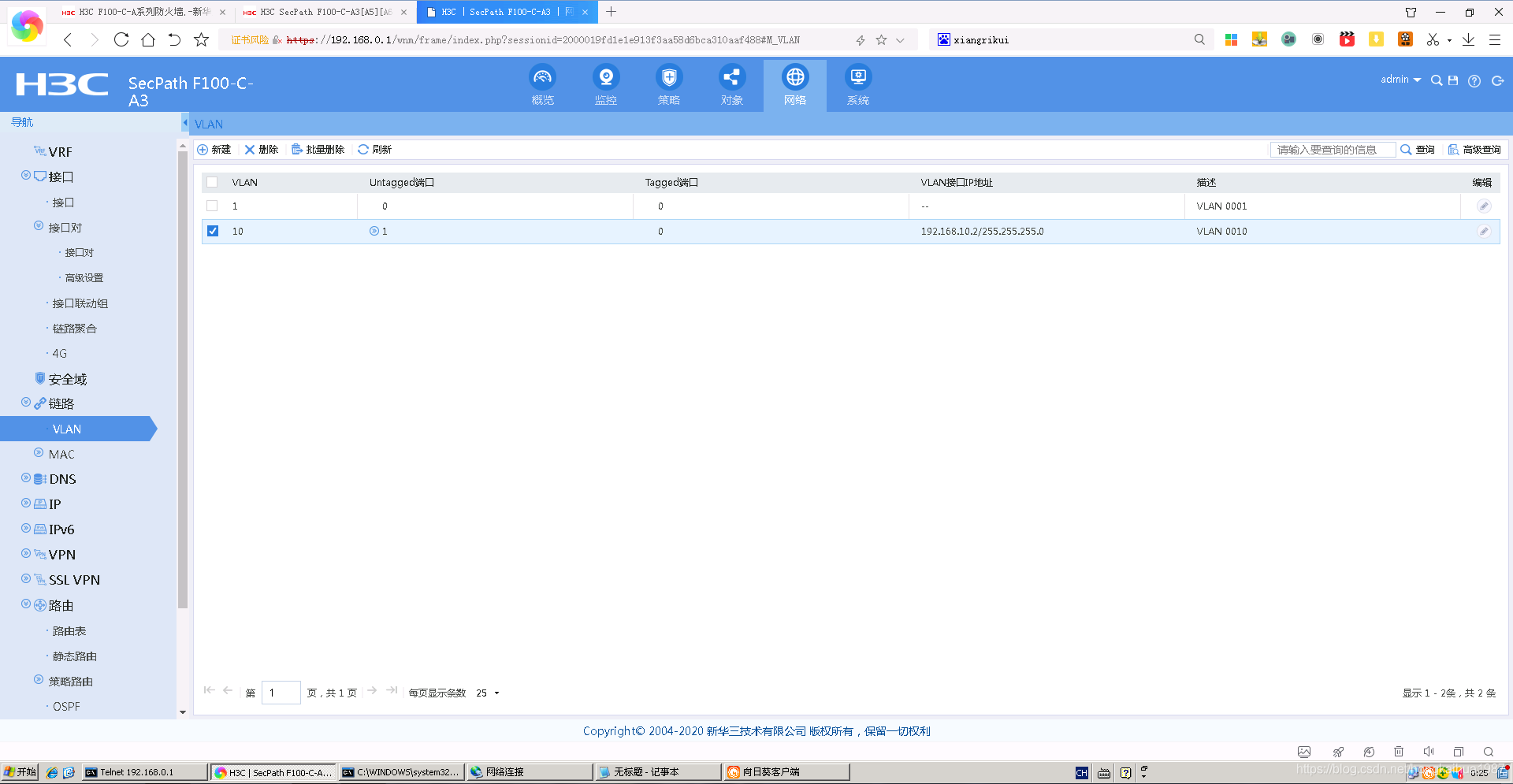

vlan 1
#
vlan 10
#
controller Cellular1/0/0
#

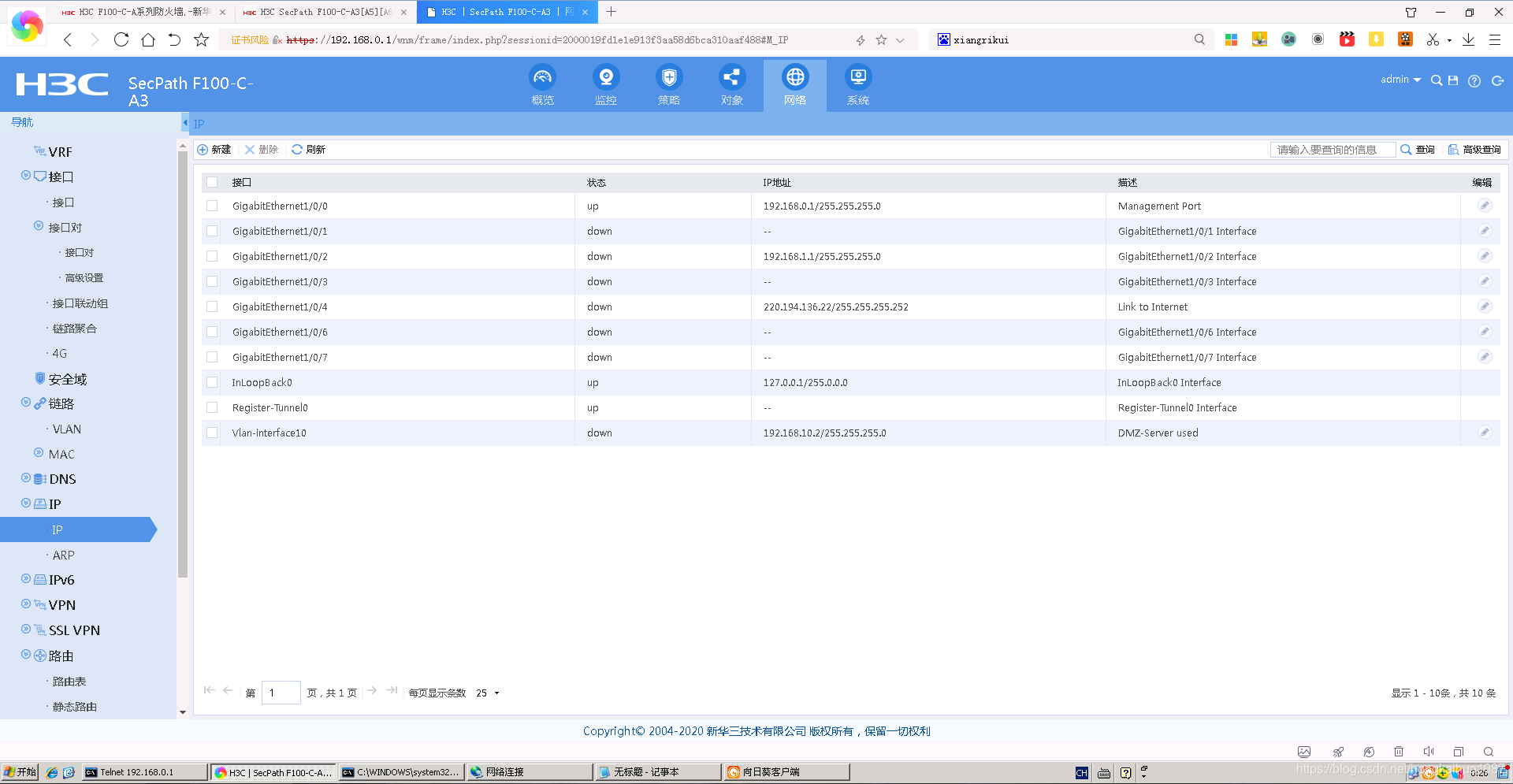

interface NULL0
#

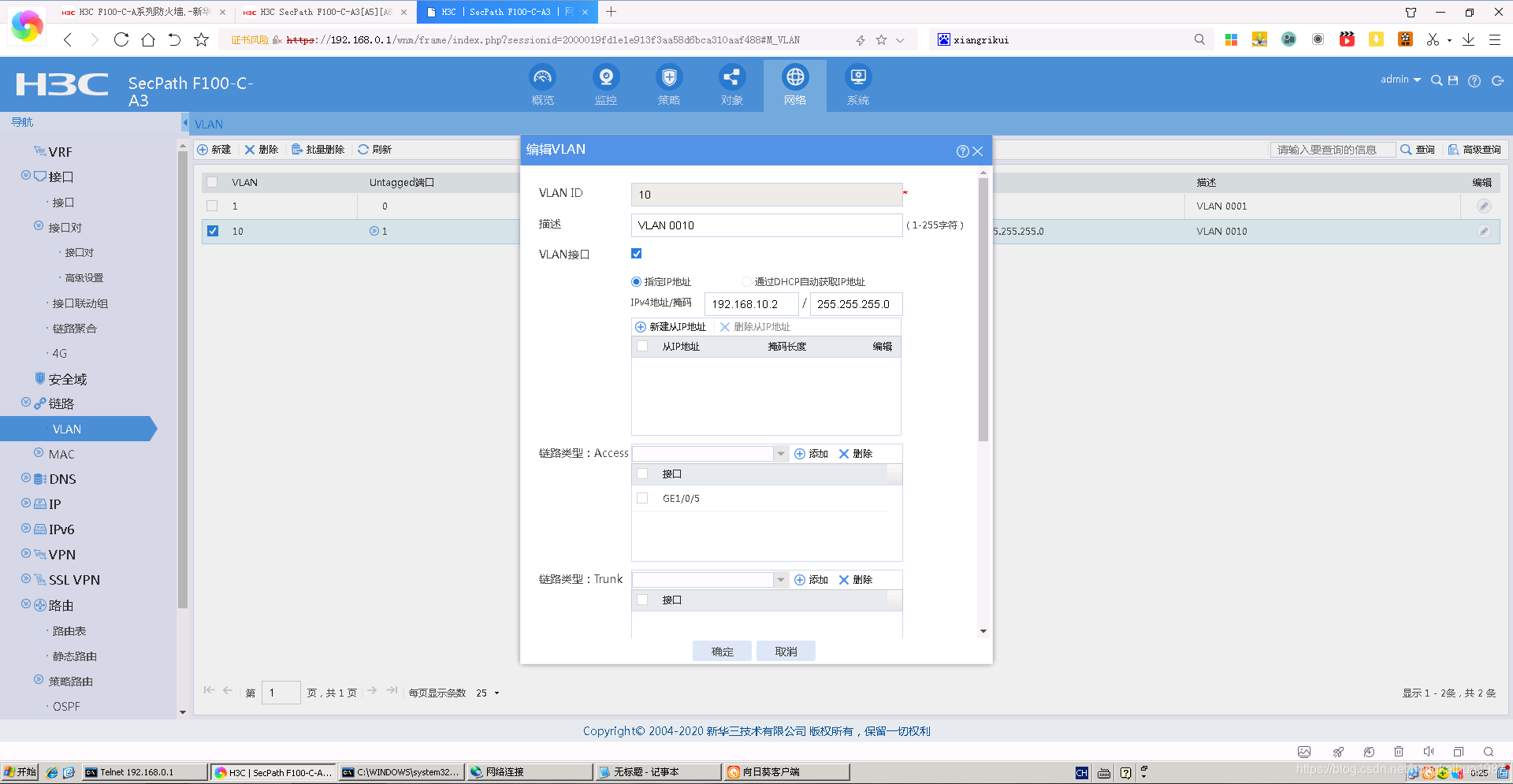

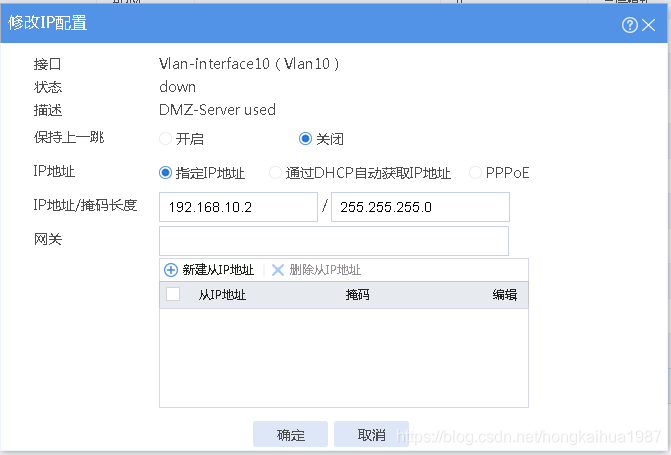

interface Vlan-interface10
 description DMZ-Server used
 ip address 192.168.10.2 255.255.255.0
#
interface GigabitEthernet1/0/0
 port link-mode route
 description Management Port
 ip address 192.168.0.1 255.255.255.0
#
interface GigabitEthernet1/0/1
 port link-mode route
 shutdown
#
interface GigabitEthernet1/0/2
 port link-mode route
 shutdown
 ip address 192.168.1.1 255.255.255.0
#
interface GigabitEthernet1/0/3
 port link-mode route
 shutdown
#
interface GigabitEthernet1/0/4
 port link-mode route
 description Link to Internet
 ip address 220.194.136.22 255.255.255.252
 nat outbound 2001

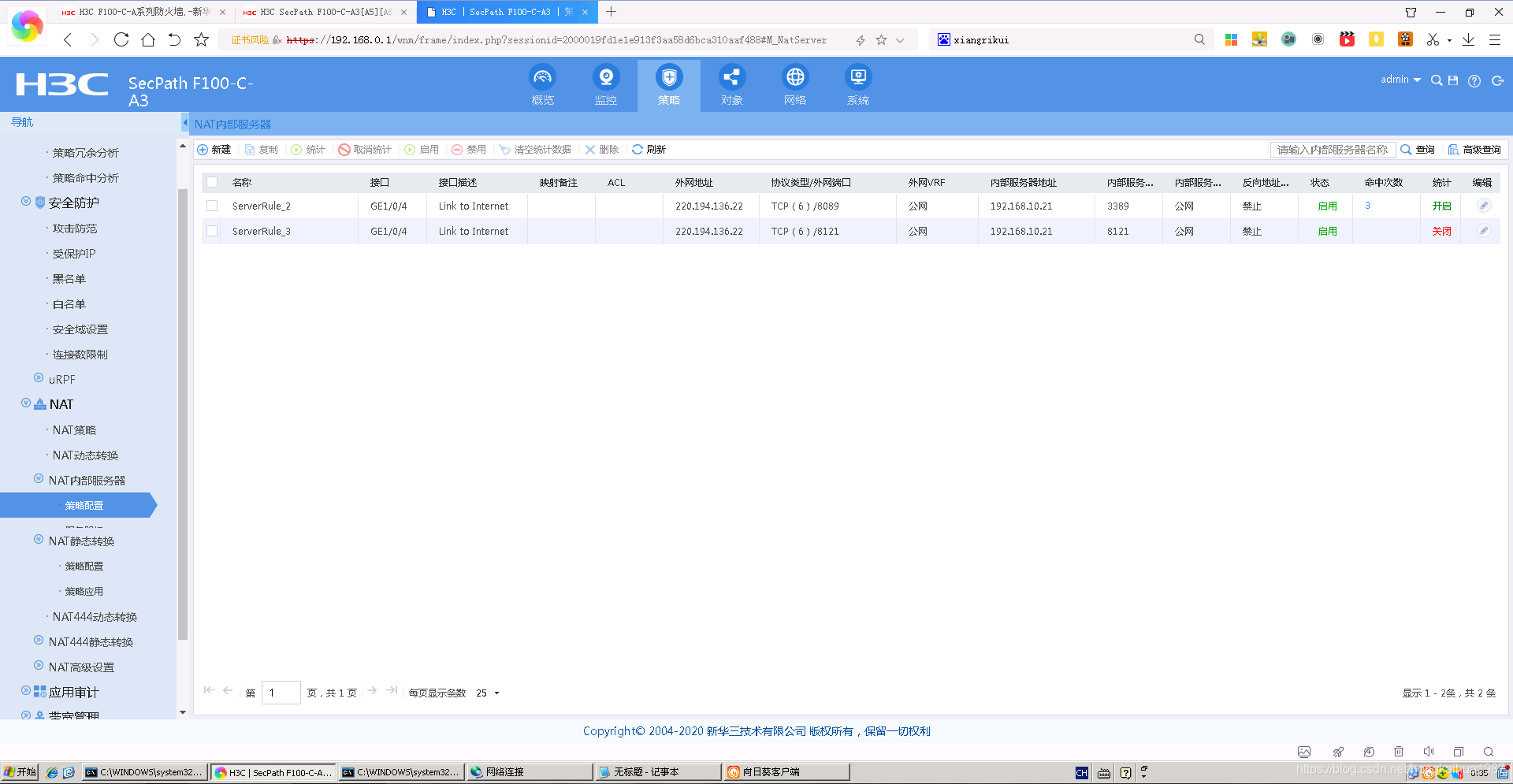

 nat server protocol tcp global 220.194.136.22 8089 inside 192.168.10.21 3389 rule ServerRule_2 counting
 nat server protocol tcp global 220.194.136.22 8121 inside 192.168.10.21 8121 rule ServerRule_3
#
interface GigabitEthernet1/0/6
 port link-mode route
 shutdown
#
interface GigabitEthernet1/0/7
 port link-mode route
 shutdown
#

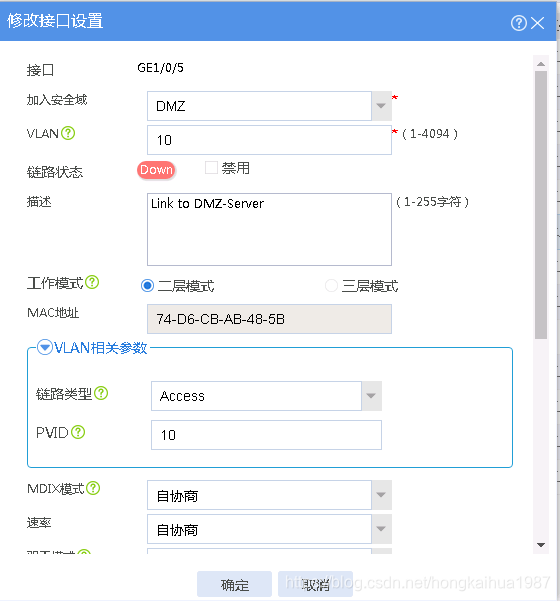

interface GigabitEthernet1/0/5
 port link-mode bridge
 description Link to DMZ-Server
 port access vlan 10
#

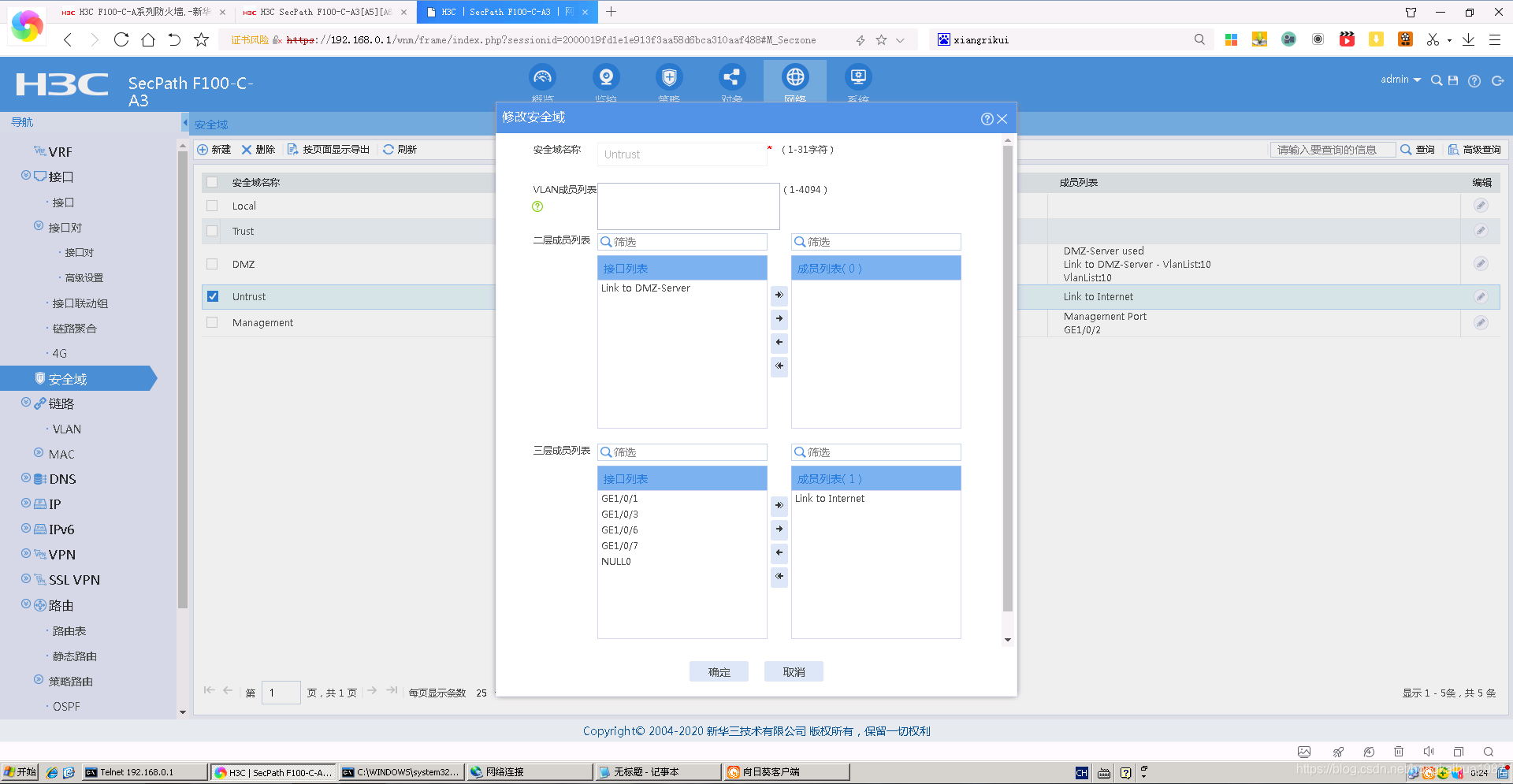

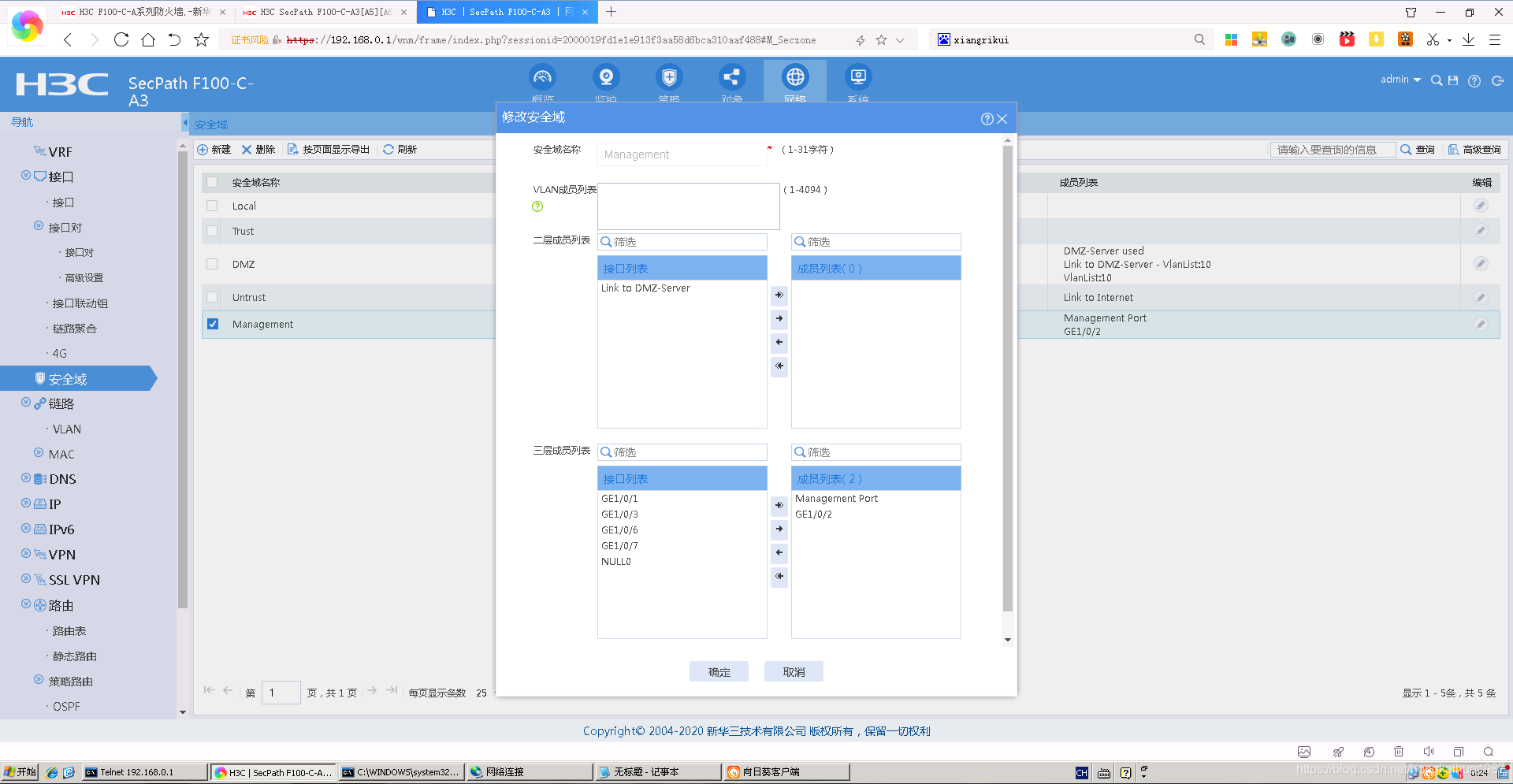

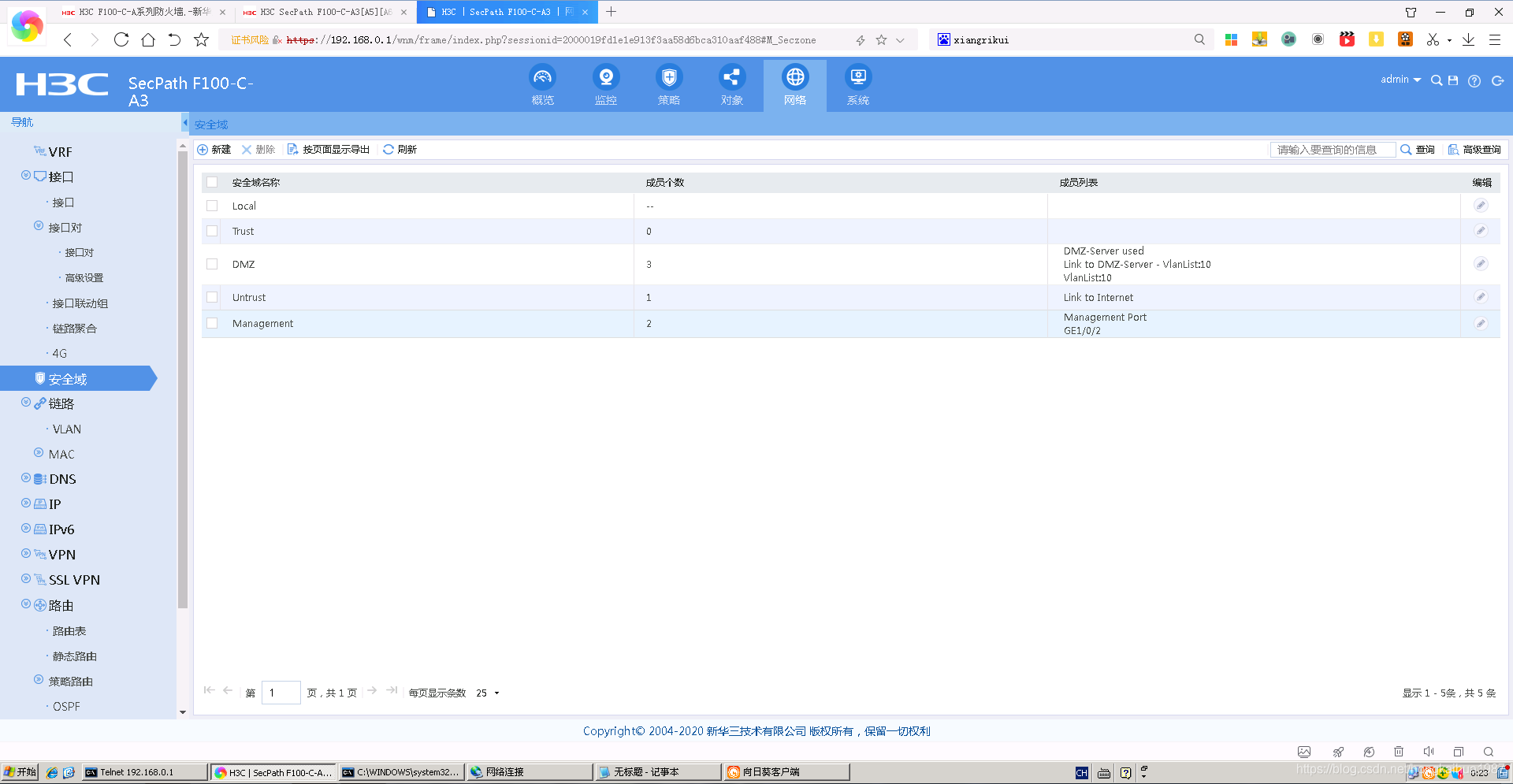

security-zone name Local
#
security-zone name Trust
#

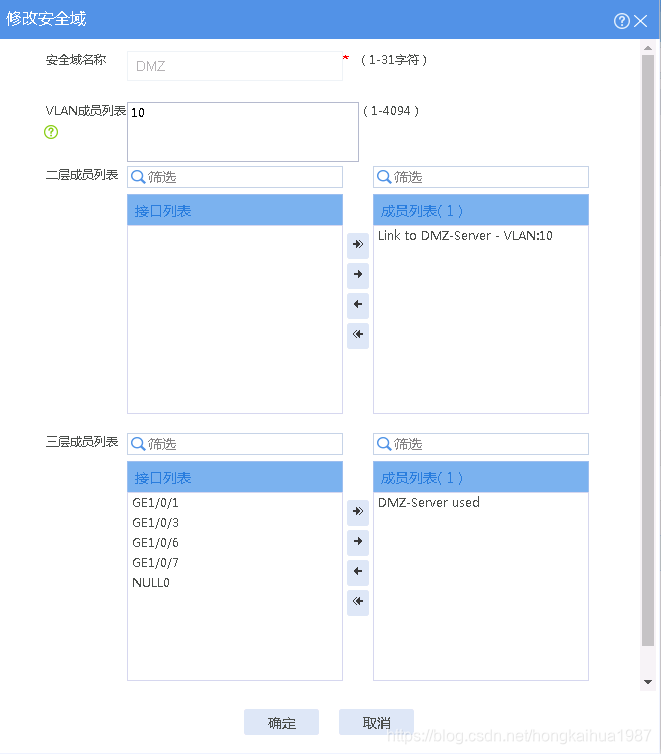

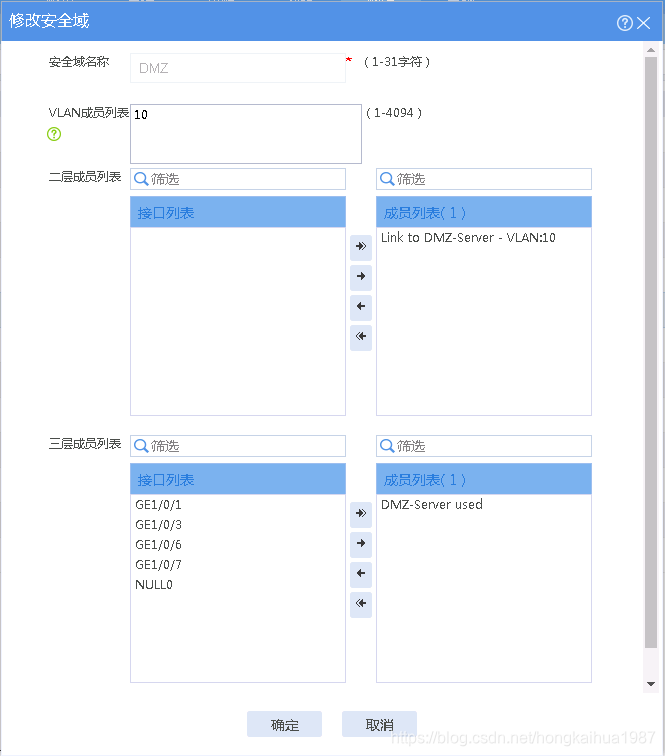

security-zone name DMZ
 import interface Vlan-interface10
 import interface GigabitEthernet1/0/5 vlan 10
 import vlan 10
#

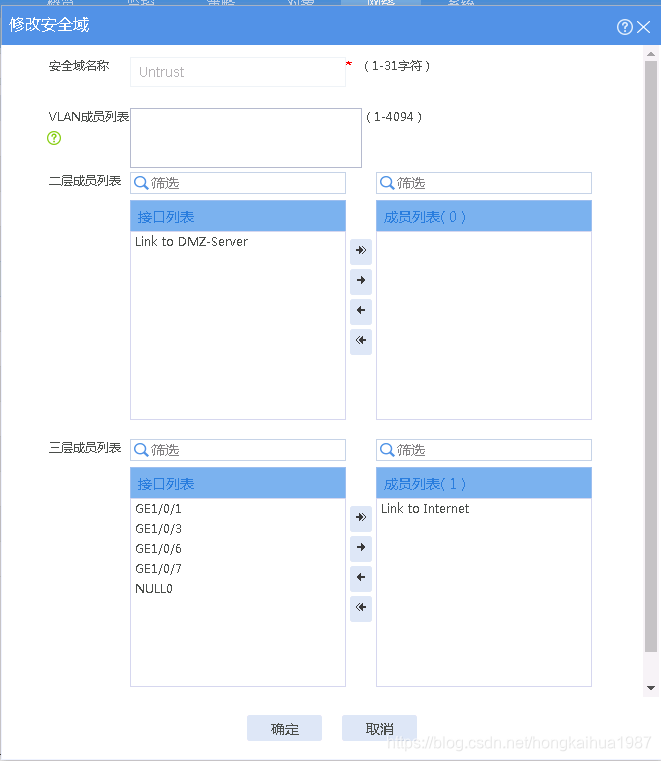

security-zone name Untrust
 import interface GigabitEthernet1/0/4
#
security-zone name Management
 import interface GigabitEthernet1/0/0
 import interface GigabitEthernet1/0/2
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 authentication-mode scheme
 user-role network-admin
#
line class usb
 user-role network-admin
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-admin
#
line con 0
 user-role network-admin
#
line vty 0 63
 authentication-mode scheme
 user-role network-admin
#

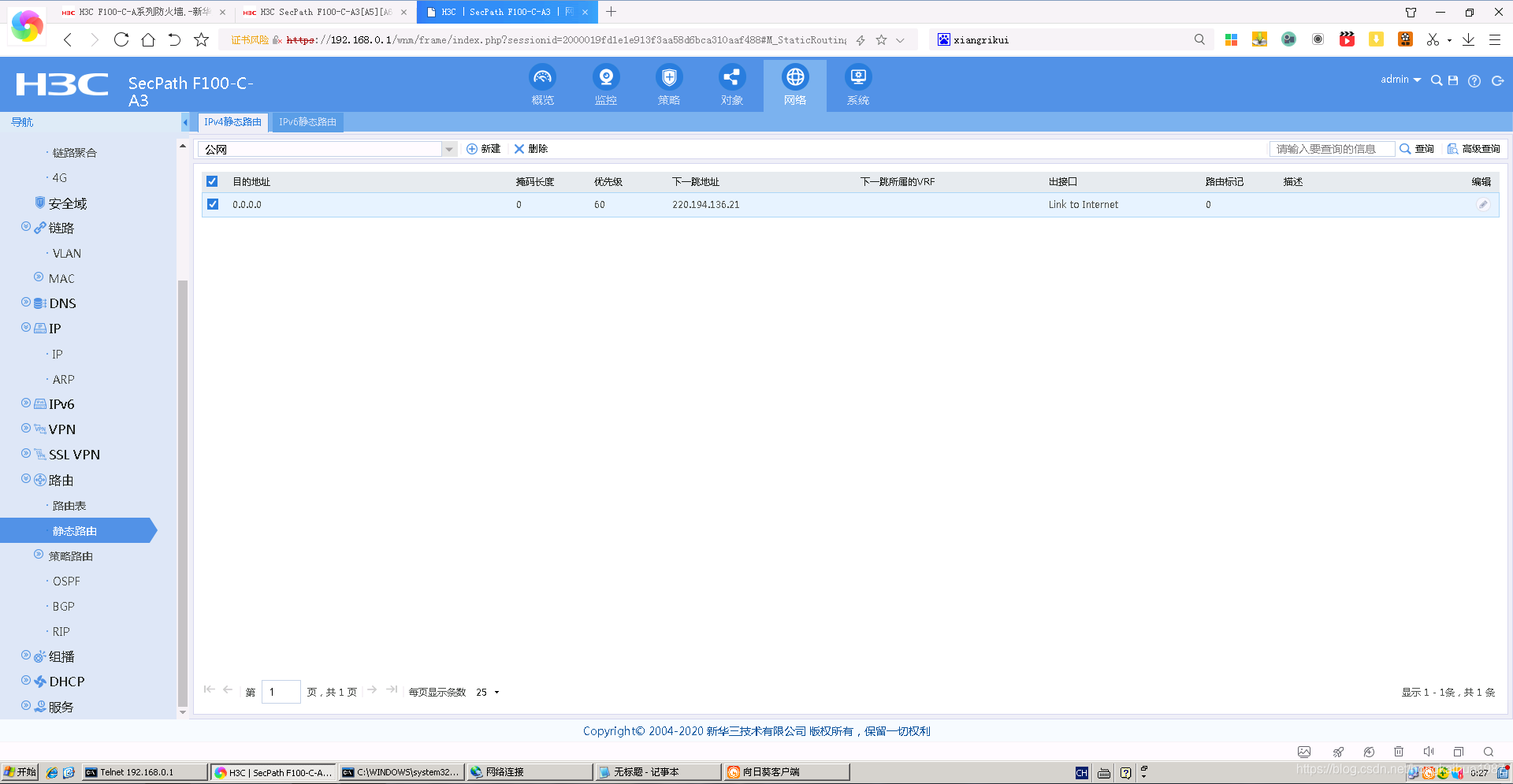

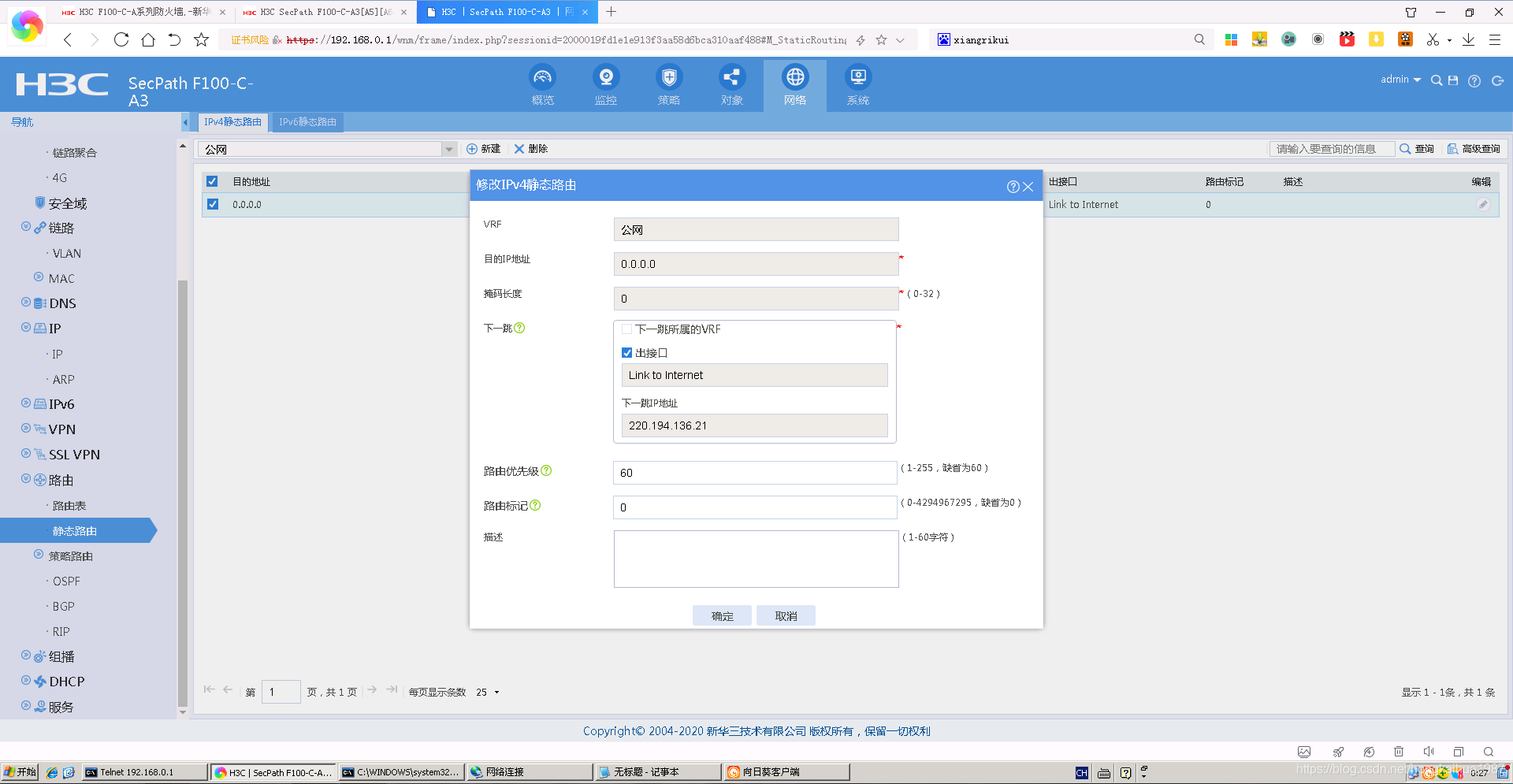

 ip route-static 0.0.0.0 0 GigabitEthernet1/0/4 220.194.136.21
#
 info-center source FILTER logfile deny
#
 ssh server enable
 ssh server acl 2000
#

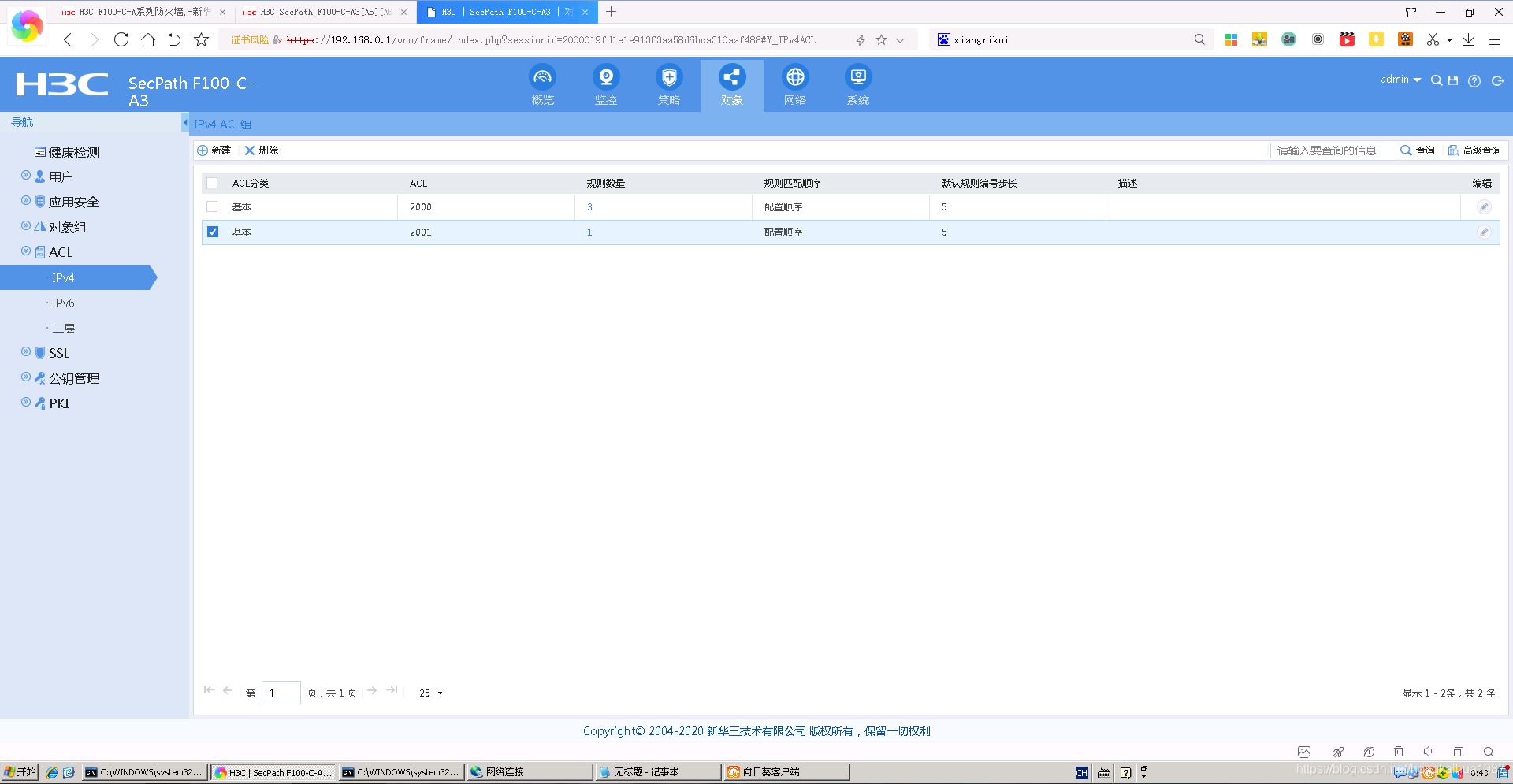

acl basic 2000
 rule 0 permit source 192.168.1.0 0.0.0.255
 rule 1 permit source 192.168.0.0 0.0.0.255
 rule 2 permit source 59.49.77.42 0
#
acl basic 2001
 rule 0 permit source 192.168.10.0 0.0.0.255 counting
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
local-user admin class manage
 password hash $h$6$IWgZ17dH41xogUPf$skToOjnPesJhmCYlgjp4iJuqzy3FVW+pM2UDBFNI053tQdVZwwAOIJ0O+UvfCjFwfEG1XBe7xAVTjAZyeLfz9w==
 service-type ssh terminal https
 authorization-attribute user-role level-3
 authorization-attribute user-role network-admin
 authorization-attribute user-role network-operator
#
local-user weihuser class manage
 password hash $h$6$WAUhDAmOyonKMoJ5$7nJx/Wvi0lW4LQCGtWdC58ABMJjStVtvGad1cJrfL6FgszkIl4kJE7Uvi6xG7uAmF0HqzfszzQrWpl0Indyrig==
 service-type ssh telnet http https
 authorization-attribute work-directory slot1#flash:
 authorization-attribute user-role network-admin
#
 session synchronization enable
 session synchronization http
#
 ipsec logging negotiation enable
#
 ike logging negotiation enable
#
 ip https enable
#
app-profile 0_IPv4
 ips apply policy default mode protect
 anti-virus apply policy default mode protect
#
app-profile 1_IPv4
 ips apply policy default mode protect
 anti-virus apply policy default mode protect
#
 loadbalance isp file flash:/lbispinfo_v1.5.tp
#

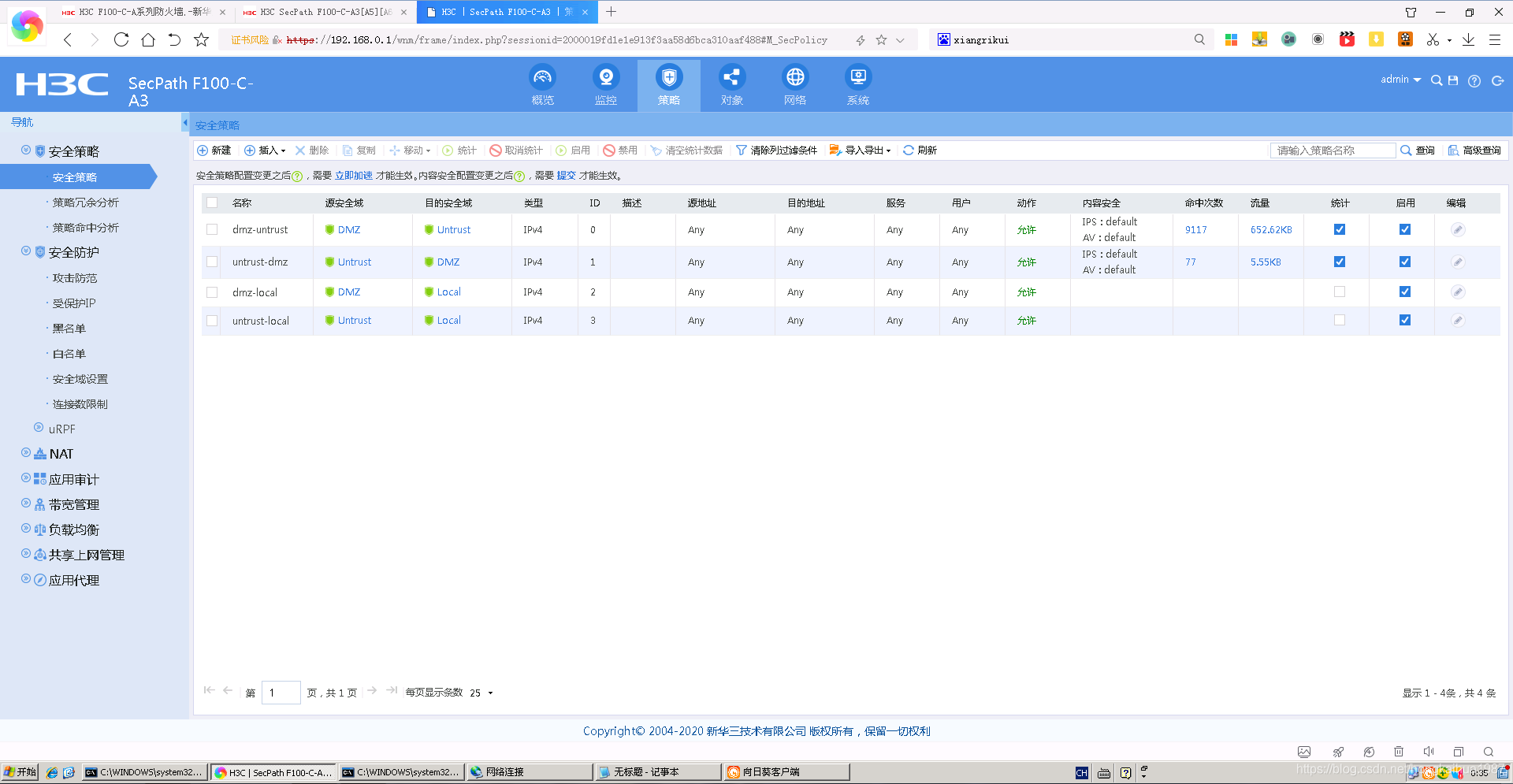

security-policy ip
 rule 0 name dmz-untrust
  action pass
  logging enable
  counting enable
  profile 0_IPv4
  source-zone DMZ
  destination-zone Untrust
 rule 1 name untrust-dmz
  action pass
  logging enable
  counting enable
  profile 1_IPv4
  source-zone Untrust
  destination-zone DMZ
 rule 2 name dmz-local
  action pass
  source-zone DMZ
  destination-zone Local
 rule 3 name untrust-local
  action pass
  source-zone Untrust
  destination-zone Local
#
return
