一、前置知识点

理解Ingress

简单的说，ingress就是从kubernetes集群外访问集群的入口，将用户的URL请求转发到不同的service上。Ingress相当于nginx、apache等负载均衡方向代理服务器，其中还包括规则定义，即URL的路由信息，路由信息得的刷新由Ingress controller^[1]来提供。

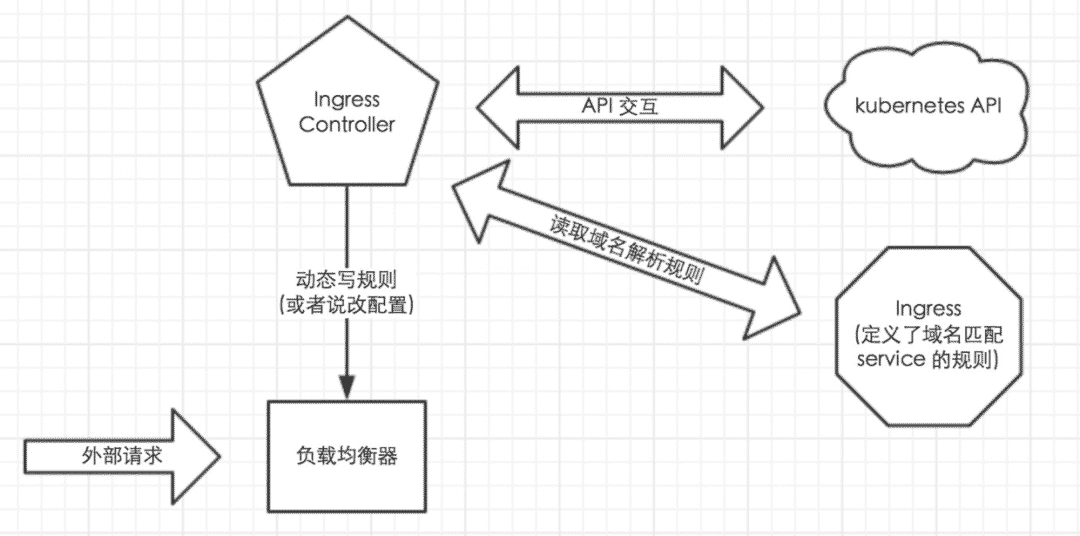

理解Ingress Controller

Ingress Controller 实质上可以理解为是个监视器，Ingress Controller 通过不断地跟 kubernetes API 打交道，实时的感知后端 service、pod 等变化，比如新增和减少 pod，service 增加与减少等；当得到这些变化信息后，Ingress Controller 再结合下文的 Ingress 生成配置，然后更新反向代理负载均衡器，并刷新其配置，达到服务发现的作用。

理解kubernetes-控制器Deployment和DaemonSet

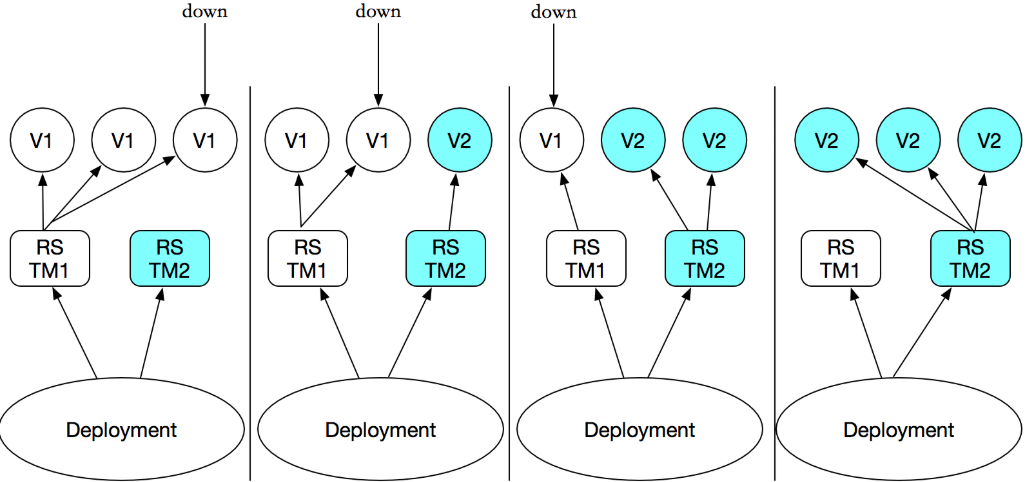

•Deployment

Deployment为Pod和Replica Set（下一代Replication Controller）提供声明式更新。

只需要在 Deployment 中描述想要的目标状态是什么，Deployment controller 就会帮您将 Pod 和ReplicaSet 的实际状态改变到您的目标状态。也可以定义一个全新的 Deployment 来创建 ReplicaSet 或者删除已有的 Deployment 并创建一个新的来替换。

•DaemonSet

DaemonSet 确保全部（或者一些）Node 上运行一个 Pod 的副本。当有 Node 加入集群时，也会为他们新增一个 Pod 。当有 Node 从集群移除时，这些 Pod 也会被回收。删除 DaemonSet 将会删除它创建的所有 Pod。

使用 DaemonSet 的一些典型用法：

1、运行集群存储 daemon，例如在每个 Node 上运行 ，应用场景：Agent。2、在每个 Node 上运行日志收集 daemon，例如fluentd、logstash。3、在每个 Node 上运行监控 daemon，例如 Prometheus Node Exporter、collectd、Datadog 代理、New Relic 代理，或 Ganglia gmond。

二、traefik 简介

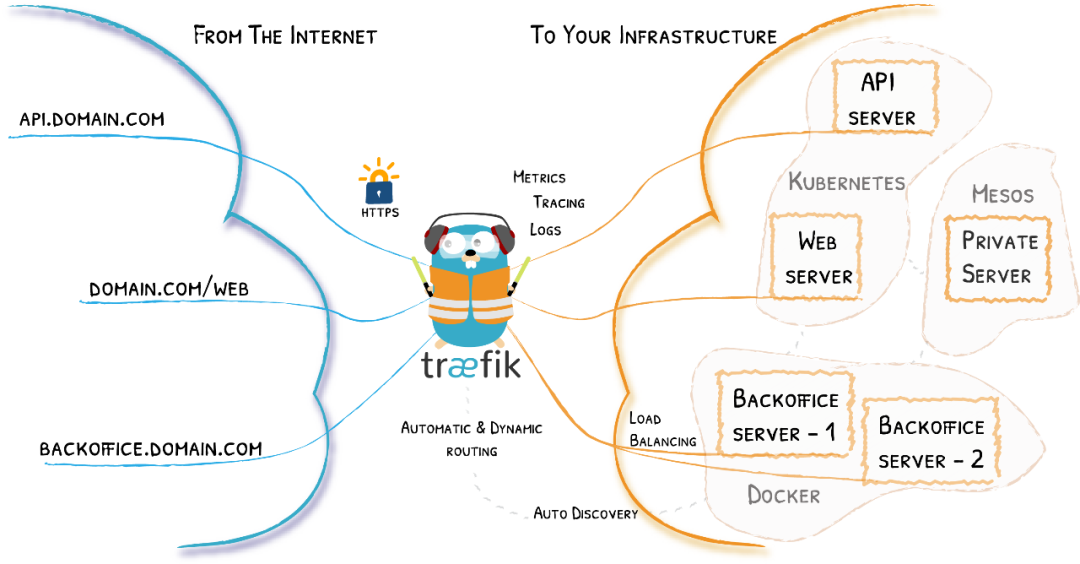

Traefik^[2]是一款开源的反向代理与负载均衡工具。它最大的优点是能够与常见的微服务系统直接整合，可以实现自动化动态配置。目前支持Docker, Swarm, Mesos/Marathon, Mesos, Kubernetes, Consul, Etcd, Zookeeper, BoltDB, Rest API等等后端模型。至于使用它的原因则基于以下几点：

•无须重启即可更新配置•自动的服务发现与负载均衡•与 docker 的完美集成，基于 container label 的配置•漂亮的 dashboard 界面•metrics 的支持，对 prometheus 和 k8s 的集成

部署方式

•traefik部署在k8s上分为daemonset和deployment两种方式各有优缺点：

daemonset 能确定有哪些node在运行traefik，所以可以确定的知道后端ip，但是不能方便的伸缩

deployment 可以更方便的伸缩，但是不能确定有哪些node在运行traefik所以不能确定的知道后端ip

一般部署两种不同类型的traefik:

面向内部(internal)服务的traefik，建议可以使用deployment的方式 面向外部(external)服务的traefik，建议可以使用daemonset的方式

本文使用的是daemonset方式部署。

三、部署Traefik controller

环境介绍

操作系统	ip	主机名	配置	备注
centos 7.6	192.168.241.253	k8s-master	2核4G	Kubernetesv1.20.5
centos 7.6	192.168.241.132	k8s-node01	2核8G	Kubernetesv1.20.5
centos 7.6	192.168.241.135	k8s-node02	2核8G	v1.20.5
centos 7.6	192.168.241.137	k8s-node03	2核8G	v1.20.5

目录结构如下

traefik-v2.1.6
├── traefik-config.yaml
├── traefik-ds-v2.1.6.yaml
├── traefik-rbac.yaml
└── ui.yaml

traefik-config.yaml

# cat traefik-config.yaml


apiVersion: v1
kind: ConfigMap
metadata:
  name: traefik-config
  namespace: kube-system
data:
  traefik.toml: |
    defaultEntryPoints = ["http","https"]
    debug = false
    logLevel = "INFO"
    # Do not verify backend certificates (use https backends)
    InsecureSkipVerify = true
    [entryPoints]
      [entryPoints.http]
      address = ":80"
      compress = true
      [entryPoints.https]
      address = ":443"
        [entryPoints.https.tls]
    #Config to redirect http to https
    #[entryPoints]
    #  [entryPoints.http]
    #  address = ":80"
    #  compress = true
    #    [entryPoints.http.redirect]
    #    entryPoint = "https"
    #  [entryPoints.https]
    #  address = ":443"
    #    [entryPoints.https.tls]
    [web]
      address = ":8080"
    [kubernetes]
    [metrics]
      [metrics.prometheus]
      buckets=[0.1,0.3,1.2,5.0]
      entryPoint = "traefik"
    [ping]
    entryPoint = "http"

traefik-ds-v2.1.6.yaml

# cat traefik-ds-v2.1.6.yaml


---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
---
kind: DaemonSet
apiVersion: apps/v1
#apiVersion: extensions/v1beta1
metadata:
  name: traefik-ingress-controller-v2
  namespace: kube-system
  labels:
    k8s-app: traefik-ingress-lb
spec:
  selector:
    matchLabels:
      name: traefik-ingress-lb-v2
  template:
    metadata:
      labels:
        k8s-app: traefik-ingress-lb
        name: traefik-ingress-lb-v2
    spec:
      serviceAccountName: traefik-ingress-controller
      terminationGracePeriodSeconds: 60
      containers:
      - image: traefik:2.1.6
        name: traefik-ingress-lb-v2
        ports:
        - name: http
          containerPort: 80
          hostPort: 80
        - name: admin
          containerPort: 8080
          hostPort: 8080
        securityContext:
          capabilities:
            drop:
            - ALL
            add:
            - NET_BIND_SERVICE
        args:
        - --api
        - --api.insecure=true
        - --providers.kubernetesingress=true
        - --log.level=INFO
       # - --configfile=/config/traefik.toml
       # volumeMounts:
       # - mountPath: /config
       #   name: config
      volumes:
      - configMap:
          name: traefik-config
        name: config
---
kind: Service
apiVersion: v1
metadata:
  name: traefik-ingress-service-v2
  namespace: kube-system
  labels:
    k8s-app: traefik-ingress-lb-v2
spec:
  selector:
    k8s-app: traefik-ingress-lb-v2
  ports:
    - protocol: TCP
      port: 80
      name: web
    - protocol: TCP
      port: 8080
      name: admin

traefik-rbac.yaml

# cat traefik-rbac.yaml


---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: traefik-ingress-controller
rules:
  - apiGroups:
      - ""
    resources:
      - services
      - endpoints
      - secrets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
    - extensions
    resources:
    - ingresses/status
    verbs:
    - update
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: traefik-ingress-controller
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik-ingress-controller
subjects:
- kind: ServiceAccount
  name: traefik-ingress-controller
  namespace: kube-system

ui.yaml

# cat ui.yaml


---
apiVersion: v1
kind: Service
metadata:
  name: traefik-web-ui
  namespace: kube-system
spec:
  selector:
    k8s-app: traefik-ingress-lb
  ports:
  - name: web
    port: 80
    targetPort: 8080
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: traefik-web-ui
  namespace: kube-system
spec:
  rules:
  - host: prod-traefik-ui.bgbiao.cn       //域名访问
    http:
      paths:
      - path: /
        backend:
          serviceName: traefik-web-ui
          servicePort: web

部署

kubectl apply -f .

查看pod

# kubectl get pods -n kube-system | grep traefik
traefik-ingress-controller-v2-qglz7        1/1     Running   0          6h41m
traefik-ingress-controller-v2-spgkx        1/1     Running   0          6h41m
traefik-ingress-controller-v2-xgg4g        1/1     Running   0          6h41m

查看svc

# kubectl get svc -n kube-system | grep traefik
traefik-ingress-service-v2   ClusterIP   10.233.48.148   <none>        80/TCP,8080/TCP          6h42m
traefik-web-ui               ClusterIP   10.233.38.93    <none>        80/TCP                   6h42m

查看ingresses

# kubectl get ingresses.extensions -n kube-system
Warning: extensions/v1beta1 Ingress is deprecated in v1.14+, unavailable in v1.22+; use networking.k8s.io/v1 Ingress
NAME             CLASS    HOSTS                       ADDRESS   PORTS   AGE
traefik-web-ui   <none>   prod-traefik-ui.bgbiao.cn             80      6h42m

域名访问

浏览器中输入
prod-traefik-ui.bgbiao.cn


如果没有域名请在本地添加hosts解析
ip prod-traefik-ui.bgbiao.cn

使用ip访问

nodeIP:8080
http://192.168.241.132:8080/

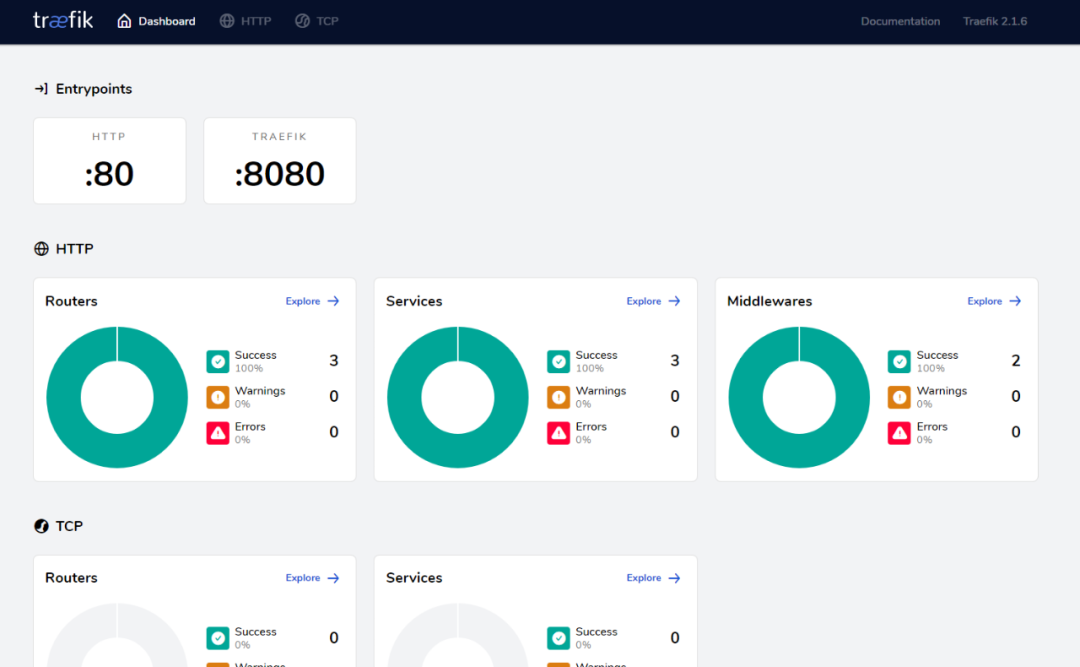

效果如下：

测试

创建一个nginx pod

# cat nginx-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx-cluster
  name: nginx-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx-cluster
  template:
    metadata:
      labels:
        app: nginx-cluster
    spec:
      containers:
      - name: nginx-cluster
        image: nginx:v1.7
        ports:
        - containerPort: 80
        resources:
          requests:
            cpu: 1
            memory: 500Mi
          limits:
            cpu: 2
            memory: 1024Mi

创建nginx service

# cat nginx-service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: nginx-service
  name: nginx-service
spec:
  ports:
  - port: 8000
    targetPort: 80
    nodePort: 32500
  selector:
    app: nginx-cluster
  type: NodePort
