项目地址：​ ​GitHub - utkuozdemir/nvidia_gpu_exporter: Nvidia GPU exporter for prometheus using nvidia-smi binary

根据git上面的nvidia监控项目，可以实现grafana监控GPU，但是git上面提供的utkuozdemir/nvidia_gpu_exporter:0.3.0这个镜像只可以在ubuntu系统上面运行，如果在centos上运行，日志会提示无法获取到GPU信息，也就导致无法接到k8s的prometheus.目前使用的方法是将nvidia_gpu_exporter这个可执行访问下载到centos系统中，然后通过系统命令运行，最终得到一个服务，也就是gpu的metircs。然后在k8s中，创建endpoinst、service、servicemonitor,实现prometheus收集到gpu-metrics信息，最后通过grafana进行可视化展示。下面是具体操作步骤：
1 在centos系统中有创建nvidia_gpu_exporter服务

安装nvidia_gpu_exporter服务

# VERSION=0.3.0​
# wget ​​https://github.com/utkuozdemir/nvidia_gpu_exporter/releases/download/v${VERSION}/nvidia_gpu_exporter_${VERSION}_linux_x86_64.tar.gz​​
# tar -xvzf nvidia_gpu_exporter_${VERSION}_linux_x86_64.tar.gz​
# mv nvidia_gpu_exporter /usr/local/bin​
# ./nvidia_gpu_exporter

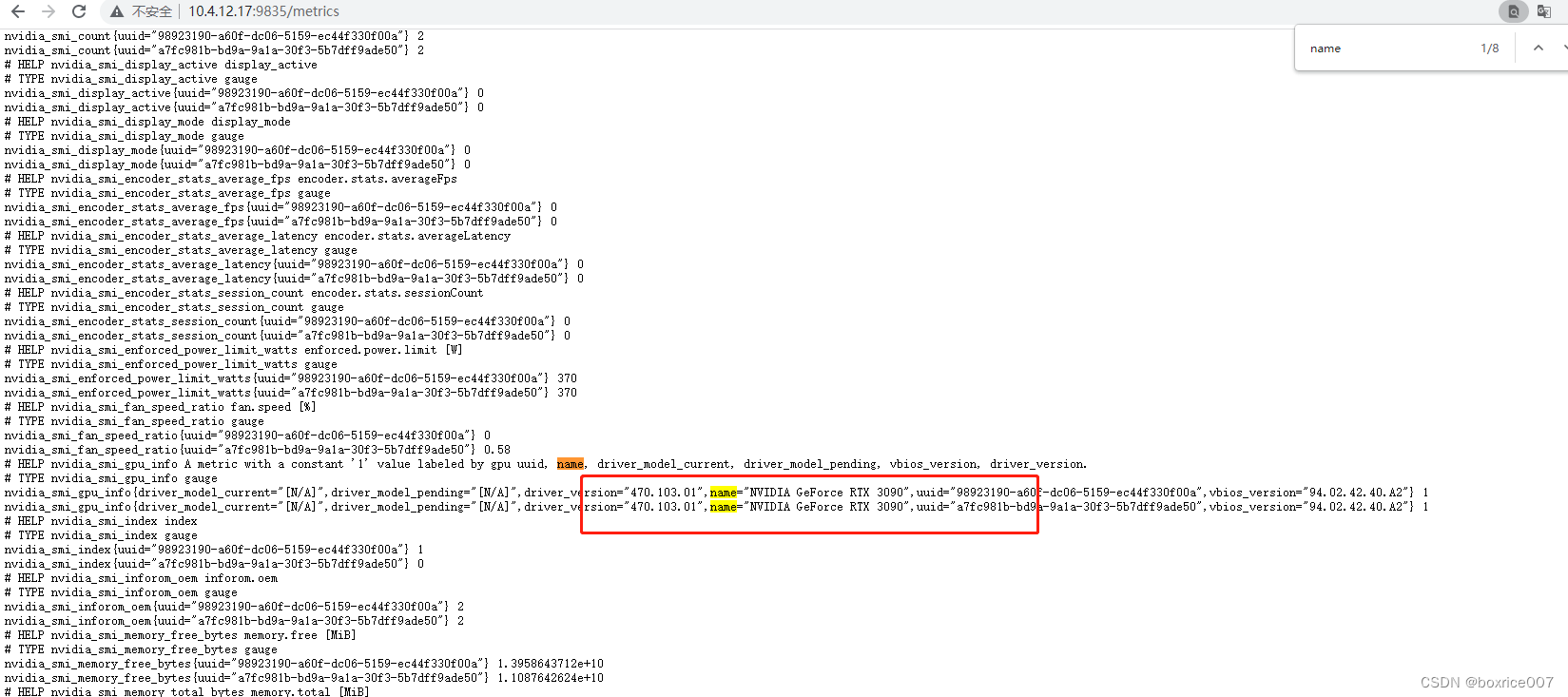

此时通过web页面就可查看此台GPU服务器的gpu-metircs信息，如下图



可以看到GPU相关信息​

创建nvidia_gpu_exporter服务​

# vim /etc/systemd/system/nvidia_gpu_exporter.service ​

[Unit]​
Description=Nvidia GPU Exporter​
After=network-online.target​

[Service]​
Type=simple​

User=nvidia_gpu_exporter​
Group=nvidia_gpu_exporter​

ExecStart=/usr/local/bin/nvidia_gpu_exporter​

SyslogIdentifier=nvidia_gpu_exporter​

Restart=always​
RestartSec=1​

NoNewPrivileges=yes​

ProtectHome=yes​
ProtectSystem=strict​
ProtectControlGroups=true​
ProtectKernelModules=true​
ProtectKernelTunables=yes​
ProtectHostname=yes​
ProtectKernelLogs=yes​
ProtectProc=yes​

[Install]​
WantedBy=multi-user.target​
# systemctl daemon-reload ​
[root@k8s-gpu4 ~]# systemctl enable nvidia_gpu_exporter​
[root@k8s-gpu4 ~]# systemctl start nvidia_gpu_exporter.service ​
[root@k8s-gpu4 ~]# systemctl status nvidia_gpu_exporter.service ​
● nvidia_gpu_exporter.service - Nvidia GPU Exporter​
 Loaded: loaded (/etc/systemd/system/nvidia_gpu_exporter.service; enabled; vendor preset: disabled)​
 Active: active (running) since Fri 2022-05-13 17:36:03 CST; 5s ago​
 Main PID: 80178 (nvidia_gpu_expo)​
 Tasks: 6​
 Memory: 5.6M​
 CGroup: /system.slice/nvidia_gpu_exporter.service​
 └─80178 /usr/local/bin/nvidia_gpu_exporter​

May 13 17:36:03 k8s-gpu4 systemd[1]: Started Nvidia GPU Exporter.​
May 13 17:36:04 k8s-gpu4 nvidia_gpu_exporter[80178]: ts=2022-05-13T09:36:04.005Z caller=main.go:68 level=info msg="Listening on add...=:9835​
May 13 17:36:04 k8s-gpu4 nvidia_gpu_exporter[80178]: ts=2022-05-13T09:36:04.006Z caller=tls_config.go:195 level=info msg="TLS is di...=false​
Hint: Some lines were ellipsized, use -l to show in full.​
-----------------------------------
©著作权归作者所有：来自51CTO博客作者boxrice的原创作品，请联系作者获取转载授权，否则将追究法律责任
使用nvidia_gpu_expoter配合prometheus+grafana监控GPU性能
https://blog.51cto.com/u_11229048/5291377

服务启动成功，通过页面查看​

2 在k8s中创建endpoints、service、servicemonitor

创建endpoints

# cat gpu-exporter-endpoint.yaml
apiVersion: v1
kind: Endpoints
metadata:
 name: nvidia-gpu-exporter
 namespace: monitoring
subsets:
 - addresses:
 - ip: 10.1.12.17
 ports:
 - name: http
 port: 9835
 protocol: TCP

 上面的ip为GPU服务器地址，如果是多台GPU，可在下面继续添加，如

- ip: *.*.*.*
- ip: *.*.*.*

# kubectl create -f gpu-exporter-endpoint.yaml
endpoints/nvidia-gpu-exporter created
# kubectl get endpoints -n monitoring nvidia-gpu-exporter
NAME ENDPOINTS AGE
nvidia-gpu-exporter 10.1.12.17:9835 39s
# kubectl describe endpoints -n monitoring nvidia-gpu-exporter
Name: nvidia-gpu-exporter
Namespace: monitoring
Labels: <none>
Annotations: <none>
Subsets:
 Addresses: 10.1.12.17
 NotReadyAddresses: <none>
 Ports:
 Name Port Protocol
 ---- ---- --------
 http 9835 TCP

Events: <none>

创建service

# cat gpu-exporter-svc.yaml ​
apiVersion: v1​
kind: Service​
metadata:​
 labels:​
 app: nvidia-gpu-exporter​
 name: nvidia-gpu-exporter​
 namespace: monitoring​
spec:​
 ports:​
 - name: http​
 protocol: TCP​
 port: 9835​
 targetPort: http​
 type: ClusterIP​
# kubectl delete -f gpu-exporter-svc.yaml ​
service "nvidia-gpu-exporter" deleted​
kubectl create -f gpu-exporter-svc.yaml ​
service/nvidia-gpu-exporter created​
# kubectl get svc -n monitoring nvidia-gpu-exporter ​
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE​
nvidia-gpu-exporter ClusterIP 10.10.75.226 <none> 9835/TCP 12s​
# kubectl describe svc -n monitoring nvidia-gpu-exporter ​
Name: nvidia-gpu-exporter​
Namespace: monitoring​
Labels: app=nvidia-gpu-exporter​
Annotations: <none>​
Selector: <none>​
Type: ClusterIP​
IP: 10.10.235.70​
Port: http 9835/TCP​
TargetPort: http/TCP​
Endpoints: 10.1.12.17:9835​
Session Affinity: None​
Events: <none>

上面的endpioins一定要为上面创建的endpoints中的IP和port

创建servicemonitor

#cat gpu-exporter-serviceMonitor.yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
 labels:
 app: nvidia-gpu-exporter
 name: nvidia-gpu-exporter
 namespace: monitoring
spec:
 endpoints:
 - interval: 30s
 port: http
 jobLabel: app
 selector:
 matchLabels:
 app: nvidia-gpu-exporter
kubectl create -f gpu-exporter-serviceMonitor.yaml
servicemonitor.monitoring.coreos.com/nvidia-gpu-exporter created
[root@k8s-master dongtai]# kubectl get servicemonitors.monitoring.coreos.com -n monitoring nvidia-gpu-exporter
NAME AGE
nvidia-gpu-exporter 12s
# kubectl describe servicemonitors.monitoring.coreos.com -n monitoring nvidia-gpu-exporter
Name: nvidia-gpu-exporter
Namespace: monitoring
Labels: app=nvidia-gpu-exporter
Annotations: <none>
API Version: monitoring.coreos.com/v1
Kind: ServiceMonitor
Metadata:
 Creation Timestamp: 2022-05-13T09:50:35Z
 Generation: 1
 Managed Fields:
 API Version: monitoring.coreos.com/v1
 Fields Type: FieldsV1
 fieldsV1:
 f:metadata:
 f:labels:
 .:
 f:app:
 f:spec:
 .:
 f:endpoints:
 f:jobLabel:
 f:selector:
 .:
 f:matchLabels:
 .:
 f:app:
 Manager: kubectl-create
 Operation: Update
 Time: 2022-05-13T09:50:35Z
 Resource Version: 14080381
 Self Link: /apis/monitoring.coreos.com/v1/namespaces/monitoring/servicemonitors/nvidia-gpu-exporter
 UID: 7fdb365b-8bcd-4fc2-9772-9ad7de6155bf
Spec:
 Endpoints:
 Interval: 30s
 Port: http
 Job Label: app
 Selector:
 Match Labels:
 App: nvidia-gpu-exporter
Events: <none>

prometheus页面验证​

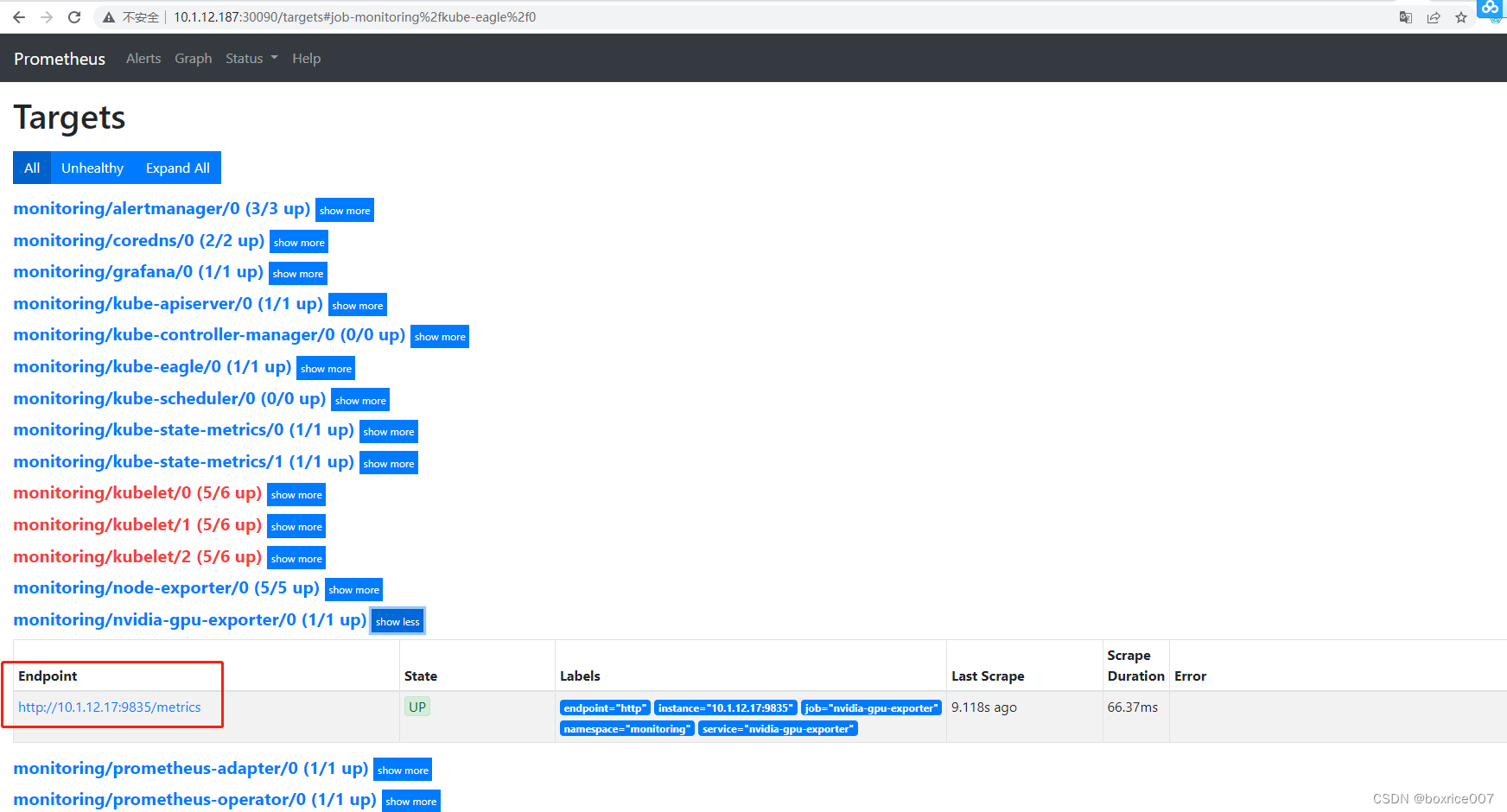

在prometheus页面的targets中查看nvidia_gpu_exporter

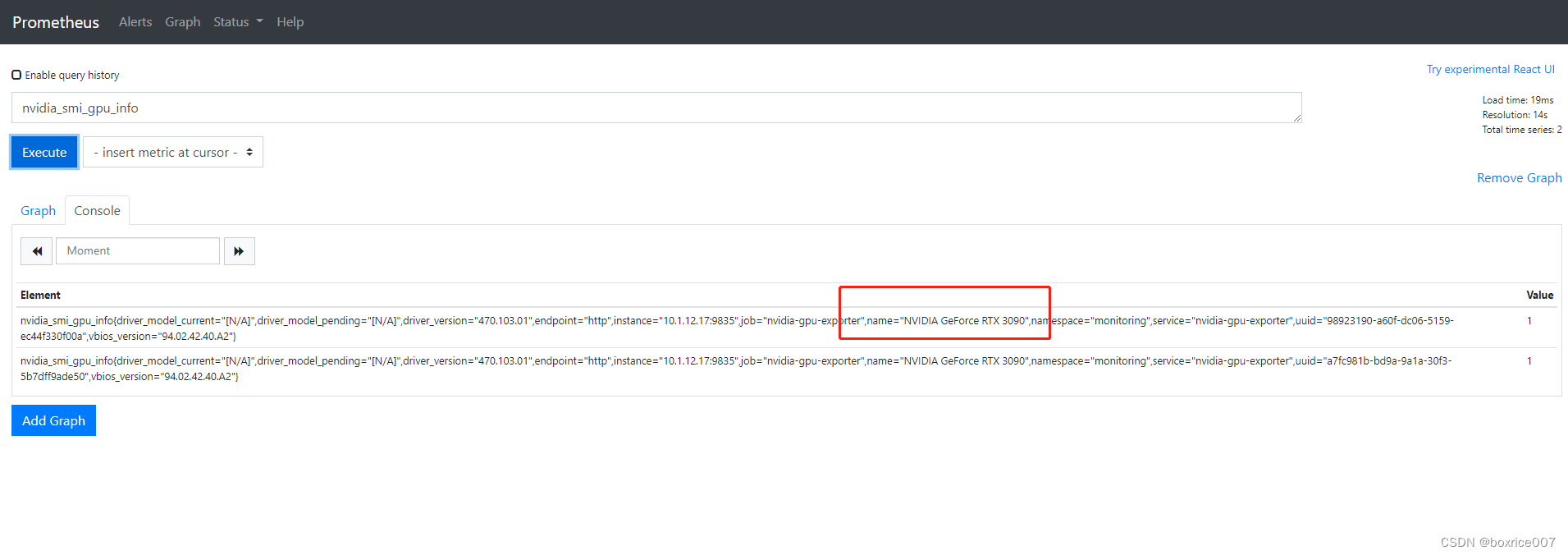

 在Graph页面中进行nvidia搜索

 通过搜索可以得到这台GPU服务器有两张3090GPU

3 在grafana中创建GPU监控面板

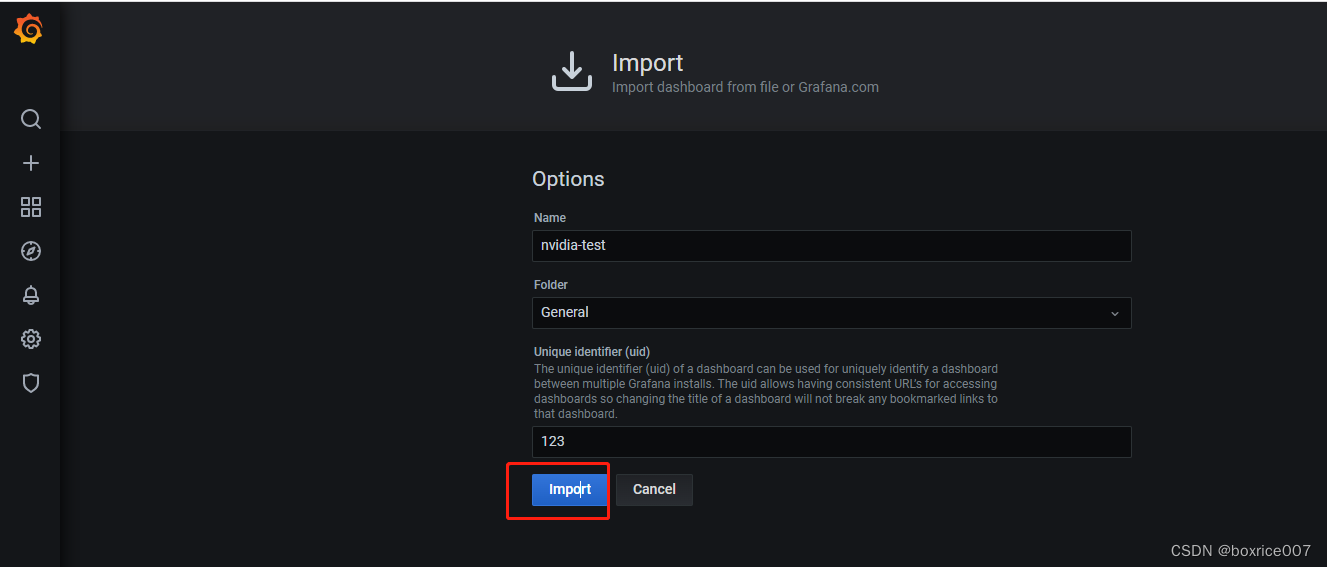

在grafana导入本人提供的json文件

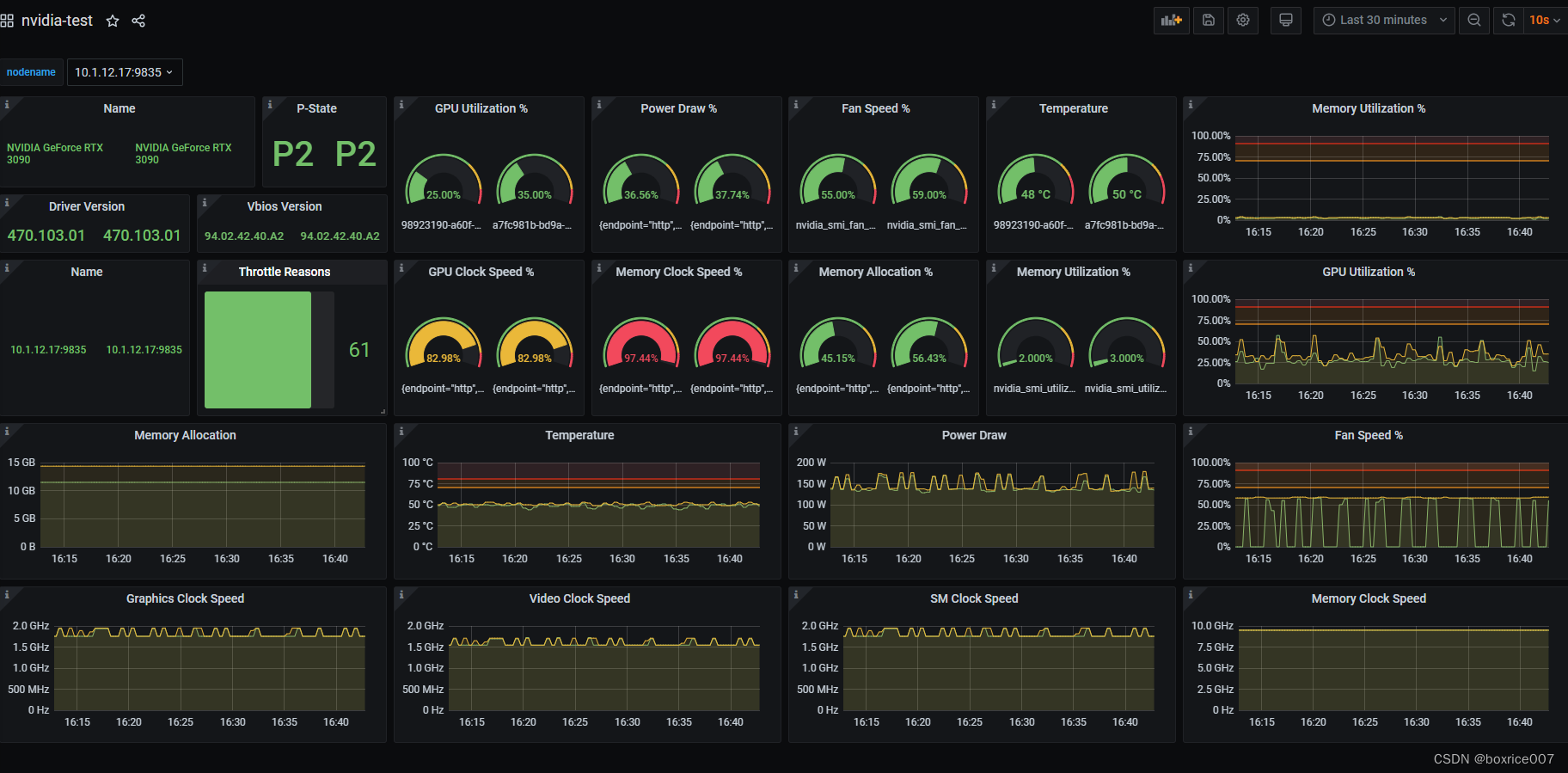

最终展示效果如下，好需要json文件，可评论获取
