在 MySQL 上创建监控用户

1、进入mysql

mysql -u用户名 -p密码

2、创建用户并赋权

create user 'exporter'@'%' identified by '123456' with MAX_USER_CONNECTIONS 3 ;
grant process,replication client,select on *.* to 'exporter'@'%';

若出现报错

ERROR 1290 (HY000): The MySQL server is running with the --skip-grant-tables option so it cannot execute this statement

先执行命令

flush privileges

方式一：docker部署myql exporter

docker run -d -p 9104:9104  -e DATA_SOURCE_NAME="exporter:123456@(192.168.12.11:3306)/" --name mysqld_exporter prom/mysqld-exporter

方式二：以linux服务部署

下载文件

cd /usr/local/
wget https://github.com/prometheus/mysqld_exporter/releases/download/v0.12.0/mysqld_exporter-0.12.0.linux-amd64.tar.gz
tar xzf mysqld_exporter-0.12.1.linux-amd64.tar.gz
mv mysqld_exporter-0.12.1.linux-amd64 mysqld_exporter

新建组和用户

赋权

chown -R prometheus:prometheus /usr/local/mysqld_exporter/mysqld_exporter
chmod 755 /usr/local/mysqld_exporter/mysqld_exporter

配置

vim /usr/local/mysqld_exporter/.my.cnf
[client]
host=127.0.0.1
port=3306
user=exporter
password=123456

vim /usr/lib/systemd/system/mysqld_exporter.service
[Unit]
Description=mysqld_exporter
Documentation=https://prometheus.io/
After=network.target

[Service]
Type=simple
User=prometheus
ExecStart=/usr/local/mysqld_exporter/mysqld_exporter --web.listen-address=0.0.0.0:9104 --config.my-cnf=/usr/local/mysqld_exporter/.my.cnf \
--log.level=error \
--collect.info_schema.processlist \
--collect.info_schema.innodb_metrics \
--collect.info_schema.innodb_tablespaces \
--collect.info_schema.innodb_cmp \
--collect.info_schema.innodb_cmpmem
Restart=on-failure

[Install]
WantedBy=multi-user.target

启动

chown -R prometheus:prometheus /usr/lib/systemd/system/mysqld_exporter.service
chmod 644 /usr/lib/systemd/system/mysqld_exporter.service
systemctl daemon-reload
systemctl enable mysqld_exporter.service
systemctl start mysqld_exporter.service

查看启动日志

journalctl -u mysqld_exporter.service

prometheus中添加mysql exporter

prometheus和grafana部署详见https://blog.csdn.net/u010924720/article/details/125915287

- job_name: mysql-11.12
    static_configs:
      - targets: ['192.168.12.11:9104']
        labels:
          instance: mysql-11.12

查看启动命令

history | grep mysqld_exporter

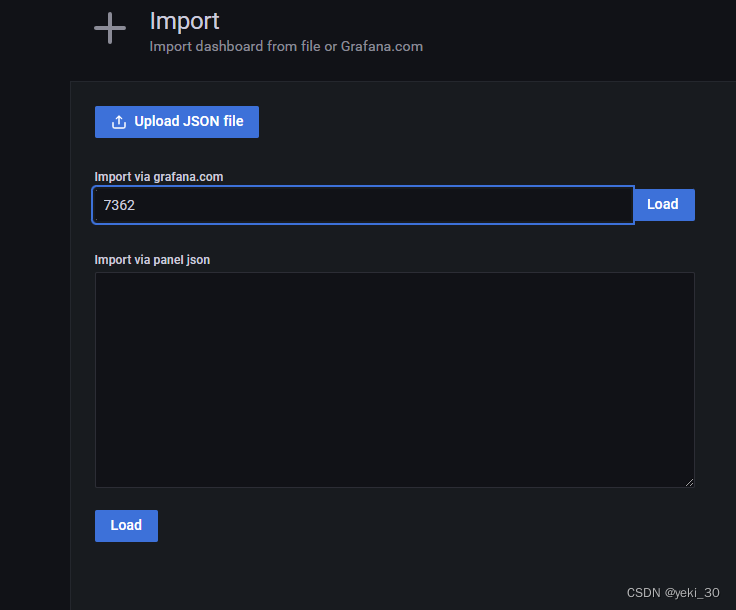

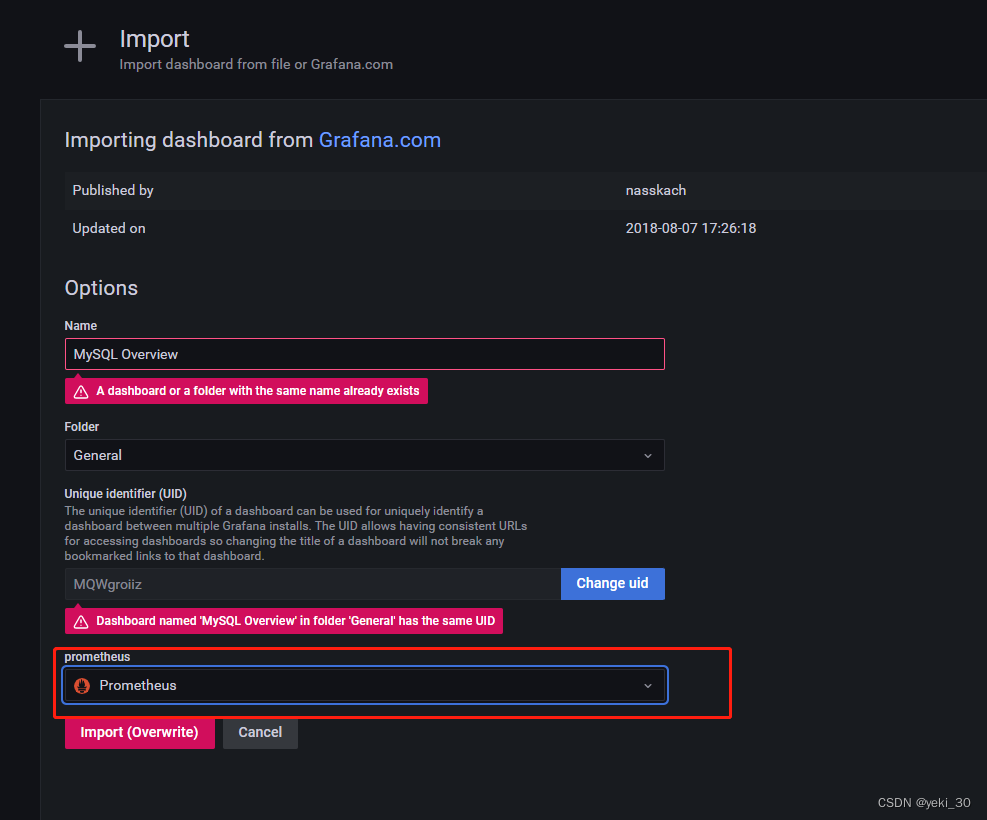

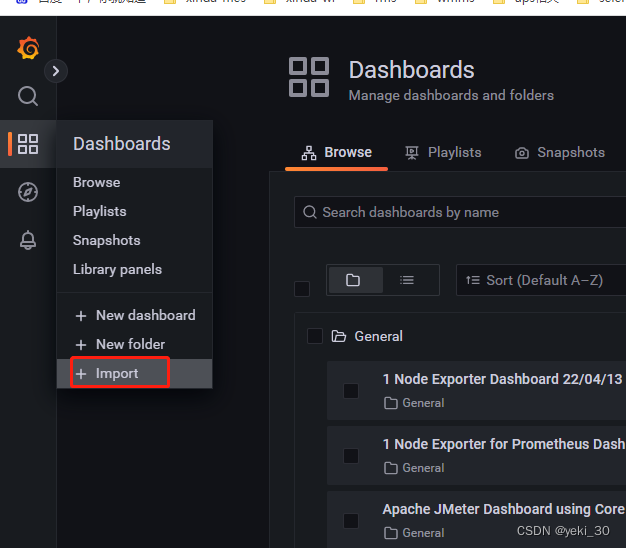

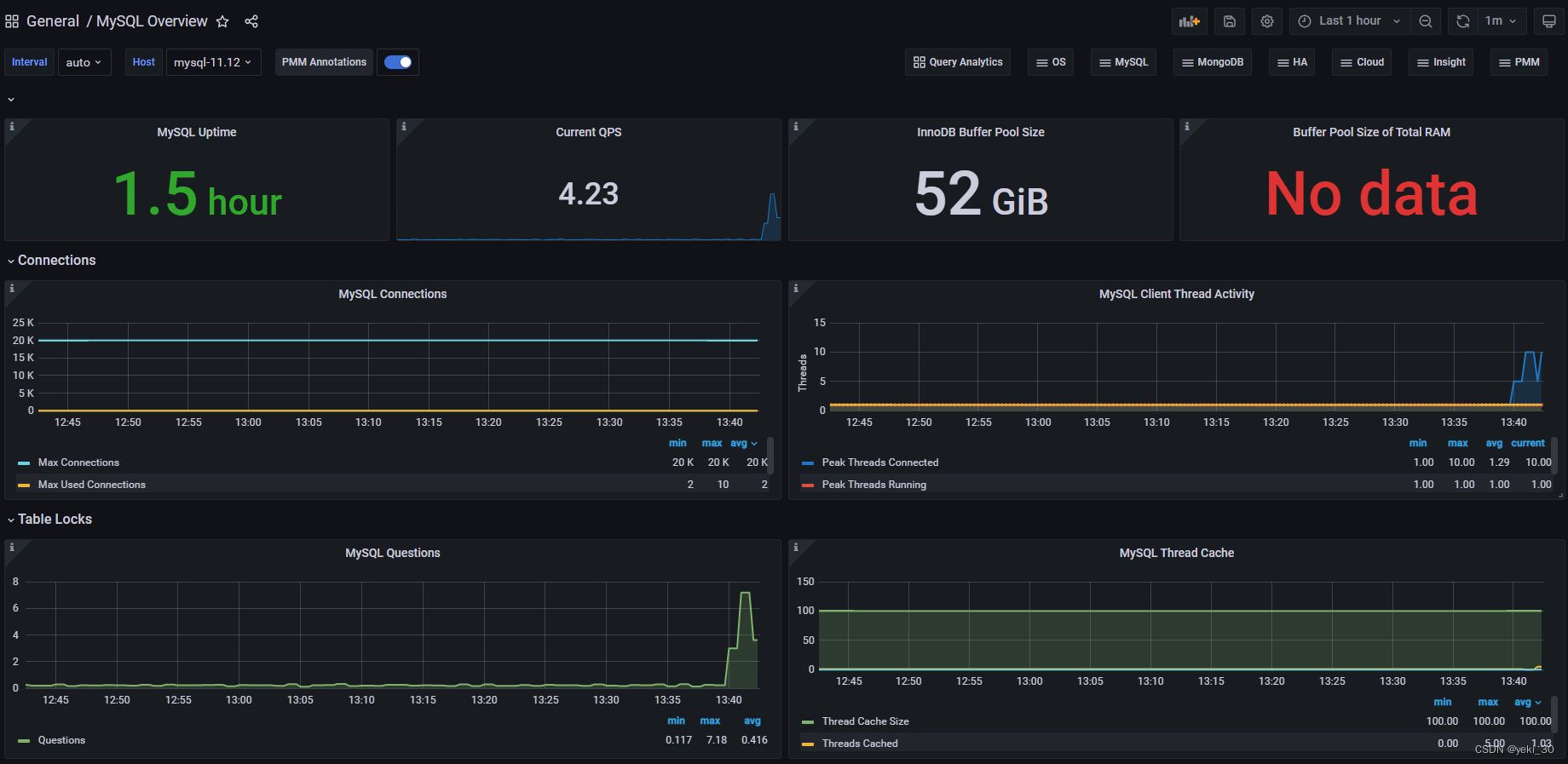

使用grafana监控

注意：若监控显示no data,重启一下数据库即可
