下面针对一些App的下载量数据，使用pyecharts进行可视化分析，各类App某段时间的下载次数如下

App                       下载次数

相机                        5045137

短视频                    4608092

视频                        35723063

浏览器                    23775808

商城                       15367847

购票                        10424808

小说                         76975429

聊天                         7393185

小工具                       64636392

理财记账                   50491990

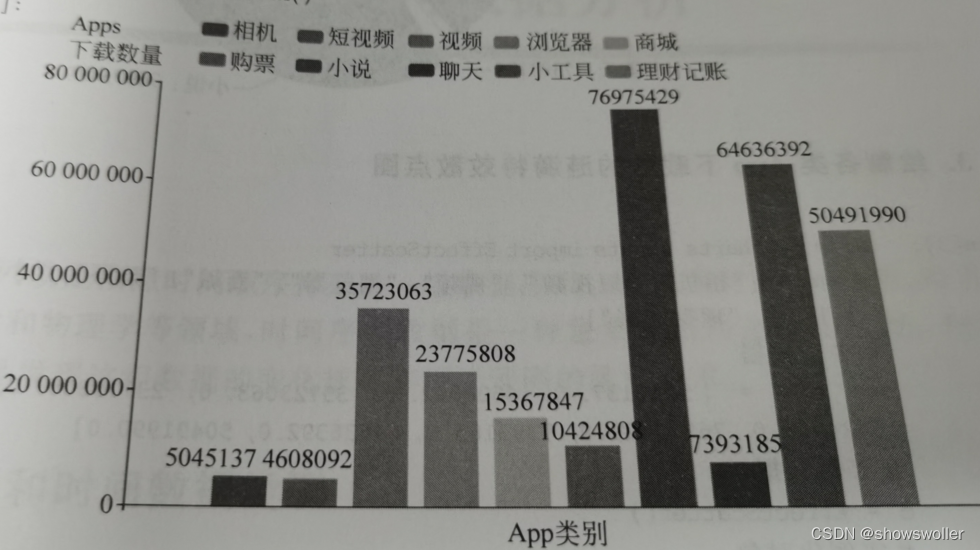

1：绘制数据的柱状图

 代码如下

from pyecharts.charts import Bar
# x轴数据
items = ["相机", "短视频", "视频", "浏览器", "商城", "购票", "小说", "聊天", "小工具", "理财记账"]
# y轴数据
sum_app = [[5045137.0], [4608092.0], [35723063.0], [23775808.0], [15367847.0], [10424808.0], [76975429.0], [7393185.0], [64636392.0], [50491990.0]]
# 生成实例化对象
bar = Bar(init_opts=opts.InitOpts(theme=ThemeType.LIGHT))
bar.add_xaxis([ "总数"])
for item in items:
    bar.add_yaxis(item,sum_app[items.index(item)])
bar.set_global_opts(title_opts=opts.TitleOpts(title="APP类型", subtitle="APP类型"))
# bar.render("APP类型.html")
bar.render_notebook()

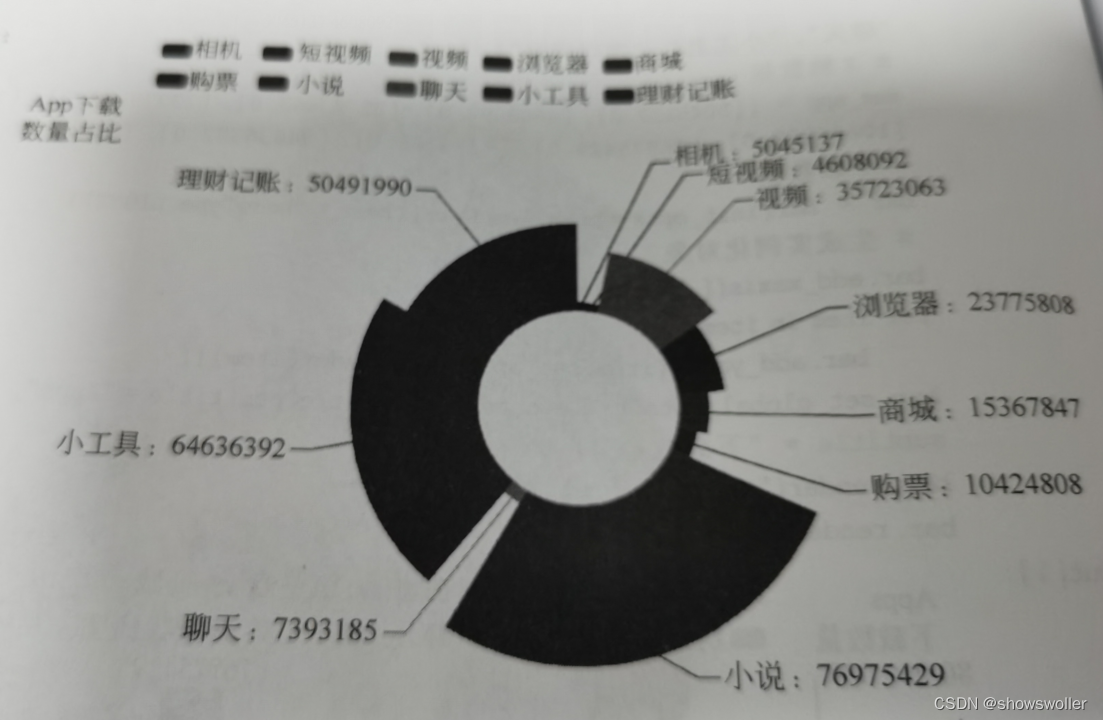

2：绘制各类App下载量的饼图

代码如下

from pyecharts.charts import Pie
items = ["相机", "短视频", "视频", "浏览器", "商城", "购票", "小说", "聊天", "小工具", "理财记账"]
# y轴数据
sum_app = [[5045137.0], [4608092.0], [35723063.0], [23775808.0], [15367847.0], [10424808.0], [76975429.0], [7393185.0], [64636392.0], [50491990.0]]
# 生成实例化对象
pie = Pie(init_opts=opts.InitOpts(theme=ThemeType.INFOGRAPHIC))
pie.add( "",data_pair =
[(item,sum_app[items.index(item)]) for item in items],
         radius=["30%", "75%"],
center=["50%", "50%"],
rosetype="radius",
label_opts=opts.LabelOpts(is_show=False))
pie.set_global_opts(title_opts = opts.TitleOpts(title="APP比例"))
pie.set_series_opts(label_opts =
opts.LabelOpts(formatter="{b}: {c}"))
pie.render_notebook()

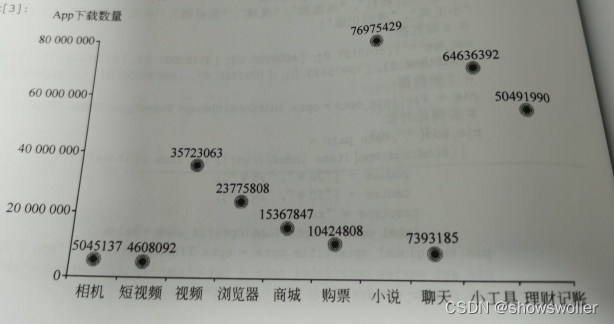

 3：绘制各类App下载量的涟漪特效散点图

 代码如下

from pyecharts import options as opts
from pyecharts.charts import EffectScatter
from pyecharts.globals import SymbolType
c = (
        EffectScatter()
       .add_xaxis(["衬衫", "毛衣", "领带", "裤子", "风衣", "高跟鞋", "袜子"])
     .add_yaxis('商家A', [114, 55, 27, 101, 125, 27, 105])
#        .add_yaxis('商家B',[57, 134, 137, 129, 145, 60, 49])
        .set_global_opts(title_opts=opts.TitleOpts(title="EffectScatter-基本示例"))
    )
c.render_notebook()
