时序分解 | MATLAB实现RIME-VMD霜冰优化算法优化VMD变分模态分解信号分量可视化

效果一览

基本介绍

RIME-VMD【23年新算法】霜冰优化算法优化VMD变分模态分解 可直接运行 Matlab

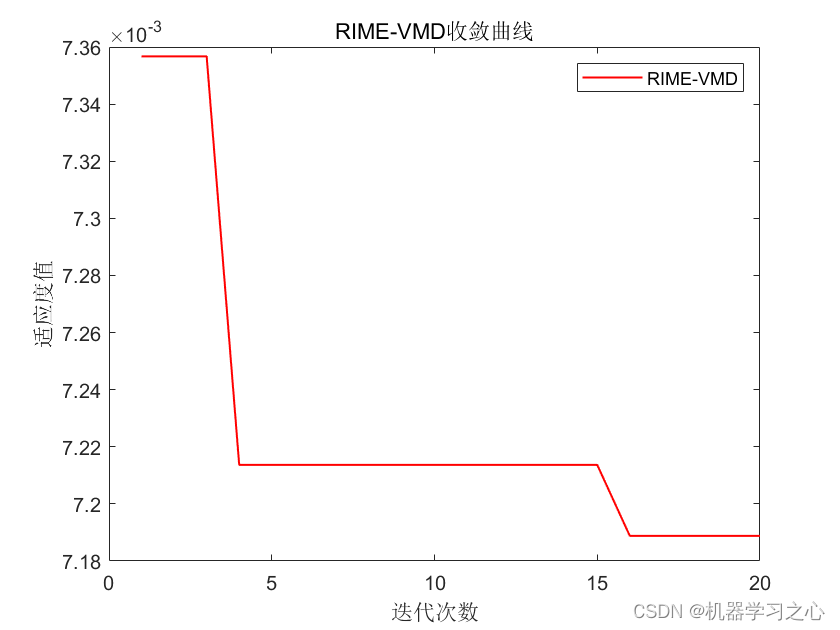

1.利用霜冰优化算法优化VMD中的参数k、a，适应度函数为样本熵。分解效果好，包含分解效果图、频率图、边际图、收敛曲线等图，可完全满足您的需求～
2.霜冰优化算法RIME是23年提出的新算法，还没人用过，适合作为创新点，包含VMD超参数优化迭代过程图，凸显每次迭代过程的变化。～
3.附赠测试数据 直接运行main即可一键出图～
4.直接替换Excel文件即可使用 适合新手小白 注释清晰～

程序设计

• 完整源码和数据获取方式：私信回复MATLAB实现RIME-VMD霜冰优化算法优化VMD变分模态分解信号分量可视化。

function [Best_rime_rate,Best_rime,Convergence_curve,result]=RIME(N,Max_iter,lb,ub,dim,fobj)
​
% initialize position
Best_rime=zeros(1,dim);
Best_rime_rate=inf;%change this to -inf for maximization problems
Rimepop=initialization(N,dim,ub,lb);%Initialize the set of random solutions
Lb=lb.*ones(1,dim);% lower boundary
Ub=ub.*ones(1,dim);% upper boundary
it=1;%Number of iterations
Convergence_curve=zeros(1,Max_iter);
Rime_rates=zeros(1,N);%Initialize the fitness value
newRime_rates=zeros(1,N);
W = 5;%Soft-rime parameters, discussed in subsection 4.3.1 of the paper
%Calculate the fitness value of the initial position
for i=1:N
    Rime_rates(1,i)=fobj(Rimepop(i,:));%Calculate the fitness value for each search agent
    %Make greedy selections
    if Rime_rates(1,i)<Best_rime_rate
        Best_rime_rate=Rime_rates(1,i);
        Best_rime=Rimepop(i,:);
    end
end
%GBestF = Rime_rates(1);%全局最优适应度值
% Main loop
while it <= Max_iter
    it
    RimeFactor = (rand-0.5)*2*cos((pi*it/(Max_iter/10)))*(1-round(it*W/Max_iter)/W);%Parameters of Eq.(3),(4),(5)
    E =(it/Max_iter)^0.5;%Eq.(6)
    newRimepop = Rimepop;%Recording new populations
    normalized_rime_rates=normr(Rime_rates);%Parameters of Eq.(7)
​​
    for i=1:N
        %Boundary absorption
        Flag4ub=newRimepop(i,:)>ub;
        Flag4lb=newRimepop(i,:)<lb;
        newRimepop(i,:)=(newRimepop(i,:).*(~(Flag4ub+Flag4lb)))+ub.*Flag4ub+lb.*Flag4lb;
        newRime_rates(1,i)=fobj(newRimepop(i,:));
        %Positive greedy selection mechanism
        if newRime_rates(1,i)<Rime_rates(1,i)
            Rime_rates(1,i) = newRime_rates(1,i);
            Rimepop(i,:) = newRimepop(i,:);
            if newRime_rates(1,i)< Best_rime_rate
               Best_rime_rate=Rime_rates(1,i);
               Best_rime=Rimepop(i,:);
            end
        end​
​
————————————————
