kubernetes ingress 详解 （包含灰度发布/金丝雀部署）
如有问题，以你为准
·
写在前面：如有问题，以你为准，
目前24年应届生，各位大佬轻喷，部分资料与图片来自网络
内容较长，页面右上角目录方便跳转
ingress 介绍 架构
原理
ingress可以解决的问题
1）动态配置服务

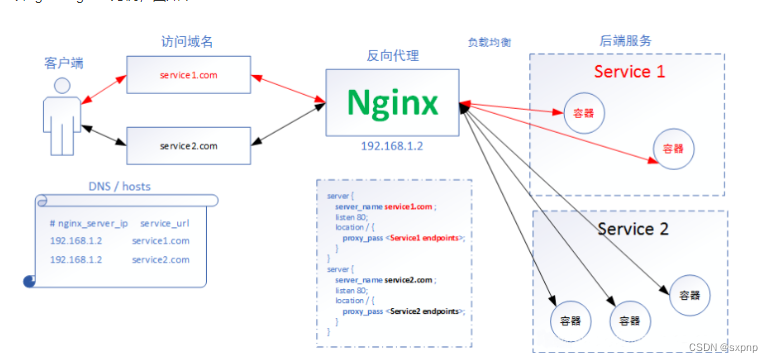

如果按照传统方式, 当新增加一个服务时, 我们可能需要在流量入口加一个反向代理指向我们新的k8s服务. 而如果用了Ingress, 只需要配置好这个服务, 当服务启动时, 会自动注册到Ingress的中, 不需要而外的操作。
2）减少不必要的端口暴露
配置过k8s的都清楚, 第一步是要关闭防火墙的, 主要原因是k8s的很多服务会以NodePort方式映射出去, 这样就相当于给宿主机打了很多孔, 既不安全也不优雅. 而Ingress可以避免这个问题, 除了Ingress自身服务可能需要映射出去, 其他服务都不要用NodePort方式。
- 基于这种现状，kubernetes提供了Ingress资源对象，Ingress只需要一个NodePort或者一个LB就可以满足暴露多个Service的需求，实现多个service的反向代理和负载均衡，工作机制大致如下图所示：

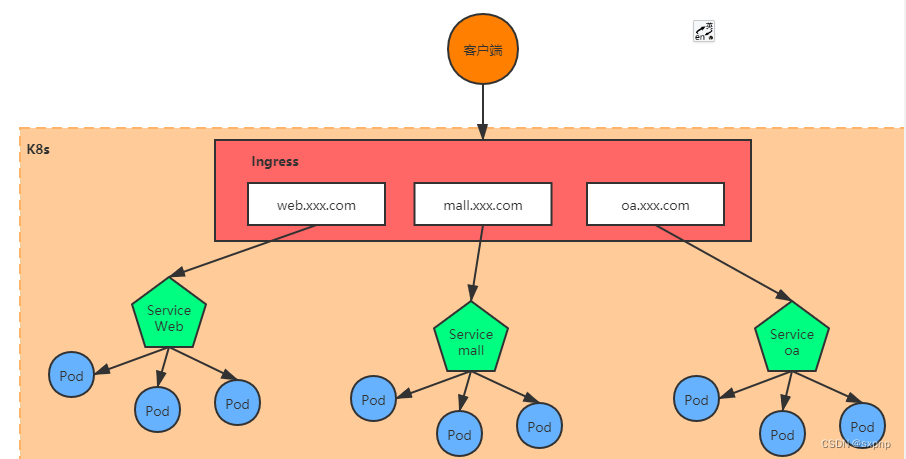

实际上，Ingress相当于一个七层的负载均衡器，是kubernetes对反向代理的一个抽象，它的工作原理类似于Nginx，可以理解为Ingress里面建立了诸多映射规则，Ingress Controller通过监听这些配置规则并转化为Nginx的反向代理配置，然后对外提供服务。
Ingress: K8s中的一个抽象资源，给管理员提供一个暴露应用的入口定义方法
Ingress Controller: 根据Ingress生成具体的路由规则，并对Pod负载均衡器
下面图中ingress service 就是ingress资源对象，通过yaml部署，规则动态更新

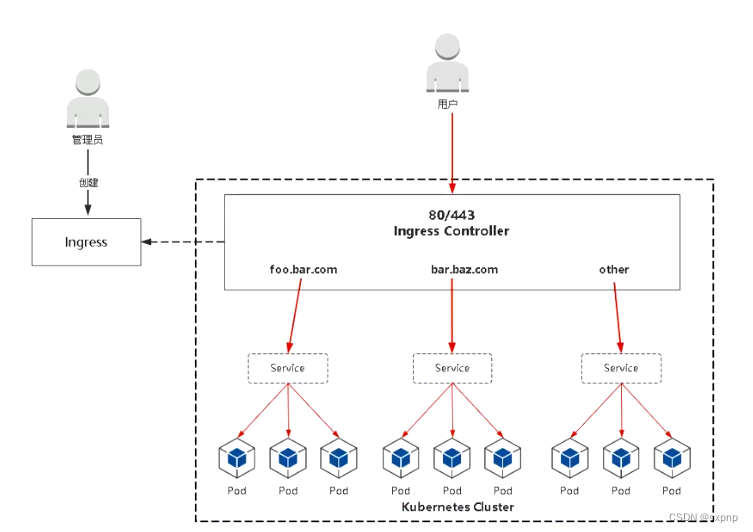

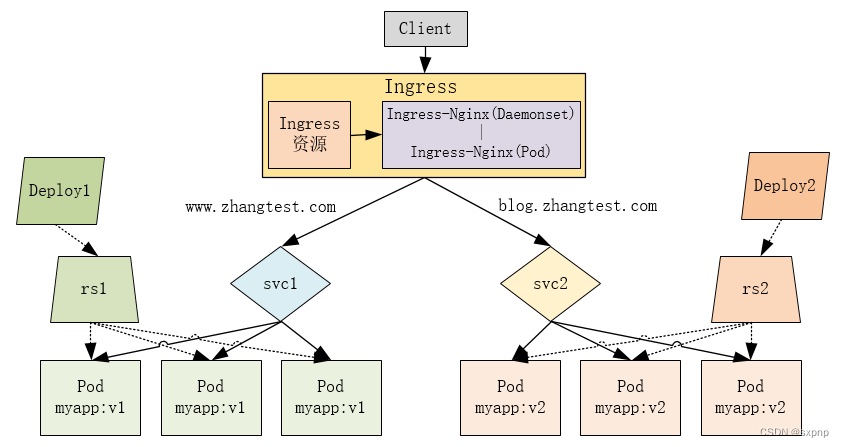

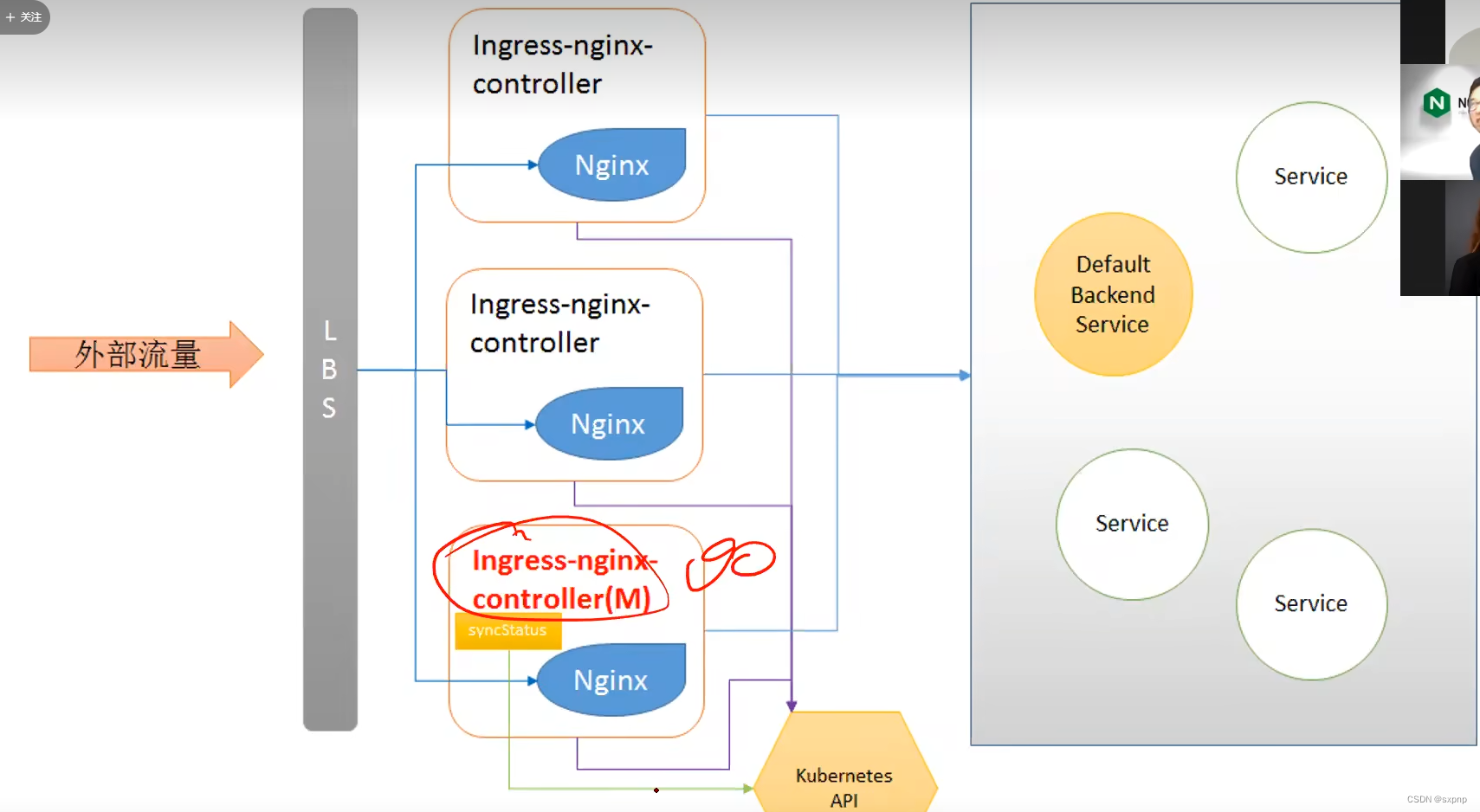

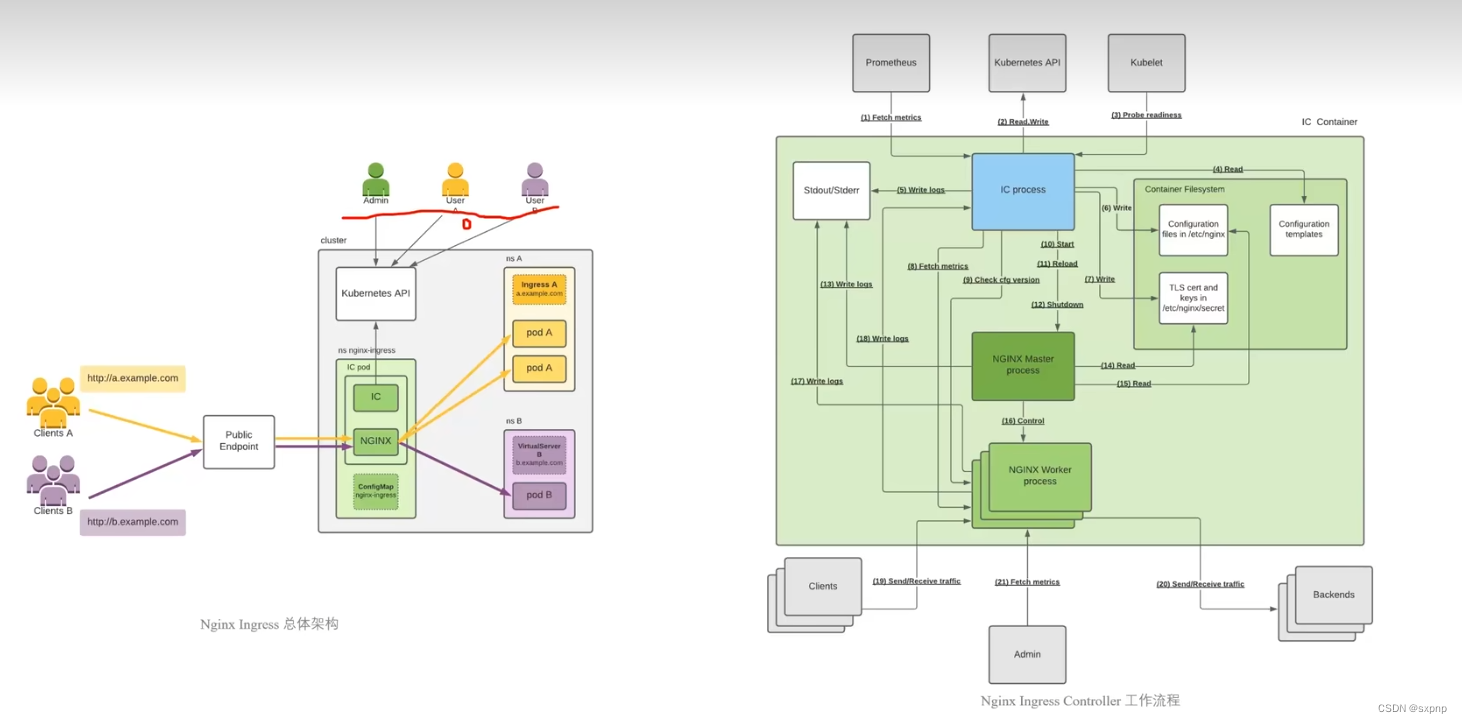

架构图
流量路径
浏览器(ip:port) --> ServiceNodeport (ingress controller) --> ingress controller pod --> service( web) --> deployment pod (web)
[root@master kube-bench]# kubectl get svc,pod -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/ingress-nginx-controller NodePort 10.111.123.202 <none> 80:32172/TCP,443:31755/TCP 256d
service/ingress-nginx-controller-admission ClusterIP 10.106.250.140 <none> 443/TCP 256d
NAME READY STATUS RESTARTS AGE
pod/ingress-nginx-controller-cf4967654-f9v7j 1/1 Running 0 45h应用场景

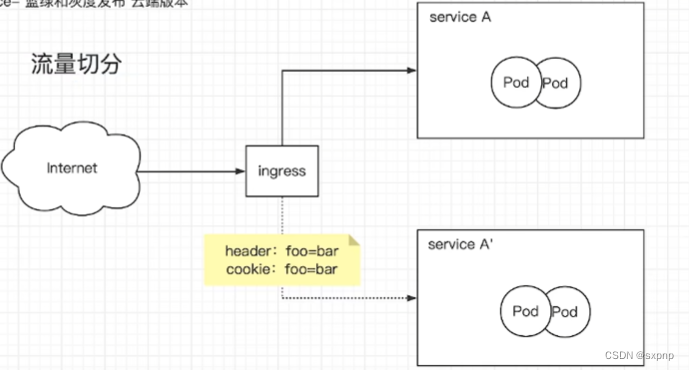

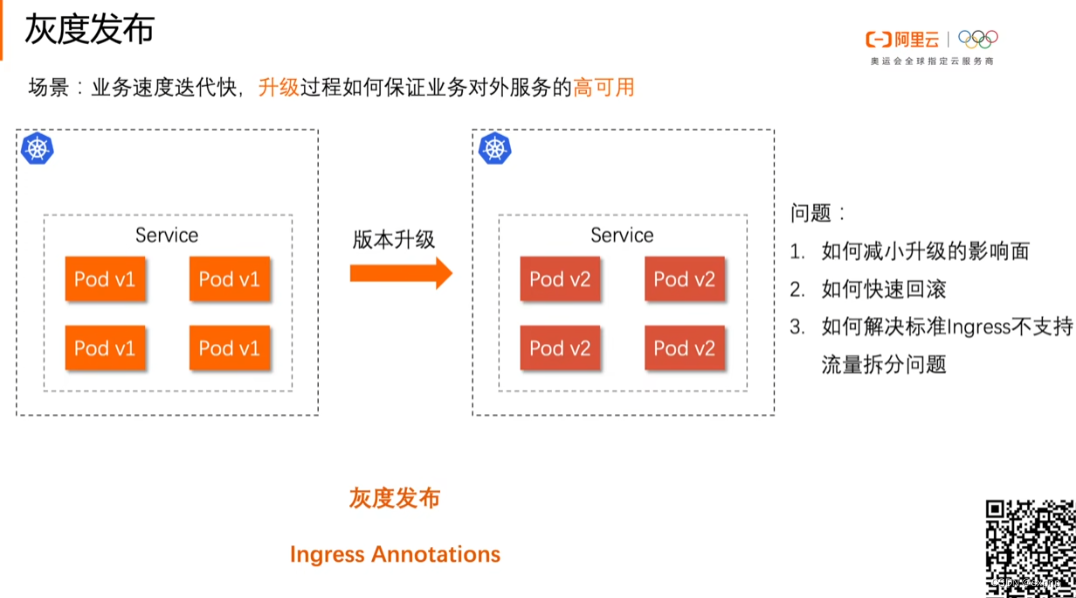

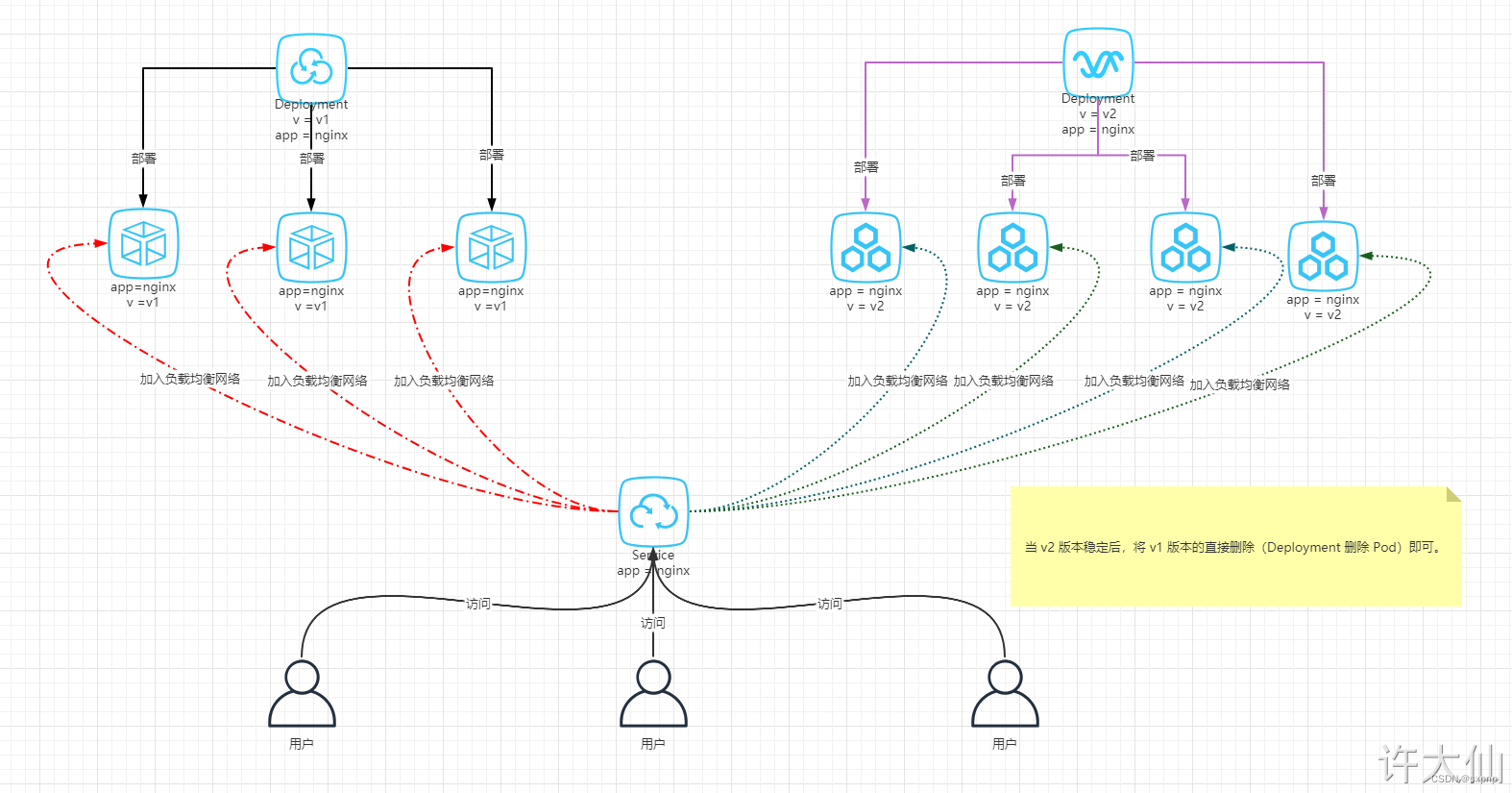

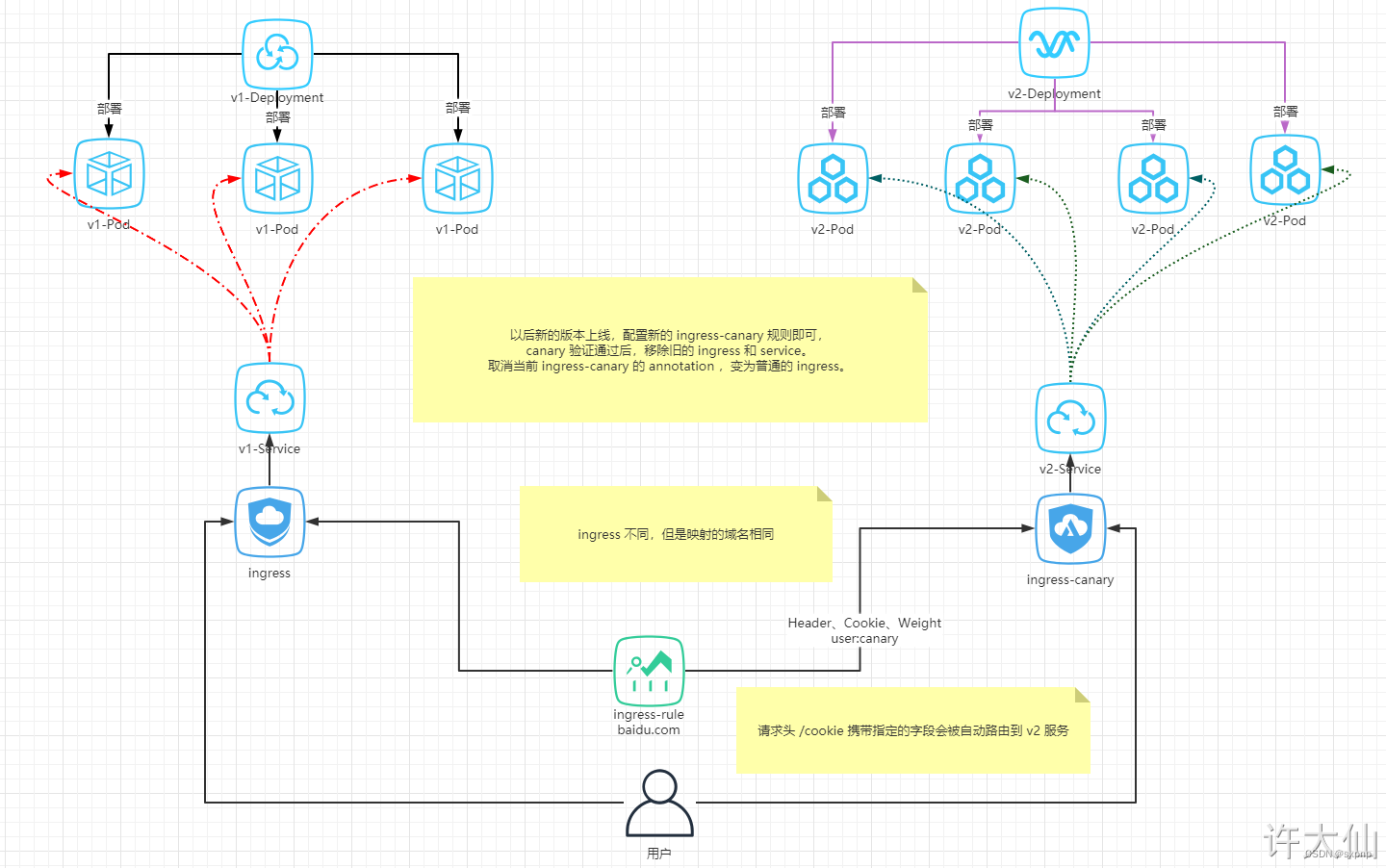

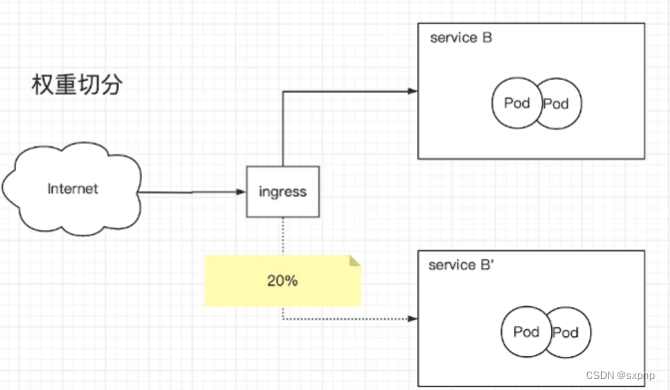

灰度发布/金丝雀（详解在后面）

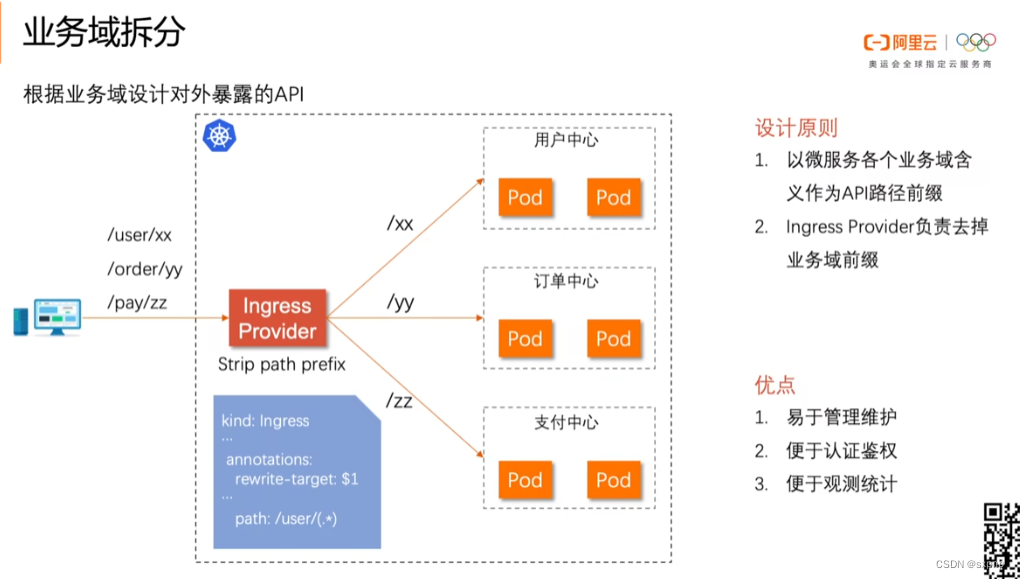

业务域拆分

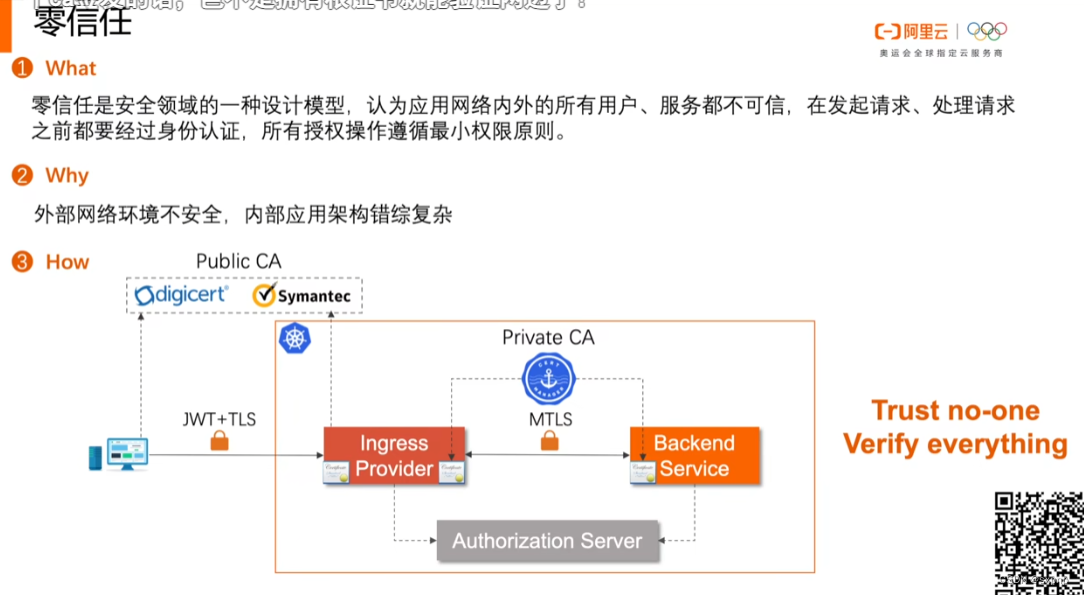

证书 CA

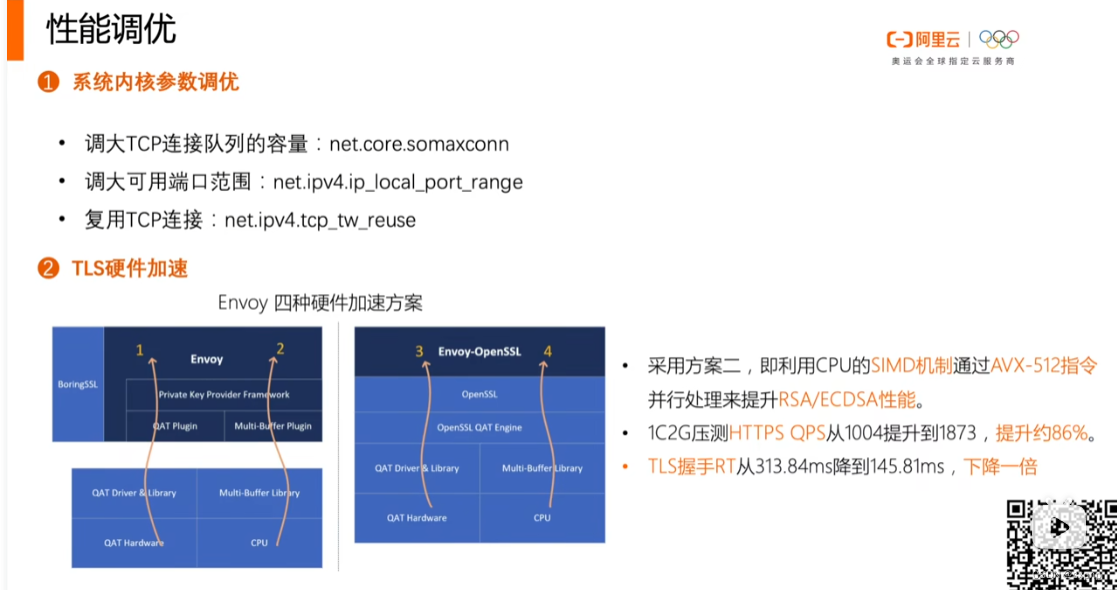

性能调优
部署 Ingress Controller（nginx ingress）
基于nginx服务的ingress controller根据不同的开发公司，又分为
k8s社区的ingres-nginx和nginx公司的nginx-ingress
k8s社区提供的ingress，github地址如下：https://github.com/kubernetes/ingress-nginx
官网：https://kubernetes.github.io/ingress-nginx/deploy/
nginx社区提供的ingress，github地址如下：https://github.com/nginxinc/kubernetes-ingress
部署教程：kubernetes 部署 Ingress Controller（nginx ingress）-CSDN博客

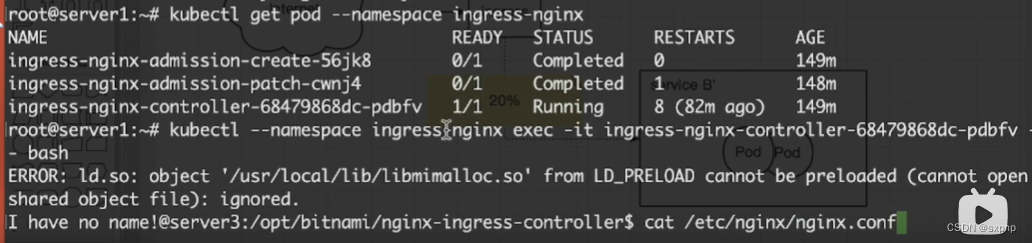

登入 ingress controller 查看nginx配置

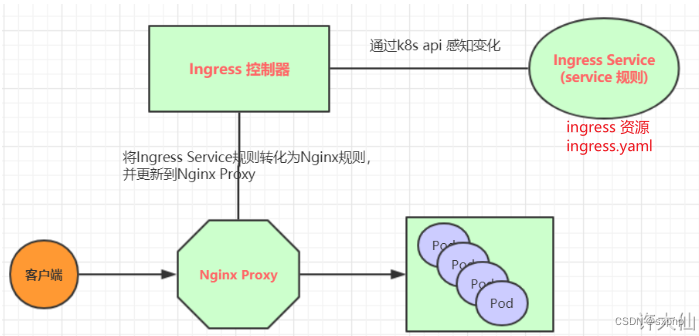

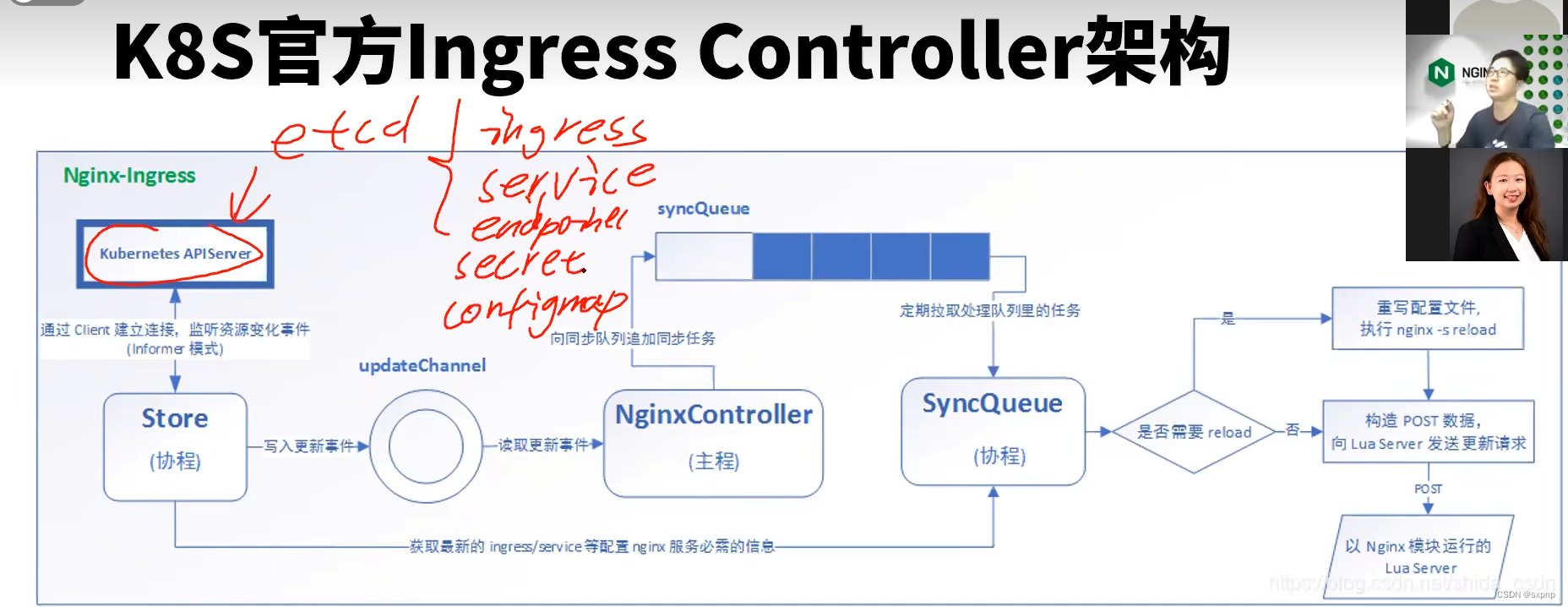

原理
https://www.bilibili.com/video/BV1r64y1m72f/?spm_id_from=333.337.search-card.all.click&vd_source=d649e016cd28e49d35879f17f8ba6892多进程管理，ingress-nginx-controller 是在pod 里面，但是外部还有一个ingress-nginx-controller进程来通过kubernetes api 管理这些pod，并对这些pod写入ingress 配置

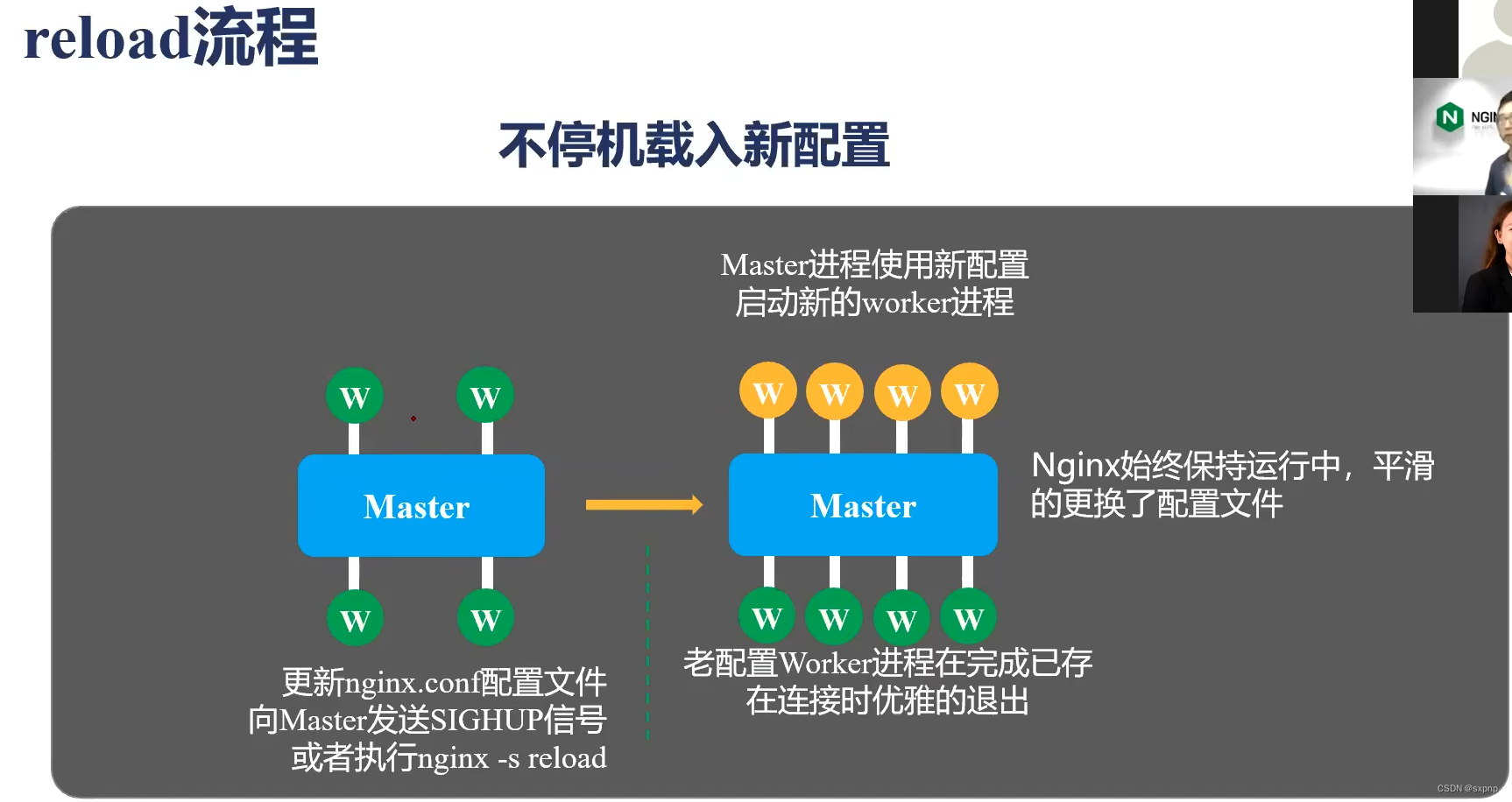

reload 流程

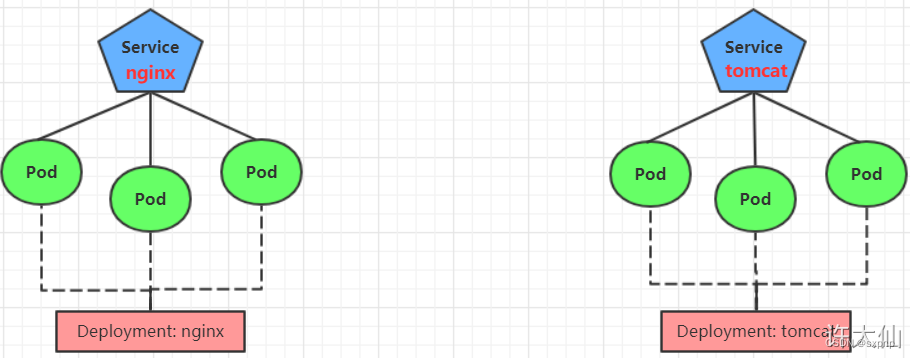

部署 Service和Dployment
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-deployment
namespace: study
spec:
replicas: 3
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
containers:
- name: nginx
image: nginx:1.17.1
ports:
- containerPort: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: tomcat-deployment
namespace: study
spec:
replicas: 3
selector:
matchLabels:
app: tomcat-pod
template:
metadata:
labels:
app: tomcat-pod
spec:
containers:
- name: tomcat
image: tomcat:8.0.52
ports:
- containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
name: nginx-service
namespace: study
spec:
selector:
app: nginx-pod
clusterIP: None
type: ClusterIP
ports:
- port: 80
targetPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: tomcat-service
namespace: study
spec:
selector:
app: tomcat-pod
clusterIP: None
type: ClusterIP
ports:
- port: 8080
targetPort: 8080[root@master k8s]# kubectl apply -f ms.yaml
deployment.apps/nginx-deployment created
deployment.apps/tomcat-deployment created
service/nginx-service created
service/tomcat-service created
[root@master k8s]# kubectl get deploy,svc -n study
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/nginx-deployment 3/3 3 3 69s
deployment.apps/tomcat-deployment 3/3 3 3 69s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/nginx-service ClusterIP None <none> 80/TCP 69s
service/tomcat-service ClusterIP None <none> 8080/TCP 69singress yaml 详解
[root@master k8s]# kubectl get ingressclasses.networking.k8s.io
NAME CONTROLLER PARAMETERS AGE
nginx k8s.io/ingress-nginx <none> 32mapiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-http
namespace: study
spec:
ingressClassName: nginx # （1.20开始使用）# defaultBackend: 处理不匹配的请求的后端,如果没有指定任何规则
# 则必须指定默认后端如果没有设置默认后端处理请求不匹配任何规则将由入口控制器决定
# service:
# name: nginx-service
# port:
# number: 80
# tls: # 指定https 密钥证书
# - hosts: # 指定使用该密钥的规则
# - nginx.xudaxian.com
# - tomcat.xudaxian.com
# secretName: tls-secret # 指定秘钥
rules: # 规则指定请求匹配规则，每一个规则都是<[]Object>
- host: www.snj.com #指定匹配域名，默认端口为80，443
http:
paths:
- path: / # 这里的路径指的host访问的路径，不同路径可以绑定不同的service
pathType: Prefix # 匹配规则，Prefix 前缀匹配 it.nginx.com/* 都可以匹配到
backend: # 后端的service
service:
name: nginx-service # 绑定 service
port:
number: 80 # 指定service 端口
- host: tomcat.snj.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: tomcat-service
port:
number: 8080Prefix：基于以 / 分隔的 URL 路径前缀匹配。匹配区分大小写，并且对路径中的元素逐个完成。 路径元素指的是由 / 分隔符分隔的路径中的标签列表。 如果每个 p 都是请求路径 p 的元素前缀，则请求与路径 p 匹配。
Exact：精确匹配 URL 路径，且区分大小写。
ImplementationSpecific：对于这种路径类型，匹配方法取决于 IngressClass。 具体实现可以将其作为单独的 pathType 处理或者与 Prefix 或 Exact 类型作相同处理。
[root@master k8s]# kubectl get ing -n study
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress-http <none> nginx.snj.com,tomcat.snj.com 80 12m
[root@master k8s]# kubectl get ingress -n study -o wide
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress-http nginx nginx.snj.com,tomcat.snj.com 80 28s
[root@master k8s]# kubectl describe ingress -n study
Name: ingress-http
Labels: <none>
Namespace: study
Address:
Ingress Class: nginx
Default backend: <default>
Rules:
Host Path Backends
---- ---- --------
nginx.snj.com
/ nginx-service:80 (10.244.104.28:80,10.244.166.153:80,10.244.166.155:80)
tomcat.snj.com
/ tomcat-service:80 (10.244.104.29:8080,10.244.104.34:8080,10.244.166.154:8080)
Annotations: <none>
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Sync 33s nginx-ingress-controller Scheduled for sync

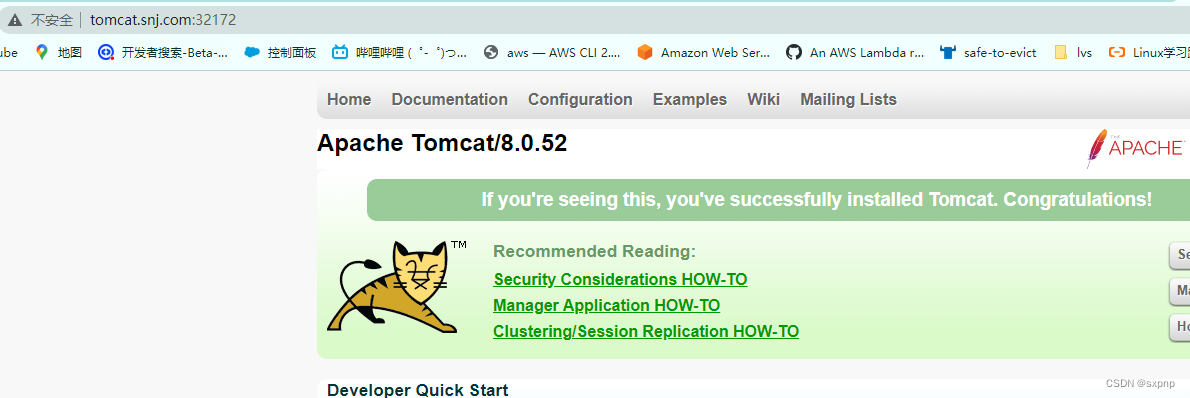

# 有上面这个Normal 则绑定成功测试（http实现）
[root@master k8s]# kubectl describe svc -n ingress-nginx ingress-nginx-controller
Name: ingress-nginx-controller
Namespace: ingress-nginx
Labels: app.kubernetes.io/component=controller
app.kubernetes.io/instance=ingress-nginx
app.kubernetes.io/name=ingress-nginx
app.kubernetes.io/part-of=ingress-nginx
app.kubernetes.io/version=1.6.4
Annotations: <none>
Selector: app.kubernetes.io/component=controller,app.kubernetes.io/instance=ingress-nginx,app.kubernetes.io/name=ingress-nginx
Type: NodePort
IP Family Policy: SingleStack
IP Families: IPv4
IP: 10.111.123.202
IPs: 10.111.123.202
Port: http 80/TCP
TargetPort: http/TCP
NodePort: http 32172/TCP
Endpoints: 192.168.100.51:80 # 外部访问ingress的IP地址
Port: https 443/TCP
TargetPort: https/TCP
NodePort: https 31755/TCP
Endpoints: 192.168.100.51:443 # 外部访问ingress的IP地址
Session Affinity: None
External Traffic Policy: Local
Events: <none>出现的问题：集群内部都能也可以从自己的地址访问到ingress，hosts对应写自身地址
因为搭建ingress-nginx的service的时候，会向ipvs写入规则（访问ip为自身地址）
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 192.168.100.53:31755 rr
-> 192.168.100.51:443 Masq 1 0 0
TCP 192.168.100.53:32172 rr
-> 192.168.100.51:80 Masq 1 0 0 但是外部不能通过master物理地址访问到ingress，外部要通过ingress pod 部署到的node的物理地址来访问
192.168.100.51 nginx.snj.com
192.168.100.51 tomcat.snj.com[root@master k8s]# kubectl get svc -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller NodePort 10.102.42.91 <none> 80:32310/TCP,443:30777/TCP 4m29s
ingress-nginx-controller-admission ClusterIP 10.96.129.195 <none> 443/TCP 4m29s
# http端口为 32310 https端口为 30777
https 实现（ingress 证书）
openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.crt -subj "/C=CN/ST=BJ/L=BJ/O=nginx/CN=xudaxian.com"
[root@master k8s]# ls | grep tls
tls.crt
tls.key[root@master k8s]# kubectl create secret tls tls-secret --key tls.key --cert tls.crt
secret/tls-secret created[root@master k8s]# kubectl get pod,svc,deploy -n study
NAME READY STATUS RESTARTS AGE
pod/nginx-deployment-6bb9d9f778-6dnhh 1/1 Running 0 86m
pod/nginx-deployment-6bb9d9f778-nfzk4 1/1 Running 0 86m
pod/nginx-deployment-6bb9d9f778-rl7nr 1/1 Running 0 86m
pod/tomcat-deployment-84748d94d5-dgmvh 1/1 Running 0 86m
pod/tomcat-deployment-84748d94d5-nczhr 1/1 Running 0 86m
pod/tomcat-deployment-84748d94d5-qbp59 1/1 Running 0 86m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/nginx-service ClusterIP None <none> 80/TCP 86m
service/tomcat-service ClusterIP None <none> 8080/TCP 86m
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/nginx-deployment 3/3 3 3 86m
deployment.apps/tomcat-deployment 3/3 3 3 86mapiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-http
namespace: study
spec:
ingressClassName: nginx # （1.20开始使用）
tls: # 指定https 密钥证书
- hosts: # 指定使用该密钥的规则
- nginx.xudaxian.com
- tomcat.xudaxian.com
secretName: tls-secret # 指定秘钥
rules: # 规则指定请求匹配规则，每一个规则都是<[]Object>
- host: nginx.snj.com #指定匹配域名，默认端口为80，443
http:
paths:
- path: / # 这里的路径指的host访问的路径，不同路径可以绑定不同的service
pathType: Prefix
backend: #后端的service
service:
name: nginx-service # 绑定 service
port:
number: 80 # 指定service 端口
- host: tomcat.snj.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: tomcat-service
port:
number: 8080 [root@master k8s]# kubectl apply -f ingress.yaml
ingress.networking.k8s.io/ingress-http created
[root@master k8s]# kubectl get ing -n study
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress-http nginx www.snj.com,tomcat.snj.com 80, 443 8s
[root@master k8s]# kubectl describe ing -n study
Name: ingress-http
Labels: <none>
Namespace: study
Address:
Ingress Class: nginx
Default backend: <default>
TLS:
tls-secret terminates nginx.xudaxian.com,tomcat.xudaxian.com
Rules:
Host Path Backends
---- ---- --------
www.snj.com
/ nginx-service:80 (10.244.104.38:80,10.244.166.165:80,10.244.166.166:80)
tomcat.snj.com
/ tomcat-service:8080 (10.244.104.39:8080,10.244.104.40:8080,10.244.166.167:8080)
Annotations: <none>
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Sync 38s nginx-ingress-controller Scheduled for sync
[root@master k8s]# kubectl get svc -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller NodePort 10.111.123.202 <none> 80:32172/TCP,443:31755/TCP 92m
ingress-nginx-controller-admission ClusterIP 10.106.250.140 <none> 443/TCP 92m
# 访问端口 443:31755/TCP

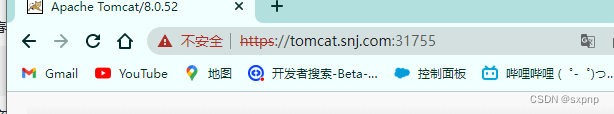

curl -k https://nginx.snj.com:31755

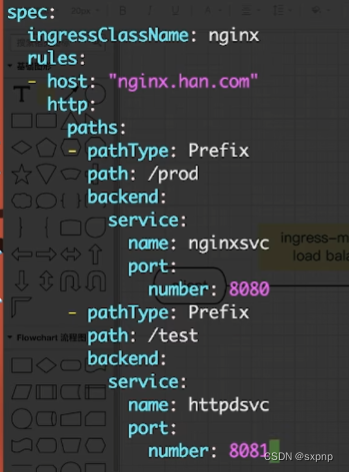

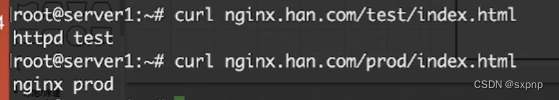

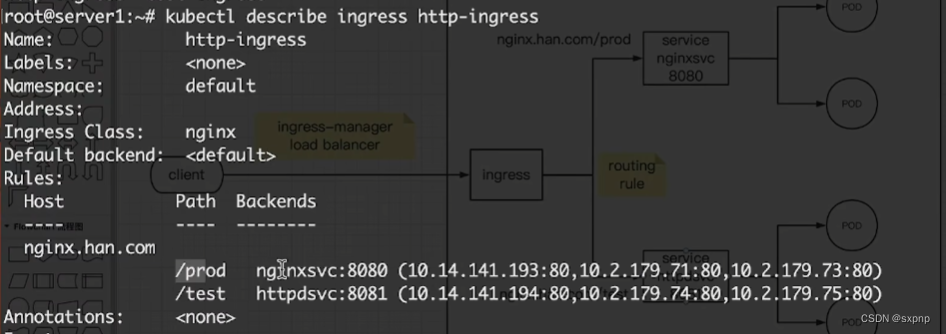

单域名多路径

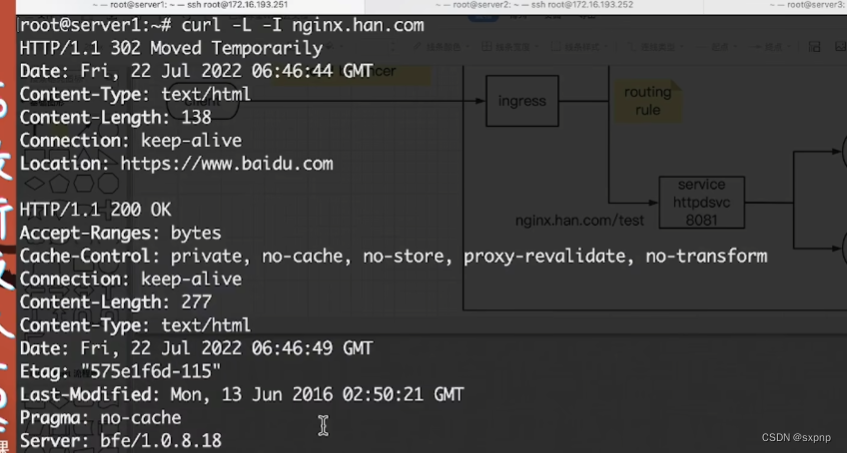

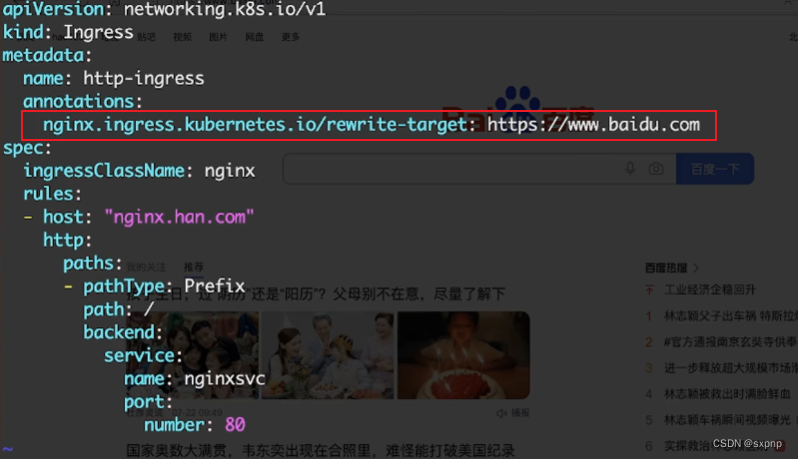

访问时跳转指定地址
不使用域名，使用ip
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-v1
namespace: study
spec:
ingressClassName: "nginx"
rules:
- http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: v1-service
port:
number: 80[root@master canary]# curl 10.111.123.202
v1-pod限流操作
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: rate-ingress
namespace: default
annotations: # https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/#rate-limiting
kubernetes.io/ingress.class: "nginx"
nginx.ingress.kubernetes.io/backend-protocol: "HTTP"
nginx.ingress.kubernetes.io/limit-rps: "1" # 限流
spec:
rules:
- host: nginx.xudaxian.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: nginx-svc
port:
number: 80基于 Cookie 的会话保持技术
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: rate-ingress
namespace: default
annotations: # https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/#rate-limiting
kubernetes.io/ingress.class: "nginx"
nginx.ingress.kubernetes.io/backend-protocol: "HTTP"
nginx.ingress.kubernetes.io/affinity: "cookie"
spec:
rules:
- host: nginx.xudaxian.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: nginx-svc
port:
number: 80其他示例
出现问题
IngressClass
kubectl logs -n ingress-nginx ingress-nginx-controller-cf4967654-fkwcl
# 进行排错
# 比如出现一下错误
# W0102 12:51:07.374785 7 controller.go:278] ignoring ingress nginx-ingress in study based on annotation : ingress does not contain a valid IngressClass
# 说明没有配置 ingress class
I0102 13:53:52.597216 7 main.go:100] "successfully validated configuration, accepting" ingress="study/nginx-ingress"
I0102 13:53:52.604268 7 store.go:433] "Found valid IngressClass" ingress="study/nginx-ingress" ingressclass="nginx"
I0102 13:53:52.614011 7 event.go:285] Event(v1.ObjectReference{Kind:"Ingress", Namespace:"study", Name:"nginx-ingress", UID:"0f72d9c8-4b9c-4dee-afec-e5a7d213323e", APIVersion:"networking.k8s.io/v1", ResourceVersion:"8126946", FieldPath:""}): type: 'Normal' reason: 'Sync' Scheduled for sync
I0102 13:53:53.128640 7 controller.go:188] "Configuration changes detected, backend reload required"
I0102 13:53:53.246681 7 controller.go:205] "Backend successfully reloaded"
I0102 13:53:53.254908 7 event.go:285] Event(v1.ObjectReference{Kind:"Pod", Namespace:"ingress-nginx", Name:"ingress-nginx-controller-cf4967654-fkwcl", UID:"a50e3220-3928-4fac-bdd6-b5fe5409be00", APIVersion:"v1", ResourceVersion:"8047653", FieldPath:""}): type: 'Normal' reason: 'RELOAD' NGINX reload triggered due to a change in configuration
I0102 13:54:14.813365 7 status.go:300] "updating Ingress status" namespace="study" ingress="nginx-ingress" currentValue=[] newValue=[{IP:10.111.123.202 Hostname: Ports:[]}]
I0102 13:54:14.817935 7 event.go:285] Event(v1.ObjectReference{Kind:"Ingress", Namespace:"study", Name:"nginx-ingress", UID:"0f72d9c8-4b9c-4dee-afec-e5a7d213323e", APIVersion:"networking.k8s.io/v1", ResourceVersion:"8126996", FieldPath:""}): type: 'Normal' reason: 'Sync' Scheduled for sync[root@master k8s]# kubectl get ingress -n study
NAME CLASS HOSTS ADDRESS PORTS AGE
nginx-ingress nginx * 10.111.123.202 80 65smaster 访问问题
因为master没有ingress-nginx-controller控制器
外部不能通过master物理地址访问到ingress，外部要通过ingress pod 部署到的node的物理地址来访问
灰度发布/蓝绿发布/金丝雀发布
概述
以前使用 Kubernetes 的 Service 配合 Deployment 进行金丝雀的部署，原理如下所示：
canary - 监绿和灰度发布而社区版本
service - 蓝绿和灰度发布云端版本（阿里云）
基于Request Headerf的流量切分，适用于灰度发布及AB测试
基于Cookie的流量切分，适用于灰度发布及AB测试
环境：已经部署了一个old nginx的ingress以及后端的deployment service资源
现在部署完了new nginx 的deployment service资源，要部署一个实现蓝绿发布的ingress（同一个host 域名）
环境部署
deployment service
部署 v1 deployment service 和 v2 deployment service
apiVersion: v1
kind: Namespace
metadata:
name: study
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: v1-deployment
labels:
app: v1-deployment
namespace: study
spec:
replicas: 2
selector:
matchLabels:
app: v1-pod
template:
metadata:
name: nginx
labels:
app: v1-pod
spec:
initContainers:
- name: busybox
image: busybox:1.30
imagePullPolicy: IfNotPresent
command: ["/bin/sh","-c","echo v2-pod > /app/index.html;"]
volumeMounts:
- mountPath: /app
name: app
containers:
- name: nginx
image: nginx:1.17.1
imagePullPolicy: IfNotPresent
ports:
- containerPort: 80
resources:
requests:
cpu: 100m
memory: 100Mi
limits:
cpu: 250m
memory: 500Mi
volumeMounts:
- name: app
mountPath: /usr/share/nginx/html
volumes:
- name: app
emptyDir: {}
restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
name: v1-service
namespace: study
spec:
selector:
app: v1-pod
type: ClusterIP
ports:
- name: nginx
protocol: TCP
port: 80
targetPort: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: v2-deployment
labels:
app: v2-deployment
namespace: study
spec:
replicas: 3
selector:
matchLabels:
app: v2-pod
template:
metadata:
name: v2-pod
labels:
app: v2-pod
spec:
initContainers:
- name: busybox
image: busybox:1.30
imagePullPolicy: IfNotPresent
command: ["/bin/sh","-c","echo v2-pod > /app/index.html;"]
volumeMounts:
- mountPath: /app
name: app
containers:
- name: nginx
image: nginx:1.17.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 80
resources:
requests:
cpu: 100m
memory: 100Mi
limits:
cpu: 250m
memory: 500Mi
volumeMounts:
- name: app
mountPath: /usr/share/nginx/html
volumes:
- name: app
emptyDir: {}
restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
name: v2-service
namespace: study
spec:
selector:
app: v2-pod
type: ClusterIP
ports:
- name: nginx
protocol: TCP
port: 80
targetPort: 80v1-ingress
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-v1
namespace: default
spec:
ingressClassName: "nginx"
rules:
- host: nginx.xudaxian.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: v1-service
port:
number: 80检查
[root@master canary]# kubectl get deploy,svc,pod,ing -n study
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/v1-deployment 2/2 2 2 9m1s
deployment.apps/v2-deployment 3/3 3 3 9m1s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/v1-service ClusterIP 10.100.50.208 <none> 80/TCP 9m1s
service/v2-service ClusterIP 10.107.230.80 <none> 80/TCP 9m1s
NAME READY STATUS RESTARTS AGE
pod/v1-deployment-7c455c58d8-6njc2 1/1 Running 0 9m1s
pod/v1-deployment-7c455c58d8-ngkq2 1/1 Running 0 9m1s
pod/v2-deployment-bc9fc6679-6lgjf 1/1 Running 0 9m1s
pod/v2-deployment-bc9fc6679-n8b49 1/1 Running 0 9m1s
pod/v2-deployment-bc9fc6679-p86ln 1/1 Running 0 9m1s
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/ingress-v1 nginx nginx.snj.com 10.111.123.202 80 83s[root@ip-15 ~]# curl nginx.snj.com
v1-podv2-ingress
基于 Header 的流量切分
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: v2-ingress-canary-header
namespace: study
annotations:
nginx.ingress.kubernetes.io/canary: "true" # 开启金丝雀
nginx.ingress.kubernetes.io/canary-by-header: "Region" # 基于请求头
# 如果 请求头 Region = always ，就路由到金丝雀版本；如果 Region = never ，就永远不会路由到金丝雀版本。
# canary-by-header-value 默认 是always和 nerver
nginx.ingress.kubernetes.io/canary-by-header-value: "sz" # 自定义值
# 如果 请求头 Region = sz ，就路由到金丝雀版本；如果 Region != sz ，就永远不会路由到金丝雀版本。
# nginx.ingress.kubernetes.io/canary-by-header-pattern: "sh|sz"
# 如果 请求头 Region = sh 或 Region = sz ，就路由到金丝雀版本；如果 Region != sz 并且 Region != sz ，就永远不会路由到金丝雀版本。
spec:
ingressClassName: "nginx"
rules:
- host: nginx.snj.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: v2-service
port:
number: 80[root@ip-15 ~]# curl nginx.snj.com
v1-pod
[root@ip-15 ~]# curl -H "Region: sz" nginx.snj.com
v2-pod
# 此时进行测试，如负载等测试，如果没问题即可直接根据下面的完全上线新版本基于 Cookie 的流量切分
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-canary-cookie
namespace: study
annotations:
nginx.ingress.kubernetes.io/canary: "true" # 开启金丝雀
nginx.ingress.kubernetes.io/canary-by-cookie: "vip"
# 如果 cookie 是 vip = always ，就会路由到到金丝雀版本
# 如果 cookie 是 vip = never ，就永远不会路由到金丝雀的版本。
spec:
ingressClassName: "nginx"
rules:
- host: nginx.snj.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: v2-service
port:
number: 80[root@ip-15 ~]# curl nginx.snj.com
v1-pod
[root@ip-15 ~]# curl --cookie "vip=always" nginx.snj.com
v2-pod
# 此时进行测试，如负载等测试，如果没问题即可直接根据下面的完全上线新版本基于服务权重的流量切分
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-canary-weight
namespace: study
annotations:
nginx.ingress.kubernetes.io/canary: "true" # 开启金丝雀
nginx.ingress.kubernetes.io/canary-weight: "10" # 基于服务权重
spec:
ingressClassName: "nginx"
rules:
- host: nginx.snj.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: v2-service
port:
number: 80[root@master canary]# kubectl get deploy,svc,pod,ing -n study
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/v1-deployment 2/2 2 2 28m
deployment.apps/v2-deployment 3/3 3 3 28m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/v1-service ClusterIP 10.107.153.174 <none> 80/TCP 28m
service/v2-service ClusterIP 10.97.36.128 <none> 80/TCP 28m
NAME READY STATUS RESTARTS AGE
pod/v1-deployment-7c455c58d8-68k9r 1/1 Running 0 28m
pod/v1-deployment-7c455c58d8-kdmgl 1/1 Running 0 28m
pod/v2-deployment-568ff74948-cs6dr 1/1 Running 0 28m
pod/v2-deployment-568ff74948-ptsdx 1/1 Running 0 28m
pod/v2-deployment-568ff74948-rpql8 1/1 Running 0 28m
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/ingress-canary-weight nginx nginx.snj.com 10.111.123.202 80 30s
ingress.networking.k8s.io/ingress-v1 nginx nginx.snj.com 10.111.123.202 80 27m
[root@ip-15 ~]# for i in {1..10}; do curl nginx.snj.com; done;
v1-pod
v1-pod
v1-pod
v1-pod
v1-pod
v2-pod
v1-pod
v1-pod
v1-pod
v1-pod完全上线新版本
改ingress的后端service
[root@master canary]# kubectl edit ingress -n study ingress-v1
ingress.networking.k8s.io/ingress-v1 edited
- backend:
service:
name: v2-service
port:

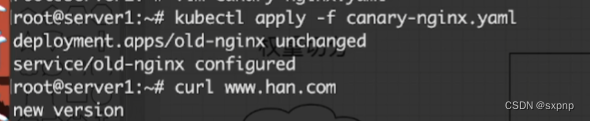

number: 80改service标签选择器

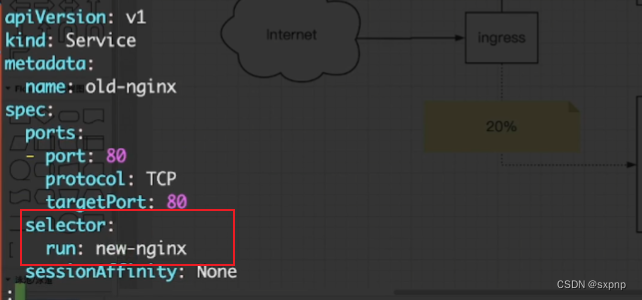

直接就老版本的service的标签选择器指向新版本的deploy的标签
首先在网络中使用的http协议进行传输，http协议是一个明文传输协议
此时为了安全，我们就需要使用https加密传输协议，但是需要对 ingress 进行证书配置
腾讯云面向开发者汇聚海量精品云计算使用和开发经验，营造开放的云计算技术生态圈。
更多推荐
36
0- 0
已为社区贡献5条内容
所有评论(0)
