基于eNsp

结合设备的vrf，采用传统路由的方式进行防火墙旁挂的引流。

配置

SW1

sysname SW1
#
vlan batch 10 20 100 200

ip vpn-instance a
 ipv4-family
#
ip vpn-instance b
 ipv4-family

interface Vlanif10
 description Web Service_Gateway
 ip binding vpn-instance a
 ip address 192.168.10.1 255.255.255.0

interface Vlanif20
 description Internet
 ip binding vpn-instance b
 ip address 12.1.1.1 255.255.255.0

interface Vlanif100
 description To_FW_Trust
 ip binding vpn-instance a
 ip address 192.168.100.20 255.255.255.0

interface Vlanif200
 description To_FW_Untrust
 ip binding vpn-instance b
 ip address 192.168.200.20 255.255.255.0

interface Eth-Trunk1
 description To_FW1
 port link-type trunk
 port trunk allow-pass vlan 100 200
 stp edged-port disable
 mode lacp-static

interface Eth-Trunk2
 description To_FW2
 port link-type trunk
 port trunk allow-pass vlan 100 200
 stp edged-port disable
 mode lacp-static

interface Eth-Trunk3
 description To_Web Service
 port link-type trunk
 port trunk allow-pass vlan 10
 stp edged-port disable
 mode lacp-static

interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 20
 stp edged-port enable

interface GigabitEthernet0/0/18
 eth-trunk 3

interface GigabitEthernet0/0/19
 eth-trunk 3

interface GigabitEthernet0/0/20
 eth-trunk 1

interface GigabitEthernet0/0/21
 eth-trunk 1

interface GigabitEthernet0/0/22
 eth-trunk 2

interface GigabitEthernet0/0/23
 eth-trunk 2

ip route-static vpn-instance a 0.0.0.0 0.0.0.0 192.168.100.1
ip route-static vpn-instance b 0.0.0.0 0.0.0.0 12.1.1.2
ip route-static vpn-instance b 192.168.10.0 255.255.255.0 192.168.200.1

FW1/2

配置大同小异，这里FW1配置

sysname FW1
vlan batch 100 200
 hrp enable
 hrp interface GigabitEthernet1/0/6 remote 1.1.1.2
interface Vlanif100
 ip address 192.168.100.10 255.255.255.0
 vrrp vrid 100 virtual-ip 192.168.100.1 active
interface Vlanif200
 ip address 192.168.200.10 255.255.255.0
 vrrp vrid 200 virtual-ip 192.168.200.1 active
interface Eth-Trunk1
 portswitch
 port link-type trunk
 port trunk allow-pass vlan 100 200
 mode lacp-static
interface GigabitEthernet0/0/0
 undo shutdown
 ip binding vpn-instance default
 ip address 192.168.0.100 255.255.255.0
 alias GE0/METH
 service-manage https permit
 service-manage ping permit
interface GigabitEthernet1/0/0
 undo shutdown
 eth-trunk 1
interface GigabitEthernet1/0/1
 undo shutdown
 eth-trunk 1
interface GigabitEthernet1/0/6
 undo shutdown
 ip address 1.1.1.1 255.255.255.252
 alias Heart
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface Vlanif100
firewall zone untrust
 set priority 5
 add interface Vlanif200
firewall zone dmz
 set priority 50
 add interface GigabitEthernet1/0/6
ip route-static 0.0.0.0 0.0.0.0 192.168.200.20
ip route-static 192.168.10.0 255.255.255.0 192.168.100.20
security-policy
 rule name Web
  source-zone untrust
  destination-zone trust
  service http
  service icmp
  action permit
HRP_M<FW1>

R1/SW2

常规配置

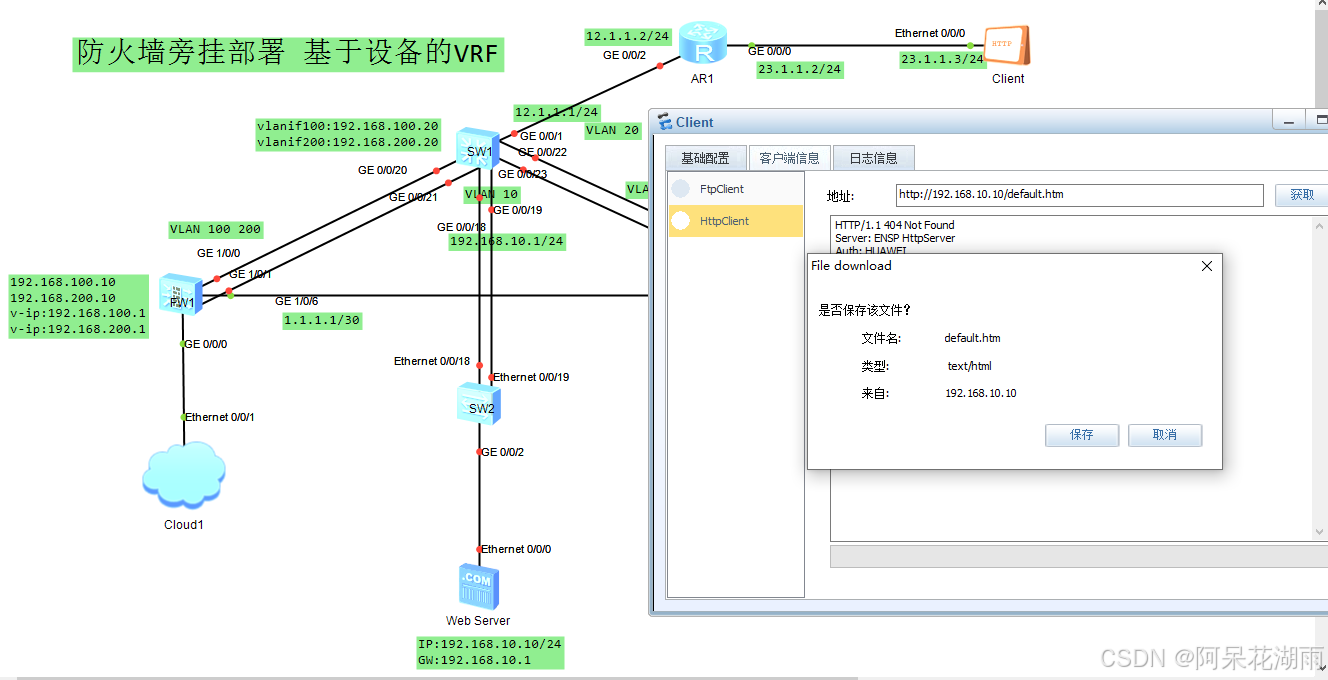

实现效果

弊端

1、网络路由条目过于庞大，且无法进行自动汇聚，手工敲太过繁琐。

2、如果是现有网络，且未按需求划分好VRF，不能改变现有网络结构，不能长时间断网的情况下，VRF的情况无法满足需求。
