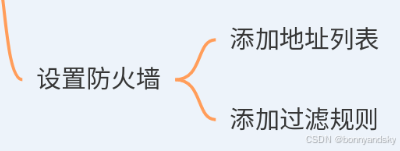

实现的目标

设置防火墙

添加防火墙地址列表

/ipv6 firewall address-list add address=::/128 comment="defconf: unesecified address" list=bad_ipv6
/ipv6 firewall address-list add address=::/1 comment=defconf:Io list=bad_ipv6
/ipv6 firewall address-list add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
/ipv6 firewall address-list add address=::ffff:0.0.0.0/96 comment=defconf:ipv4-mapped list=bad_ipv6
/ipv6 firewall address-list add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
/ipv6 firewall address-list add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
/ipv6 firewall address-list add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
/ipv6 firewall address-list add address=100::/64 comment="defconf: discard only" list=bad_ipv6
/ipv6 firewall address-list add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6

MSS钳制

/ip firewall mangle add action=change-mss chain=forward comment="defconf: IPv4 mss for WAN" new-mss=clamp-to-pmtu protocol=tcp tcp-flags=syn

设置防火墙规则

# 允许入站已建立的、相关的或未跟踪的流量
/ipv6 firewall filter add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
# 拒绝入站无效的流量
/ipv6 firewall filter add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
# 允许入站 ICMPv6 流量（用于 IPv6 的网络诊断和控制）
/ipv6 firewall filter add action=accept chain=input comment="defconf:accept ICMPv6" protocol=icmpv6
# 允许入站 DHCPv6 客户端流量（用于 IPv6 地址分配和前缀委派）
/ipv6 firewall filter add action=accept chain=input comment="defconf:accept DHCPv6-Client prefix delegation" dst-port=546 protocol=udp src-address=fe80::/10
# 拒绝入站非来自 LAN 口的流量
/ipv6 firewall filter add action=drop chain=input comment="defconf:drop everything else not comming from LAN" in-interface-list=!LAN


# 允许转发已建立的、相关的或未跟踪的流量
/ipv6 firewall filter add action=accept chain=forward comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
# 拒绝转发无效的流量
/ipv6 firewall filter add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
# 拒绝转发源地址为“bad_ipv6”列表的流量
/ipv6 firewall filter add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" connection-nat-state=srcnat src-address-list=bad_ipv6
# 拒绝转发目标地址为“bad_ipv6”列表的流量
/ipv6 firewall filter add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" connection-nat-state=dstnat dst-address-list=bad_ipv6
# 允许转发 ICMPv6 流量
/ipv6 firewall filter add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=icmpv6
# 拒绝转发非来自 LAN 接口的流量
/ipv6 firewall filter add action=drop chain=forward comment="defconf:drop everything else not comming from LAN" in-interface-list=!LAN
