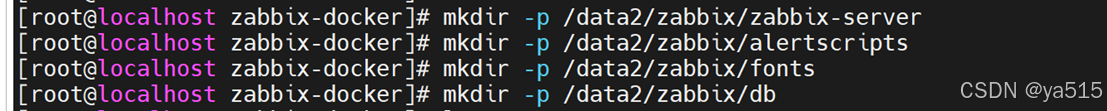

创建目录

在/data2/Zabbix/Zabbix-server中创建zabbix_server.conf

添加以下内容

在/opt/Zabbix-docker下创建docker-compose.yml文件

并添加以下内容

services:
  zabbix-web-nginx-mysql:
    image: zabbix/zabbix-web-nginx-mysql:centos-5.2-latest
    restart: always
    environment:
      - DB_SERVER_HOST=zabbix-mysql
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=zabbix
      - MYSQL_ROOT_PASSWORD=root
      - ZBX_SERVER_HOST=zabbix-server-mysql
    ports:
      - 8080:8080
    volumes:
      - /etc/localtime:/etc/localtime
      - /data2/zabbix/fonts/DejaVuSans.ttf:/usr/share/zabbix/assets/fonts/DejaVuSans.ttf
    networks:
      - zbx_net
    depends_on:
      - zabbix-server-mysql
      - zabbix-mysql

  zabbix-mysql:
    image: mysql:8.0.23
    restart: always
    ports:
      - 3306:3306
    environment:
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=zabbix
      - MYSQL_ROOT_PASSWORD=root
    command:
      - mysqld
      - --default-authentication-plugin=mysql_native_password
      - --character-set-server=utf8
      - --collation-server=utf8_bin
    volumes:
      - /etc/localtime:/etc/localtime
      - /data2/zabbix/db:/var/lib/mysql
    networks:
      - zbx_net

  zabbix-java-gateway:
    image: zabbix/zabbix-java-gateway:centos-5.2-latest
    restart: always
    volumes:
      - /etc/localtime:/etc/localtime
    networks:
      - zbx_net
  zabbix-server-mysql:
    image: zabbix/zabbix-server-mysql:centos-5.2-latest
    restart: always
    volumes:
      - /data2/zabbix/zabbix-server:/etc/zabbix
      - /data2/zabbix/alertscripts:/usr/lib/zabbix/alertscripts
      - /etc/localtime:/etc/localtime
    ports:
      - 10052:10051
    environment:
      - DB_SERVER_HOST=zabbix-mysql
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=zabbix
      - MYSQL_ROOT_PASSWORD=root
      - ZBX_JAVAGATEWAY=zabbix-java-gateway
      - ZBX_JAVAGATEWAY_ENABLE=true
      - ZBX_JAVAGATEWAYPORT=10052
    depends_on:
      - zabbix-mysql
    networks:
      - zbx_net

  zabbix-agent:
    image: zabbix/zabbix-agent:centos-5.2-latest
    restart: always
    ports:
      - 10050:10050
    environment:
      - ZBX_HOSTNAME=Zabbix server
      - ZBX_SERVER_HOST=zabbix-server-mysql
      - ZBX_SERVER_PORT=10052
    networks:
      - zbx_net

networks:
  zbx_net:
    driver: bridge

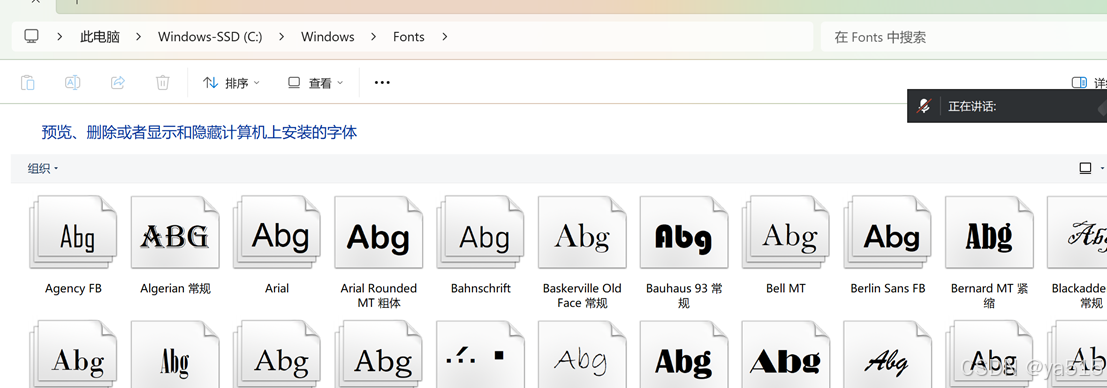

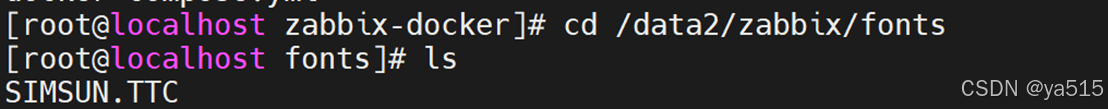

在windows中进入C:\Windows\Fonts中挑选一个字体 上传到/data/Zabbix/fonts目录下

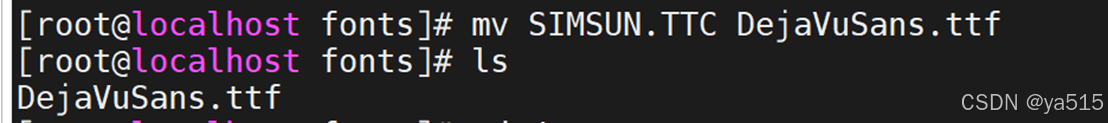

然后将字体文件改名成DejaVuSans.ttf

进到 /opt/Zabbix-docker目录下执行 docker compose up -d

成功后在网页打开 IP:8080
