spark集群部署

spark下载地址

wget -c https://dlcdn.apache.org/spark/spark-3.5.4/spark-3.5.4-bin-hadoop3-scala2.13.tgz

tar -xf spark-3.5.4-bin-hadoop3-scala2.13.tgz -C /data/

mv /data/spark-3.5.4-bin-hadoop3-scala2.13/ /data/spark

vim /etc/profile    配置环境变量

export SPARK_HOME=/data/spark

export PATH=$PATH:$SPARK_HOME/bin:$SPARK_HOME/sbin

source /etc/profile

cd /data/spark/conf

cp spark-defaults.conf.template spark-defaults.conf

cp spark-env.sh.template spark-env.sh

cp log4j2.properties.template log4j.properties

vim spark-env.sh  添加参数

export JAVA_HOME=/data/java

export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop

export SPARK_MASTER_HOST=192.168.81.128

export SPARK_MASTER_PORT=7077

vim spark-defaults.conf

spark.master                     spark://192.168.81.128:7077

spark.serializer                 org.apache.spark.serializer.KryoSerializer

spark.driver.memory              1g

vim slaves

192.168.81.128

192.168.81.129

192.168.81.130

配置完成后发送到其他节点

scp -r /data/spark/ slave-1:/data/

scp -r /data/spark/ slave-2:/data/

scp /etc/profile slave-1:/etc/profile

scp /etc/profile slave-2:/etc/profile

因为启动命令跟hadoop冲突，我们用绝对路径进行启动

/data/spark/sbin/start-all.sh   启动命令

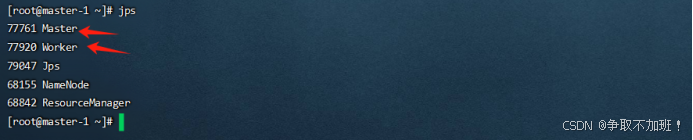

启动后jps查看进程

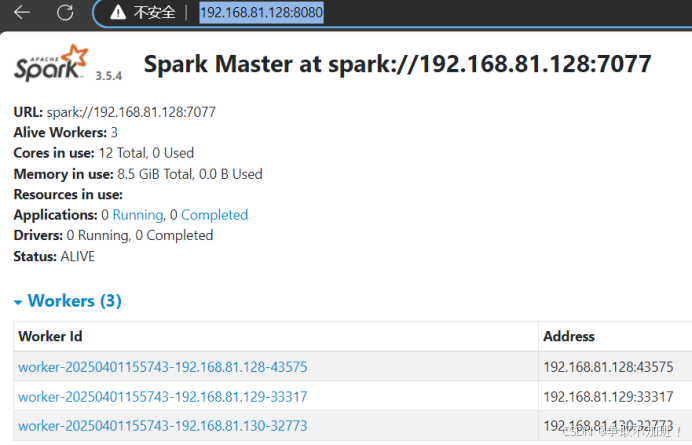

Web访问192.168.81.128:7077  后面访问就要用8080端口了。

/data/spark/sbin/stop-all.sh   停止命令

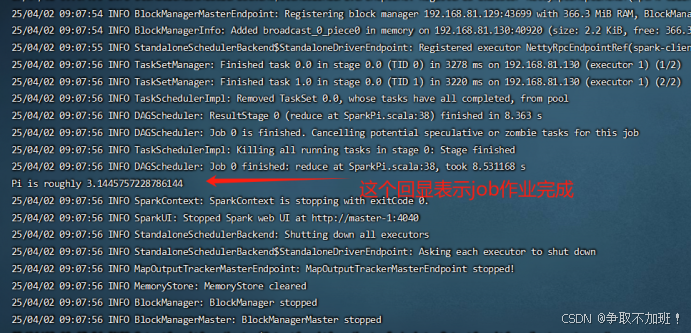

部署完成后可以使用spark提供的jar进行测试位置在/data/spark/examples

spark-submit  --class org.apache.spark.examples.SparkPi --master spark://192.168.81.128:7077 /data/spark/examples/jars/spark-examples_2.13-3.5.4.jar

部署完成。
