Harbor在Linux上的安装

一、下载安装docker-compose

  1.从github上找到合适版本（可用最新版本）下载docker-compose二进制文件安装

     例：wget https://github.com/docker/compose/releases/download/1.25.0/dockercompose-Linux-x86_64

  2.查看已下载二进制文件

命令 ls

  3.查询环境

命令 echo $PATH

4.移动二进制文件到/usr/bin目录（可以选择其他环境配置下的目录）

   mv docker-compose-linux-x86_64 /usr/bin/docker-compose

   5.添加执行权限

   chmod +x /usr/bin/docker-compose

   6.验证查看docker-compse版本

   docker-compose version

二、下载安装harbor安装文件

   1.从github上找到合适版本（可用最新版本）下载harbor二进制文件安装

   例：wget https://github.com/docker/compose/releases/download/1.25.0/docker-compose-Linux-x86_64

   2.查看已下载的离线安装包

   ls

   3. 解压harbor离线安装包

   tar xf harbor-offline-installer-v2.4.1.tgz

   4.进入harbor文件夹下

   cd harbor/

   5.创建配置文件

   mv harbor.yml.tmpl harbor.yml

   6.修改配置文件内容

   vim harbor.yml

# Configuration file of Harbor

# The IP address or hostname to access admin UI and registry service.

# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.

hostname: www.kubemsb.com 修改为域名，而且一定是证书签发的域名 没有域名用ip

# http related config

http:

# port for http, default is 80. If https enabled, this port will redirect to https port

port: 80

# https related config

如果不用https就注释掉下面的配置

https:

# https port for harbor, default is 443

port: 443

# The path of cert and key files for nginx

certificate: / 证书

private_key: / 密钥

# # Uncomment following will enable tls communication between all harbor components

# internal_tls:

# # set enabled to true means internal tls is enabled

# enabled: true

# # put your cert and key files on dir

# dir: /etc/harbor/tls/internal

# Uncomment external_url if you want to enable external proxy

# And when it enabled the hostname will no longer used

# external_url: https://reg.mydomain.com:8433

# The initial password of Harbor admin

# It only works in first time to install harbor

# Remember Change the admin password from UI after launching Harbor.

harbor_admin_password: 12345 访问密码

......

~~~

  7.执行预备脚本

     ./prepare

prepare base dir is set to /root/harbor

Clearing the configuration file: /config/portal/nginx.conf

Clearing the configuration file: /config/log/logrotate.conf

Clearing the configuration file: /config/log/rsyslog_docker.conf

Generated configuration file: /config/portal/nginx.conf

Generated configuration file: /config/log/logrotate.conf

Generated configuration file: /config/log/rsyslog_docker.conf

Generated configuration file: /config/nginx/nginx.conf

Generated configuration file: /config/core/env

Generated configuration file: /config/core/app.conf

Generated configuration file: /config/registry/config.yml

Generated configuration file: /config/registryctl/env

Generated configuration file: /config/registryctl/config.yml

Generated configuration file: /config/db/env

Generated configuration file: /config/jobservice/env

Generated configuration file: /config/jobservice/config.yml

Generated and saved secret to file: /data/secret/keys/secretkey

Successfully called func: create_root_cert

Generated configuration file: /compose_location/docker-compose.yml

Clean up the input dir

     8.执行安装脚本

     ./install.sh

[Step 0]: checking if docker is installed ...



Note: docker version: 20.10.12



[Step 1]: checking docker-compose is installed ...



Note: docker-compose version: 1.25.0



[Step 2]: loading Harbor images ...



[Step 3]: preparing environment ...



[Step 4]: preparing harbor configs ...

prepare base dir is set to /root/harbor



[Step 5]: starting Harbor ...

Creating network "harbor_harbor" with the default driver

Creating harbor-log ... done

Creating harbor-db ... done

Creating registry ... done

Creating registryctl ... done

Creating redis ... done

Creating harbor-portal ... done

Creating harbor-core ... done

Creating harbor-jobservice ... done

Creating nginx ... done

✔ ----Harbor has been installed and started successfully.----

  9.验证运行情况

docker ps

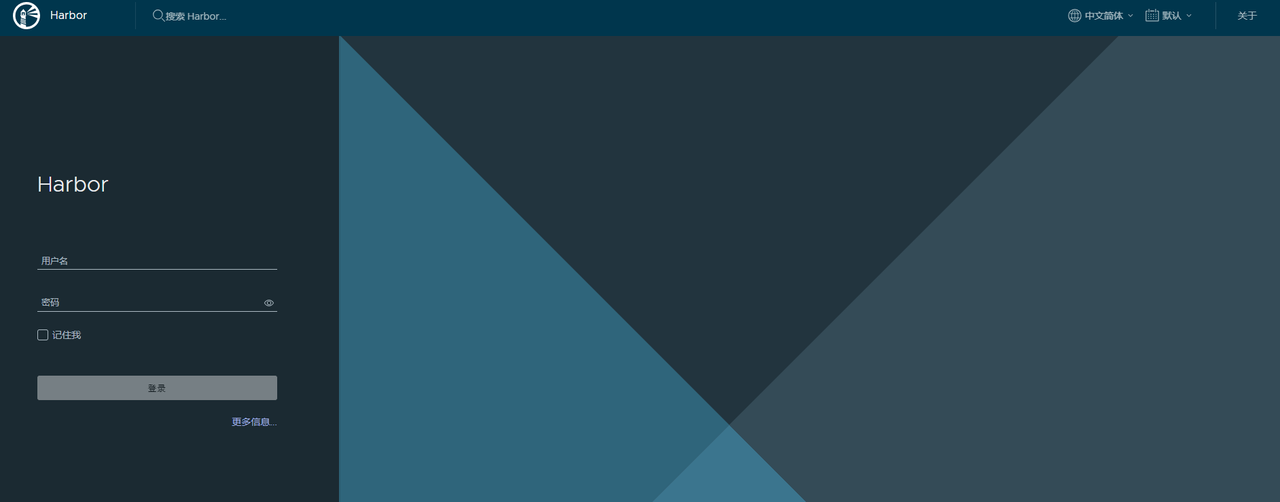

10.访问harbor UI界面

直接输入配置的ip和端口访问

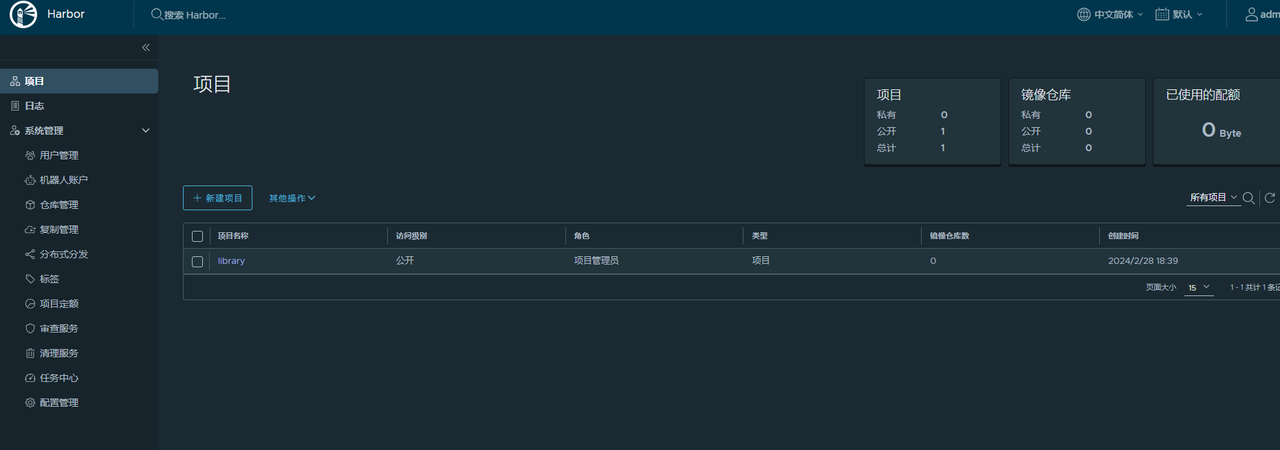

11.登录 账户名admin 密码为配置文件设置的密码

ps：

1. habor私有化仓库部署需要提前安装好docker

2. 安装过程需要root权限，最好不要用一般权限用户，不然会有很多文件安装不上

3. 使用harbor

     添加/etc/docker/daemon.json文件,默认不存在,需要手动添加

     vim /etc/docker/daemon. json

     {

     "insecure-registries": ["ip地址"]

     }

     重启加载daemon配置

     systemctl daemon-reload

     重启docker

     systemctl restart docker

     在项目中标记镜像：

     docker tag SOURCE_IMAGE[:TAG] ip/library/REPOSITORY[:TAG]

     推送镜像到当前项目：

     docker push ip/library/REPOSITORY[:TAG]

4. harbor服务关闭与启动

     docker-compose down

     docker-compose up -d
