kubernetes 集群安装

在这里插入图片描述

主机规划：

主机名ip地址配置最低要求角色
master192.168.86.11CPU>=2,MEM>=2GB,DISK=100GMaster
node1192.168.86.12CPU>=1,MEM>=1GB,DISK=100GWorker
node2192.168.86.13CPU>=1,MEM>=1GB,DISK=100GWorker

一、安装 ikuai

1.1 下载 ikuai

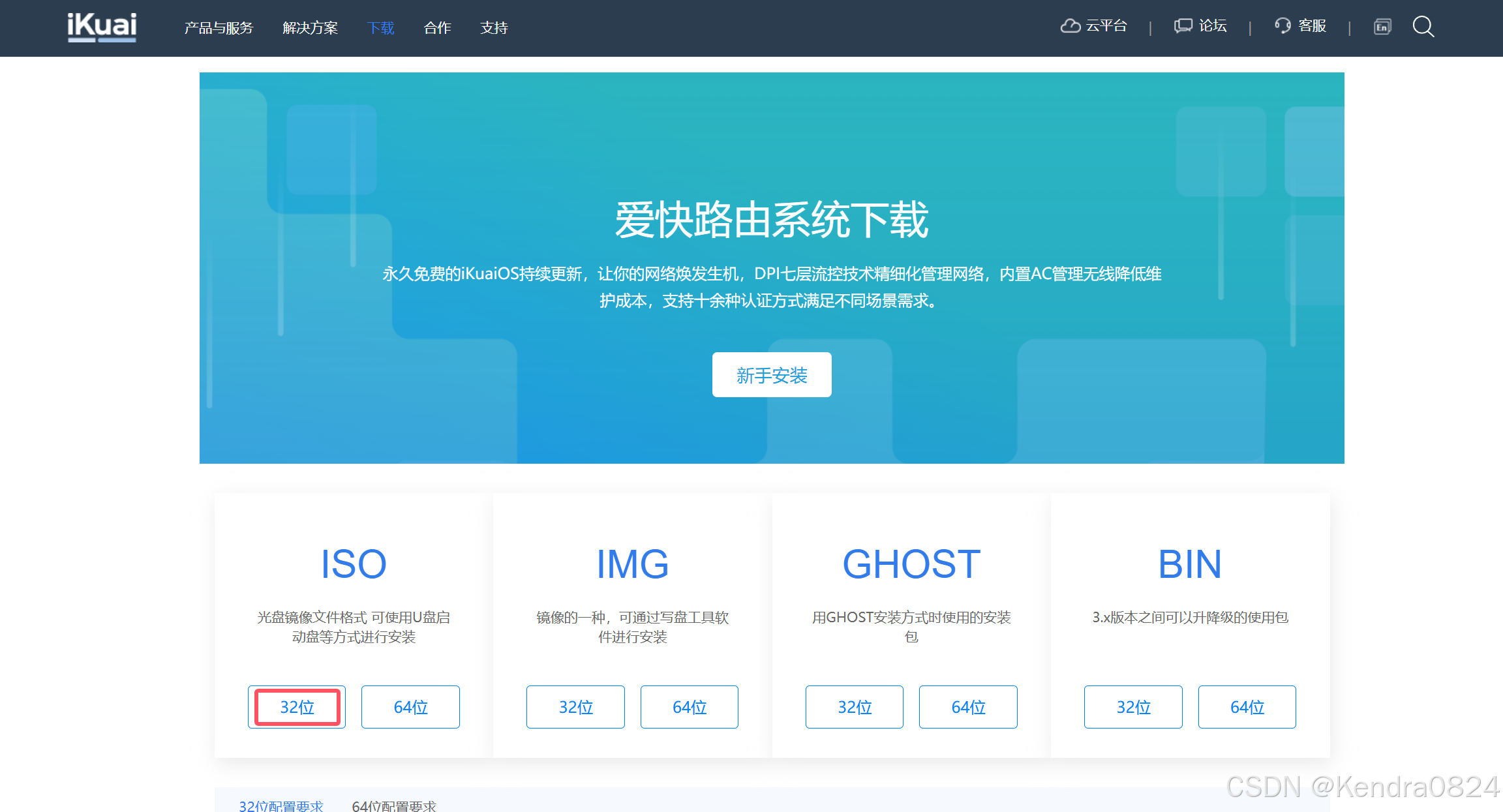

下载 iso 32位：ikuai

实验环境，选择 32 位的 ISO 下载，硬件要求比较低，在真实环境中需要安装 64 位的

在这里插入图片描述

1.2 创建虚拟机

  1. 自定义安装
  2. 硬件兼容性默认 Workstation 17.5 or later
  3. 稍后安装操作系统
  4. 客户机操作系统：其他，版本：其他
  5. 虚拟机名称，位置自取
  6. 处理器配置：处理器数量1，内核数量1
  7. 内存配置1GB
  8. 网络类型：仅主机
    ikuai 路由器有两块网卡，第一块采用仅主机模式网络，用于与kubernetes集群通讯，第二块为 NAT 模式，用于访问外部网络。
  9. I/O控制类型：BusLogic（默认）
  10. 磁盘类型：IDE（默认）
    此处只能选择默认的 IDE，不能修改，因为 32 位的 ikuai 无法识别其它几种磁盘类型
  11. 创建新虚拟磁盘
  12. 将虚拟磁盘存储为单个文件，8GB
  13. 下一步，完成

1.3 配置虚拟机

  1. 添加 NAT 网卡
  2. 导入镜像文件（iKuai8_x32_3.7.20_Build202506041743.iso）
    在这里插入图片描述

1.4 安装 ikuai

  • 点击开启此虚拟机，进入到安装界面

在这里插入图片描述

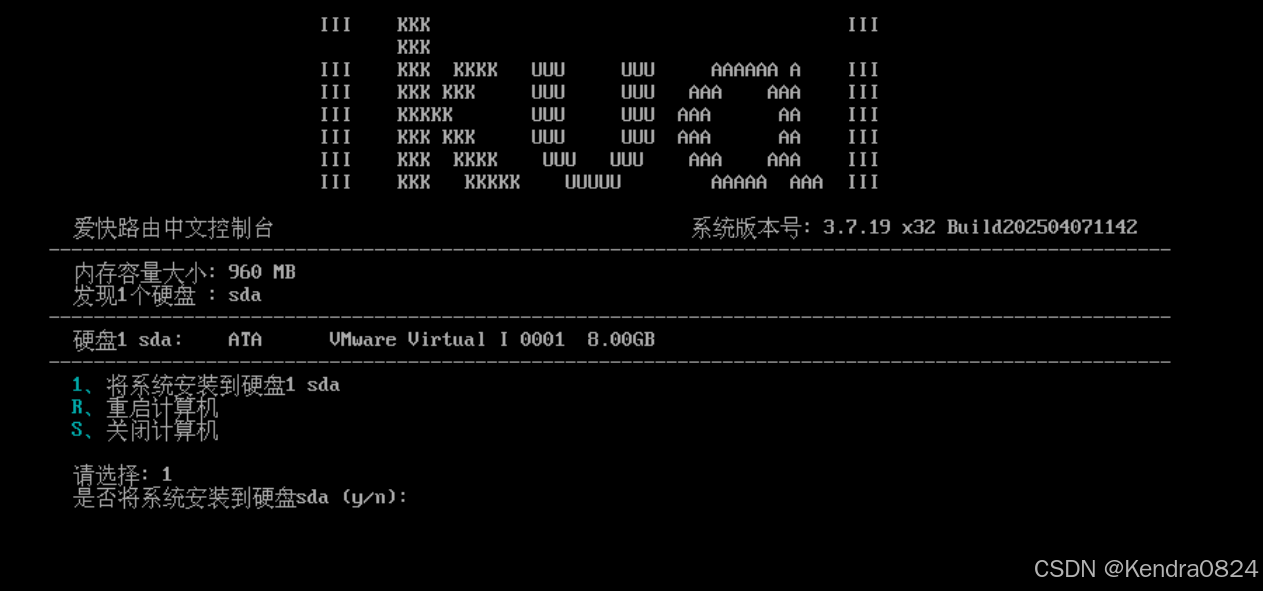

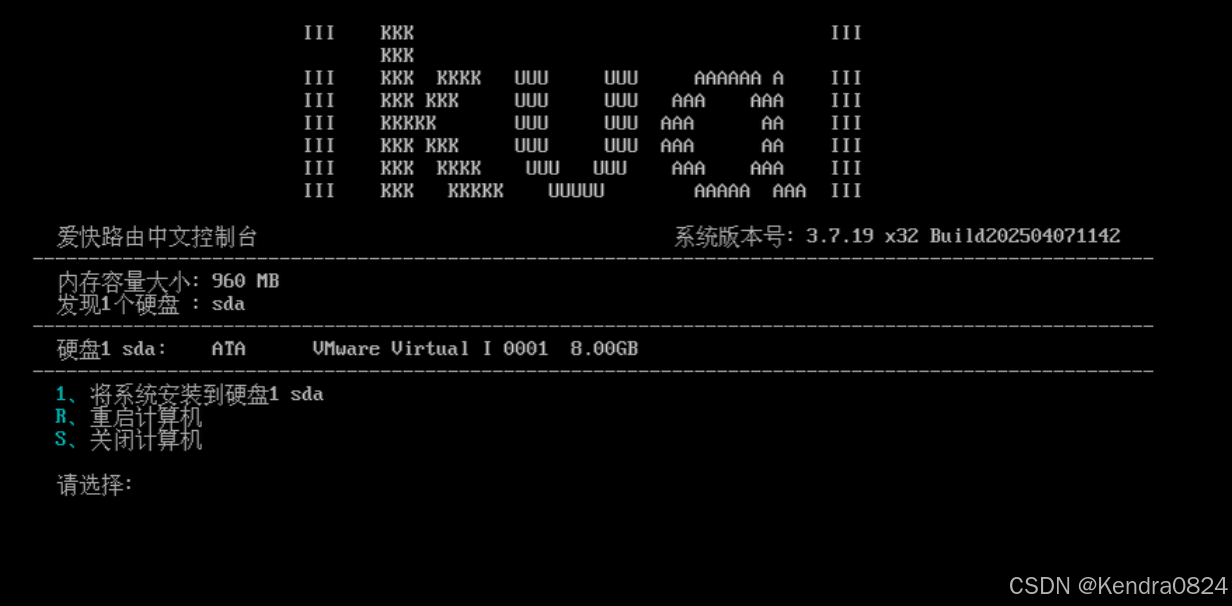

  • 输入 1 后回车

在这里插入图片描述

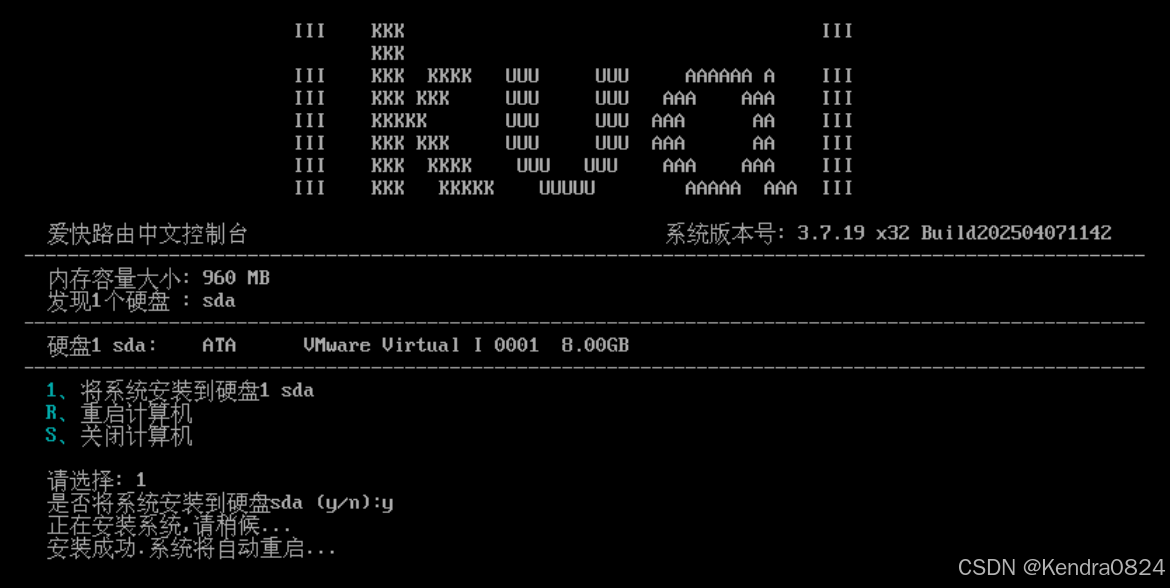

  • 输入 y 回车，系统就开始安装，安装成功后会自动重启

在这里插入图片描述

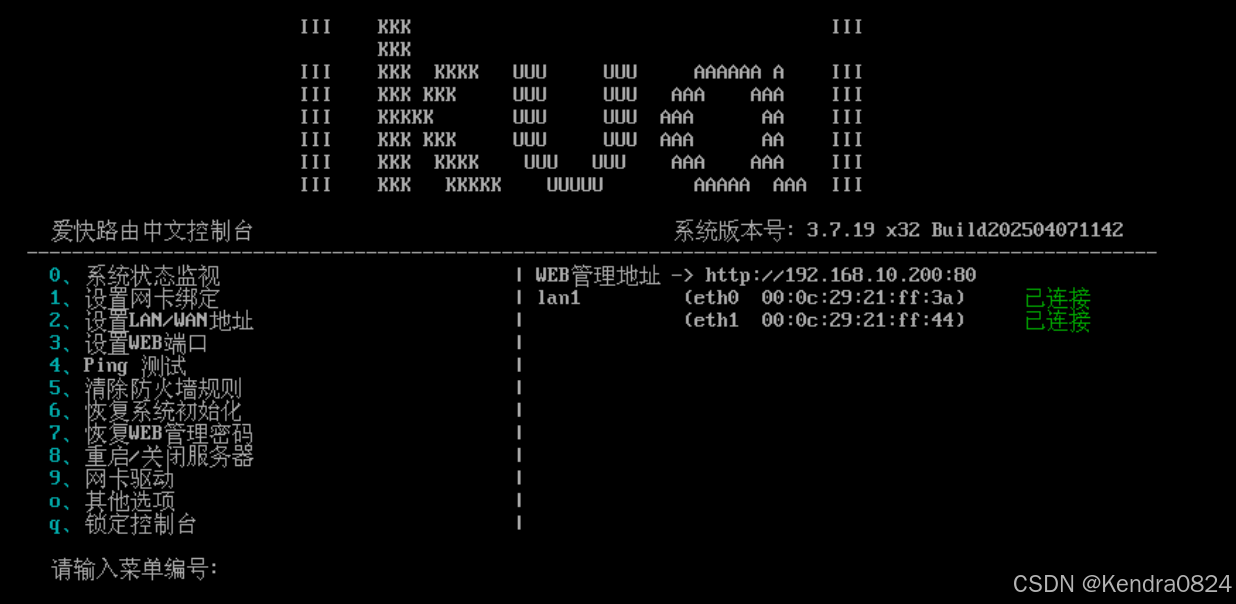

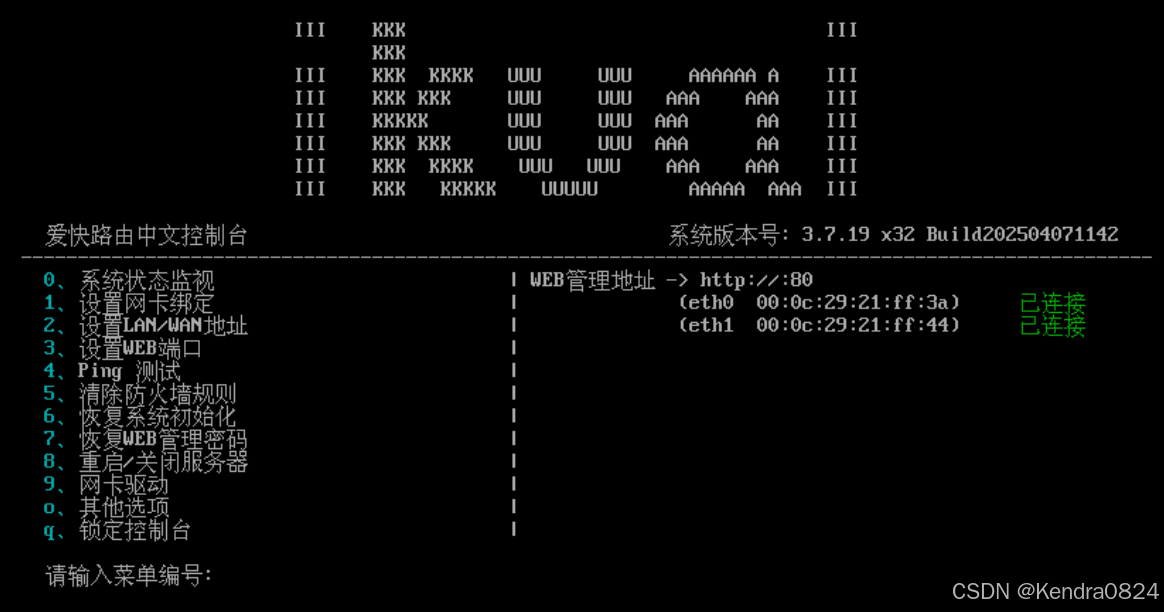

  • 重启好后会听到蜂鸣声，并且会显示相关菜单

在这里插入图片描述

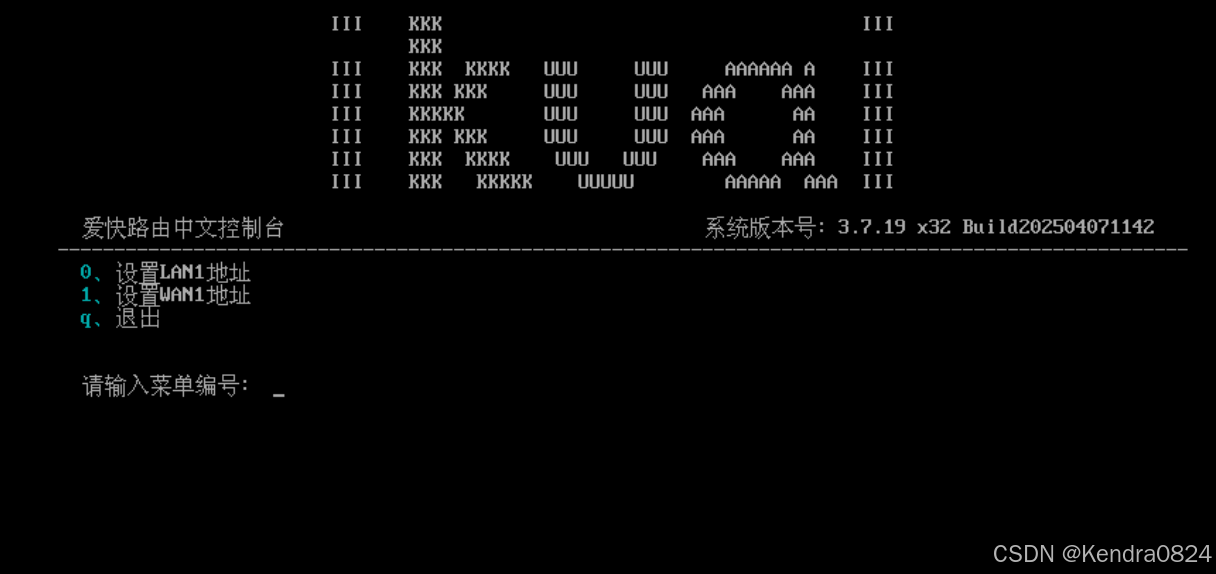

  • 配置一定的 IP 信息，选择 2 、设置 LAN/WAN 地址，即在请输入菜单编号后输入 2 后回车

在这里插入图片描述

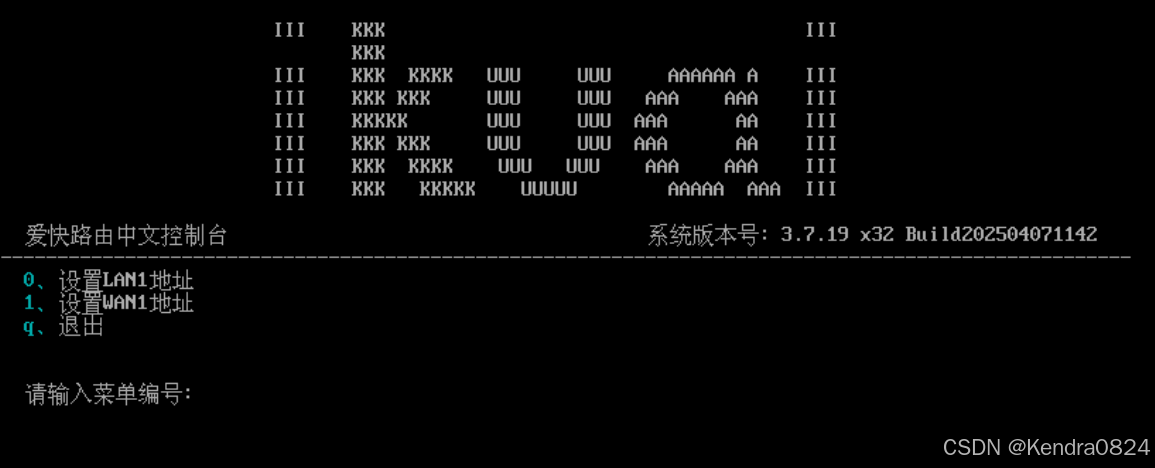

  • 输入 0 来设置 LAN1 的地址，输入好后回车

在这里插入图片描述

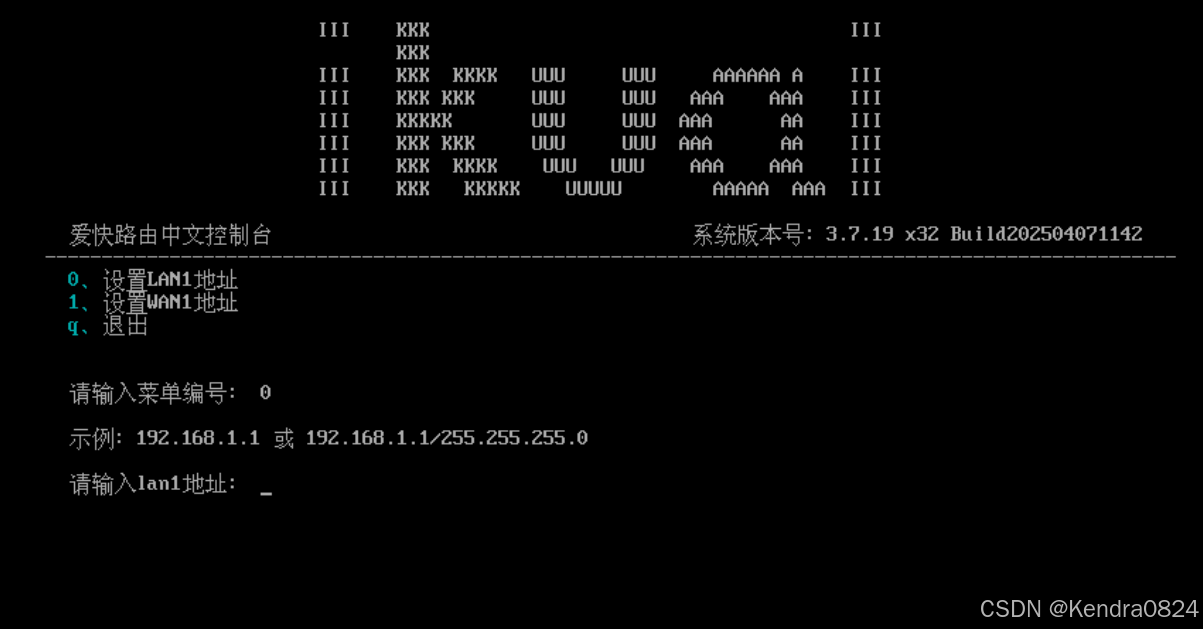

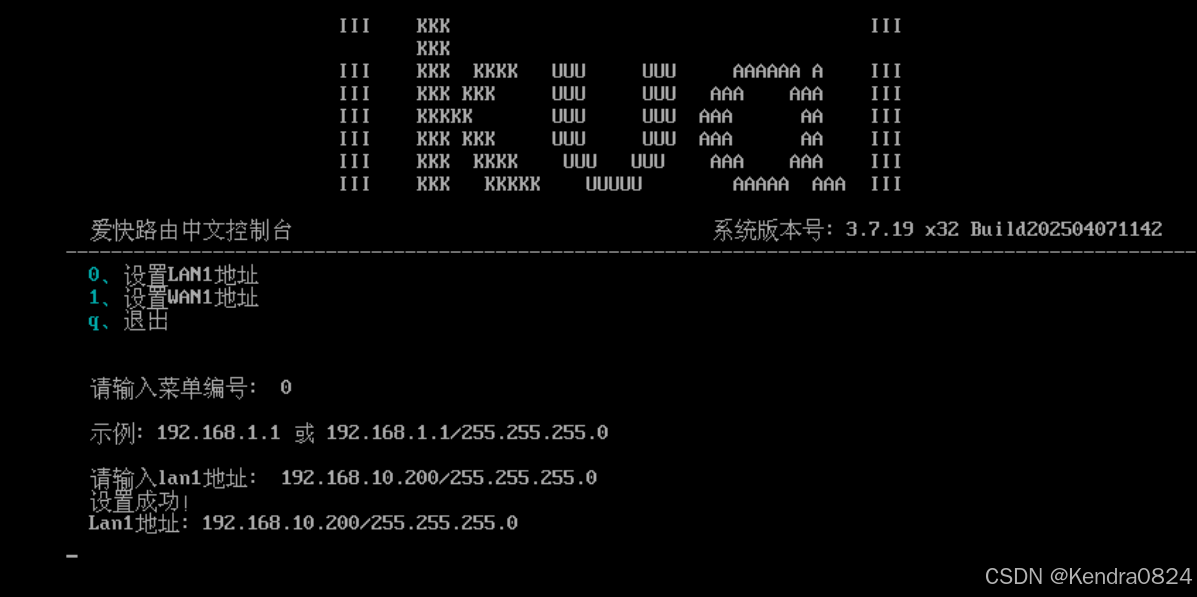

  • 根据示例来输入一个未被占用的 IP 地址，如 192.168.86.200/255.255.255.0 后回车

在这里插入图片描述

  • 提示设置成功，按 esc 键返回到上级菜单

在这里插入图片描述

  • 输入 q 后回车，退出到控制台菜单

在这里插入图片描述

  • 最后再输入 q 后回车，锁定当前配置

如果关机，输入菜单编号 8，等待 10 秒后关机
或者暂时挂起

1.5 管理 ikuai

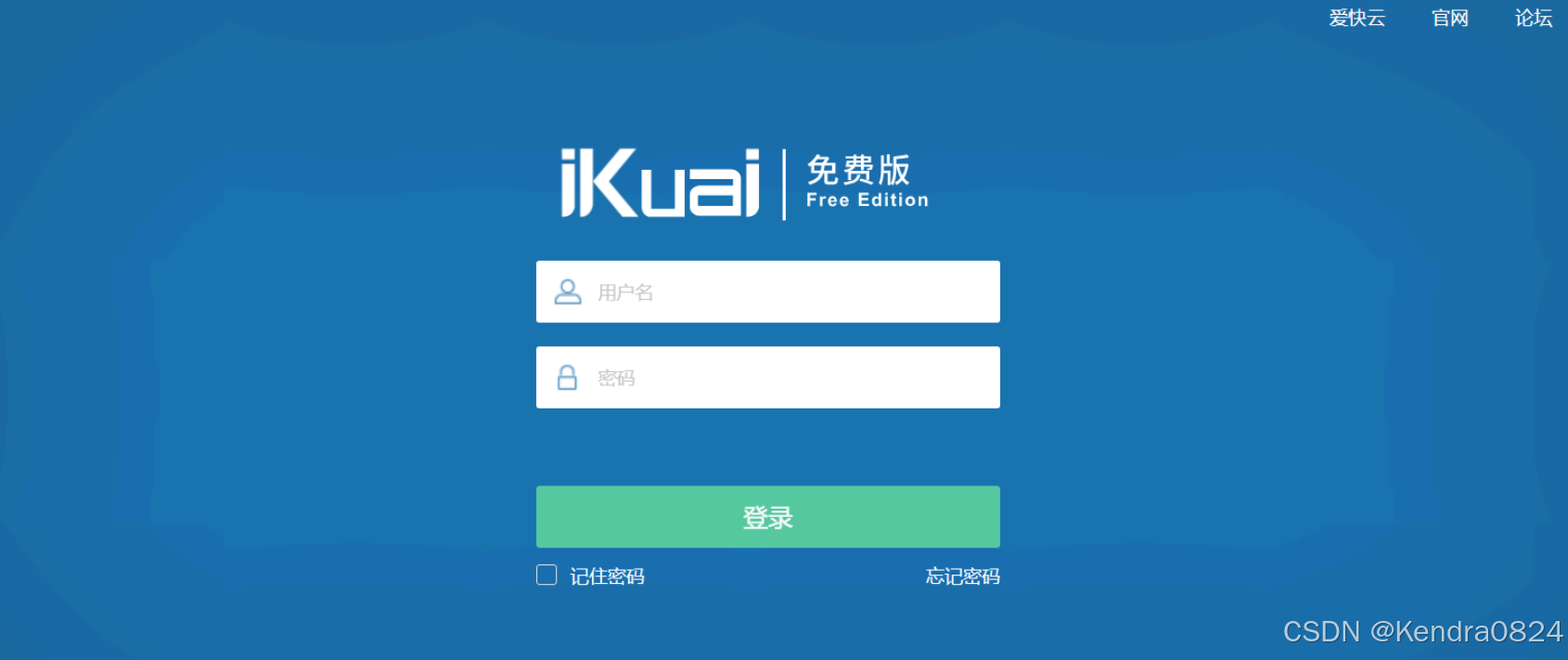

系统安装好后，打开浏览器，输入 http://192.168.86.200 就可访问 ikuai 的控制页面

在这里插入图片描述

默认用户名和密码都是 admin，输入后即可登录成功

第一次登录成功后，为了设备安全，要求修改登录密码，密码要求大小写字母和数组的组合，长度至少 8 位以上。例如输入 Ikuai888 后点击确定按钮，即可进入管理页面

在这里插入图片描述
ikuai 是一个纯软件实现的路由器。

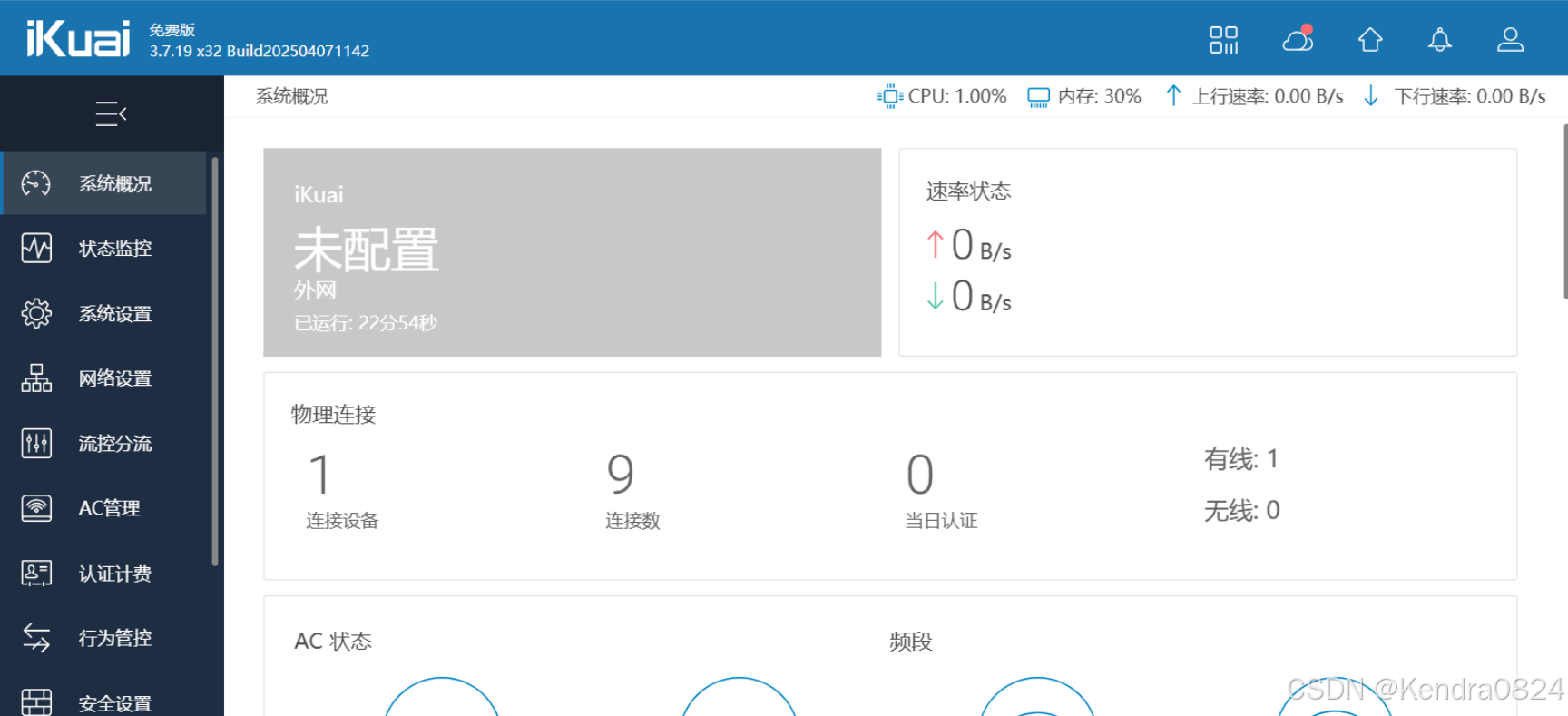

  • 点击左边菜单中“网络设置”，然后再点击“内外网设置“

在这里插入图片描述

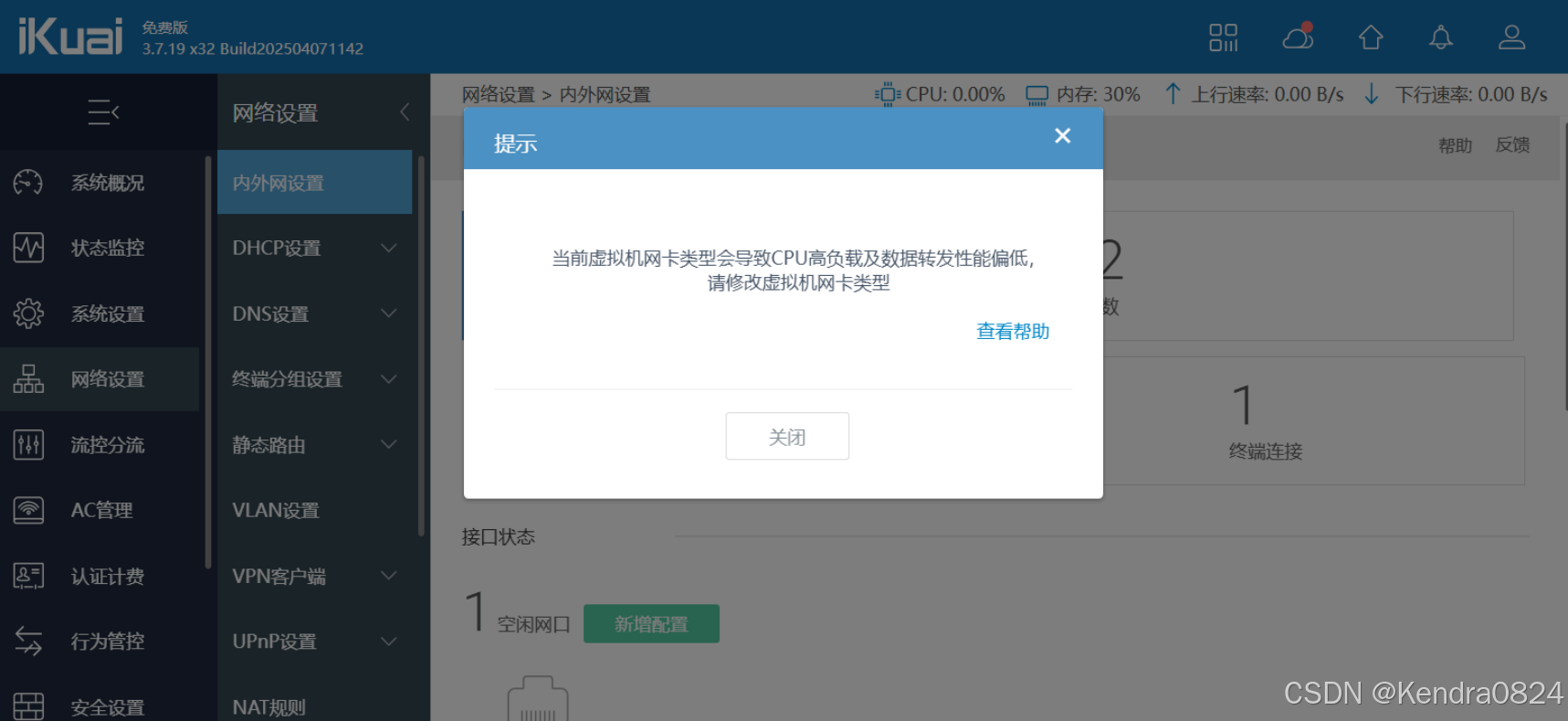

  • 提示当前网卡是虚拟机提供的性能比较弱。关闭提示框后将页面向下滚动到最后

在这里插入图片描述

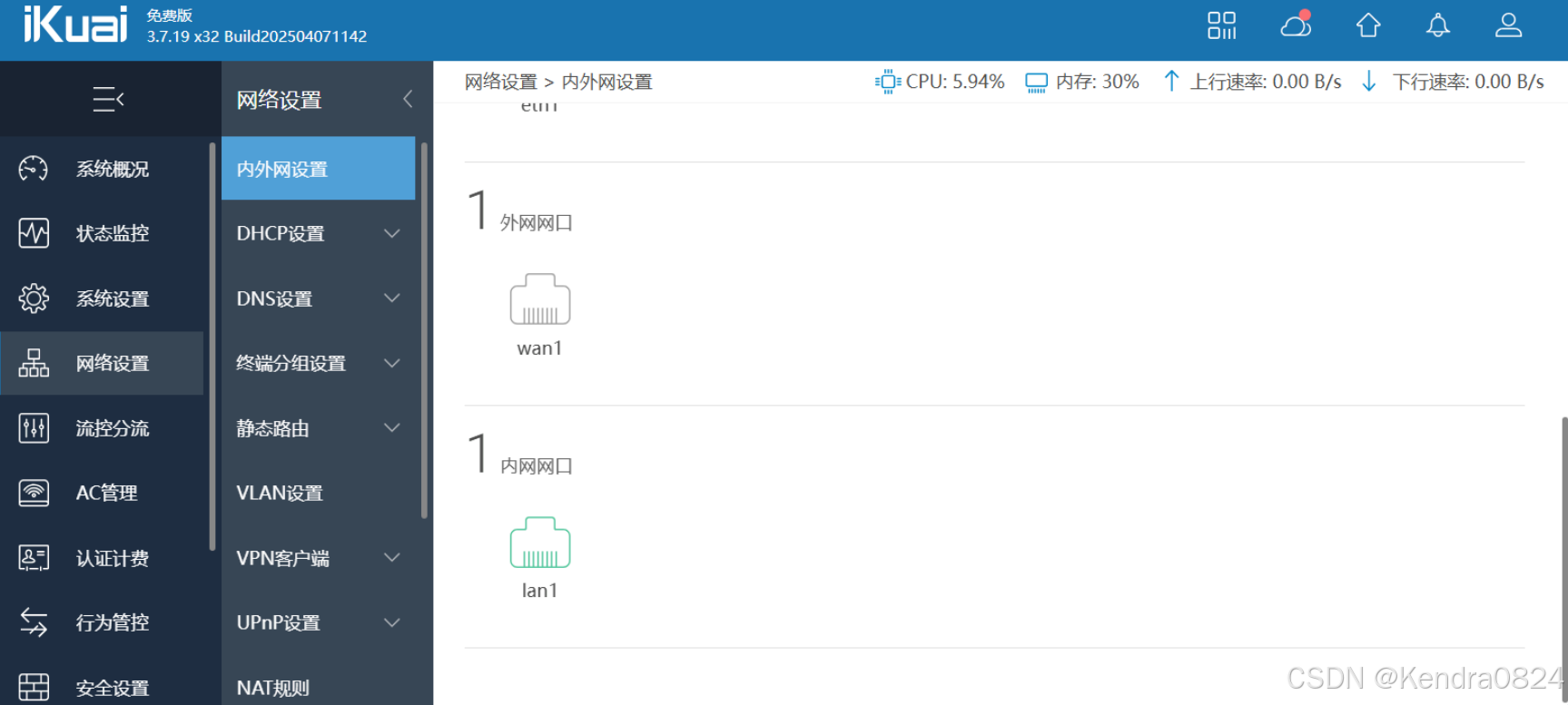

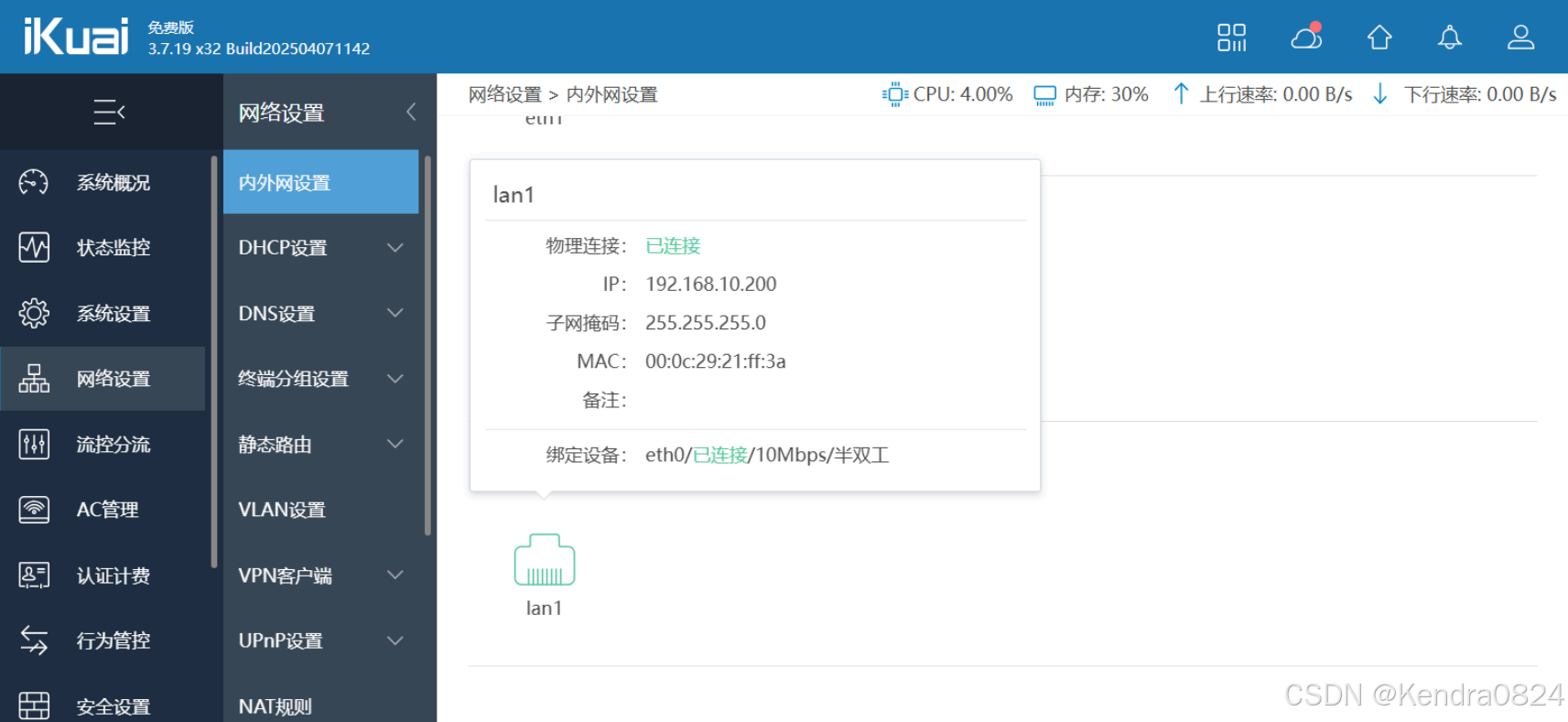

  • 内网网口变绿了，代表内网网口正在工作中。将鼠标移动到图标上就会弹出设备信息

在这里插入图片描述

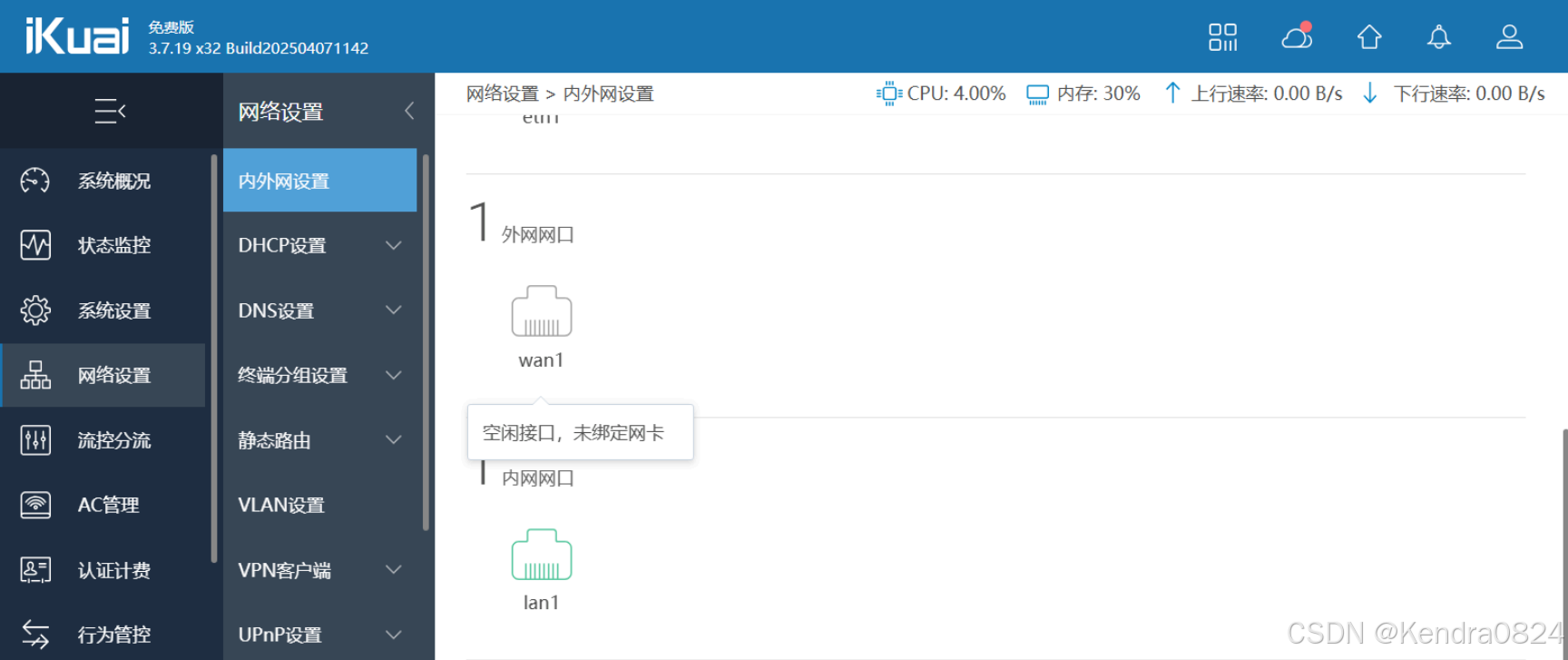

另一个外网网口是灰色的，鼠标移动到图标上会提示空闲接口，未绑定网卡

在这里插入图片描述

  • 点击外网网口图标，进入到配置窗口

在这里插入图片描述

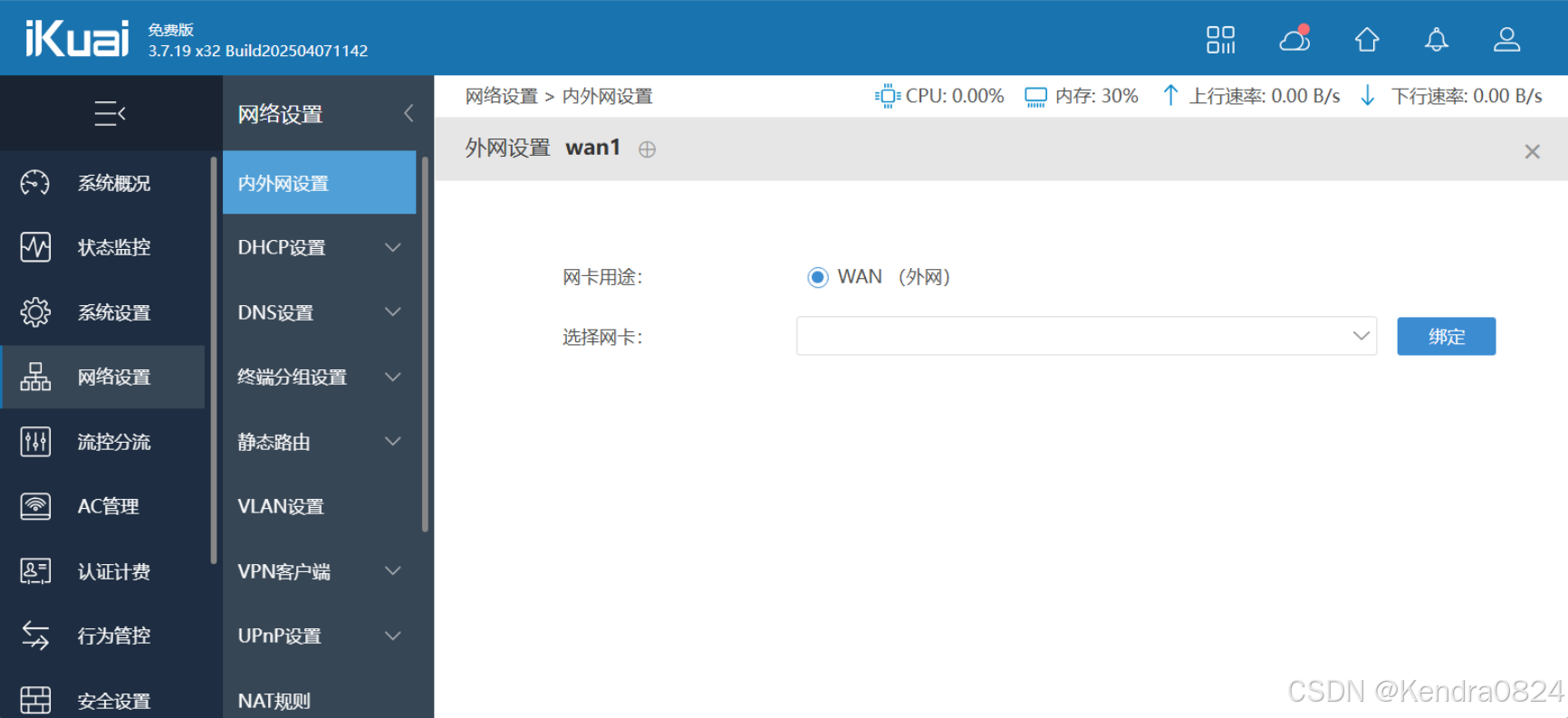

  • 点击“选择网卡”后面的下拉列表，选择eth1

在这里插入图片描述

  • 点击“绑定”按钮进入到如下配置页面

在这里插入图片描述

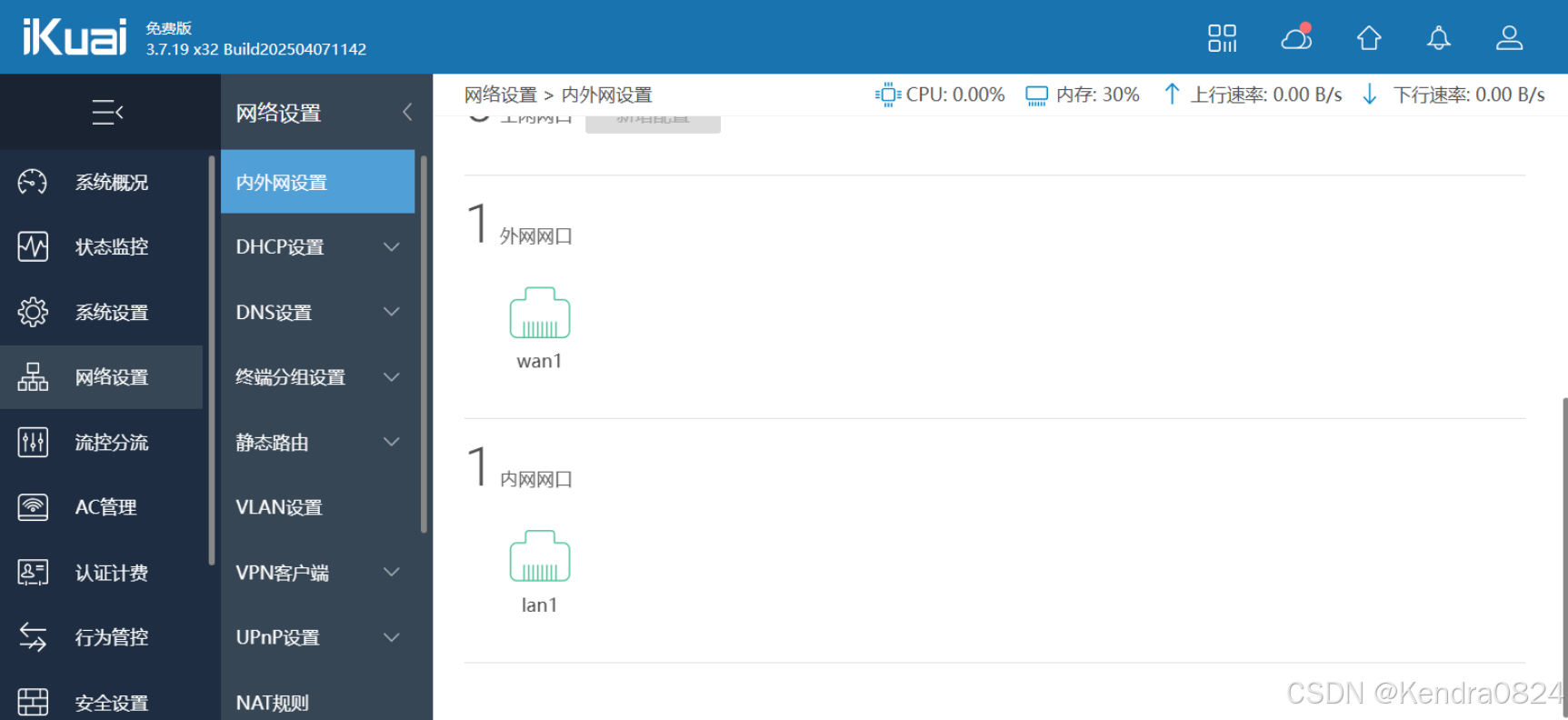

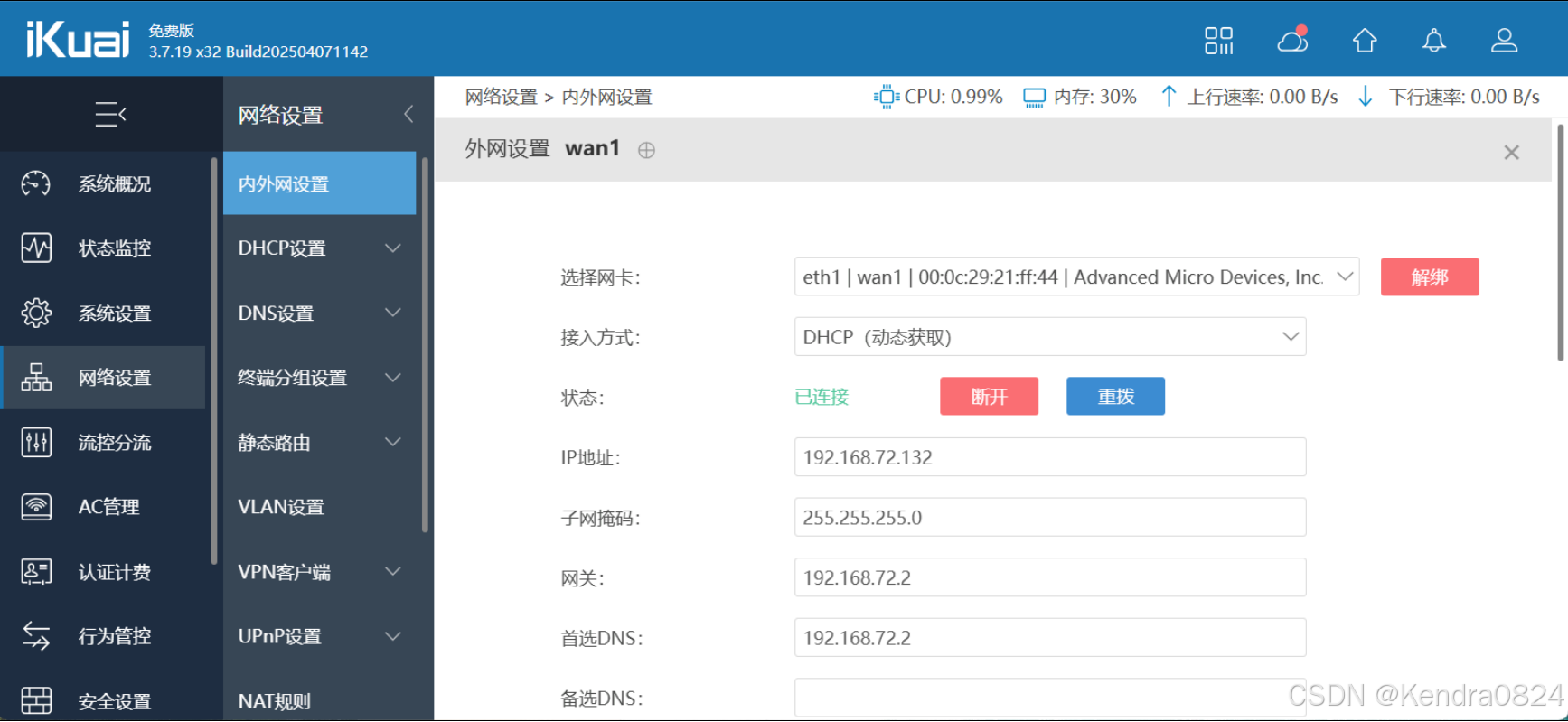

  • 将“接入方式”选择 DHCP（动态获取），让它动态分配外网访问所需要的 IP 地址等信息。然后将页面向下滚动到最后，就可以看到外网网口
    也变成绿色

在这里插入图片描述

ikuai 路由器就安装好，并且可以为 kubernetes 集群各主机提供网络的访问能力

二、系统环境准备

2.1 安装系统

安装 redhat 系统的虚拟机教程：Linux系统安装

安装一台 4 核心CPU，4G内存，两块网卡（第一块为仅主机模式，第二块为 NAT 模式），磁盘空间为 100GB 的 Redhat 9.5 系统

将安装好系统、初始化环境后的 k8s 虚拟机克隆三台主机，搭建 kubelets 集群的 master、node1、node2

2.2 初始化环境

  • 如果分区是自动分区，有/swap，则进入/etc/fstab文件中去把有/swap的行注释掉
    • 修改 /etc/fstab 文件，将包含 swap 内容的行注释
    • 使用 free -m 来查看 swap 是否还在使用
    • swapoff -a
  • 仓库
    /etc/yum.repos.d/yum.repo
    name（BaseOS、AppStream）
    baseurl
    gpgcheck（0）
  • 挂载
    /etc/fstab
    /dev/sr0 /mnt iso9660 defaults 0 0
  • 防火墙
    systemctl disable --now firewalld
  • selinux
    sed -i 's/SELINUX=enforcing/SELINUX=permissive/g' /etc/selinux/config
  • 安装软件
    net-tools nfs-utils vim wget curl bash-completion device-mapper-persistent-data psmisc tree
  • 修改 linux 最大连接数
    /etc/security/limits.conf
  • 安装 ipvs
    dnf install ipvsadm -y
  • 开启路由转发
    echo 'net.ipv4.ip_forward=1' >> /etc/sysctl.conf
    sysctl -p

2.2.1 配置本地仓库，设置自动挂载

  • 验证挂载：
    systemctl daemon-reload
    mount -a
    df -h /mnt
# 1. 配置本地仓库
[root@localhost ~]# vi /etc/yum.repos.d/yum.repo
[root@localhost ~]# cat /etc/yum.repos.d/yum.repo
[BaseOS]
name=BaseOS
baseurl=/mnt/BaseOS
gpgcheck=0
[AppStream]
name=AppStream
baseurl=/mnt/AppStream
gpgcheck=0

# 2. 配置自动挂载
[root@localhost yum.repos.d]# vi /etc/fstab
[root@localhost yum.repos.d]# cat /etc/fstab
....
/dev/sr0 /mnt iso9660 defaults 0 0

# 3. 验证挂载
[root@localhost yum.repos.d]# systemctl daemon-reload
[root@localhost yum.repos.d]# mount -a
[root@localhost yum.repos.d]# df -h /mnt
Filesystem Size Used Avail Use% Mounted on
/dev/sr0 11G 11G 0 100% /mnt

2.2.2 关闭防火墙和 SELinux

  • 验证是否设置成功 selinux
    grep permissive /etc/selinux/config
[root@localhost yum.repos.d]# sed -i 's/SELINUX=enforcing/SELINUX=permissive/g' /etc/selinux/config
[root@localhost yum.repos.d]# grep permissive /etc/selinux/config
#     permissive - SELinux prints warnings instead of enforcing.
SELINUX=permissive

[root@localhost yum.repos.d]# systemctl disable --now firewalld
Removed "/etc/systemd/system/multi-user.target.wants/firewalld.service".
Removed "/etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service".

2.2.3 关闭交换分区（swap）

[root@localhost yum.repos.d]# swapoff -a
[root@localhost yum.repos.d]# sed -i 's/.*swap.*/#&/' /etc/fstab
[root@localhost yum.repos.d]# free -m
total used free shared buff/cache available
Mem: 3881 431 3513 10 118 3450
Swap: 0 0 0

# 或者进入设置挂载的文件中，注释掉有 swap 的行
	- 修改 /etc/fstab 文件，将包含 swap 内容的行注释
	- 使用 free -m 来查看 swap 是否还在使用
	- swapoff -a

2.2.4 安装基本软件

dnf install
net-tools nfs-utils（ifconfig） vim wget curl bash-completion device-mapper-persistent-data psmisc（ptree，进程数） tree -y
[root@localhost yum.repos.d]# dnf install net-tools nfs-utils vim wget curl bash-completion device-mapper-persistent-data psmisc tree -y

2.2.5 修改 Linux 最大连接数（/etc/security/limits.conf）

[root@localhost yum.repos.d]# vim /etc/security/limits.conf

*	soft	nofile	655350
*	hard	nofile	655350
*	soft	nproc	655350
*	hard	nproc	655350
*	soft	memlock unlimited
*	hard	memlock unlimited

2.2.6 安装 ipvs（ipvsadm）

[root@localhost yum.repos.d]# dnf install ipvsadm -y

2.2.7 开启路由转发

net.ipv4.ip_forward = 1

[root@localhost yum.repos.d]# vim /etc/sysctl.conf
[root@localhost yum.repos.d]# cat /etc/sysctl.conf
# sysctl settings are defined through files in
# /usr/lib/sysctl.d/, /run/sysctl.d/, and /etc/sysctl.d/.
#
# Vendors settings live in /usr/lib/sysctl.d/.
# To override a whole file, create a new file with the same in
# /etc/sysctl.d/ and put new settings there. To override
# only specific settings, add a file with a lexically later
# name in /etc/sysctl.d/ and put new settings there.
#
# For more information, see sysctl.conf(5) and sysctl.d(5).
net.ipv4.ip_forward = 1

三、集群准备

克隆三台 系统环境准备过程中的 k8s 虚拟机

3.1 配置 master 节点

  • 修改主机名

ls /etc/NetworkManager/system-connections/命令，可查看当前网卡

3.1.1 修改仅主机网卡（IP192.168.86.11，网关指向ikuai）

[root@master ~]# nmcli c m ens160 ipv4.method manual ipv4.addresses 192.168.86.11/24 ipv4.dns "223.5.5.5 8.8.8.8" ipv4.gateway 192.168.86.200 connection.autoconnect yes
[root@master ~]# nmcli c m ens160 up

3.1.2 暂时关闭 NAT 模式的网卡

暂时关闭NAT模式网卡，以防止安装集群时出现绑定网卡错误的问题

nmcli c m ens192 connection.autoconnect no

[root@master ~]# nmcli c m ens192 connection.autoconnect no
[root@master ~]# nmcli c up ens192
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/5)

3.1.3 配置主机映射

[root@master ~]# cat /etc/hosts
192.168.86.11   master m1
192.168.86.12   node1 n1
192.168.86.13   node2 n2
192.168.86.14    minio
192.168.86.20   harbor.registry.com harbor

3.2 配置 node1 和 node2 节点

和 master 一样操作

3.3 免密设置

  1. 配置主机映射
  2. 执行命令 ssh-keygen
  3. ssh-copy-id 主机
  • 配置主机映射：
[root@master1 kubernetes]# cat /etc/hosts
192.168.86.11   master1 m1
192.168.86.12   master2 m2
192.168.86.13   master3 m3
192.168.86.14   node1 n1
192.168.86.15   node2 n2
192.168.86.20   harbor.registry.com harbor
  • 执行命令 ssh-keygen：
[root@master1 kubernetes]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
/root/.ssh/id_rsa already exists.
Overwrite (y/n)? y
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa
Your public key has been saved in /root/.ssh/id_rsa.pub
The key fingerprint is:
SHA256:0MJxfsnasRNn7L+W+OixHo/tfYOGF+upZkpJweKxrVo root@master1
The key's randomart image is:
+---[RSA 3072]----+
|      . .        |
|     . =.. o     |
|      +ooo* +    |
|      .o=+.B     |
|       oSo+ .    |
|        o .. o   |
|       E o  +.=. |
|      o .  +.&++.|
|     .   .++@** +|
+----[SHA256]-----+
  • 执行命令 ssh-copy-id
[root@master1 kubernetes]# ssh-copy-id n1
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@n1's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'n1'"
and check to make sure that only the key(s) you wanted were added.

四、搭建 Kubernetes 集群

4.1 安装 docker（三台主机）

  1. 添加 docker 源
    • dnf install yum-utils -y
    • yum-config-manager --add-repo https://mirrors.aliyun.com/dockerce/linux/rhel/docker-ce.repo
  2. 安装 docker
    • dnf install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin -y
  3. 配置 docker
    • /etc/docker/daemon.json
    • 注意自己的 harbor 地址（https://harbor.registry.com）
  4. 启动 docker
    • systemctl enable --now docker
  5. 验证 docker
    • docker version
# 添加 docker 源
[root@master ~]# dnf install yum-utils -y
Updating Subscription Management repositories.
.........

Installed:
  yum-utils-4.3.0-16.el9.noarch

Complete!

# 安装 docker
[root@master ~]# yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/rhel/docker-ce.repo
Updating Subscription Management repositories.
Unable to read consumer identity

This system is not registered with an entitlement server. You can use "rhc" or "subscription-manager" to register.

Adding repo from: https://mirrors.aliyun.com/docker-ce/linux/rhel/docker-ce.repo
[root@master ~]# ls /etc/yum.repos.d/
docker-ce.repo  redhat.repo  yum.repo
[root@master ~]# dnf install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin -y

# 配置docker
[root@master ~]# cat > /etc/docker/daemon.json <<EOF
{
    "default-ipc-mode": "shareable",
    "data-root": "/data/docker",
    "exec-opts": ["native.cgroupdriver=systemd"],
    "log-driver": "json-file",
    "log-opts": {
        "max-size": "100m",
        "max-file": "50"
    },
    "insecure-registries": ["https://harbor.registry.com"],
    "registry-mirrors":[
        "https://docker.m.daocloud.io",
        "https://docker.1ms.run",
        "https://func.ink",
        "https://docker.hlmirror.com",
        "https://docker.imgdb.de",
        "https://docker-0.unsee.tech",
        "https://docker.rainbond.cc",
        "https://lispy.org",
        "https://docker.xiaogenban1993.com",
        "https://mirror.ccs.tencentyun.com"
    ]
}
EOF

` 解释：`
{
    "default-ipc-mode": "shareable",	#把ipc共享模式打开
    "data-root": "/data/docker",
    "exec-opts": ["native.cgroupdriver=systemd"],	#把容器的驱动改为systemd
    "log-driver": "json-file",	#日志文件叫json-file
    "log-opts": {
        "max-size": "100m",	#日志存放文件数量
        "max-file": "50"
    },
    "insecure-registries": ["https://harbor.registry.com"],	#自己的harbor地址
    "registry-mirrors":[	#以下都是公共的仓库地址
        "https://docker.m.daocloud.io",
        "https://docker.1ms.run",
        "https://func.ink",
        "https://docker.hlmirror.com",
        "https://docker.imgdb.de",
        "https://docker-0.unsee.tech",
        "https://docker.rainbond.cc",
        "https://lispy.org",
        "https://docker.xiaogenban1993.com",
        "https://mirror.ccs.tencentyun.com"
    ]
}

#启动docker
[root@master ~]# systemctl enable --now docker
Created symlink /etc/systemd/system/multi-user.target.wants/docker.service → /usr/lib/systemd/system/docker.service.

#验证docker
[root@master ~]# docker version
Client: Docker Engine - Community
 Version:           28.3.1
 API version:       1.51
 Go version:        go1.24.4
 Git commit:        38b7060
 Built:             Wed Jul  2 20:58:10 2025
 OS/Arch:           linux/amd64
 Context:           default

Server: Docker Engine - Community
 Engine:
  Version:          28.3.1
  API version:      1.51 (minimum version 1.24)
  Go version:       go1.24.4
  Git commit:       5beb93d
  Built:            Wed Jul  2 20:56:24 2025
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          1.7.27
  GitCommit:        05044ec0a9a75232cad458027ca83437aae3f4da
 runc:
  Version:          1.2.5
  GitCommit:        v1.2.5-0-g59923ef
 docker-init:
  Version:          0.19.0
  GitCommit:        de40ad0

4.2 安装 CRI（三台主机）

CRI 为容器运行时，常见的有 cri-docker 和 containerd，两者任选其一安装

  1. 获取 cri-dockerd-0.3.18.amd64.tgz 包
  2. 解压文件
    tar -xf cri-dockerd-0.3.17.amd64.tgz
  3. 将文件复制到 /usr/bin目录下
  4. 设置文件可执行权限
    chmod +x /usr/bin/cri-dockerd
  5. 配置 cri-docker 服务
    /usr/lib/systemd/system/cri-docker.service
  6. 配置 cri-docker 套接字
    /usr/lib/systemd/system/cri-docker.socket
  7. 启动 cri-docker 服务
    systemctl daemon-reload
    systemctl enable --now cri-docker
    systemctl is-active cri-docker
# xftp 传输 cri-dockerd-0.3.18.amd64.tgz 包到三台主机
[root@master ~]# tar -xf cri-dockerd-0.3.18.amd64.tgz
[root@master ~]# ls
anaconda-ks.cfg  cri-dockerd  cri-dockerd-0.3.18.amd64.tgz
[root@master ~]# cd cri-dockerd/
[root@master cri-dockerd]# ls
cri-dockerd

# 将文件复制到/usr/bin目录下
[root@master cri-dockerd]# cp cri-dockerd /usr/bin/
[root@master cri-dockerd]# ls
cri-dockerd
[root@master cri-dockerd]# ls /usr/bin/

[root@master cri-dockerd]# scp cri-dockerd n1:/usr/bin/
The authenticity of host 'n1 (192.168.86.12)' can't be established.
ED25519 key fingerprint is SHA256:ahc/chG5rVHeDdBFb5i/MzxZZ5UUF0j3TSa+rTiM+tE.
This host key is known by the following other names/addresses:
    ~/.ssh/known_hosts:1: node1
    ~/.ssh/known_hosts:4: node2
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added 'n1' (ED25519) to the list of known hosts.
cri-dockerd                                                           100%   49MB 160.2MB/s   00:00
[root@master cri-dockerd]# scp cri-dockerd n2:/usr/bin/
The authenticity of host 'n2 (192.168.86.13)' can't be established.
ED25519 key fingerprint is SHA256:ahc/chG5rVHeDdBFb5i/MzxZZ5UUF0j3TSa+rTiM+tE.
This host key is known by the following other names/addresses:
    ~/.ssh/known_hosts:1: node1
    ~/.ssh/known_hosts:4: node2
    ~/.ssh/known_hosts:5: n1
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added 'n2' (ED25519) to the list of known hosts.
cri-dockerd

# cri-docker 配置服务文件
.service文件：
[root@master ~]# cat /usr/lib/systemd/system/cri-docker.service
[Unit]
Description=CRI Interface for Docker Application Container Engine
Documentation=https://docs.mirantis.com
After=network-online.target firewalld.service docker.service
Wants=network-online.target
Requires=cri-docker.socket

[Service]
Type=notify
#ExecStart=/usr/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.10
ExecStart=/usr/bin/cri-dockerd --container-runtime-endpoint fd:// --network-plugin=cni --pod-infra-container-image=registry.k8s.io/pause:3.10
ExecReload=/bin/kill -s HUP
TimeoutSec=0
RestartSec=2
Restart=always
StartLimitBurst=3
StartLimitInterval=60s
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TasksMax=infinity
Delegate=yes
KillMode=process

[Install]
WantedBy=multi-user.target


#########
cat > /usr/lib/systemd/system/cri-docker.service <<EOF
[Unit]
Description=CRI Interface for Docker Application Container Engine
Documentation=https://docs.mirantis.com
After=network-online.target firewalld.service docker.service
Wants=network-online.target
Requires=cri-docker.socket

[Service]
Type=notify
#ExecStart=/usr/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.10
ExecStart=/usr/bin/cri-dockerd --container-runtime-endpoint fd:// --network-plugin=cni --pod-infra-container-image=registry.k8s.io/pause:3.10
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always
StartLimitBurst=3
StartLimitInterval=60s
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TasksMax=infinity
Delegate=yes
KillMode=process

[Install]
WantedBy=multi-user.target
EOF

# 配置 cri-docker 套接字
[root@master ~]# cat /usr/lib/systemd/system/cri-docker.socket
[Unit]
Description=CRI Docker socket for the API
PartOf=cri-docker.service

[Socket]
ListenStream=%t/cri-dockerd.sock
SocketMode=0660		#模式=权限
SocketUser=root		#用户
SocketGroup=docker	#组

[Install]
WantedBy=sockets.targetcat

###########
[Unit]
Description=CRI Docker socket for the API
PartOf=cri-docker.service

[Socket]
ListenStream=%t/cri-dockerd.sock
SocketMode=0660
SocketUser=root
SocketGroup=docker

[Install]
WantedBy=sockets.target

# 启动 cri-docker 服务
systemctl daemon-reload
systemctl enable --now cri-docker
systemctl is-active cri-docker

先启动docker，再启动cri-docker

  • 三台主机
[root@node1 ~]# systemctl daemon-reload
systemctl enable --now docker
[root@node1 ~]# [root@node1 ~]# systemctl enable --now cri-docker
Created symlink /etc/systemd/system/multi-user.target.wants/cri-docker.service → /usr/lib/systemd/system/cri-docker.service.

4.3 安装 Kubernetes

4.3.1 配置仓库（三台主机）

  1. 添加 kubernets 源
    /etc/yum.repos.d/kubernetes.repo
  2. 安装 kubelets
    yum install -y kubelet kubeadm kubectl
  3. 启动 kubelet 服务
    systemctl enable --now cri-docker
    systemctl enable --now kubelet
  4. 验证安装
    kubeadm version
  5. 导入所需镜像，查看所需镜像
    kubeadm config images list
    主节点需要导入全部镜像，从节点只需导入 kube-proxy、coredns、pause 这三个镜像

添加 kubelets 源

[root@master ~]# cat <<EOF | tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.33/rpm/
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.33/rpm/repodata/repomd.xml.key
EOF

###########
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.33/rpm/
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.33/rpm/repodata/repomd.xml.key
[root@master ~]# ls /etc/yum.repos.d/
docker-ce.repo  kubernetes.repo  redhat.repo  yum.repo

安装 kubelets、启动 kubelet 服务、验证安装

# 安装kubernetes
yum install -y kubelet kubeadm kubectl

# 启动kubernetes服务 (cri启动==三个节点都要启动、ikuai主机开启)
[root@node1 ~]# systemctl daemon-reload
[root@node1 ~]# systemctl enable --now cri-docker
Created symlink /etc/systemd/system/multi-user.target.wants/cri-docker.service → /usr/lib/systemd/system/cri-docker.service.
systemctl enable --now kubelet
[root@master yum.repos.d]# systemctl enable --now kubelet
Created symlink /etc/systemd/system/multi-user.target.wants/kubelet.service → /usr/lib/systemd/system/kubelet.service.

# 验证安装
kubeadm version
[root@master ~]# kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"33", EmulationMajor:"", EmulationMinor:"", MinCompatibilityMajor:"", MinCompatibilityMinor:"", GitVersion:"v1.33.2", GitCommit:"a57b6f7709f6c2722b92f07b8b4c48210a51fc40", GitTreeState:"clean", BuildDate:"2025-06-17T18:39:42Z", GoVersion:"go1.24.4", Compiler:"gc", Platform:"linux/amd64"}
  • 导入所需镜像

主节点需要导入全部镜像，从节点只需导入 kube-proxy、coredns、pause 这三个镜像

calico-images-v3.30.2.tar
k8s-node-images-v1.33.2.tar
kubectl-proxy-1.0.tar

# xftp 传输 calico-images-v3.30.2.tar 包到三台主机
[root@master ~]# ls
anaconda-ks.cfg  cri-dockerd  cri-dockerd-0.3.18.amd64.tgz  pause_3.10.tar.gz
[root@master ~]# docker load -i pause_3.10.tar.gz
d8bdedd33a4e: Loading layer  737.8kB/737.8kB
Loaded image: registry.k8s.io/pause:3.10
[root@master ~]# rm -rf pause_3.10.tar.gz cri-dockerd-0.3.18.amd64.tgz
[root@master ~]# ls
anaconda-ks.cfg  cri-dockerd
[root@master ~]# docker images
REPOSITORY              TAG       IMAGE ID       CREATED         SIZE
registry.k8s.io/pause   3.10      873ed7510279   13 months ago   736kB

# 查看所需镜像
kubeadm config images list
[root@master ~]# kubeadm config images list
registry.k8s.io/kube-apiserver:v1.33.2
registry.k8s.io/kube-controller-manager:v1.33.2
registry.k8s.io/kube-scheduler:v1.33.2
registry.k8s.io/kube-proxy:v1.33.2
registry.k8s.io/coredns/coredns:v1.12.0
registry.k8s.io/pause:3.10
registry.k8s.io/etcd:3.5.21-0


# xftp拖.tar包
主节点：
[root@master ~]# ls
anaconda-ks.cfg  cri-dockerd  k8s-images-v1.33.2.tar
[root@master ~]# docker load -i k8s-images-v1.33.2.tar
Loaded image: registry.k8s.io/pause:3.10
.........
  • node：
从节点：
[root@node1 ~]# ls
calico-images-v3.30.2.tar  cri-dockerd-0.3.18.amd64.tgz  k8s-node-images-v1.33.2.tar
[root@node1 ~]# docker load -i k8s-images-v1.33.2.tar
Loaded image: registry.k8s.io/pause:3.10
........

4.3.2 初始化’主’节点（master）

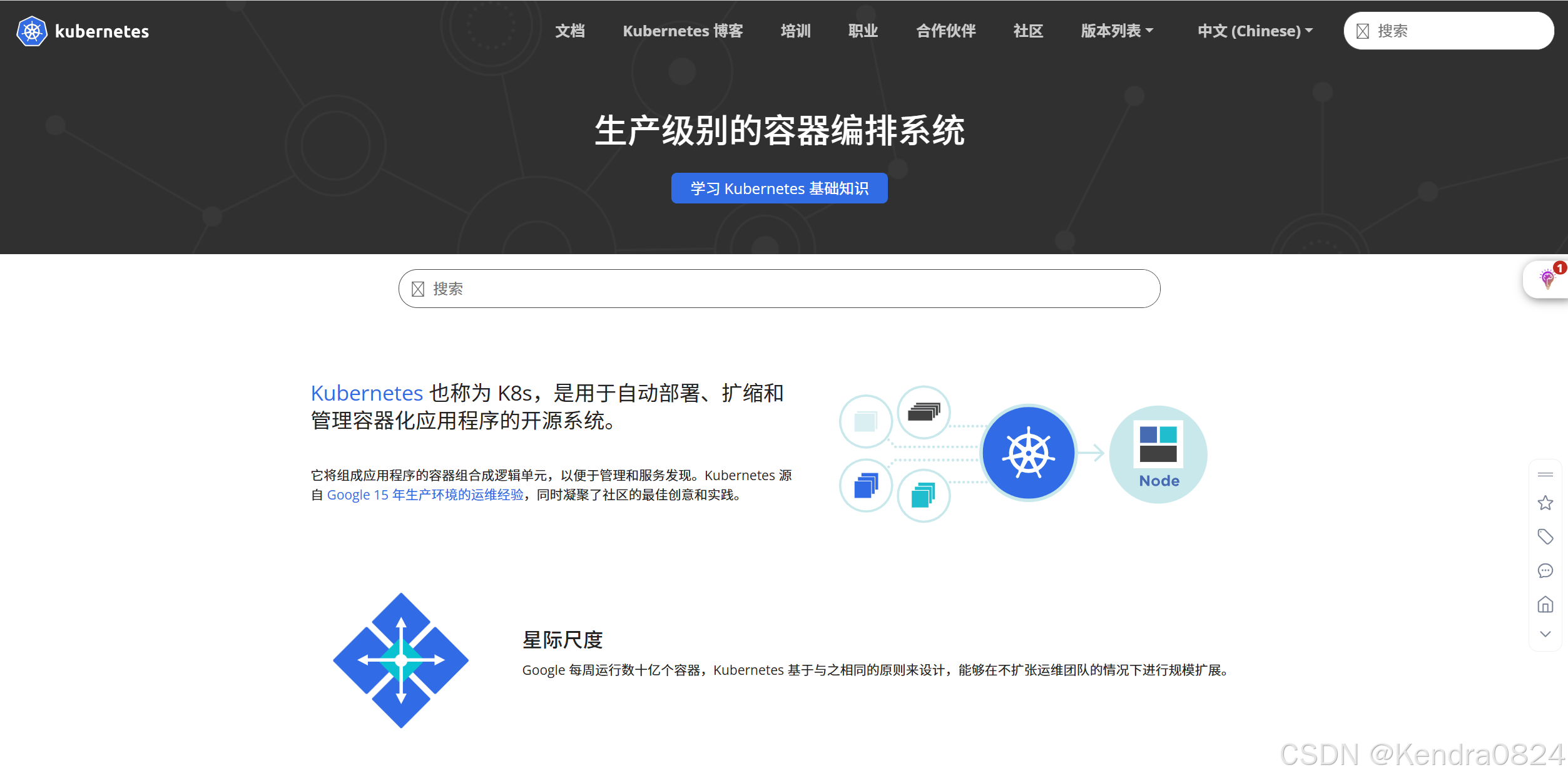

官方链接：kubdernetes初始化

  • master 主机上执行
# 完整命令：
 kubeadm init --apiserver-advertise-address=192.168.86.11 \
--kubernetes-version=1.33.2 \
--service-cidr=10.10.0.0/12 \
--pod-network-cidr=10.244.0.0/16 \
--ignore-preflight-errors=all \
--cri-socket unix:///var/run/cri-dockerd.sock


[root@master ~]# kubeadm init --apiserver-advertise-address=192.168.86.11 \
--kubernetes-version=1.33.2 \
--service-cidr=10.10.0.0/12 \
--pod-network-cidr=10.244.0.0/16 \
--ignore-preflight-errors=all \
--cri-socket unix:///var/run/cri-dockerd.sock
[init] Using Kubernetes version: v1.33.2
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local master] and IPs [10.0.0.1 192.168.86.11]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [localhost master] and IPs [192.168.86.11 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [localhost master] and IPs [192.168.86.11 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "super-admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests"
[kubelet-check] Waiting for a healthy kubelet at http://127.0.0.1:10248/healthz. This can take up to 4m0s
[kubelet-check] The kubelet is healthy after 1.001611324s
[control-plane-check] Waiting for healthy control plane components. This can take up to 4m0s
[control-plane-check] Checking kube-apiserver at https://192.168.86.11:6443/livez
[control-plane-check] Checking kube-controller-manager at https://127.0.0.1:10257/healthz
[control-plane-check] Checking kube-scheduler at https://127.0.0.1:10259/livez
[control-plane-check] kube-controller-manager is healthy after 2.144035s
[control-plane-check] kube-scheduler is healthy after 2.74327218s
[control-plane-check] kube-apiserver is healthy after 4.502604728s
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node master as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node master as control-plane by adding the taints [node-role.kubernetes.io/control-plane:NoSchedule]
[bootstrap-token] Using token: kou526.7c9yr60c5zy0dwpd
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:
# 复制以下两行，后续增加工作节点时用
kubeadm join 192.168.86.11:6443 --token kou526.7c9yr60c5zy0dwpd \
	--discovery-token-ca-cert-hash sha256:1f7521e2cd7e02ab7a96b11ece60acc383367295f89de653fabb82aca68e35bd
  • 命令解析如下：
#指定主服务器的地址是多少，也就是 master 主机的地址
--apiserver-advertise-address=192.168.86.11

#指定控制平面镜像的仓库地址（默认 registry.k8s.io），当前为阿里镜像仓库地址，也可指向自己的私有镜像仓库地址如my-registry.com/k8s
--image-repository

#指定 Kubernetes 版本（默认最新稳定版），固定集群版本，避免自动升级导致兼容性问题。
--kubernetes-version=1.33.0

#指定service资源的网络范围
--service-cidr=10.10.0.0/12：

#指定pos的网络范围
--pod-network-cidr=10.244.0.0/16

#跳过所有前置的错误检测
--ignore-preflight-errors=all

#指定 CRI（容器运行时）的 socket 路径，如果是containerd则为unix:///run/containerd/containerd.sock
--cri-socket unix:///var/run/cri-dockerd.sock

4.3.3 创建 .kube目录（master）

# 创建 .kube 目录
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config
[root@master ~]# mkdir -p $HOME/.kube
[root@master ~]# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@master ~]# chown $(id -u):$(id -g) $HOME/.kube/config

kubectl get node	#查看节点

4.3.4 增加工作节点（master）

# 从初始化命令的最后一行复制kubeadm join......
kubeadm join 192.168.86.11:6443 --token kou526.7c9yr60c5zy0dwpd \
	--discovery-token-ca-cert-hash sha256:1f7521e2cd7e02ab7a96b11ece60acc383367295f89de653fabb82aca68e35bd \

# 初始化的最后一句 --cri-socket unix:///var/run/cri-dockerd.sock
# kubeadm token create --print-join-command 重新生成令牌（三小时时效）
  • 命令解析：
#指定主节点IP和端口
kubeadm join 192.168.86.11:6443

#指定token，如果过期，需要执行 kubeadm token
--token ge53zg.14u86m07fuz4ywa7

# 命令重新申请
create --print-join-command

#指定证书
--discovery-token-ca-cert-hash

#指定 CRI（容器运行时）的 socket 路径
--cri-socket unix:///var/run/cri-dockerd.sock

4.3.5 查看集群（master）

集群三个节点都已经创建完成，但这三个节点都处于未就绪状态

  • status 为 NotReady 是因为现在还没有网，后续安装 CNI
# 查看集群
[root@master ~]# kubectl get nodes
NAME     STATUS     ROLES           AGE    VERSION
master   NotReady   control-plane   28m    v1.33.2
node1    NotReady   <none>          103s   v1.33.2
node2    NotReady   <none>          30s    v1.33.2

#status为NotReady是因为现在还没有网，后续安装CNI

报错

  1. 打开 ikuai（相当于路由器，打开才能联网），才能 yum 下载
  2. swap
    • 修改 /etc/fstab 文件，将包含 swap 内容的行注释
    • 使用 free -m 来查看 swap 是否还在使用
    • swapoff -a
  3. 启动 cri 必须有这个垫片才能使用 kubulet（三台节点都要启动）
    • systemctl daemon-reload
    • systemctl enable --now cri-docker
  4. 初始化的时候注意 IP 和 版本号
    • kubeadm version
    • 初始化过程报错：考虑 cri、kubulet 服务是否开启
  5. 增加工作节点时
    • kubeadm join 如果报错，复制报错信息中的 --ignore-preflight-errors=all 忽略

4.4 部署网络插件

Kubernetes 集群如果要能够正常工作，所有容器都必须工作在一个扁平的网络空间中。接下就需要部署网络插件来实现这个扁平化网络空间，让 Kubernetes 集群可以正常工作

4.4.1 下载配置文件（主节点calico-v3.30.2.yaml）

可通过 xftp 传输 calico-v3.30.2.yaml

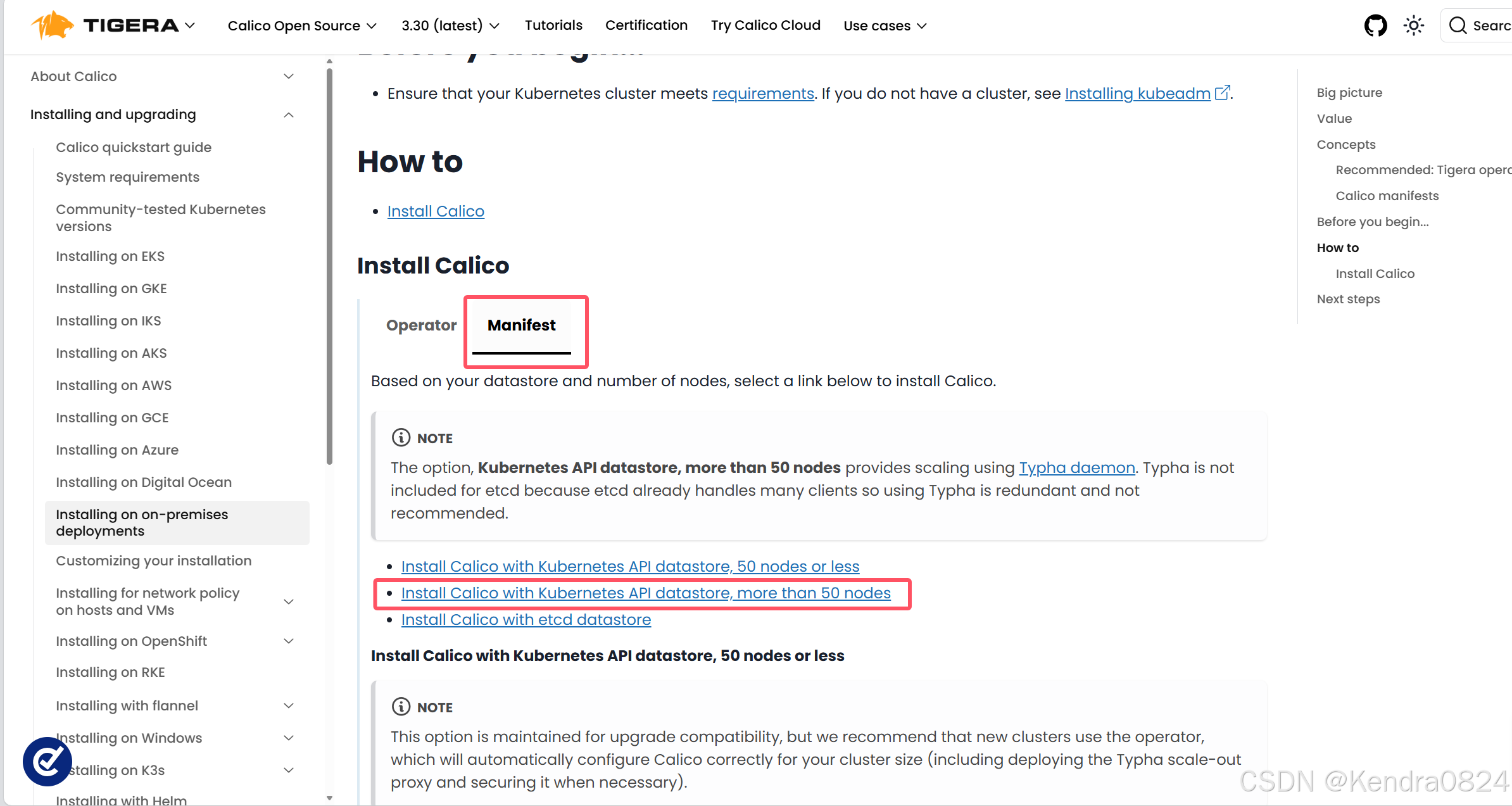

  1. 打开 Calico 安装说明文档：calico

  2. 点击 Manifest 下面的 Install Calico with Kubernetes API datastore, more than 50 nodes 链接
    在这里插入图片描述

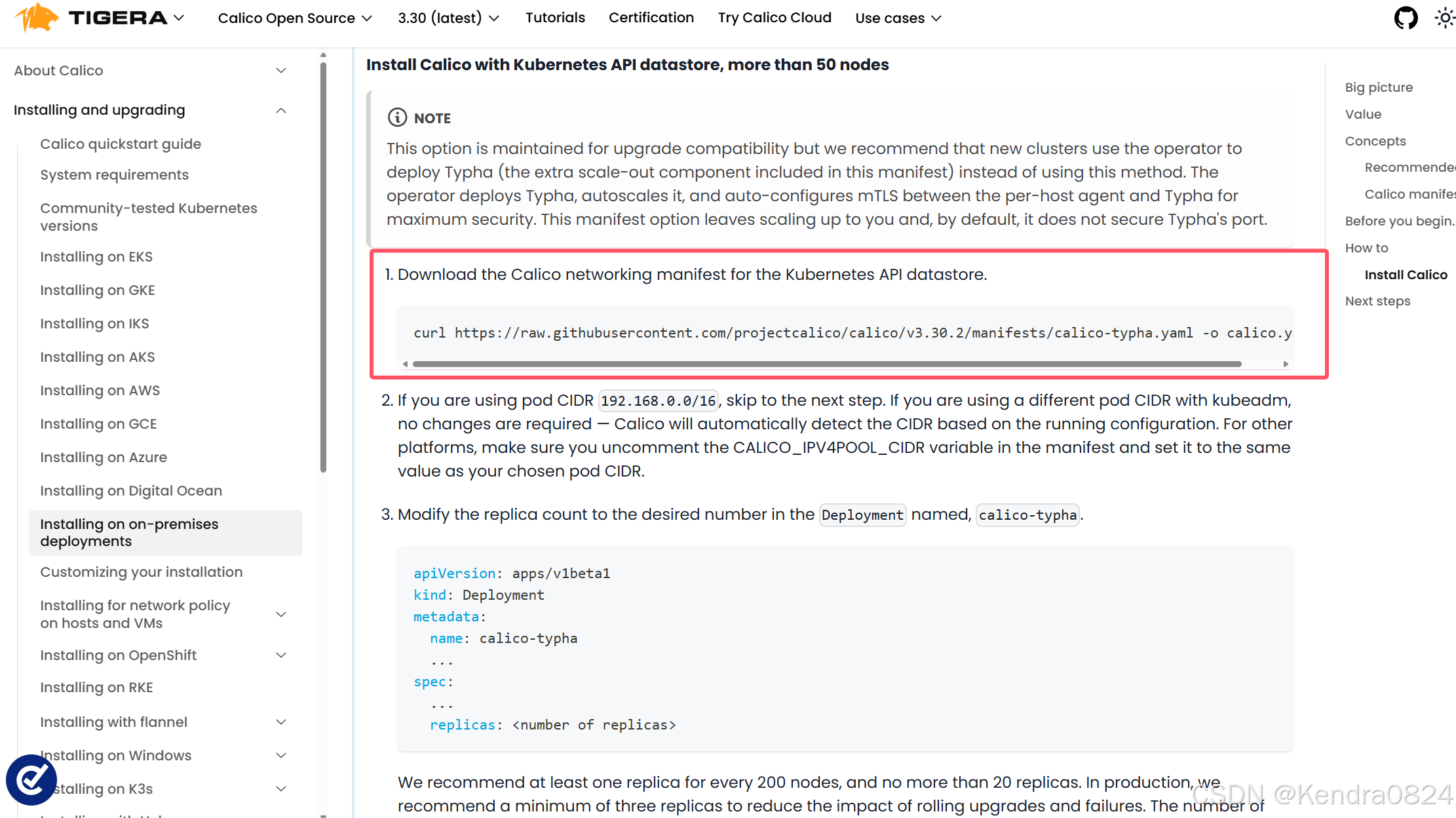

  3. 复制命令将配置文件下载到本地（或者直接从自己电脑托 .yaml文件到主机）

    • 得到如下界面，根据提示：
      在这里插入图片描述
    • 下载命令：curl https://raw.githubusercontent.com/projectcalico/calico/v3.30.2/manifests/calico-typha.yaml -o calico.yaml
      `
# 通过 xftp 传输calico-images-v3.30.2.tar、calico-v3.30.2.yaml
[root@master ~]# ls
anaconda-ks.cfg  calico-images-v3.30.2.tar  calico-v3.30.2.yaml  cri-dockerd  k8s-images-v1.33.2.tar

# 查看所需要的镜像文件
[root@master ~]# grep image* calico-v3.30.2.yaml
          image: docker.io/calico/cni:v3.30.2
          imagePullPolicy: IfNotPresent
          image: docker.io/calico/cni:v3.30.2
          imagePullPolicy: IfNotPresent
          image: docker.io/calico/node:v3.30.2
          imagePullPolicy: IfNotPresent
          image: docker.io/calico/node:v3.30.2
          imagePullPolicy: IfNotPresent
          image: docker.io/calico/kube-controllers:v3.30.2
          imagePullPolicy: IfNotPresent
      - image: docker.io/calico/typha:v3.30.2
        imagePullPolicy: IfNotPresent

# 三个节点都需要
[root@node1 ~]# docker load -i calico-images-v3.30.2.tar

4.4.2 修改配置文件

  1. 将 CALICO_IPV4POOL_IPIP 和 CALICO_IPV4POOL_VXLAN 都关闭，即使用 BGP 模式
  2. 将 calico.yaml 配置文件中 CALICO_IPV4POOL_CIDR 修改为初始集群时指定的 Pod 地址，即 --pod-network-cidr=10.244.0.0/16 参数所指定的地址。
[root@master ~]# vim calico-v3.30.2.yaml

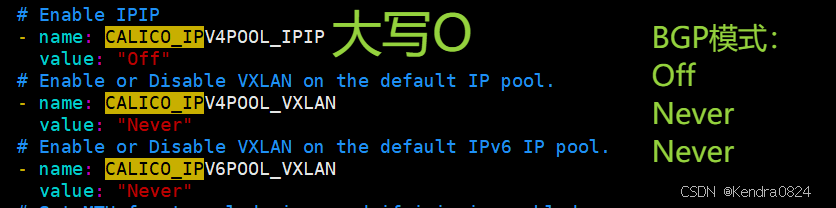

3. /CALICO_IP查找，修改value值（BGP模式 Off Never Never）
4. CALICO_IPV4POOL_CIDR 修改为初始集群时指定的 Pod 地址，即 初始化主节点--pod-network-cidr=10.244.0.0/16 参数所指定的地址

            # Enable IPIP
            - name: CALICO_IPV4POOL_IPIP
              value: "Off"
            # Enable or Disable VXLAN on the default IP pool.
            - name: CALICO_IPV4POOL_VXLAN
              value: "Never"
            # Enable or Disable VXLAN on the default IPv6 IP pool.
            - name: CALICO_IPV6POOL_VXLAN
              value: "Never"

            # no effect. This should fall within `--cluster-cidr`.
            - name: CALICO_IPV4POOL_CIDR
              value: "10.224.0.0/16"
            # Disable file logging so `kubectl logs` works.

在这里插入图片描述
在这里插入图片描述

4.4.3 上传镜像文件（calico-images-v3.30.2.tar）

由于 calico 镜像导入到集群节点中。三个节点都需要导入

  • 通过 xftp 传输 calico-images-v3.30.2.tar/calico-v3.30.2.tar，执行命令导入
# 1. master01 节点
[root@master ~]# ls
anaconda-ks.cfg calico-images-v3.30.2.tar calico.yaml
# 2. node01 节点
[root@node1 ~]# ls
anaconda-ks.cfg calico-images-v3.30.2.tar
# 3. node02 节点
[root@node2 ~]# ls
anaconda-ks.cfg calico-images-v3.30.2.tar

4.4.4 导入镜像文件(docker load -i )

  • master
[root@master ~]# docker load -i calico-images-v3.30.2.tar
73234a741a6f: Loading layer  3.694MB/3.694MB
ff353cb90f45: Loading layer  81.51MB/81.51MB
Loaded image: calico/typha:v3.30.2
0df84c117099: Loading layer  407.3MB/407.3MB
Loaded image: calico/node:v3.30.2
02d3dffb3ef1: Loading layer  117.8MB/117.8MB
Loaded image: calico/kube-controllers:v3.30.2
81a7ae79a3f2: Loading layer  158.7MB/158.7MB
5f70bf18a086: Loading layer  1.024kB/1.024kB
Loaded image: calico/cni:v3.30.2
[root@master ~]# docker images
REPOSITORY                                TAG        IMAGE ID       CREATED         SIZE
calico/typha                              v3.30.2    b3baa600c7ff   2 weeks ago     85.2MB
calico/node                               v3.30.2    cc52550d767f   2 weeks ago     405MB
calico/kube-controllers                   v3.30.2    761b294e2655   2 weeks ago     122MB
calico/cni                                v3.30.2    77a357d0d33e   2 weeks ago     162MB
registry.k8s.io/kube-apiserver            v1.33.2    ee794efa53d8   3 weeks ago     102MB
registry.k8s.io/kube-proxy                v1.33.2    661d404f36f0   3 weeks ago     97.9MB
registry.k8s.io/kube-scheduler            v1.33.2    cfed1ff74892   3 weeks ago     73.4MB
registry.k8s.io/kube-controller-manager   v1.33.2    ff4f56c76b82   3 weeks ago     94.6MB
registry.k8s.io/etcd                      3.5.21-0   499038711c08   3 months ago    153MB
registry.k8s.io/coredns/coredns           v1.12.0    1cf5f116067c   7 months ago    70.1MB
registry.k8s.io/pause                     3.10       873ed7510279   13 months ago   736kB
[root@master ~]# ls
anaconda-ks.cfg  calico-images-v3.30.2.tar  calico-v3.30.2.yaml  k8s-images-v1.33.2.tar
[root@master ~]# scp calico-images-v3.30.2.tar n1:~
calico-images-v3.30.2.tar                                             100%  733MB 155.4MB/s   00:04
[root@master ~]# scp calico-images-v3.30.2.tar n2:~
calico-images-v3.30.2.tar                                             100%  733MB 151.9MB/s   00:04
  • node 节点
    docker load -i calico-images-v3.30.2.tar
[root@node1 ~]# ls
calico-images-v3.30.2.tar  cri-dockerd-0.3.18.amd64.tgz  k8s-node-images-v1.33.2.tar
[root@node1 ~]# docker load -i calico-images-v3.30.2.tar
73234a741a6f: Loading layer  3.694MB/3.694MB
ff353cb90f45: Loading layer  81.51MB/81.51MB
Loaded image: calico/typha:v3.30.2
0df84c117099: Loading layer  407.3MB/407.3MB
Loaded image: calico/node:v3.30.2
02d3dffb3ef1: Loading layer  117.8MB/117.8MB
Loaded image: calico/kube-controllers:v3.30.2
81a7ae79a3f2: Loading layer  158.7MB/158.7MB
5f70bf18a086: Loading layer  1.024kB/1.024kB
Loaded image: calico/cni:v3.30.2
[root@node1 ~]# docker images
REPOSITORY                TAG       IMAGE ID       CREATED         SIZE
calico/typha              v3.30.2   b3baa600c7ff   2 weeks ago     85.2MB
calico/node               v3.30.2   cc52550d767f   2 weeks ago     405MB
calico/kube-controllers   v3.30.2   761b294e2655   2 weeks ago     122MB
calico/cni                v3.30.2   77a357d0d33e   2 weeks ago     162MB
registry.k8s.io/pause     3.10      873ed7510279   13 months ago   736kB
[root@node2 ~]# ls
calico-images-v3.30.2.tar  cri-dockerd-0.3.18.amd64.tgz  k8s-node-images-v1.33.2.tar
[root@node2 ~]# docker load -i calico-images-v3.30.2.tar
73234a741a6f: Loading layer  3.694MB/3.694MB
ff353cb90f45: Loading layer  81.51MB/81.51MB
Loaded image: calico/typha:v3.30.2
0df84c117099: Loading layer  407.3MB/407.3MB
Loaded image: calico/node:v3.30.2
02d3dffb3ef1: Loading layer  117.8MB/117.8MB
Loaded image: calico/kube-controllers:v3.30.2
81a7ae79a3f2: Loading layer  158.7MB/158.7MB
5f70bf18a086: Loading layer  1.024kB/1.024kB
Loaded image: calico/cni:v3.30.2
[root@node2 ~]# docker images
REPOSITORY                TAG       IMAGE ID       CREATED         SIZE
calico/typha              v3.30.2   b3baa600c7ff   2 weeks ago     85.2MB
calico/node               v3.30.2   cc52550d767f   2 weeks ago     405MB
calico/kube-controllers   v3.30.2   761b294e2655   2 weeks ago     122MB
calico/cni                v3.30.2   77a357d0d33e   2 weeks ago     162MB
registry.k8s.io/pause     3.10      873ed7510279   13 months ago   736kB

4.4.5 安装网络插件

如果k8s有问题，一般情况，可以先看k8s日志：

先用kubectl get pods --all-namespaces -owide查看问题 pod，
然后用kubectl describe pod pod_name -n kube-system来查看日志

kubectl apply -f calico-v3.30.2.yaml
kubectl describe node node1
kubectl get node
kubectl get node -o wide
[root@master ~]# kubectl get node
NAME     STATUS   ROLES           AGE     VERSION
master   Ready    control-plane   6h8m    v1.33.2
node1    Ready    <none>          5h40m   v1.33.2
node2    Ready    <none>          5h39m   v1.33.2

# 看pod
kubectl get pods
kubectl get ns
kubectl get pod -n kube-system
kubectl get pod -o wide -n kube-system

[root@master ~]# kubectl apply -f calico-v3.30.2.yaml
poddisruptionbudget.policy/calico-kube-controllers created
poddisruptionbudget.policy/calico-typha created
serviceaccount/calico-kube-controllers created
serviceaccount/calico-node created
serviceaccount/calico-cni-plugin created
configmap/calico-config created
customresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgpfilters.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgppeers.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/blockaffinities.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/caliconodestatuses.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/clusterinformations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/felixconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/hostendpoints.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamblocks.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamconfigs.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamhandles.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ippools.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipreservations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/kubecontrollersconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/stagedglobalnetworkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/stagedkubernetesnetworkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/stagednetworkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/tiers.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/adminnetworkpolicies.policy.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/baselineadminnetworkpolicies.policy.networking.k8s.io created
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrole.rbac.authorization.k8s.io/calico-node created
clusterrole.rbac.authorization.k8s.io/calico-cni-plugin created
clusterrole.rbac.authorization.k8s.io/calico-tier-getter created
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrolebinding.rbac.authorization.k8s.io/calico-node created
clusterrolebinding.rbac.authorization.k8s.io/calico-cni-plugin created
clusterrolebinding.rbac.authorization.k8s.io/calico-tier-getter created
service/calico-typha created
daemonset.apps/calico-node created
deployment.apps/calico-kube-controllers created
deployment.apps/calico-typha created
[root@master ~]# kubectl get node
NAME     STATUS   ROLES           AGE     VERSION
master   Ready    control-plane   6h8m    v1.33.2
node1    Ready    <none>          5h40m   v1.33.2
node2    Ready    <none>          5h39m   v1.33.2
# kubernetes # 容器 # 云原生
Logo
腾讯云开发者社区

腾讯云面向开发者汇聚海量精品云计算使用和开发经验，营造开放的云计算技术生态圈。

更多推荐

Elasticsearch复杂数据类型终极指南：从入门到精通

Elasticsearch作为功能强大的搜索引擎，支持多种复杂数据类型，让开发者能够灵活处理各种结构化和非结构化数据。本文将带你全面了解Elasticsearch中的复杂数据类型，从基础概念到实际应用，助你轻松掌握数据建模的核心技巧。## 内部对象：构建层级化数据结构在Elasticsearch中，对象类型（Object）是最基础的复杂数据类型之一，用于表示具有嵌套关系的数据。例如，我们可

avatar 腾讯云开发者社区

终极指南：Flink SQL连接器版本管理从混乱到有序的升级之路

Apache Flink作为流处理领域的佼佼者，其SQL连接器的版本管理一直是开发者面临的核心挑战。本文将系统讲解Flink SQL连接器版本管理的最佳实践，帮助你轻松应对版本兼容性问题，实现从混乱到有序的升级之旅。## 连接器版本管理的常见痛点 😫在Flink应用开发中，连接器版本管理常常让开发者头疼不已。不同版本的连接器可能导致各种兼容性问题，例如API变更、功能差异甚至运行时错误。

avatar 腾讯云开发者社区

如何快速搭建Neon无服务器PostgreSQL：面向初学者的完整指南

Neon是一款革命性的无服务器PostgreSQL解决方案，它通过分离存储和计算层，实现了自动扩缩容、类代码式数据库分支以及零级扩展能力。本指南将帮助你从零开始搭建Neon开发环境，体验这款创新数据库的强大功能。## 准备工作：环境要求与依赖项在开始搭建Neon环境前，请确保你的系统满足以下要求：- Linux操作系统（推荐Ubuntu 20.04+或Debian 11+）- Git

avatar 腾讯云开发者社区
