写在前面 ：本文说明的gpu指的并不是英伟达的N卡，而是intel的集成显卡！

新建工程

方法1：参照 这个文章，新建项目。
方法2 【本教程为该方法】：直接这份代码的源码工程文件夹，命名为：cpp-yolo11-clas-gpu-openvino。
在这里插入图片描述

下载OpenVINO开发包

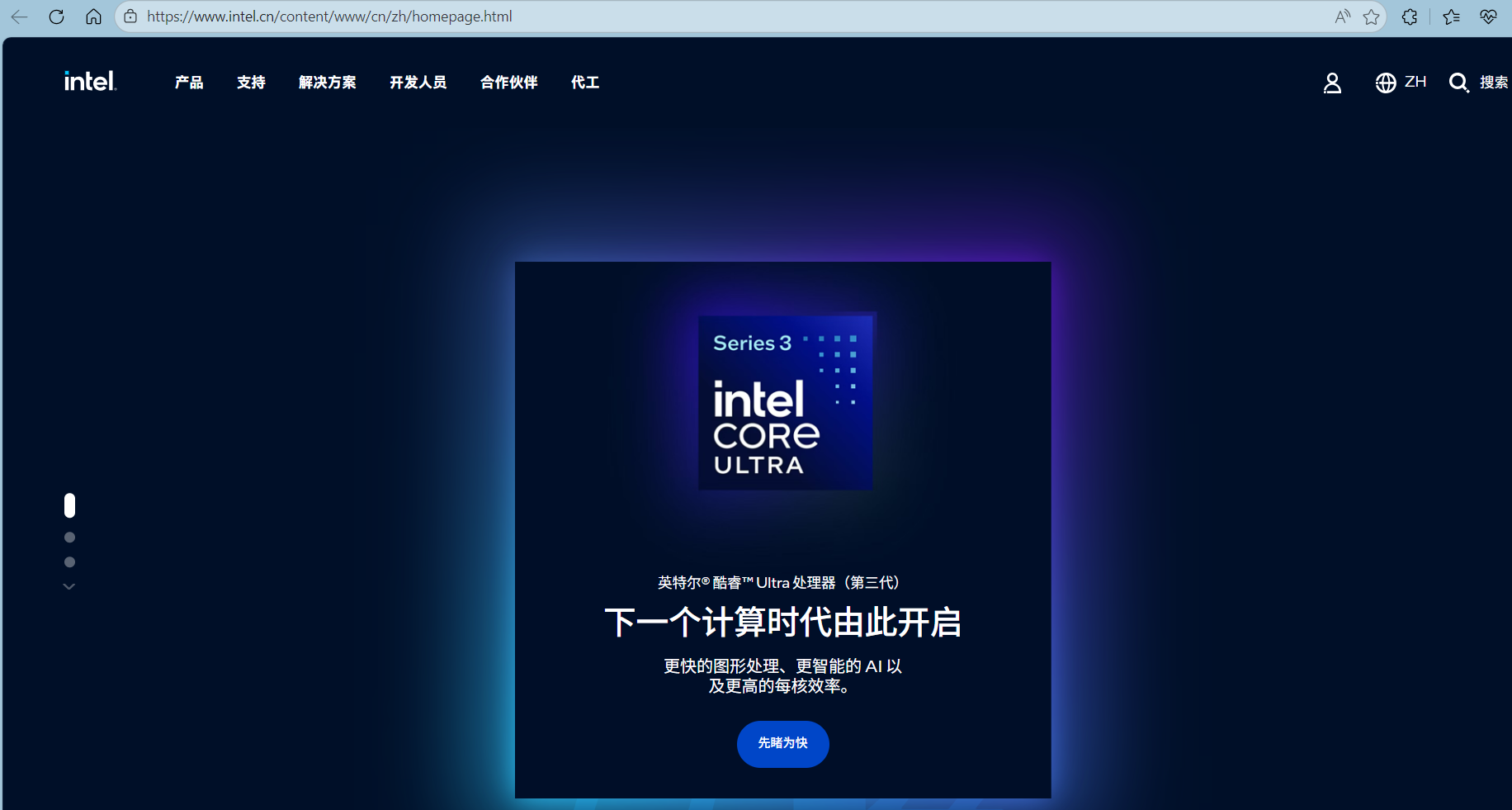

打开intel官网网址，如下：
在这里插入图片描述

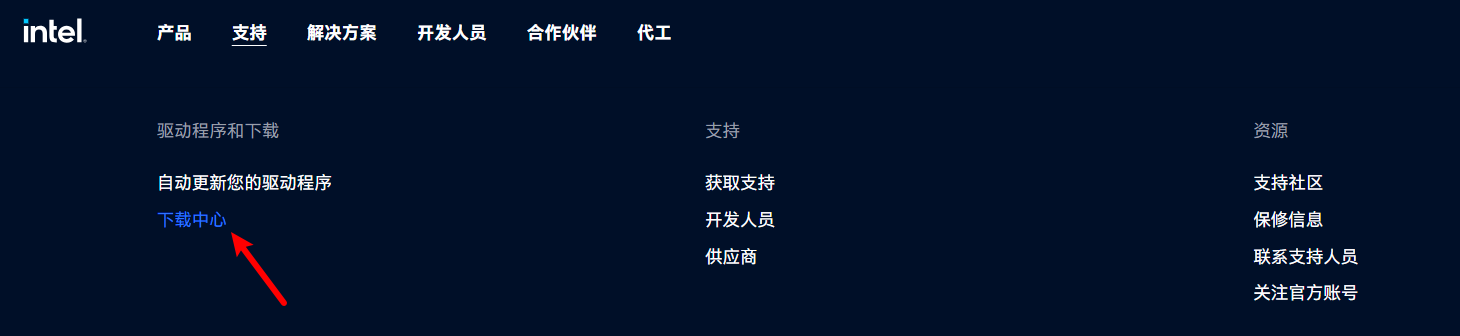

点击支持->下载中心:
在这里插入图片描述

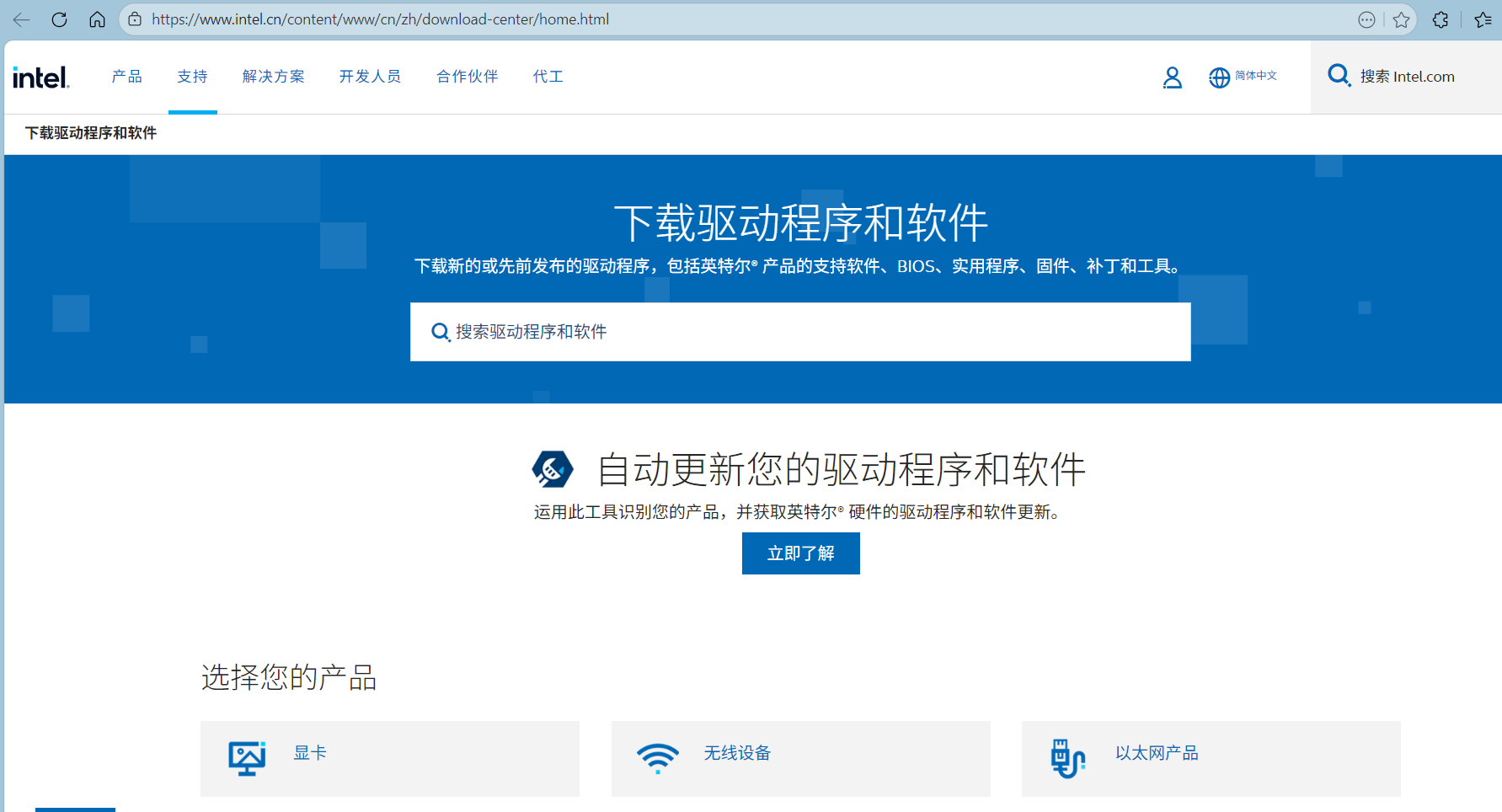

进入如下界面：
在这里插入图片描述

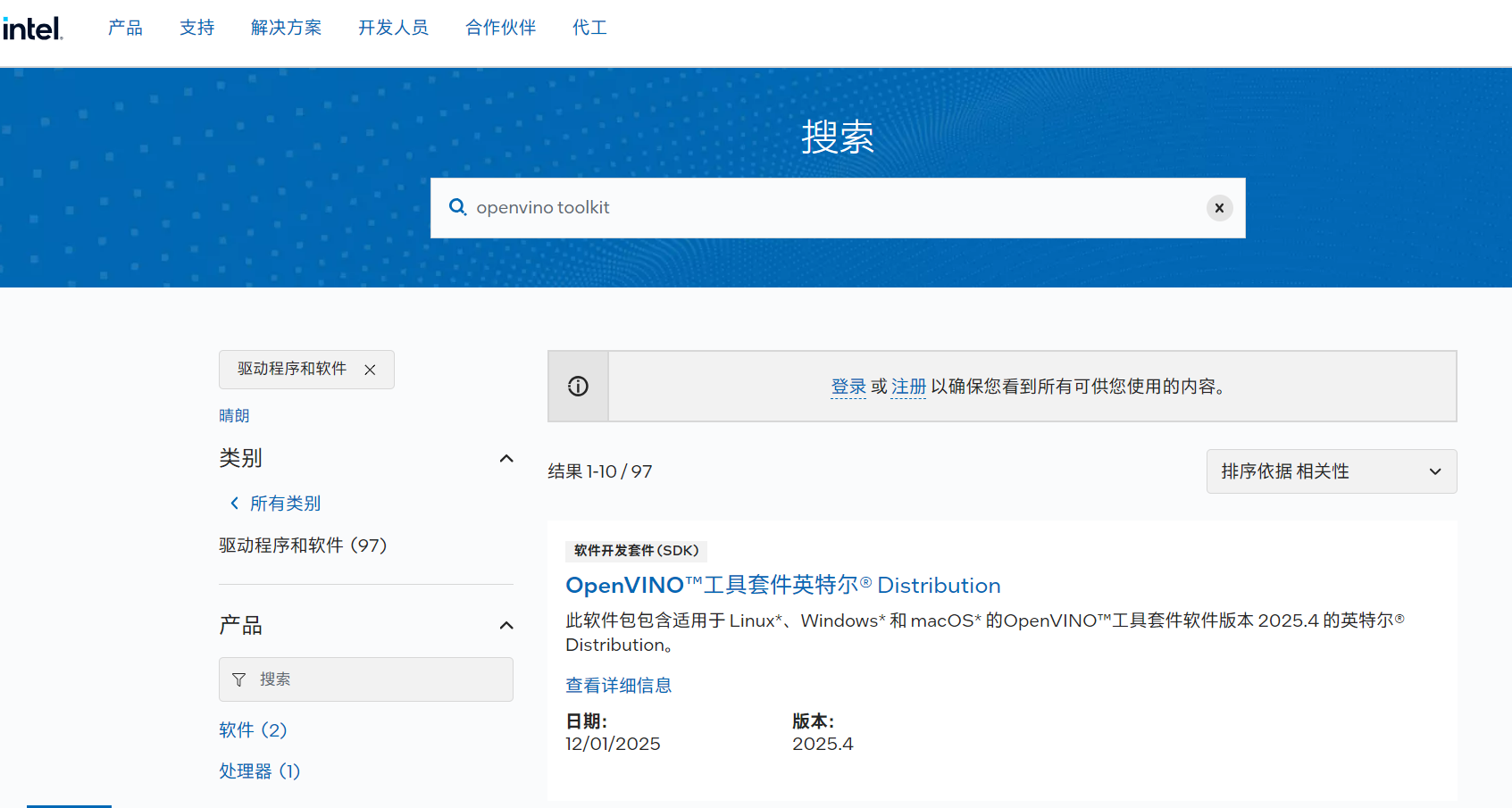

搜索OpenVINO：
在这里插入图片描述

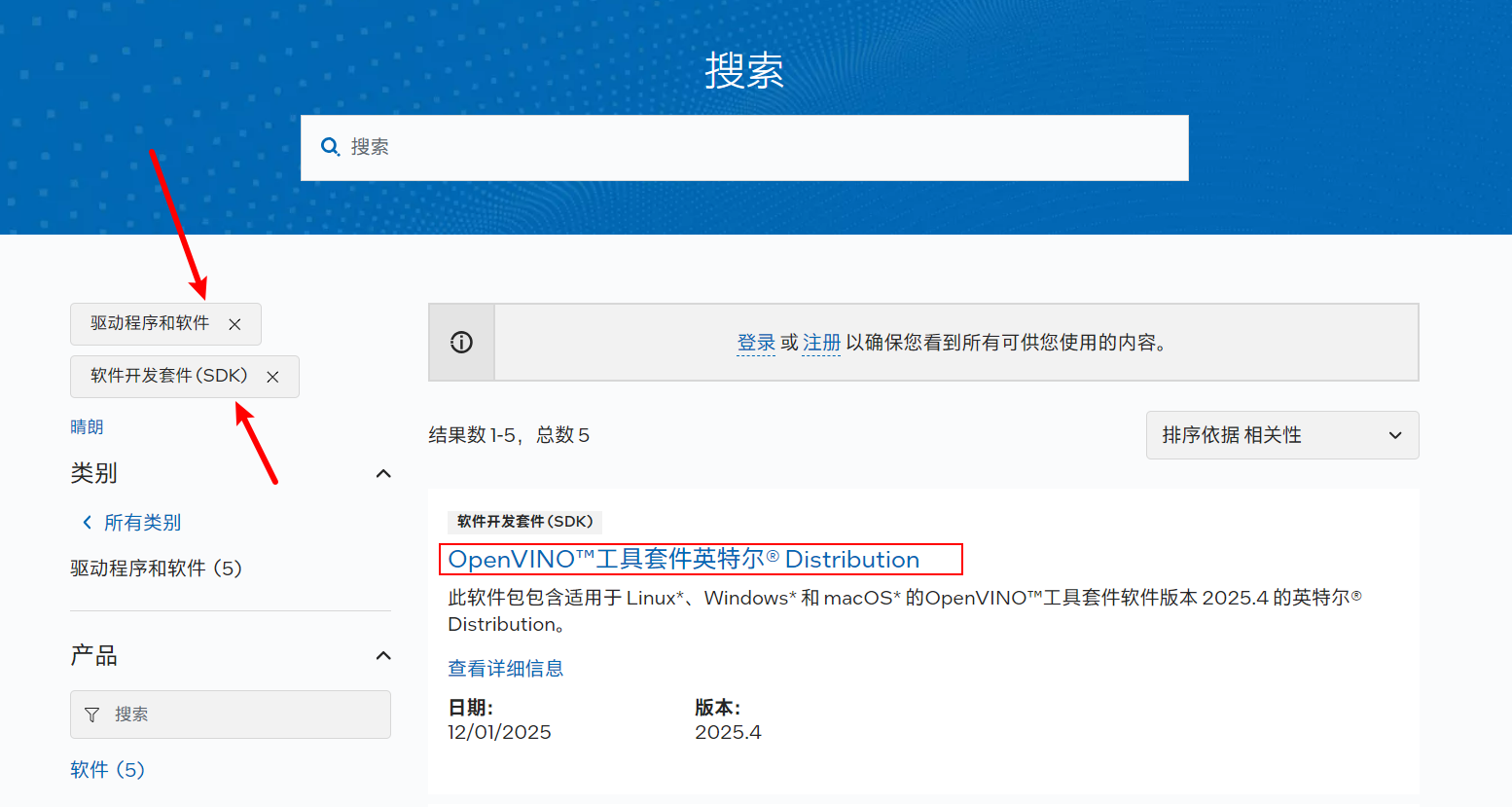

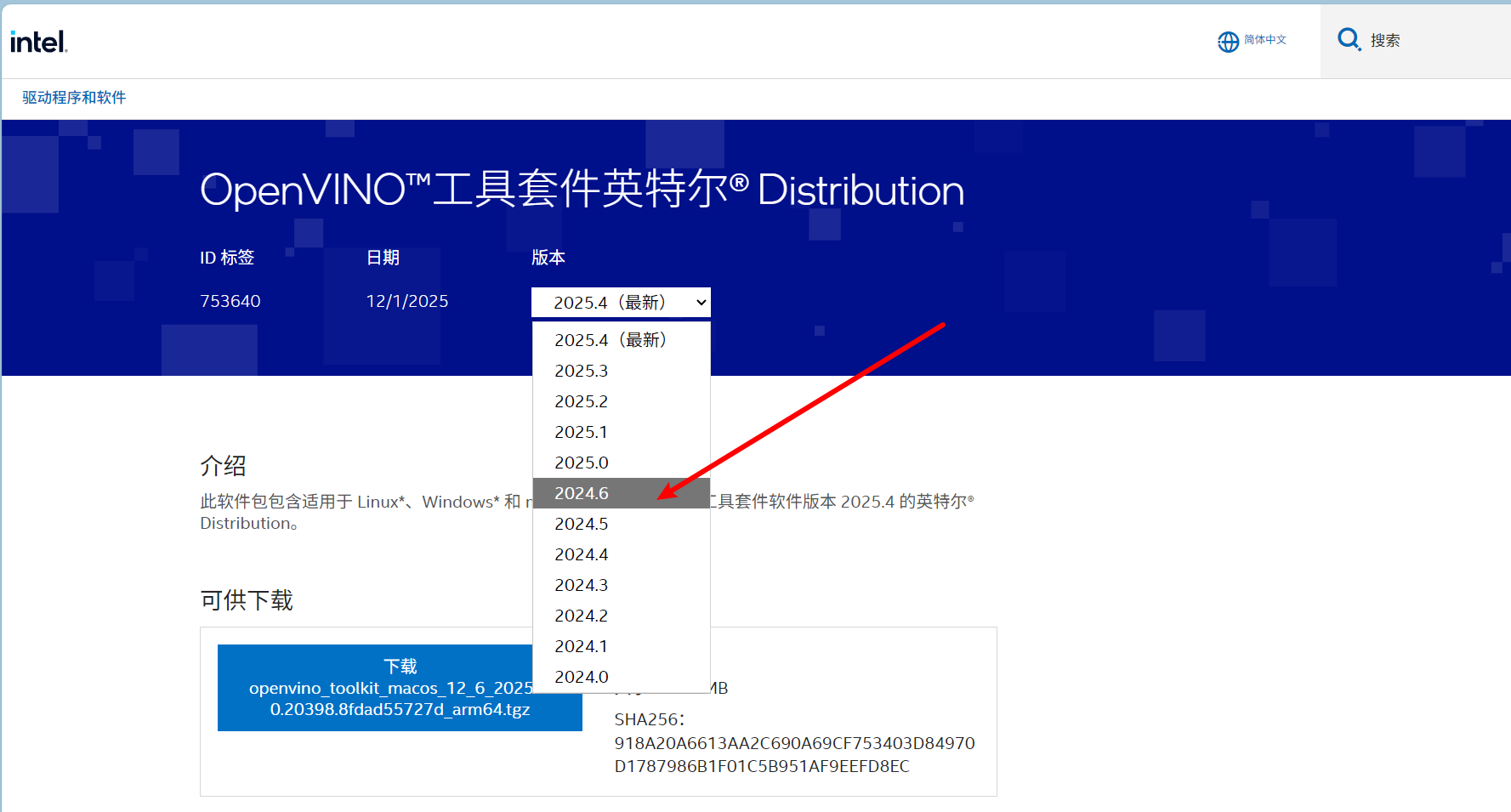

或者在 驱动程序和软件，软件开发套件中，找到OpenVINO。在这里插入图片描述点击进去，就会看到许多版本，由于我们使用的图像分类模型是yolo11（2024年9月发布的），因此，我们不能选择最新的版本，而是选择2024版本。

说明：作者已经尝试，一开始下载了最新版本的2025版，经过编码，编译总是失败。提示错误❌如下：

严重性	代码	说明	项目	文件	行	禁止显示状态
错误	C4996	'ov::Tensor::data': This function will return const T* in 2026.0. Check if used  correctly

在这里插入图片描述

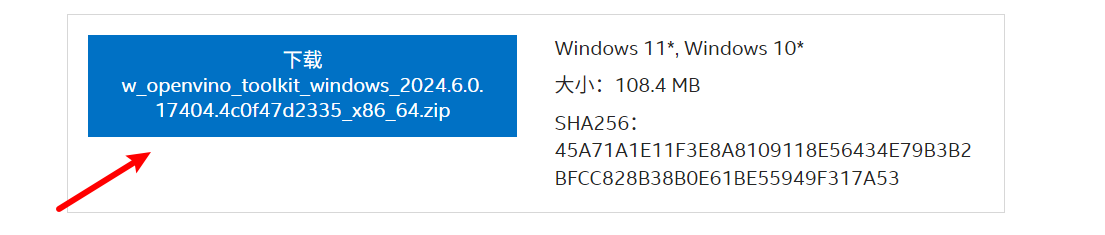

然后，往下拉，找到这个windows系统的版本，点击下载：
在这里插入图片描述
下载后，就会看到：
在这里插入图片描述

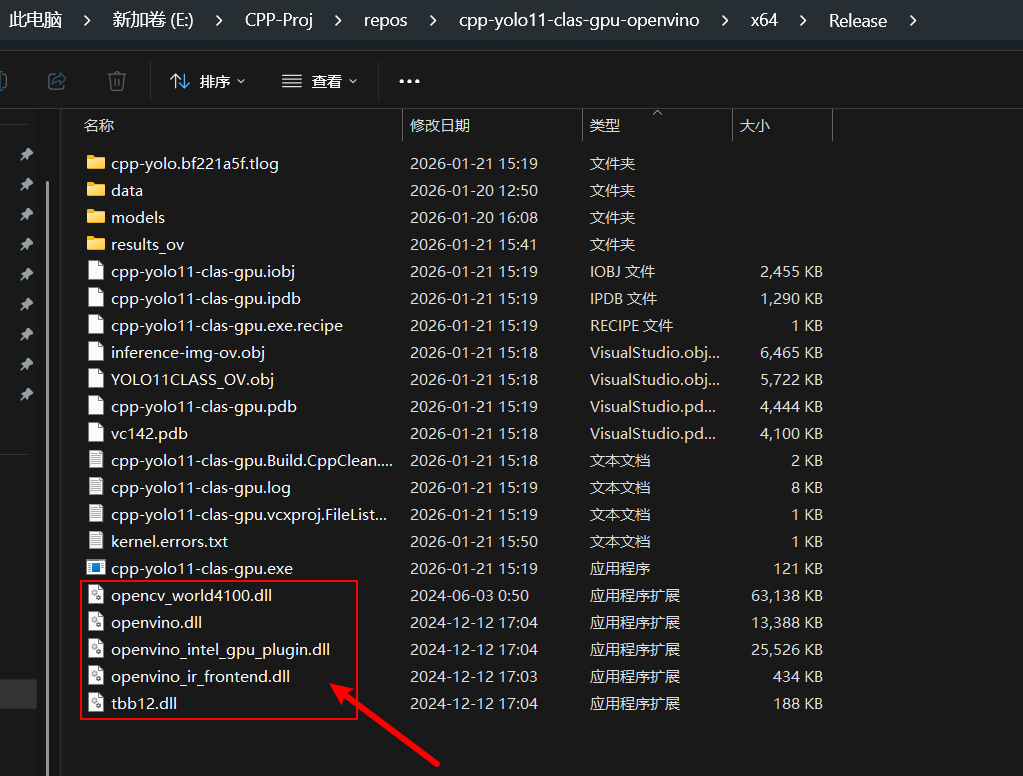

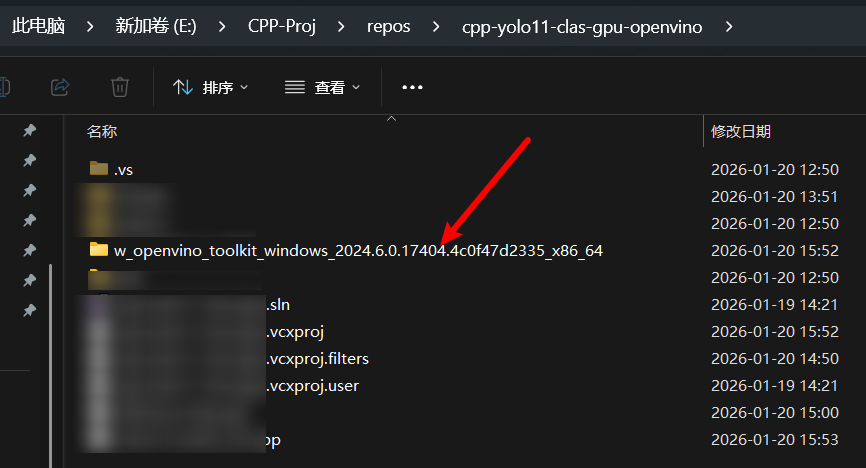

将这个zip包解压，并且拷贝到项目文件夹中：在这里插入图片描述

打开工程sln

我们主要是对环境进行配置。

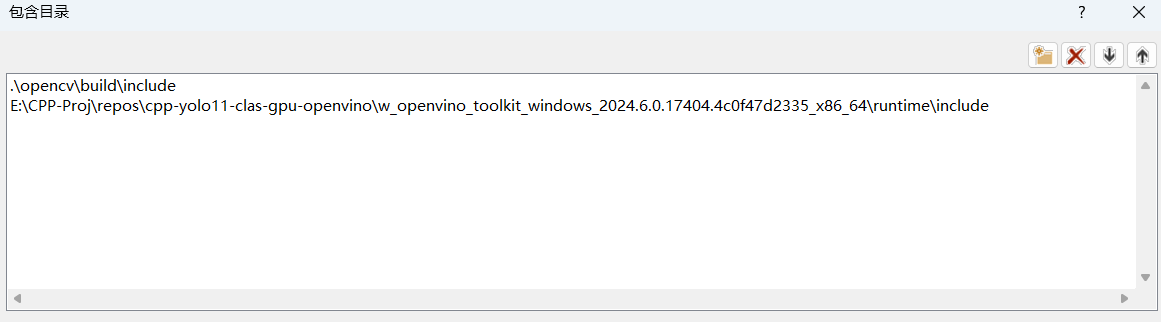

包含目录【include】

配置opencv和openvino：

 E:\CPP-Proj\repos\cpp-yolo11-clas-gpu-openvino\w_openvino_toolkit_windows_2024.6.0.17404.4c0f47d2335_x86_64\runtime\include
 .\opencv\build\include

在这里插入图片描述

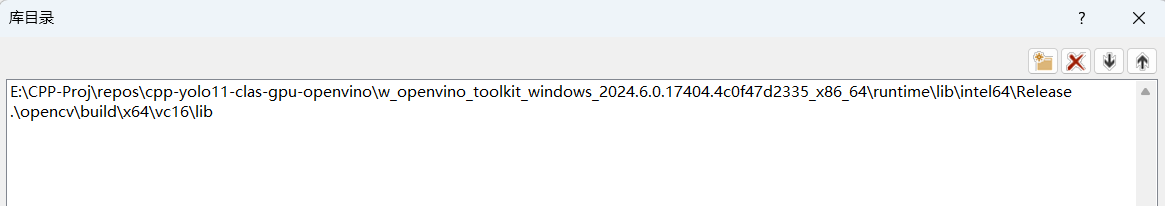

库目录【lib】

也是配置opencv和openvino：

E:\CPP-Proj\repos\cpp-yolo11-clas-gpu-openvino\w_openvino_toolkit_windows_2024.6.0.17404.4c0f47d2335_x86_64\runtime\lib\intel64\Release
.\opencv\build\x64\vc16\lib

在这里插入图片描述

附加依赖项

openvino.lib
opencv_world4100.lib

在这里插入图片描述

编写代码

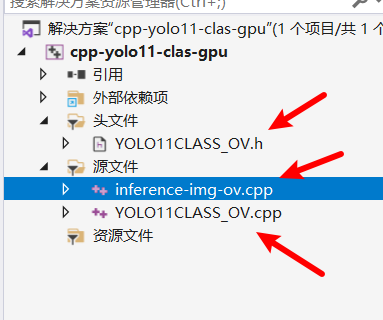

首先，我们需要修改原来的3个文件名为：

 1. inference-img-ov.cpp
 2. YOLO11CLASS_OV.cpp
 3. YOLO11CLASS_OV.h

其实，就是在原来文件名后面加了一个后缀ov表示：【openvino】！

在这里插入图片描述

inference-img-ov.cpp

// inference-img-ov.cpp
#include "include/YOLO11CLASS_OV.h"
#include <opencv2/highgui/highgui.hpp>
#include <iostream>
#include <string>
#include <chrono>
#include <stdexcept>
#include <fstream>
#include <vector>
#include <filesystem>
#include <iomanip>
#include <algorithm>

namespace fs = std::filesystem;

/**
 * @brief 获取目录中的所有图片文件
 */
std::vector<std::string> getImageFiles(const std::string& directory) {
    std::vector<std::string> imageFiles;

    try {
        for (const auto& entry : fs::directory_iterator(directory)) {
            if (entry.is_regular_file()) {
                std::string ext = entry.path().extension().string();
                std::transform(ext.begin(), ext.end(), ext.begin(), ::tolower);

                if (ext == ".jpg" || ext == ".jpeg" || ext == ".png" ||
                    ext == ".bmp" || ext == ".tiff" || ext == ".webp") {
                    imageFiles.push_back(entry.path().string());
                }
            }
        }

        // 按文件名排序
        std::sort(imageFiles.begin(), imageFiles.end());
    }
    catch (const std::exception& e) {
        std::cerr << "Error reading directory " << directory << ": " << e.what() << std::endl;
    }

    return imageFiles;
}

/**
 * @brief 批量处理图片
 */
void batchProcessImages(YOLO11Classifier_OV& classifier,
    const std::vector<std::string>& imagePaths,
    const std::string& outputDir = "results_ov") {

    // 创建输出目录
    if (!fs::exists(outputDir)) {
        fs::create_directory(outputDir);
    }

    std::cout << "\n" << std::string(60, '=') << std::endl;
    std::cout << "BATCH PROCESSING STARTED (OpenVINO)" << std::endl;
    std::cout << "Total images to process: " << imagePaths.size() << std::endl;
    std::cout << std::string(60, '=') << std::endl;

    // 统计信息
    std::vector<double> processingTimes;
    int successCount = 0;
    int failCount = 0;

    // 创建CSV文件记录结果
    std::ofstream csvFile(outputDir + "/results.csv");
    csvFile << "Image,Class,Class_ID,Confidence(%),Processing_Time(ms),Status\n";

    // 处理每张图片
    for (size_t i = 0; i < imagePaths.size(); ++i) {
        const std::string& imagePath = imagePaths[i];

        std::cout << "\n" << std::string(40, '-') << std::endl;
        std::cout << "Processing image " << (i + 1) << "/" << imagePaths.size() << std::endl;
        std::cout << "File: " << fs::path(imagePath).filename().string() << std::endl;

        try {
            // 加载图片
            cv::Mat image = cv::imread(imagePath, cv::IMREAD_COLOR);
            if (image.empty()) {
                std::cerr << "Failed to load image: " << imagePath << std::endl;
                csvFile << fs::path(imagePath).filename().string() << ",,,-1,FAILED_TO_LOAD\n";
                failCount++;
                continue;
            }

            // 开始计时
            auto startTime = std::chrono::high_resolution_clock::now();

            // 进行分类
            ClassificationResult result = classifier.classify(image);

            // 结束计时
            auto endTime = std::chrono::high_resolution_clock::now();
            auto duration = std::chrono::duration_cast<std::chrono::milliseconds>(endTime - startTime);

            processingTimes.push_back(duration.count());

            // 显示结果
            std::cout << "  Result: ";
            if (result.classId == -1) {
                std::cout << "❌ Classification failed" << std::endl;
                csvFile << fs::path(imagePath).filename().string() << ",,,-1,"
                    << duration.count() << ",FAILED\n";
                failCount++;
            }
            else {
                std::cout << "✅ " << result.className
                    << " (ID: " << result.classId
                    << ", Conf: " << std::fixed << std::setprecision(2)
                    << result.confidence * 100 << "%)" << std::endl;
                std::cout << "  Time: " << duration.count() << " ms" << std::endl;

                // 保存到CSV
                csvFile << fs::path(imagePath).filename().string() << ","
                    << result.className << ","
                    << result.classId << ","
                    << std::fixed << std::setprecision(2) << result.confidence * 100 << ","
                    << duration.count() << ",SUCCESS\n";

                // 在图像上绘制结果
                classifier.drawResult(image, result);

                // 保存结果图像
                std::string outputFilename = outputDir + "/" +
                    fs::path(imagePath).stem().string() + "_result.jpg";
                cv::imwrite(outputFilename, image);

                successCount++;
            }

        }
        catch (const std::exception& e) {
            std::cerr << "Error processing " << imagePath << ": " << e.what() << std::endl;
            csvFile << fs::path(imagePath).filename().string() << ",,,-1,ERROR\n";
            failCount++;
        }
    }

    // 关闭CSV文件
    csvFile.close();

    // 打印统计信息
    std::cout << "\n" << std::string(60, '=') << std::endl;
    std::cout << "BATCH PROCESSING COMPLETE" << std::endl;
    std::cout << std::string(60, '=') << std::endl;

    if (!processingTimes.empty()) {
        double totalTime = 0;
        double minTime = processingTimes[0];
        double maxTime = processingTimes[0];

        for (double time : processingTimes) {
            totalTime += time;
            if (time < minTime) minTime = time;
            if (time > maxTime) maxTime = time;
        }

        double avgTime = totalTime / processingTimes.size();

        std::cout << "\nPERFORMANCE STATISTICS:" << std::endl;
        std::cout << "  • Total images processed: " << imagePaths.size() << std::endl;
        std::cout << "  • Successful: " << successCount << std::endl;
        std::cout << "  • Failed: " << failCount << std::endl;
        std::cout << "  • Total processing time: " << totalTime << " ms" << std::endl;
        std::cout << "  • Average time per image: " << avgTime << " ms" << std::endl;
        std::cout << "  • Fastest image: " << minTime << " ms" << std::endl;
        std::cout << "  • Slowest image: " << maxTime << " ms" << std::endl;

        if (successCount > 1) {
            double fps = 1000.0 / avgTime;
            std::cout << "  • Estimated FPS: " << std::fixed << std::setprecision(2) << fps << std::endl;
        }
    }

    std::cout << "\nResults saved to: " << outputDir << "/" << std::endl;
    std::cout << "Detailed results in: " << outputDir << "/results.csv" << std::endl;
}

/**
 * @brief 异步批量处理图片（性能优化版）
 */
void batchProcessImagesAsync(YOLO11Classifier_OV& classifier,
    const std::vector<std::string>& imagePaths,
    const std::string& outputDir = "results_ov_async",
    size_t batchSize = 4) {

    // 创建输出目录
    if (!fs::exists(outputDir)) {
        fs::create_directory(outputDir);
    }

    std::cout << "\n" << std::string(60, '=') << std::endl;
    std::cout << "ASYNC BATCH PROCESSING STARTED (OpenVINO)" << std::endl;
    std::cout << "Batch size: " << batchSize << std::endl;
    std::cout << "Total images to process: " << imagePaths.size() << std::endl;
    std::cout << std::string(60, '=') << std::endl;

    // 统计信息
    std::vector<double> processingTimes;
    int successCount = 0;
    int failCount = 0;

    // 创建CSV文件记录结果
    std::ofstream csvFile(outputDir + "/results.csv");
    csvFile << "Image,Class,Class_ID,Confidence(%),Processing_Time(ms),Status\n";

    // 按批次处理图片
    for (size_t batchStart = 0; batchStart < imagePaths.size(); batchStart += batchSize) {
        size_t batchEnd = std::min(batchStart + batchSize, imagePaths.size());

        std::cout << "\nProcessing batch " << (batchStart / batchSize + 1)
                  << " (images " << batchStart + 1 << "-" << batchEnd << ")" << std::endl;

        // 收集当前批次的图片
        std::vector<cv::Mat> batchImages;
        std::vector<std::string> batchImagePaths;

        for (size_t i = batchStart; i < batchEnd; ++i) {
            try {
                cv::Mat image = cv::imread(imagePaths[i], cv::IMREAD_COLOR);
                if (image.empty()) {
                    std::cerr << "Failed to load image: " << imagePaths[i] << std::endl;
                    csvFile << fs::path(imagePaths[i]).filename().string() << ",,,-1,FAILED_TO_LOAD\n";
                    failCount++;
                    continue;
                }
                batchImages.push_back(image);
                batchImagePaths.push_back(imagePaths[i]);
            }
            catch (const std::exception& e) {
                std::cerr << "Error loading " << imagePaths[i] << ": " << e.what() << std::endl;
                failCount++;
            }
        }

        if (batchImages.empty()) continue;

        // 批量处理
        auto startTime = std::chrono::high_resolution_clock::now();

        // 这里可以实现OpenVINO的批量推理
        // 注意：需要修改YOLO11Classifier_OV类以支持批量推理
        std::vector<ClassificationResult> batchResults;

        // 暂时使用循环单张处理（可以后续优化为真正的批量推理）
        for (size_t i = 0; i < batchImages.size(); ++i) {
            try {
                ClassificationResult result = classifier.classify(batchImages[i]);
                batchResults.push_back(result);
            }
            catch (const std::exception& e) {
                std::cerr << "Error processing image in batch: " << e.what() << std::endl;
                batchResults.push_back(ClassificationResult());
            }
        }

        auto endTime = std::chrono::high_resolution_clock::now();
        auto duration = std::chrono::duration_cast<std::chrono::milliseconds>(endTime - startTime);
        double avgTimePerImage = duration.count() / static_cast<double>(batchImages.size());
        processingTimes.push_back(avgTimePerImage);

        // 处理结果
        for (size_t i = 0; i < batchResults.size(); ++i) {
            const std::string& imagePath = batchImagePaths[i];
            const ClassificationResult& result = batchResults[i];

            std::cout << "  " << fs::path(imagePath).filename().string() << ": ";

            if (result.classId == -1) {
                std::cout << "❌ Failed" << std::endl;
                csvFile << fs::path(imagePath).filename().string() << ",,,-1,"
                    << avgTimePerImage << ",FAILED\n";
                failCount++;
            }
            else {
                std::cout << "✅ " << result.className
                    << " (" << std::fixed << std::setprecision(2) << result.confidence * 100 << "%)" << std::endl;

                csvFile << fs::path(imagePath).filename().string() << ","
                    << result.className << ","
                    << result.classId << ","
                    << std::fixed << std::setprecision(2) << result.confidence * 100 << ","
                    << avgTimePerImage << ",SUCCESS\n";

                // 保存结果图像
                cv::Mat resultImage = batchImages[i].clone();
                classifier.drawResult(resultImage, result);
                std::string outputFilename = outputDir + "/" +
                    fs::path(imagePath).stem().string() + "_result.jpg";
                cv::imwrite(outputFilename, resultImage);

                successCount++;
            }
        }
    }

    // 关闭CSV文件
    csvFile.close();

    // 打印统计信息
    std::cout << "\n" << std::string(60, '=') << std::endl;
    std::cout << "ASYNC BATCH PROCESSING COMPLETE" << std::endl;
    std::cout << std::string(60, '=') << std::endl;

    if (!processingTimes.empty()) {
        double totalTime = 0;
        double minTime = processingTimes[0];
        double maxTime = processingTimes[0];

        for (double time : processingTimes) {
            totalTime += time;
            if (time < minTime) minTime = time;
            if (time > maxTime) maxTime = time;
        }

        double avgTime = totalTime / processingTimes.size();

        std::cout << "\nPERFORMANCE STATISTICS:" << std::endl;
        std::cout << "  • Total images processed: " << imagePaths.size() << std::endl;
        std::cout << "  • Successful: " << successCount << std::endl;
        std::cout << "  • Failed: " << failCount << std::endl;
        std::cout << "  • Average time per image: " << avgTime << " ms" << std::endl;
        std::cout << "  • Fastest batch (avg): " << minTime << " ms/image" << std::endl;
        std::cout << "  • Slowest batch (avg): " << maxTime << " ms/image" << std::endl;

        if (successCount > 1) {
            double fps = 1000.0 / avgTime;
            std::cout << "  • Estimated FPS: " << std::fixed << std::setprecision(2) << fps << std::endl;
        }
    }

    std::cout << "\nResults saved to: " << outputDir << "/" << std::endl;
    std::cout << "Detailed results in: " << outputDir << "/results.csv" << std::endl;
}

int main(int argc, char* argv[]) {
    try {
        std::cout << "\n" << std::string(60, '=') << std::endl;
        std::cout << "YOLO11 Batch Image Classification Demo (OpenVINO)" << std::endl;
        std::cout << std::string(60, '=') << std::endl;

        // 默认配置
        const std::string labelsPath = "./models/classes.txt";

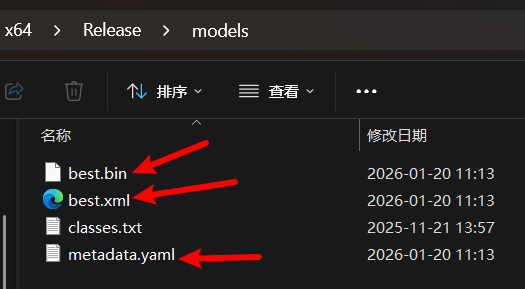

        const std::string modelPath = "./models/best.xml";  // OpenVINO IR模型
        std::string imageInput = "./data";  // 默认使用目录
        std::string deviceType = "GPU";     // 使用Intel集成显卡
        bool useAsync = false;
        bool singleImageMode = false;

        // 从命令行参数获取配置
        for (int i = 1; i < argc; ++i) {
            std::string arg = argv[i];

            if (arg == "--gpu" || arg == "-g") {
                deviceType = "GPU";
            }
            else if (arg == "--cpu" || arg == "-c") {
                deviceType = "CPU";
            }
            else if (arg == "--auto" || arg == "-a") {
                deviceType = "AUTO";
            }
            else if (arg == "--image" || arg == "-i") {
                if (i + 1 < argc) {
                    imageInput = argv[++i];
                    singleImageMode = true;
                }
            }
            else if (arg == "--dir" || arg == "-d") {
                if (i + 1 < argc) {
                    imageInput = argv[++i];
                    singleImageMode = false;
                }
            }
            else if (arg == "--async" || arg == "-async") {
                useAsync = true;
            }
            else if (arg == "--help" || arg == "-h") {
                std::cout << "\nUsage: " << argv[0] << " [options]" << std::endl;
                std::cout << "Options:" << std::endl;
                std::cout << "  -g, --gpu           Use Intel GPU (default)" << std::endl;
                std::cout << "  -c, --cpu           Use CPU" << std::endl;
                std::cout << "  -a, --auto          Auto-select device (AUTO)" << std::endl;
                std::cout << "  -i, --image <path>  Process single image" << std::endl;
                std::cout << "  -d, --dir <path>    Process all images in directory (default)" << std::endl;
                std::cout << "  --async             Use async batch processing" << std::endl;
                std::cout << "  -h, --help          Show this help message" << std::endl;
                std::cout << "\nDevice options: GPU, CPU, AUTO (GPU is best for Intel UHD Graphics)" << std::endl;
                return 0;
            }
        }

        // 检查模型文件是否存在
        std::ifstream modelFile(modelPath);
        if (!modelFile.good()) {
            std::cerr << "Error: OpenVINO model file not found: " << modelPath << std::endl;
            std::cerr << "Expected IR model files: .xml and .bin" << std::endl;
            return -1;
        }
        modelFile.close();

        // 检查标签文件是否存在
        std::ifstream labelsFile(labelsPath);
        if (!labelsFile.good()) {
            std::cerr << "Warning: Labels file not found: " << labelsPath << std::endl;
        }
        else {
            labelsFile.close();
        }

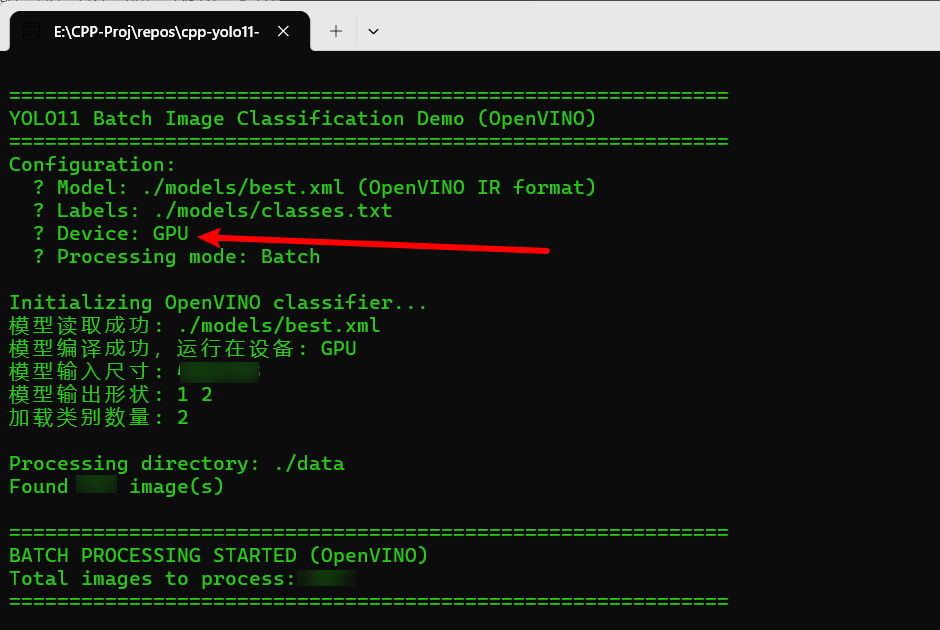

        std::cout << "Configuration:" << std::endl;
        std::cout << "  • Model: " << modelPath << " (OpenVINO IR format)" << std::endl;
        std::cout << "  • Labels: " << labelsPath << std::endl;
        std::cout << "  • Device: " << deviceType << std::endl;
        std::cout << "  • Processing mode: " << (useAsync ? "Async batch" : (singleImageMode ? "Single image" : "Batch")) << std::endl;

        // 创建OpenVINO分类器
        std::cout << "\nInitializing OpenVINO classifier..." << std::endl;
        YOLO11Classifier_OV classifier(modelPath, labelsPath, deviceType);

        // 处理图片
        if (singleImageMode) {
            // 单图模式
            std::cout << "\nProcessing single image: " << imageInput << std::endl;

            std::ifstream imageFile(imageInput);
            if (!imageFile.good()) {
                std::cerr << "Error: Image file not found: " << imageInput << std::endl;
                return -1;
            }
            imageFile.close();

            cv::Mat image = cv::imread(imageInput, cv::IMREAD_COLOR);
            if (image.empty()) {
                std::cerr << "Error: Failed to load image from: " << imageInput << std::endl;
                return -1;
            }

            auto startTime = std::chrono::high_resolution_clock::now();
            ClassificationResult result = classifier.classify(image);
            auto endTime = std::chrono::high_resolution_clock::now();
            auto totalDuration = std::chrono::duration_cast<std::chrono::milliseconds>(endTime - startTime);

            std::cout << "\n" << std::string(60, '*') << std::endl;
            std::cout << "RESULT (OpenVINO)" << std::endl;
            std::cout << std::string(60, '*') << std::endl;

            if (result.classId == -1) {
                std::cout << "❌ Classification failed!" << std::endl;
            }
            else {
                std::cout << "✅ Classification Successful!" << std::endl;
                std::cout << "  • File: " << fs::path(imageInput).filename().string() << std::endl;
                std::cout << "  • Predicted class: " << result.className << std::endl;
                std::cout << "  • Class ID: " << result.classId << std::endl;
                std::cout << "  • Confidence: " << std::fixed << std::setprecision(2)
                    << result.confidence * 100 << "%" << std::endl;
                std::cout << "  • Processing time: " << totalDuration.count() << " ms" << std::endl;

                // 保存结果
                classifier.drawResult(image, result);
                std::string outputPath = "single_result_ov.jpg";
                cv::imwrite(outputPath, image);
                std::cout << "  • Result saved to: " << outputPath << std::endl;
            }

        }
        else {
            // 批量模式
            std::cout << "\nProcessing directory: " << imageInput << std::endl;

            std::vector<std::string> imageFiles = getImageFiles(imageInput);
            if (imageFiles.empty()) {
                std::cerr << "Error: No image files found in directory: " << imageInput << std::endl;

                // 检查是否是单个文件
                if (fs::is_regular_file(imageInput)) {
                    std::cout << "Found single file, switching to single image mode..." << std::endl;
                    std::string ext = fs::path(imageInput).extension().string();
                    std::transform(ext.begin(), ext.end(), ext.begin(), ::tolower);

                    if (ext == ".jpg" || ext == ".jpeg" || ext == ".png" ||
                        ext == ".bmp" || ext == ".tiff") {
                        imageFiles.push_back(imageInput);
                        singleImageMode = true;
                        // 重新运行单图模式逻辑
                        cv::Mat image = cv::imread(imageInput, cv::IMREAD_COLOR);
                        if (image.empty()) {
                            std::cerr << "Error: Failed to load image from: " << imageInput << std::endl;
                            return -1;
                        }

                        auto startTime = std::chrono::high_resolution_clock::now();
                        ClassificationResult result = classifier.classify(image);
                        auto endTime = std::chrono::high_resolution_clock::now();
                        auto totalDuration = std::chrono::duration_cast<std::chrono::milliseconds>(endTime - startTime);

                        std::cout << "\n" << std::string(60, '*') << std::endl;
                        std::cout << "RESULT (OpenVINO)" << std::endl;
                        std::cout << std::string(60, '*') << std::endl;

                        if (result.classId == -1) {
                            std::cout << "❌ Classification failed!" << std::endl;
                        }
                        else {
                            std::cout << "✅ Classification Successful!" << std::endl;
                            std::cout << "  • File: " << fs::path(imageInput).filename().string() << std::endl;
                            std::cout << "  • Predicted class: " << result.className << std::endl;
                            std::cout << "  • Class ID: " << result.classId << std::endl;
                            std::cout << "  • Confidence: " << std::fixed << std::setprecision(2)
                                << result.confidence * 100 << "%" << std::endl;
                            std::cout << "  • Processing time: " << totalDuration.count() << " ms" << std::endl;

                            classifier.drawResult(image, result);
                            std::string outputPath = "single_result_ov.jpg";
                            cv::imwrite(outputPath, image);
                            std::cout << "  • Result saved to: " << outputPath << std::endl;
                        }
                        return 0;
                    }
                }

                if (imageFiles.empty()) {
                    return -1;
                }
            }

            std::cout << "Found " << imageFiles.size() << " image(s)" << std::endl;

            if (useAsync) {
                batchProcessImagesAsync(classifier, imageFiles);
            } else {
                batchProcessImages(classifier, imageFiles);
            }
        }

        std::cout << "\n" << std::string(60, '=') << std::endl;
        std::cout << "OpenVINO Program Completed" << std::endl;
        std::cout << std::string(60, '=') << std::endl;

        return 0;

    }
    catch (const std::exception& e) {
        std::cerr << "\n" << std::string(60, '!') << std::endl;
        std::cerr << "FATAL ERROR: " << e.what() << std::endl;
        std::cerr << std::string(60, '!') << std::endl;
        return -1;
    }
}

YOLO11CLASS_OV.cpp

// YOLO11CLASS_OV.cpp
#include "include/YOLO11CLASS_OV.h"
#include <fstream>
#include <iostream>
#include <sstream>
#include <iomanip>


namespace utils_ov {
    std::vector<std::string> getClassNames(const std::string& path) {
        std::vector<std::string> classNames;
        std::ifstream infile(path);
        std::string line;
        while (std::getline(infile, line)) {
            if (!line.empty()) {
                if (line.back() == '\r') line.pop_back();
                classNames.push_back(line);
            }
        }
        if (classNames.empty()) {
            std::cerr << "警告: 类别名称文件为空或加载失败: " << path << std::endl;
        }
        return classNames;
    }

    void preprocessImage(const cv::Mat& image, cv::Mat& outImage, const cv::Size& targetShape) {
        if (image.empty()) return;
        cv::resize(image, outImage, targetShape, 0, 0, cv::INTER_LINEAR);
    }

    void drawClassificationResult(cv::Mat& image, const ClassificationResult& result, const cv::Point& position) {
        if (result.classId == -1) return;
        std::ostringstream ss;
        ss << result.className << ": " << std::fixed << std::setprecision(2) << result.confidence * 100 << "%";
        std::string text = ss.str();
        int fontFace = cv::FONT_HERSHEY_SIMPLEX;
        double fontScale = 0.7;
        int thickness = 2;
        int baseline = 0;
        cv::Size textSize = cv::getTextSize(text, fontFace, fontScale, thickness, &baseline);
        cv::rectangle(image, position, cv::Point(position.x + textSize.width, position.y + textSize.height + baseline), cv::Scalar(0, 0, 0), cv::FILLED);
        cv::putText(image, text, cv::Point(position.x, position.y + textSize.height), fontFace, fontScale, cv::Scalar(0, 255, 0), thickness);
    }
}

// 构造函数：加载OpenVINO IR模型
YOLO11Classifier_OV::YOLO11Classifier_OV(const std::string& modelPath, const std::string& labelsPath, const std::string& device)
    : device_(device) {
    try {
        // 1. 读取模型
        model_ = core_.read_model(modelPath);
        std::cout << "模型读取成功: " << modelPath << std::endl;

        // 2. 配置并编译模型
        ov::preprocess::PrePostProcessor ppp(model_);
        // 配置输入（假设模型只有一个输入）
        auto& input = ppp.input();
        input.tensor()
            .set_element_type(ov::element::f32)
            .set_layout("NCHW"); // 设置内存布局为NCHW
        input.model().set_layout("NCHW");
        model_ = ppp.build();

        // 编译模型到指定设备（如"GPU"）
        compiled_model_ = core_.compile_model(model_, device_);
        infer_request_ = compiled_model_.create_infer_request();
        std::cout << "模型编译成功，运行在设备: " << device_ << std::endl;

        // 3. 获取输入输出信息
        auto input_port = compiled_model_.input();
        inputTensorShape_ = input_port.get_shape(); // 形如 [1, 3, H, W]
        if (inputTensorShape_.size() == 4) {
            inputImageShape_.height = static_cast<int>(inputTensorShape_[2]);
            inputImageShape_.width = static_cast<int>(inputTensorShape_[3]);
            std::cout << "模型输入尺寸: " << inputImageShape_.width << "x" << inputImageShape_.height << std::endl;
        }

        auto output_port = compiled_model_.output();
        outputTensorShape_ = output_port.get_shape();
        std::cout << "模型输出形状: ";
        for (auto dim : outputTensorShape_) std::cout << dim << " ";
        std::cout << std::endl;

        // 4. 加载类别名
        classNames_ = utils_ov::getClassNames(labelsPath);
        std::cout << "加载类别数量: " << classNames_.size() << std::endl;

    }
    catch (const std::exception& e) {
        std::cerr << "初始化失败: " << e.what() << std::endl;
        throw;
    }
}

// 预处理：调整尺寸、BGR2RGB、归一化、HWC转CHW
void YOLO11Classifier_OV::preprocess(const cv::Mat& image, std::vector<float>& blob) {
    cv::Mat resized, rgb;
    utils_ov::preprocessImage(image, resized, inputImageShape_);
    cv::cvtColor(resized, rgb, cv::COLOR_BGR2RGB);
    rgb.convertTo(rgb, CV_32FC3, 1.0 / 255.0);

    // HWC [H, W, C] -> CHW [C, H, W]
    int channels = 3;
    int height = inputImageShape_.height;
    int width = inputImageShape_.width;
    blob.resize(channels * height * width);
    std::vector<cv::Mat> splitChannels;
    cv::split(rgb, splitChannels);
    for (int c = 0; c < channels; ++c) {
        memcpy(blob.data() + c * height * width, splitChannels[c].data, height * width * sizeof(float));
    }
}

// 核心分类函数
// 在 classify 函数中修改：
ClassificationResult YOLO11Classifier_OV::classify(const cv::Mat& image) {
    if (image.empty()) {
        std::cerr << "输入图像为空。" << std::endl;
        return ClassificationResult();
    }
    try {
        // 1. 预处理
        std::vector<float> inputBlob;
        preprocess(image, inputBlob);

        // 2. 创建输入Tensor并填充数据（修复的方法）
        ov::Tensor inputTensor(ov::element::f32, inputTensorShape_, inputBlob.data());

        // 3. 设置输入张量
        infer_request_.set_input_tensor(inputTensor);

        // 4. 同步推理
        infer_request_.infer();

        // 5. 获取输出并后处理
        auto outputTensor = infer_request_.get_output_tensor();
        return postprocess(outputTensor);

    }
    catch (const std::exception& e) {
        std::cerr << "推理过程中发生错误: " << e.what() << std::endl;
        return ClassificationResult();
    }
}

// 绘制结果 (直接调用工具函数)
void YOLO11Classifier_OV::drawResult(cv::Mat& image, const ClassificationResult& result, const cv::Point& position) const {
    utils_ov::drawClassificationResult(image, result, position);
}

// 修改后的 postprocess 函数
ClassificationResult YOLO11Classifier_OV::postprocess(const ov::Tensor& outputTensor) {
    if (outputTensor.get_element_type() != ov::element::f32) {
        std::cerr << "错误: 输出张量数据类型不是 f32" << std::endl;
        return ClassificationResult(-1, 0.0f, "无效输出");
    }
    const float* rawOutput = outputTensor.data<const float>();
    if (!rawOutput) {
        std::cerr << "错误: 输出张量为空" << std::endl;
        return ClassificationResult(-1, 0.0f, "无效输出");
    }


    ov::Shape shape = outputTensor.get_shape();
    if (shape.empty()) {
        std::cerr << "错误: 输出张量形状为空" << std::endl;
        return ClassificationResult(-1, 0.0f, "无效输出");
    }

    size_t numClasses = shape.back(); // 输出形状通常为[1, num_classes]

    if (numClasses == 0) {
        std::cerr << "错误: 输出张量类别数为0" << std::endl;
        return ClassificationResult(-1, 0.0f, "无效输出");
    }

    // 找到最大值的索引
    int bestClassId = 0;
    float maxScore = rawOutput[0];
    for (size_t i = 1; i < numClasses; ++i) {
        if (rawOutput[i] > maxScore) {
            maxScore = rawOutput[i];
            bestClassId = static_cast<int>(i);
        }
    }

    std::string className;
    if (!classNames_.empty() && bestClassId >= 0 && bestClassId < static_cast<int>(classNames_.size())) {
        className = classNames_[bestClassId];
    }
    else {
        className = "Class_" + std::to_string(bestClassId);
    }
    return ClassificationResult(bestClassId, maxScore, className);
}

YOLO11CLASS_OV.h

// YOLO11CLASS_OV.h
#pragma once

#include <opencv2/opencv.hpp>
#include <openvino/openvino.hpp> // 核心变更：包含OpenVINO头文件
#include <string>
#include <vector>
#include <memory>

// 分类结果结构体保持不变
struct ClassificationResult {
    int classId;
    float confidence;
    std::string className;
    ClassificationResult(int id = -1, float conf = 0.0f, const std::string& name = "")
        : classId(id), confidence(conf), className(name) {}
};

namespace utils_ov {
    // 工具函数声明 (实现部分变化不大)
    std::vector<std::string> getClassNames(const std::string& path);
    void preprocessImage(const cv::Mat& image, cv::Mat& outImage, const cv::Size& targetShape);
    void drawClassificationResult(cv::Mat& image, const ClassificationResult& result, const cv::Point& position = cv::Point(10, 10));
}

class YOLO11Classifier_OV {
public:
    // 构造函数：接收IR模型路径(.xml)和标签路径
    YOLO11Classifier_OV(const std::string& modelPath, const std::string& labelsPath, const std::string& device = "GPU");
    ~YOLO11Classifier_OV() = default;

    ClassificationResult classify(const cv::Mat& image);
    void drawResult(cv::Mat& image, const ClassificationResult& result, const cv::Point& position = cv::Point(10, 10)) const;

private:
    void preprocess(const cv::Mat& image, std::vector<float>& blob);
    ClassificationResult postprocess(const ov::Tensor& outputTensor);

    // OpenVINO 核心对象[citation:2]
    ov::Core core_;
    std::shared_ptr<ov::Model> model_;
    ov::CompiledModel compiled_model_;
    ov::InferRequest infer_request_;

    // 模型信息
    cv::Size inputImageShape_;
    std::vector<std::string> classNames_;
    ov::Shape inputTensorShape_;
    ov::Shape outputTensorShape_;
    std::string device_;
};

编译运行

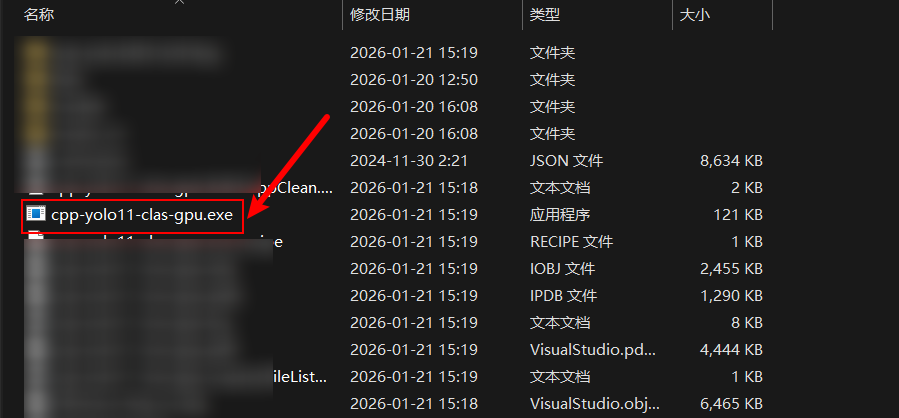

然后，我们编译代码，就会生成：cpp-yolo11-clas-gpu.exe。
在这里插入图片描述
直接运行一定会提示缺少dll文件。因此，还需继续往下操作。

拷贝dll

我们首先删除cuda和cudnn相关的依赖dll文件。
然后，从openvino的文件夹里面：

E:\CPP-Proj\repos\cpp-yolo11-clas-gpu-openvino\w_openvino_toolkit_windows_2024.6.0.17404.4c0f47d2335_x86_64\runtime\bin\intel64\Release

E:\CPP-Proj\repos\cpp-yolo11-clas-gpu-openvino\w_openvino_toolkit_windows_2024.6.0.17404.4c0f47d2335_x86_64\runtime\3rdparty\tbb\bin

中，把所有的dll复制过来。后来经过测试；发现以下几个是必须的的dll：
在这里插入图片描述

模型转换

使用训练后得到的pt模型转换为OpenVINO模型，转换后会得到3个文件：

best.bin
best.xml
metadata.yaml

然后，我们将标签文件也放到models里面去，如下：
在这里插入图片描述

大功告成！
这样，运行exe，就会成功！
在这里插入图片描述

# 分类 # openvino
Logo
腾讯云开发者社区

腾讯云面向开发者汇聚海量精品云计算使用和开发经验，营造开放的云计算技术生态圈。

更多推荐

终极指南：Flink SQL连接器版本管理从混乱到有序的升级之路

Apache Flink作为流处理领域的佼佼者，其SQL连接器的版本管理一直是开发者面临的核心挑战。本文将系统讲解Flink SQL连接器版本管理的最佳实践，帮助你轻松应对版本兼容性问题，实现从混乱到有序的升级之旅。## 连接器版本管理的常见痛点 😫在Flink应用开发中，连接器版本管理常常让开发者头疼不已。不同版本的连接器可能导致各种兼容性问题，例如API变更、功能差异甚至运行时错误。

avatar 腾讯云开发者社区

Elasticsearch复杂数据类型终极指南：从入门到精通

Elasticsearch作为功能强大的搜索引擎，支持多种复杂数据类型，让开发者能够灵活处理各种结构化和非结构化数据。本文将带你全面了解Elasticsearch中的复杂数据类型，从基础概念到实际应用，助你轻松掌握数据建模的核心技巧。## 内部对象：构建层级化数据结构在Elasticsearch中，对象类型（Object）是最基础的复杂数据类型之一，用于表示具有嵌套关系的数据。例如，我们可

avatar 腾讯云开发者社区

如何快速搭建Neon无服务器PostgreSQL：面向初学者的完整指南

Neon是一款革命性的无服务器PostgreSQL解决方案，它通过分离存储和计算层，实现了自动扩缩容、类代码式数据库分支以及零级扩展能力。本指南将帮助你从零开始搭建Neon开发环境，体验这款创新数据库的强大功能。## 准备工作：环境要求与依赖项在开始搭建Neon环境前，请确保你的系统满足以下要求：- Linux操作系统（推荐Ubuntu 20.04+或Debian 11+）- Git

avatar 腾讯云开发者社区
