软件	版本
nacos	3.1.1
jdk	17
maven	3.6.3

一、克隆源码

1.1. git 克隆源码

git clone https://github.com/alibaba/nacos.git

切换tag到3.1.1

git checkout tags/3.1.1

1.2. 直接点击下载

直接下载也可以
https://github.com/alibaba/nacos/archive/refs/tags/3.1.1.zip

二、修改源码集成PostgreSQL

2.1. 创建postgresql目录

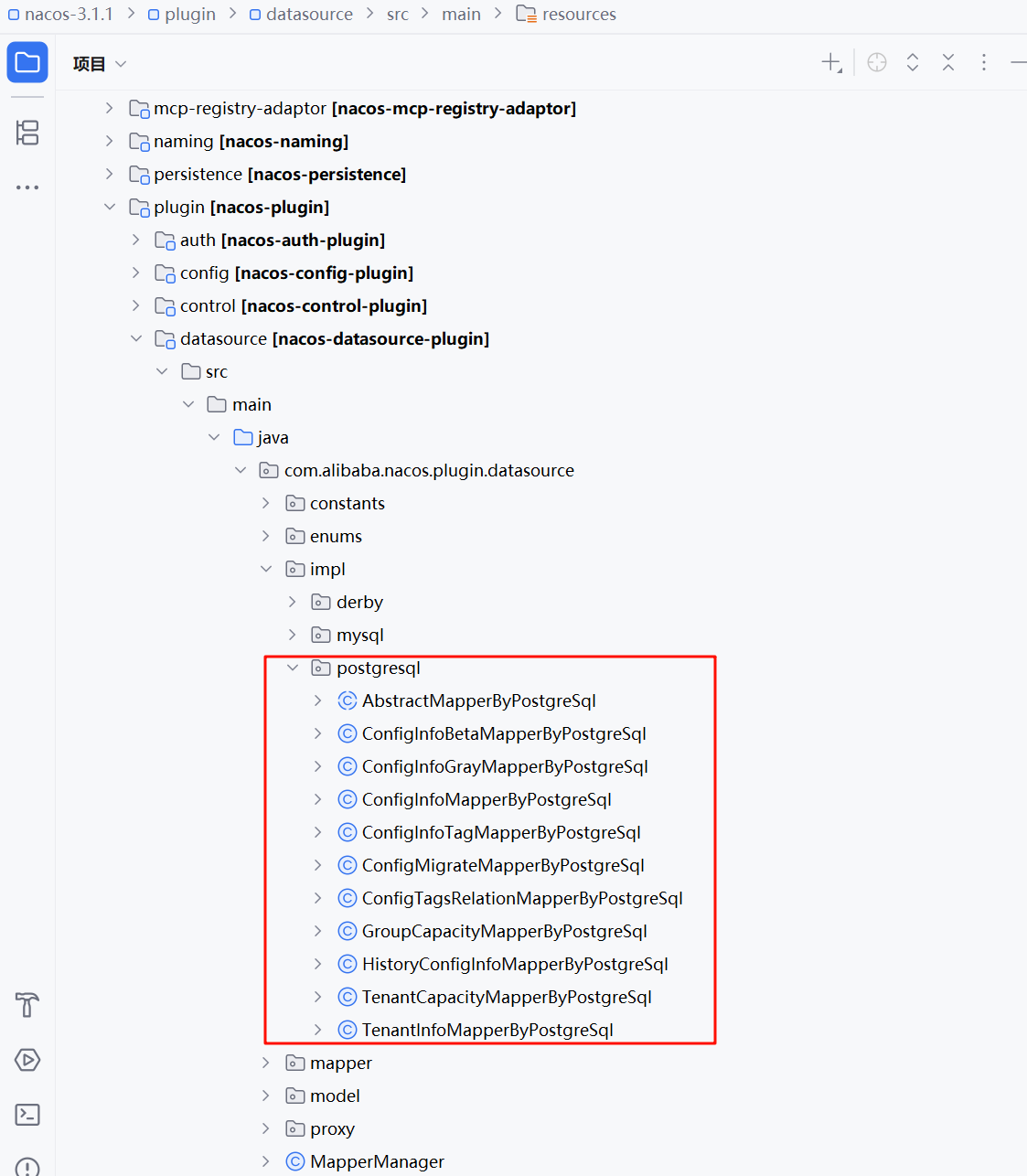

在代码找到com.alibaba.nacos.plugin.datasource.impl这个目录，创建postgresql，如下图:

postgresql代码直接从mysql复制过来，修改一下后缀即可
通过网盘分享的文件：postgresql.zip
链接: https://pan.baidu.com/s/1VezqFiXt0T4rVuzgcHrypg?pwd=ixn6 提取码: ixn6，如果失效源码可以私信

https://pan.baidu.com/s/1VezqFiXt0T4rVuzgcHrypg?pwd=ixn6

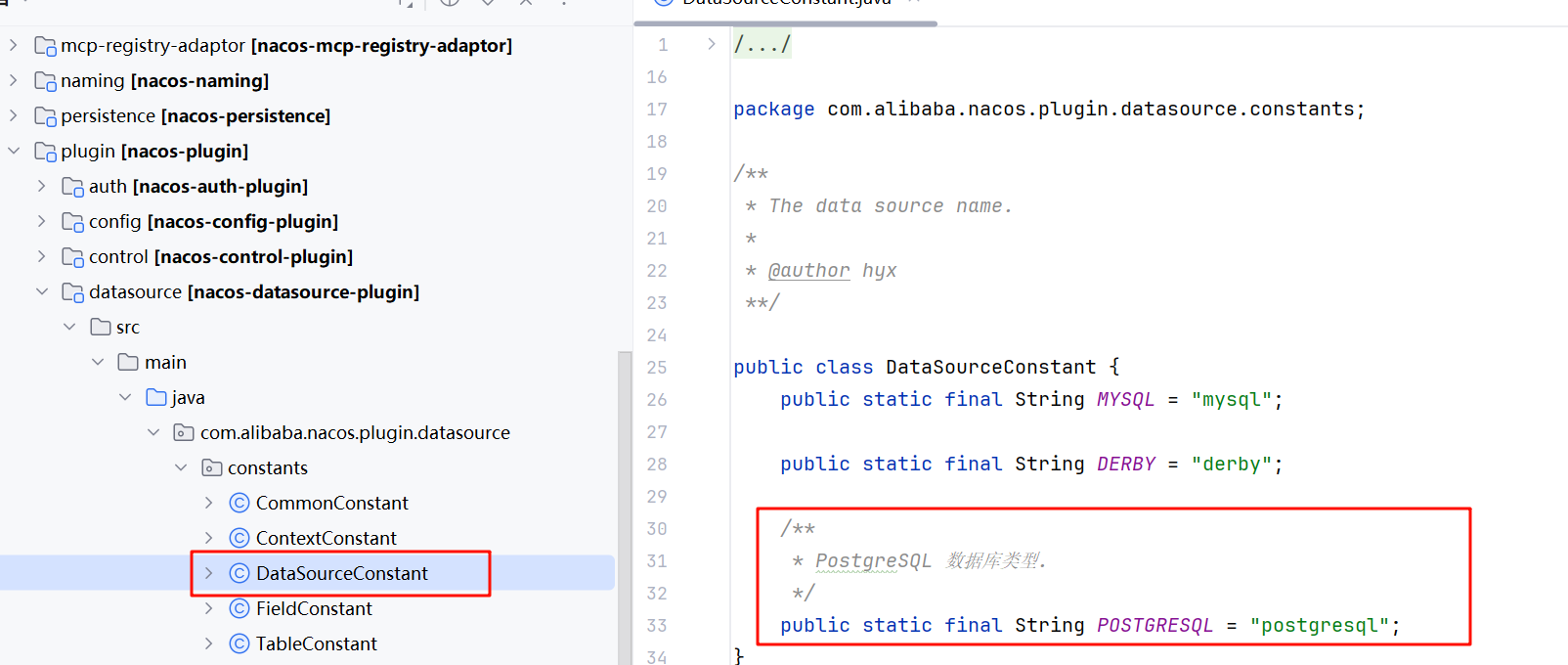

2.2 修改 DataSourceConstant

新增pgsql的常量（注释不要删，不然打包会报错），如下:

    /**
     * PostgreSQL 数据库类型.
     */
    public static final String POSTGRESQL = "postgresql";

2.3 修改ConfigInfoBetaMapperByPostgreSql

声明：复制mysql文件时，需要替换下面文件内容，如果使用我提供的zip包中文件，此步骤，可以跳过

/*
 * Copyright 1999-2022 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.alibaba.nacos.plugin.datasource.impl.postgresql;

import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoBetaMapper;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

import java.util.ArrayList;
import java.util.List;

/**
 * The mysql implementation of ConfigInfoBetaMapper.
 *
 * @author hyx
 **/

public class ConfigInfoBetaMapperByPostgreSql extends AbstractMapperByPostgreSql implements ConfigInfoBetaMapper {

    @Override
    public MapperResult findAllConfigInfoBetaForDumpAllFetchRows(MapperContext context) {
        int startRow = context.getStartRow();
        int pageSize = context.getPageSize();
        String sql = " SELECT t.id,data_id,group_id,tenant_id,app_name,content,md5,gmt_modified,beta_ips,encrypted_data_key "
                + " FROM ( SELECT id FROM config_info_beta  ORDER BY id OFFSET " + startRow + " LIMIT " + pageSize + " )"
                + "  g, config_info_beta t WHERE g.id = t.id ";
        List<Object> paramList = new ArrayList<>();
        paramList.add(startRow);
        paramList.add(pageSize);

        return new MapperResult(sql, paramList);
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.POSTGRESQL;
    }
}

2.4 修改ConfigInfoMapperByPostgreSql

声明：复制mysql文件时，需要替换下面文件内容，如果使用我提供的zip包中文件，此步骤，可以跳过

/*
 * Copyright 1999-2022 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.alibaba.nacos.plugin.datasource.impl.postgresql;

import com.alibaba.nacos.common.utils.ArrayUtils;
import com.alibaba.nacos.common.utils.CollectionUtils;
import com.alibaba.nacos.common.utils.NamespaceUtil;
import com.alibaba.nacos.common.utils.StringUtils;
import com.alibaba.nacos.plugin.datasource.constants.ContextConstant;
import com.alibaba.nacos.plugin.datasource.constants.DataSourceConstant;
import com.alibaba.nacos.plugin.datasource.constants.FieldConstant;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ext.WhereBuilder;
import com.alibaba.nacos.plugin.datasource.model.MapperContext;
import com.alibaba.nacos.plugin.datasource.model.MapperResult;

import java.sql.Timestamp;
import java.util.ArrayList;
import java.util.Collections;
import java.util.List;

/**
 * The mysql implementation of ConfigInfoMapper.
 *
 * @author hyx
 **/

public class ConfigInfoMapperByPostgreSql extends AbstractMapperByPostgreSql implements ConfigInfoMapper {

    private static final String DATA_ID = "dataId";

    private static final String GROUP = "group";

    private static final String APP_NAME = "appName";

    private static final String CONTENT = "content";

    private static final String TENANT = "tenant";

    @Override
    public MapperResult findConfigInfoByAppFetchRows(MapperContext context) {
        final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);
        final String tenantId = (String) context.getWhereParameter(FieldConstant.TENANT_ID);
        String sql = "SELECT id,data_id,group_id,tenant_id,app_name,content FROM config_info"
                + " WHERE tenant_id LIKE ? AND app_name= ?" + " OFFSET " + context.getStartRow() + " LIMIT "
                + context.getPageSize();
        return new MapperResult(sql, CollectionUtils.list(tenantId, appName));
    }

    @Override
    public MapperResult getTenantIdList(MapperContext context) {
        String sql = "SELECT tenant_id FROM config_info WHERE tenant_id != '" + NamespaceUtil.getNamespaceDefaultId()
                + "' GROUP BY tenant_id OFFSET " + context.getStartRow() + " LIMIT " + context.getPageSize();
        return new MapperResult(sql, Collections.emptyList());
    }

    @Override
    public MapperResult getGroupIdList(MapperContext context) {
        String sql = "SELECT group_id FROM config_info WHERE tenant_id ='" + NamespaceUtil.getNamespaceDefaultId()
                + "' GROUP BY group_id OFFSET " + context.getStartRow() + " LIMIT " + context.getPageSize();
        return new MapperResult(sql, Collections.emptyList());
    }

    @Override
    public MapperResult findAllConfigKey(MapperContext context) {
        String sql = " SELECT data_id,group_id,app_name  FROM ( "
                + " SELECT id FROM config_info WHERE tenant_id LIKE ? ORDER BY id OFFSET " + context.getStartRow() + " LIMIT "
                + context.getPageSize() + " )" + " g, config_info t WHERE g.id = t.id  ";
        return new MapperResult(sql, CollectionUtils.list(context.getWhereParameter(FieldConstant.TENANT_ID)));
    }

    @Override
    public MapperResult findAllConfigInfoBaseFetchRows(MapperContext context) {
        String sql =
                "SELECT t.id,data_id,group_id,content,md5" + " FROM ( SELECT id FROM config_info ORDER BY id OFFSET "
                        + context.getStartRow() + " LIMIT " + context.getPageSize() + " )"
                        + " g, config_info t  WHERE g.id = t.id ";
        return new MapperResult(sql, Collections.emptyList());
    }

    @Override
    public MapperResult findAllConfigInfoFragment(MapperContext context) {
        String contextParameter = context.getContextParameter(ContextConstant.NEED_CONTENT);
        boolean needContent = contextParameter != null && Boolean.parseBoolean(contextParameter);
        String sql = "SELECT id,data_id,group_id,tenant_id,app_name," + (needContent ? "content," : "")
                + "md5,gmt_modified,type,encrypted_data_key FROM config_info WHERE id > ? ORDER BY id ASC OFFSET "
                + context.getStartRow() + " LIMIT " + context.getPageSize();
        return new MapperResult(sql, CollectionUtils.list(context.getWhereParameter(FieldConstant.ID)));
    }

    @Override
    public MapperResult findChangeConfigFetchRows(MapperContext context) {
        final String tenant = (String) context.getWhereParameter(FieldConstant.TENANT_ID);
        final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
        final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
        final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);
        final String tenantTmp = StringUtils.isBlank(tenant) ? StringUtils.EMPTY : tenant;
        final Timestamp startTime = (Timestamp) context.getWhereParameter(FieldConstant.START_TIME);
        final Timestamp endTime = (Timestamp) context.getWhereParameter(FieldConstant.END_TIME);

        List<Object> paramList = new ArrayList<>();

        final String sqlFetchRows = "SELECT id,data_id,group_id,tenant_id,app_name,type,md5,gmt_modified FROM config_info WHERE ";
        String where = " 1=1 ";
        if (!StringUtils.isBlank(dataId)) {
            where += " AND data_id LIKE ? ";
            paramList.add(dataId);
        }
        if (!StringUtils.isBlank(group)) {
            where += " AND group_id LIKE ? ";
            paramList.add(group);
        }

        if (!StringUtils.isBlank(tenantTmp)) {
            where += " AND tenant_id = ? ";
            paramList.add(tenantTmp);
        }

        if (!StringUtils.isBlank(appName)) {
            where += " AND app_name = ? ";
            paramList.add(appName);
        }
        if (startTime != null) {
            where += " AND gmt_modified >=? ";
            paramList.add(startTime);
        }
        if (endTime != null) {
            where += " AND gmt_modified <=? ";
            paramList.add(endTime);
        }
        return new MapperResult(
                sqlFetchRows + where + " AND id > " + context.getWhereParameter(FieldConstant.LAST_MAX_ID)
                        + " ORDER BY id ASC" + " LIMIT " + 0 + "," + context.getPageSize(), paramList);
    }

    @Override
    public MapperResult listGroupKeyMd5ByPageFetchRows(MapperContext context) {
        String sql = "SELECT t.id,data_id,group_id,tenant_id,app_name,md5,type,gmt_modified,encrypted_data_key FROM "
                + "( SELECT id FROM config_info ORDER BY id OFFSET " + context.getStartRow() + " LIMIT "
                + context.getPageSize() + " ) g, config_info t WHERE g.id = t.id";
        return new MapperResult(sql, Collections.emptyList());
    }

    @Override
    public MapperResult findConfigInfoBaseLikeFetchRows(MapperContext context) {
        final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
        final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
        final String content = (String) context.getWhereParameter(FieldConstant.CONTENT);

        final String sqlFetchRows = "SELECT id,data_id,group_id,tenant_id,content FROM config_info WHERE ";
        String where = " 1=1 AND tenant_id='" + NamespaceUtil.getNamespaceDefaultId() + "' ";

        List<Object> paramList = new ArrayList<>();

        if (!StringUtils.isBlank(dataId)) {
            where += " AND data_id LIKE ? ";
            paramList.add(dataId);
        }
        if (!StringUtils.isBlank(group)) {
            where += " AND group_id LIKE ";
            paramList.add(group);
        }
        if (!StringUtils.isBlank(content)) {
            where += " AND content LIKE ? ";
            paramList.add(content);
        }
        return new MapperResult(sqlFetchRows + where + " OFFSET " + context.getStartRow() + " LIMIT " + context.getPageSize(),
                paramList);
    }

    @Override
    public MapperResult findConfigInfo4PageFetchRows(MapperContext context) {
        final String tenant = (String) context.getWhereParameter(FieldConstant.TENANT_ID);
        final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
        final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
        final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);
        final String content = (String) context.getWhereParameter(FieldConstant.CONTENT);

        List<Object> paramList = new ArrayList<>();

        final String sql = "SELECT id,data_id,group_id,tenant_id,app_name,content,md5,type,encrypted_data_key FROM config_info";
        StringBuilder where = new StringBuilder(" WHERE ");
        where.append(" tenant_id=? ");
        paramList.add(tenant);
        if (StringUtils.isNotBlank(dataId)) {
            where.append(" AND data_id=? ");
            paramList.add(dataId);
        }
        if (StringUtils.isNotBlank(group)) {
            where.append(" AND group_id=? ");
            paramList.add(group);
        }
        if (StringUtils.isNotBlank(appName)) {
            where.append(" AND app_name=? ");
            paramList.add(appName);
        }
        if (!StringUtils.isBlank(content)) {
            where.append(" AND content LIKE ? ");
            paramList.add(content);
        }
        return new MapperResult(sql + where + " OFFSET " + context.getStartRow() + " LIMIT " + context.getPageSize(),
                paramList);
    }

    @Override
    public MapperResult findConfigInfoBaseByGroupFetchRows(MapperContext context) {
        String sql = "SELECT id,data_id,group_id,content FROM config_info WHERE group_id=? AND tenant_id=?" + " OFFSET "
                + context.getStartRow() + " LIMIT " + context.getPageSize();
        return new MapperResult(sql, CollectionUtils.list(context.getWhereParameter(FieldConstant.GROUP_ID),
                context.getWhereParameter(FieldConstant.TENANT_ID)));
    }

    @Override
    public MapperResult findConfigInfoLike4PageFetchRows(MapperContext context) {
        final String tenant = (String) context.getWhereParameter(FieldConstant.TENANT_ID);
        final String dataId = (String) context.getWhereParameter(FieldConstant.DATA_ID);
        final String group = (String) context.getWhereParameter(FieldConstant.GROUP_ID);
        final String appName = (String) context.getWhereParameter(FieldConstant.APP_NAME);
        final String content = (String) context.getWhereParameter(FieldConstant.CONTENT);
        final String[] types = (String[]) context.getWhereParameter(FieldConstant.TYPE);

        WhereBuilder where = new WhereBuilder(
                "SELECT id,data_id,group_id,tenant_id,app_name,content,md5,encrypted_data_key,type FROM config_info");
        where.like("tenant_id", tenant);

        if (StringUtils.isNotBlank(dataId)) {
            where.and().like("data_id", dataId);
        }
        if (StringUtils.isNotBlank(group)) {
            where.and().like("group_id", group);
        }
        if (StringUtils.isNotBlank(appName)) {
            where.and().eq("app_name", appName);
        }
        if (StringUtils.isNotBlank(content)) {
            where.and().like("content", content);
        }
        if (!ArrayUtils.isEmpty(types)) {
            where.and().in("type", types);
        }
        where.limitPgsql(context.getStartRow(), context.getPageSize());
        return where.build();
    }

    @Override
    public MapperResult findAllConfigInfoFetchRows(MapperContext context) {
        String sql = "SELECT t.id,data_id,group_id,tenant_id,app_name,content,md5 "
                + " FROM (  SELECT id FROM config_info WHERE tenant_id LIKE ? ORDER BY id OFFSET ? LIMIT ? )"
                + " g, config_info t  WHERE g.id = t.id ";
        return new MapperResult(sql,
                CollectionUtils.list(context.getWhereParameter(FieldConstant.TENANT_ID), context.getStartRow(),
                        context.getPageSize()));
    }

    @Override
    public String getDataSource() {
        return DataSourceConstant.POSTGRESQL;
    }

}

📌 Mapper操作与适配说明
这个表格为您提供了一个完整的“改造清单”，您可以进行以下操作：

文件复制与重命名：您需要将 com.alibaba.nacos.plugin.datasource.impl.mysql 路径下的每一个Java文件，复制到 com.alibaba.nacos.plugin.datasource.impl.postgresql 目录下，并按照表格第三列的名称进行重命名。

核心内容适配：请注意，仅仅复制和重命名文件是不够的。 新文件内部需要将MySQL特定的SQL语法（如 ` 反引号、LIMIT 语句、自增主键 AUTO_INCREMENT 等）修改为PostgreSQL的语法（如使用双引号或无需引号、LIMIT … OFFSET …、序列 SERIAL 或 GENERATED BY DEFAULT AS IDENTITY）。

映射规则归纳：

所有文件统一移至 postgresql 子目录。
所有文件统一在基础名后添加后缀 ByPostgreSql。
对于 ConfigTagsRelation.java 这类基础名中缺少 Mapper 的文件，新名称将其补充完整为 ConfigTagsRelationMapperByPostgreSql.java，这符合Nacos的命名惯例，能更好地表明其功能,其他类会在资源包里体现

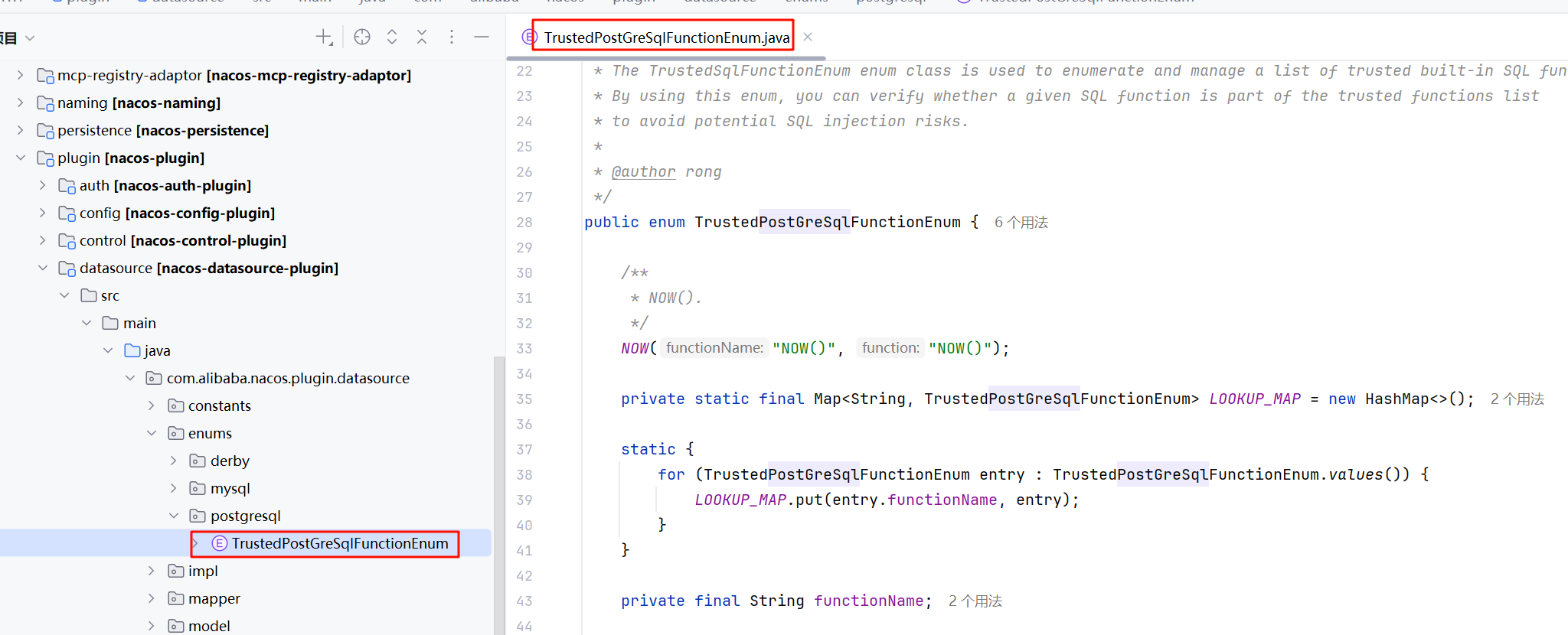

2.5 新增TrustedPostGreSqlFunctionEnum

在com.alibaba.nacos.plugin.datasource.enums 新建postgresql目录，添加如下类，一定的加，否则遇到日期的时候，会报错，如图

/*
 * Copyright 1999-2022 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package com.alibaba.nacos.plugin.datasource.enums.postgresql;

import java.util.HashMap;
import java.util.Map;

/**
 * The TrustedSqlFunctionEnum enum class is used to enumerate and manage a list of trusted built-in SQL functions.
 * By using this enum, you can verify whether a given SQL function is part of the trusted functions list
 * to avoid potential SQL injection risks.
 *
 * @author rong
 */
public enum TrustedPostGreSqlFunctionEnum {

    /**
     * NOW().
     */
    NOW("NOW()", "NOW()");

    private static final Map<String, TrustedPostGreSqlFunctionEnum> LOOKUP_MAP = new HashMap<>();

    static {
        for (TrustedPostGreSqlFunctionEnum entry : TrustedPostGreSqlFunctionEnum.values()) {
            LOOKUP_MAP.put(entry.functionName, entry);
        }
    }

    private final String functionName;

    private final String function;

    TrustedPostGreSqlFunctionEnum(String functionName, String function) {
        this.functionName = functionName;
        this.function = function;
    }

    /**
     * Get the function name.
     *
     * @param functionName function name
     * @return function
     */
    public static String getFunctionByName(String functionName) {
        TrustedPostGreSqlFunctionEnum entry = LOOKUP_MAP.get(functionName);
        if (entry != null) {
            return entry.function;
        }
        throw new IllegalArgumentException(String.format("Invalid function name: %s", functionName));
    }
}

在AbstractMapperByPostgreSql引用TrustedPostGreSqlFunctionEnum 的getFunctionByName

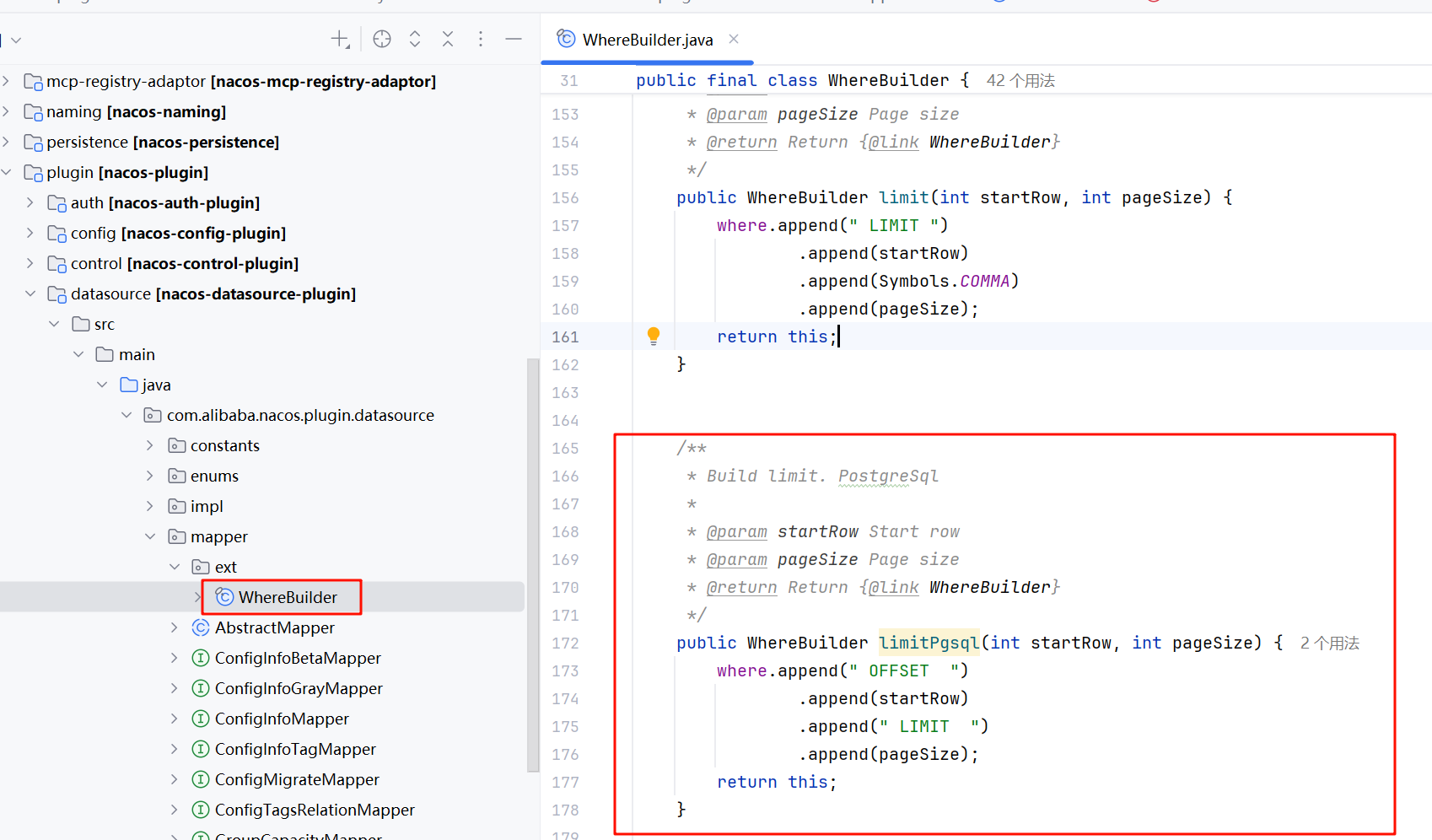

2.6 兼容分页，修改WhereBuilder

com.alibaba.nacos.plugin.datasource.mapper.ext.WhereBuilder 新增处理分页方法如图

  /**
     * Build limit. PostgreSql
     *
     * @param startRow Start row
     * @param pageSize Page size
     * @return Return {@link WhereBuilder}
     */
    public WhereBuilder limitPgsql(int startRow, int pageSize) {
        where.append(" OFFSET  ")
                .append(startRow)
                .append(" LIMIT  ")
                .append(pageSize);
        return this;
    }

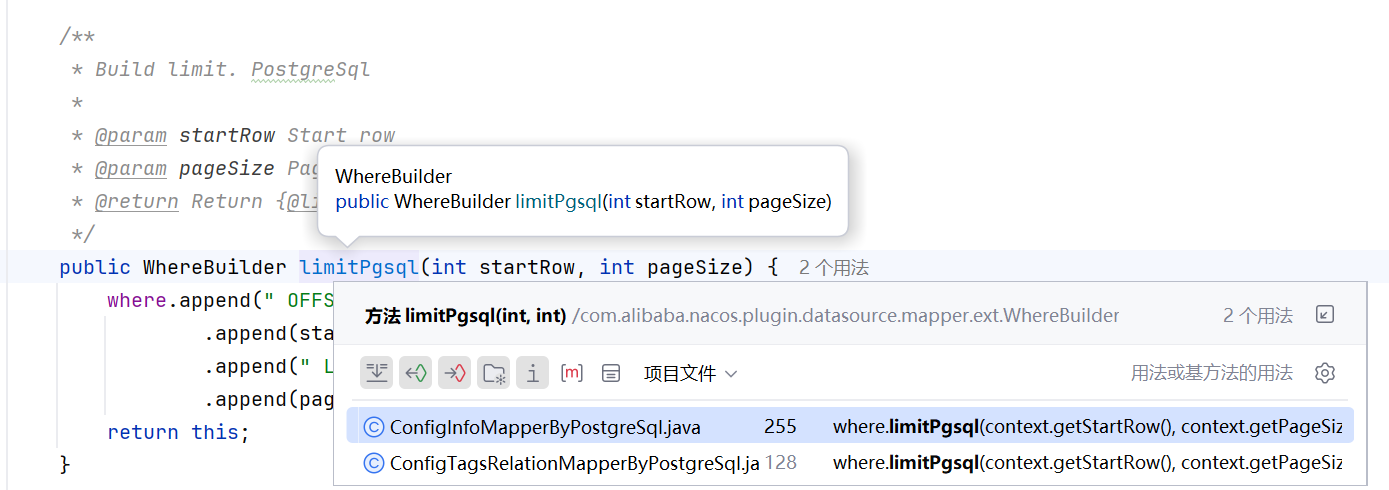

有两个地方引用此方法，如下图

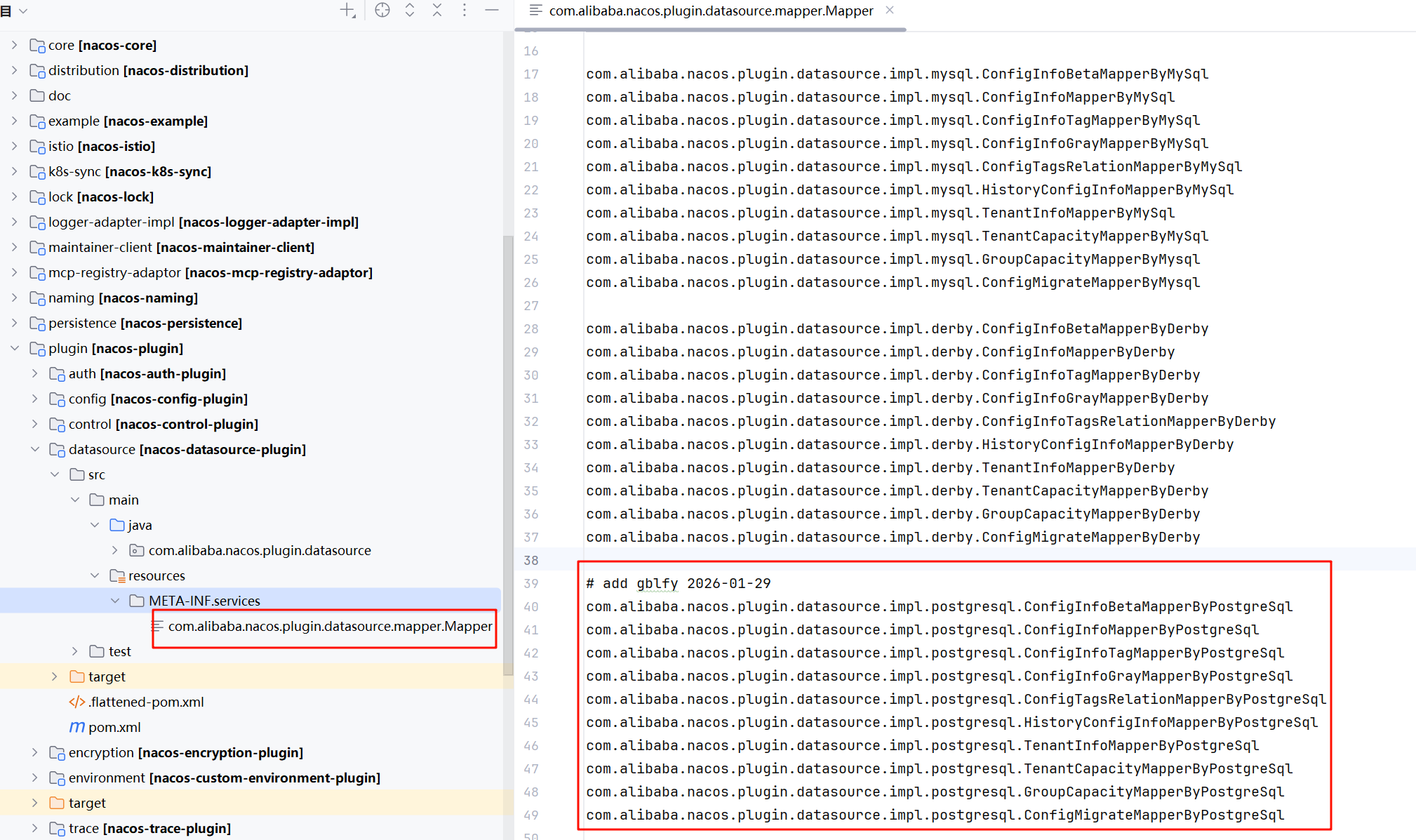

2.7 类路径扫描变更

com.alibaba.nacos.plugin.datasource.mapper.Mapper 将以下类路径

# add gblfy 2026-01-29
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigInfoBetaMapperByPostgreSql
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigInfoMapperByPostgreSql
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigInfoTagMapperByPostgreSql
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigInfoGrayMapperByPostgreSql
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigTagsRelationMapperByPostgreSql
com.alibaba.nacos.plugin.datasource.impl.postgresql.HistoryConfigInfoMapperByPostgreSql
com.alibaba.nacos.plugin.datasource.impl.postgresql.TenantInfoMapperByPostgreSql
com.alibaba.nacos.plugin.datasource.impl.postgresql.TenantCapacityMapperByPostgreSql
com.alibaba.nacos.plugin.datasource.impl.postgresql.GroupCapacityMapperByPostgreSql
com.alibaba.nacos.plugin.datasource.impl.postgresql.ConfigMigrateMapperByPostgreSql

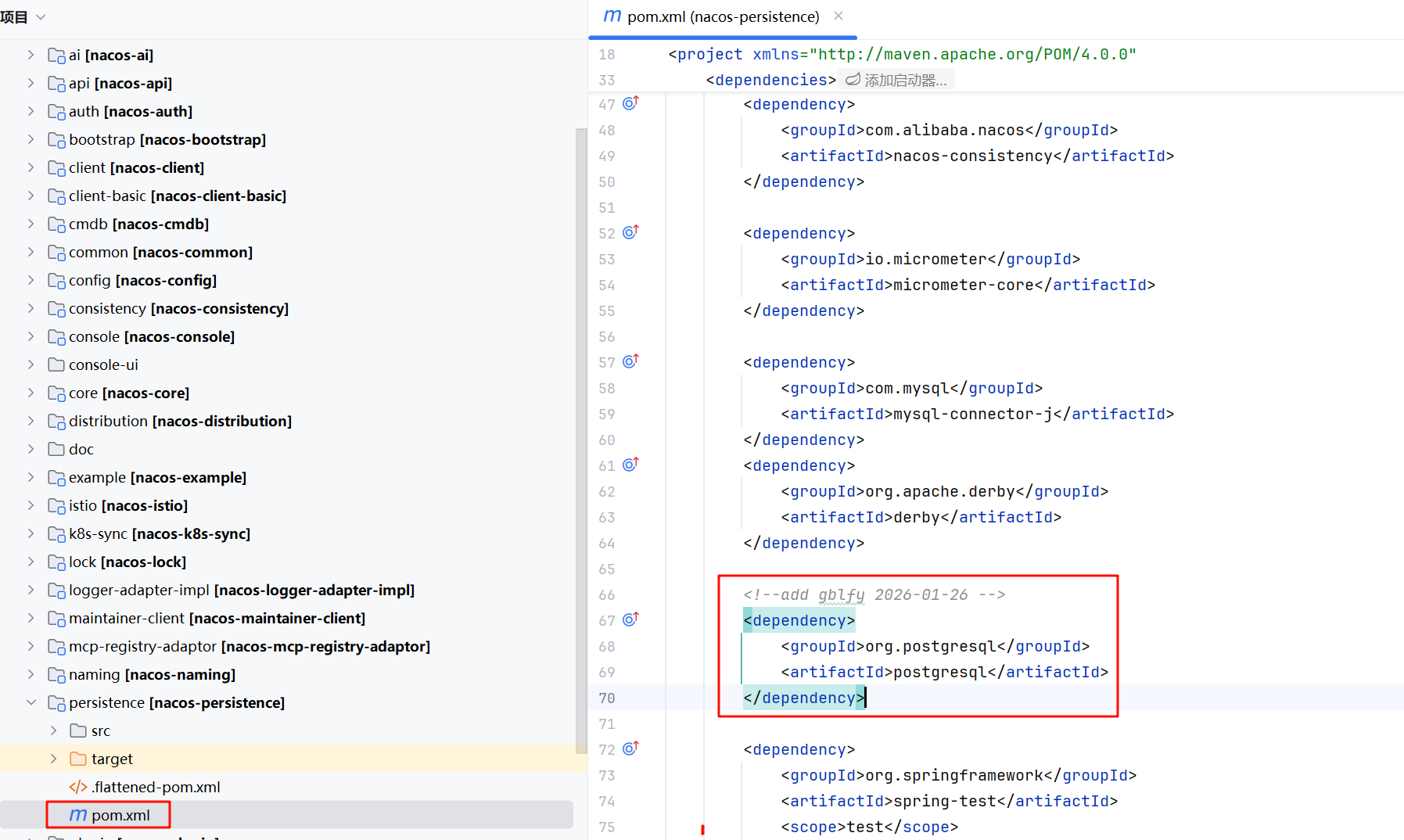

2.8 添加数据源驱动

   <!--add gblfy 2026-01-26 -->
        <dependency>
            <groupId>org.postgresql</groupId>
            <artifactId>postgresql</artifactId>
        </dependency>

三、编译源码

在idea中 执行mvn命令

mvn -Prelease-nacos -Dmaven.test.skip=true -Dcheckstyle.skip=true -Drat.numUnapporovedLicenses=100 clean install -U

编译成功的程序

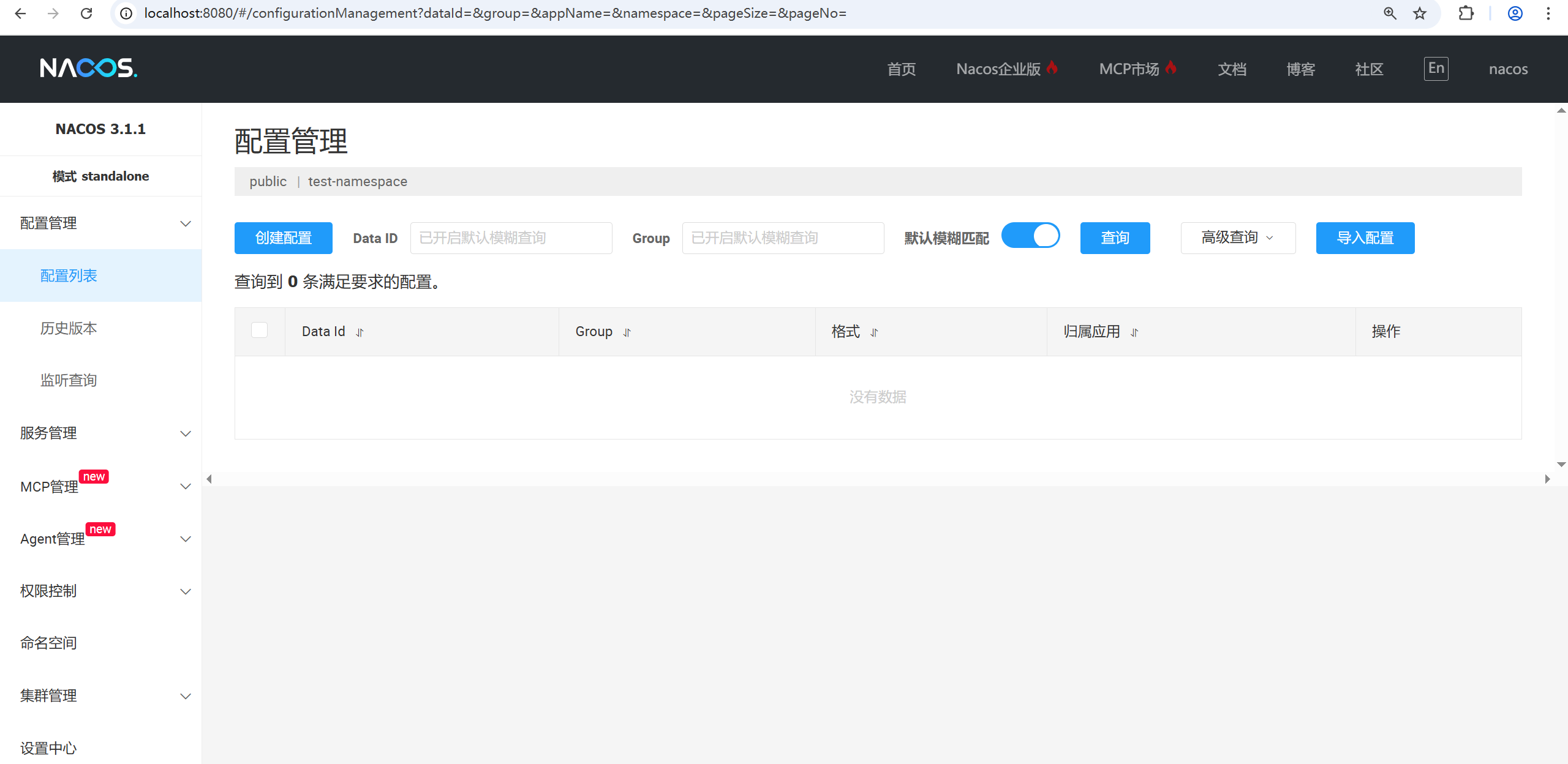

四、启动本地nacos

修改配置
进入nacos\distribution\target\nacos-server-3.1.1\nacos\conf，修改application.properties，核心配置如下:

nacos.core.auth.server.identity.key=identityNacos
nacos.core.auth.server.identity.value=RTY4+Y4KokLKk9fZigOa3cwzRUzU2Nzs75m9oHHuiQE=
nacos.core.auth.plugin.nacos.token.secret.key=hzMOOvOp6gBXFCgK03caEETxQNF220HuiHALQApnDnQgM2JXgOB1iJrjM70wLTxNYlKxIaeCnKinVW/3KUJ+zA==
#*************** Datasource Related Configurations ***************#
### nacos.plugin.datasource.log.enabled=true

spring.sql.init.platform=postgresql
## Count of DB:
# 数据库连接数量配置
db.num=1
db.url.0=jdbc:postgresql://192.168.0.109:5432/mydatabase?tcpKeepAlive=true&reWriteBatchedInserts=true
db.user.0=myuser
db.password.0=mysecretpassword
# 连接池配置 (使用HikariCP)
db.pool.config.connectionTimeout=30000
db.pool.config.validationTimeout=10000
db.pool.config.maximumPoolSize=20
db.pool.config.minimumIdle=2
db.pool.config.driverClassName=org.postgresql.Driver

数据库脚本

--
-- Copyright 1999-2018 Alibaba Group Holding Ltd.
--
-- Licensed under the Apache License, Version 2.0 (the "License");
-- you may not use this file except in compliance with the License.
-- You may obtain a copy of the License at
--
--      http://www.apache.org/licenses/LICENSE-2.0
--
-- Unless required by applicable law or agreed to in writing, software
-- distributed under the License is distributed on an "AS IS" BASIS,
-- WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-- See the License for the specific language governing permissions and
-- limitations under the License.
--
CREATE TABLE config_info (
   id bigint NOT NULL GENERATED BY DEFAULT AS IDENTITY (START WITH 1 INCREMENT BY 1) PRIMARY KEY,
   data_id varchar(255) NOT NULL,
   group_id varchar(128),
   content text NOT NULL,
   md5 varchar(32),
   gmt_create timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
   gmt_modified timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
   src_user text,
   src_ip varchar(50),
   app_name varchar(128),
   tenant_id varchar(128) DEFAULT '',
   c_desc varchar(256),
   c_use varchar(64),
   effect varchar(64),
   type varchar(64),
   c_schema text,
   encrypted_data_key varchar(1024) NOT NULL DEFAULT ''
);
COMMENT ON TABLE config_info IS 'config_info';
COMMENT ON COLUMN config_info.id IS 'id';
COMMENT ON COLUMN config_info.data_id IS 'data_id';
COMMENT ON COLUMN config_info.group_id IS 'group_id';
COMMENT ON COLUMN config_info.content IS 'content';
COMMENT ON COLUMN config_info.md5 IS 'md5';
COMMENT ON COLUMN config_info.gmt_create IS '创建时间';
COMMENT ON COLUMN config_info.gmt_modified IS '修改时间';
COMMENT ON COLUMN config_info.src_user IS 'source user';
COMMENT ON COLUMN config_info.src_ip IS 'source ip';
COMMENT ON COLUMN config_info.app_name IS 'app_name';
COMMENT ON COLUMN config_info.tenant_id IS '租户字段';
COMMENT ON COLUMN config_info.c_desc IS 'configuration description';
COMMENT ON COLUMN config_info.c_use IS 'configuration usage';
COMMENT ON COLUMN config_info.effect IS '配置生效的描述';
COMMENT ON COLUMN config_info.type IS '配置的类型';
COMMENT ON COLUMN config_info.c_schema IS '配置的模式';
COMMENT ON COLUMN config_info.encrypted_data_key IS '密钥';
CREATE UNIQUE INDEX uk_configinfo_datagrouptenant ON config_info (data_id, group_id, tenant_id);


CREATE TABLE config_info_gray (
    id bigint NOT NULL GENERATED BY DEFAULT AS IDENTITY (START WITH 1 INCREMENT BY 1) PRIMARY KEY,
    data_id varchar(255) NOT NULL,
    group_id varchar(128) NOT NULL,
    content text NOT NULL,
    md5 varchar(32),
    src_user text,
    src_ip varchar(100),
    gmt_create timestamp(3) NOT NULL DEFAULT CURRENT_TIMESTAMP(3),
    gmt_modified timestamp(3) NOT NULL DEFAULT CURRENT_TIMESTAMP(3),
    app_name varchar(128),
    tenant_id varchar(128) DEFAULT '',
    gray_name varchar(128) NOT NULL,
    gray_rule text NOT NULL,
    encrypted_data_key varchar(256) NOT NULL DEFAULT ''
);
COMMENT ON TABLE config_info_gray IS 'config_info_gray';
COMMENT ON COLUMN config_info_gray.id IS 'id';
COMMENT ON COLUMN config_info_gray.data_id IS 'data_id';
COMMENT ON COLUMN config_info_gray.group_id IS 'group_id';
COMMENT ON COLUMN config_info_gray.content IS 'content';
COMMENT ON COLUMN config_info_gray.md5 IS 'md5';
COMMENT ON COLUMN config_info_gray.src_user IS 'src_user';
COMMENT ON COLUMN config_info_gray.src_ip IS 'src_ip';
COMMENT ON COLUMN config_info_gray.gmt_create IS 'gmt_create';
COMMENT ON COLUMN config_info_gray.gmt_modified IS 'gmt_modified';
COMMENT ON COLUMN config_info_gray.app_name IS 'app_name';
COMMENT ON COLUMN config_info_gray.tenant_id IS 'tenant_id';
COMMENT ON COLUMN config_info_gray.gray_name IS 'gray_name';
COMMENT ON COLUMN config_info_gray.gray_rule IS 'gray_rule';
COMMENT ON COLUMN config_info_gray.encrypted_data_key IS 'encrypted_data_key';
CREATE UNIQUE INDEX uk_configinfogray_datagrouptenantgray ON config_info_gray (data_id, group_id, tenant_id, gray_name);
CREATE INDEX idx_dataid_gmt_modified ON config_info_gray (data_id, gmt_modified);
CREATE INDEX idx_gmt_modified ON config_info_gray (gmt_modified);


CREATE TABLE config_tags_relation (
    id bigint NOT NULL,
    tag_name varchar(128) NOT NULL,
    tag_type varchar(64),
    data_id varchar(255) NOT NULL,
    group_id varchar(128) NOT NULL,
    tenant_id varchar(128) DEFAULT '',
    nid bigint NOT NULL GENERATED BY DEFAULT AS IDENTITY (START WITH 1 INCREMENT BY 1) PRIMARY KEY
);
COMMENT ON TABLE config_tags_relation IS 'config_tag_relation';
COMMENT ON COLUMN config_tags_relation.id IS 'id';
COMMENT ON COLUMN config_tags_relation.tag_name IS 'tag_name';
COMMENT ON COLUMN config_tags_relation.tag_type IS 'tag_type';
COMMENT ON COLUMN config_tags_relation.data_id IS 'data_id';
COMMENT ON COLUMN config_tags_relation.group_id IS 'group_id';
COMMENT ON COLUMN config_tags_relation.tenant_id IS 'tenant_id';
COMMENT ON COLUMN config_tags_relation.nid IS 'nid, 自增长标识';
CREATE UNIQUE INDEX uk_configtagrelation_configidtag ON config_tags_relation (id, tag_name, tag_type);
CREATE INDEX idx_tenant_id ON config_tags_relation (tenant_id);


CREATE TABLE group_capacity (
    id bigint NOT NULL GENERATED BY DEFAULT AS IDENTITY (START WITH 1 INCREMENT BY 1) PRIMARY KEY,
    group_id varchar(128) NOT NULL DEFAULT '',
    quota integer NOT NULL DEFAULT 0,
    usage integer NOT NULL DEFAULT 0,
    max_size integer NOT NULL DEFAULT 0,
    max_aggr_count integer NOT NULL DEFAULT 0,
    max_aggr_size integer NOT NULL DEFAULT 0,
    max_history_count integer NOT NULL DEFAULT 0,
    gmt_create timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
);
COMMENT ON TABLE group_capacity IS '集群、各Group容量信息表';
COMMENT ON COLUMN group_capacity.id IS '主键ID';
COMMENT ON COLUMN group_capacity.group_id IS 'Group ID，空字符表示整个集群';
COMMENT ON COLUMN group_capacity.quota IS '配额，0表示使用默认值';
COMMENT ON COLUMN group_capacity.usage IS '使用量';
COMMENT ON COLUMN group_capacity.max_size IS '单个配置大小上限，单位为字节，0表示使用默认值';
COMMENT ON COLUMN group_capacity.max_aggr_count IS '聚合子配置最大个数，，0表示使用默认值';
COMMENT ON COLUMN group_capacity.max_aggr_size IS '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值';
COMMENT ON COLUMN group_capacity.max_history_count IS '最大变更历史数量';
COMMENT ON COLUMN group_capacity.gmt_create IS '创建时间';
COMMENT ON COLUMN group_capacity.gmt_modified IS '修改时间';
CREATE UNIQUE INDEX uk_group_id ON group_capacity (group_id);


CREATE TABLE his_config_info (
    id bigint NOT NULL,
    nid bigint NOT NULL GENERATED BY DEFAULT AS IDENTITY (START WITH 1 INCREMENT BY 1) PRIMARY KEY,
    data_id varchar(255) NOT NULL,
    group_id varchar(128) NOT NULL,
    app_name varchar(128),
    content text NOT NULL,
    md5 varchar(32),
    gmt_create timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
    src_user text,
    src_ip varchar(50),
    op_type char(10),
    tenant_id varchar(128) DEFAULT '',
    encrypted_data_key varchar(1024) NOT NULL DEFAULT '',
    publish_type varchar(50) DEFAULT 'formal',
    gray_name varchar(50),
    ext_info text
);
COMMENT ON TABLE his_config_info IS '多租户改造';
COMMENT ON COLUMN his_config_info.id IS 'id';
COMMENT ON COLUMN his_config_info.nid IS 'nid, 自增标识';
COMMENT ON COLUMN his_config_info.data_id IS 'data_id';
COMMENT ON COLUMN his_config_info.group_id IS 'group_id';
COMMENT ON COLUMN his_config_info.app_name IS 'app_name';
COMMENT ON COLUMN his_config_info.content IS 'content';
COMMENT ON COLUMN his_config_info.md5 IS 'md5';
COMMENT ON COLUMN his_config_info.gmt_create IS '创建时间';
COMMENT ON COLUMN his_config_info.gmt_modified IS '修改时间';
COMMENT ON COLUMN his_config_info.src_user IS 'source user';
COMMENT ON COLUMN his_config_info.src_ip IS 'source ip';
COMMENT ON COLUMN his_config_info.op_type IS 'operation type';
COMMENT ON COLUMN his_config_info.tenant_id IS '租户字段';
COMMENT ON COLUMN his_config_info.encrypted_data_key IS '密钥';
COMMENT ON COLUMN his_config_info.publish_type IS 'publish type gray or formal';
COMMENT ON COLUMN his_config_info.gray_name IS 'gray name';
COMMENT ON COLUMN his_config_info.ext_info IS 'ext info';
CREATE INDEX idx_gmt_create ON his_config_info (gmt_create);
CREATE INDEX idx_did ON his_config_info (data_id);


CREATE TABLE tenant_capacity (
    id bigint NOT NULL GENERATED BY DEFAULT AS IDENTITY (START WITH 1 INCREMENT BY 1) PRIMARY KEY,
    tenant_id varchar(128) NOT NULL DEFAULT '',
    quota integer NOT NULL DEFAULT 0,
    usage integer NOT NULL DEFAULT 0,
    max_size integer NOT NULL DEFAULT 0,
    max_aggr_count integer NOT NULL DEFAULT 0,
    max_aggr_size integer NOT NULL DEFAULT 0,
    max_history_count integer NOT NULL DEFAULT 0,
    gmt_create timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
    gmt_modified timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
);
COMMENT ON TABLE tenant_capacity IS '租户容量信息表';
COMMENT ON COLUMN tenant_capacity.id IS '主键ID';
COMMENT ON COLUMN tenant_capacity.tenant_id IS 'Tenant ID';
COMMENT ON COLUMN tenant_capacity.quota IS '配额，0表示使用默认值';
COMMENT ON COLUMN tenant_capacity.usage IS '使用量';
COMMENT ON COLUMN tenant_capacity.max_size IS '单个配置大小上限，单位为字节，0表示使用默认值';
COMMENT ON COLUMN tenant_capacity.max_aggr_count IS '聚合子配置最大个数';
COMMENT ON COLUMN tenant_capacity.max_aggr_size IS '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值';
COMMENT ON COLUMN tenant_capacity.max_history_count IS '最大变更历史数量';
COMMENT ON COLUMN tenant_capacity.gmt_create IS '创建时间';
COMMENT ON COLUMN tenant_capacity.gmt_modified IS '修改时间';
CREATE UNIQUE INDEX uk_tenant_id ON tenant_capacity (tenant_id);

CREATE TABLE tenant_info (
    id bigint NOT NULL GENERATED BY DEFAULT AS IDENTITY (START WITH 1 INCREMENT BY 1) PRIMARY KEY,
    kp varchar(128) NOT NULL,
    tenant_id varchar(128) DEFAULT '',
    tenant_name varchar(128) DEFAULT '',
    tenant_desc varchar(256),
    create_source varchar(32),
    gmt_create bigint NOT NULL,
    gmt_modified bigint NOT NULL
);
COMMENT ON TABLE tenant_info IS 'tenant_info';
COMMENT ON COLUMN tenant_info.id IS 'id';
COMMENT ON COLUMN tenant_info.kp IS 'kp';
COMMENT ON COLUMN tenant_info.tenant_id IS 'tenant_id';
COMMENT ON COLUMN tenant_info.tenant_name IS 'tenant_name';
COMMENT ON COLUMN tenant_info.tenant_desc IS 'tenant_desc';
COMMENT ON COLUMN tenant_info.create_source IS 'create_source';
COMMENT ON COLUMN tenant_info.gmt_create IS '创建时间';
COMMENT ON COLUMN tenant_info.gmt_modified IS '修改时间';
CREATE UNIQUE INDEX uk_tenant_info_kptenantid ON tenant_info (kp, tenant_id);

CREATE TABLE users (
    username varchar(50) NOT NULL PRIMARY KEY,
    password varchar(500) NOT NULL,
    enabled boolean NOT NULL
);
COMMENT ON TABLE users IS 'users';
COMMENT ON COLUMN users.username IS 'username';
COMMENT ON COLUMN users.password IS 'password';
COMMENT ON COLUMN users.enabled IS 'enabled';

CREATE TABLE roles (
    username varchar(50) NOT NULL,
    role varchar(50) NOT NULL
);
COMMENT ON TABLE roles IS 'roles';
COMMENT ON COLUMN roles.username IS 'username';
COMMENT ON COLUMN roles.role IS 'role';
CREATE UNIQUE INDEX idx_user_role ON roles (username, role);

CREATE TABLE permissions (
    role varchar(50) NOT NULL,
    resource varchar(128) NOT NULL,
    action varchar(8) NOT NULL
);
COMMENT ON TABLE permissions IS 'permissions';
COMMENT ON COLUMN permissions.role IS 'role';
COMMENT ON COLUMN permissions.resource IS 'resource';
COMMENT ON COLUMN permissions.action IS 'action';
CREATE UNIQUE INDEX uk_role_permission ON permissions (role, resource, action);

五、启动nacos服务

进入nacos\distribution\target\nacos-server-3.1.1\nacos\bin目录，
执行startup.cmd -m=standalone，如下：
