一、简介

Kafka，是一个分布式消息系统，在大数据生态中是常用的消息中间件，用于业务系统之间数据传输，实时处理大量业务数据。本篇介绍的是Windows平台下Kafka单节点及伪分布式多节点的安装部署。

二、准备环境

1.windows 10
2.jdk 1.8.0_361
3.kafka 3.7.2

注意：未采用较新版本的Kafka。

三、安装Kafka

1.下载Kafka，解压到D:\spark\kafka3.7.2，点击下载

2.配置文件D:\spark\kafka3.7.2\config\server.properties

3.启动Zookeeper

set kafka_bin_path=D:\kafka2\bin\windows
set kafka_config_path=D:\kafka2\config
set JAVA_HOME=D:\tool\Java\jdk17.0.13
%kafka_bin_path%\zookeeper-server-start.bat  %kafka_config_path%\zookeeper.properties

# 注意Windows平台下的启动指令
D:\spark\kafka3.7.2>bin\windows\zookeeper-server-start.bat config\zookeeper.properties

4.启动Kafka

set kafka_bin_path=D:\kafka2\bin\windows
set kafka_config_path=D:\kafka2\config
set JAVA_HOME=D:\tool\Java\jdk17.0.13
%kafka_bin_path%\kafka-server-start.bat  %kafka_config_path%\server.properties

# 注意Windows平台下的启动指令
D:\spark\kafka3.7.2>bin\windows\kafka-server-start.bat config\server.properties

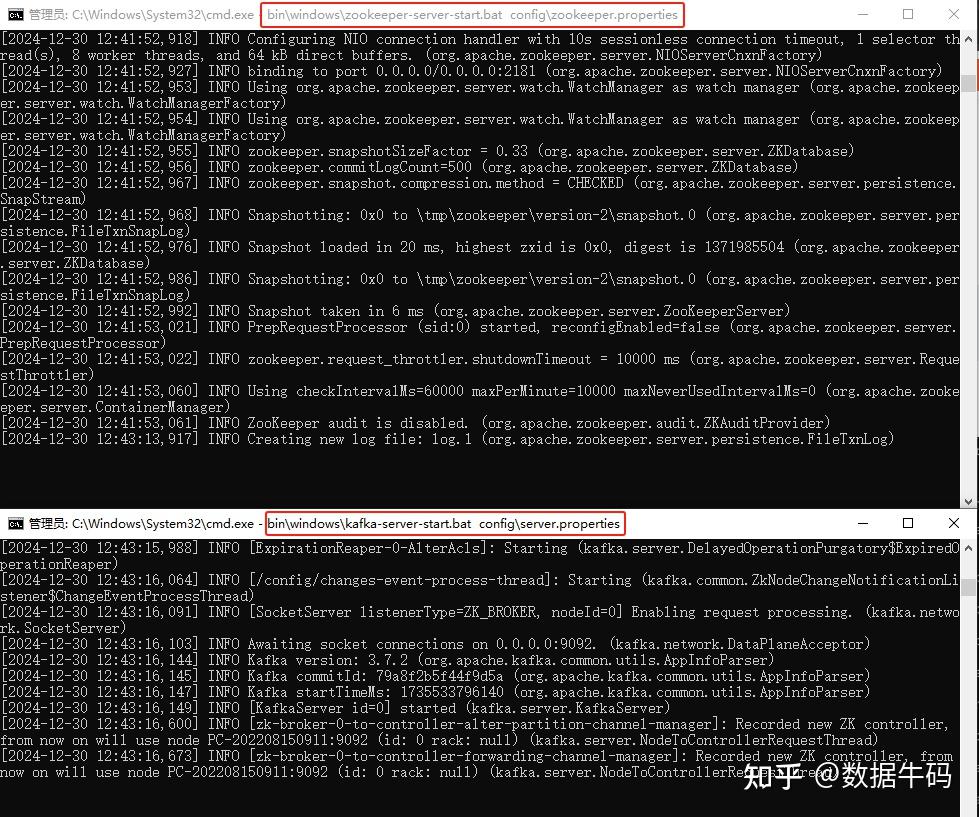

Kafka Start

四、命令行操作

1.新建Topic

set kafka_bin_path=D:\kafka2\bin\windows
set kafka_config_path=D:\kafka2\config
set JAVA_HOME=D:\tool\Java\jdk17.0.13
%kafka_bin_path%\kafka-topics.bat  --bootstrap-server 127.0.0.1:9092 --topic user_topic --create

D:\spark\kafka3.7.2>bin\windows\kafka-topics.bat --bootstrap-server 127.0.0.1:9092 --topic user_topic --create
WARNING: Due to limitations in metric names, topics with a period ('.') or underscore ('_') could collide. To avoid issues it is best to use either, but not both.
Created topic user_topic.

2.查看所有Topic

set kafka_bin_path=D:\kafka2\bin\windows
set kafka_config_path=D:\kafka2\config
set JAVA_HOME=D:\tool\Java\jdk17.0.13
%kafka_bin_path%\kafka-topics.bat  --bootstrap-server 127.0.0.1:9092 --list

D:\spark\kafka3.7.2>bin\windows\kafka-topics.bat --bootstrap-server 127.0.0.1:9092 --list
user_topic

3.查看某一个Topic

D:\spark\kafka3.7.2>bin\windows\kafka-topics.bat --bootstrap-server 127.0.0.1:9092 --topic user_topic --describe
Topic: user_topic       TopicId: VyodzZtBRd2LXtKzNWAI5w PartitionCount: 1       ReplicationFactor: 1    Configs:
        Topic: user_topic       Partition: 0    Leader: 0       Replicas: 0     Isr: 0

4.删除某个Topic

D:\spark\kafka3.7.2>bin\windows\kafka-topics.bat --bootstrap-server 127.0.0.1:9092 --topic user_topic --delete

Kafka Topics Delete

注意：删除Topic时，Window平台下由于文件权限的原因导致删除失败，Kafka会报错退出。

解决方案：删除D:\tmp\zookeeper和D:\tmp\kafka-logs 重新启动服务即可。

5.查看帮助命令

D:\spark\kafka3.7.2>bin\windows\kafka-topics.bat --help

6.生产者消费者操作

（1）.D:\spark\kafka3.7.2>bin\windows\kafka-console-producer.bat --bootstrap-server 127.0.0.1:9092 --topic user-topic
（2）.D:\spark\kafka3.7.2>bin\windows\kafka-console-consumer.bat --bootstrap-server 127.0.0.1:9092 --topic user-topic

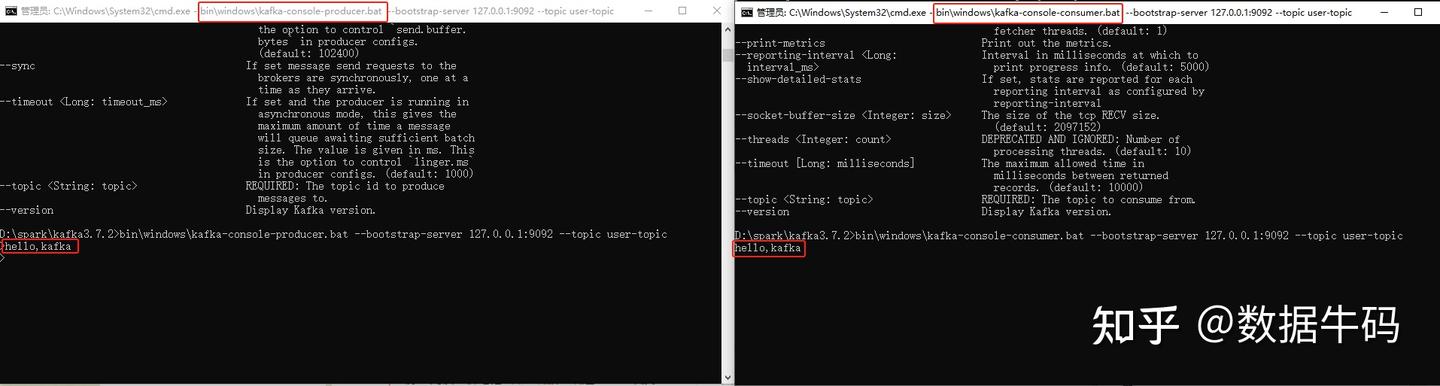

Kafka Producer Consumer

五、单机多节点伪分布式部署

1.复制并修改配置文件server.properties，修改broker.id、listeners和log.dirs

server-1.properties配置如下：

# The id of the broker. This must be set to a unique integer for each broker.
broker.id=1

# The address the socket server listens on. If not configured, the host name will be equal to the value of
listeners=PLAINTEXT://localhost:9093

# A comma separated list of directories under which to store log files
log.dirs=/tmp/kafka-logs-1

server-2.properties配置如下：

# The id of the broker. This must be set to a unique integer for each broker.
broker.id=2

# The address the socket server listens on. If not configured, the host name will be equal to the value of
listeners=PLAINTEXT://localhost:9094

# A comma separated list of directories under which to store log files
log.dirs=/tmp/kafka-logs-2

server-3.properties配置如下：

# The id of the broker. This must be set to a unique integer for each broker.
broker.id=3

# The address the socket server listens on. If not configured, the host name will be equal to the value of
listeners=PLAINTEXT://localhost:9095

# A comma separated list of directories under which to store log files
log.dirs=/tmp/kafka-logs-3

2.启动三个Broker节点

D:\spark\kafka3.7.2>bin\windows\kafka-server-start.bat config\server-1.properties
D:\spark\kafka3.7.2>bin\windows\kafka-server-start.bat config\server-2.properties
D:\spark\kafka3.7.2>bin\windows\kafka-server-start.bat config\server-3.properties

Kafka Multi Brokers

3.创建多分区多副本Topic

D:\spark\kafka3.7.2>bin\windows\kafka-topics.bat --bootstrap-server 127.0.0.1:9093,127.0.0.1:9094,127.0.0.1:9095 --topic topic01 --create --partitions 3 --replication-factor 3
Created topic topic01.

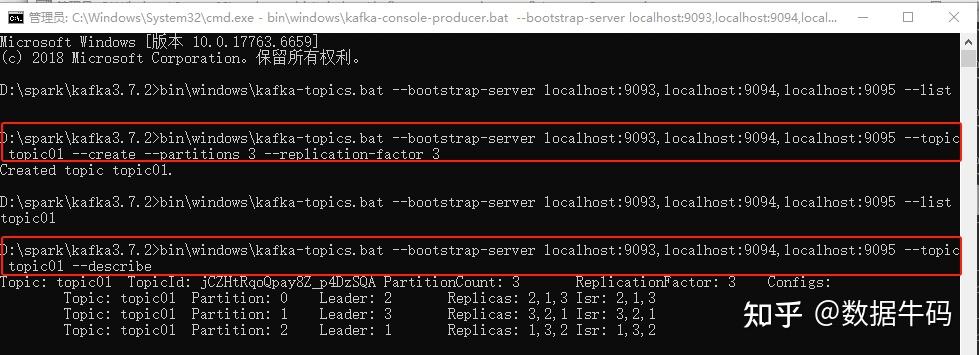

Kafka Create Topics

4.生产者消费者操作

# 启动生产者
D:\spark\kafka3.7.2>bin\windows\kafka-console-producer.bat --bootstrap-server localhost:9093,localhost:9094,localhost:9095 --topic topic01
# 启动消费者
D:\spark\kafka3.7.2>bin\windows\kafka-console-consumer.bat --bootstrap-server localhost:9093,localhost:9094,localhost:9095 --topic topic01

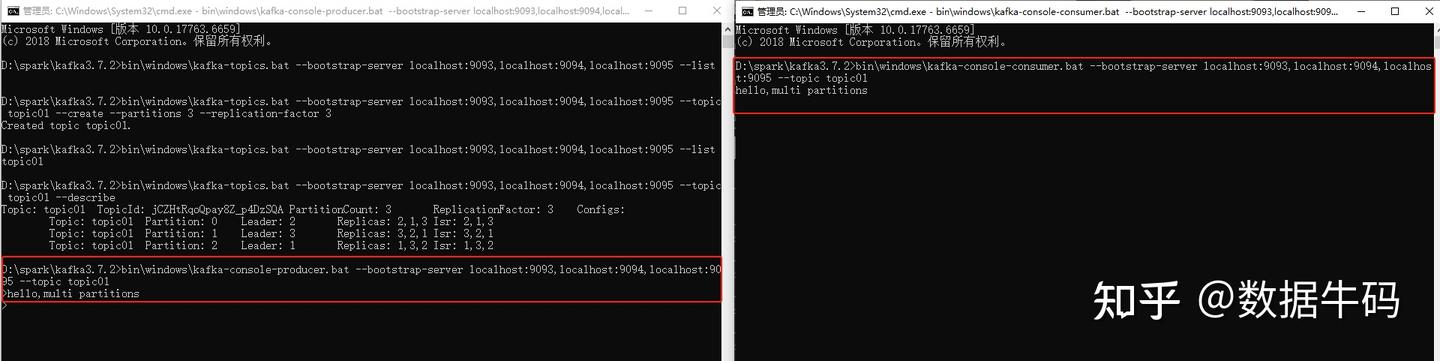

Kafka Producer Consumer

注意：在多分区多副本的Kafka配置中，listeners的配置必须是主机名，不能是空，主机IP，否则会出现无法消费消息的情况。

六、总结

Kafka常用于大数据中的消息中间件，之前接触过的业务系统间的数据交互现在也多使用Kafka来进行解耦合。本篇主要介绍的是Kafka在Windows平台上的部署和使用，并且在命令行下操作生产者消费者进行数据传递，还可以使用Python编写Producer和Consumer实现数据发送和消费。
