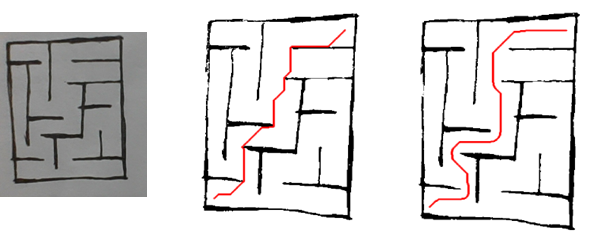

OPENCV视觉识别迷+A*路径规划+墙壁靠近惩罚
·

import cv2
import numpy as np
from collections import deque
from queue import PriorityQueue
class A_starSearch:
def __init__(self, src_img, s, e,wall_distance_weight=10,min_safe_distance=15):
assert len(src_img.shape) == 2
self.h, self.w = src_img.shape
self.src_img = src_img
self.mark = np.zeros_like(src_img)
self.edge_to = np.full((self.h, self.w, 2), -1, dtype=np.int32)
self.s = s
self.e = e
self.wall_distance = self.calculate_wall_distance(src_img)
self.wall_distance_weight = wall_distance_weight
self.min_safe_distance = min_safe_distance
self.a_star()
def calculate_wall_distance(self,img):
dist_transform = cv2.distanceTransform(img, cv2.DIST_L2, 5)
return dist_transform
def get_neighbors(self, px, py):
nbs = []
directions = [(-1, -1), (-1, 0), (-1, 1),
(0, -1), (0, 1),
(1, -1), (1, 0), (1, 1)]
for dx, dy in directions:
nx, ny = px + dx, py + dy
if 0 <= nx < self.w and 0 <= ny < self.h:
nbs.append((nx, ny))
return nbs
def path_to(self, e=None):
if e is None:
e = self.e
e_x, e_y = e
queue_path = deque()
while (e_x, e_y) != self.s:
queue_path.append((e_x, e_y))
if not self.mark[e_y,e_x]:
print(f'can not get to {e_x, e_y}')
return []
e_x, e_y = self.edge_to[e_y,e_x][0],self.edge_to[e_y,e_x][1]
queue_path.append((e_x, e_y))
return list(reversed(queue_path))
def a_star(self):
assert self.s != self.e
pq = PriorityQueue()
initial_heuristic = self.heuristic(self.s, self.e)
pq.put((initial_heuristic,0, self.s))
cost_so_far = {self.s: 0}
self.mark[self.s[1],self.s[0]] = 1
while not pq.empty():
_,current_cost, (px, py) = pq.get()
if (px, py) == self.e:
break
for nb_x, nb_y in self.get_neighbors(px, py):
if self.src_img[nb_y,nb_x] == 0:
continue
dx, dy = abs(nb_x - px), abs(nb_y - py)
if dx == 1 and dy == 1:
base_cost = np.sqrt(2)
else:
base_cost = 1.0
distance_to_wall = self.wall_distance[nb_y, nb_x]
if distance_to_wall > self.min_safe_distance:
distance_cost = self.wall_distance_weight*0.01
else:
distance_cost = self.wall_distance_weight * (1.0 / (distance_to_wall + 0.1))
new_cost = current_cost + base_cost + distance_cost
heuristic = self.heuristic((nb_x, nb_y), self.e)
priority = new_cost + heuristic
if (nb_x, nb_y) not in cost_so_far or new_cost < cost_so_far[(nb_x, nb_y)]:
cost_so_far[(nb_x, nb_y)] = new_cost
self.edge_to[nb_y,nb_x] = [px, py]
self.mark[nb_y,nb_x] = 1
pq.put((priority,new_cost,(nb_x, nb_y)))
def heuristic(self, current, goal):
dx = abs(current[0] - goal[0])
dy = abs(current[1] - goal[1])
return 1 * (dx + dy) + (np.sqrt(2) - 2 * 1) * min(dx, dy)
dest_img_copy = None
start_p = None
end_p = None
def mouse_callback(event, x, y, flags, param):
global dest_img_copy, start_p, end_p
if event == cv2.EVENT_LBUTTONDOWN:
print(dest_img_copy[y, x])
if dest_img_copy[y, x].tolist() == [0, 0,0]:
raise ValueError(f'{x, y} is black!')
if start_p is None:
start_p = (x, y)
print(f'start_p: {x, y}')
elif end_p is None:
end_p = (x, y)
print(f'end_p: {x, y}')
if __name__ == '__main__':
cap = cv2.VideoCapture(0)
while True:
ret, frame = cap.read()
frame = cv2.flip(frame, 1)
cv2.imshow('video', frame)
img = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
k = cv2.waitKey(100)
if k == 13:
break
cap.release()
cv2.destroyWindow('video')
_, img = cv2.threshold(img, 50, 255, cv2.THRESH_BINARY)
cv2.namedWindow('img', cv2.WINDOW_NORMAL)
cv2.setMouseCallback("img", mouse_callback)
inverted_img = cv2.bitwise_not(img)
dest_img_ = cv2.morphologyEx(inverted_img, cv2.MORPH_CLOSE, np.ones((8, 8), dtype=np.uint8))
dest_img= cv2.bitwise_not(dest_img_)
dest_img_copy = dest_img.copy()[:, :, None] * np.ones((1, 1, 3), dtype=np.uint8)
cv2.imshow('img', dest_img_copy)
while start_p is None:
cv2.waitKey(1)
while end_p is None:
cv2.waitKey(1)
search = A_starSearch(dest_img, start_p, end_p)
path_to_end = search.path_to()
if path_to_end:
show_img = img[:, :, None] * np.ones((1, 1, 3), dtype=np.uint8)
print(f'path_to_end: {path_to_end}')
for x, y in path_to_end:
cv2.circle(show_img, (x, y), 1, (0, 0, 255), 1, cv2.LINE_AA)
cv2.namedWindow('show_img', cv2.WINDOW_NORMAL)
cv2.imshow('show_img', show_img)
cv2.waitKey()
else:
raise ValueError('cat not find the path')
cap.release()
cv2.destroyAllWindows()
