20260128让天启AIO-3576Q38开发板在Rockchip瑞芯微原厂Buildroot下打开HDMI显示

摘要：在天启AIO-3576Q38开发板上通过操作GPIO26成功启用了HDMI显示功能。开发人员发现GPIO26（GPIO0D2）控制着系统主电源VCC_SYS_EN，通过执行"echo 1 > /sys/class/gpio/gpio26/value"命令拉高该引脚电平后，HDMI显示立即恢复正常。系统日志显示成功检测到LG Electronics显示器，并自动选择了

南棱笑笑生

709人浏览 · 2026-01-28 16:32:30

南棱笑笑生 · 2026-01-28 16:32:30 发布

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Linux6.1$ ll
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Linux6.1$ ll *sh
lrwxrwxrwx 1 rootroot rootroot 39 3月 8 2025 build.sh -> device/rockchip/common/scripts/build.sh*
lrwxrwxrwx 1 rootroot rootroot 41 3月 8 2025 rkflash.sh -> device/rockchip/common/scripts/rkflash.sh*
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Linux6.1$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Linux6.1$ ./build.sh lunch
3. rockchip_rk3576_evb1_v10_defconfig
Which would you like? [1]: 3
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Linux6.1$ ./build.sh

echo 26 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio26/direction
echo 1 > /sys/class/gpio/gpio26/value

20260128让天启AIO-3576Q38开发板在Rockchip瑞芯微原厂Buildroot下打开HDMI显示
2026/1/28 16:08

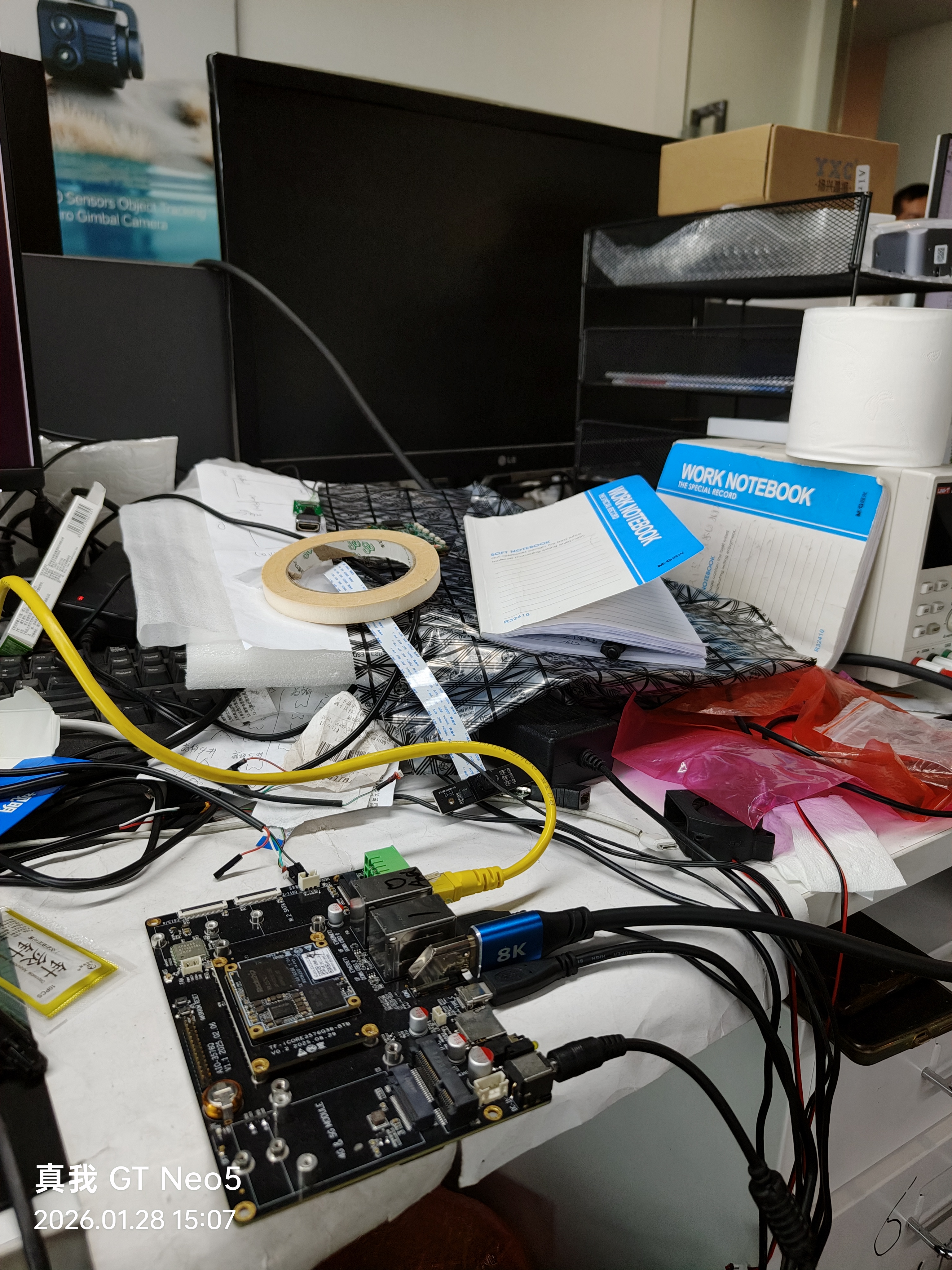

缘起：让天启AIO-3576Q38开发板在Rockchip瑞芯微原厂Buildroot下打开HDMI显示

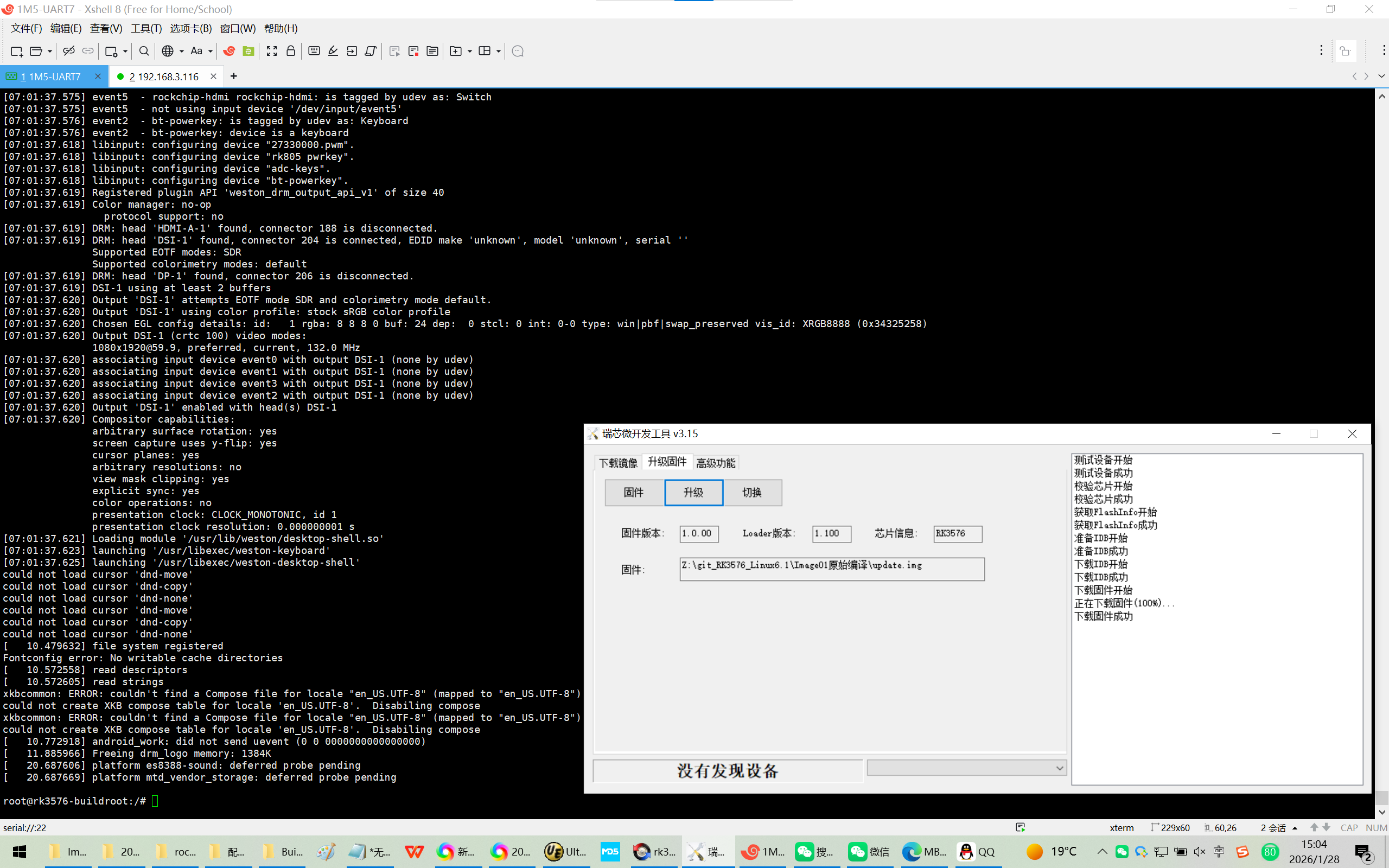

默认编译，天启AIO-3576Q38开发板的HDMI是没有显示的。

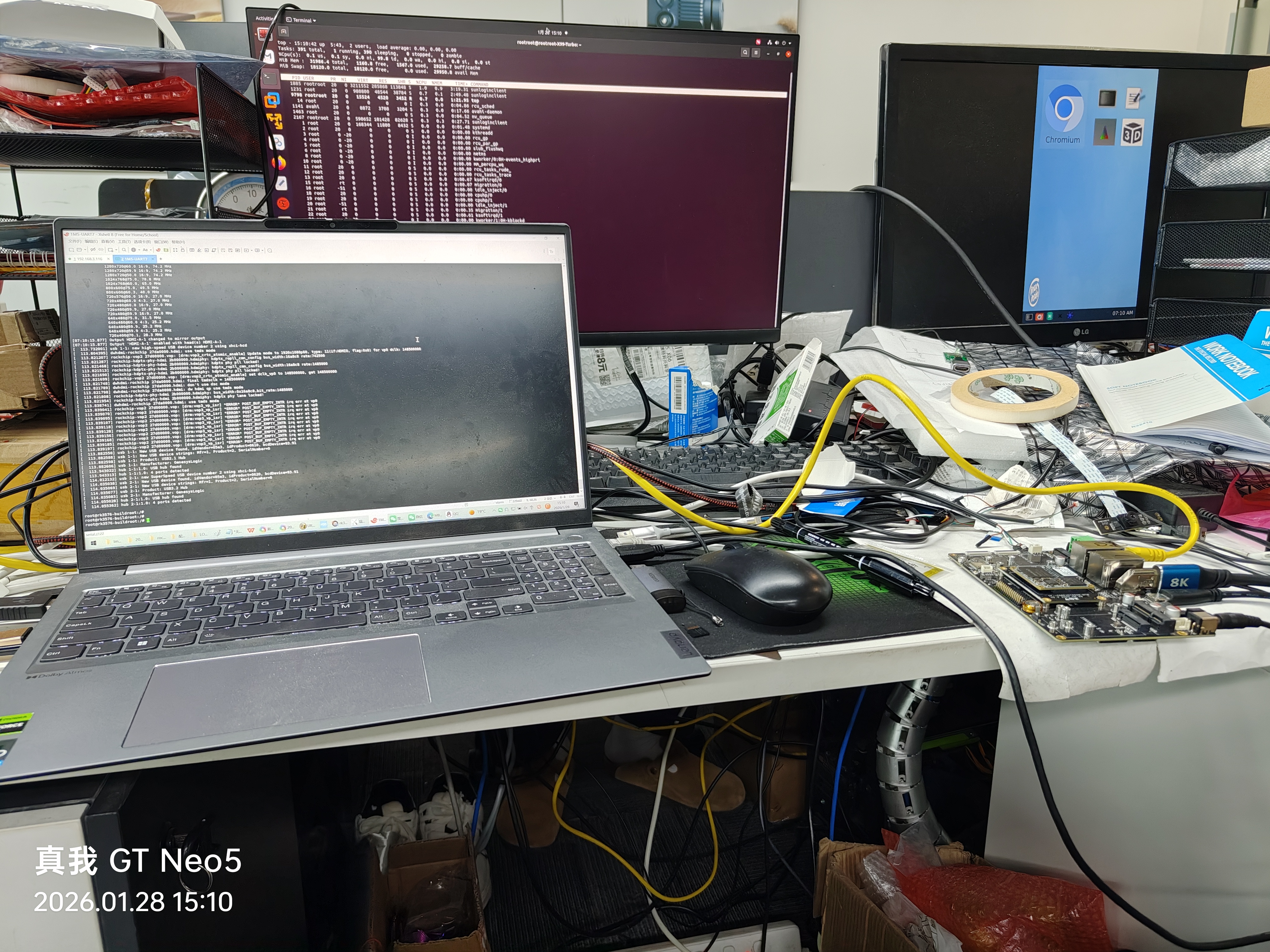

偶然的原因拉高GPIO26/GPIO0D2的时候，HDMI有显示了！^_

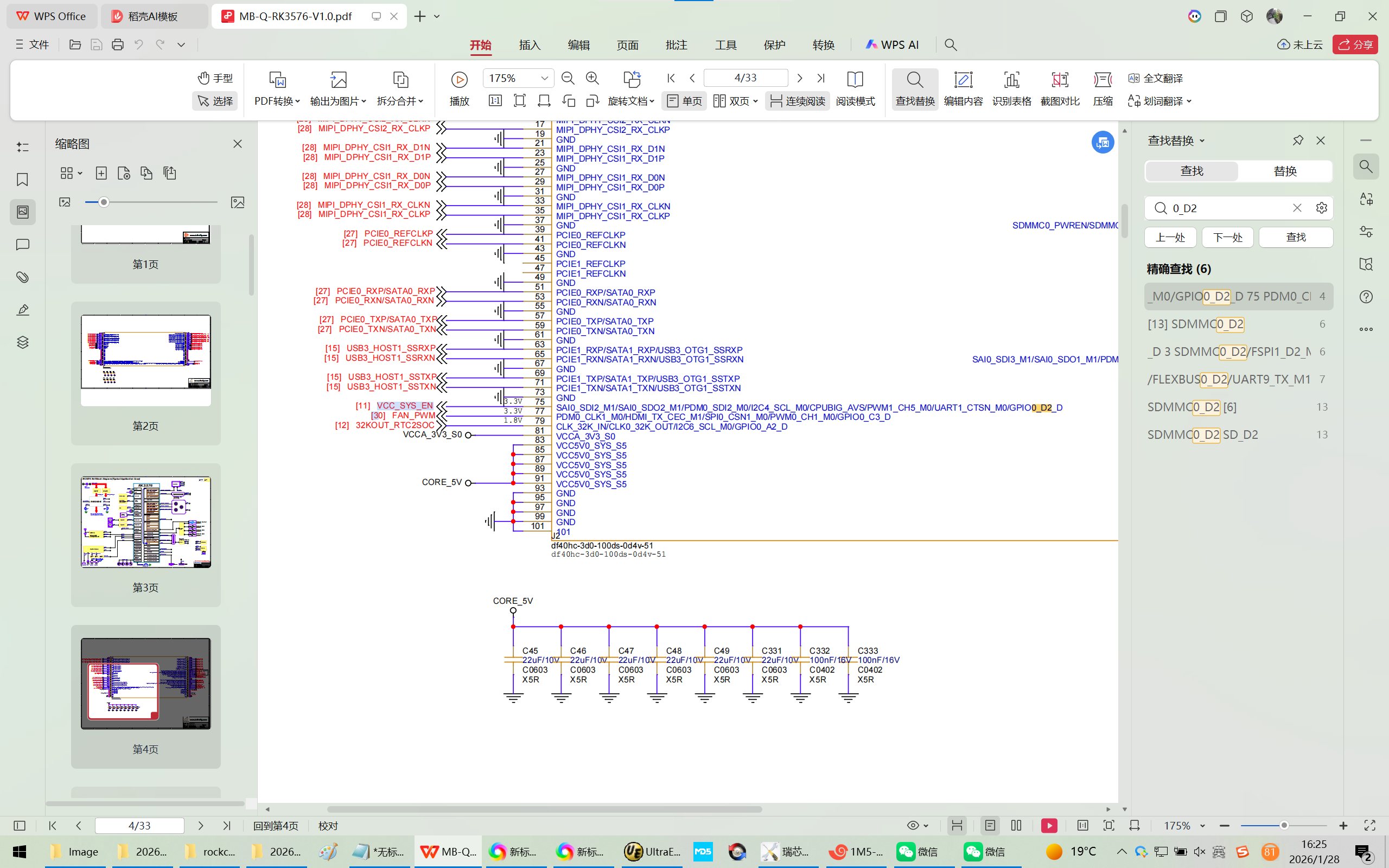

【可控】GPIO0_d2_D SYS_LED电源指示灯 0D2 24+2=26

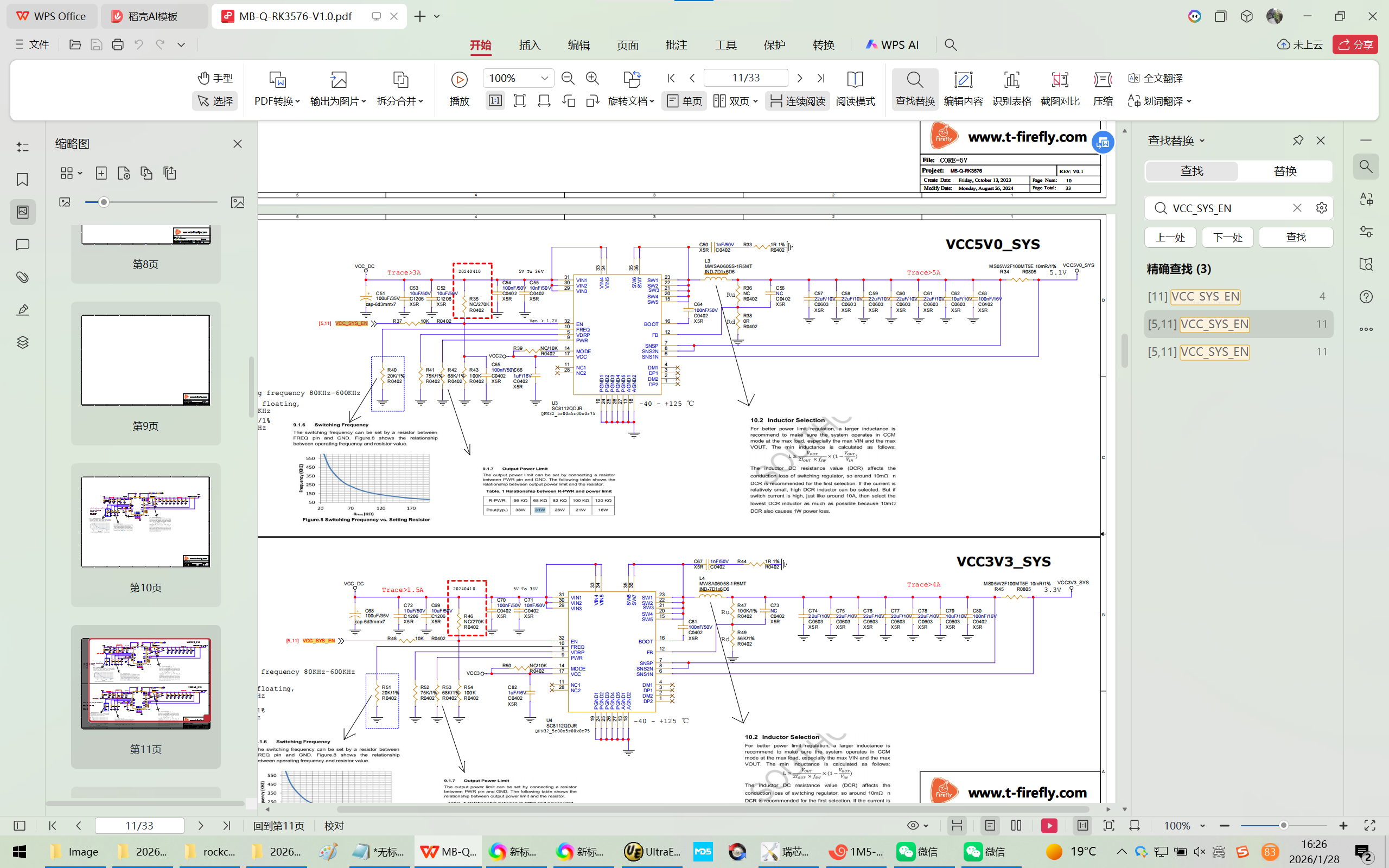

看原理图得知：GPIO26/GPIO0D2 控制 VCC_SYS_EN【看名字是系统的总电源！】
VCC5V0_SYS、VCC3V3_SYS 这两路电源【+5.0V/+3.3V】都是受 GPIO26/GPIO0D2 所控制的，开机就必须打开！

当你把荣品RD-RK3588开发板重新适配一把，就相当于从头做了一个项目：【荣品RD-RK3588开发板】。
当然，开发板的功能都是好的，你免除了调试的过程，也就没有解决相关硬件出错的经验/机会了！

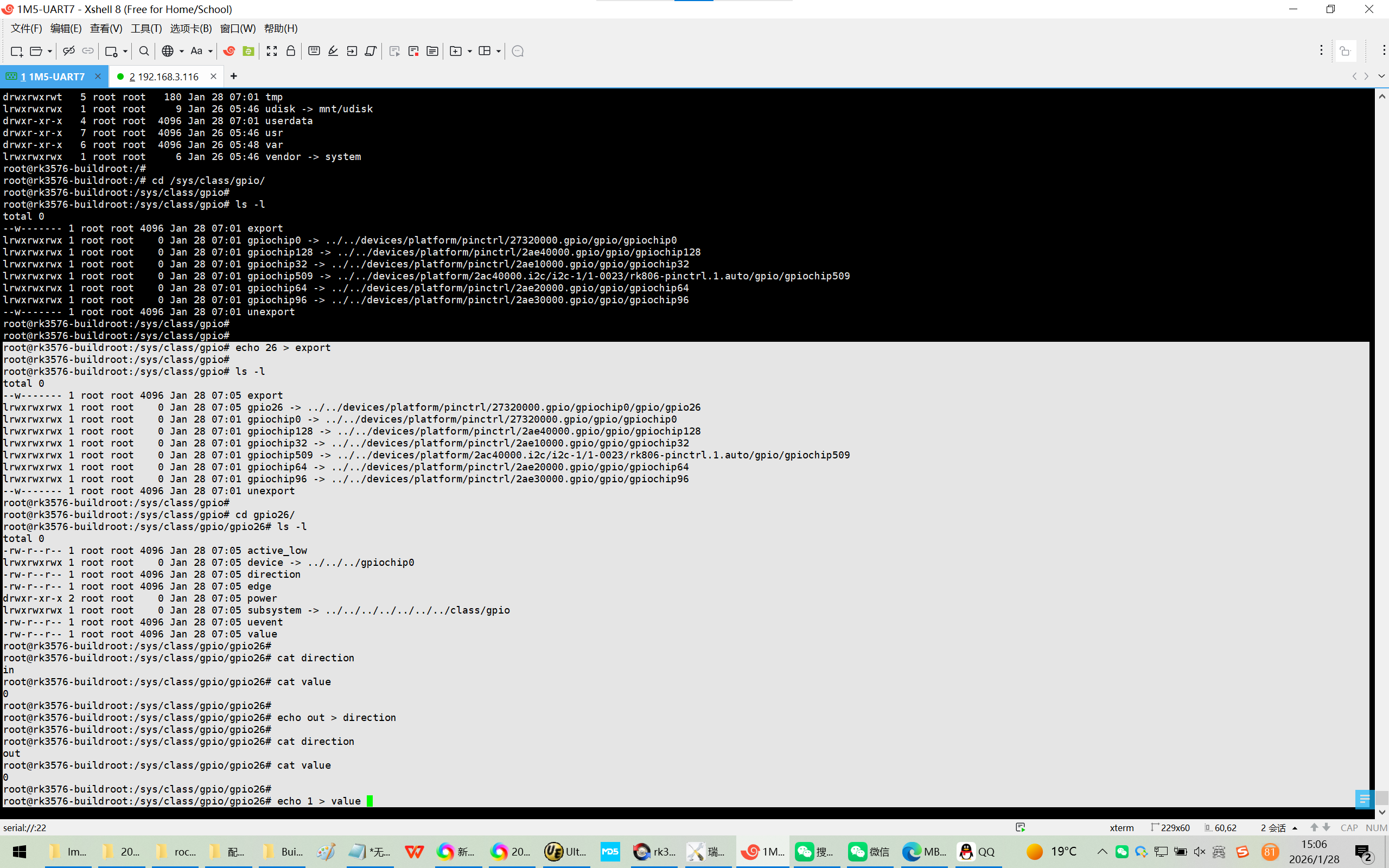

root@rk3576-buildroot:/sdcard/Movies# echo 26 > /sys/class/gpio/export
no 1 > /sys/class/gpio/gpio26/valueroot@rk3576-buildroot:/sdcard/Movies# echo out > /sys/class/gpio/gpio26/direction
root@rk3576-buildroot:/sdcard/Movies# echo 1 > /sys/class/gpio/gpio26/value
root@rk3576-buildroot:/sdcard/Movies# [08:19:30.937] DRM: head 'HDMI-A-1' updated, connector 188 is connected, EDID make 'LG Electronics', model '27MP35', serial '0x01010101'
Supported EOTF modes: SDR
Supported colorimetry modes: default
[08:19:30.938] Detected a monitor change on head 'DSI-1', not bothering to do anything about it.
[08:19:30.938] HDMI-A-1 using at least 2 buffers
[08:19:30.938] Output 'HDMI-A-1' attempts EOTF mode SDR and colorimetry mode default.
[08:19:30.938] Output 'HDMI-A-1' using color profile: stock sRGB color profile
[08:19:30.939] Chosen EGL config details: id: 1 rgba: 8 8 8 0 buf: 24 dep: 0 stcl: 0 int: 0-0 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[08:19:30.939] Output HDMI-A-1 (crtc 72) video modes:
1920x1080@60.0, preferred, current, 148.5 MHz
1920x1080@60.0 16:9, 148.5 MHz
1920x1080@59.9 16:9, 148.4 MHz
1920x1080i@60.0, 74.2 MHz
1920x1080i@60.0 16:9, 74.2 MHz
1920x1080i@59.9 16:9, 74.2 MHz
1920x1080@50.0 16:9, 148.5 MHz
1920x1080i@50.0 16:9, 74.2 MHz
1680x1050@59.9, 119.0 MHz
1400x1050@59.9, 101.0 MHz
1600x900@60.0, 108.0 MHz
1280x1024@75.0, 135.0 MHz
1280x1024@60.0, 108.0 MHz
1440x900@59.9, 88.8 MHz
1280x800@59.9, 71.0 MHz
1152x864@75.0, 108.0 MHz
1280x720@60.0, 74.2 MHz
1280x720@60.0 16:9, 74.2 MHz
1280x720@59.9 16:9, 74.2 MHz
1280x720@50.0 16:9, 74.2 MHz
1024x768@75.0, 78.8 MHz
1024x768@60.0, 65.0 MHz
800x600@75.0, 49.5 MHz
800x600@60.3, 40.0 MHz
720x576@50.0 16:9, 27.0 MHz
720x480@60.0 4:3, 27.0 MHz
720x480@60.0 16:9, 27.0 MHz
720x480@59.9, 27.0 MHz
720x480@59.9 16:9, 27.0 MHz
640x480@75.0, 31.5 MHz
640x480@60.0 4:3, 25.2 MHz
640x480@59.9, 25.2 MHz
640x480@59.9 4:3, 25.2 MHz
720x400@70.1, 28.3 MHz

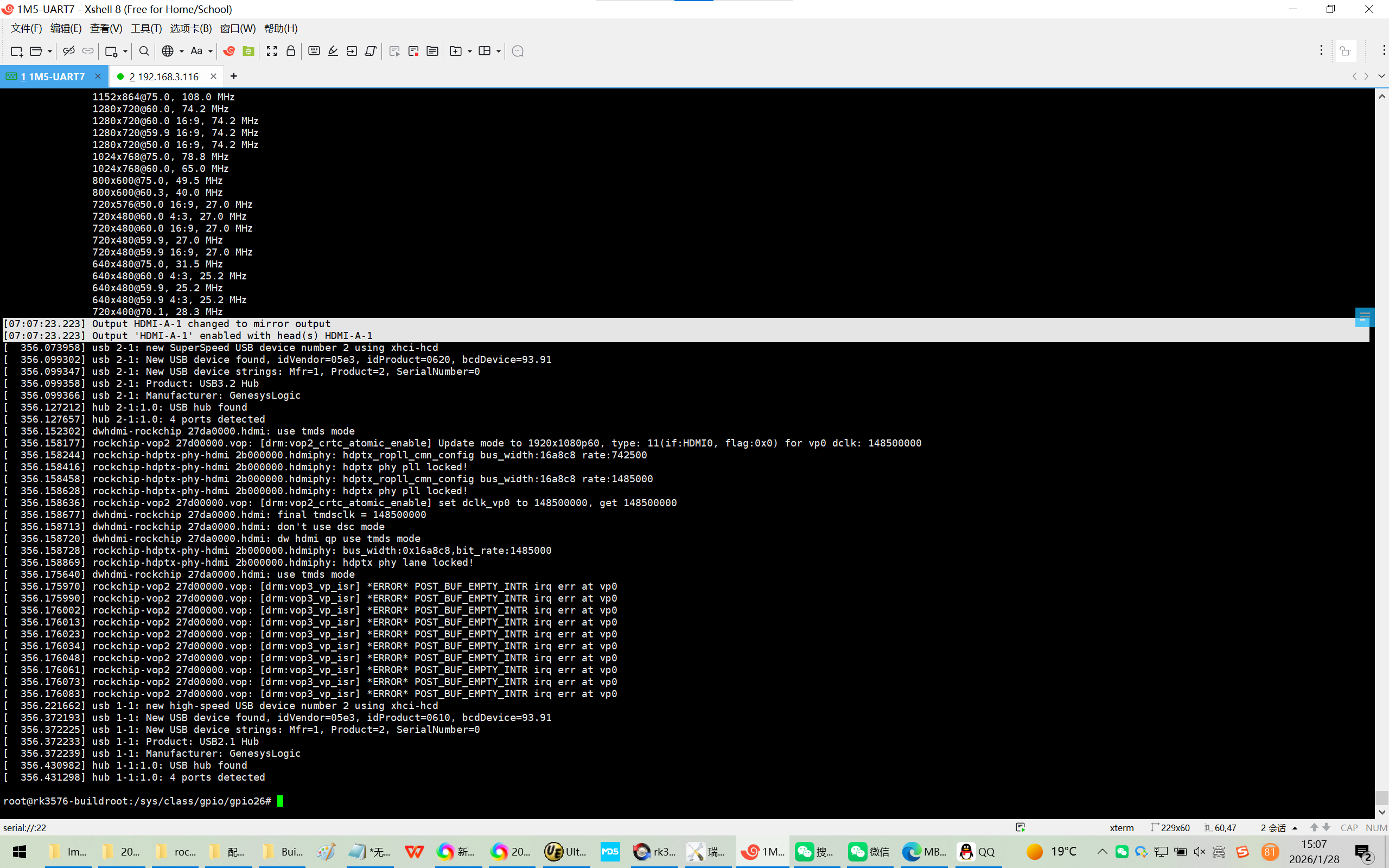

[08:19:30.939] Output HDMI-A-1 changed to mirror output
[08:19:30.939] Output 'HDMI-A-1' enabled with head(s) HDMI-A-1
[ 2119.789851] usb 1-1: new high-speed USB device number 2 using xhci-hcd
[ 2119.861922] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
[ 2119.870869] rockchip-vop2 27d00000.vop: [drm:vop2_crtc_atomic_enable] Update mode to 1920x1080p60, type: 11(if:HDMI0, flag:0x0) for vp0 dclk: 148500000
[ 2119.870936] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx_ropll_cmn_config bus_width:16a8c8 rate:742500
[ 2119.871109] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
[ 2119.871150] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
[ 2119.871320] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
[ 2119.871328] rockchip-vop2 27d00000.vop: [drm:vop2_crtc_atomic_enable] set dclk_vp0 to 148500000, get 148500000
[ 2119.871404] dwhdmi-rockchip 27da0000.hdmi: final tmdsclk = 148500000
[ 2119.871439] dwhdmi-rockchip 27da0000.hdmi: don't use dsc mode
[ 2119.871447] dwhdmi-rockchip 27da0000.hdmi: dw hdmi qp use tmds mode
[ 2119.871455] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: bus_width:0x16a8c8,bit_rate:1485000
[ 2119.871595] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy lane locked!
[ 2119.888300] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
[ 2119.888625] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.888644] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.888656] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.888666] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.888680] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.888694] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.888705] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.888716] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.888726] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.888739] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 2119.940485] usb 1-1: New USB device found, idVendor=05e3, idProduct=0610, bcdDevice=93.91
[ 2119.940517] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 2119.940526] usb 1-1: Product: USB2.1 Hub
[ 2119.940533] usb 1-1: Manufacturer: GenesysLogic
[ 2119.987568] hub 1-1:1.0: USB hub found
[ 2119.987861] hub 1-1:1.0: 4 ports detected
[ 2120.065948] usb 2-1: new SuperSpeed USB device number 2 using xhci-hcd
[ 2120.088860] usb 2-1: New USB device found, idVendor=05e3, idProduct=0620, bcdDevice=93.91
[ 2120.088884] usb 2-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 2120.088891] usb 2-1: Product: USB3.2 Hub
[ 2120.088898] usb 2-1: Manufacturer: GenesysLogic
[ 2120.115534] hub 2-1:1.0: USB hub found
[ 2120.115873] hub 2-1:1.0: 4 ports detected

root@rk3576-buildroot:/sdcard/Movies#
root@rk3576-buildroot:/sdcard/Movies#

详细的LOG：

[BEGIN] 2026/1/28 15:00:04
root@rk3576-buildroot:/#
root@rk3576-buildroot:/# reboot loader
reboot: Waiting for SIGTERM
root@rk3576-buildroot:/# Stopping input-event-daemon: done
stop auto-reboot finished
Stopping dnsmasq: OK
starting usbdevice service, log saved to /var/log/usbdevice.log
Stopping pulseaudio: E: [pulseaudio] main.c: Failed to kill daemon: No such process
OK
Stopping dropbear sshd: OK
stoping weston... [07:00:13.523] caught signal 15
done.
[07:00:13.526] event0 - 27330000.pwm: device removed
[07:00:13.528] event1 - rk805 pwrkey: device removed
[07:00:13.529] event3 - adc-keys: device removed
[07:00:13.529] event2 - bt-powerkey: device removed
Stopping chrony: OK
Stopping dhcpcd...
no /sbin/dhcpcd found; none killed
killall: rkaiq_3A_server: no process killed
Stopping network: ifdown: interface lo not configured
OK
Stopping bluetoothd: OK
Stopping Wi-Fi/BT...[ 322.376492] rockchip-vop2 27d00000.vop: [drm:vop2_crtc_atomic_disable] Crtc atomic disable vp1
Done
Stopping system message bus: done
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
arm_release_ver: g24p0-00eac0, rk_so_ver: 7
Stopping klogd: OK
Stopping syslogd: OK
Seeding 256 bits and crediting
Saving 256 bits of creditable seed for next boot
log-guardian: Stopping log-guardian (420)...
umount: /dev/usb-ffs/adb: target is busy.
[ 322.524228] EXT4-fs (mmcblk0p8): unmounting filesystem.
[ 322.529383] EXT4-fs (mmcblk0p7): unmounting filesystem.
umount: /var/log: target is busy.
umount: /run: target is busy.
[ 322.541301] EXT4-fs (mmcblk0p6): re-mounted. Quota mode: disabled.
The system is going down NOW!
Sent SIGTERM to all processes
[ 322.543849] dwc3 23000000.usb: request 0000000014b65662 was not queued to ep0out
Terminated
[ 322.544357] android_work: did not send uevent (0 0 0000000000000000)
reboot: Caught signal 15
reboot: Ready to reboot
E: [pulseaudio] core-util.c: Failed to create secure directory (/userdata/.pulse/.config/pulse): No such file or directory
reboot: Rebooting with arg(loader)
[ 322.754728] mpp_rkvenc2 27a10000.rkvenc-core: shutdown device
[ 322.755255] mpp_rkvenc2 27a10000.rkvenc-core: shutdown success
[ 322.755778] mpp_rkvenc2 27a00000.rkvenc-core: shutdown device
[ 322.756286] mpp_rkvenc2 27a00000.rkvenc-core: shutdown success
[ 322.756810] mpp_rkvdec2 27b00100.rkvdec: shutdown device
[ 322.757284] mpp_rkvdec2 27b00100.rkvdec: shutdown success
[ 322.757778] mpp_jpgenc 27910800.jpege: shutdown device
[ 322.758232] mpp_jpgenc 27910800.jpege: shutdown success
[ 322.758699] mpp_jpgdec 27910000.jpegd: shutdown device
[ 322.759152] mpp_jpgdec 27910000.jpegd: shutdown success
[ 322.759619] mpp-iep2 27960000.iep: shutdown device
[ 322.760040] mpp-iep2 27960000.iep: shutdown success
[ 322.760660] rga2 27930000.rga: shutdown success
[ 322.761151] rga2 27920000.rga: shutdown success
[ 322.763972] rkisp_hw 27c00000.isp: rkisp_hw_shutdown
[ 322.764651] xhci-hcd xhci-hcd.0.auto: remove, state 4
[ 322.765100] usb usb2: USB disconnect, device number 1
[ 322.765996] xhci-hcd xhci-hcd.0.auto: USB bus 2 deregistered
[ 322.766705] xhci-hcd xhci-hcd.0.auto: remove, state 4
[ 322.767153] usb usb1: USB disconnect, device number 1
[ 322.768100] xhci-hcd xhci-hcd.0.auto: USB bus 1 deregistered
[ 322.769397] [WLAN_RFKILL]: Enter rfkill_wlan_shutdown
[ 322.769874] [WLAN_RFKILL]: rockchip_wifi_power: 0
[ 322.770296] [WLAN_RFKILL]: rockchip_wifi_power: toggle = false
[ 322.770814] wifi power off
[ 322.877637] [WLAN_RFKILL]: rockchip_wifi_power: toggle = false
[ 322.878159] [WLAN_RFKILL]: wifi shut off power [GPIO54-0]
[ 322.878633] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 0
[ 323.079735] reboot: Restarting system with command 'loader'
DDR 2f85f4b2d4 cym 24/11/07-19:07:28,fwver: v1.09
In
ch0 ttot10
ch0 ttot10
ch1 ttot10
ch0 ttot18
LPDDR4, 2112MHz
channel[0] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=16 Size=4096MB
ch1 ttot18
channel[1] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=16 Size=4096MB
Manufacturer ID:0xff
CH0 RX Vref:31.2%, RX DQS Vref:37.2%, TX Vref:13.2%,13.2%
DQ roc:
p4 n0, p1 n0, p0 n1, p2 n0, p4 n0, p6 n0, p7 n0, p3 n0, p7 n0,
p4 n0, p1 n0, p7 n0, p3 n0, p5 n0, p4 n0, p6 n0, p0 n0, p1 n0,

DQ rds:h1 l0 l0 l0 h1 h1 h1 l0, h1 h1 l0 h1 l0 h1 h1 l0
DQS roc: p0, n0, p1, n0

CH1 RX Vref:31.6%, RX DQS Vref:36.8%, TX Vref:13.2%,13.2%
DQ roc:
p6 n0, p6 n0, p4 n0, p7 n0, p7 n0, p3 n0, p3 n0, p2 n0, p5 n0,
p4 n0, p7 n0, p2 n0, p3 n0, p7 n0, p4 n0, p5 n0, p2 n0, p5 n0,

DQ rds:l0 h1 l0 h1 h1 l0 l0 l0, l0 l0 h2 l0 l0 l0 h1 h1
DQS roc: p0, n0, p0, n0

stride=0x3, ddr_config=0x4
hash bank_mask0-3 0x0 0x880 0x1100 0x2200, rank_mask0 0x400400
change to F1: 528MHz
ch0 ttot10
ch1 ttot10
change to F2: 1068MHz
ch0 ttot14
ch1 ttot14
change to F3: 1560MHz
ch0 ttot16
ch1 ttot16
change to F0: 2112MHz
ch0 ttot18
ch1 ttot18
out
U-Boot SPL board init
U-Boot SPL 2017.09 (Jan 26 2026 - 12:02:51)
sfc cmd=00H(6BH-x4)
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC: no card present
mmc_init: -123, time 0
spl: mmc init failed with error: -123
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x40040000 ... sha256(1c50b242b2...) + OK
## Checking uboot 0x40200000 ... sha256(b556476e6c...) + OK
## Checking fdt 0x4034b288 ... sha256(9dfd444689...) + OK
## Checking atf-2 0x400f0000 ... sha256(8afb712810...) + OK
## Checking atf-3 0x3fe70000 ... sha256(3af1bf762b...) + OK
## Checking optee 0x48400000 ... sha256(010f86355a...) + OK
Jumping to U-Boot(0x40200000) via ARM Trusted Firmware(0x40040000)
Total: 107.742/298.147 ms

INFO: Preloader serial: 0
NOTICE: BL31: v2.3():v2.3-859-gc481e5368:derrick.huang, fwver: v1.14
NOTICE: BL31: Built : 09:37:28, Nov 8 2024
INFO: ext 32k is not detected
INFO: SOC (0x35760a01)
INFO: spec: 0xa
INFO: soc warm boot, reset status: 0x1
INFO: ARM GICv2 driver initialized
INFO: bypass memory repair
INFO: dfs DDR fsp_params[0].freq_mhz= 2112MHz
INFO: dfs DDR fsp_params[1].freq_mhz= 528MHz
INFO: dfs DDR fsp_params[2].freq_mhz= 1068MHz
INFO: dfs DDR fsp_params[3].freq_mhz= 1560MHz
INFO: Using opteed sec cpu_context!
INFO: boot cpu mask: 1
INFO: BL31: Initializing runtime services
INFO: BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-891-g9f2aca7d1 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #2 Thu Oct 31 16:14:37 CST 2024 aarch64, fwver: v1.05
I/TC: OP-TEE memory: TEEOS 0x200000 TA 0xc00000 SHM 0x200000
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0x40200000
INFO: SPSR = 0x3c9

U-Boot 2017.09 (Jan 26 2026 - 12:02:51 +0800)

Model: Rockchip RK3576 Evaluation board
MPIDR: 0x0
PreSerial: 0, raw, 0x2ad40000
DRAM: 8 GiB
Sysmem: init
Relocation Offset: bda12000
Relocation fdt: fb9f9f70 - fb9fece8
CR: M/C/I
Using default environment

DQ rds:h1 l0 l0 l0 h1 h2 h2 l0, h1 h1 l0 h1 l0 h1 h1 l0
DQS roc: p0, n0, p1, n0

CH1 RX Vref:31.6%, RX DQS Vref:36.8%, TX Vref:13.2%,13.2%
DQ roc:
p6 n0, p5 n0, p4 n0, p6 n0, p4 n0, p3 n0, p5 n0, p3 n1, p6 n0,
p6 n0, p7 n0, p3 n0, p6 n0, p4 n0, p4 n0, p4 n0, p2 n0, p5 n0,

DQ rds:l0 h1 l0 h1 h1 l0 l0 l0, l0 l0 h2 l0 l0 l0 h1 h1
DQS roc: p1, n1, p0, n0

stride=0x3, ddr_config=0x4
hash bank_mask0-3 0x0 0x880 0x1100 0x2200, rank_mask0 0x400400
change to F1: 528MHz
ch0 ttot10
ch1 ttot10
change to F2: 1068MHz
ch0 ttot14
ch1 ttot14
change to F3: 1560MHz
ch0 ttot16
ch1 ttot16
change to F0: 2112MHz
ch0 ttot18
ch1 ttot18
out
U-Boot SPL board init
U-Boot SPL 2017.09 (Jan 26 2026 - 12:02:51)
sfc cmd=00H(6BH-x4)
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC: no card present
mmc_init: -123, time 0
spl: mmc init failed with error: -123
Trying to boot from MMC1
Magic is incorrect.
Error validating A/B metadata from disk. Resetting and writing new A/B metadata to disk.
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x40040000 ... sha256(1c50b242b2...) + OK
## Checking uboot 0x40200000 ... sha256(b556476e6c...) + OK
## Checking fdt 0x4034b288 ... sha256(9dfd444689...) + OK
## Checking atf-2 0x400f0000 ... sha256(8afb712810...) + OK
## Checking atf-3 0x3fe70000 ... sha256(3af1bf762b...) + OK
## Checking optee 0x48400000 ... sha256(010f86355a...) + OK
Jumping to U-Boot(0x40200000) via ARM Trusted Firmware(0x40040000)
Total: 109.99/300.126 ms

U-Boot 2017.09 (Jan 26 2026 - 12:02:51 +0800)

optee api revision: 2.0
mmc@2a310000: 1, mmc@2a330000: 0
Bootdev(atags): mmc 0
MMC0: HS400 Enhanced Strobe, 200Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v2
boot mode: normal
RESC: 'boot', blk@0x0001b0a0
resource: sha256+
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(ce): OK
dw_dp_bind zyb enter
I2c1 speed: 100000Hz
PMIC: RK8060 (on=0x80, off=0x80)
vdd_cpu_big_s0 init 850000 uV
vdd_npu_s0 750000 uV
vdd_cpu_lit_s0 init 850000 uV
vdd_gpu_s0 init 750000 uV
vdd_logic_s0 init 750000 uV
vdd_ddr_s0 850000 uV
Could not find baseparameter partition
Model: Rockchip RK3576 EVB1 V10 Board
Rockchip UBOOT DRM driver version: v1.0.1
Assign plane mask automatically
VOP have 3 active VP
vp0 have layer nr:1[2 ], primary plane: 2
vp1 have layer nr:1[3 ], primary plane: 3
vp2 have layer nr:1[8 ], primary plane: 8
Using display timing dts
dsi@27d80000: detailed mode clock 132000 kHz, flags[a]
H: 1080 1095 1099 1129
V: 1920 1935 1937 1952
bus_format: 100e
VOP update mode to: 1080x1920p60, type: MIPI0 for VP1
VP1 set crtc_clock to 132000KHz
Unsupported bt709f at 10bit csc depth, use bt601f instead
VOP VP1 enable Esmart1[654x270->654x270@213x825] fmt[0] addr[0xfdf00000]
final DSI-Link bandwidth: 880000 Kbps x 4
hdmi@27da0000 disconnected
CLK: (uboot. arm: enter 1008000 KHz, init 1008000 KHz, kernel 0N/A)
bpll 816000 KHz
lpll 816000 KHz
vpll 594000 KHz
aupll 786432 KHz
cpll 1000000 KHz
gpll 1188000 KHz
ppll 1300000 KHz
aclk_bus_root 396000 KHz
pclk_bus_root 100000 KHz
hclk_bus_root 198000 KHz
aclk_top 786432 KHz
aclk_top_mid 396000 KHz
pclk_top 100000 KHz
hclk_top 200000 KHz
Net: eth0: ethernet@2a220000, eth1: ethernet@2a230000
Hit key to stop autoboot('CTRL+C'): 0
ANDROID: reboot reason: "(none)"
Not AVB images, AVB skip
No valid android hdr
Android image load failed
Android boot failed, error -1.
## Booting FIT Image at 0xf91e4f40 with size 0x02614000
Fdt Ramdisk skip relocation
## Loading kernel from FIT Image at f91e4f40 ...
Using 'conf' configuration
## Verified-boot: 0
Trying 'kernel' kernel subimage
Description: unavailable
Type: Kernel Image
Compression: uncompressed
Data Start: 0xf922c540
Data Size: 39635456 Bytes = 37.8 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x40400000
Entry Point: 0x40400000
Hash algo: sha256
Hash value: e5510ee676d1582b64aa56a8fa7c43c4cfc77f70383512858f0c91c45d11b849
Verifying Hash Integrity ... sha256+ OK
## Loading fdt from FIT Image at f91e4f40 ...
Using 'conf' configuration
Trying 'fdt' fdt subimage
Description: unavailable
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0xf91e5740
Data Size: 290130 Bytes = 283.3 KiB
Architecture: AArch64
Load Address: 0x48300000
Hash algo: sha256
Hash value: 7733a7f12f1081bb239930cb4e2c607989d3a95dc934da705a1e12e53881153f
Verifying Hash Integrity ... sha256+ OK
Loading fdt from 0x48300000 to 0x48300000
Booting using the fdt blob at 0x48300000
Loading Kernel Image from 0xf922c540 to 0x40400000 ... OK
kernel loaded at 0x40400000, end = 0x429cca00
Using Device Tree in place at 0000000048300000, end 0000000048349d51
scanning bus for devices...
Timedout waiting for UIC response
Timedout waiting for UIC response
Timedout waiting for UIC response
Timedout waiting for UIC response
link startup failed -110
ufshcd_pltfrm_init() failed -110
FDT: UFS was not detected, disabling UFS.
vp0, plane_mask:0x4, primary-id:2, curser-id:-1
vp1, plane_mask:0x8, primary-id:3, curser-id:-1
vp2, plane_mask:0x100, primary-id:8, curser-id:-1
## reserved-memory:
drm-logo@0: addr=fdf00000 size=15a000
ramoops@40110000: addr=40110000 size=e0000
Adding bank: 0x40200000 - 0x48400000 (size: 0x08200000)
Adding bank: 0x49400000 - 0x100000000 (size: 0xb6c00000)
Adding bank: 0x100000000 - 0x240000000 (size: 0x140000000)
Total: 1461.596/1806.987 ms

Starting kernel ...

[ 1.813707] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 1.813732] Linux version 6.1.99 (rootroot@rootroot-X99-Turbo) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #1 SMP Mon Jan 26 12:07:50 CST 2026
[ 1.816894] random: crng init done
[ 1.821930] Machine model: Rockchip RK3576 EVB1 V10 Board
[ 1.834964] earlycon: uart8250 at MMIO32 0x000000002ad40000 (options '')
[ 1.839617] printk: bootconsole [uart8250] enabled
[ 1.842660] efi: UEFI not found.
[ 1.845524] OF: fdt: Reserved memory: failed to reserve memory for node 'drm-cubic-lut@0': base 0x0000000000000000, size 0 MiB
[ 1.998717] Zone ranges:
[ 1.998973] DMA [mem 0x0000000040200000-0x00000000ffffffff]
[ 1.999564] DMA32 empty
[ 1.999839] Normal [mem 0x0000000100000000-0x000000023fffffff]
[ 2.000425] Movable zone start for each node
[ 2.000829] Early memory node ranges
[ 2.001167] node 0: [mem 0x0000000040200000-0x00000000483fffff]
[ 2.001762] node 0: [mem 0x0000000049400000-0x000000023fffffff]
[ 2.002360] Initmem setup node 0 [mem 0x0000000040200000-0x000000023fffffff]
[ 2.003640] On node 0, zone DMA: 512 pages in unavailable ranges
[ 2.016841] On node 0, zone DMA: 4096 pages in unavailable ranges
[ 2.040251] cma: Reserved 16 MiB at 0x00000000ff000000
[ 2.041496] psci: probing for conduit method from DT.
[ 2.041980] psci: PSCIv1.1 detected in firmware.
[ 2.042419] psci: Using standard PSCI v0.2 function IDs
[ 2.042916] psci: Trusted OS migration not required
[ 2.043385] psci: SMC Calling Convention v1.2
[ 2.044122] percpu: Embedded 26 pages/cpu s68968 r8192 d29336 u106496
[ 2.044883] Detected VIPT I-cache on CPU0
[ 2.045309] CPU features: detected: ARM erratum 845719
[ 2.045796] alternatives: applying boot alternatives
[ 2.046641] Built 1 zonelists, mobility grouping on. Total pages: 2059784
[ 2.047299] Kernel command line: storagemedia=emmc androidboot.storagemedia=emmc androidboot.mode=normal androidboot.verifiedbootstate=orange rw rootwait earlycon=uart8250,mmio32,0x2ad40000 console=ttyFIQ0 root=PARTUUID=614e0000-0000 rcupdate.rcu_expedited=1 rcu_nocbs=all androidboot.fwver=ddr-v1.09-2f85f4b2d4,bl31-v1.14,bl32-v1.05,uboot-01/26/2026
[ 2.050437] Unknown kernel command line parameters "storagemedia=emmc", will be passed to user space.
[ 2.052291] Dentry cache hash table entries: 1048576 (order: 11, 8388608 bytes, linear)
[ 2.053532] Inode-cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[ 2.054277] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 2.054872] software IO TLB: area num 8.
[ 2.071004] software IO TLB: mapped [mem 0x00000000f9f00000-0x00000000fdf00000] (64MB)
[ 2.156667] Memory: 8084436K/8370176K available (20224K kernel code, 3634K rwdata, 7220K rodata, 7488K init, 660K bss, 269356K reserved, 16384K cma-reserved)
[ 2.158110] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1
[ 2.158760] ftrace: allocating 61783 entries in 242 pages
[ 2.244347] ftrace: allocated 242 pages with 5 groups
[ 2.244935] trace event string verifier disabled
[ 2.245554] rcu: Hierarchical RCU implementation.
[ 2.246003] rcu:    RCU event tracing is enabled.
[ 2.246432]    All grace periods are expedited (rcu_expedited).
[ 2.246975]    Rude variant of Tasks RCU enabled.
[ 2.247404] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[ 2.255953] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 2.259900] Root IRQ handler: gic_handle_irq
[ 2.260325] GIC: Using split EOI/Deactivate mode
[ 2.262265] rcu:    Offload RCU callbacks from CPUs: 0-7.
[ 2.262787] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 2.286333] arch_timer: cp15 timer(s) running at 1000.00MHz (phys).
[ 2.286936] clocksource: arch_sys_counter: mask: 0x1fffffffffffffff max_cycles: 0x1cd42e4dffb, max_idle_ns: 881590591483 ns
[ 2.287964] sched_clock: 61 bits at 1000MHz, resolution 1ns, wraps every 4398046511103ns
[ 2.290720] Console: colour dummy device 80x25
[ 2.291173] Calibrating delay loop (skipped), value calculated using timer frequency.. 2000.00 BogoMIPS (lpj=4000000)
[ 2.292152] pid_max: default: 32768 minimum: 301
[ 2.292720] Mount-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)
[ 2.293435] Mountpoint-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)
[ 2.294938] cacheinfo: Unable to detect cache hierarchy for CPU 0
[ 2.295891] cblist_init_generic: Setting adjustable number of callback queues.
[ 2.296557] cblist_init_generic: Setting shift to 3 and lim to 1.
[ 2.297225] rcu: Hierarchical SRCU implementation.
[ 2.297668] rcu:    Max phase no-delay instances is 1000.
[ 2.300857] EFI services will not be available.
[ 2.301627] smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
I/TC: Secondary CPU 4 initializing
I/TC: Secondary CPU 4 switching to normal world boot
I/TC: Secondary CPU 5 initializing
I/TC: Secondary CPU 5 switching to normal world boot
I/TC: Secondary CPU 6 initializing
I/TC: Secondary CPU 6 switching to normal world boot
I/TC: Secondary CPU 7 initializing
I/TC: Secondary CPU 7 switching to normal world boot
[ 2.303152] Detected VIPT I-cache on CPU1
[ 2.303211] cacheinfo: Unable to detect cache hierarchy for CPU 1
[ 2.303245] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 2.304347] Detected VIPT I-cache on CPU2
[ 2.304396] cacheinfo: Unable to detect cache hierarchy for CPU 2
[ 2.304414] CPU2: Booted secondary processor 0x0000000002 [0x410fd034]
[ 2.305493] Detected VIPT I-cache on CPU3
[ 2.305535] cacheinfo: Unable to detect cache hierarchy for CPU 3
[ 2.305552] CPU3: Booted secondary processor 0x0000000003 [0x410fd034]
[ 2.306665] CPU features: detected: Spectre-BHB
[ 2.306671] CPU features: detected: ARM erratum 1742098
[ 2.306674] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[ 2.306677] Detected PIPT I-cache on CPU4
[ 2.306722] cacheinfo: Unable to detect cache hierarchy for CPU 4
[ 2.306742] CPU4: Booted secondary processor 0x0000000100 [0x411fd080]
[ 2.307822] Detected PIPT I-cache on CPU5
[ 2.307858] cacheinfo: Unable to detect cache hierarchy for CPU 5
[ 2.307870] CPU5: Booted secondary processor 0x0000000101 [0x411fd080]
[ 2.308927] Detected PIPT I-cache on CPU6
[ 2.308962] cacheinfo: Unable to detect cache hierarchy for CPU 6
[ 2.308975] CPU6: Booted secondary processor 0x0000000102 [0x411fd080]
[ 2.310038] Detected PIPT I-cache on CPU7
[ 2.310077] cacheinfo: Unable to detect cache hierarchy for CPU 7
[ 2.310089] CPU7: Booted secondary processor 0x0000000103 [0x411fd080]
[ 2.310146] smp: Brought up 1 node, 8 CPUs
[ 2.322722] SMP: Total of 8 processors activated.
[ 2.323157] CPU features: detected: 32-bit EL0 Support
[ 2.323635] CPU features: detected: CRC32 instructions
[ 2.324215] CPU: All CPU(s) started at EL2
[ 2.324594] alternatives: applying system-wide alternatives
[ 2.327161] devtmpfs: initialized
[ 2.346036] Registered cp15_barrier emulation handler
[ 2.346495] Registered setend emulation handler
[ 2.346997] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 2.347865] futex hash table entries: 2048 (order: 5, 131072 bytes, linear)
[ 2.348835] pinctrl core: initialized pinctrl subsystem
[ 2.349584] DMI not present or invalid.
[ 2.350074] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 2.351419] DMA: preallocated 1024 KiB GFP_KERNEL pool for atomic allocations
[ 2.352305] DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 2.353250] DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 2.356527] Registered FIQ tty driver
[ 2.357033] thermal_sys: Registered thermal governor 'fair_share'
[ 2.357037] thermal_sys: Registered thermal governor 'step_wise'
[ 2.357576] thermal_sys: Registered thermal governor 'user_space'
[ 2.358107] thermal_sys: Registered thermal governor 'power_allocator'
[ 2.358675] cpuidle: using governor menu
[ 2.359746] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 2.360463] ASID allocator initialised with 65536 entries
[ 2.363301] ramoops: dmesg-0   0x18000@0x0000000040110000
[ 2.363770] ramoops: dmesg-1   0x18000@0x0000000040128000
[ 2.364493] ramoops: console   0x80000@0x0000000040140000
[ 2.364975] ramoops: pmsg   0x30000@0x00000000401c0000
[ 2.365680] printk: console [ramoops-1] enabled
[ 2.366085] pstore: Registered ramoops as persistent store backend
[ 2.366634] ramoops: using 0xe0000@0x40110000, ecc: 0
[ 2.369005] platform csi2-dcphy0: Fixed dependency cycle(s) with /mipi0-csi2
[ 2.369673] platform mipi0-csi2: Fixed dependency cycle(s) with /csi2-dcphy0
[ 2.370634] platform mipi0-csi2: Fixed dependency cycle(s) with /rkcif-mipi-lvds
[ 2.371322] platform rkcif-mipi-lvds: Fixed dependency cycle(s) with /mipi0-csi2
[ 2.372164] platform rkcif-mipi-lvds-sditf: Fixed dependency cycle(s) with /rkisp-vir0
[ 2.372891] platform rkisp-vir0: Fixed dependency cycle(s) with /rkcif-mipi-lvds-sditf
[ 2.373824] platform rkisp-vir0-sditf: Fixed dependency cycle(s) with /rkvpss-vir0
[ 2.374522] platform rkvpss-vir0: Fixed dependency cycle(s) with /rkisp-vir0-sditf
[ 2.385830] platform 27d00000.vop: Fixed dependency cycle(s) with /dsi@27d80000
[ 2.386525] platform 27d80000.dsi: Fixed dependency cycle(s) with /dsi@27d80000/panel@0
[ 2.387243] platform 27d80000.dsi: Fixed dependency cycle(s) with /vop@27d00000
[ 2.388321] platform 27d00000.vop: Fixed dependency cycle(s) with /hdmi@27da0000
[ 2.389010] platform 27da0000.hdmi: Fixed dependency cycle(s) with /vop@27d00000
[ 2.389915] platform 27e40000.dp: Fixed dependency cycle(s) with /vop@27d00000
[ 2.399655] platform 2b010000.phy: Fixed dependency cycle(s) with /i2c@2ac50000/husb311@4e/connector
[ 2.413920] rockchip-gpio 27320000.gpio: probed /pinctrl/gpio@27320000
[ 2.414802] rockchip-gpio 2ae10000.gpio: probed /pinctrl/gpio@2ae10000
[ 2.415733] rockchip-gpio 2ae20000.gpio: probed /pinctrl/gpio@2ae20000
[ 2.416609] rockchip-gpio 2ae30000.gpio: probed /pinctrl/gpio@2ae30000
[ 2.417429] rockchip-gpio 2ae40000.gpio: probed /pinctrl/gpio@2ae40000
[ 2.418125] rockchip-pinctrl pinctrl: probed pinctrl
[ 2.430439] fiq_debugger fiq_debugger.0: error -ENXIO: IRQ fiq not found
[ 2.431048] fiq_debugger fiq_debugger.0: error -ENXIO: IRQ wakeup not found
[ 2.431670] fiq_debugger_probe: could not install nmi irq handler
[[ 2.432260] printk: console [ttyFIQ0] enabled
2.432260] printk: console [ttyFIQ0] enabled
[ 2.433030] printk: bootconsole [uart8250] disabled
[ 2.433030] printk: bootconsole [uart8250] disabled
[ 2.433547] Registered fiq debugger ttyFIQ0
[ 2.436899] iommu: Default domain type: Translated
[ 2.436914] iommu: DMA domain TLB invalidation policy: strict mode
[ 2.437092] SCSI subsystem initialized
[ 2.437190] usbcore: registered new interface driver usbfs
[ 2.437213] usbcore: registered new interface driver hub
[ 2.437234] usbcore: registered new device driver usb
[ 2.437308] mc: Linux media interface: v0.10
[ 2.437329] videodev: Linux video capture interface: v2.00
[ 2.437369] pps_core: LinuxPPS API ver. 1 registered
[ 2.437376] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 2.437386] PTP clock support registered
[ 2.437409] EDAC MC: Ver: 3.0.0
[ 2.437939] arm-scmi firmware:scmi: Enabled polling mode TX channel - prot_id:16
[ 2.438013] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
[ 2.438054] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
[ 2.439594] Advanced Linux Sound Architecture Driver Initialized.
[ 2.439819] Bluetooth: Core ver 2.22
[ 2.439841] NET: Registered PF_BLUETOOTH protocol family
[ 2.439847] Bluetooth: HCI device and connection manager initialized
[ 2.439855] Bluetooth: HCI socket layer initialized
[ 2.439862] Bluetooth: L2CAP socket layer initialized
[ 2.439872] Bluetooth: SCO socket layer initialized
[ 2.441191] rockchip-cpuinfo cpuinfo: SoC       : 35760000
[ 2.441202] rockchip-cpuinfo cpuinfo: Serial       : b5db0a0e55657ccc
[ 2.441644] clocksource: Switched to clocksource arch_sys_counter
[ 2.446238] NET: Registered PF_INET protocol family
[ 2.446413] IP idents hash table entries: 131072 (order: 8, 1048576 bytes, linear)
[ 2.450249] tcp_listen_portaddr_hash hash table entries: 4096 (order: 4, 65536 bytes, linear)
[ 2.450304] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 2.450339] TCP established hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 2.450651] TCP bind hash table entries: 65536 (order: 9, 2097152 bytes, linear)
[ 2.451794] TCP: Hash tables configured (established 65536 bind 65536)
[ 2.451865] UDP hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 2.451990] UDP-Lite hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 2.452191] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 2.452406] RPC: Registered named UNIX socket transport module.
[ 2.452416] RPC: Registered udp transport module.
[ 2.452421] RPC: Registered tcp transport module.
[ 2.452427] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 2.452929] PCI: CLS 0 bytes, default 64
[ 2.453780] rockchip-thermal 2ae70000.tsadc: Missing rockchip,grf property
[ 2.455933] thermal thermal_zone0: power_allocator: sustainable_power will be estimated
[ 2.456029] thermal thermal_zone1: power_allocator: sustainable_power will be estimated
[ 2.456209] thermal thermal_zone3: power_allocator: sustainable_power will be estimated
[ 2.456297] thermal thermal_zone4: power_allocator: sustainable_power will be estimated
[ 2.456384] thermal thermal_zone5: power_allocator: sustainable_power will be estimated
[ 2.456644] rockchip-thermal 2ae70000.tsadc: tsadc is probed successfully!
[ 2.457630] hw perfevents: enabled with armv8_cortex_a53 PMU driver, 7 counters available
[ 2.457965] hw perfevents: enabled with armv8_cortex_a72 PMU driver, 7 counters available
[ 2.808699] Initialise system trusted keyrings
[ 2.808803] workingset: timestamp_bits=62 max_order=21 bucket_order=0
[ 2.811325] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 2.811653] NFS: Registering the id_resolver key type
[ 2.811670] Key type id_resolver registered
[ 2.811677] Key type id_legacy registered
[ 2.811699] ntfs: driver 2.1.32 [Flags: R/O].
[ 2.811779] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[ 2.811906] fuse: init (API version 7.37)
[ 2.812073] SGI XFS with security attributes, no debug enabled
[ 2.841361] NET: Registered PF_ALG protocol family
[ 2.841376] Key type asymmetric registered
[ 2.841382] Asymmetric key parser 'x509' registered
[ 2.841413] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
[ 2.841421] io scheduler mq-deadline registered
[ 2.841427] io scheduler kyber registered
[ 2.842642] rockchip-csi2-dphy-hw 2b030000.csi2-dphy0-hw: csi2 dphy hw probe successfully!
[ 2.842758] rockchip-csi2-dphy-hw 2b070000.csi2-dphy1-hw: csi2 dphy hw probe successfully!
[ 2.843972] rockchip-usb2phy 2602e000.syscon:usb2-phy@0: error -ENXIO: IRQ index 0 not found
[ 2.844069] rockchip-usb2phy 2602e000.syscon:usb2-phy@0: refclk freq 24000000
[ 2.845335] rockchip-usb2phy 2602e000.syscon:usb2-phy@2000: error -ENXIO: IRQ index 0 not found
[ 2.845425] rockchip-usb2phy 2602e000.syscon:usb2-phy@2000: refclk freq 24000000
[ 2.850006] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy init success
[ 2.852992] rk-pcie 2a200000.pcie: invalid prsnt-gpios property in node
[ 2.853118] rk-pcie 2a200000.pcie: no vpcie3v3 regulator found
[ 2.853381] pwm-backlight backlight: supply power not found, using dummy regulator
[ 2.853631] rk-pcie 2a200000.pcie: max MSI vector is 32
[ 2.853693] rk-pcie 2a200000.pcie: host bridge /pcie@2a200000 ranges:
[ 2.853716] iep: Module initialized.
[ 2.853723] rk-pcie 2a200000.pcie: err 0x0020000000..0x00200fffff -> 0x0020000000
[ 2.853746] rk-pcie 2a200000.pcie: IO 0x0020100000..0x00201fffff -> 0x0020100000
[ 2.853760] mpp_service mpp-srv: unknown mpp version for missing VCS info
[ 2.853765] rk-pcie 2a200000.pcie: MEM 0x0020200000..0x0020ffffff -> 0x0020200000
[ 2.853770] mpp_service mpp-srv: probe start
[ 2.853778] rk-pcie 2a200000.pcie: MEM 0x0900000000..0x097fffffff -> 0x0900000000
[ 2.853904] rk-pcie 2a200000.pcie: iATU unroll: enabled
[ 2.853914] rk-pcie 2a200000.pcie: iATU regions: 8 ob, 8 ib, align 64K, limit 8G
[ 2.856019] mpp_rkvenc2 rkvenc-ccu: probing start
[ 2.856031] mpp_rkvenc2 rkvenc-ccu: probing finish
[ 2.856489] mpp_service mpp-srv: probe success
[ 2.866296] dma-pl330 2ab90000.dma-controller: Loaded driver for PL330 DMAC-241330
[ 2.866311] dma-pl330 2ab90000.dma-controller:    DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[ 2.867084] dma-pl330 2abb0000.dma-controller: Loaded driver for PL330 DMAC-241330
[ 2.867093] dma-pl330 2abb0000.dma-controller:    DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[ 2.867857] dma-pl330 2abd0000.dma-controller: Loaded driver for PL330 DMAC-241330
[ 2.867865] dma-pl330 2abd0000.dma-controller:    DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[ 2.868648] rockchip-system-monitor rockchip-system-monitor: system monitor probe
[ 2.869009] arm-scmi firmware:scmi: Failed. SCMI protocol 22 not active.
[ 2.869114] Serial: 8250/16550 driver, 15 ports, IRQ sharing disabled
[ 2.869671] 2ad70000.serial: ttyS4 at MMIO 0x2ad70000 (irq = 45, base_baud = 11718) is a 16550A
[ 2.876387] dw-mipi-dsi2 27d80000.dsi: Fixed dependency cycle(s) with /dsi@27d80000/panel@0
[ 2.876433] mipi-dsi 27d80000.dsi.0: Fixed dependency cycle(s) with /dsi@27d80000
[ 2.877706] OF: graph: no port node found in /dp@27e40000
[ 2.878045] platform 27d00000.vop: Fixed dependency cycle(s) with /dp@27e40000
[ 2.883731] cacheinfo: Unable to detect cache hierarchy for CPU 0
[ 2.886634] brd: module loaded
[ 2.888941] loop: module loaded
[ 2.889106] zram: Added device: zram0
[ 2.889247] lkdtm: No crash points registered, enable through debugfs
[ 2.891437] CAN device driver interface
[ 2.892303] rk_gmac-dwmac 2a220000.ethernet: IRQ eth_lpi not found
[ 2.892469] rk_gmac-dwmac 2a220000.ethernet: supply phy not found, using dummy regulator
[ 2.892531] rk_gmac-dwmac 2a220000.ethernet: clock input or output? (output).
[ 2.892539] rk_gmac-dwmac 2a220000.ethernet: TX delay(0x21).
[ 2.892546] rk_gmac-dwmac 2a220000.ethernet: Can not read property: rx_delay.
[ 2.892552] rk_gmac-dwmac 2a220000.ethernet: set rx_delay to 0xffffffff
[ 2.892613] rk_gmac-dwmac 2a220000.ethernet: integrated PHY? (no).
[ 2.892623] rk_gmac-dwmac 2a220000.ethernet: cannot get clock mac_clk_rx
[ 2.892630] rk_gmac-dwmac 2a220000.ethernet: cannot get clock mac_clk_tx
[ 2.892643] rk_gmac-dwmac 2a220000.ethernet: cannot get clock clk_mac_speed
[ 2.892866] rk_gmac-dwmac 2a220000.ethernet: init for RGMII_RXID
[ 2.892959] rk_gmac-dwmac 2a220000.ethernet: User ID: 0x30, Synopsys ID: 0x51
[ 2.892968] rk_gmac-dwmac 2a220000.ethernet:    DWMAC4/5
[ 2.892976] rk_gmac-dwmac 2a220000.ethernet: DMA HW capability register supported
[ 2.892982] rk_gmac-dwmac 2a220000.ethernet: RX Checksum Offload Engine supported
[ 2.892987] rk_gmac-dwmac 2a220000.ethernet: TX Checksum insertion supported
[ 2.892993] rk_gmac-dwmac 2a220000.ethernet: Wake-Up On Lan supported
[ 2.893023] rk_gmac-dwmac 2a220000.ethernet: TSO supported
[ 2.893029] rk_gmac-dwmac 2a220000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 2.893035] rk_gmac-dwmac 2a220000.ethernet: Enabled L3L4 Flow TC (entries=2)
[ 2.893042] rk_gmac-dwmac 2a220000.ethernet: Enabled RFS Flow TC (entries=10)
[ 2.893048] rk_gmac-dwmac 2a220000.ethernet: TSO feature enabled
[ 2.893054] rk_gmac-dwmac 2a220000.ethernet: Using 40/40 bits DMA host/device width
[ 3.025873] mdio_bus stmmac-0: MDIO device at address 1 is missing.
[ 3.026722] rk_gmac-dwmac 2a230000.ethernet: IRQ eth_lpi not found
[ 3.026876] rk_gmac-dwmac 2a230000.ethernet: supply phy not found, using dummy regulator
[ 3.026935] rk_gmac-dwmac 2a230000.ethernet: clock input or output? (output).
[ 3.026942] rk_gmac-dwmac 2a230000.ethernet: TX delay(0x20).
[ 3.026949] rk_gmac-dwmac 2a230000.ethernet: Can not read property: rx_delay.
[ 3.026955] rk_gmac-dwmac 2a230000.ethernet: set rx_delay to 0xffffffff
[ 3.026979] rk_gmac-dwmac 2a230000.ethernet: integrated PHY? (no).
[ 3.026988] rk_gmac-dwmac 2a230000.ethernet: cannot get clock mac_clk_rx
[ 3.026995] rk_gmac-dwmac 2a230000.ethernet: cannot get clock mac_clk_tx
[ 3.027008] rk_gmac-dwmac 2a230000.ethernet: cannot get clock clk_mac_speed
[ 3.027231] rk_gmac-dwmac 2a230000.ethernet: init for RGMII_RXID
[ 3.027325] rk_gmac-dwmac 2a230000.ethernet: User ID: 0x30, Synopsys ID: 0x51
[ 3.027334] rk_gmac-dwmac 2a230000.ethernet:    DWMAC4/5
[ 3.027342] rk_gmac-dwmac 2a230000.ethernet: DMA HW capability register supported
[ 3.027347] rk_gmac-dwmac 2a230000.ethernet: RX Checksum Offload Engine supported
[ 3.027353] rk_gmac-dwmac 2a230000.ethernet: TX Checksum insertion supported
[ 3.027358] rk_gmac-dwmac 2a230000.ethernet: Wake-Up On Lan supported
[ 3.027389] rk_gmac-dwmac 2a230000.ethernet: TSO supported
[ 3.027395] rk_gmac-dwmac 2a230000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 3.027401] rk_gmac-dwmac 2a230000.ethernet: Enabled L3L4 Flow TC (entries=2)
[ 3.027408] rk_gmac-dwmac 2a230000.ethernet: Enabled RFS Flow TC (entries=10)
[ 3.027414] rk_gmac-dwmac 2a230000.ethernet: TSO feature enabled
[ 3.027420] rk_gmac-dwmac 2a230000.ethernet: Using 40/40 bits DMA host/device width
[ 3.056077] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.077103] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.098125] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.119144] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.140164] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.161184] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.161875] mdio_bus stmmac-1: MDIO device at address 1 is missing.
[ 3.162727] usbcore: registered new interface driver rtl8150
[ 3.162741] usbcore: registered new device driver r8152-cfgselector
[ 3.162760] usbcore: registered new interface driver r8152
[ 3.167148] phy phy-2602e000.syscon:usb2-phy@2000.1: illegal mode
[ 3.167165] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 3.167242] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[ 3.167313] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000808002010010
[ 3.167340] xhci-hcd xhci-hcd.0.auto: irq 65, io mem 0x23400000
[ 3.167414] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 3.167477] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[ 3.167487] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed
[ 3.167551] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01
[ 3.167560] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.167567] usb usb1: Product: xHCI Host Controller
[ 3.167573] usb usb1: Manufacturer: Linux 6.1.99 xhci-hcd
[ 3.167578] usb usb1: SerialNumber: xhci-hcd.0.auto
[ 3.167776] hub 1-0:1.0: USB hub found
[ 3.167794] hub 1-0:1.0: 1 port detected
[ 3.167953] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 3.167998] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.01
[ 3.168006] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.168012] usb usb2: Product: xHCI Host Controller
[ 3.168018] usb usb2: Manufacturer: Linux 6.1.99 xhci-hcd
[ 3.168024] usb usb2: SerialNumber: xhci-hcd.0.auto
[ 3.168193] hub 2-0:1.0: USB hub found
[ 3.168209] hub 2-0:1.0: 1 port detected
[ 3.168382] usbcore: registered new interface driver cdc_acm
[ 3.168389] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 3.168473] usbcore: registered new interface driver uas
[ 3.168502] usbcore: registered new interface driver usb-storage
[ 3.168536] usbcore: registered new interface driver usbserial_generic
[ 3.168547] usbserial: USB Serial support registered for generic
[ 3.168566] usbcore: registered new interface driver cp210x
[ 3.168576] usbserial: USB Serial support registered for cp210x
[ 3.168599] usbcore: registered new interface driver ftdi_sio
[ 3.168610] usbserial: USB Serial support registered for FTDI USB Serial Device
[ 3.168640] usbcore: registered new interface driver keyspan
[ 3.168651] usbserial: USB Serial support registered for Keyspan - (without firmware)
[ 3.168661] usbserial: USB Serial support registered for Keyspan 1 port adapter
[ 3.168671] usbserial: USB Serial support registered for Keyspan 2 port adapter
[ 3.168681] usbserial: USB Serial support registered for Keyspan 4 port adapter
[ 3.168698] usbcore: registered new interface driver option
[ 3.168710] usbserial: USB Serial support registered for GSM modem (1-port)
[ 3.168748] usbcore: registered new interface driver oti6858
[ 3.168759] usbserial: USB Serial support registered for oti6858
[ 3.168776] usbcore: registered new interface driver pl2303
[ 3.168786] usbserial: USB Serial support registered for pl2303
[ 3.168804] usbcore: registered new interface driver qcserial
[ 3.168815] usbserial: USB Serial support registered for Qualcomm USB modem
[ 3.168835] usbcore: registered new interface driver sierra
[ 3.168846] usbserial: USB Serial support registered for Sierra USB modem
[ 3.169368] usbcore: registered new interface driver usbtouchscreen
[ 3.169647] .. rk pwm remotectl v2.0 init
[ 3.169786] input: 27330000.pwm as /devices/platform/27330000.pwm/input/input0
[ 3.169934] remotectl-pwm 27330000.pwm: pwm sip wakeup config error!!
[ 3.169941] remotectl-pwm 27330000.pwm: Donot support ATF Wakeup
[ 3.170328] i2c_dev: i2c /dev entries driver
[ 3.171746] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs1_pwrdn
[ 3.171764] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs3_null
[ 3.171776] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs2_null
[ 3.171788] i2c 1-0023: Fixed dependency cycle(s) with /i2c@2ac40000/pmic@23/pinctrl_rk806/rk806_dvs1_null
[ 3.173564] rk806 1-0023: chip id: RK806,ver:0xa, 0x5
[ 3.174456] rk806 1-0023: ON: 0x80 OFF:0x80
[ 3.174912] rk806 1-0023: dvs-suspend-control-by missing!
[ 3.182203] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.183966] input: rk805 pwrkey as /devices/platform/2ac40000.i2c/i2c-1/1-0023/rk805-pwrkey.2.auto/input/input1
[ 3.203223] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.224245] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.242067] rk806 1-0023: no sleep-setting state
[ 3.242080] rk806 1-0023: no reset-setting pinctrl state
[ 3.242086] rk806 1-0023: no dvs-setting pinctrl state
[ 3.245266] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 3.255801] rtc-hym8563 2-0051: rtc information is valid
[ 3.263102] rtc-hym8563 2-0051: registered as rtc0
[ 3.264169] rtc-hym8563 2-0051: setting system clock to 2026-01-28T07:01:30 UTC (1769583690)
[ 3.264251] platform 23000000.usb: Fixed dependency cycle(s) with /i2c@2ac50000/husb311@4e
[ 3.264314] i2c 2-004e: Fixed dependency cycle(s) with /usb@23000000
[ 3.267766] platform csi2-dcphy0: Fixed dependency cycle(s) with /i2c@2ac70000/imx415@1a
[ 3.267837] i2c 4-001a: Fixed dependency cycle(s) with /csi2-dcphy0
[ 3.267937] i2c i2c-4: 1 i2c clients have been registered at 0x1a
[ 3.267975] platform csi2-dcphy0: Fixed dependency cycle(s) with /i2c@2ac70000/imx464-0@1a
[ 3.268029] i2c 4-001a-1: Fixed dependency cycle(s) with /csi2-dcphy0
[ 3.268162] platform csi2-dcphy0: Fixed dependency cycle(s) with /i2c@2ac70000/sc4336@30
[ 3.268216] i2c 4-0030: Fixed dependency cycle(s) with /csi2-dcphy0
[ 3.268349] platform csi2-dcphy0: Fixed dependency cycle(s) with /i2c@2ac70000/imx464-1@36
[ 3.268400] i2c 4-0036: Fixed dependency cycle(s) with /csi2-dcphy0
[ 3.268505] i2c i2c-4: 1 i2c clients have been registered at 0x36
[ 3.268542] platform csi2-dcphy0: Fixed dependency cycle(s) with /i2c@2ac70000/os04a10@36
[ 3.268590] i2c 4-0036-1: Fixed dependency cycle(s) with /csi2-dcphy0
[ 3.269233] i2c i2c-7: 1 i2c clients have been registered at 0x68
[ 3.270132] rkcifhw 27c10000.rkcif: Adding to iommu group 9
[ 3.270508] rkcifhw 27c10000.rkcif: No reserved memory region assign to CIF
[ 3.270621] rkcif rkcif-mipi-lvds: Adding to iommu group 9
[ 3.270639] rkcif rkcif-mipi-lvds: rkcif driver version: v00.02.00
[ 3.270721] rkcif rkcif-mipi-lvds: attach to cif hw node
[ 3.270728] rkcif rkcif-mipi-lvds: rkcif wait line 0
[ 3.270734] rkcif rkcif-mipi-lvds: rkcif fastboot reserve bufs num 3
[ 3.270743] : terminal subdev does not exist
[ 3.270750] : terminal subdev does not exist
[ 3.270757] : terminal subdev does not exist
[ 3.270763] : terminal subdev does not exist
[ 3.270768] : get_remote_sensor: video pad[0] is null
[ 3.270774] : rkcif_update_sensor_info: stream[0] get remote sensor_sd failed!
[ 3.270780] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
[ 3.270787] : get_remote_sensor: video pad[0] is null
[ 3.270792] : rkcif_update_sensor_info: stream[0] get remote sensor_sd failed!
[ 3.270798] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
[ 3.270804] : get_remote_sensor: video pad[0] is null
[ 3.270809] : rkcif_update_sensor_info: stream[0] get remote sensor_sd failed!
[ 3.270814] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
[ 3.270820] : get_remote_sensor: video pad[0] is null
[ 3.270825] : rkcif_update_sensor_info: stream[0] get remote sensor_sd failed!
[ 3.270830] : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)
[ 3.271503] rkcif rkcif-mipi-lvds: No memory-region-thunderboot specified
[ 3.272437] rockchip-mipi-csi2-hw 27c80000.mipi0-csi2-hw: enter mipi csi2 hw probe!
[ 3.272556] rockchip-mipi-csi2-hw 27c80000.mipi0-csi2-hw: probe success, v4l2_dev:mipi0-csi2-hw!
[ 3.272594] rockchip-mipi-csi2-hw 27c90000.mipi1-csi2-hw: enter mipi csi2 hw probe!
[ 3.272666] rockchip-mipi-csi2-hw 27c90000.mipi1-csi2-hw: probe success, v4l2_dev:mipi1-csi2-hw!
[ 3.272699] rockchip-mipi-csi2-hw 27ca0000.mipi2-csi2-hw: enter mipi csi2 hw probe!
[ 3.272776] rockchip-mipi-csi2-hw 27ca0000.mipi2-csi2-hw: probe success, v4l2_dev:mipi2-csi2-hw!
[ 3.272809] rockchip-mipi-csi2-hw 27cb0000.mipi3-csi2-hw: enter mipi csi2 hw probe!
[ 3.272879] rockchip-mipi-csi2-hw 27cb0000.mipi3-csi2-hw: probe success, v4l2_dev:mipi3-csi2-hw!
[ 3.272912] rockchip-mipi-csi2-hw 27cc0000.mipi4-csi2-hw: enter mipi csi2 hw probe!
[ 3.272982] rockchip-mipi-csi2-hw 27cc0000.mipi4-csi2-hw: probe success, v4l2_dev:mipi4-csi2-hw!
[ 3.273400] rockchip-mipi-csi2 mipi0-csi2: attach to csi2 hw node
[ 3.273426] rkcif rkcif-mipi-lvds: Entity type for entity rockchip-mipi-csi2 was not initialized!
[ 3.273434] rockchip-mipi-csi2: Async registered subdev
[ 3.273440] rockchip-mipi-csi2: probe success, v4l2_dev:rkcif-mipi-lvds!
[ 3.274319] rkisp_hw 27c00000.isp: Adding to iommu group 8
[ 3.274468] rkisp_hw 27c00000.isp: is_thunderboot: 0
[ 3.274476] rkisp_hw 27c00000.isp: Missing rockchip,grf property
[ 3.274497] rkisp_hw 27c00000.isp: max input:0x0@0fps
[ 3.274617] rkisp_hw 27c00000.isp: no find phandle sram
[ 3.274899] rkisp rkisp-vir0: rkisp driver version: v02.09.00
[ 3.274984] rkisp rkisp-vir0: No memory-region-thunderboot specified
[ 3.275058] rkisp rkisp-vir0: Entity type for entity rkisp-isp-subdev was not initialized!
[ 3.276734] rkvpss_hw 27c30000.vpss: Adding to iommu group 10
[ 3.276970] rkvpss_hw 27c30000.vpss: failed to get cru reset
[ 3.277254] rkvpss rkvpss-vir0: rkvpss driver version: v00.01.00
[ 3.277681] rkvpss-vir0: Async subdev notifier completed
[ 3.277951] usbcore: registered new interface driver uvcvideo
[ 3.278698] Bluetooth: HCI UART driver ver 2.3
[ 3.278706] Bluetooth: HCI UART protocol H4 registered
[ 3.278712] Bluetooth: HCI UART protocol ATH3K registered
[ 3.278739] usbcore: registered new interface driver bfusb
[ 3.278763] usbcore: registered new interface driver btusb
[ 3.280119] cpu cpu0: bin=2
[ 3.280303] cpu cpu0: leakage=3
[ 3.282489] cpu cpu0: pvtm=1848
[ 3.283018] cpu cpu0: pvtm-volt-sel=4
[ 3.283038] cpu cpu0: soc version=2, speed=4
[ 3.284486] cpu cpu4: bin=2
[ 3.284665] cpu cpu4: leakage=4
[ 3.286834] cpu cpu4: pvtm=1982
[ 3.287356] cpu cpu4: pvtm-volt-sel=4
[ 3.287374] cpu cpu4: soc version=2, speed=4
[ 3.288827] cpu cpu0: avs=0
[ 3.289685] cpu cpu4: avs=0
[ 3.289771] cpu cpu0: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[ 3.290731] cpu cpu0: EM: created perf domain
[ 3.291408] cpu cpu4: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[ 3.292420] cpu cpu4: EM: created perf domain
[ 3.293719] sdhci: Secure Digital Host Controller Interface driver
[ 3.293729] sdhci: Copyright(c) Pierre Ossman
[ 3.293733] Synopsys Designware Multimedia Card Interface Driver
[ 3.294030] sdhci-pltfm: SDHCI platform and OF driver helper
[ 3.295178] dwmmc_rockchip 2a310000.mmc: No normal pinctrl state
[ 3.295200] dwmmc_rockchip 2a310000.mmc: No idle pinctrl state
[ 3.295431] dwmmc_rockchip 2a310000.mmc: IDMAC supports 32-bit address mode.
[ 3.295472] dwmmc_rockchip 2a310000.mmc: Using internal DMA controller.
[ 3.295484] dwmmc_rockchip 2a310000.mmc: Version ID is 270a
[ 3.295548] dwmmc_rockchip 2a310000.mmc: DW MMC controller at irq 94,32 bit host data width,256 deep fifo
[ 3.295613] arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
[ 3.295624] mmc0: CQHCI version 5.10
[ 3.295653] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
[ 3.296021] rk-crypto 2a400000.crypto: invalid resource
[ 3.296380] rk-crypto 2a400000.crypto: register to cryptodev ok!
[ 3.296391] rk-crypto 2a400000.crypto: CRYPTO V3.0.0.0 multi Accelerator successfully registered
[ 3.296704] cryptodev: driver 1.12 loaded.
[ 3.296730] hid: raw HID events driver (C) Jiri Kosina
[ 3.296866] usbcore: registered new interface driver usbhid
[ 3.296872] usbhid: USB HID core driver
[ 3.298126] rockchip,bus bus-a72: bin=2
[ 3.298306] rockchip,bus bus-a72: leakage=11
[ 3.298315] rockchip,bus bus-a72: leakage-volt-sel=1
[ 3.298324] rockchip,bus bus-a72: soc version=2, speed=1
[ 3.299025] rockchip,bus bus-a72: avs=0
[ 3.302984] optee: probing for conduit method.
[ 3.303003] optee: revision 3.13 (9f2aca7d)
[ 3.303249] optee: dynamic shared memory is enabled
[ 3.303363] optee: initialized driver
[ 3.303903] usbcore: registered new interface driver snd-usb-audio
[ 3.308981] mmc_host mmc1: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)
[ 3.326665] mmc0: SDHCI controller on 2a330000.mmc [2a330000.mmc] using ADMA 64-bit
[ 3.391073] mmc0: Command Queue Engine enabled
[ 3.391094] mmc0: new HS400 Enhanced strobe MMC card at address 0001
[ 3.391442] mmcblk0: mmc0:0001 CJUD4R 59.6 GiB
[ 3.394838] mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8
[ 3.395754] mmcblk0boot0: mmc0:0001 CJUD4R 31.9 MiB
[ 3.396130] mmcblk0boot1: mmc0:0001 CJUD4R 31.9 MiB
[ 3.396498] mmcblk0rpmb: mmc0:0001 CJUD4R 4.00 MiB, chardev (235:0)
[ 3.505745] rk3x-i2c 2ac60000.i2c: timeout, ipd: 0x00, state: 3
[ 3.505766] ES8323 3-0010: i2c recv Failed
[ 3.505821] ES8323: probe of 3-0010 failed with error -110
[ 3.510868] Initializing XFRM netlink socket
[ 3.511071] NET: Registered PF_INET6 protocol family
[ 3.512093] Segment Routing with IPv6
[ 3.512124] In-situ OAM (IOAM) with IPv6
[ 3.512170] NET: Registered PF_PACKET protocol family
[ 3.512182] NET: Registered PF_KEY protocol family
[ 3.512195] can: controller area network core
[ 3.512229] NET: Registered PF_CAN protocol family
[ 3.512237] can: raw protocol
[ 3.512245] can: broadcast manager protocol
[ 3.512255] can: netlink gateway - max_hops=1
[ 3.512506] Bluetooth: RFCOMM socket layer initialized
[ 3.512533] Bluetooth: RFCOMM ver 1.11
[ 3.512544] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[ 3.512554] Bluetooth: HIDP socket layer initialized
[ 3.512590] [BT_RFKILL]: Enter rfkill_rk_init
[ 3.512598] [WLAN_RFKILL]: Enter rfkill_wlan_init
[ 3.513160] [WLAN_RFKILL]: Enter rfkill_wlan_probe
[ 3.513187] [WLAN_RFKILL]: can't find rockchip,grf property
[ 3.513193] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi_chip_type = ap6275p
[ 3.513199] [WLAN_RFKILL]: wlan_platdata_parse_dt: enable wifi power control.
[ 3.513204] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi power controled by gpio.
[ 3.513332] [WLAN_RFKILL]: wlan_platdata_parse_dt: WIFI,poweren_gpio = 54 flags = 0.
[ 3.513351] [WLAN_RFKILL]: wlan_platdata_parse_dt: WIFI,host_wake_irq = 8, flags = 0.
[ 3.513361] [WLAN_RFKILL]: wlan_platdata_parse_dt: The ref_wifi_clk not found !
[ 3.513366] [WLAN_RFKILL]: rfkill_wlan_probe: init gpio
[ 3.513372] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 1
[ 3.513378] [WLAN_RFKILL]: Exit rfkill_wlan_probe
[ 3.513941] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 50.
[ 3.513960] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 55.
[ 3.513970] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 60.
[ 3.513982] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 9.
[ 3.513990] [BT_RFKILL]: bluetooth_platdata_parse_dt: clk_get failed!!!.
[ 3.514027] [BT_RFKILL]: Request irq for bt wakeup host
[ 3.514423] [BT_RFKILL]: ** disable irq
[ 3.514492] [BT_RFKILL]: bt_default device registered.
[ 3.514561] input: bt-powerkey as /devices/platform/wireless-bluetooth/input/input2
[ 3.514778] Key type dns_resolver registered
[ 3.516345] imx415 4-001a: driver version: 00.01.08
[ 3.516362] imx415 4-001a: Get hdr mode failed! no hdr default
[ 3.516377] imx415 4-001a: detect imx415 lane 4
[ 3.516400] imx415 4-001a: Failed to get reset-gpios
[ 3.516414] imx415 4-001a: Failed to get power-gpios
[ 3.516421] imx415 4-001a: could not get default pinstate
[ 3.516427] imx415 4-001a: could not get sleep pinstate
[ 3.516461] imx415 4-001a: supply dvdd not found, using dummy regulator
[ 3.516540] imx415 4-001a: supply dovdd not found, using dummy regulator
[ 3.518915] vendor storage:20190527 ret = 0
[ 3.777710] rk3x-i2c 2ac70000.i2c: timeout, ipd: 0x00, state: 3
[ 3.777744] imx415 4-001a: Unexpected sensor id(000000), ret(-5)
[ 3.778497] imx464 4-001a-1: driver version: 00.01.03
[ 3.778523] imx464 4-001a-1: could not get sync mode!
[ 3.778533] imx464 4-001a-1: Get hdr mode failed! no hdr default
[ 3.778571] imx464 4-001a-1: Failed to get reset-gpios
[ 3.778818] imx464 4-001a-1: could not get default pinstate
[ 3.778828] imx464 4-001a-1: could not get sleep pinstate
[ 3.778963] imx464 4-001a-1: supply dovdd not found, using dummy regulator
[ 3.779028] imx464 4-001a-1: supply dvdd not found, using dummy regulator
[ 3.997706] rk3x-i2c 2ac70000.i2c: timeout, ipd: 0x00, state: 3
[ 3.997734] imx464 4-001a-1: Unexpected sensor id(000000), ret(-5)
[ 4.014232] imx464 4-0036: driver version: 00.01.03
[ 4.014257] imx464 4-0036: could not get sync mode!
[ 4.014266] imx464 4-0036: Get hdr mode failed! no hdr default
[ 4.014302] imx464 4-0036: Failed to get reset-gpios
[ 4.014340] imx464 4-0036: could not get default pinstate
[ 4.014349] imx464 4-0036: could not get sleep pinstate
[ 4.014463] imx464 4-0036: supply dovdd not found, using dummy regulator
[ 4.014531] imx464 4-0036: supply dvdd not found, using dummy regulator
[ 4.233721] rk3x-i2c 2ac70000.i2c: timeout, ipd: 0x00, state: 3
[ 4.233743] imx464 4-0036: Unexpected sensor id(000000), ret(-5)
[ 4.250255] os04a10 4-0036-1: driver version: 00.01.05
[ 4.250281] os04a10 4-0036-1: Get hdr mode failed! no hdr default
[ 4.250296] os04a10 4-0036-1: detect os04a10 lane 2
[ 4.250320] os04a10 4-0036-1: Failed to get reset-gpios
[ 4.250347] os04a10 4-0036-1: could not get default pinstate
[ 4.250353] os04a10 4-0036-1: could not get sleep pinstate
[ 4.250455] os04a10 4-0036-1: supply dovdd not found, using dummy regulator
[ 4.250515] os04a10 4-0036-1: supply dvdd not found, using dummy regulator
[ 4.501703] rk3x-i2c 2ac70000.i2c: timeout, ipd: 0x00, state: 3
[ 4.501729] os04a10 4-0036-1: Unexpected sensor id(000000), ret(-5)
[ 4.533414] sc4336 4-0030: driver version: 00.01.01
[ 4.533541] sc4336 4-0030: Failed to get reset-gpios
[ 4.533579] sc4336 4-0030: could not get default pinstate
[ 4.533587] sc4336 4-0030: could not get sleep pinstate
[ 4.533780] sc4336 4-0030: supply dovdd not found, using dummy regulator
[ 4.533868] sc4336 4-0030: supply dvdd not found, using dummy regulator
[ 4.753706] rk3x-i2c 2ac70000.i2c: timeout, ipd: 0x00, state: 3
[ 4.753730] sc4336 4-0030: Unexpected sensor id(000000), ret(-5)
[ 4.754859] Loading compiled-in X.509 certificates
[ 4.756382] pstore: Using crash dump compression: deflate
[ 4.769298] rga2 27920000.rga: Adding to iommu group 2
[ 4.769823] rga2 27920000.rga: probe successfully, irq = 49, hw_version:3.e.19357
[ 4.770027] rga2 27930000.rga: Adding to iommu group 3
[ 4.770510] rga2 27930000.rga: probe successfully, irq = 50, hw_version:3.e.19357
[ 4.770765] rga: IOMMU binding successfully, default mapping core[0x4]
[ 4.770971] rga: Module initialized. v1.3.7
[ 4.789676] rockchip-csi2-dphy csi2-dcphy0: csi2 dphy0 probe successfully!
[ 4.790129] mpp-iep2 27960000.iep: Adding to iommu group 4
[ 4.790414] mpp-iep2 27960000.iep: probe device
[ 4.790583] mpp-iep2 27960000.iep: reset_group->rw_sem_on=0
[ 4.790595] mpp-iep2 27960000.iep: reset_group->rw_sem_on=0
[ 4.790606] mpp-iep2 27960000.iep: reset_group->rw_sem_on=0
[ 4.790658] mpp-iep2 27960000.iep: probing finish
[ 4.790872] mpp_jpgdec 27910000.jpegd: Adding to iommu group 1
[ 4.791101] mpp_jpgdec 27910000.jpegd: probe device
[ 4.791250] mpp_jpgdec 27910000.jpegd: reset_group->rw_sem_on=0
[ 4.791262] mpp_jpgdec 27910000.jpegd: reset_group->rw_sem_on=0
[ 4.791321] mpp_jpgdec 27910000.jpegd: probing finish
[ 4.791513] mpp_jpgenc 27910800.jpege: Adding to iommu group 1
[ 4.791565] mpp_jpgenc 27910800.jpege: probe device
[ 4.791680] mpp_jpgenc 27910800.jpege: reset_group->rw_sem_on=0
[ 4.791689] mpp_jpgenc 27910800.jpege: reset_group->rw_sem_on=0
[ 4.791726] mpp_jpgenc 27910800.jpege: probe finish
[ 4.791950] mpp_rkvdec2 27b00100.rkvdec: Adding to iommu group 7
[ 4.792260] mpp_rkvdec2 27b00100.rkvdec: rkvdec, probing start
[ 4.792456] mpp_rkvdec2 27b00100.rkvdec: shared_niu_a is not found!
[ 4.792464] rkvdec2_init:1198: No niu aclk reset resource define
[ 4.792471] mpp_rkvdec2 27b00100.rkvdec: shared_niu_h is not found!
[ 4.792477] rkvdec2_init:1201: No niu hclk reset resource define
[ 4.792486] mpp_rkvdec2 27b00100.rkvdec: shared_video_cabac is not found!
[ 4.792492] rkvdec2_init:1207: No cabac reset resource define
[ 4.792533] mpp_rkvdec2 27b00100.rkvdec: no regulator, devfreq is disabled
[ 4.792699] mpp_rkvdec2 27b00100.rkvdec: sram_start 0x000000003ff88000
[ 4.792707] mpp_rkvdec2 27b00100.rkvdec: rcb_iova 0x0000000010000000
[ 4.792714] mpp_rkvdec2 27b00100.rkvdec: sram_size 491520
[ 4.792720] mpp_rkvdec2 27b00100.rkvdec: rcb_size 491520
[ 4.792727] mpp_rkvdec2 27b00100.rkvdec: min_width 512
[ 4.792756] mpp_rkvdec2 27b00100.rkvdec: link mode probe finish
[ 4.792804] mpp_rkvdec2 27b00100.rkvdec: probing finish
[ 4.792821] mpp_rkvdec2 27b00100.rkvdec: probing finish
[ 4.793084] mpp_rkvenc2 27a00000.rkvenc-core: Adding to iommu group 5
[ 4.793383] mpp_rkvenc2 27a00000.rkvenc-core: probing start
[ 4.793555] mpp_rkvenc2 27a00000.rkvenc-core: failed to init opp info
[ 4.793563] mpp_rkvenc2 27a00000.rkvenc-core: failed to init_opp_table
[ 4.793569] rkvenc_init:2147: failed to add venc devfreq
[ 4.793623] mpp_rkvenc2 27a00000.rkvenc-core: attach ccu as core 0
[ 4.793687] mpp_rkvenc2 27a00000.rkvenc-core: probing finish
[ 4.793908] mpp_rkvenc2 27a10000.rkvenc-core: Adding to iommu group 6
[ 4.794821] mpp_rkvenc2 27a10000.rkvenc-core: probing start
[ 4.794975] mpp_rkvenc2 27a10000.rkvenc-core: failed to init opp info
[ 4.794982] mpp_rkvenc2 27a10000.rkvenc-core: failed to init_opp_table
[ 4.794987] rkvenc_init:2147: failed to add venc devfreq
[ 4.795027] mpp_rkvenc2 27a10000.rkvenc-core: attach ccu as core 1
[ 4.795054] mpp_rkvenc2 27a10000.rkvenc-core: probing finish
[ 4.795270] rockchip-vop2 27d00000.vop: Adding to iommu group 11
[ 4.795823] panel-simple-dsi 27d80000.dsi.0: Expected bpc in {6,8} but got: 0
[ 4.796274] rockchip-vop2 27d00000.vop: [drm:vop2_bind] vp0 assign plane mask: Esmart0[0x4], primary plane phy id: Esmart0[2]
[ 4.796292] rockchip-vop2 27d00000.vop: [drm:vop2_bind] vp1 assign plane mask: Esmart1[0x8], primary plane phy id: Esmart1[3]
[ 4.796303] rockchip-vop2 27d00000.vop: [drm:vop2_bind] vp2 assign plane mask: Esmart2[0x100], primary plane phy id: Esmart2[8]
[ 4.796493] [drm] unsupported AFBC format NV12 little-endian (0x3231564e)
[ 4.796541] [drm] failed to init overlay plane Cluster0-win1
[ 4.796584] [drm] failed to init overlay plane Cluster1-win1
[ 4.796969] rockchip-vop2 27d00000.vop: bin=2
[ 4.797145] rockchip-vop2 27d00000.vop: leakage=11
[ 4.797155] rockchip-vop2 27d00000.vop: leakage-volt-sel=1
[ 4.797164] rockchip-vop2 27d00000.vop: soc version=2, speed=1
[ 4.797915] rockchip-vop2 27d00000.vop: avs=0
[ 4.797986] rockchip-vop2 27d00000.vop: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[ 4.798011] debugfs: Directory 'vdd_logic_s0' with parent 'vdd_logic_s0' already present!
[ 4.799089] rockchip-vop2 27d00000.vop: Supported VOP aclk dvfs, normal mode:500000000, reset mode:594000000, advanced mode:702000000
[ 4.799105] rockchip-drm display-subsystem: bound 27d00000.vop (ops 0xffffffc0094d9328)
[ 4.800197] dwhdmi-rockchip 27da0000.hdmi: registered ddc I2C bus driver
[ 4.800934] rockchip-drm display-subsystem: bound 27da0000.hdmi (ops 0xffffffc0094f25c0)
[ 4.801005] rockchip-drm display-subsystem: bound 27d80000.dsi (ops 0xffffffc0094f4f78)
[ 4.801324] rockchip-drm display-subsystem: bound 27e40000.dp (ops 0xffffffc0094f55d0)
[ 4.802479] dw-hdmi-qp-hdcp dw-hdmi-qp-hdcp.7.auto: dw_hdcp_qp_hdcp_probe success
[ 4.802944] [drm] Initialized rockchip 4.0.0 20140818 for display-subsystem on minor 0
[ 4.803438] rockchip-drm display-subsystem: route-hdmi: failed to get logo,offset
[ 4.818122] rockchip-drm display-subsystem: [drm] run display error_event monitor
[ 4.818943] mali 27800000.gpu: Kernel DDK version g25p0-00eac0
[ 4.819055] mali 27800000.gpu: GPU metrics tracepoint support enabled
[ 4.819628] mali 27800000.gpu: bin=2
[ 4.819809] mali 27800000.gpu: leakage=4
[ 4.819837] debugfs: Directory '27800000.gpu-mali' with parent 'vdd_gpu_s0' already present!
[ 4.821632] mali 27800000.gpu: pvtm=755
[ 4.822221] mali 27800000.gpu: pvtm-volt-sel=4
[ 4.822236] mali 27800000.gpu: soc version=2, speed=4
[ 4.822278] debugfs: Directory '27800000.gpu-mali' with parent 'vdd_gpu_s0' already present!
[ 4.822959] mali 27800000.gpu: avs=0
[ 4.822991] W : [File] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; [Line] : 144; [Func] : kbase_platform_rk_init(); power-off-delay-ms not available.
[ 4.823795] mali 27800000.gpu: Register LUT 00070200 initialized for GPU arch 0x00070400
[ 4.823818] mali 27800000.gpu: GPU identified as 0x2 arch 7.4.0 r1p0 status 0
[ 4.823946] mali 27800000.gpu: No priority control manager is configured
[ 4.823954] mali 27800000.gpu: Large page allocation set to false after hardware feature check
[ 4.823958] input: adc-keys as /devices/platform/adc-keys/input/input3
[ 4.824252] mali 27800000.gpu: No memory group manager is configured
[ 4.824770] <<GTP-INF>>[gt1x_ts_probe:560] GTP Driver Version: V1.4<2015/07/10>
[ 4.824782] <<GTP-INF>>[gt1x_ts_probe:561] GTP I2C Address: 0x14
[ 4.824849] <<GTP-ERR>>[gt1x_parse_dt:341] vdd_ana not specified, fallback to power-supply
[ 4.825072] <<GTP-INF>>[gt1x_parse_dt:348] Power Invert,no
[ 4.825202] mali 27800000.gpu: EM: created perf domain
[ 4.825530] mali 27800000.gpu: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[ 4.825864] <<GTP-INF>>[gt1x_reset_guitar:788] GTP RESET!
[ 4.827055] mali 27800000.gpu: * MALI kbase_mmap_min_addr compiled to CONFIG_DEFAULT_MMAP_MIN_ADDR, no runtime update possible! *
[ 4.827069] mali 27800000.gpu: Probed as mali0
[ 4.839466] rockchip-dmc dmc: bin=2
[ 4.840399] rockchip-dmc dmc: leakage=11
[ 4.840409] rockchip-dmc dmc: leakage-volt-sel=1
[ 4.840418] rockchip-dmc dmc: soc version=2, speed=1
[ 4.842111] rockchip-dmc dmc: avs=0
[ 4.842125] rockchip-dmc dmc: current ATF version 0x100
[ 4.842200] rockchip-dmc dmc: normal_rate = 1560000000
[ 4.842207] rockchip-dmc dmc: reboot_rate = 2112000000
[ 4.842212] rockchip-dmc dmc: suspend_rate = 528000000
[ 4.842217] rockchip-dmc dmc: video_4k_rate = 1560000000
[ 4.842222] rockchip-dmc dmc: video_4k_10b_rate = 1560000000
[ 4.842227] rockchip-dmc dmc: video_svep_rate = 1560000000
[ 4.842232] rockchip-dmc dmc: boost_rate = 2112000000
[ 4.842237] rockchip-dmc dmc: fixed_rate(isp|cif0|cif1|dualview) = 2112000000
[ 4.842242] rockchip-dmc dmc: performance_rate = 2112000000
[ 4.842247] rockchip-dmc dmc: hdmirx_rate = 2112000000
[ 4.842252] rockchip-dmc dmc: deep_suspend_rate = 2112000000
[ 4.842261] rockchip-dmc dmc: failed to get vop pn to msch rl
[ 4.842554] rockchip-dmc dmc: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[ 4.842578] debugfs: Directory 'vdd_logic_s0' with parent 'vdd_logic_s0' already present!
[ 4.853697] debugfs: File 'Capture' in directory 'dapm' already present!
[ 4.854917] input: rockchip-dp0 rockchip-dp0 as /devices/platform/dp0-sound/sound/card0/input4
[ 4.858333] input: rockchip-hdmi rockchip-hdmi as /devices/platform/hdmi-sound/sound/card1/input5
[ 4.862848] rkcif rkcif-mipi-lvds: clear unready subdev num: 5
[ 4.863443] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[0] get remote terminal sensor failed!
[ 4.863459] rkcif-mipi-lvds: Async subdev notifier completed
[ 4.863472] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[0] get remote terminal sensor failed!
[ 4.863479] rkcif-mipi-lvds: There is not terminal subdev, not synchronized with ISP
[ 4.863551] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[0] get remote terminal sensor failed!
[ 4.863559] rkcif-mipi-lvds: There is not terminal subdev, not synchronized with ISP
[ 4.864712] RKNPU 27700000.npu: Adding to iommu group 0
[ 4.865011] RKNPU 27700000.npu: RKNPU: rknpu iommu is enabled, using iommu mode
[ 4.865219] RKNPU 27700000.npu: can't request region for resource [mem 0x27700000-0x27707fff]
[ 4.865261] RKNPU 27700000.npu: can't request region for resource [mem 0x27708000-0x2770ffff]
[ 4.865705] [drm] Initialized rknpu 0.9.8 20240828 for 27700000.npu on minor 1
[ 4.867657] RKNPU 27700000.npu: bin=2
[ 4.867848] RKNPU 27700000.npu: leakage=4
[ 4.867885] debugfs: Directory '27700000.npu-rknpu' with parent 'vdd_npu_s0' already present!
[ 4.869665] RKNPU 27700000.npu: pvtm=808
[ 4.870275] RKNPU 27700000.npu: pvtm-volt-sel=4
[ 4.870294] RKNPU 27700000.npu: soc version=2, speed=4
[ 4.870361] debugfs: Directory '27700000.npu-rknpu' with parent 'vdd_npu_s0' already present!
[ 4.871243] RKNPU 27700000.npu: avs=0
[ 4.871515] RKNPU 27700000.npu: EM: created perf domain
[ 4.871819] RKNPU 27700000.npu: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[ 4.873205] RKNPU 27700000.npu: RKNPU: nbuf region: [0x000000003fe80000, 0x000000003ff80000), nbuf size: 0x100000
[ 4.875252] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[ 4.877532] cfg80211: Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
[ 4.878069] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[ 4.878143] clk: Disabling unused clocks
[ 4.879573] rockchip-pm rockchip-suspend: not set pwm-regulator-config
[ 4.881063] rockchip-suspend not set sleep-mode-config for mem-lite
[ 4.881079] rockchip-suspend not set wakeup-config for mem-lite
[ 4.881087] rockchip-suspend not set sleep-mode-config for mem-ultra
[ 4.881093] rockchip-suspend not set wakeup-config for mem-ultra
[ 4.882445] I : [File] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; [Line] : 407; [Func] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '12:05:07', on 'Jan 26 2026'.
[ 4.883111] Mali:
[ 4.883115] Mali device driver loaded
[ 4.883151] rkisp rkisp-vir0: clear unready subdev num: 1
[ 4.883442] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
[ 4.883458] cfg80211: failed to load regulatory.db
[ 4.883569] rkisp-vir0: Async subdev notifier completed
[ 4.883585] ALSA device list:
[ 4.883592] #0: rockchip-dp0
[ 4.883598] #1: rockchip-hdmi
[ 5.101763] rk3x-i2c 27300000.i2c: timeout, ipd: 0x90, state: 3
[ 5.101826] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 5.101843] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 5.101854] <<GTP-ERR>>[gt1x_init:2320] Reset guitar failed!
[ 5.101862] <<GTP-INF>>[gt1x_reset_guitar:788] GTP RESET!
[ 5.154955] rk-pcie 2a200000.pcie: PCIe Link Fail, LTSSM is 0x3, hw_retries=0
[ 5.377731] rk3x-i2c 27300000.i2c: timeout, ipd: 0x90, state: 3
[ 5.377777] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 5.377790] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 5.377799] <<GTP-ERR>>[gt1x_init:2320] Reset guitar failed!
[ 5.377807] <<GTP-INF>>[gt1x_reset_guitar:788] GTP RESET!
[ 5.653728] rk3x-i2c 27300000.i2c: timeout, ipd: 0x90, state: 3
[ 5.653771] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 5.653783] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 5.653793] <<GTP-ERR>>[gt1x_init:2320] Reset guitar failed!
[ 5.653800] <<GTP-INF>>[gt1x_reset_guitar:788] GTP RESET!
[ 5.929730] rk3x-i2c 27300000.i2c: timeout, ipd: 0x190, state: 3
[ 5.929776] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 5.929790] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 5.929798] <<GTP-ERR>>[gt1x_init:2320] Reset guitar failed!
[ 5.929806] <<GTP-INF>>[gt1x_reset_guitar:788] GTP RESET!
[ 6.205726] rk3x-i2c 27300000.i2c: timeout, ipd: 0x90, state: 3
[ 6.205772] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 6.205785] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 6.205794] <<GTP-ERR>>[gt1x_init:2320] Reset guitar failed!
[ 6.205802] <<GTP-ERR>>[gt1x_init:2346] Init failed, use default setting
[ 6.409726] rk3x-i2c 27300000.i2c: timeout, ipd: 0x191, state: 3
[ 6.409772] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 6.409784] <<GTP-ERR>>[_do_i2c_read:390] I2c Transfer error! (-110)
[ 6.409794] <<GTP-ERR>>[gt1x_get_chip_type:895] I2c communication error.
[ 6.409802] <<GTP-ERR>>[gt1x_init:2356] Get chip type failed!
[ 6.617726] rk3x-i2c 27300000.i2c: timeout, ipd: 0x191, state: 3
[ 6.617769] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 6.617781] <<GTP-ERR>>[_do_i2c_read:390] I2c Transfer error! (-110)
[ 6.617791] <<GTP-ERR>>[gt1x_read_version:845] Read version failed!
[ 6.933728] rk3x-i2c 27300000.i2c: timeout, ipd: 0x90, state: 3
[ 6.933774] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 6.933786] <<GTP-ERR>>[_do_i2c_read:390] I2c Transfer error! (-110)
[ 6.933796] <<GTP-ERR>>[gt1x_read_version:845] Read version failed!
[ 7.249727] rk3x-i2c 27300000.i2c: timeout, ipd: 0x90, state: 3
[ 7.249772] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 7.249785] <<GTP-ERR>>[_do_i2c_read:390] I2c Transfer error! (-110)
[ 7.249794] <<GTP-ERR>>[gt1x_read_version:845] Read version failed!
[ 7.357726] <<GTP-INF>>[gt1x_read_version:863] IC VERSION:GT_000000(Patch)_0000(Mask)_00(SensorID)
[ 7.357749] <<GTP-INF>>[gt1x_init_panel:606] Config group0 used, length:239
[ 7.357759] <<GTP-INF>>[gt1x_init_panel:657] X_MAX=4096,Y_MAX=4096,TRIGGER=0x01,WAKEUP_LEVEL=1
[ 7.589726] rk3x-i2c 27300000.i2c: timeout, ipd: 0x191, state: 2
[ 7.589769] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 7.589782] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 7.821726] rk3x-i2c 27300000.i2c: timeout, ipd: 0x190, state: 2
[ 7.821770] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 7.821783] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 8.053732] rk3x-i2c 27300000.i2c: timeout, ipd: 0x191, state: 2
[ 8.053777] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 8.053789] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 8.078335] rk_pcie_establish_link: 170 callbacks suppressed
[ 8.078343] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.099450] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.120552] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.141656] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.162764] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.183871] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.204975] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.226078] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.247183] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.268288] rk-pcie 2a200000.pcie: PCIe Linking... LTSSM is 0x3
[ 8.285726] rk3x-i2c 27300000.i2c: timeout, ipd: 0x191, state: 2
[ 8.285770] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 8.285784] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 8.499495] rk-pcie 2a200000.pcie: PCIe Link Fail, LTSSM is 0x3, hw_retries=1
[ 8.517723] rk3x-i2c 27300000.i2c: timeout, ipd: 0x191, state: 2
[ 8.517767] rk3x-i2c 27300000.i2c: SCL hold by slave, check your device.
[ 8.517779] <<GTP-ERR>>[_do_i2c_write:432] I2c transfer error! (-110)
[ 8.517788] <<GTP-ERR>>[gt1x_send_cfg:551] Send config failed!
[ 8.517796] <<GTP-ERR>>[gt1x_init:2368] Init panel failed.
[ 8.518092] <<GTP-ERR>>[gt1x_ts_probe:587] GTP init failed!!!
[ 8.518291] Goodix-TS-GT1X: probe of 0-0014 failed with error -2147483644
[ 8.541514] EXT4-fs (mmcblk0p6): mounted filesystem with ordered data mode. Quota mode: disabled.
[ 8.541680] VFS: Mounted root (ext4 filesystem) on device 179:6.
[ 8.542140] devtmpfs: mounted
[ 8.547016] Freeing unused kernel memory: 7488K
[ 8.547124] Run /sbin/init as init process
[ 8.755927] EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. Quota mode: disabled.
[ 8.760061] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Quota mode: disabled.
Start mounting all internal partitions in /etc/fstab
Log saved to /var/log/mount-all.log
Note: Create /.skip_fsck to skip fsck
- The check might take a while if didn't shutdown properly!
[0]: Handling /dev/mmcblk0p6 / ext4 rw,noauto 1
[1]: Handling /dev/mmcblk0p7 /oem ext4 defaults 2
[2]: Handling /dev/mmcblk0p8 /userdata ext4 defaults 2
/bin/disk-helper: line 500: warning: command substitution: ignored null byte in input
/bin/disk-helper: line 500: warning: command substitution: ignored null byte in input
[1]: Checking /dev/mmcblk0p7(ext4)
[2]: Checking /dev/mmcblk0p8(ext4)
/bin/disk-helper: line 500: warning: command substitution: ignored null byte in input
[0]: Checking /dev/mmcblk0p6(ext4)
[ 8.948271] EXT4-fs (mmcblk0p8): unmounting filesystem.
[ 8.948428] EXT4-fs (mmcblk0p7): unmounting filesystem.
[ 8.975958] EXT4-fs (mmcblk0p6): re-mounted. Quota mode: disabled.
e2fsck 1.47.0 (5-Feb-2023)
e2fsck 1.47.0 (5-Feb-2023)
e2fsck 1.47.0 (5-Feb-2023)
oem: clean, 18/4608 files, 4162/4591 blocks
userdata: clean, 14/2048 files, 1165/2048 blocks
rootfs: clean, 6928/55552 files, 190022/221952 blocks
[1]: Mounting /dev/mmcblk0p7(ext4) on /oem with -o defaults
[2]: Mounting /dev/mmcblk0p8(ext4) on /userdata with -o defaults
[0]: Resizing /dev/mmcblk0p6(ext4)
[ 8.992232] EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. Quota mode: disabled.
[ 8.992558] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Quota mode: disabled.
[1]: Resizing /dev/mmcblk0p7(ext4)
[2]: Resizing /dev/mmcblk0p8(ext4)
[ 9.000442] EXT4-fs (mmcblk0p6): re-mounted. Quota mode: disabled.
resize2fs 1.47.0 (5-Feb-2023)
resize2fs 1.47.0 (5-Feb-2023)
resize2fs 1.47.0 (5-Feb-2023)
[ 9.008980] EXT4-fs (mmcblk0p8): resizing filesystem from 2048 to 11859960 blocks
[ 9.009061] EXT4-fs (mmcblk0p7): resizing filesystem from 4591 to 32768 blocks
[ 9.009467] EXT4-fs (mmcblk0p7): resized filesystem to 32768
[ 9.009780] EXT4-fs (mmcblk0p6): resizing filesystem from 221952 to 3670016 blocks
Filesystem at /dev/mmcblk0p7 is mounted on /oem; on-line resizing required
old_desc_blocks = 1, new_desc_blocks = 1
The filesystem on /dev/mmcblk0p7 is now 32768 (4k) blocks long.

[ 9.087079] EXT4-fs (mmcblk0p8): resizing filesystem from 2097152 to 11859960 blocks
[ 9.087125] EXT4-fs (mmcblk0p8): Converting file system to meta_bg
[ 9.087198] EXT4-fs (mmcblk0p8): resizing filesystem from 2097152 to 11859960 blocks
[ 9.127346] EXT4-fs (mmcblk0p6): resized filesystem to 3670016
Filesystem at /dev/mmcblk0p6 is mounted on /; on-line resizing required
old_desc_blocks = 1, new_desc_blocks = 1
The filesystem on /dev/mmcblk0p6 is now 3670016 (4k) blocks long.

[ 9.305948] EXT4-fs (mmcblk0p8): resized filesystem to 11859960
Filesystem at /dev/mmcblk0p8 is mounted on /userdata; on-line resizing required
old_desc_blocks = 1, new_desc_blocks = 6
The filesystem on /dev/mmcblk0p8 is now 11859960 (4k) blocks long.

Saving 256 bits of creditable seed for next boot
log-guardian: [WARN] Not a dir: "/var/log/,/tmp/"
Starting syslogd: OK
log-guardian: Guarding logs in: "/var/log/,/tmp/"...
Starting klogd: OK
Running sysctl: OK
Populating /dev using udev: [ 9.445857] udevd[476]: starting version 3.2.14
[ 9.464286] udevd[480]: starting eudev-3.2.14
[ 9.517837] rk-pcie 2a200000.pcie: failed to initialize host
[ 9.613914] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[2] get remote terminal sensor failed!
[ 9.613923] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[1] get remote terminal sensor failed!
[ 9.613939] stream_cif_mipi_id2: update sensor info failed -19
[ 9.613945] stream_cif_mipi_id1: update sensor info failed -19
[ 9.614160] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[0] get remote terminal sensor failed!
[ 9.614175] stream_cif_mipi_id0: update sensor info failed -19
[ 9.615021] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[1] get remote terminal sensor failed!
[ 9.615054] rkcif_scale_ch1: update sensor info failed -19
[ 9.615569] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[3] get remote terminal sensor failed!
[ 9.615601] stream_cif_mipi_id3: update sensor info failed -19
[ 9.616627] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[0] get remote terminal sensor failed!
[ 9.616658] rkcif_scale_ch0: update sensor info failed -19
[ 9.619431] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[2] get remote terminal sensor failed!
[ 9.619451] rkcif_scale_ch2: update sensor info failed -19
[ 9.621381] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[1] get remote terminal sensor failed!
[ 9.621399] rkcif_tools_id1: update sensor info failed -19
[ 9.621493] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[2] get remote terminal sensor failed!
[ 9.621503] rkcif_tools_id2: update sensor info failed -19
[ 9.622316] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[3] get remote terminal sensor failed!
[ 9.622344] rkcif_scale_ch3: update sensor info failed -19
[ 9.624429] rkcif-mipi-lvds: rkcif_update_sensor_info: stream[0] get remote terminal sensor failed!
[ 9.624463] rkcif_tools_id0: update sensor info failed -19
done
Starting system message bus: done
Starting bluetoothd: OK
Starting network: Failed to detect Wi-Fi/BT chip!
OK
Starting dhcpcd...
dhcpcd-10.0.8 starting
dev: loaded udev
no interfaces have a carrier
[ 9.899758] rk_gmac-dwmac 2a220000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0
[ 9.900136] rk_gmac-dwmac 2a220000.ethernet eth0: __stmmac_open: Cannot attach to PHY (error: -19)
[ 9.902358] rk_gmac-dwmac 2a230000.ethernet eth1: Register MEM_TYPE_PAGE_POOL RxQ-0
[ 9.902886] rk_gmac-dwmac 2a230000.ethernet eth1: __stmmac_open: Cannot attach to PHY (error: -19)
Starting chrony: OK
starting weston... done.
Starting dropbear sshd: OK
Starting pulseaudio: OK
starting usbdevice service, log saved to /var/log/usbdevice.log
Starting dnsmasq: OK
W: [pulseaudio] main.c: This program is not intended to be run as root (unless --system is specified).
W: [pulseaudio] main.c: Compiled with DEPRECATED libsamplerate support!
Starting input-event-daemon: done
root@rk3576-buildroot:/# W: [pulseaudio] authkey.c: Failed to open cookie file '/userdata/.pulse/.config/pulse/cookie': No such file or directory
W: [pulseaudio] authkey.c: Failed to load authentication key '/userdata/.pulse/.config/pulse/cookie': No such file or directory
W: [pulseaudio] authkey.c: Failed to open cookie file '/userdata/.pulse/.pulse-cookie': No such file or directory
W: [pulseaudio] authkey.c: Failed to load authentication key '/userdata/.pulse/.pulse-cookie': No such file or directory
E: [pulseaudio] module-rescue-streams.c: module-rescue-stream is obsolete and should no longer be loaded. Please remove it from your configuration.
E: [pulseaudio] module-console-kit.c: GetSessionsForUnixUser() call failed: org.freedesktop.DBus.Error.ServiceUnknown: The name org.freedesktop.ConsoleKit was not provided by any .service files
Date: 2026-01-28 UTC
[07:01:37.348] weston 14.0.1
https://wayland.freedesktop.org
Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/
Build: 14.0.1
E: [pulseaudio] module.c: Failed to load module "module-console-kit" (argument: ""): initialization failed.
[07:01:37.349] Command line: /usr/bin/weston
[07:01:37.349] OS: Linux, 6.1.99, #1 SMP Mon Jan 26 12:07:50 CST 2026, aarch64
[07:01:37.349] Flight recorder: enabled
[07:01:37.349] warning: XDG_RUNTIME_DIR "/var/run" is not configured
correctly. Unix access mode must be 0700 (current mode is 0755),
and must be owned by the user UID 0 (current owner is UID 0).
Refer to your distribution on how to get it, or
http://www.freedesktop.org/wiki/Specifications/basedir-spec
on how to implement it.
[07:01:37.351] Using config file '/etc/xdg/weston/weston.ini'
[07:01:37.351] Output repaint window is -1 ms maximum.
[07:01:37.352] Loading module '/usr/lib/libweston-14/drm-backend.so'
W: [pulseaudio] server-lookup.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
W: [pulseaudio] main.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
[07:01:37.359] initializing drm backend
[07:01:37.359] Entering mirror mode.
[07:01:37.359] Trying direct launcher...
[07:01:37.360] using /dev/dri/card0
[07:01:37.360] DRM: does not support atomic modesetting
[07:01:37.360] DRM: does not support GBM modifiers
[07:01:37.360] DRM: does not support Atomic async page flip
[07:01:37.360] DRM: supports picture aspect ratio
[07:01:37.364] Loading module '/usr/lib/libweston-14/gl-renderer.so'
[ 10.139654] mali 27800000.gpu: Clearing BASE_MEM_UNCACHED_GPU flag to avoid MMA violation
[07:01:37.382] EGL version: 1.5 Bifrost-"g24p0-00eac0"
[07:01:37.382] EGL vendor: ARM
[07:01:37.382] EGL client APIs: OpenGL_ES
[07:01:37.382] EGL features:
EGL Wayland extension: yes
context priority: yes
buffer age: no
partial update: yes
swap buffers with damage: no
configless context: yes
surfaceless context: yes
dmabuf support: modifiers
[07:01:37.395] GL version: OpenGL ES 3.2 v1.g24p0-00eac0.7624deb1338aa462bb011099003f89a4
[07:01:37.395] GLSL version: OpenGL ES GLSL ES 3.20
[07:01:37.395] GL vendor: ARM
[07:01:37.395] GL renderer: Mali-G52
[07:01:37.545] GL ES 3.2 - renderer features:
read-back format: ARGB8888
glReadPixels supports y-flip: no
glReadPixels supports PBO: yes
wl_shm 10 bpc formats: yes
wl_shm 16 bpc formats: no
wl_shm half-float formats: no
internal R and RG formats: yes
OES_EGL_image_external: yes
wl_shm sub-image to texture: yes
[07:01:37.546] Using GL renderer
[07:01:37.569] event0 - 27330000.pwm: is tagged by udev as: Keyboard
[07:01:37.569] event0 - 27330000.pwm: device is a keyboard
[07:01:37.571] event1 - rk805 pwrkey: is tagged by udev as: Keyboard
[07:01:37.571] event1 - rk805 pwrkey: device is a keyboard
[07:01:37.572] event3 - adc-keys: is tagged by udev as: Keyboard
[07:01:37.572] event3 - adc-keys: device is a keyboard
[07:01:37.573] event4 - rockchip-dp0 rockchip-dp0: is tagged by udev as: Switch
[07:01:37.574] event4 - not using input device '/dev/input/event4'
[07:01:37.575] event5 - rockchip-hdmi rockchip-hdmi: is tagged by udev as: Switch
[07:01:37.575] event5 - not using input device '/dev/input/event5'
[07:01:37.576] event2 - bt-powerkey: is tagged by udev as: Keyboard
[07:01:37.576] event2 - bt-powerkey: device is a keyboard
[07:01:37.618] libinput: configuring device "27330000.pwm".
[07:01:37.618] libinput: configuring device "rk805 pwrkey".
[07:01:37.618] libinput: configuring device "adc-keys".
[07:01:37.618] libinput: configuring device "bt-powerkey".
[07:01:37.619] Registered plugin API 'weston_drm_output_api_v1' of size 40
[07:01:37.619] Color manager: no-op
protocol support: no
[07:01:37.619] DRM: head 'HDMI-A-1' found, connector 188 is disconnected.
[07:01:37.619] DRM: head 'DSI-1' found, connector 204 is connected, EDID make 'unknown', model 'unknown', serial ''
Supported EOTF modes: SDR
Supported colorimetry modes: default
[07:01:37.619] DRM: head 'DP-1' found, connector 206 is disconnected.
[07:01:37.619] DSI-1 using at least 2 buffers
[07:01:37.620] Output 'DSI-1' attempts EOTF mode SDR and colorimetry mode default.
[07:01:37.620] Output 'DSI-1' using color profile: stock sRGB color profile
[07:01:37.620] Chosen EGL config details: id: 1 rgba: 8 8 8 0 buf: 24 dep: 0 stcl: 0 int: 0-0 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[07:01:37.620] Output DSI-1 (crtc 100) video modes:
1080x1920@59.9, preferred, current, 132.0 MHz
[07:01:37.620] associating input device event0 with output DSI-1 (none by udev)
[07:01:37.620] associating input device event1 with output DSI-1 (none by udev)
[07:01:37.620] associating input device event3 with output DSI-1 (none by udev)
[07:01:37.620] associating input device event2 with output DSI-1 (none by udev)
[07:01:37.620] Output 'DSI-1' enabled with head(s) DSI-1
[07:01:37.620] Compositor capabilities:
arbitrary surface rotation: yes
screen capture uses y-flip: yes
cursor planes: yes
arbitrary resolutions: no
view mask clipping: yes
explicit sync: yes
color operations: no
presentation clock: CLOCK_MONOTONIC, id 1
presentation clock resolution: 0.000000001 s
[07:01:37.621] Loading module '/usr/lib/weston/desktop-shell.so'
[07:01:37.623] launching '/usr/libexec/weston-keyboard'
[07:01:37.625] launching '/usr/libexec/weston-desktop-shell'
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
[ 10.479632] file system registered
Fontconfig error: No writable cache directories
[ 10.572558] read descriptors
[ 10.572605] read strings
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'. Disabiling compose
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'. Disabiling compose
[ 10.772918] android_work: did not send uevent (0 0 0000000000000000)
[ 11.885966] Freeing drm_logo memory: 1384K
[ 20.687606] platform es8388-sound: deferred probe pending
[ 20.687669] platform mtd_vendor_storage: deferred probe pending

root@rk3576-buildroot:/#
root@rk3576-buildroot:/# ls -l
total 68
lrwxrwxrwx 1 root root 7 Jan 26 04:22 bin -> usr/bin
-rwxr-xr-x 1 root root 489 Jan 20 07:28 busybox.fragment
lrwxrwxrwx 1 root root 8 Jan 26 05:46 data -> userdata
drwxr-xr-x 14 root root 4240 Jan 28 07:01 dev
drwxr-xr-x 23 root root 4096 Jan 28 07:01 etc
drwxr-xr-x 2 root root 4096 Jan 26 05:46 info
lrwxrwxrwx 1 root root 7 Jan 26 04:22 lib -> usr/lib
lrwxrwxrwx 1 root root 3 Jan 26 04:22 lib64 -> lib
lrwxrwxrwx 1 root root 11 Jan 26 05:01 linuxrc -> bin/busybox
drwx------ 2 root root 16384 Jan 26 05:48 lost+found
drwxr-xr-x 11 root root 4096 Jan 26 05:41 media
drwxr-xr-x 5 root root 4096 Jan 26 05:46 mnt
drwxr-xr-x 3 root root 4096 Jan 28 07:01 oem
drwxr-xr-x 3 root root 4096 Jan 26 05:41 opt
dr-xr-xr-x 264 root root 0 Jan 28 07:01 proc
drwxr-xr-x 17 root root 4096 Jan 26 05:45 rockchip-test
drwx------ 2 root root 4096 Jan 20 07:28 root
drwxr-xr-x 10 root root 500 Jan 28 07:01 run
lrwxrwxrwx 1 root root 8 Jan 26 04:22 sbin -> usr/sbin
lrwxrwxrwx 1 root root 10 Jan 26 05:46 sdcard -> mnt/sdcard
dr-xr-xr-x 14 root root 0 Jan 28 07:01 sys
drwxr-xr-x 3 root root 4096 Jan 26 05:46 system
drwxrwxrwt 5 root root 180 Jan 28 07:01 tmp
lrwxrwxrwx 1 root root 9 Jan 26 05:46 udisk -> mnt/udisk
drwxr-xr-x 4 root root 4096 Jan 28 07:01 userdata
drwxr-xr-x 7 root root 4096 Jan 26 05:46 usr
drwxr-xr-x 6 root root 4096 Jan 26 05:48 var
lrwxrwxrwx 1 root root 6 Jan 26 05:46 vendor -> system
root@rk3576-buildroot:/#
root@rk3576-buildroot:/# cd /sys/class/gpio/
root@rk3576-buildroot:/sys/class/gpio#
root@rk3576-buildroot:/sys/class/gpio# ls -l
total 0
--w------- 1 root root 4096 Jan 28 07:01 export
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip0 -> ../../devices/platform/pinctrl/27320000.gpio/gpio/gpiochip0
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip128 -> ../../devices/platform/pinctrl/2ae40000.gpio/gpio/gpiochip128
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip32 -> ../../devices/platform/pinctrl/2ae10000.gpio/gpio/gpiochip32
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip509 -> ../../devices/platform/2ac40000.i2c/i2c-1/1-0023/rk806-pinctrl.1.auto/gpio/gpiochip509
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip64 -> ../../devices/platform/pinctrl/2ae20000.gpio/gpio/gpiochip64
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip96 -> ../../devices/platform/pinctrl/2ae30000.gpio/gpio/gpiochip96
--w------- 1 root root 4096 Jan 28 07:01 unexport
root@rk3576-buildroot:/sys/class/gpio#
root@rk3576-buildroot:/sys/class/gpio#
root@rk3576-buildroot:/sys/class/gpio# echo 26 > export
root@rk3576-buildroot:/sys/class/gpio#
root@rk3576-buildroot:/sys/class/gpio# ls -l
total 0
--w------- 1 root root 4096 Jan 28 07:05 export
lrwxrwxrwx 1 root root 0 Jan 28 07:05 gpio26 -> ../../devices/platform/pinctrl/27320000.gpio/gpiochip0/gpio/gpio26
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip0 -> ../../devices/platform/pinctrl/27320000.gpio/gpio/gpiochip0
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip128 -> ../../devices/platform/pinctrl/2ae40000.gpio/gpio/gpiochip128
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip32 -> ../../devices/platform/pinctrl/2ae10000.gpio/gpio/gpiochip32
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip509 -> ../../devices/platform/2ac40000.i2c/i2c-1/1-0023/rk806-pinctrl.1.auto/gpio/gpiochip509
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip64 -> ../../devices/platform/pinctrl/2ae20000.gpio/gpio/gpiochip64
lrwxrwxrwx 1 root root 0 Jan 28 07:01 gpiochip96 -> ../../devices/platform/pinctrl/2ae30000.gpio/gpio/gpiochip96
--w------- 1 root root 4096 Jan 28 07:01 unexport
root@rk3576-buildroot:/sys/class/gpio#
root@rk3576-buildroot:/sys/class/gpio# cd gpio26/
root@rk3576-buildroot:/sys/class/gpio/gpio26# ls -l
total 0
-rw-r--r-- 1 root root 4096 Jan 28 07:05 active_low
lrwxrwxrwx 1 root root 0 Jan 28 07:05 device -> ../../../gpiochip0
-rw-r--r-- 1 root root 4096 Jan 28 07:05 direction
-rw-r--r-- 1 root root 4096 Jan 28 07:05 edge
drwxr-xr-x 2 root root 0 Jan 28 07:05 power
lrwxrwxrwx 1 root root 0 Jan 28 07:05 subsystem -> ../../../../../../../class/gpio
-rw-r--r-- 1 root root 4096 Jan 28 07:05 uevent
-rw-r--r-- 1 root root 4096 Jan 28 07:05 value
root@rk3576-buildroot:/sys/class/gpio/gpio26#
root@rk3576-buildroot:/sys/class/gpio/gpio26# cat direction
in
root@rk3576-buildroot:/sys/class/gpio/gpio26# cat value
0
root@rk3576-buildroot:/sys/class/gpio/gpio26#
root@rk3576-buildroot:/sys/class/gpio/gpio26# echo out > direction
root@rk3576-buildroot:/sys/class/gpio/gpio26#
root@rk3576-buildroot:/sys/class/gpio/gpio26# cat direction
out
root@rk3576-buildroot:/sys/class/gpio/gpio26# cat value
0
root@rk3576-buildroot:/sys/class/gpio/gpio26#
root@rk3576-buildroot:/sys/class/gpio/gpio26# echo 1 > value
root@rk3576-buildroot:/sys/class/gpio/gpio26# [07:07:23.221] DRM: head 'HDMI-A-1' updated, connector 188 is connected, EDID make 'LG Electronics', model '27MP35', serial '0x01010101'
Supported EOTF modes: SDR
Supported colorimetry modes: default
[07:07:23.222] Detected a monitor change on head 'DSI-1', not bothering to do anything about it.
[07:07:23.222] HDMI-A-1 using at least 2 buffers
[07:07:23.222] Output 'HDMI-A-1' attempts EOTF mode SDR and colorimetry mode default.
[07:07:23.222] Output 'HDMI-A-1' using color profile: stock sRGB color profile
[07:07:23.222] Chosen EGL config details: id: 1 rgba: 8 8 8 0 buf: 24 dep: 0 stcl: 0 int: 0-0 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[07:07:23.222] Output HDMI-A-1 (crtc 72) video modes:
1920x1080@60.0, preferred, current, 148.5 MHz
1920x1080@60.0 16:9, 148.5 MHz
1920x1080@59.9 16:9, 148.4 MHz
1920x1080i@60.0, 74.2 MHz
1920x1080i@60.0 16:9, 74.2 MHz
1920x1080i@59.9 16:9, 74.2 MHz
1920x1080@50.0 16:9, 148.5 MHz
1920x1080i@50.0 16:9, 74.2 MHz
1680x1050@59.9, 119.0 MHz
1400x1050@59.9, 101.0 MHz
1600x900@60.0, 108.0 MHz
1280x1024@75.0, 135.0 MHz
1280x1024@60.0, 108.0 MHz
1440x900@59.9, 88.8 MHz
1280x800@59.9, 71.0 MHz
1152x864@75.0, 108.0 MHz
1280x720@60.0, 74.2 MHz
1280x720@60.0 16:9, 74.2 MHz
1280x720@59.9 16:9, 74.2 MHz
1280x720@50.0 16:9, 74.2 MHz
1024x768@75.0, 78.8 MHz
1024x768@60.0, 65.0 MHz
800x600@75.0, 49.5 MHz
800x600@60.3, 40.0 MHz
720x576@50.0 16:9, 27.0 MHz
720x480@60.0 4:3, 27.0 MHz
720x480@60.0 16:9, 27.0 MHz
720x480@59.9, 27.0 MHz
720x480@59.9 16:9, 27.0 MHz
640x480@75.0, 31.5 MHz
640x480@60.0 4:3, 25.2 MHz
640x480@59.9, 25.2 MHz
640x480@59.9 4:3, 25.2 MHz
720x400@70.1, 28.3 MHz
[07:07:23.223] Output HDMI-A-1 changed to mirror output
[07:07:23.223] Output 'HDMI-A-1' enabled with head(s) HDMI-A-1
[ 356.073958] usb 2-1: new SuperSpeed USB device number 2 using xhci-hcd
[ 356.099302] usb 2-1: New USB device found, idVendor=05e3, idProduct=0620, bcdDevice=93.91
[ 356.099347] usb 2-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 356.099358] usb 2-1: Product: USB3.2 Hub
[ 356.099366] usb 2-1: Manufacturer: GenesysLogic
[ 356.127212] hub 2-1:1.0: USB hub found
[ 356.127657] hub 2-1:1.0: 4 ports detected
[ 356.152302] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
[ 356.158177] rockchip-vop2 27d00000.vop: [drm:vop2_crtc_atomic_enable] Update mode to 1920x1080p60, type: 11(if:HDMI0, flag:0x0) for vp0 dclk: 148500000
[ 356.158244] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx_ropll_cmn_config bus_width:16a8c8 rate:742500
[ 356.158416] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
[ 356.158458] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
[ 356.158628] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
[ 356.158636] rockchip-vop2 27d00000.vop: [drm:vop2_crtc_atomic_enable] set dclk_vp0 to 148500000, get 148500000
[ 356.158677] dwhdmi-rockchip 27da0000.hdmi: final tmdsclk = 148500000
[ 356.158713] dwhdmi-rockchip 27da0000.hdmi: don't use dsc mode
[ 356.158720] dwhdmi-rockchip 27da0000.hdmi: dw hdmi qp use tmds mode
[ 356.158728] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: bus_width:0x16a8c8,bit_rate:1485000
[ 356.158869] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy lane locked!
[ 356.175640] dwhdmi-rockchip 27da0000.hdmi: use tmds mode
[ 356.175970] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.175990] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.176002] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.176013] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.176023] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.176034] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.176048] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.176061] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.176073] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.176083] rockchip-vop2 27d00000.vop: [drm:vop3_vp_isr] *ERROR* POST_BUF_EMPTY_INTR irq err at vp0
[ 356.221662] usb 1-1: new high-speed USB device number 2 using xhci-hcd
[ 356.372193] usb 1-1: New USB device found, idVendor=05e3, idProduct=0610, bcdDevice=93.91
[ 356.372225] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 356.372233] usb 1-1: Product: USB2.1 Hub
[ 356.372239] usb 1-1: Manufacturer: GenesysLogic
[ 356.430982] hub 1-1:1.0: USB hub found
[ 356.431298] hub 1-1:1.0: 4 ports detected

root@rk3576-buildroot:/sys/class/gpio/gpio26#
root@rk3576-buildroot:/sys/class/gpio/gpio26# poweroff
root@rk3576-buildroot:/sys/class/gpio/gpio26# Stopping input-event-daemon: done
stop auto-reboot finished
Stopping dnsmasq: OK
starting usbdevice service, log saved to /var/log/usbdevice.log
Stopping pulseaudio: E: [pulseaudio] main.c: Failed to kill daemon: No such process
OK
Stopping dropbear sshd: OK
stoping weston... [07:07:59.169] caught signal 15
done.
[07:07:59.170] event0 - 27330000.pwm: device removed
[07:07:59.171] event1 - rk805 pwrkey: device removed
[07:07:59.171] event3 - adc-keys: device removed
[07:07:59.171] event2 - bt-powerkey: device removed
Stopping chrony: OK
Stopping dhcpcd...
no /sbin/dhcpcd found; none killed
killall: rkaiq_3A_server: no process killed
Stopping network: ifdown: interface lo not configured
OK
Stopping bluetoothd: OK
Stopping Wi-Fi/BT...[ 392.013682] rockchip-vop2 27d00000.vop: [drm:vop2_crtc_atomic_disable] Crtc atomic disable vp1
Done
Stopping system message bus: done
[ 392.088067] rockchip-vop2 27d00000.vop: [drm:vop2_crtc_atomic_disable] Crtc atomic disable vp0
Stopping klogd: OK
Stopping syslogd: [ 392.108862] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx_ropll_cmn_config bus_width:8 rate:1485000
[ 392.109056] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
OK
[ 392.125849] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx_ropll_cmn_config bus_width:8 rate:1485000
[ 392.126039] rockchip-hdptx-phy-hdmi 2b000000.hdmiphy: hdptx phy pll locked!
Seeding 256 bits and crediting
Saving 256 bits of creditable seed for next boot
log-guardian: Stopping log-guardian (441)...
umount: /dev/usb-ffs/adb: target is busy.
[ 392.167552] EXT4-fs (mmcblk0p8): unmounting filesystem.
[ 392.174491] EXT4-fs (mmcblk0p7): unmounting filesystem.
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
arm_release_ver: g24p0-00eac0, rk_so_ver: 7
umount: /var/log: target is busy.
umount: /run: target is busy.
[ 392.187695] EXT4-fs (mmcblk0p6): re-mounted. Quota mode: disabled.
The system is going down NOW!
Sent SIGTERM to all processes
[ 392.190375] dwc3 23000000.usb: request 00000000f6085769 was not queued to ep0out
Terminated
[ 392.190429] android_work: did not send uevent (0 0 0000000000000000)
E: [pulseaudio] module-default-device-restore.c: Failed to save default sink: No such file or directory
E: [pulseaudio] module-default-device-restore.c: Failed to save default source: No such file or directory
E: [pulseaudio] core-util.c: Failed to create secure directory (/userdata/.pulse/.config/pulse): No such file or directory
Sent SIGKILL to all processes
Requesting system poweroff
[ 394.202285] mpp_rkvenc2 27a10000.rkvenc-core: shutdown device
[ 394.202812] mpp_rkvenc2 27a10000.rkvenc-core: shutdown success
[ 394.203335] mpp_rkvenc2 27a00000.rkvenc-core: shutdown device
[ 394.203843] mpp_rkvenc2 27a00000.rkvenc-core: shutdown success
[ 394.204366] mpp_rkvdec2 27b00100.rkvdec: shutdown device
[ 394.204841] mpp_rkvdec2 27b00100.rkvdec: shutdown success
[ 394.205320] mpp_jpgenc 27910800.jpege: shutdown device
[ 394.205815] mpp_jpgenc 27910800.jpege: shutdown success
[ 394.206311] mpp_jpgdec 27910000.jpegd: shutdown device
[ 394.206766] mpp_jpgdec 27910000.jpegd: shutdown success
[ 394.207233] mpp-iep2 27960000.iep: shutdown device
[ 394.207654] mpp-iep2 27960000.iep: shutdown success
[ 394.208389] rga2 27930000.rga: shutdown success
[ 394.208936] rga2 27920000.rga: shutdown success
[ 394.211998] rkisp_hw 27c00000.isp: rkisp_hw_shutdown
[ 394.214751] xhci-hcd xhci-hcd.0.auto: remove, state 4
[ 394.215204] usb usb2: USB disconnect, device number 1
[ 394.215648] usb 2-1: USB disconnect, device number 2
[ 394.217017] xhci-hcd xhci-hcd.0.auto: USB bus 2 deregistered
[ 394.217613] xhci-hcd xhci-hcd.0.auto: remove, state 4
[ 394.218073] usb usb1: USB disconnect, device number 1
[ 394.218517] usb 1-1: USB disconnect, device number 2
[ 394.219898] xhci-hcd xhci-hcd.0.auto: USB bus 1 deregistered
[ 394.221102] [WLAN_RFKILL]: Enter rfkill_wlan_shutdown
[ 394.221550] [WLAN_RFKILL]: rockchip_wifi_power: 0
[ 394.221996] [WLAN_RFKILL]: rockchip_wifi_power: toggle = false
[ 394.222515] wifi power off
[ 394.329701] [WLAN_RFKILL]: rockchip_wifi_power: toggle = false
[ 394.330222] [WLAN_RFKILL]: wifi shut off power [GPIO54-0]
[ 394.330697] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 0
[ 394.531805] reboot: Power down

[END] 2026/1/28 15:08:10

腾讯云开发者社区

腾讯云面向开发者汇聚海量精品云计算使用和开发经验，营造开放的云计算技术生态圈。

更多推荐

终极指南：Flink SQL连接器版本管理从混乱到有序的升级之路

Apache Flink作为流处理领域的佼佼者，其SQL连接器的版本管理一直是开发者面临的核心挑战。本文将系统讲解Flink SQL连接器版本管理的最佳实践，帮助你轻松应对版本兼容性问题，实现从混乱到有序的升级之旅。## 连接器版本管理的常见痛点 😫在Flink应用开发中，连接器版本管理常常让开发者头疼不已。不同版本的连接器可能导致各种兼容性问题，例如API变更、功能差异甚至运行时错误。

腾讯云开发者社区

Elasticsearch复杂数据类型终极指南：从入门到精通

Elasticsearch作为功能强大的搜索引擎，支持多种复杂数据类型，让开发者能够灵活处理各种结构化和非结构化数据。本文将带你全面了解Elasticsearch中的复杂数据类型，从基础概念到实际应用，助你轻松掌握数据建模的核心技巧。## 内部对象：构建层级化数据结构在Elasticsearch中，对象类型（Object）是最基础的复杂数据类型之一，用于表示具有嵌套关系的数据。例如，我们可

腾讯云开发者社区

如何快速搭建Neon无服务器PostgreSQL：面向初学者的完整指南

Neon是一款革命性的无服务器PostgreSQL解决方案，它通过分离存储和计算层，实现了自动扩缩容、类代码式数据库分支以及零级扩展能力。本指南将帮助你从零开始搭建Neon开发环境，体验这款创新数据库的强大功能。## 准备工作：环境要求与依赖项在开始搭建Neon环境前，请确保你的系统满足以下要求：- Linux操作系统（推荐Ubuntu 20.04+或Debian 11+）- Git
