20260129让天启AIO-3576Q38开发板在Rockchip瑞芯微原厂Buildroot下新增集成iperf3等网络监控包

本文介绍了在RK3588开发板上配置Buildroot系统并集成网络监控工具的过程。通过修改buildroot配置文件，启用了iperf3、bmon、iftop等网络测试和监控工具，用于实测开发板RTL8211F-CG网口性能。测试结果显示百兆网口带宽稳定在94.8Mbps左右。文章详细记录了从网络配置到iperf3测试的全流程，包括ifconfig查看网口状态、udhcpc获取IP以及iperf

南棱笑笑生

499人浏览 · 2026-01-29 14:25:42

南棱笑笑生 · 2026-01-29 14:25:42 发布

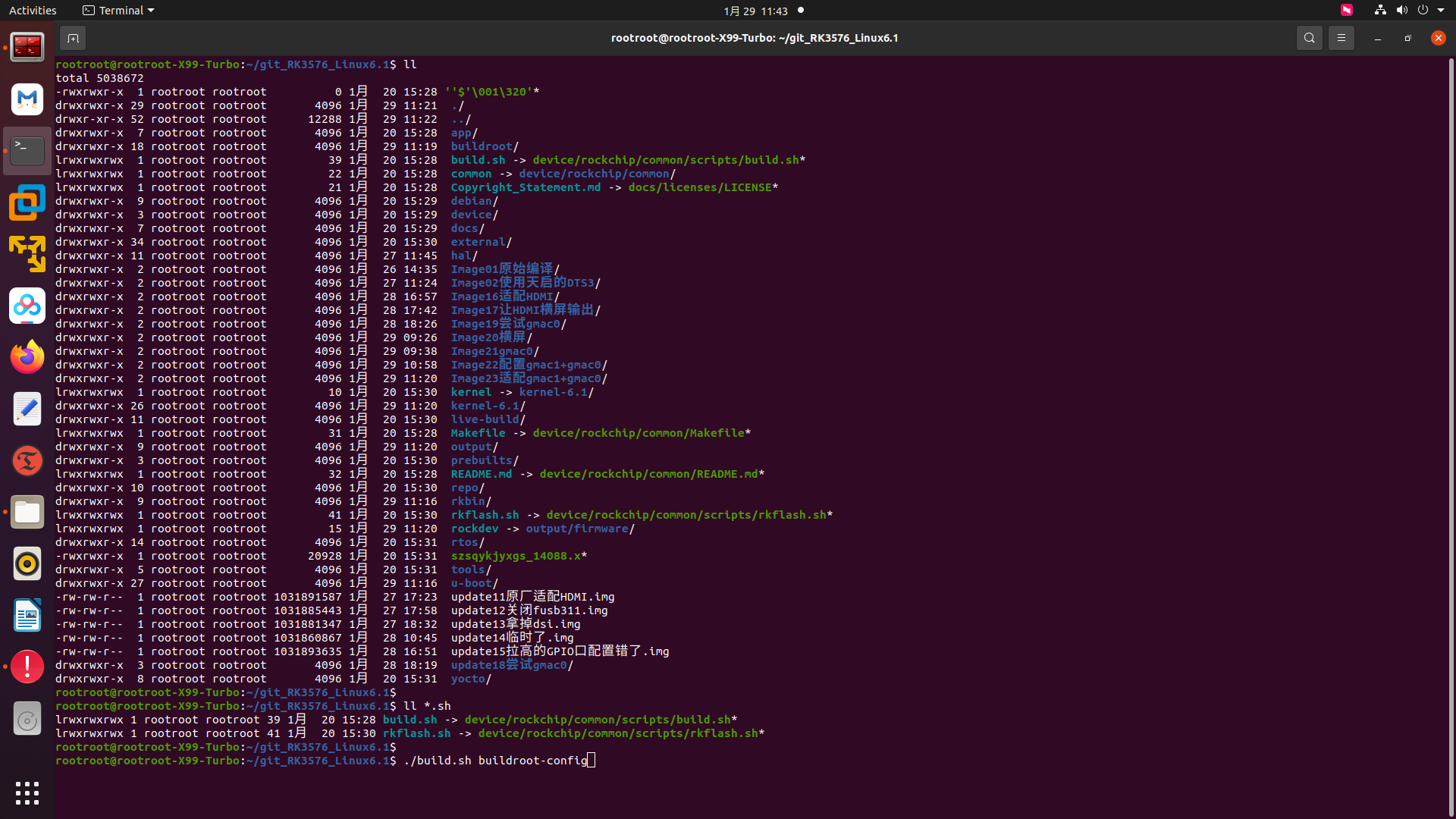

./build.sh buildroot-config

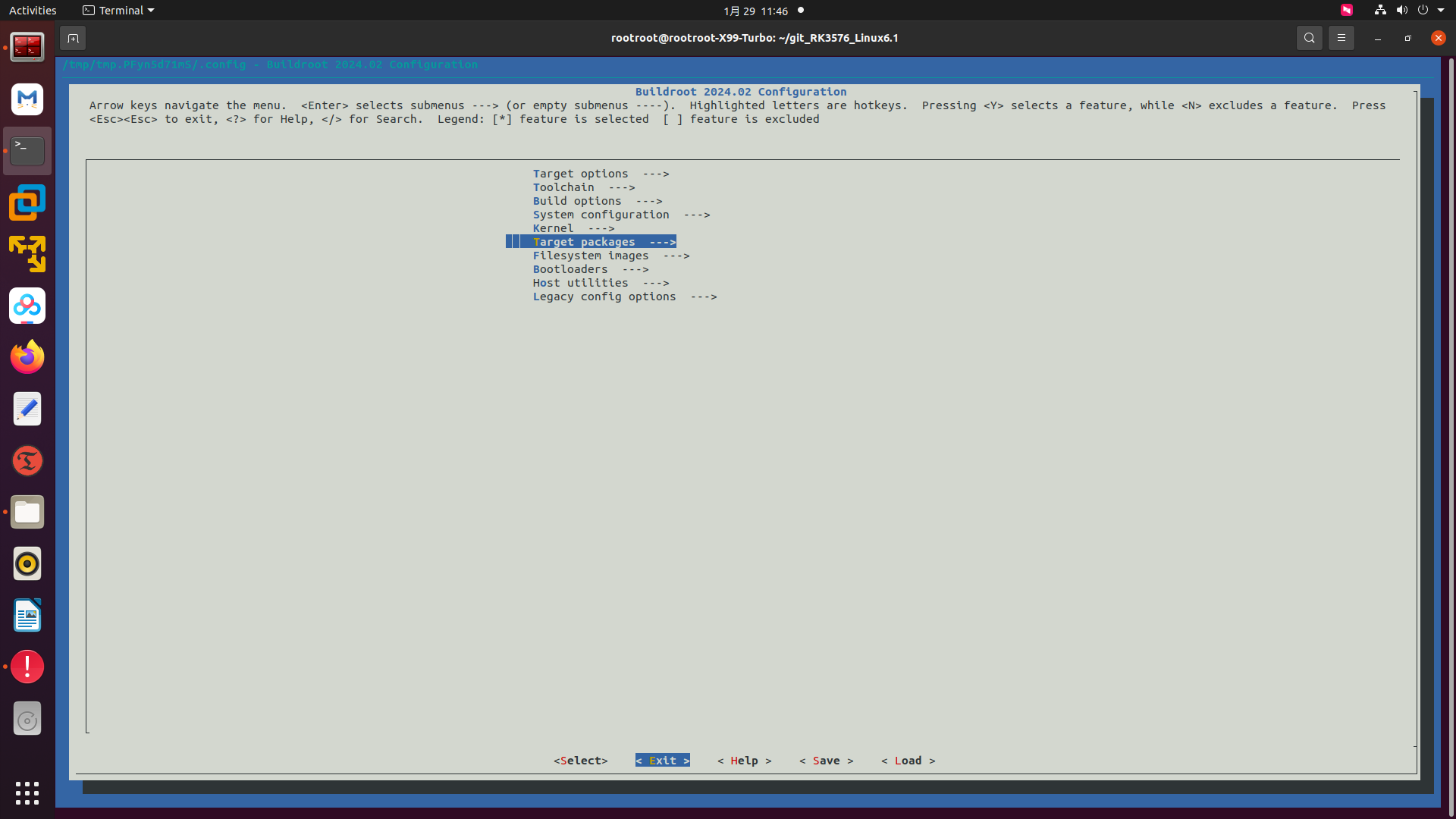

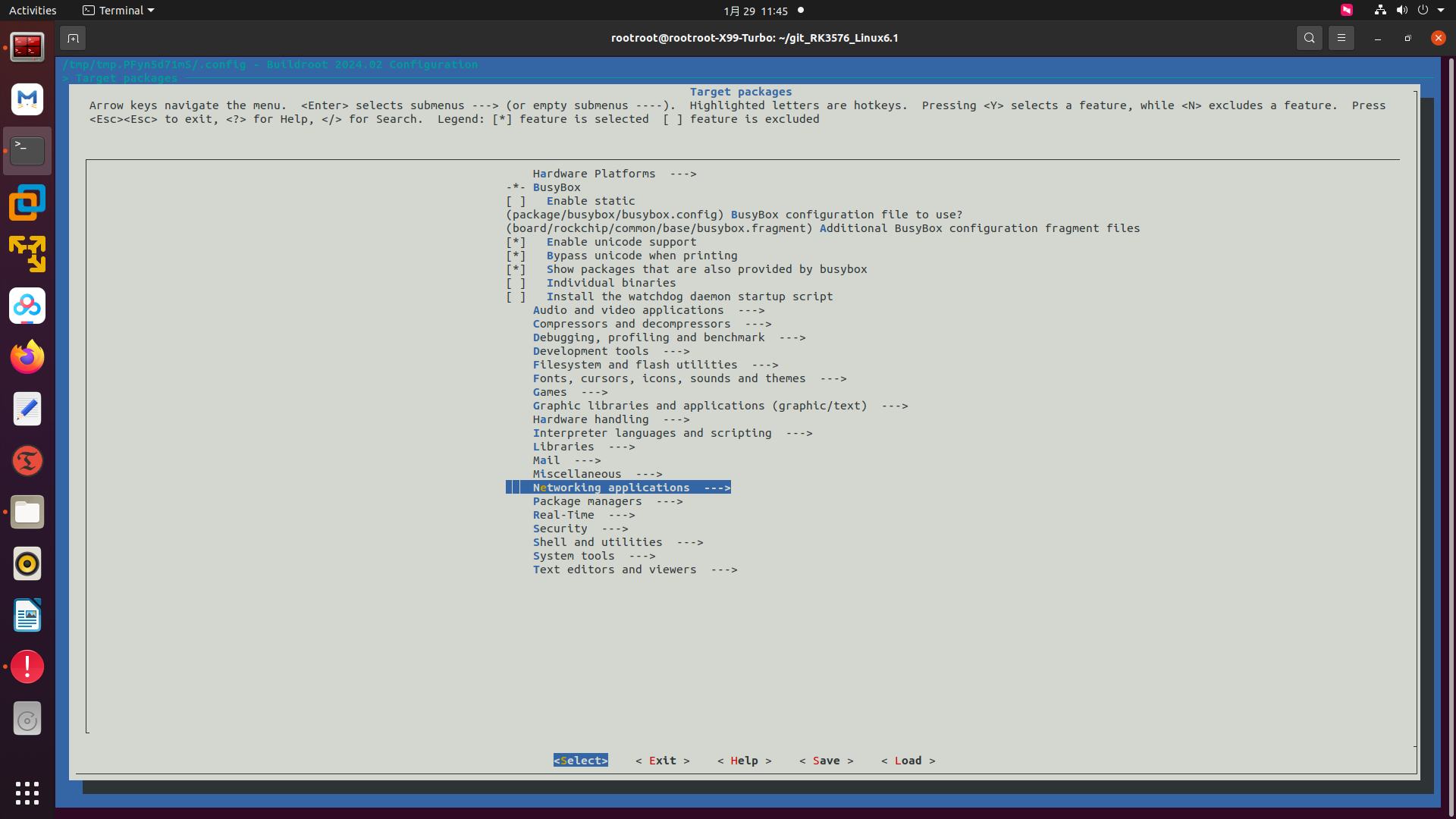

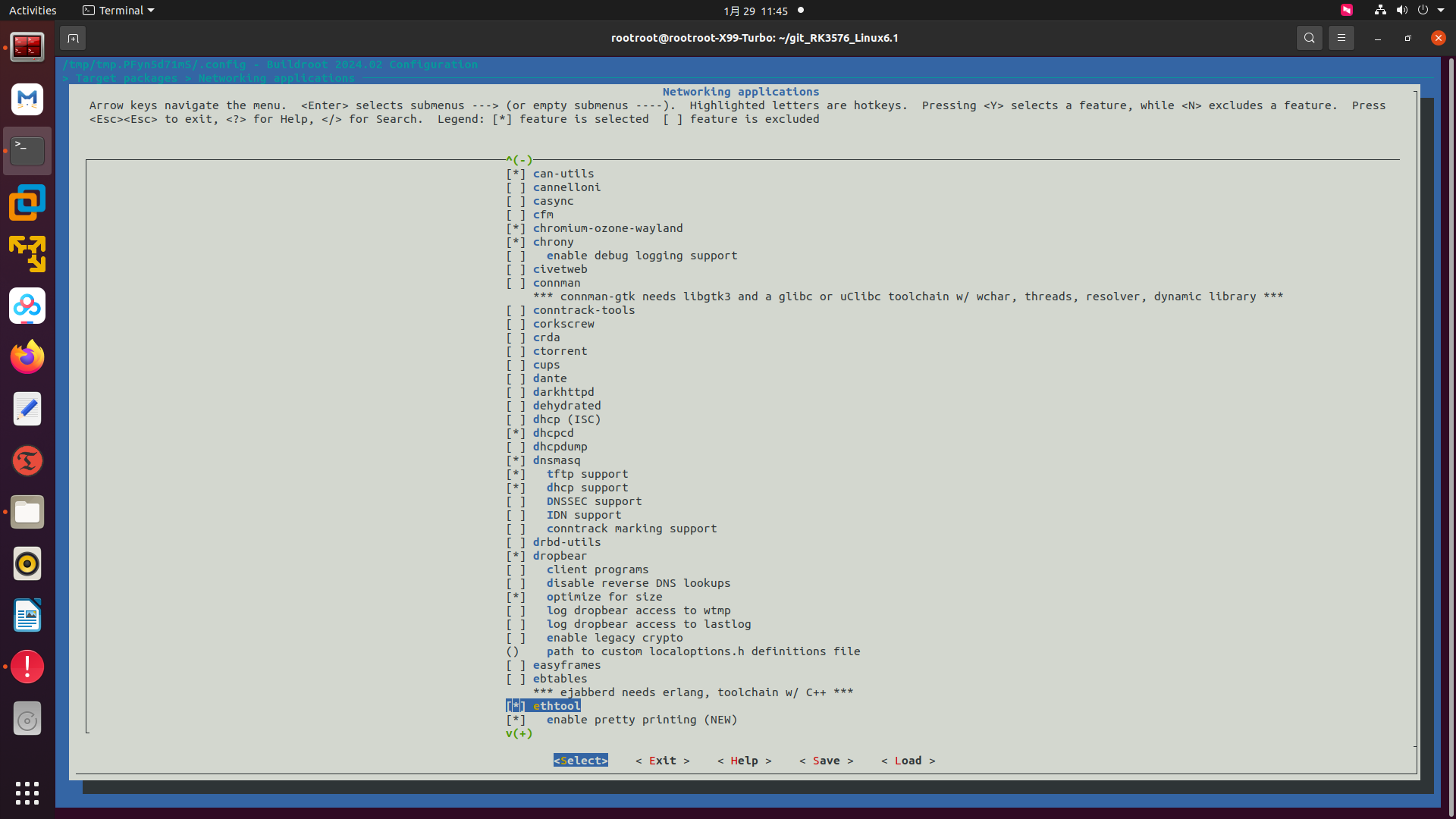

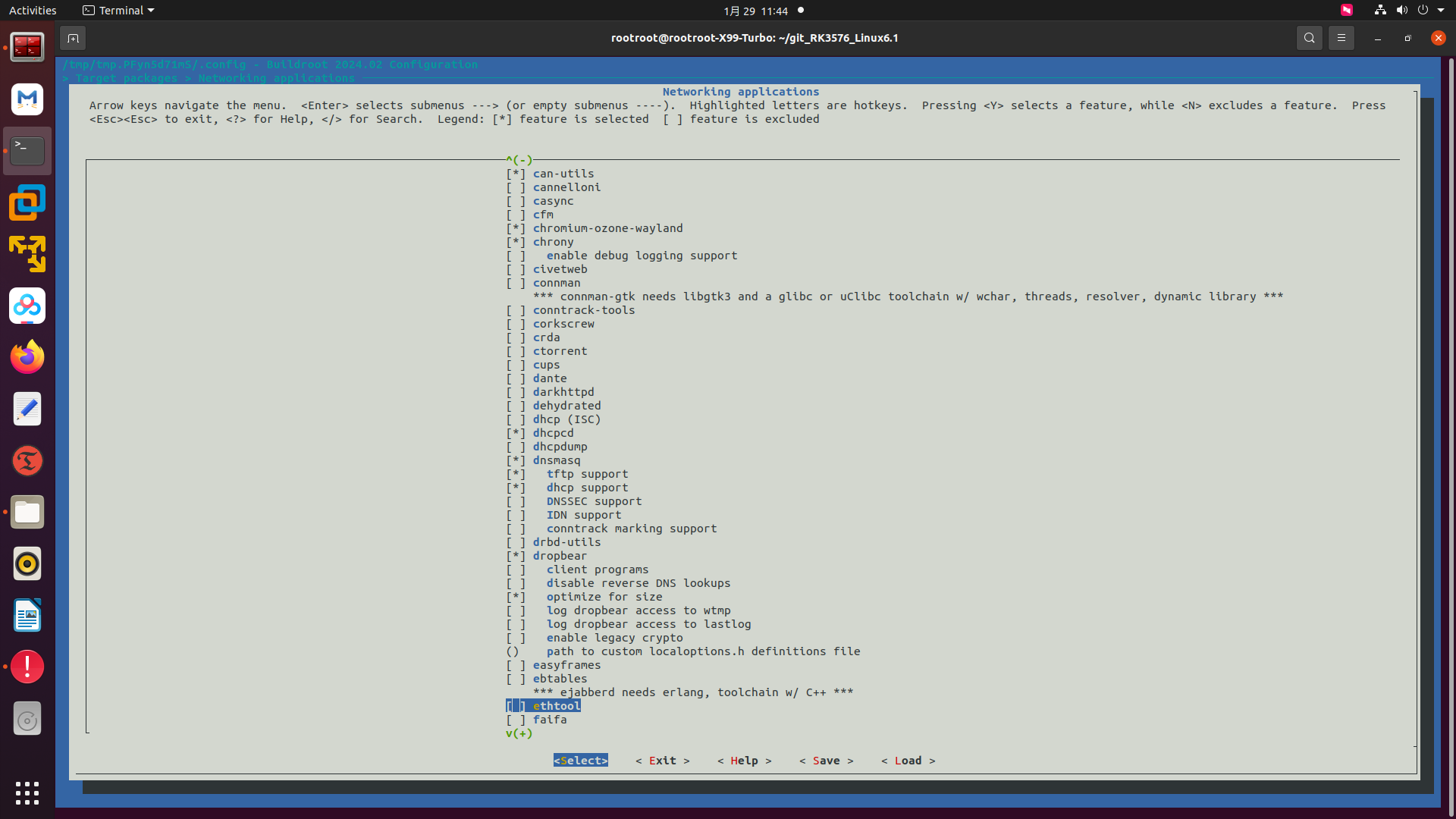

Target packages → Network applications →

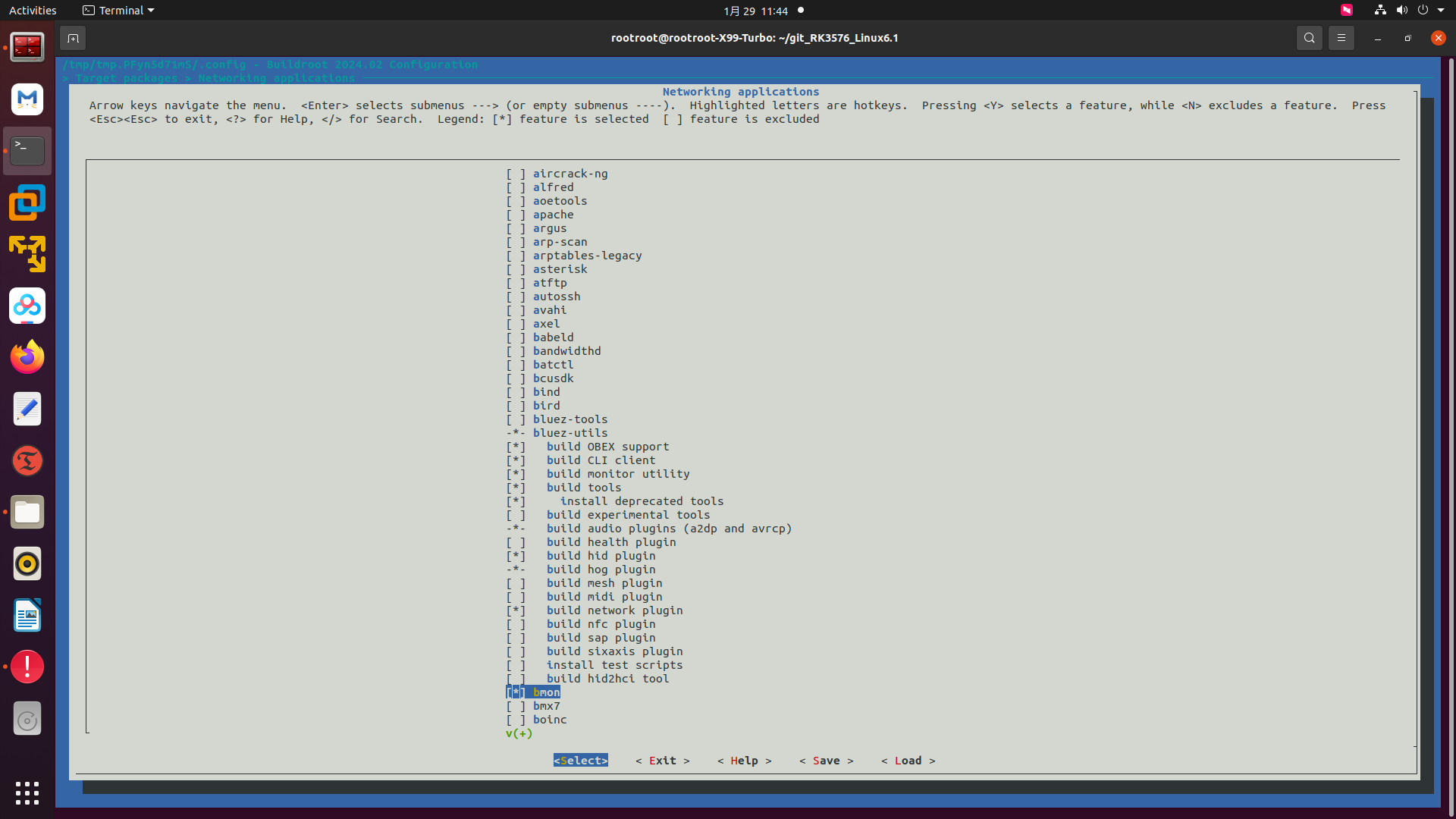

[*] bmon # 启用带宽监控
[*] ethtool # 启用网络接口工具

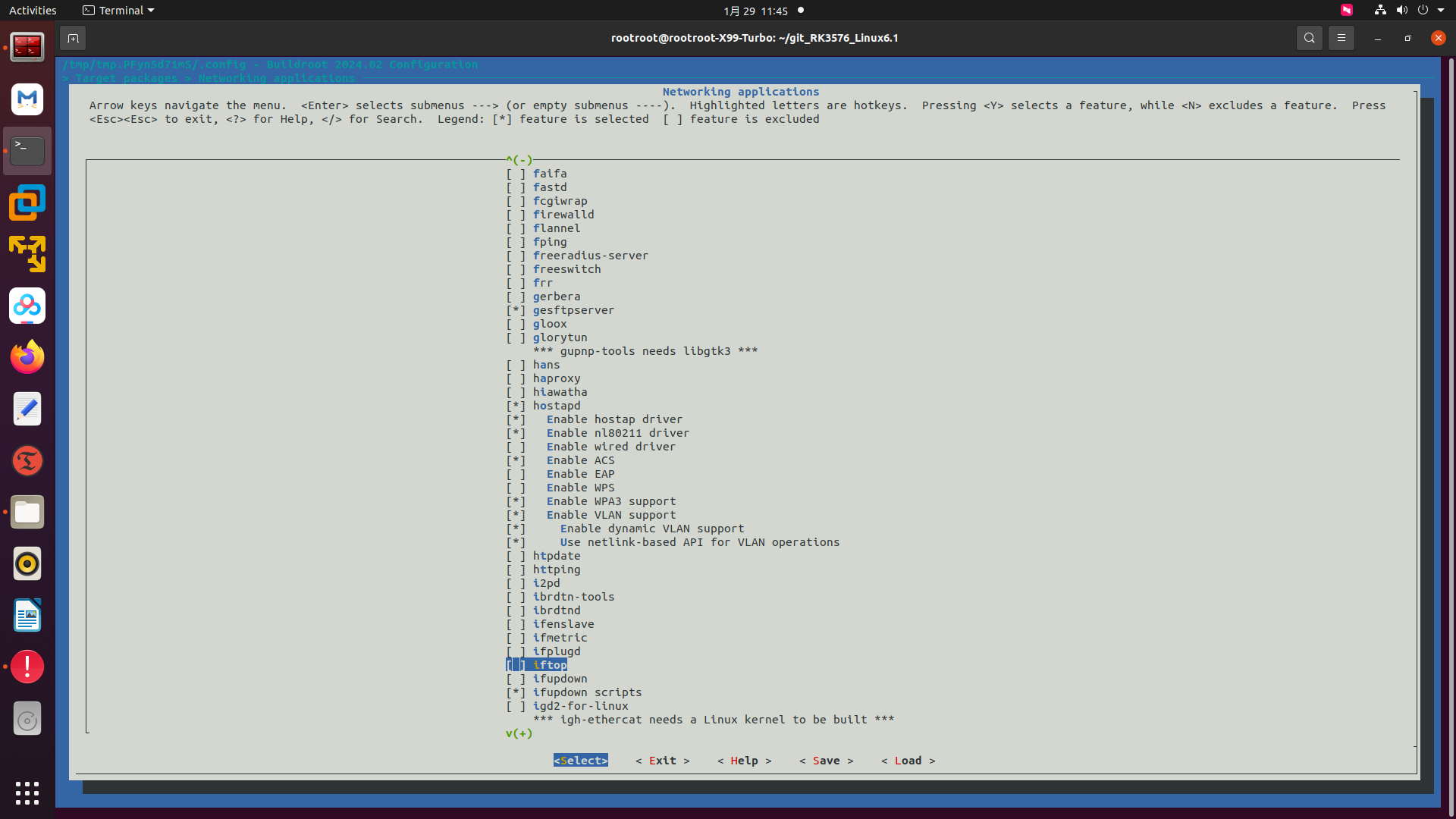

[*] iftop # 启用网络流量监控

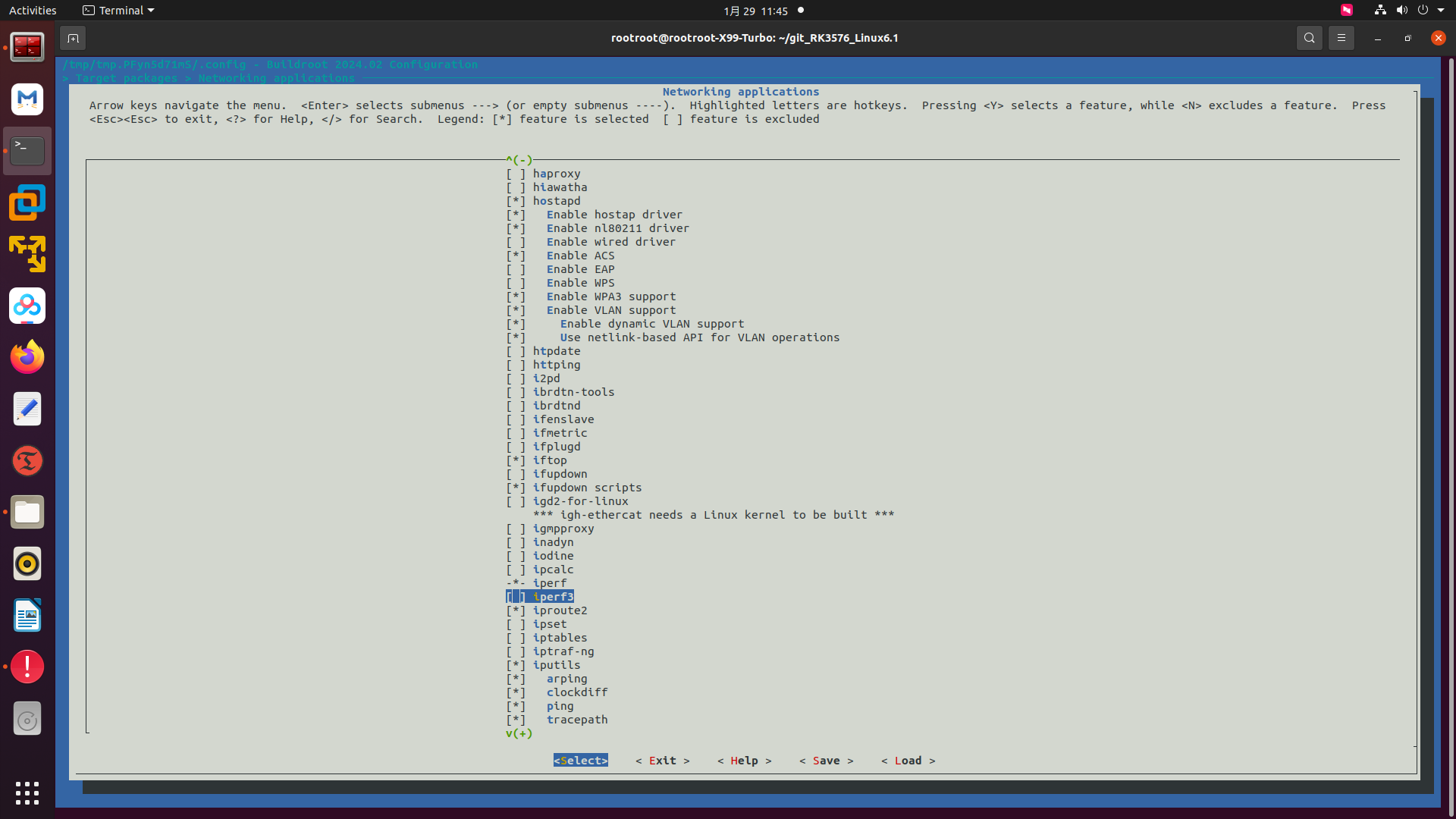

[*] iperf3 # 启用网络带宽测试
[*] iproute2 # 启用ip命令集

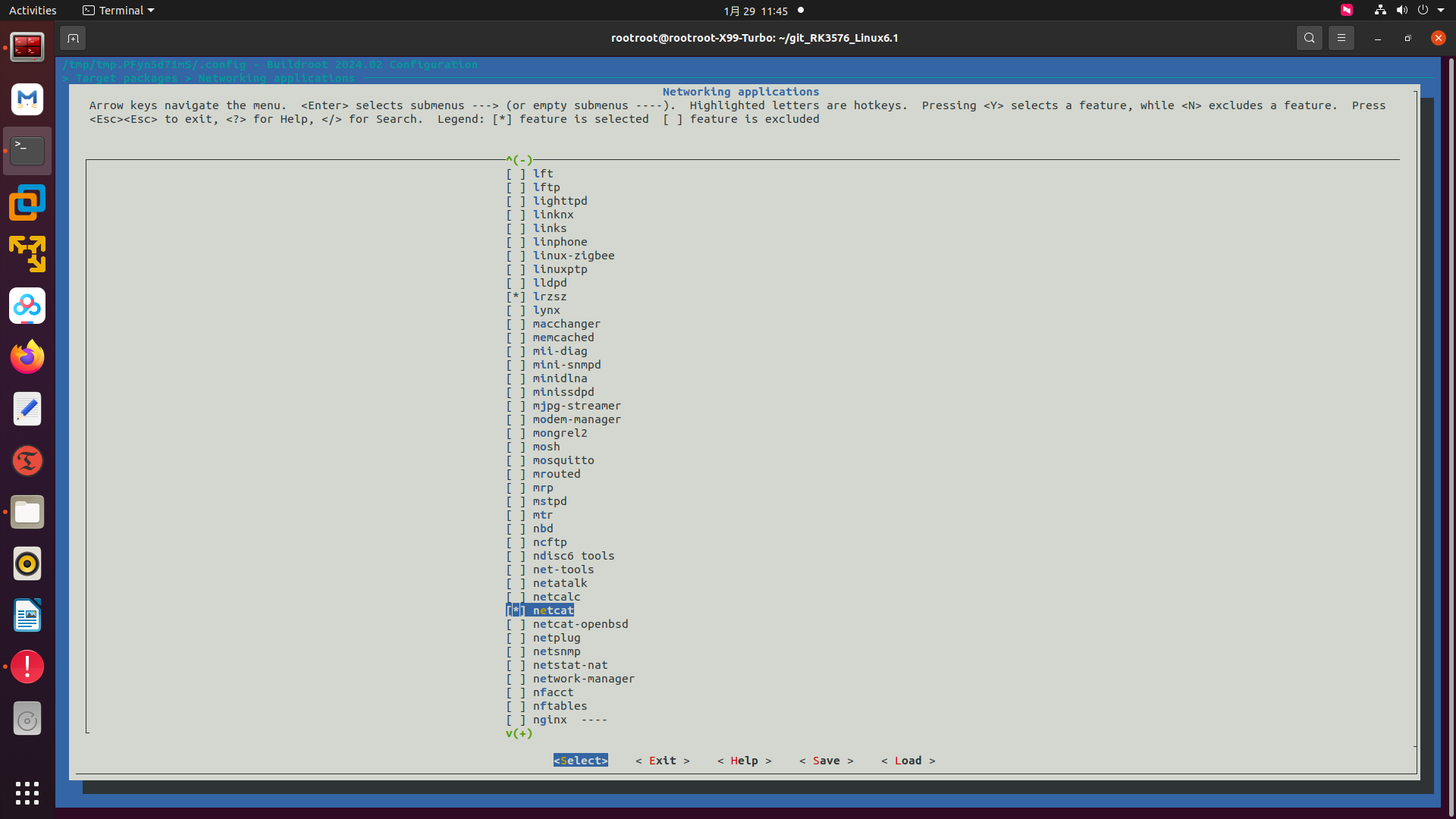

[*] netcat # 启用网络调试工具

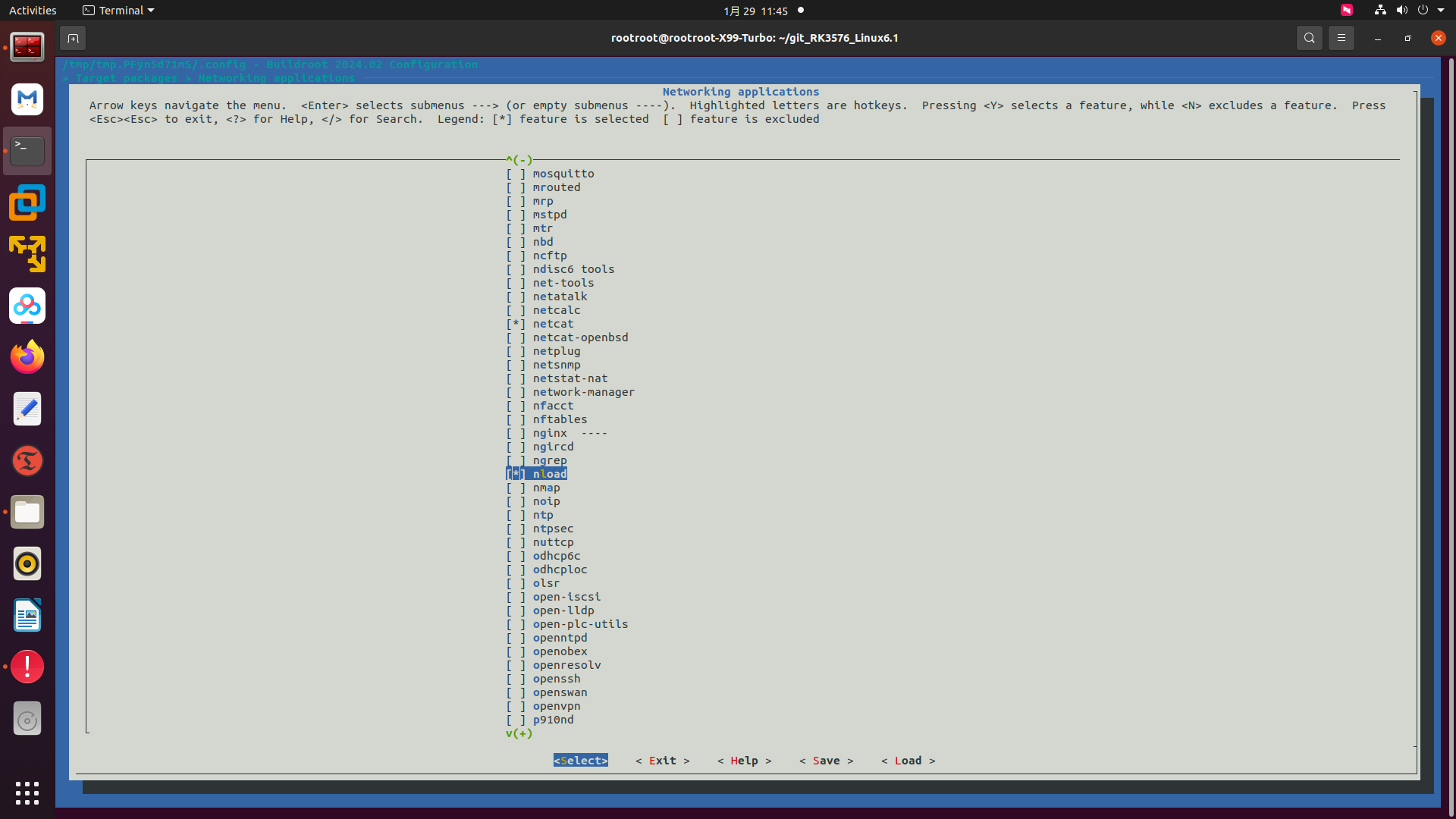

[*] nload # 启用实时网速显示

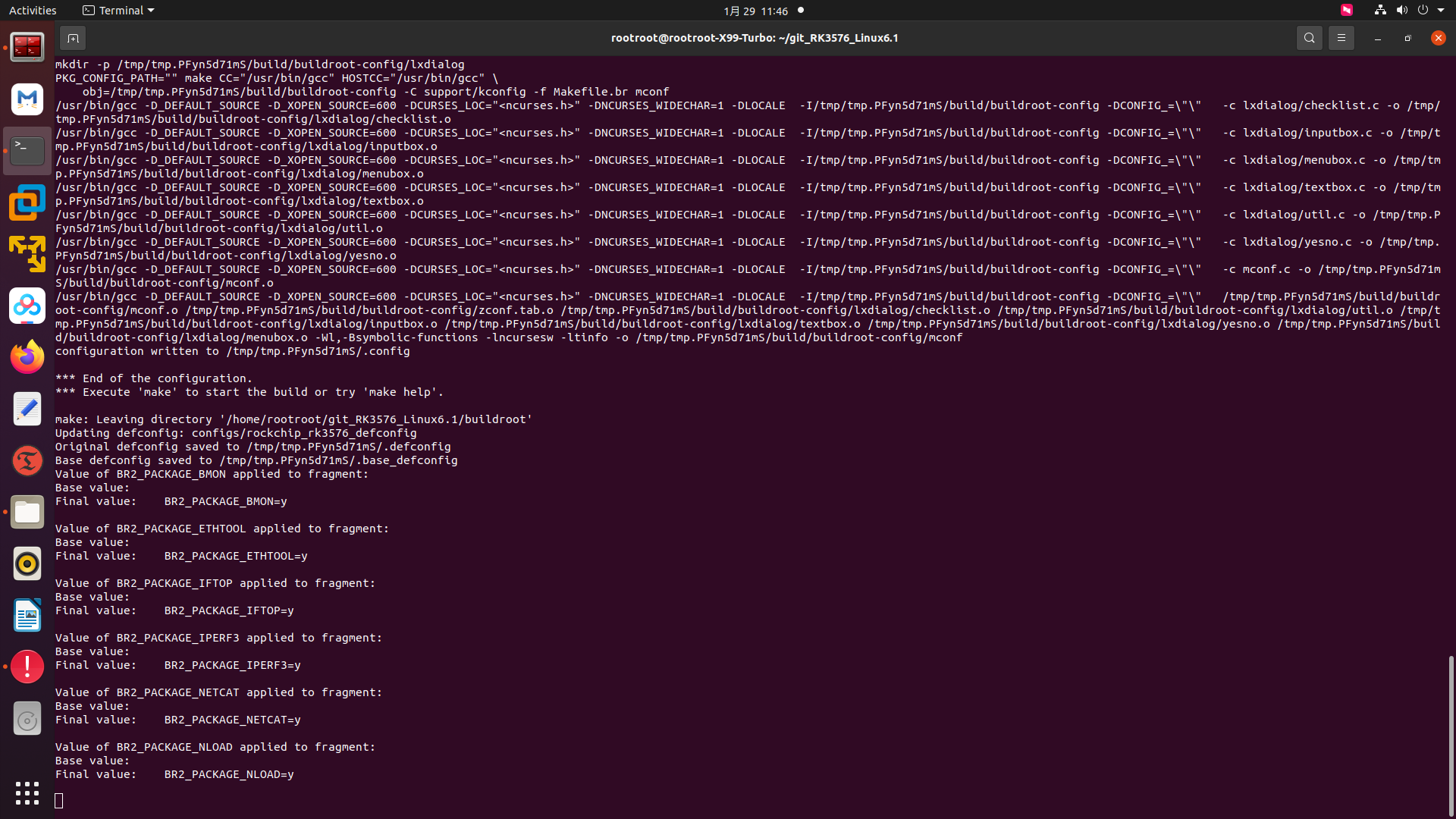

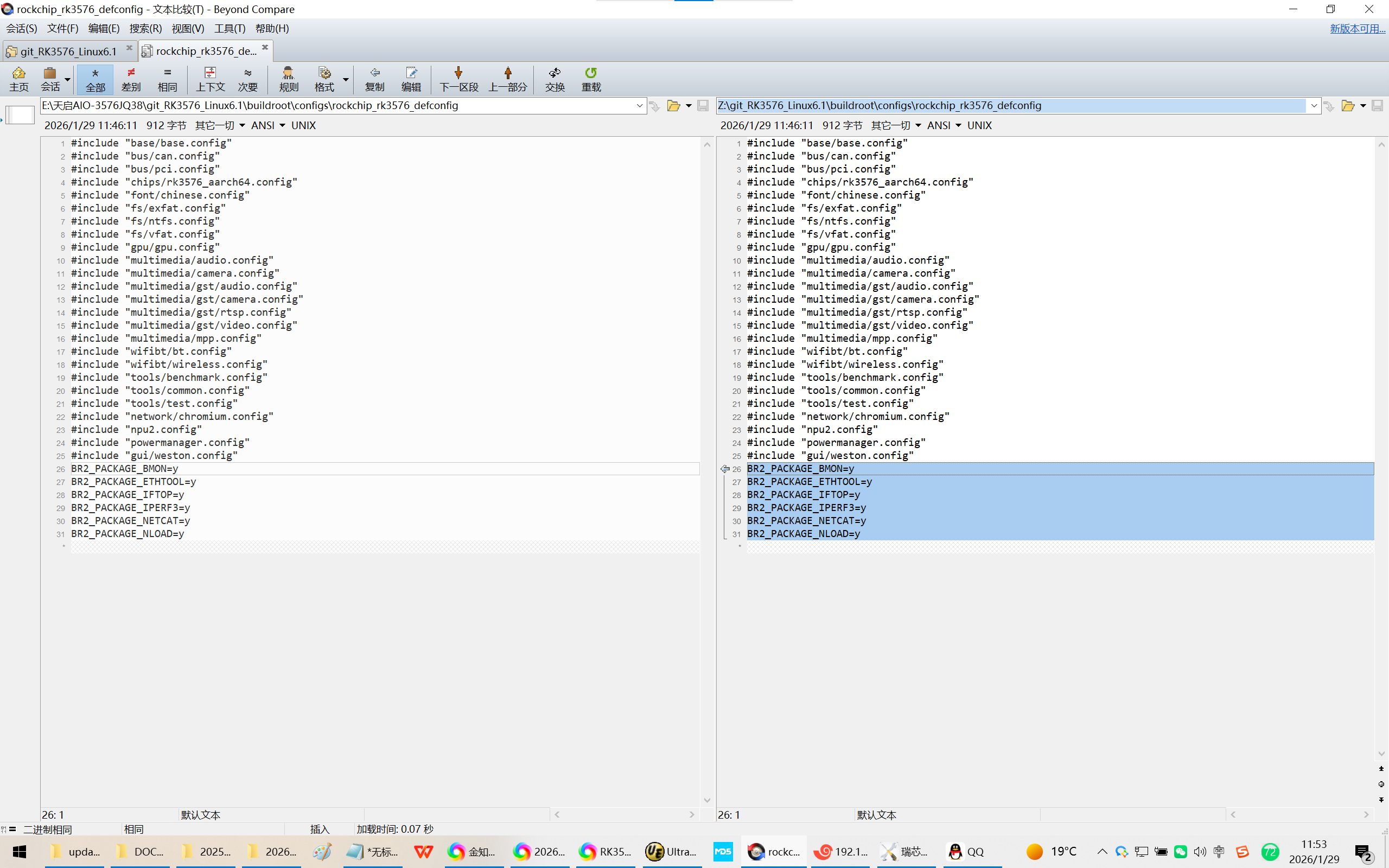

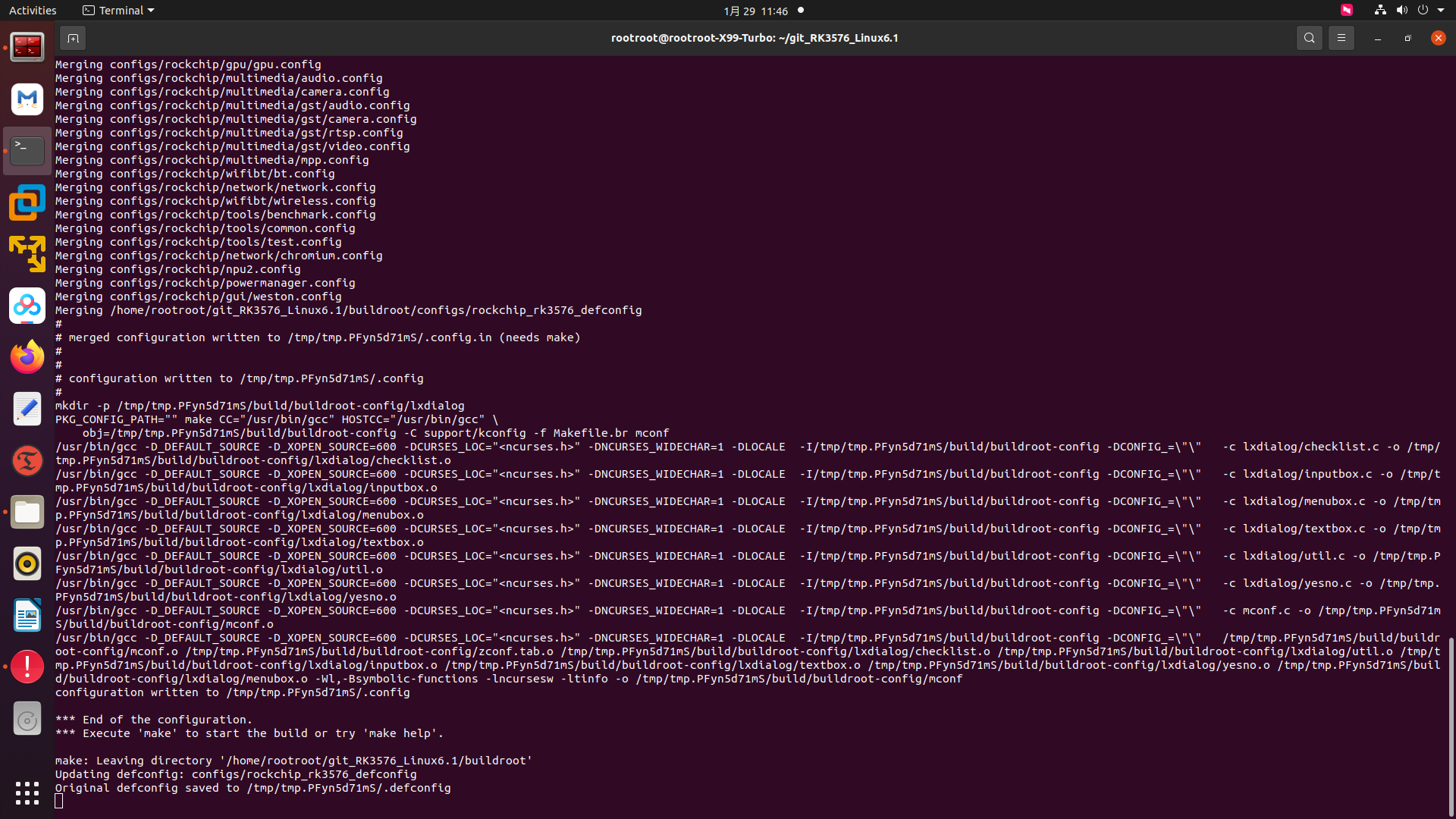

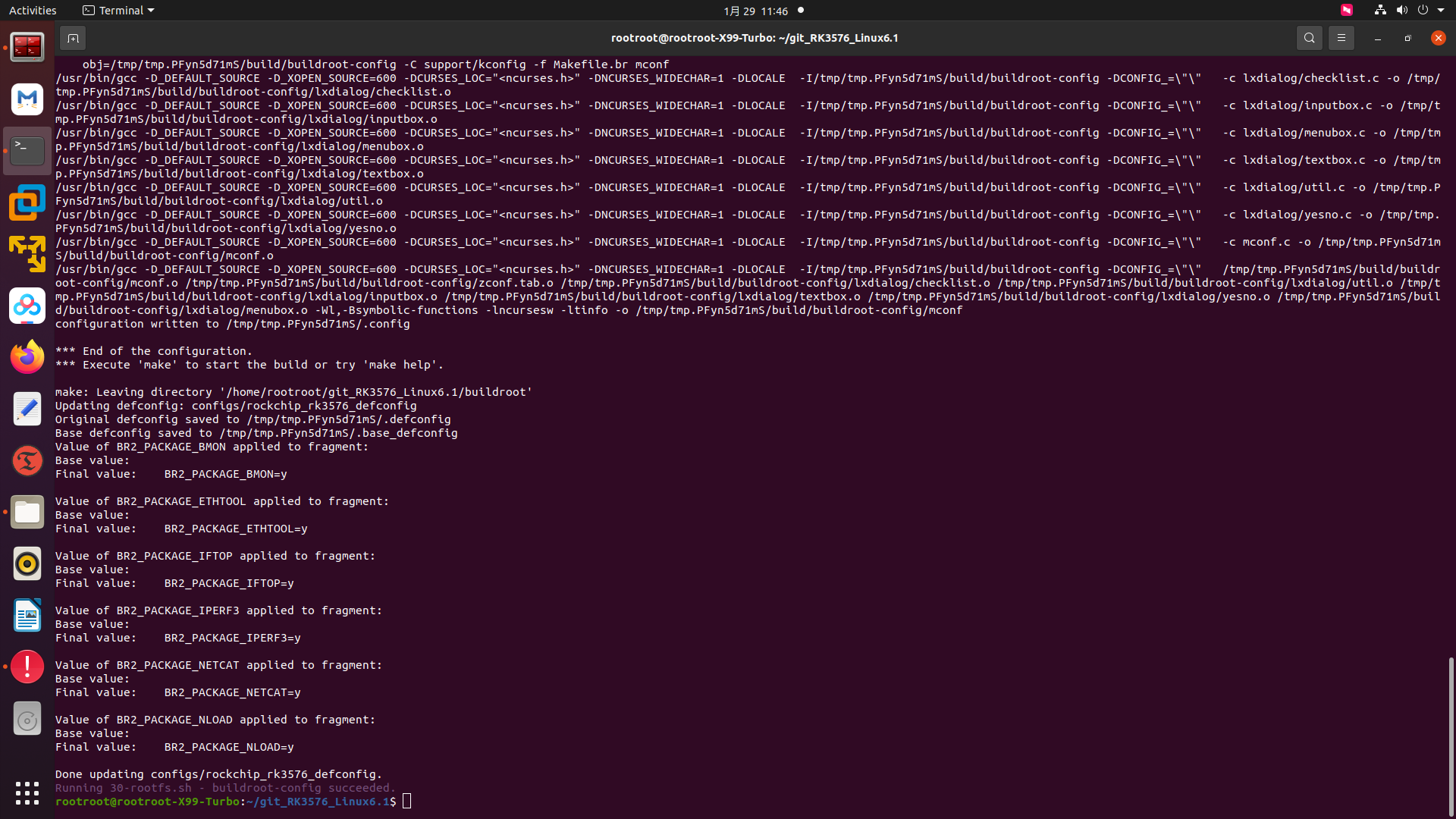

BR2_PACKAGE_BMON=y
BR2_PACKAGE_ETHTOOL=y
BR2_PACKAGE_IFTOP=y
BR2_PACKAGE_IPERF3=y
BR2_PACKAGE_NETCAT=y
BR2_PACKAGE_NLOAD=y

【精简步骤】
root@rk3588-buildroot:/# ifconfig
root@rk3588-buildroot:/# ifconfig -a
root@rk3588-buildroot:/# udhcpc
root@rk3588-buildroot:/# ifconfig
root@rk3588-buildroot:/# udhcpc
root@rk3588-buildroot:/# ifconfig
root@rk3588-buildroot:/# passwd
root@rk3588-buildroot:/# iperf3 -s
D:\DOCX\20250114固定softAP的地址\iperf3.18_64>iperf3 -c 192.168.3.103 -i 1 -t 18

20260129让天启AIO-3576Q38开发板在Rockchip瑞芯微原厂Buildroot下新增集成iperf3等网络监控包
2026/1/29 11:50

缘起：给飞凌OK3588-C开发板适配Rockchip原厂的Buildroot【linux-6.1】后，需要配置ssh。
驱动调试的时候DEBUG口就足够了。最多再打开一个USB接口的adb功能。【有些时候需要多一个口^_】
但是产品给客户暴露的借口就是TF卡的卡槽和以太网接口了！【应用工程师需要的ssh功能】

想实测一下TF卡的读写速度。
4线USB2.0通过adb直接拿到电脑上的速度是：31.3 MB/s
写入TF卡的速度略微低于31.3 MB/s【大概为25.56MB/s】

需要实测开发板丝印ETH1芯片RTL8211F-CG的网速。
通过ifconfig确认为eth0。

需要使用ov5645的驱动框架来适配LVDS接口的105机芯。
按照以前的经验，首先关闭I2C的读写！
结果，肯定会出现某些地方遗漏的，只能通过编译器来检查问题了！

当你把荣品RD-RK3588开发板重新适配一把，就相当于从头做了一个项目：【荣品RD-RK3588开发板】。
当然，开发板的功能都是好的，你免除了调试的过程，也就没有解决相关硬件出错的经验/机会了！

1、参考：荣品官方文档。
https://doc.rpdzkj.cn/#/zh_cn/%E7%91%9E%E8%8A%AF%E5%BE%AE%E7%B3%BB%E5%88%97/rk3588-rk3588s/4.Linux%E5%BC%80%E5%8F%91?id=buildroot%e9%85%8d%e7%bd%ae%e8%af%b4%e6%98%8e
Buildroot配置说明
buildroot的配置使用脚本配置

./build.sh buildroot-config
复制Error已复制
配置完成后自动保存到默认的配置文件中，但是buildroot 配置分成了模块化，每个cpu的默认配置下分别引用了很多独立的配置文件，修改buildroot配置文件的时候，修改到公共的配置文件中，这样就会针对所有CPU生效，不需要单独每个CPU平台都配置一遍。

#include "base/base.config"
#include "chips/rk3588_aarch64.config"
#include "font/chinese.config"
#include "fs/exfat.config"
#include "fs/ntfs.config"
#include "fs/vfat.config"
#include "gpu/gpu.config"
#include "multimedia/audio.config"
#include "multimedia/camera.config"
#include "multimedia/gst/audio.config"
#include "multimedia/gst/camera.config"
#include "multimedia/gst/rtsp.config"
#include "multimedia/gst/video.config"
#include "multimedia/mpp.config"
#include "wifibt/bt.config"
#include "wifibt/wireless.config"
#include "benchmark.config"
#include "chromium.config"
#include "debug.config"
#include "npu2.config"
#include "powermanager.config"
#include "test.config"
#include "weston.config"
复制Error已复制
例如配置root用户的默认密码

修改 buildroot/configs/rockchip/base/common.config 文件，将原来的rockchip修改为 rpdzkj

# Rootfs configs
BR2_TARGET_GENERIC_ROOT_PASSWD="rpdzkj"
BR2_ROOTFS_MERGED_USR=y
BR2_TARGET_ROOTFS_CPIO=y
复制Error已复制
新增canutils工具编译进文件系统，can 属于网络类，一般同一类型的配置会放到一个文件里面

修改 buildroot/configs/rockchip/wifibt/network.config 文件，新增 canutils 配置项

BR2_PACKAGE_DHCPCD=y
BR2_PACKAGE_DNSMASQ=y
BR2_PACKAGE_NTP=y
BR2_PACKAGE_DROPBEAR=y
BR2_PACKAGE_GESFTPSERVER=y
BR2_PACKAGE_DROPBEAR_CLIENT=y
BR2_PACKAGE_IPROUTE2=y
BR2_PACKAGE_CAN_UTILS=y #canutils 配置
BR2_PACKAGE_PPPD=y
BR2_PACKAGE_NTP=y
BR2_PACKAGE_IPTABLES=y
BR2_PACKAGE_4G=y
BR2_PACKAGE_IPERF3=y
复制Error已复制
差异化的配置，就放到 "chips/rk3588_aarch64.config" 这个配置文件中，表示这个平台特有的配置，不适用其他平台，其他平台可以此类推。

2、打开iperf3：Rockchip原厂的Buildroot【linux-5.10】
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/wyb/A8/RK3588_Linux5.10_V1.2.0_20230620$ ll
总计 264572
drwxrwxr-x 16 jinhualong jinhualong 4096 12月 24 14:26 ./
drwxrwxr-x 15 jinhualong jinhualong 4096 12月 23 20:33 ../
drwxrwxr-x 4 jinhualong jinhualong 4096 8月 13 19:24 app/
drwxrwxr-x 18 jinhualong jinhualong 4096 12月 24 14:26 buildroot/
lrwxrwxrwx 1 jinhualong jinhualong 39 8月 13 19:24 build.sh -> device/rockchip/common/scripts/build.sh*
lrwxrwxrwx 1 jinhualong jinhualong 22 12月 18 21:22 common -> device/rockchip/common/
drwxrwxr-x 9 jinhualong jinhualong 4096 8月 13 19:24 debian/
drwxrwxr-x 3 jinhualong jinhualong 4096 8月 13 19:24 device/
drwxrwxr-x 6 jinhualong jinhualong 4096 8月 13 19:24 docs/
drwxrwxr-x 27 jinhualong jinhualong 4096 12月 22 11:55 external/
drwxrwxr-x 26 jinhualong jinhualong 4096 12月 24 14:27 kernel/
-rw-rw-r-- 1 jinhualong jinhualong 243863027 8月 18 16:04 kernel2.tgz
lrwxrwxrwx 1 jinhualong jinhualong 31 8月 13 19:24 Makefile -> device/rockchip/common/Makefile
drwxrwxr-x 9 jinhualong jinhualong 4096 12月 24 14:26 output/
drwxrwxr-x 3 jinhualong jinhualong 4096 8月 13 19:24 prebuilts/
lrwxrwxrwx 1 jinhualong jinhualong 32 12月 18 21:22 README.md -> device/rockchip/common/README.md
-rw-rw-r-- 1 jinhualong jinhualong 2492 12月 13 15:53 'RK3588 Buildroot网速监控方法.txt'
-rwx------ 1 jinhualong jinhualong 8068143 12月 18 21:15 RK3588_Linux5.10_V1.2.0_20230620适配A8_整理20251218_2115.7z*
drwxrwxr-x 9 jinhualong jinhualong 4096 12月 24 14:21 rkbin/
lrwxrwxrwx 1 jinhualong jinhualong 41 8月 13 19:24 rkflash.sh -> device/rockchip/common/scripts/rkflash.sh*
lrwxrwxrwx 1 jinhualong jinhualong 15 12月 24 14:26 rockdev -> output/firmware/
drwxrwxr-x 5 jinhualong jinhualong 4096 8月 13 19:24 tools/
drwxrwxr-x 27 jinhualong jinhualong 4096 12月 24 14:21 u-boot/
-rw-rw-r-- 1 jinhualong jinhualong 18913132 8月 18 16:04 u-boot1.tgz
drwxrwxr-x 5 jinhualong jinhualong 4096 8月 13 19:24 uefi/
drwxrwxr-x 9 jinhualong jinhualong 4096 8月 13 19:24 yocto/
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/wyb/A8/RK3588_Linux5.10_V1.2.0_20230620$
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/wyb/A8/RK3588_Linux5.10_V1.2.0_20230620$
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/wyb/A8/RK3588_Linux5.10_V1.2.0_20230620$
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/wyb/A8/RK3588_Linux5.10_V1.2.0_20230620$ ./build.sh buildroot-config

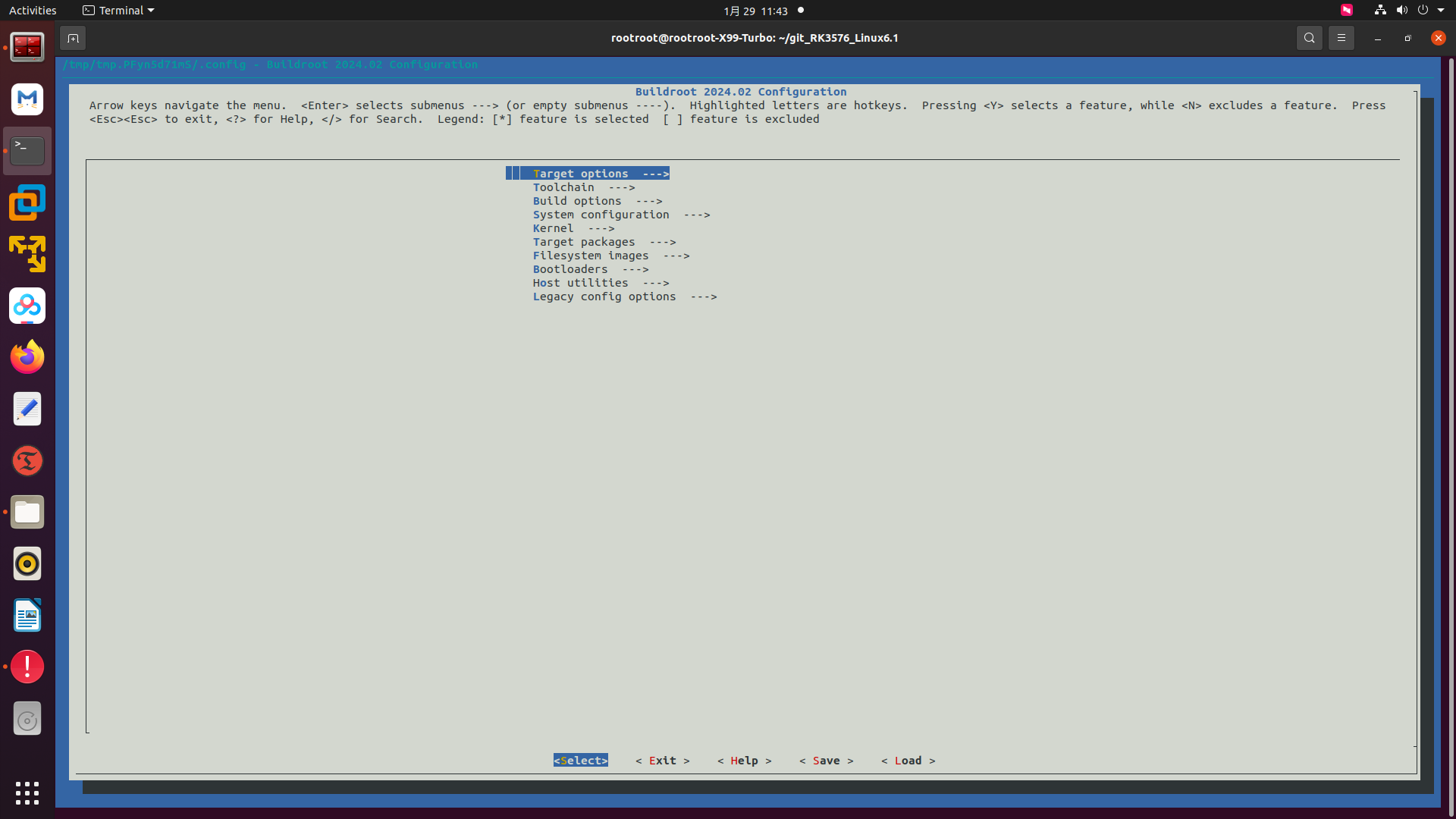

Target options --->
Build options --->
Toolchain --->
System configuration --->
Kernel --->
Target packages --->
Filesystem images --->
Bootloaders --->
Host utilities --->
Legacy config options --->

Hardware Platforms --->
-*- BusyBox
[ ] Enable static
(package/busybox/busybox.config) BusyBox configuration file to use?
(board/rockchip/common/base/busybox.fragment) Additional BusyBox configuration fragment files
[*] Enable unicode support
[*] Bypass unicode when printing
[*] Show packages that are also provided by busybox
[ ] Individual binaries
[ ] Install the watchdog daemon startup script
Audio and video applications --->
Compressors and decompressors --->
Debugging, profiling and benchmark --->
Development tools --->
Filesystem and flash utilities --->
Fonts, cursors, icons, sounds and themes --->
Games --->
Graphic libraries and applications (graphic/text) --->
Hardware handling --->
Interpreter languages and scripting --->
Libraries --->
Mail --->
Miscellaneous --->

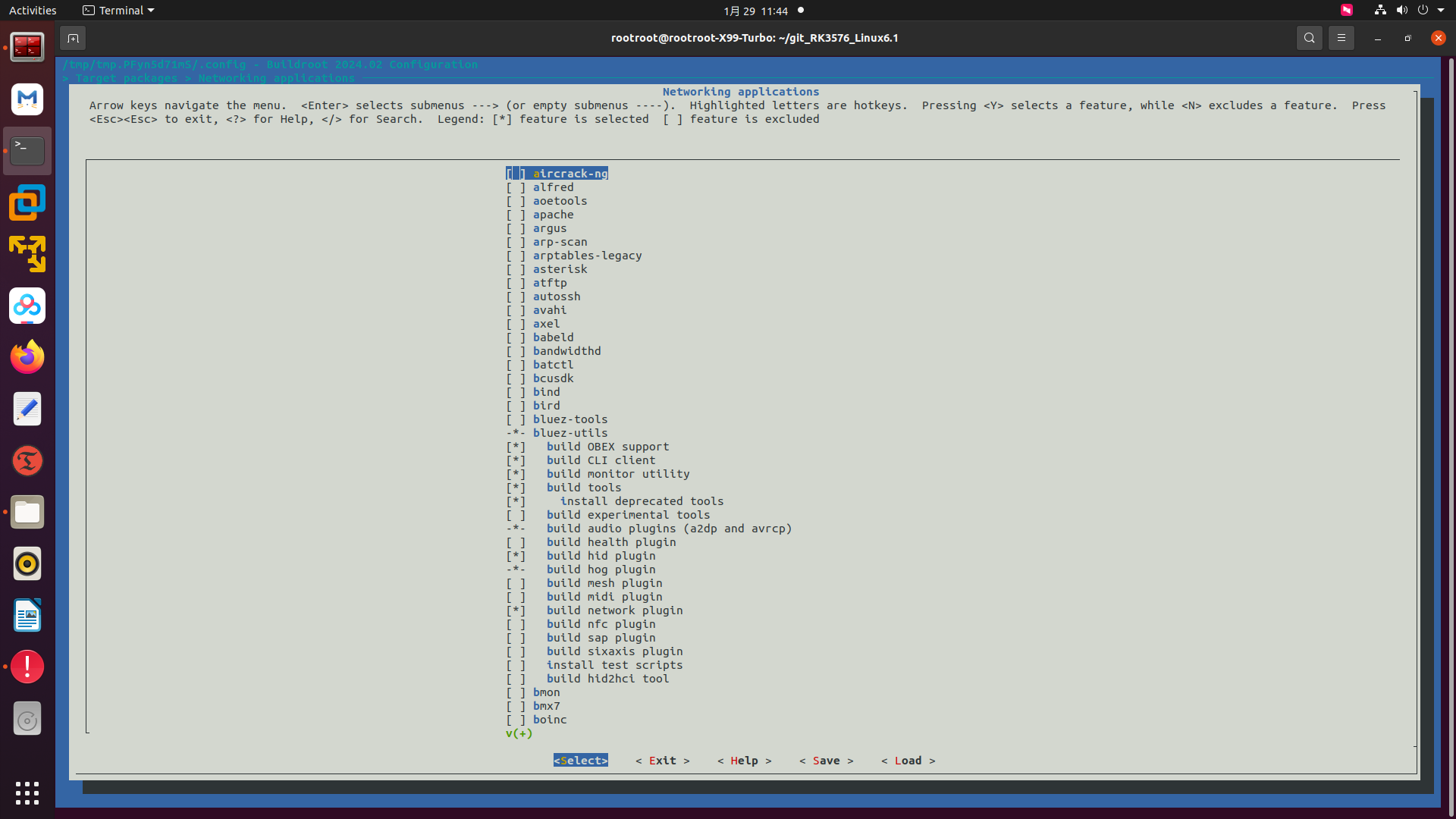

Networking applications --->
Package managers --->
Real-Time --->
Security --->
Shell and utilities --->
System tools --->
Text editors and viewers --->

[ ] aircrack-ng
[ ] aoetools
[ ] apache
[ ] argus
[ ] arp-scan
[ ] arptables-legacy
[ ] asterisk
[ ] atftp
[ ] autossh
[ ] avahi
[ ] axel
[ ] babeld
[ ] bandwidthd
[ ] batctl
[ ] bcusdk
[ ] bind
[ ] bird
[ ] bluez-tools
-*- bluez-utils
[ ] build OBEX support
[*] build CLI client
[*] build monitor utility
[*] build tools
[*] install deprecated tools
[ ] build experimental tools
-*- build audio plugins (a2dp and avrcp)
[ ] build health plugin
[ ] build hid plugin
[ ] build hog plugin
[ ] build mesh plugin
[ ] build midi plugin
[ ] build network plugin
[ ] build nfc plugin
[ ] build sap plugin
[ ] build sixaxis plugin
[ ] install test scripts
[ ] build hid2hci tool
[ ] bmon
[ ] boinc
[ ] brcm-patchram-plus
[ ] bridge-utils
[ ] bwm-ng
[ ] c-icap
[ ] can-utils
[ ] cannelloni
[ ] casync

[*] Enable nl80211 driver
[ ] Enable wired driver
[*] Enable ACS
[ ] Enable EAP
[ ] Enable WPS
[*] Enable WPA3 support
[*] Enable VLAN support
[*] Enable dynamic VLAN support
[*] Use netlink-based API for VLAN operations
[ ] htpdate
[ ] httping
[ ] i2pd
[ ] ibrdtn-tools
[ ] ibrdtnd
[ ] ifenslave
[ ] ifmetric
[ ] ifplugd
[ ] iftop
[ ] ifupdown
[*] ifupdown scripts
[ ] igd2-for-linux
*** igh-ethercat needs a Linux kernel to be built ***
[ ] igmpproxy
[ ] inadyn
[ ] iodine
[ ] ipcalc
-*- iperf
[ ] iperf3
[ ] iproute2
[ ] ipset
[ ] iptables
[ ] iptraf-ng
[*] iputils
[*] arping
[*] clockdiff
[*] ping
[ ] rarpd
[*] rdisc
[*] rdisc (server code)
[ ] tftpd
[*] tracepath
[*] traceroute6
[*] ninfod
[ ] irssi
[*] iw
[ ] iwd

[*] Enable nl80211 driver
[ ] Enable wired driver
[*] Enable ACS
[ ] Enable EAP
[ ] Enable WPS
[*] Enable WPA3 support
[*] Enable VLAN support
[*] Enable dynamic VLAN support
[*] Use netlink-based API for VLAN operations
[ ] htpdate
[ ] httping
[ ] i2pd
[ ] ibrdtn-tools
[ ] ibrdtnd
[ ] ifenslave
[ ] ifmetric
[ ] ifplugd
[ ] iftop
[ ] ifupdown
[*] ifupdown scripts
[ ] igd2-for-linux
*** igh-ethercat needs a Linux kernel to be built ***
[ ] igmpproxy
[ ] inadyn
[ ] iodine
[ ] ipcalc
-*- iperf
[*] iperf3
[ ] iproute2
[ ] ipset
[ ] iptables
[ ] iptraf-ng
[*] iputils
[*] arping
[*] clockdiff
[*] ping
[ ] rarpd
[*] rdisc
[*] rdisc (server code)
[ ] tftpd
[*] tracepath
[*] traceroute6
[*] ninfod
[ ] irssi
[*] iw
[ ] iwd

3、使用iperf3实测网速：芯片RTL8211F-CG，但是使用了四线也就是百兆！

[00:00:04.096] libinput: configuring device "rk805 pwrkey".
[00:00:04.096] Registered plugin API 'weston_drm_output_api_v1' of size 40
[00:00:04.096] Color manager: no-op
[00:00:04.096] Compositor capabilities:
arbitrary surface rotation: yes
screen capture uses y-flip: yes
cursor planes: yes
arbitrary resolutions: no
view mask clipping: yes
explicit sync: yes
color operations: yes
presentation clock: CLOCK_MONOTONIC, id 1
presentation clock resolution: 0.000000001 s
[00:00:04.097] Loading module '/usr/lib/weston/desktop-shell.so'
[00:00:04.099] DRM: head 'HDMI-A-1' found, connector 208 is connected, EDID make 'GSM', model '27MP35', serial ''
Supported EOTF modes: SDR
[00:00:04.099] DRM: head 'DP-1' found, connector 224 is disconnected.
[00:00:04.099] launching '/usr/libexec/weston-keyboard'
[00:00:04.101] launching '/usr/libexec/weston-desktop-shell'
[00:00:04.101] HDMI-A-1 using at least 2 buffers
[00:00:04.101] Output 'HDMI-A-1' attempts EOTF mode: SDR
[00:00:04.102] Output 'HDMI-A-1' using color profile: stock sRGB color profile
[00:00:04.102] Chosen EGL config details: id: 9 rgba: 8 8 8 0 buf: 24 dep: 0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[00:00:04.102] Output HDMI-A-1 (crtc 71) video modes:
1920x1080@60.0, preferred, current, 148.5 MHz
1920x1080@60.0 16:9, 148.5 MHz
1920x1080i@60.0, 74.2 MHz
1920x1080i@60.0 16:9, 74.2 MHz
[ 5.871221] dwhdmi-rockchip fde80000.hdmi: use tmds mode
1920x1080@50.0 16:9, 148.5 MHz
1920x1080i@50.0 16:9, 74.2 MHz
1600x900@60.0, 108.0 MHz
1280x1024@60.0, 108.0 MHz
1152x864@75.0, 108.0 MHz
1280x720@60.0, 74.2 MHz
1280x720@60.0 16:9, 74.2 MHz
1280x720@50.0 16:9, 74.2 MHz
800x600@75.0, 49.5 MHz
720x576@50.0 16:9, 27.0 MHz
720x480@59.9, 27.0 MHz
720x480@59.9 16:9, 27.0 MHz
[00:00:04.102] associating input device event3 with output HDMI-A-1 (none by udev)
[00:00:04.102] associating input device event0 with output HDMI-A-1 (none by udev)
[00:00:04.102] Output 'HDMI-A-1' enabled with head(s) HDMI-A-1
[ 5.901738] dwhdmi-rockchip fde80000.hdmi: use tmds mode
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
[ 6.058752] dwc3 fc000000.usb: device reset
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'. Disabiling compose
[ 6.161886] android_work: sent uevent USB_STATE=CONNECTED
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'. Disabiling compose
[ 6.198252] fdee0000.hdmirx-controller: Vertical Sync threshold reached interrupt 0x2
[ 6.248544] android_work: sent uevent USB_STATE=CONFIGURED
[ 6.329187] fdee0000.hdmirx-controller: hdmirx_wait_lock_and_get_timing signal lock ok, i:132!
[ 6.719158] rk_hdmirx fdee0000.hdmirx-controller: hdmirx_delayed_work_audio: enable audio
[ 6.905907] Freeing drm_logo memory: 736K
[ 6.925657] fdee0000.hdmirx-controller: hdmirx_format_change: New format: 3840x2160p29.96 (4400x2250)
[ 9.646071] rk_hdmirx fdee0000.hdmirx-controller: hdmirx_audio_interrupts_setup: 1
[ 9.735198] fdee0000.hdmirx-controller: Vertical Sync threshold reached interrupt 0x2
[ 9.759145] rk_hdmirx fdee0000.hdmirx-controller: hdmirx_delayed_work_audio: enable audio
[ 9.816125] fdee0000.hdmirx-controller: hdmirx_wait_lock_and_get_timing signal lock ok, i:23!

root@rk3588-buildroot:/#
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# ifconfig
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:38 errors:0 dropped:0 overruns:0 frame:0
TX packets:38 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:2728 (2.6 KiB) TX bytes:2728 (2.6 KiB)

root@rk3588-buildroot:/#
root@rk3588-buildroot:/# ifconfig -a
eth0 Link encap:Ethernet HWaddr DE:40:16:15:76:04
BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
Interrupt:84

eth1 Link encap:Ethernet HWaddr DA:40:16:15:76:04
BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
Interrupt:124

lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:40 errors:0 dropped:0 overruns:0 frame:0
TX packets:40 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:2848 (2.7 KiB) TX bytes:2848 (2.7 KiB)

root@rk3588-buildroot:/#
root@rk3588-buildroot:/# udhcpc
udhcpc: started, v1.36.0
[ 29.155850] rk_gmac-dwmac fe1c0000.ethernet eth0: PHY [stmmac-1:02] driver [RTL8211F Gigabit Ethernet] (irq=POLL)
[ 29.157660] dwmac4: Master AXI performs any burst length
[ 29.157684] rk_gmac-dwmac fe1c0000.ethernet eth0: No Safety Features support found
[ 29.157702] rk_gmac-dwmac fe1c0000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
[ 29.157852] rk_gmac-dwmac fe1c0000.ethernet eth0: registered PTP clock
[ 29.158164] rk_gmac-dwmac fe1c0000.ethernet eth0: configuring for phy/rgmii-rxid link mode
udhcpc: broadcasting discover
udhcpc: broadcasting discover
[ 33.812545] vcc_3v3_sd_s0: disabling
[ 33.812691] vcc3v3_lcd0_n: disabling
udhcpc: broadcasting discover
[ 35.254687] rk_gmac-dwmac fe1c0000.ethernet eth0: Link is Up - 100Mbps/Full - flow control off
[ 35.254740] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready

^C
root@rk3588-buildroot:/# ifconfig
eth0 Link encap:Ethernet HWaddr DE:40:16:15:76:04
inet6 addr: fe80::dc40:16ff:fe15:7604/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:158 errors:0 dropped:0 overruns:0 frame:0
TX packets:8 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:26886 (26.2 KiB) TX bytes:656 (656.0 B)
Interrupt:84

lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:50 errors:0 dropped:0 overruns:0 frame:0
TX packets:50 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:3448 (3.3 KiB) TX bytes:3448 (3.3 KiB)

root@rk3588-buildroot:/#
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# udhcpc
udhcpc: started, v1.36.0
udhcpc: broadcasting discover
udhcpc: broadcasting select for 192.168.3.103, server 192.168.3.1
udhcpc: lease of 192.168.3.103 obtained from 192.168.3.1, lease time 86400
deleting routers
adding dns 192.168.3.1
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# ifconfig
eth0 Link encap:Ethernet HWaddr DE:40:16:15:76:04
inet addr:192.168.3.103 Bcast:192.168.3.255 Mask:255.255.255.0
inet6 addr: fe80::dc40:16ff:fe15:7604/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:282 errors:0 dropped:0 overruns:0 frame:0
TX packets:13 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:46956 (45.8 KiB) TX bytes:1530 (1.4 KiB)
Interrupt:84

lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:52 errors:0 dropped:0 overruns:0 frame:0
TX packets:52 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:3568 (3.4 KiB) TX bytes:3568 (3.4 KiB)

root@rk3588-buildroot:/#
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# passwd
Changing password for root
New password:
Bad password: too short
Retype password:
passwd: password for root changed by root
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# iperf3 -s
-----------------------------------------------------------
Server listening on 5201 (test #1)
-----------------------------------------------------------
Accepted connection from 192.168.3.222, port 11931
[ 5] local 192.168.3.103 port 5201 connected to 192.168.3.222 port 11932
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 11.2 MBytes 94.3 Mbits/sec
[ 5] 1.00-2.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 2.00-3.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 3.00-4.00 sec 11.3 MBytes 94.9 Mbits/sec
[ 5] 4.00-5.00 sec 11.3 MBytes 94.9 Mbits/sec
[ 5] 5.00-6.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 6.00-7.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 7.00-8.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 8.00-9.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 9.00-10.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 10.00-11.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 11.00-12.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 12.00-13.00 sec 11.3 MBytes 94.9 Mbits/sec
[ 5] 13.00-14.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 14.00-15.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 15.00-16.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 16.00-17.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 17.00-18.00 sec 11.3 MBytes 94.8 Mbits/sec
[ 5] 18.00-18.03 sec 359 KBytes 94.6 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-18.03 sec 204 MBytes 94.8 Mbits/sec receiver
-----------------------------------------------------------
Server listening on 5201 (test #2)
-----------------------------------------------------------
^Ciperf3: interrupt - the server has terminated
root@rk3588-buildroot:/#

Microsoft Windows [版本 10.0.19045.6456]
(c) Microsoft Corporation。保留所有权利。

C:\Users\QQ>cd D:\DOCX\20250114固定softAP的地址\iperf3.18_64

C:\Users\QQ>d:

D:\DOCX\20250114固定softAP的地址\iperf3.18_64>dir
驱动器 D 中的卷是 DATA
卷的序列号是 F21D-780B

D:\DOCX\20250114固定softAP的地址\iperf3.18_64 的目录

2024/12/14 12:41 <DIR> .
2024/12/14 12:41 <DIR> ..
2024/09/15 14:57 3,830,803 cygcrypto-3.dll
2024/08/26 01:00 2,992,181 cygwin1.dll
2024/01/27 17:12 89,619 cygz.dll
2024/12/14 12:37 715,476 iperf3.exe
4 个文件 7,628,079 字节
2 个目录 39,905,402,880 可用字节

D:\DOCX\20250114固定softAP的地址\iperf3.18_64>
D:\DOCX\20250114固定softAP的地址\iperf3.18_64>iperf3 -c 192.168.3.103 -i 1 -t 18
Connecting to host 192.168.3.103, port 5201
[ 5] local 192.168.3.222 port 11932 connected to 192.168.3.103 port 5201
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 11.8 MBytes 98.1 Mbits/sec
[ 5] 1.00-2.00 sec 11.2 MBytes 94.7 Mbits/sec
[ 5] 2.00-3.02 sec 11.5 MBytes 95.0 Mbits/sec
[ 5] 3.02-4.00 sec 11.1 MBytes 94.5 Mbits/sec
[ 5] 4.00-5.01 sec 11.5 MBytes 95.7 Mbits/sec
[ 5] 5.01-6.00 sec 11.1 MBytes 94.0 Mbits/sec
[ 5] 6.00-7.00 sec 11.4 MBytes 95.4 Mbits/sec
[ 5] 7.00-8.00 sec 11.2 MBytes 94.4 Mbits/sec
[ 5] 8.00-9.01 sec 11.4 MBytes 94.7 Mbits/sec
[ 5] 9.01-10.01 sec 11.4 MBytes 95.2 Mbits/sec
[ 5] 10.01-11.01 sec 11.2 MBytes 94.9 Mbits/sec
[ 5] 11.01-12.00 sec 11.2 MBytes 94.8 Mbits/sec
[ 5] 12.00-13.01 sec 11.4 MBytes 94.4 Mbits/sec
[ 5] 13.01-14.00 sec 11.2 MBytes 95.6 Mbits/sec
[ 5] 14.00-15.00 sec 11.2 MBytes 94.3 Mbits/sec
[ 5] 15.00-16.00 sec 11.4 MBytes 95.3 Mbits/sec
[ 5] 16.00-17.00 sec 11.2 MBytes 94.3 Mbits/sec
[ 5] 17.00-18.01 sec 11.4 MBytes 94.8 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-18.01 sec 204 MBytes 95.0 Mbits/sec sender
[ 5] 0.00-18.03 sec 204 MBytes 94.8 Mbits/sec receiver

iperf Done.

D:\DOCX\20250114固定softAP的地址\iperf3.18_64>

4、
Z:\14TB\A8\rk3588_linux6.1_release_v1.2.0_20241220\buildroot\configs\rockchip\tools\benchmark.config
BR2_PACKAGE_GLMARK2=y
BR2_PACKAGE_WHETSTONE=y
BR2_PACKAGE_DHRYSTONE=y
BR2_PACKAGE_LMBENCH=y
BR2_PACKAGE_UNIXBENCH=y
BR2_PACKAGE_IPERF=y

Y:\new_disk_4t\wyb\A8\RK3588_Linux5.10_V1.2.0_20230620\buildroot\configs\rockchip_rk3588_defconfig
#include "base/base.config"
#include "chips/rk3588_aarch64.config"
#include "font/chinese.config"
#include "fs/exfat.config"
#include "fs/ntfs.config"
#include "fs/vfat.config"
#include "gpu/gpu.config"
#include "multimedia/audio.config"
#include "multimedia/camera.config"
#include "multimedia/gst/audio.config"
#include "multimedia/gst/camera.config"
#include "multimedia/gst/rtsp.config"
#include "multimedia/gst/video.config"
#include "multimedia/mpp.config"
#include "wifibt/bt.config"
#include "wifibt/wireless.config"
#include "tools/benchmark.config"
#include "tools/common.config"
#include "tools/test.config"
#include "chromium.config"
#include "npu2.config"
#include "powermanager.config"
#include "weston.config"
BR2_PACKAGE_BMON=y
BR2_PACKAGE_ETHTOOL=y
BR2_PACKAGE_HOST_LINUX_HEADERS_CUSTOM_5_10=y
BR2_PACKAGE_IFTOP=y
BR2_PACKAGE_IPERF3=y
BR2_PACKAGE_IPROUTE2=y
BR2_PACKAGE_NETCAT=y
BR2_PACKAGE_NLOAD=y

Z:\git_RK3576_Linux6.1\buildroot\configs\rockchip_rk3576_defconfig
#include "base/base.config"
#include "bus/can.config"
#include "bus/pci.config"
#include "chips/rk3576_aarch64.config"
#include "font/chinese.config"
#include "fs/exfat.config"
#include "fs/ntfs.config"
#include "fs/vfat.config"
#include "gpu/gpu.config"
#include "multimedia/audio.config"
#include "multimedia/camera.config"
#include "multimedia/gst/audio.config"
#include "multimedia/gst/camera.config"
#include "multimedia/gst/rtsp.config"
#include "multimedia/gst/video.config"
#include "multimedia/mpp.config"
#include "wifibt/bt.config"
#include "wifibt/wireless.config"
#include "tools/benchmark.config"
#include "tools/common.config"
#include "tools/test.config"
#include "network/chromium.config"
#include "npu2.config"
#include "powermanager.config"
#include "gui/weston.config"
BR2_PACKAGE_BMON=y
BR2_PACKAGE_ETHTOOL=y
BR2_PACKAGE_IFTOP=y
BR2_PACKAGE_IPERF3=y
BR2_PACKAGE_NETCAT=y
BR2_PACKAGE_NLOAD=y

参考资料：
https://chat.deepseek.com/a/chat/s/3bf5daf3-7a59-48a1-89c4-5e3d5cec5c8e

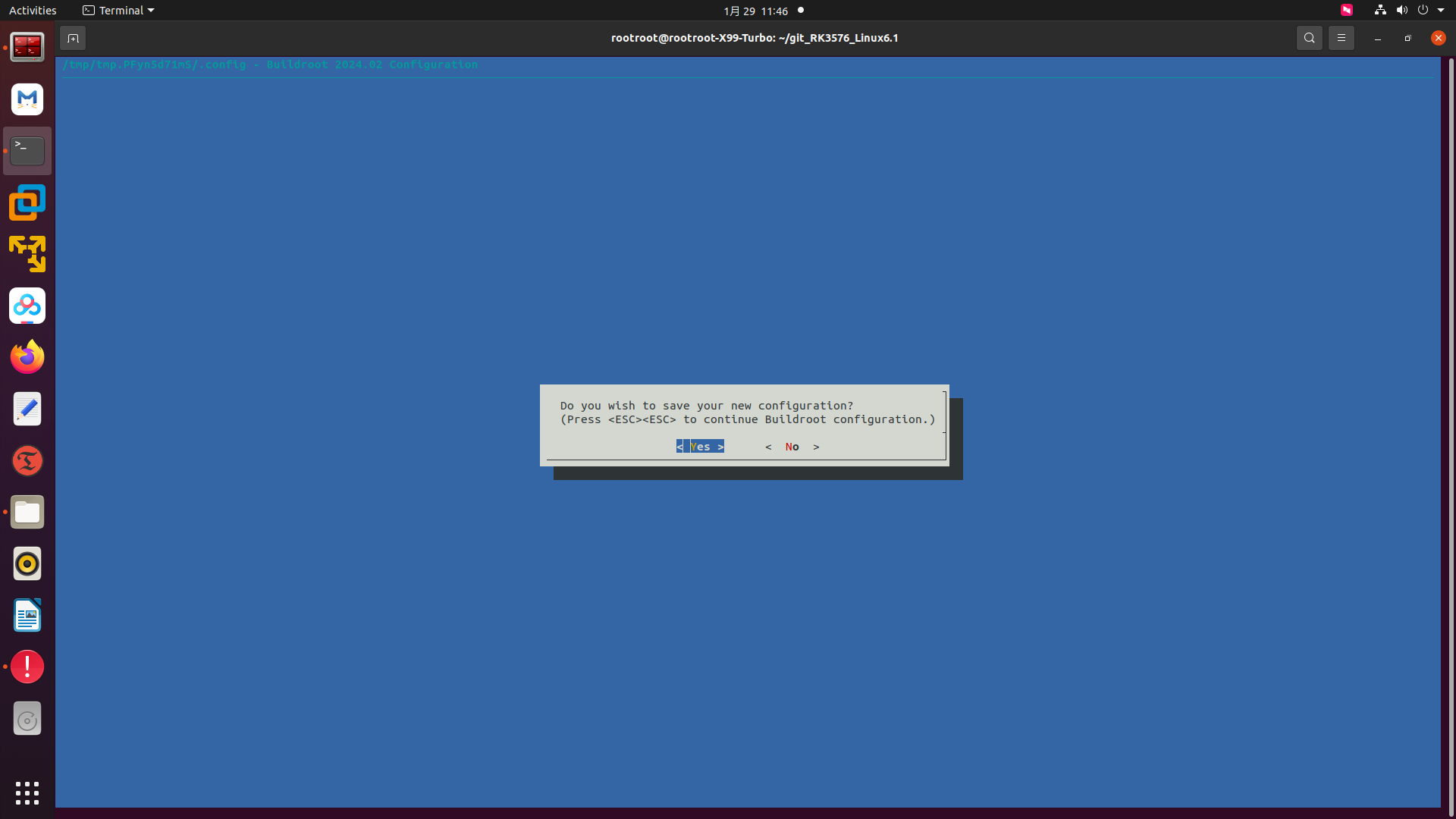

Target packages → Network applications →
[*] iftop # 启用网络流量监控
[*] nload # 启用实时网速显示
[*] bmon # 启用带宽监控
[*] iperf3 # 启用网络带宽测试
[*] ethtool # 启用网络接口工具
[*] iproute2 # 启用ip命令集
[*] netcat # 启用网络调试工具

腾讯云开发者社区

腾讯云面向开发者汇聚海量精品云计算使用和开发经验，营造开放的云计算技术生态圈。

更多推荐

终极指南：Flink SQL连接器版本管理从混乱到有序的升级之路

Apache Flink作为流处理领域的佼佼者，其SQL连接器的版本管理一直是开发者面临的核心挑战。本文将系统讲解Flink SQL连接器版本管理的最佳实践，帮助你轻松应对版本兼容性问题，实现从混乱到有序的升级之旅。## 连接器版本管理的常见痛点 😫在Flink应用开发中，连接器版本管理常常让开发者头疼不已。不同版本的连接器可能导致各种兼容性问题，例如API变更、功能差异甚至运行时错误。

腾讯云开发者社区

Elasticsearch复杂数据类型终极指南：从入门到精通

Elasticsearch作为功能强大的搜索引擎，支持多种复杂数据类型，让开发者能够灵活处理各种结构化和非结构化数据。本文将带你全面了解Elasticsearch中的复杂数据类型，从基础概念到实际应用，助你轻松掌握数据建模的核心技巧。## 内部对象：构建层级化数据结构在Elasticsearch中，对象类型（Object）是最基础的复杂数据类型之一，用于表示具有嵌套关系的数据。例如，我们可

腾讯云开发者社区

如何快速搭建Neon无服务器PostgreSQL：面向初学者的完整指南

Neon是一款革命性的无服务器PostgreSQL解决方案，它通过分离存储和计算层，实现了自动扩缩容、类代码式数据库分支以及零级扩展能力。本指南将帮助你从零开始搭建Neon开发环境，体验这款创新数据库的强大功能。## 准备工作：环境要求与依赖项在开始搭建Neon环境前，请确保你的系统满足以下要求：- Linux操作系统（推荐Ubuntu 20.04+或Debian 11+）- Git
