蓝牙Host BQB dongle对比介绍
蓝牙Host测试适配器(BQBDongle)主要有四种类型:1)支持BR/EDR/LE(核心规范4.2版本);2)仅支持LE(5.4版本);3)支持BR/EDR/LE(5.4版本)的Intel模块;4)最新仅支持LE(6.0版本)的Nordic模块。各型号适配不同PTS版本,支持不同测试用例,其中Intel M88A25已停产。购买渠道包括Arrow Electronics、Digi-Key等授权
目前做蓝牙Host的BQB Dongle有如下类型,分别有不同的类型
|

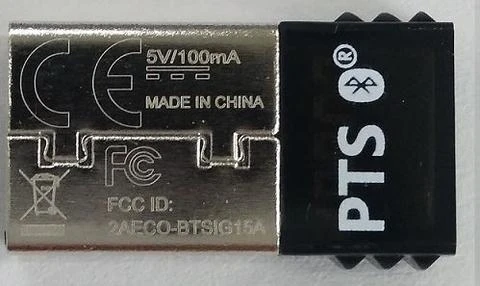

BR/EDR/LE - up to Core Spec v4.2 supported |

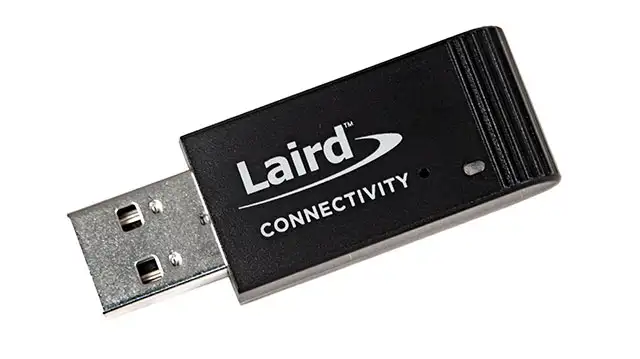

LE Only - up to Core Spec v5.4 supported (Laird Connectivity, part number 451-00004) |

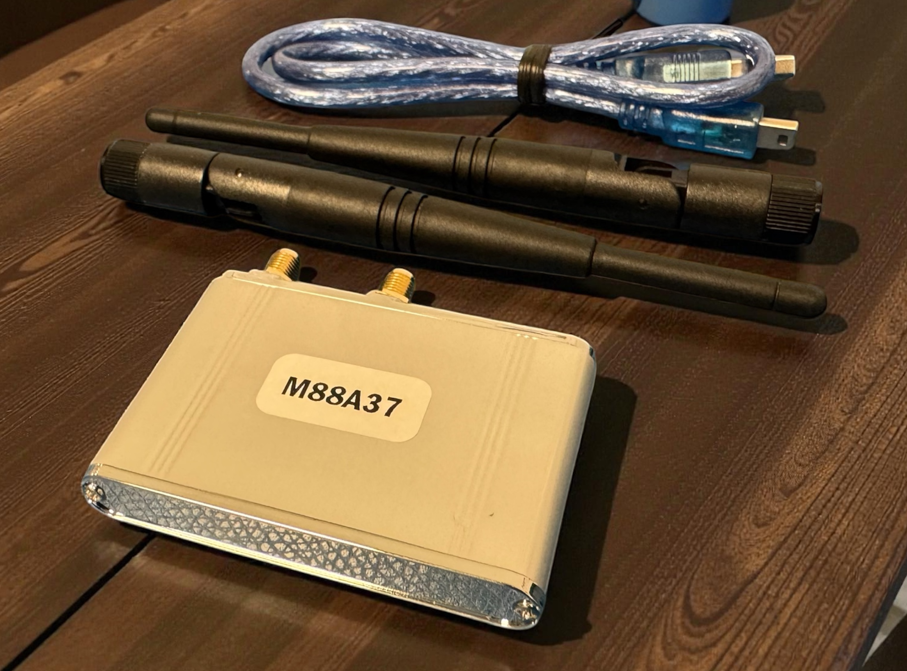

Intel M88A37 Bluetooth v5.4 wireless module (BR/EDR/LE) |

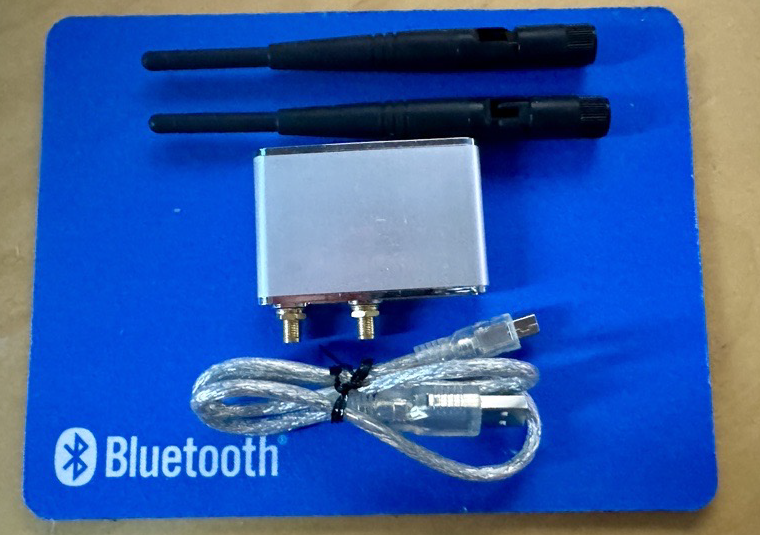

Intel M88A25 Bluetooth v5.4 wireless module (BR/EDR/LE) |

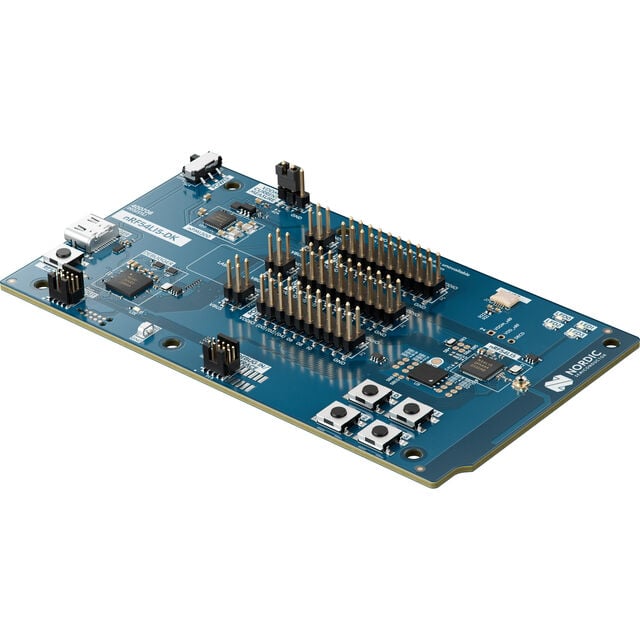

NEW LE Only - up to Core Spec v6.0 supported Nordic NRF54L15-DK |
|
高通 |
Nordic |
Intel |
Intel |
Nordic |
|
This PTS dongle supports LE/BR/EDR test cases up to Core Spec v4.2 only |
This PTS dongle supports only LE test cases up to Core Spec v5.4 |
This PTS dongle supports LE/BR/EDR test cases up to Core Spec v5.4 |
This PTS dongle supports LE/BR/EDR test cases up to Core Spec v5.4 |
This PTS dongle supports LE ONLY test cases up to Core Spec v6.0 |
|
|
|
|
|
|
Purchase BR/EDR/LE dongle here . |
LE Only dongle can be purchased from authorized distributors. Note: These are just two possible distributors, the dongle can be purchased from other authorized distributors. |
Intel is transitioning from its previous module distributor (MFactors) to a new one. Distribution of the M88A37 will be paused until the transition is completed. A new link to purchase the M88A37 module will be provided as the transition is finalized. |
Purchase is not available anymore |
NRF54L15-DK can be purchased from authorized distributors. |
