由于NPU目前还不支持动态输入，所以不能像官方模型同时选择框和多个点，这里我们就采用ROI区域的方式，也就是画框的方式。

mobilesam目录结构如下

.
├── CMakeLists.txt
├── decoder_convert_model                 # decoder模型转换
│   ├── config_yml.py
│   └── convert_model_env.sh
├── encoder_convert_model                 # encoder模型转换
│   ├── config_yml.py
│   ├── convert_model_env.sh
│   └── python
│       ├── export_onnx_models.py         # 模型导出
│       └── predict.py                                # 推理
├── main.cpp
├── mobilesam_post.cpp
├── mobilesam_pre.cpp
├── model
│   └── picture1.jpg
└── model_config.h

环境配置

关于环境配置所有模型都是一样的，采用docker容器的方式，具体关于参考之前部署yolox的文章【端侧部署yolo系列】yolox部署至全志开发板T736https://blog.csdn.net/troyteng/article/details/155444386?spm=1011.2124.3001.6209

下载镜像文件和AWNPU_Model_Zoo，创建自己的容器。

模型准备

原始模型获取在MobileSAM源码weights目录下mobile_sam.pt

下载源码并配置相应的环境，推荐使用conda

注： 如果只是想跑通demo,这里有已经简化好的模型可以直接使用

# mobilesam_decoder_sim.onnx	输入尺寸为448*448
http://netstorage.allwinnertech.com:5000/sharing/rTvBQcLbX

# mobilesam_encoder.onnx		输入尺寸为448*448
http://netstorage.allwinnertech.com:5000/sharing/afYWhQxe3

# mobilesam_encoder.onnx    	输入尺寸为1024*1024
http://netstorage.allwinnertech.com:5000/sharing/gMLYrEd7s

# mobilesam_decoder.onnx    	输入尺寸为1024*1024
http://netstorage.allwinnertech.com:5000/sharing/8o2UshoO6

模型导出

将源码中的图像编码器和解码模型mobile_sam.pt导出为onnx模型。图像编码器模型位于/mobile_sam/build_sam.py，有四种不同的类型的VIT模型ViT-Huge、ViT-Lager、ViT-Base以及TinyViT。TinyViT是专为移动设备优化，使用了更小的模型架构，因此导出该模型的onnx作为图像编码器。同时为了进一步提高在板端的推理速度，可以将原始模型的输入尺寸1024*1024改为448*448*：找到build_sam_vit_t函数，修改代码如下

def build_sam_vit_t(checkpoint=None):
    prompt_embed_dim = 256
    # 修改img_size为448
    image_size = 448
    vit_patch_size = 16
    image_embedding_size = image_size // vit_patch_size
    mobile_sam = Sam(
            # 修改img_size为448
            image_encoder=TinyViT(img_size=448, in_chans=3, num_classes=1000,
                embed_dims=[64, 128, 160, 320],
                depths=[2, 2, 6, 2],
                num_heads=[2, 4, 5, 10],
                window_sizes=[7, 7, 14, 7],
                ...

在encoder_convert_model目录下新建一个python目录，把脚本放在python目录下。模型导出脚本 export_onnx_models.py

# Copyright (c) Meta Platforms, Inc. and affiliates.
# All rights reserved.

# This source code is licensed under the license found in the
# LICENSE file in the root directory of this source tree.

import torch

from mobile_sam import sam_model_registry
from mobile_sam.utils.onnx import SamOnnxModel

import argparse
import warnings

class SamImageEncoderOnnxModel(torch.nn.Module):
    """
    This model should not be called directly, but is used in ONNX export.
    It wraps the image encoder of Sam, with some functions modified to enable model tracing.
    """

    def __init__(self, model):
        super().__init__()
        self.image_encoder = model.image_encoder

    @torch.no_grad()
    def forward(self, image):
        """Directly input preprocessed image, without preprocessing steps"""
        image_embeddings = self.image_encoder(image)
        return image_embeddings

try:
    import onnxruntime  # type: ignore

    onnxruntime_exists = True
except ImportError:
    onnxruntime_exists = False

parser = argparse.ArgumentParser(
    description="Export the SAM prompt encoder and mask decoder to an ONNX model."
)

parser.add_argument(
    "--checkpoint", type=str, required=True, help="The path to the SAM model checkpoint."
)

parser.add_argument(
    "--output", type=str, required=True, help="The filename to save the ONNX model to."
)

parser.add_argument(
    "--model-type",
    type=str,
    required=True,
    help="In ['default', 'vit_h', 'vit_l', 'vit_b']. Which type of SAM model to export.",
)

parser.add_argument(
    "--return-single-mask",
    action="store_true",
    help=(
        "If true, the exported ONNX model will only return the best mask, "
        "instead of returning multiple masks. For high resolution images "
        "this can improve runtime when upscaling masks is expensive."
    ),
)

parser.add_argument(
    "--opset",
    type=int,
    default=16,
    help="The ONNX opset version to use. Must be >=11",
)

parser.add_argument(
    "--quantize-out",
    type=str,
    default=None,
    help=(
        "If set, will quantize the model and save it with this name. "
        "Quantization is performed with quantize_dynamic from onnxruntime.quantization.quantize."
    ),
)

parser.add_argument(
    "--gelu-approximate",
    action="store_true",
    help=(
        "Replace GELU operations with approximations using tanh. Useful "
        "for some runtimes that have slow or unimplemented erf ops, used in GELU."
    ),
)

parser.add_argument(
    "--use-stability-score",
    action="store_true",
    help=(
        "Replaces the model's predicted mask quality score with the stability "
        "score calculated on the low resolution masks using an offset of 1.0. "
    ),
)

parser.add_argument(
    "--return-extra-metrics",
    action="store_true",
    help=(
        "The model will return five results: (masks, scores, stability_scores, "
        "areas, low_res_logits) instead of the usual three. This can be "
        "significantly slower for high resolution outputs."
    ),
)

parser.add_argument(
    "--export-image-encoder",
    action="store_true",
    default=True,
    help=(
        "If true, export the image encoder as a separate ONNX model."
    ),
)

parser.add_argument(
    "--image-encoder-output",
    type=str,
    default=None,
    help=(
        "The filename to save the image encoder ONNX model to. "
        "If not specified, it will be generated from the main output path."
    ),
)

parser.add_argument(
    "--fixed-image-size",
    type=str,
    default=None,
    help=(
        "Fixed image size for the exported model (format: height,width). "
        "If specified, the model will have fixed input dimensions instead of dynamic ones. "
        "Example: --fixed-image-size 448,448"
    ),
)

def run_export(
    model_type: str,
    checkpoint: str,
    output: str,
    opset: int,
    return_single_mask: bool,
    gelu_approximate: bool = False,
    use_stability_score: bool = False,
    return_extra_metrics=False,
    export_image_encoder: bool = True,
    image_encoder_output: str = None,
    fixed_image_size: str = None,
):
    print("Loading model...")
    sam = sam_model_registry[model_type](checkpoint=checkpoint)

    onnx_model = SamOnnxModel(
        model=sam,
        return_single_mask=return_single_mask,
        use_stability_score=use_stability_score,
        return_extra_metrics=return_extra_metrics,
    )

    if gelu_approximate:
        for n, m in onnx_model.named_modules():
            if isinstance(m, torch.nn.GELU):
                m.approximate = "tanh"

    # Set dynamic axes
    dynamic_axes = {
        "point_coords": {1: "num_points"},
        "point_labels": {1: "num_points"},
    }

    embed_dim = sam.prompt_encoder.embed_dim
    embed_size = sam.prompt_encoder.image_embedding_size
    mask_input_size = [4 * x for x in embed_size]
    # Create dummy inputs (using 2 points as example)
    dummy_inputs = {
        "image_embeddings": torch.randn(1, embed_dim, *embed_size, dtype=torch.float),
        "point_coords": torch.randint(low=0, high=448, size=(1, 2, 2), dtype=torch.float),
        "point_labels": torch.randint(low=0, high=4, size=(1, 2), dtype=torch.float),
        "mask_input": torch.randn(1, 1, *mask_input_size, dtype=torch.float),
        "has_mask_input": torch.tensor([1], dtype=torch.float),
        "orig_im_size": torch.tensor([1500, 2250], dtype=torch.float),
    }

    _ = onnx_model(**dummy_inputs)

    output_names = ["masks", "iou_predictions", "low_res_masks"]

    with warnings.catch_warnings():
        warnings.filterwarnings("ignore", category=torch.jit.TracerWarning)
        warnings.filterwarnings("ignore", category=UserWarning)
        with open(output, "wb") as f:
            print(f"Exporting onnx model to {output}...")
            torch.onnx.export(
                onnx_model,
                tuple(dummy_inputs.values()),
                f,
                export_params=True,
                verbose=False,
                opset_version=opset,
                do_constant_folding=True,
                input_names=list(dummy_inputs.keys()),
                output_names=output_names,
                dynamic_axes=dynamic_axes,
            )

    if onnxruntime_exists:
        ort_inputs = {k: to_numpy(v) for k, v in dummy_inputs.items()}
        # set cpu provider default
        providers = ["CPUExecutionProvider"]
        ort_session = onnxruntime.InferenceSession(output, providers=providers)
        _ = ort_session.run(None, ort_inputs)
        print("Model has successfully been run with ONNXRuntime.")

    # Export image encoder model
    if export_image_encoder:
        if image_encoder_output is None:
            # Generate image encoder output path from the main output path
            image_encoder_output = output.replace(".onnx", "_image_encoder.onnx")

        print("Exporting image encoder model...")
        image_encoder_onnx_model = SamImageEncoderOnnxModel(sam)

        # Dummy input for image encoder: batch_size=1, channels=3, height=img_size, width=img_size
        img_size = sam.image_encoder.img_size

        # Handle fixed image size
        if fixed_image_size:
            # 解析固定尺寸
            height, width = map(int, fixed_image_size.split(","))
            print(f"Using fixed image size: {height}x{width}")
            dummy_image = torch.randn(1, 3, height, width, dtype=torch.float)
            # 不使用动态轴
            dynamic_axes = None
        else:
            # Use default size
            dummy_image = torch.randn(1, 3, img_size, img_size, dtype=torch.float)
            # Use dynamic axes
            dynamic_axes = {
                "image": {2: "height", 3: "width"},
            }

        # Export image encoder
        with warnings.catch_warnings():
            warnings.filterwarnings("ignore", category=torch.jit.TracerWarning)
            warnings.filterwarnings("ignore", category=UserWarning)
            with open(image_encoder_output, "wb") as f:
                print(f"Exporting image encoder onnx model to {image_encoder_output}...")
                torch.onnx.export(
                    image_encoder_onnx_model,
                    dummy_image,
                    f,
                    export_params=True,
                    verbose=False,
                    opset_version=opset,
                    do_constant_folding=True,
                    input_names=["image"],
                    output_names=["image_embeddings"],
                    dynamic_axes=dynamic_axes,
                )

        # Validate image encoder model
        if onnxruntime_exists:
            ort_inputs = {"image": to_numpy(dummy_image)}
            providers = ["CPUExecutionProvider"]
            ort_session = onnxruntime.InferenceSession(image_encoder_output, providers=providers)
            _ = ort_session.run(None, ort_inputs)
            print("Image encoder model has successfully been run with ONNXRuntime.")


def to_numpy(tensor):
    return tensor.cpu().numpy()


if __name__ == "__main__":
    args = parser.parse_args()
    run_export(
        model_type=args.model_type,
        checkpoint=args.checkpoint,
        output=args.output,
        opset=args.opset,
        return_single_mask=args.return_single_mask,
        gelu_approximate=args.gelu_approximate,
        use_stability_score=args.use_stability_score,
        return_extra_metrics=args.return_extra_metrics,
        export_image_encoder=args.export_image_encoder,
        image_encoder_output=args.image_encoder_output,
        fixed_image_size=args.fixed_image_size,
    )

    if args.quantize_out is not None:
        assert onnxruntime_exists, "onnxruntime is required to quantize the model."
        from onnxruntime.quantization import QuantType  # type: ignore
        from onnxruntime.quantization.quantize import quantize_dynamic  # type: ignore

        print(f"Quantizing model and writing to {args.quantize_out}...")
        quantize_dynamic(
            model_input=args.output,
            model_output=args.quantize_out,
            optimize_model=True,
            per_channel=False,
            reduce_range=False,
            weight_type=QuantType.QUInt8,
        )
        print("Done!")

导出命令

# 导出图像嵌入模型encoder_onnx
python export_onnx_models.py \
    --checkpoint ./mobile_sam.pt \
    --output ./../../decoder_convert_model/mobilesam_decoder.onnx \
    --model-type vit_t \
    --image-encoder-output ./../mobilesam_encoder.onnx \
    --fixed-image-size 448,448 \
    --return-single-mask

模型修改

利用onnx-modify工具移除mobilesam_decoder模型中的orig_im_size输入，链接里有详细的工具使用指导。删除了orig_im_size输入，masks输出也会自动删除。

orig_im_size 代表原始输入图像的尺寸。解码器内部需要通过这个参数，将生成的掩码从“嵌入空间尺寸”缩放回“原始图像尺寸”。在部署时，输入尺寸是在预处理阶段固定的。如果模型保留这个动态输入，推理引擎可能无法应用静态优化，且每次推理都需要传入这个额外的标量参数，增加了业务代码的复杂度。删除该输入，意味着将“后处理”移出了模型。推理引擎只负责计算嵌入空间中的掩码张量，而将最后的尺寸缩放逻辑交由 CPU 端用 OpenCV 或自定义算子处理。这通常能获得更高的吞吐量，并让模型结构更加简洁，从而获得极致的运行效率。

# onnx-modify工具获取链接
https://github.com/ZhangGe6/onnx-modifier

# 直接在conda环境中安装onnx-modifier
pip install onnx-modifier

# 启动工具

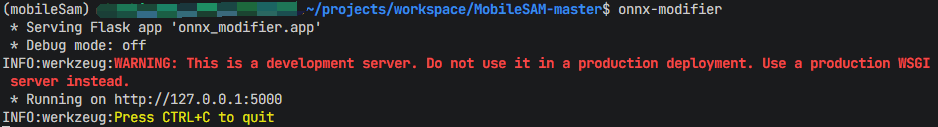

onnx-modifier

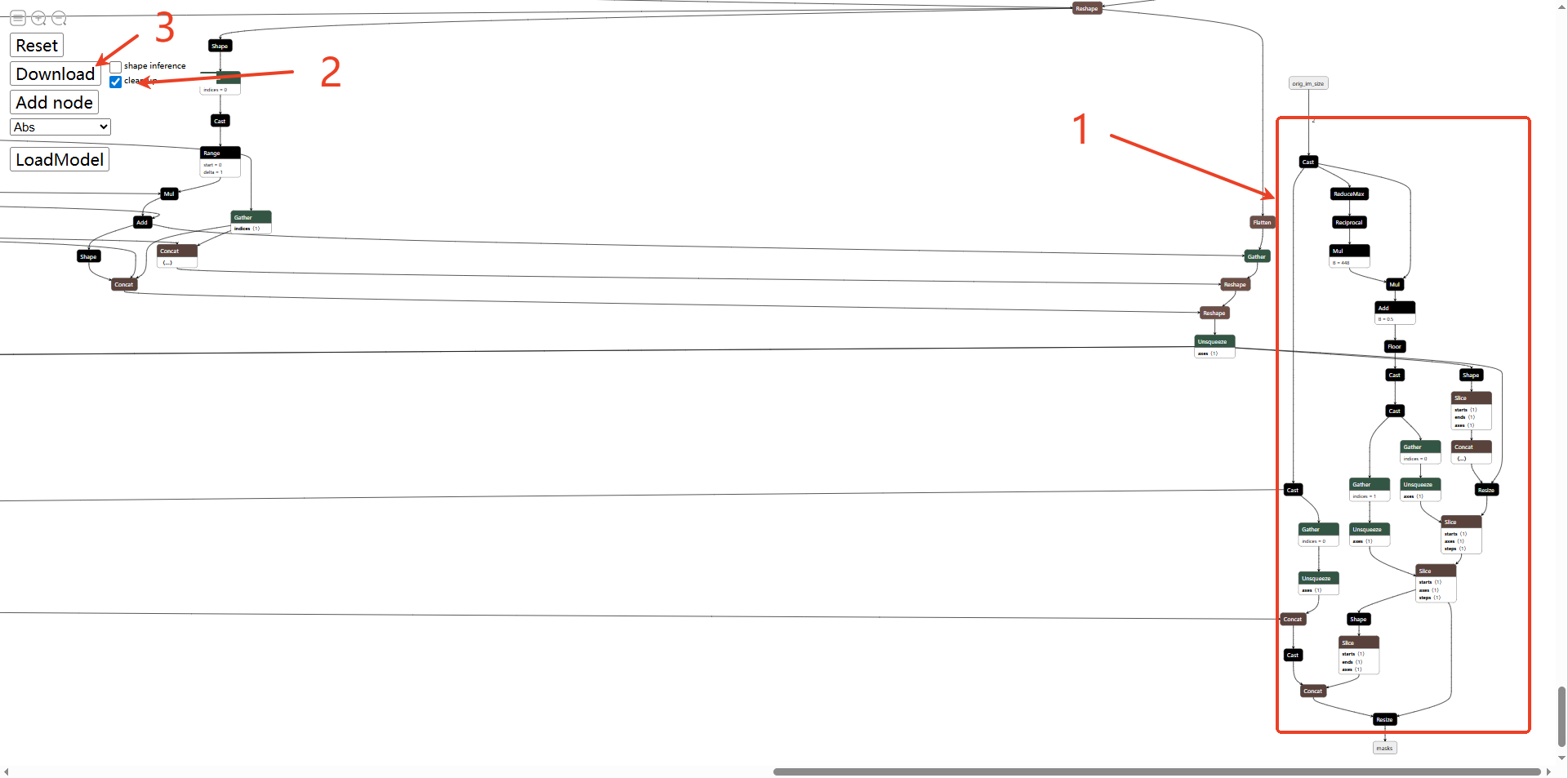

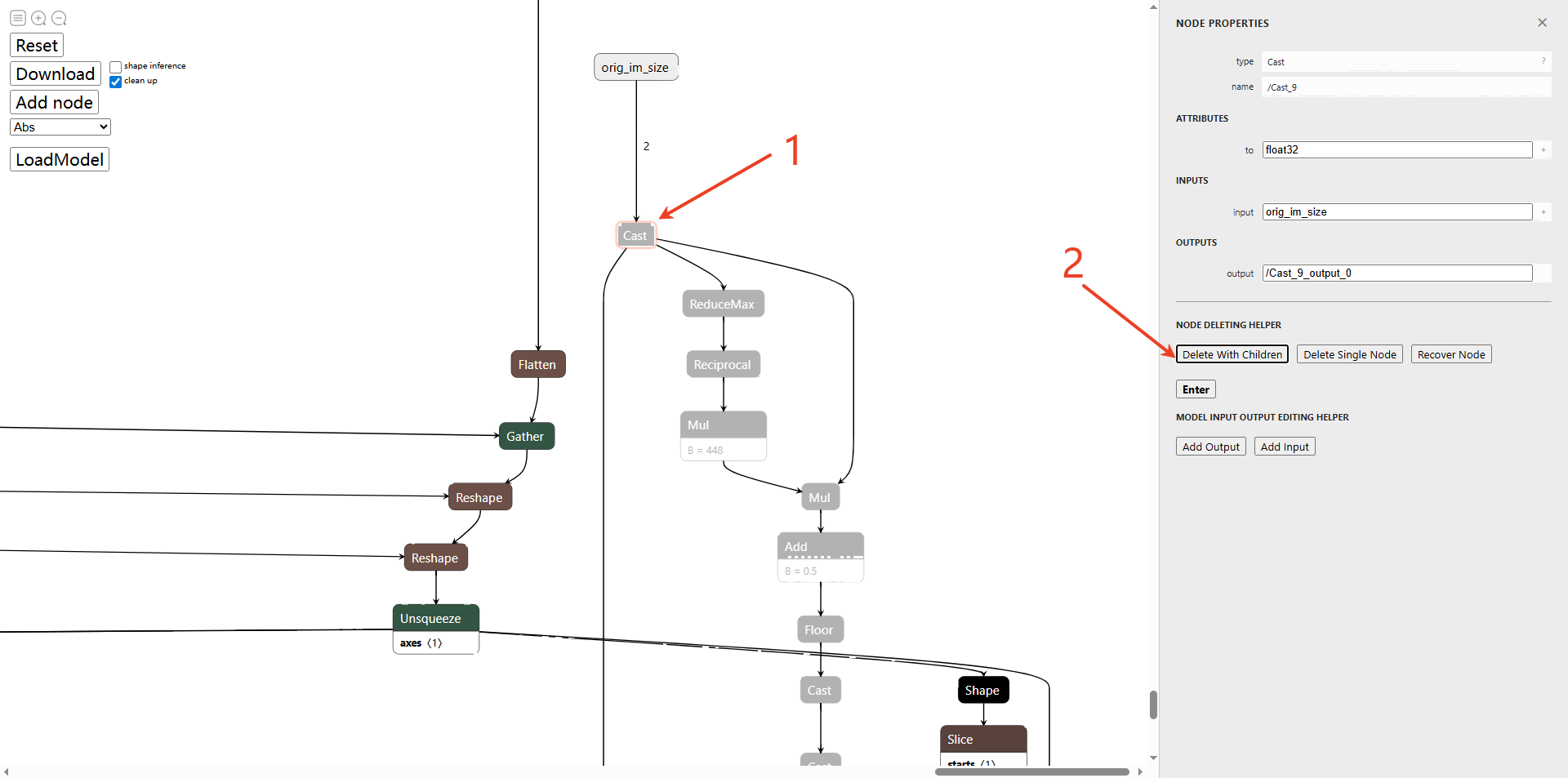

打开网页，选择导出的decoder onnx模型,按照以下顺序删除orig_im_size结构（模型右下角），点击Cast,删除子节点，同理删除shape及其子节点（如下图第二张），打钩clean up，点击Download保存。模型会保存在安装onnx-modifier目录下的​​​​​​modified_onnx目录。

固定尺寸

前面也提到npu不支持动态尺寸，将decoder模型point_labels、point_coords输入的num_points都固定为2，表示给定一个box的输入，输入的形式为原始图像的左上角和右下角像素坐标。

# 将修改好的模型放入decoder_convert_model指定目录
# 进入指定目录
cd ../../decoder_convert_model/
python3 -m onnxsim mobilesam_decoder.onnx mobilesam_decoder_sim.onnx --overwrite-input-shape point_coords:1,2,2 point_labels:1,2 --no-large-tensor

到这里就已经完成了图像编码器模型（mobilesam_encoder）和解码器模型（mobilesam_decoder）的准备了

运行python demo

可以在conda环境下使用python运行推理，验证模型是否正确。把脚本放在encoder_convert_model/python目录下。

# MobileSAM ONNX inference example (using ONNX encoder)

import numpy as np
import cv2
import os
import onnxruntime

def apply_coords(coords, original_size):
    """
    Apply coordinate transformation to convert original image coordinates to model input coordinates
    Args:
        coords: Original coordinates, shape (N, 2)
        original_size: Original image size, shape (H, W)
    Returns:
        Transformed coordinates, shape (N, 2)
    """
    # input 448x448
    target_size = 448
    scale_h = target_size / original_size[0]
    scale_w = target_size / original_size[1]
    coords = coords * np.array([scale_w, scale_h], dtype=np.float32)
    return coords

# Image preprocessing function
def preprocess_image(image):
    """
    Preprocess image to adapt to ONNX encoder input
    Args:
        image: Original image (H, W, 3)
    Returns:
        Preprocessed image (1, 3, 448, 448)
    """
    # Resize image to 448x448
    target_size = 448
    image = cv2.resize(image, (target_size, target_size))

    # Normalize to [0, 1]
    image = image.astype(np.float32) / 255.0

    # Change channel order: HWC -> CHW
    image = np.transpose(image, (2, 0, 1))

    # Standardize
    pixel_mean = np.array([0.485, 0.456, 0.406], dtype=np.float32).reshape(3, 1, 1)
    pixel_std = np.array([0.229, 0.224, 0.225], dtype=np.float32).reshape(3, 1, 1)
    image = (image - pixel_mean) / pixel_std

    # Add batch dimension
    image = np.expand_dims(image, axis=0)

    return image

def postprocess_mask(mask, original_size):
    mask_resized = cv2.resize(mask, (original_size[1], original_size[0]), interpolation=cv2.INTER_LINEAR)
    return mask_resized

def process_masks(masks, original_size, threshold=0.0):
    """
    Process model output masks
    Args:
        masks: Model output masks (1, N, H_model, W_model)
        original_size: Original image size (H_original, W_original)
        threshold: Binarization threshold
    Returns:
        Processed mask (H_original, W_original)
    """
    mask = masks[0][0]

    mask_resized = postprocess_mask(mask, original_size)

    mask_binary = mask_resized > threshold

    return mask_binary

def main():
    print("Loading ONNX encoder...")
    encoder_model_path = "./../mobilesam_encoder.onnx"
    encoder_session = onnxruntime.InferenceSession(encoder_model_path)

    print("Loading ONNX decoder...")
    decoder_model_path = "./../../decoder_convert_model/mobilesam_decoder_sim.onnx"

    decoder_session = onnxruntime.InferenceSession(decoder_model_path)

    image_path = "./../../model/picture1.jpg"
    image = cv2.imread(image_path)
    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
    original_size = image.shape[:2]  # (H, W)

    print("Getting image embedding...")
    preprocessed_image = preprocess_image(image)

    encoder_inputs = {"image": preprocessed_image}
    image_embedding = encoder_session.run(None, encoder_inputs)[0]
    print(f"Image embedding shape: {image_embedding.shape}")

    input_box = np.array([190, 70, 460, 280])  # [x1, y1, x2, y2]

    point_coords = np.array([[input_box[0], input_box[1]],
                             [input_box[2], input_box[3]]], dtype=np.float32)

    point_coords = apply_coords(point_coords, original_size)
    point_coords = point_coords.astype(np.float32)
    point_coords = np.expand_dims(point_coords, axis=0)  # (1, 2, 2)
    point_labels = np.array([[2, 3]], dtype=np.float32)  # (1, 2)

    onnx_mask_input = np.zeros((1, 1, 112, 112), dtype=np.float32)
    onnx_has_mask_input = np.zeros(1, dtype=np.float32)

    ort_inputs = {
        "image_embeddings": image_embedding,
        "point_coords": point_coords,
        "point_labels": point_labels,
        "mask_input": onnx_mask_input,
        "has_mask_input": onnx_has_mask_input
    }

    print("Running ONNX inference...")
    iou_predictions, low_res_masks = decoder_session.run(None, ort_inputs)

    print(f"low_res_masks shape: {low_res_masks.shape}")
    print(f"iou_predictions shape: {iou_predictions.shape}")

    best_mask = process_masks(low_res_masks, original_size)

    result_image = image.copy()

    mask_uint8 = (best_mask * 255).astype(np.uint8)
    color = np.array([0, 255, 0])
    colored_mask = np.zeros_like(image)
    colored_mask[mask_uint8 > 0] = color

    result_image = cv2.addWeighted(result_image, 0.7, colored_mask, 0.3, 0)

    cv2.rectangle(result_image,
                  (input_box[0], input_box[1]),
                  (input_box[2], input_box[3]),
                  (0, 255, 0), 2)

    output_dir = "./output"
    os.makedirs(output_dir, exist_ok=True)
    output_path = os.path.join(output_dir, "result.jpg")
    cv2.imwrite(output_path, cv2.cvtColor(result_image, cv2.COLOR_RGB2BGR))
    print(f"Result saved to {output_path}")

if __name__ == "__main__":
    main()

运行推理，将encoder模型和decoder模型分别放在encoder_convert_model和decoder_convert_model目录，或者修改python模型文件路径也可以。推理的图片要使用官方图片picture1,因为ROi区域是硬编码。

# 进入指定目录进行推理
cd ../encoder_convert_model/python
python predict.py

# 输出结果保存在 ./output/result.jpg

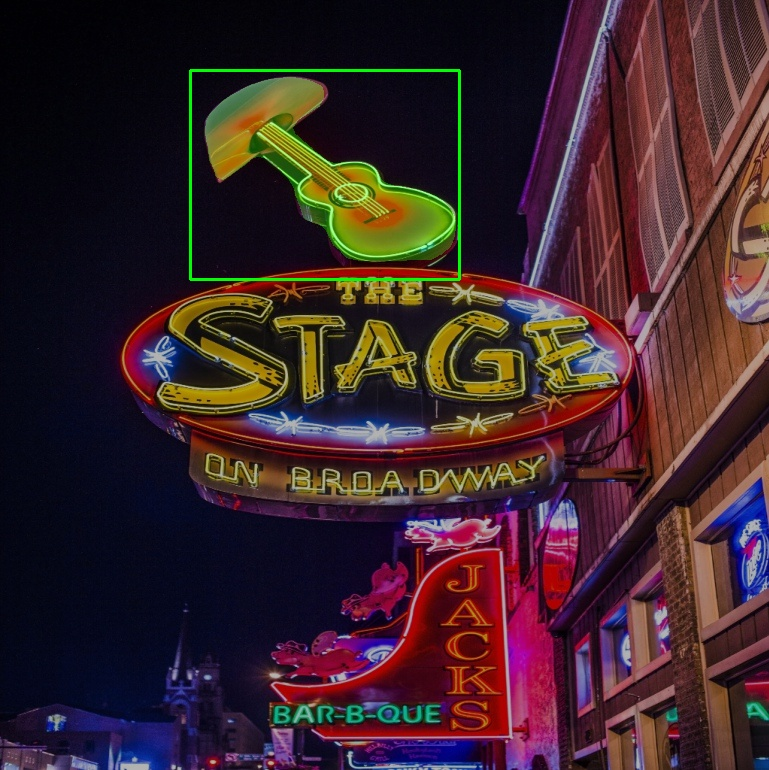

结果如下：

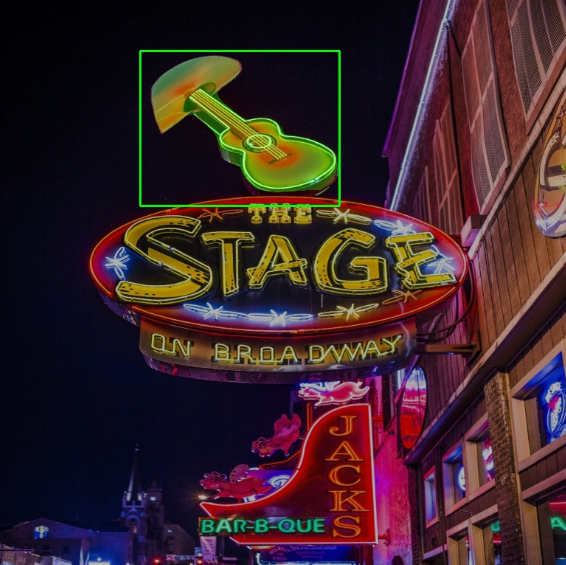

注：这里的结果是模型输入尺寸为448*448的结果。

模型配置

encoder模型的配置config_yml.py

#!/usr/bin/env python3
import os
import sys
from acuitylib.vsi_nn import VSInn
import numpy as np


# "database" allowed types: "TEXT, NPY, H5FS, SQLITE, LMDB, GENERATOR, ZIP"
DATASET = '../../dataset/mobliesam/encoder/dataset.txt'
DATASET_TYPE = "TEXT"

# mean, scale
MEAN    = [123.675, 116.28, 103.53]
SCALE   = [0.0171247, 0.017507, 0.0174292]

# reverse_channel: True bgr, False rgb
REVERSE_CHANNEL = False

# add_preproc_node, True or False
ADD_PREPROC_NODE = True
# "preproc_type" allowed types:"IMAGE_RGB, IMAGE_RGB888_PLANAR, IMAGE_RGB888_PLANAR_SEP, IMAGE_I420,
# IMAGE_NV12,IMAGE_NV21, IMAGE_YUV444, IMAGE_YUYV422, IMAGE_UYVY422, IMAGE_GRAY, IMAGE_BGRA, TENSOR"
PREPROC_TYPE = "IMAGE_RGB"

# add_postproc_node, quant output -> float32 output
ADD_POSTPROC_NODE = True
...

decoder模型的配置config_yml.py

由于在图像编码前就已经做了前处理操作（缩放、归一化等），所以对于decoder模型前处理节点就不需要打开，只需要打开后处理节点。

#!/usr/bin/env python3
import os
import sys
from acuitylib.vsi_nn import VSInn
import numpy as np

# "database" allowed types: "TEXT, NPY, H5FS, SQLITE, LMDB, GENERATOR, ZIP"
DATASET = ['./../../dataset/mobliesam/decoder/image_embeddings.npy',
            './../../dataset/mobliesam/decoder/point_coords.npy',
            './../../dataset/mobliesam/decoder/point_labels.npy',
            './../../dataset/mobliesam/decoder/mask_input.npy',
            './../../dataset/mobliesam/decoder/has_mask_input.npy']
DATASET_TYPE = ['NPY', 'NPY', 'NPY', 'NPY', 'NPY']

# mean, scale
MEAN    = [0, 0, 0]
SCALE   = [1.0, 1.0, 1.0]

# reverse_channel: True bgr, False rgb
REVERSE_CHANNEL = False

# add_preproc_node, True or False
ADD_PREPROC_NODE = False
# "preproc_type" allowed types:"IMAGE_RGB, IMAGE_RGB888_PLANAR, IMAGE_RGB888_PLANAR_SEP, IMAGE_I420,
#  IMAGE_NV12,IMAGE_NV21, IMAGE_YUV444, IMAGE_YUYV422, IMAGE_UYVY422, IMAGE_GRAY, IMAGE_BGRA, TENSOR"
PREPROC_TYPE = "TENSOR"

# add_postproc_node
ADD_POSTPROC_NODE = True
...

模型前后处理

配置文件model_config.h

/****************************************************************************
*  model config header file
****************************************************************************/
#ifndef _MODEL_CONFIG_H_
#define _MODEL_CONFIG_H_

#define LETTERBOX_ROWS      448
#define LETTERBOX_COLS      448

#define MOBILESAM_MASK_SIZE 112

#define TOP_LEFT_X 190
#define TOP_LEFT_Y 70
#define BOTTOM_RIGHT_X 460
#define BOTTOM_RIGHT_Y 280

#endif

前处理mobilesam_pre.cpp

#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/imgproc/imgproc.hpp>
#include <iostream>
#include <stdio.h>
#include <stdint.h>
#include <string.h>
#include <math.h>

#include "model_config.h"

/* model_inputmeta.yml file param modify, eg:
    preproc_node_params:
      add_preproc_node: true
      preproc_type: IMAGE_RGB
*/

void calculate_letterbox_params(int img_rows, int img_cols, int letterbox_rows, int letterbox_cols,
                               float& scale_letterbox, int& top, int& left, int& resize_rows, int& resize_cols){
    if ((letterbox_rows * 1.0 / img_rows) < (letterbox_cols * 1.0 / img_cols)) {
        scale_letterbox = letterbox_rows * 1.0 / img_rows;
    } else {
        scale_letterbox = letterbox_cols * 1.0 / img_cols;
    }
    resize_cols = int(round(scale_letterbox * img_cols));
    resize_rows = int(round(scale_letterbox * img_rows));

    float dh = (float)(letterbox_rows - resize_rows);
    float dw = (float)(letterbox_cols - resize_cols);

    dh /= 2.0f;
    dw /= 2.0f;

    top = (int)(round(dh - 0.1));
    left = (int)(round(dw - 0.1));
}

void calculate_scale_and_padding(const char* image_file, float& scale_letterbox, int& top, int& left) {
    cv::Mat sample = cv::imread(image_file, 1);
    if (sample.empty()) {
        fprintf(stderr, "cv::imread %s failed\n", image_file);
        scale_letterbox = 1.0;
        top = 0;
        left = 0;
        return;
    }

    int resize_rows, resize_cols;
    calculate_letterbox_params(sample.rows, sample.cols, LETTERBOX_ROWS, LETTERBOX_COLS,
                              scale_letterbox, top, left, resize_rows, resize_cols);
}

void get_input_data(const char* image_file, unsigned char* input_data, int letterbox_rows, int letterbox_cols) {
    cv::Mat sample = cv::imread(image_file, 1);
    if (sample.empty()) {
        fprintf(stderr, "cv::imread %s failed\n", image_file);
        return;
    }

    cv::Mat img;
    cv::cvtColor(sample, img, cv::COLOR_BGR2RGB);

    /* letterbox process to support different letterbox size */
    float scale_letterbox;
    int top, left, resize_rows, resize_cols;
    calculate_letterbox_params(img.rows, img.cols, letterbox_rows, letterbox_cols,
                              scale_letterbox, top, left, resize_rows, resize_cols);

    cv::resize(img, img, cv::Size(resize_cols, resize_rows));

    // create a mat with input_data ptr
    cv::Mat img_new(letterbox_rows, letterbox_cols, CV_8UC3, input_data);
    int bot   = (int)(round((float)(letterbox_rows - resize_rows) / 2.0f + 0.1));
    int right = (int)(round((float)(letterbox_cols - resize_cols) / 2.0f + 0.1));

    // Letterbox filling
    cv::copyMakeBorder(img, img_new, top, bot, left, right, cv::BORDER_CONSTANT, cv::Scalar(114, 114, 114));
}

int mobilesam_preprocess(const char* imagepath, void* buff_ptr, unsigned int buff_size) {
    int img_c = 3;

    // set default letterbox size
    int letterbox_rows = LETTERBOX_ROWS;
    int letterbox_cols = LETTERBOX_COLS;
    int img_size = letterbox_rows * letterbox_cols * img_c;

    unsigned int data_size = img_size * sizeof(uint8_t);

    if (data_size > buff_size) {
        printf("data size > buff size, please check code. data_size=%u, buff_size=%u\n", data_size, buff_size);
        return -1;
    }

    get_input_data(imagepath, (unsigned char*)buff_ptr, letterbox_rows, letterbox_cols);

    printf("mobilesam preprocess completed: %s -> %dx%d, buffer size: %u\n",
           imagepath, letterbox_cols, letterbox_rows, data_size);
    return 0;
}

后处理mobilesam_post.cpp

#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/imgproc/imgproc.hpp>
#include <iostream>
#include <stdio.h>
#include <vector>
#include <cmath>
#include <chrono>
#include <fstream>
#include <sstream>

#include "model_config.h"

using namespace std;

cv::Mat postprocess_mask(const cv::Mat& mask, const cv::Size& original_size)
{
    cv::Mat mask_resized;
    cv::resize(mask, mask_resized, cv::Size(original_size.height, original_size.width), 0, 0, cv::INTER_LINEAR);
    return mask_resized;
}

cv::Mat process_masks(const float* mask_data, const float* iou_predictions, int mask_height, int mask_width, const cv::Size& original_size, float threshold = 0.0)
{
    cv::Mat mask(mask_height, mask_width, CV_32FC1, (float*)mask_data);
    cv::Mat mask_resized = postprocess_mask(mask, original_size);
    cv::Mat mask_binary;

    mask_binary = (mask_resized > threshold);
    mask_binary.convertTo(mask_binary, CV_8UC1, 255);

    return mask_binary;
}

int mobilesam_postprocess(const char *imagepath, float **output)
{
    cv::Mat image = cv::imread(imagepath);
    if (image.empty()) {
        fprintf(stderr, "cv::imread %s failed\n", imagepath);
        return -1;
    }

    std::chrono::steady_clock::time_point Tbegin, Tend;
    Tbegin = std::chrono::steady_clock::now();

    cv::Rect input_box;
    cv::Point top_left(TOP_LEFT_X, TOP_LEFT_Y);
    cv::Point bottom_right(BOTTOM_RIGHT_X, BOTTOM_RIGHT_Y);

    int width = bottom_right.x - top_left.x;
    int height = bottom_right.y - top_left.y;
    input_box = cv::Rect(top_left.x, top_left.y, width, height);
    printf("Input box: (%d, %d, %d, %d)\n", input_box.x, input_box.y, input_box.width, input_box.height);

    std::vector<cv::Point> positive_points, negative_points;

    cv::Size original_size(image.rows, image.cols);

    // output[0]
    const float *iou_predictions_data = output[0]; // iou_predictions
    // output[1]
    const float *low_res_masks_data = output[1]; // low_res_masks
    int mask_height = MOBILESAM_MASK_SIZE;
    int mask_width = MOBILESAM_MASK_SIZE;

    cv::Mat best_mask = process_masks(low_res_masks_data, iou_predictions_data, mask_height, mask_width, original_size);
    cv::Mat result_image = image.clone();

    cv::Mat colored_mask = cv::Mat::zeros(image.size(), CV_8UC3);
    colored_mask.setTo(cv::Scalar(0, 255, 0), best_mask);

    cv::addWeighted(result_image, 0.7, colored_mask, 0.3, 0, result_image);

    for (const auto& point : positive_points) {
        cv::circle(result_image, point, 5, cv::Scalar(0, 255, 0), -1);
    }
    for (const auto& point : negative_points) {
        cv::circle(result_image, point, 5, cv::Scalar(0, 0, 255), -1);
    }

    if (input_box.width > 0 && input_box.height > 0) {
        cv::rectangle(result_image, input_box, cv::Scalar(0, 255, 0), 2);
    }

    Tend = std::chrono::steady_clock::now();
    float f = std::chrono::duration_cast<std::chrono::milliseconds>(Tend - Tbegin).count();
    std::cout << "post process time : " << f << " ms" << std::endl;

    cv::imwrite("out_mobilesam.jpg", result_image);
    // cv::imwrite("out_mobilesam_mask.png", best_mask);

    printf("mobilesam_postprocess finished. \n");

    return 0;
}

主函数main()

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/time.h>

#include <opencv2/core/core.hpp>

#include "npulib.h"
#include "model_config.h"

/*-------------------------------------------
        Macros and Variables
-------------------------------------------*/

extern int mobilesam_preprocess(const char* imagepath, void* buff_ptr, unsigned int buff_size);
extern int mobilesam_postprocess(const char *imagepath, float **output);
extern void calculate_scale_and_padding(const char* image_file, float& scale_letterbox, int& top, int& left);

const char *usage =
    "model_demo -encoder encoder_model_path -decoder decoder_model_path -i input_path -l loop_run_count -m malloc_mbyte \n"
    "-encoder encoder_model_path:    the encoder NBG file path.\n"
    "-decoder decoder_model_path:    the decoder NBG file path.\n"
    "-i input_path:     the input file path.\n"
    "-l loop_run_count: the number of loop run network.\n"
    "-m malloc_mbyte:   npu_unit init memory Mbytes.\n"
    "-h : help\n"
    "example: model_demo -encoder encoder.nb -decoder decoder.nb -i input.jpg -l 10 -m 20 \n";

enum time_idx_e {
    NPU_INIT = 0,
    NETWORK_CREATE,
    NETWORK_PREPARE,
    NETWORK_PREPROCESS,
    NETWORK_RUN,
    NETWORK_LOOP,
    TIME_IDX_MAX = 9
};

// float -> fp16
uint16_t float_to_fp16(float value) {
    uint32_t f32 = *(uint32_t*)&value;
    uint32_t sign = (f32 >> 31) & 0x1;
    uint32_t exponent = (f32 >> 23) & 0xff;
    uint32_t mantissa = f32 & 0x7fffff;

    if (exponent == 0xff) {
        return (sign << 15) | 0x7c00 | (mantissa >> 13);
    } else if (exponent == 0) {
        if (mantissa == 0) {
            return sign << 15;
        } else {
            int shift = __builtin_clz(mantissa) - 8;
            mantissa <<= shift;
            exponent = 1 - shift;
            return (sign << 15) | ((exponent & 0x1f) << 10) | (mantissa >> 13);
        }
    } else {
        int new_exponent = exponent - 127 + 15;
        if (new_exponent > 0x1f) {
            return (sign << 15) | 0x7c00;
        } else if (new_exponent < 1) {
            int shift = 1 - new_exponent;
            mantissa = (0x800000 | mantissa) >> shift;
            return (sign << 15) | (mantissa >> 13);
        } else {
            return (sign << 15) | ((new_exponent & 0x1f) << 10) | (mantissa >> 13);
        }
    }
}

// float -> fp16
void float_array_to_fp16(const float* float_array, uint16_t* fp16_array, size_t size) {
    for (size_t i = 0; i < size; i++) {
        fp16_array[i] = float_to_fp16(float_array[i]);
    }
}

int main(int argc, char** argv)
{
    int status = 0;
    int i = 0;
    unsigned int count = 0;
    long long total_infer_time = 0;

    char *encoder_model_file = nullptr;
    char *decoder_model_file = nullptr;
    char *input_file = nullptr;
    unsigned int loop_count = 1;

    if (argc < 2) {
        printf("%s\n", usage);
        return -1;
    }

    for (i = 0; i< argc; i++) {
        if (!strcmp(argv[i], "-encoder")) {
            encoder_model_file = argv[++i];
        }
        else if (!strcmp(argv[i], "-decoder")) {
            decoder_model_file = argv[++i];
        }
        else if (!strcmp(argv[i], "-i")) {
            input_file = argv[++i];
        }
        else if (!strcmp(argv[i], "-l")) {
            loop_count = atoi(argv[++i]);
        }
        else if (!strcmp(argv[i], "-h")) {
            printf("%s\n", usage);
            return 0;
        }
    }
    printf("encoder_model_file=%s, decoder_model_file=%s, input=%s, loop_count=%d \n", encoder_model_file, decoder_model_file, input_file, loop_count);

    if (encoder_model_file == nullptr || decoder_model_file == nullptr)
        return -1;

    /* NPU init*/
    NpuUint npu_uint;

    int ret = npu_uint.npu_init();
    if (ret != 0) {
        return -1;
    }

    // encoder
    NetworkItem encoder;
    unsigned int encoder_id = 0;
    status = encoder.network_create(encoder_model_file, encoder_id);
    if (status != 0) {
        printf("encoder network create failed.\n");
        return -1;
    }

    status = encoder.network_prepare();
    if (status != 0) {
        printf("encoder network prepare fail, status=%d\n", status);
        return -1;
    }

    // decoder
    NetworkItem decoder;
    unsigned int decoder_id = 1;
    status = decoder.network_create(decoder_model_file, decoder_id);
    if (status != 0) {
        printf("decoder network create failed.\n");
        return -1;
    }

    status = decoder.network_prepare();
    if (status != 0) {
        printf("decoder network prepare fail, status=%d\n", status);
        return -1;
    }

    TimeBegin(NETWORK_PREPROCESS);
    // input jpg file, no copy way
    void *input_buffer_ptr = nullptr;
    unsigned int input_buffer_size = 0;
    encoder.get_network_input_buff_info(0, &input_buffer_ptr, &input_buffer_size);

    printf("encoder input buffer ptr: %p, buffer size: %d \n", input_buffer_ptr, input_buffer_size);

    mobilesam_preprocess(input_file, input_buffer_ptr, input_buffer_size);

    TimeEnd(NETWORK_PREPROCESS);
    printf("feed input cost: %lu us.\n", (unsigned long)TimeGet(NETWORK_PREPROCESS));

    // create encoder output buffer
    int encoder_output_cnt = encoder.get_output_cnt();
    float **encoder_output_data = new float*[encoder_output_cnt]();
    for (int i = 0; i < encoder_output_cnt; i++)
        encoder_output_data[i] = new float[encoder.m_output_data_len[i]];

    // create decoder output buffer
    int decoder_output_cnt = decoder.get_output_cnt();
    float **decoder_output_data = new float*[decoder_output_cnt]();
    for (int i = 0; i < decoder_output_cnt; i++) {
        decoder_output_data[i] = new float[decoder.m_output_data_len[i]];
    }

    i = 0;
    /* run network */
    TimeBegin(NETWORK_LOOP);
    while (count < loop_count) {
        count++;

        // run encoder
        status = encoder.network_input_output_set();
        if (status != 0) {
            printf("set encoder input/output failed.\n");
            return -1;
        }

        #if defined (__linux__)
        TimeBegin(NETWORK_RUN);
        #endif

        status = encoder.network_run();
        if (status != 0) {
            printf("fail to run encoder, status=%d\n", status);
            return -2;
        }

        #if defined (__linux__)
        TimeEnd(NETWORK_RUN);
        printf("encoder run time: %lu us.\n", (unsigned long)TimeGet(NETWORK_RUN));
        #endif

        total_infer_time += (unsigned long)TimeGet(NETWORK_RUN);

        // get encoder output
        encoder.get_output(encoder_output_data);
        // Use the encoder output as the decoder input (1, 256, 28, 28).
        void *decoder_input_ptr = nullptr;
        unsigned int decoder_input_size = 0;
        int ret = decoder.get_network_input_buff_info(0, &decoder_input_ptr, &decoder_input_size);
        if (ret == 0 && decoder_input_ptr != nullptr && decoder_input_size > 0) {
            // fp32 -> fp16
            float_array_to_fp16(encoder_output_data[0], (uint16_t*)decoder_input_ptr, encoder.m_output_data_len[0]);
        } else {
            printf("Error: Failed to get decoder input 0 buffer info\n");
            return -1;
        }

        // point_coords input (1, 2, 2)
        void *point_coords_ptr = nullptr;
        unsigned int point_coords_size = 0;
        ret = decoder.get_network_input_buff_info(1, &point_coords_ptr, &point_coords_size);
        if (ret == 0 && point_coords_ptr != nullptr && point_coords_size > 0) {

            float scale_letterbox;
            int top, left;
            calculate_scale_and_padding(input_file, scale_letterbox, top, left);

            float point_coords_float[4] = {
                TOP_LEFT_X * scale_letterbox + left,  // x1
                TOP_LEFT_Y * scale_letterbox + top,  // y1
                BOTTOM_RIGHT_X * scale_letterbox + left,  // x2
                BOTTOM_RIGHT_Y * scale_letterbox + top   // y2
            };
            for (int i = 0; i < 4; i++) {
                if (point_coords_float[i] < 0.0f) point_coords_float[i] = 0.0f;
                if (point_coords_float[i] > LETTERBOX_ROWS) point_coords_float[i] = LETTERBOX_ROWS;
            }
            // float32 -> fp16
            uint16_t point_coords_fp16[4];
            float_array_to_fp16(point_coords_float, point_coords_fp16, 4);
            memcpy(point_coords_ptr, point_coords_fp16, sizeof(point_coords_fp16));
        } else {
            printf("Error: Failed to get decoder input 1 buffer info\n");
            return -1;
        }
        // point_labels
        void *point_labels_ptr = nullptr;
        unsigned int point_labels_size = 0;
        ret = decoder.get_network_input_buff_info(2, &point_labels_ptr, &point_labels_size);
        if (ret == 0 && point_labels_ptr != nullptr && point_labels_size > 0) {
            float point_labels_float[2] = {2.0f, 3.0f};
            // float32 -> fp16
            uint16_t point_labels_fp16[2];
            float_array_to_fp16(point_labels_float, point_labels_fp16, 2);
            memcpy(point_labels_ptr, point_labels_fp16, sizeof(point_labels_fp16));
        } else {
            printf("Error: Failed to get decoder input 2 buffer info\n");
            return -1;
        }

        // mask_input (1, 1, 112, 112)
        void *mask_input_ptr = nullptr;
        unsigned int mask_input_size = 0;
        ret = decoder.get_network_input_buff_info(3, &mask_input_ptr, &mask_input_size);
        if (ret == 0 && mask_input_ptr != nullptr && mask_input_size > 0) {
            memset(mask_input_ptr, 0, mask_input_size);
        } else {
            printf("Error: Failed to get decoder input 3 buffer info\n");
            return -1;
        }
        // has_mask_input
        void *has_mask_input_ptr = nullptr;
        unsigned int has_mask_input_size = 0;
        ret = decoder.get_network_input_buff_info(4, &has_mask_input_ptr, &has_mask_input_size);
        if (ret == 0 && has_mask_input_ptr != nullptr && has_mask_input_size > 0) {
            uint8_t has_mask_input_uint8 = 0;
            memcpy(has_mask_input_ptr, &has_mask_input_uint8, sizeof(has_mask_input_uint8));
        } else {
            printf("Error: Failed to get decoder input 4 buffer info\n");
            return -1;
        }

        // run decoder
        status = decoder.network_input_output_set();
        if (status != 0) {
            printf("set decoder input/output failed.\n");
            return -1;
        }

        #if defined (__linux__)
        TimeBegin(NETWORK_RUN);
        #endif

        status = decoder.network_run();
        if (status != 0) {
            printf("fail to run decoder, status=%d\n", status);
            return -2;
        }

        #if defined (__linux__)
        TimeEnd(NETWORK_RUN);
        printf("decoder run time: %lu us.\n", (unsigned long)TimeGet(NETWORK_RUN));
        #endif

        total_infer_time += (unsigned long)TimeGet(NETWORK_RUN);
        // get decoder output
        decoder.get_output(decoder_output_data);

        // postprocess
        mobilesam_postprocess(input_file, decoder_output_data);

    }
    TimeEnd(NETWORK_LOOP);

    if (loop_count > 1) {
        printf("this network run avg inference time=%d us,  total avg cost: %d us\n",
                (uint32_t)(total_infer_time / loop_count), (unsigned int)(TimeGet(NETWORK_LOOP) / loop_count));
    }

    // free output buffer
    for (int i = 0; i < encoder_output_cnt; i++) {
        delete[] encoder_output_data[i];
        encoder_output_data[i] = nullptr;
    }
    if (encoder_output_data != nullptr)
        delete[] encoder_output_data;

    for (int i = 0; i < decoder_output_cnt; i++) {
        delete[] decoder_output_data[i];
        decoder_output_data[i] = nullptr;
    }
    if (decoder_output_data != nullptr)
        delete[] decoder_output_data;

    return ret;
}

模型转换

进入创建的docker容器

分别进入encoder_convert_model和decoder_convert_model目录进行模型转换

1.转换encoder模型，在最后导出模型，时间稍长，等待即可。

# using xxx_env.sh to create softlink
./convert_model_env.sh

# 导入
# pegasus_import.sh <model_name>
./pegasus_import.sh mobilesam_encoder

# 量化
# pegasus_quantize.sh <model_name> <quantize_type> <calibration_set_size>
./pegasus_quantize.sh mobilesam_encoder int16 10

# 仿真（可选）
# pegasus_inference.sh <model_name> <quantize_type>
./pegasus_inference.sh mobilesam_encoder int16

# 导出nb模型
# pegasus_export_ovx_nbg.sh <model_name> <quantize_type> <platform>
./pegasus_export_ovx_nbg.sh mobilesam_encoder int16 t736

# 导出的模型文件存放在../model目录
# 例如 ../model/mobilesam_encoder_int16_t736.nb

2.转换decoder模型。

# using xxx_env.sh to create softlink
./convert_model_env.sh

# 导入
# pegasus_import.sh <model_name>
./pegasus_import.sh mobilesam_decoder_sim

# 量化
# pegasus_quantize.sh <model_name> <quantize_type> <calibration_set_size>
./pegasus_quantize.sh mobilesam_decoder_sim uint8 10

# 仿真（可选）
# pegasus_inference.sh <model_name> <quantize_type>
./pegasus_inference.sh mobilesam_decoder_sim uint8

# 导出nb模型
# pegasus_export_ovx_nbg.sh <model_name> <quantize_type> <platform>
./pegasus_export_ovx_nbg.sh mobilesam_decoder_sim uint8 t736

# 导出的模型文件存放在../model目录
# 例如 ../model/mobilesam_decoder_sim_uint8_t736.nb

交叉编译

编译工具链参考其他模型，这里直接给出编译命令

cd ../examples/mobilesam/
./../build_linux.sh -t t736

在./examples/mobilesam/目录下生成install目录，目录结构如下：

`-- mobileSam_demo_linux_t736
    |-- mobileSam_demo_t736
    `-- model
        |-- mobilesam_decoder_sim_uint8_t736.nb
        |-- mobilesam_encoder_int16_t736.nb
        `-- picture1.jpg

模型推理

将上述生成的文件推送至开发板，方式不限于adb这一种

adb push install\mobilesam_demo_linux_t736 /mnt/UDISK/

运行推理

./mobilesam_demo_t736 -encoder model/mobilesam_encoder_int16_t736.nb -decoder model/mobilesam_decoder_sim_uint8_t736.nb -i model/picture1.jpg

板端的运行结果：

注：由于将原始模型的输入尺寸1024×1024改为了448×448，所以导致分割区域边缘精度有所下降。如果对精度有要求，可以使用模型原来的输入尺寸，同时需要修改模型配置文件`model_config.h`。

原始模型输入尺寸1024*1024结果如下
