一、三棵树的层次关系

Flutter的渲染系统由三棵树组成，它们紧密协作实现高效的UI渲染：

三棵树的职责

树	职责	特点
Widget Tree	描述UI结构	不可变、轻量级、频繁重建
Element Tree	管理生命周期	持有Widget、连接RenderObject、处理更新
RenderObject Tree	实际渲染	负责布局、绘制、命中测试

Widget到RenderObject的转换流程

1. Widget Tree创建

// 用户代码
@override
Widget build(BuildContext context) {
  return Container(
    padding: EdgeInsets.all(16),
    child: Text('Hello, Flutter!'),
  );
}

2. Element Tree生成

// 框架自动处理
Container Widget
  → RenderObjectElement (Container)
    → createRenderObject()
    → RenderPadding

Text Widget
  → RenderObjectElement (Text)
    → createRenderObject()
    → RenderParagraph

3. RenderObject Tree构建

三棵树的更新流程

1. 更新触发

// 用户调用setState()
setState(() {
  counter++;
});

2. 更新传播

3. Diff优化

// Widget Diff示例
class DiffExample extends StatefulWidget {
  @override
  _DiffExampleState createState() => _DiffExampleState();
}

class _DiffExampleState extends State<DiffExample> {
  final List<String> _items = ['Item 1', 'Item 2', 'Item 3'];

  void _updateItem() {
    setState(() {
      // 只修改一个元素
      _items[1] = 'Item 2 (Updated)';
    });
  }

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        ElevatedButton(
          onPressed: _updateItem,
          child: Text('Update Item 2'),
        ),
        ...List.generate(_items.length, (index) {
          return ListTile(
            key: ValueKey(_items[index]),  // 使用Key优化Diff
            title: Text(_items[index]),
          );
        }),
      ],
    );
  }
}

三棵树的协同示例

1. 简单计数器

// Widget Tree - 描述UI
class CounterApp extends StatefulWidget {
  @override
  _CounterAppState createState() => _CounterAppState();
}

// State - 管理状态
class _CounterAppState extends State<CounterApp> {
  int _counter = 0;

  void _increment() {
    setState(() {
      _counter++;
    });
  }

  // Widget Tree重建
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: Text('Counter')),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Text('Counter: $_counter'),
            ElevatedButton(
              onPressed: _increment,
              child: Text('Increment'),
            ),
          ],
        ),
      ),
    );
  }
}

2. 自定义Widget演示

// 自定义Widget - 演示三棵树协作
class CustomProgress extends StatefulWidget {
  final double progress;

  const CustomProgress({required this.progress});

  @override
  _CustomProgressState createState() => _CustomProgressState();
}

class _CustomProgressState extends State<CustomProgress> {
  @override
  Widget build(BuildContext context) {
    return CustomPaint(
      painter: _ProgressPainter(widget.progress),
      size: Size(200, 200),
    );
  }
}

class _ProgressPainter extends CustomPainter {
  final double progress;

  _ProgressPainter(this.progress);

  @override
  void paint(Canvas canvas, Size size) {
    final center = Offset(size.width / 2, size.height / 2);
    final radius = math.min(size.width, size.height) / 2 - 10;

    // 绘制背景圆
    final backgroundPaint = Paint()
      ..color = Colors.grey[300]!
      ..strokeWidth = 10
      ..style = PaintingStyle.stroke;

    canvas.drawCircle(center, radius, backgroundPaint);

    // 绘制进度圆
    final progressPaint = Paint()
      ..color = Colors.blue
      ..strokeWidth = 10
      ..style = PaintingStyle.stroke
      ..strokeCap = StrokeCap.round;

    final sweepAngle = 2 * math.pi * progress;
    canvas.drawArc(
      Rect.fromCircle(center: center, radius: radius),
      -math.pi / 2,
      sweepAngle,
      false,
      progressPaint,
    );
  }

  @override
  bool shouldRepaint(_ProgressPainter oldDelegate) {
    return oldDelegate.progress != progress;
  }
}

// 使用示例
class ProgressDemo extends StatefulWidget {
  @override
  _ProgressDemoState createState() => _ProgressDemoState();
}

class _ProgressDemoState extends State<ProgressDemo> {
  double _progress = 0.0;

  void _startProgress() {
    const duration = Duration(seconds: 3);
    const totalSteps = 60;
    const stepDuration = duration ~/ totalSteps;

    int currentStep = 0;
    Timer.periodic(stepDuration, (timer) {
      setState(() {
        _progress = (currentStep + 1) / totalSteps;
        currentStep++;

        if (currentStep >= totalSteps) {
          timer.cancel();
        }
      });
    });
  }

  @override
  Widget build(BuildContext context) {
    return Column(
      mainAxisAlignment: MainAxisAlignment.center,
      children: [
        CustomProgress(progress: _progress),
        SizedBox(height: 20),
        ElevatedButton(
          onPressed: _startProgress,
          child: Text('Start Progress'),
        ),
      ],
    );
  }
}

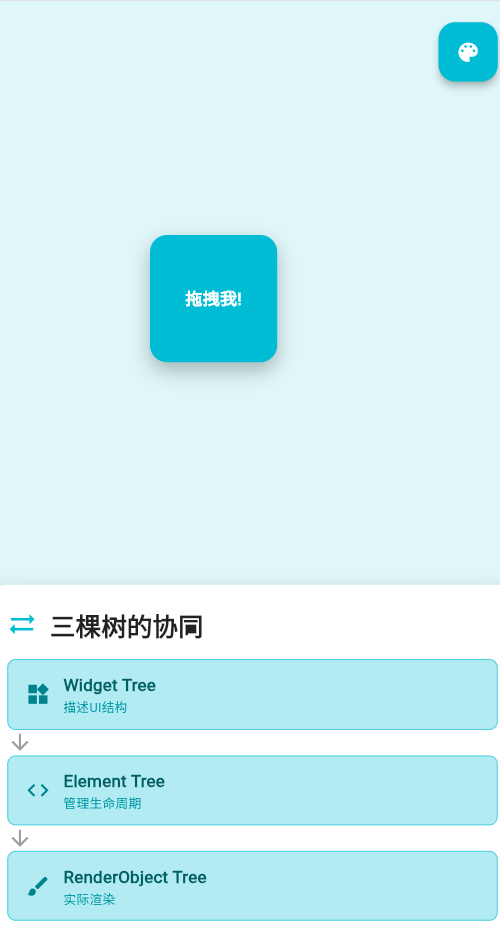

3. 复杂交互示例

// 可拖拽的方块 - 演示三棵树的完整协作
class DraggableSquare extends StatefulWidget {
  @override
  _DraggableSquareState createState() => _DraggableSquareState();
}

class _DraggableSquareState extends State<DraggableSquare> {
  Offset _position = Offset(100, 100);
  Size _size = Size(100, 100);
  Color _color = Colors.blue;

  void _updatePosition(Offset newPosition) {
    setState(() {
      _position = newPosition;
    });
  }

  void _changeColor() {
    setState(() {
      _color = _color == Colors.blue ? Colors.red : Colors.blue;
    });
  }

  @override
  Widget build(BuildContext context) {
    return Stack(
      children: [
        Positioned(
          left: _position.dx,
          top: _position.dy,
          child: GestureDetector(
            onPanUpdate: (details) {
              _updatePosition(_position + details.delta);
            },
            child: Container(
              width: _size.width,
              height: _size.height,
              decoration: BoxDecoration(
                color: _color,
                borderRadius: BorderRadius.circular(10),
                boxShadow: [
                  BoxShadow(
                    color: Colors.black26,
                    blurRadius: 10,
                    offset: Offset(0, 5),
                  ),
                ],
              ),
              child: Center(
                child: Text(
                  'Drag me!',
                  style: TextStyle(color: Colors.white),
                ),
              ),
            ),
          ),
        ),
        Positioned(
          bottom: 20,
          right: 20,
          child: ElevatedButton(
            onPressed: _changeColor,
            child: Text('Change Color'),
          ),
        ),
      ],
    );
  }
}

三棵树协作的性能优化

1. 减少重建范围

// 不好 - 整个Column都重建
class BadPerformance extends StatefulWidget {
  @override
  _BadPerformanceState createState() => _BadPerformanceState();
}

class _BadPerformanceState extends State<BadPerformance> {
  int counter = 0;

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        Text('Counter: $counter'),  // 重建
        HeavyWidget(),  // 重建 - 浪费性能
      ],
    );
  }
}

// 好 - 只重建需要更新的部分
class GoodPerformance extends StatefulWidget {
  @override
  _GoodPerformanceState createState() => _GoodPerformanceState();
}

class _GoodPerformanceState extends State<GoodPerformance> {
  int counter = 0;

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        CounterDisplay(counter: counter),  // const
        const HeavyWidget(),  // const - 不重建
      ],
    );
  }
}

class CounterDisplay extends StatelessWidget {
  final int counter;

  const CounterDisplay({required this.counter});

  @override
  Widget build(BuildContext context) {
    return Text('Counter: $counter');
  }
}

2. 使用const Widget

// 使用const避免不必要的重建
class ConstOptimized extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Column(
      children: const [
        Text('Static Text'),  // const - 不重建
        Icon(Icons.star),      // const - 不重建
        SizedBox(height: 16),  // const - 不重建
      ],
    );
  }
}

3. RepaintBoundary优化

// 使用RepaintBoundary隔离重绘区域
class RepaintBoundaryOptimized extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        RepaintBoundary(
          child: ExpensiveWidget(),  // 独立重绘
        ),
        Text('Other content'),  // 不受ExpensiveWidget影响
      ],
    );
  }
}

三棵树协作的调试

1. 性能分析

// 使用Flutter DevTools分析三棵树
// 1. 运行应用
// 2. 打开Flutter DevTools
// 3. 查看Performance、Widget Tree、Timeline

2. 打印树结构

// 打印Widget Tree
debugDumpApp();

// 打印Element Tree
debugDumpRenderTree();

// 打印RenderObject Tree
debugDumpLayerTree();

3. 标记渲染帧

// 在Debug模式下标记渲染帧
class FrameMarker extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    // 标记当前帧
    debugDumpApp();
    return YourWidget();
  }
}

三棵树在HarmonyOS上的适配

1. 平台特定优化

// HarmonyOS特定的渲染优化
class HarmonyOSOptimized extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    final bool isHarmonyOS = Theme.of(context).platform == TargetPlatform.android;

    if (isHarmonyOS) {
      // HarmonyOS优化
      return const HarmonyOSSpecificWidget();
    } else {
      // 通用实现
      return const GenericWidget();
    }
  }
}

2. 屏幕适配

// 适配不同屏幕尺寸
class ResponsiveWidget extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    final double screenWidth = MediaQuery.of(context).size.width;

    if (screenWidth > 600) {
      return WideLayout();
    } else {
      return NarrowLayout();
    }
  }
}
