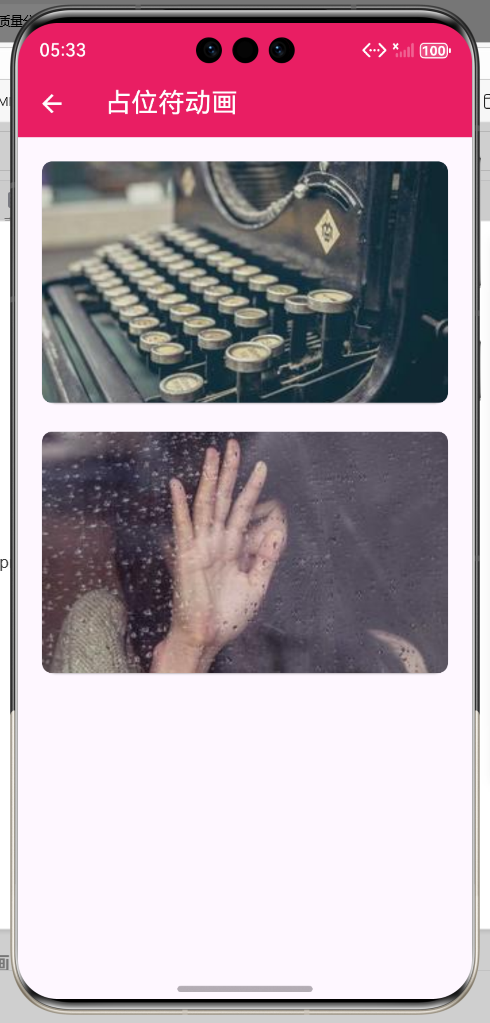

Image Widget占位符动画效果

在这里插入图片描述

概述

为占位符添加动画效果可以增强用户的等待体验，使加载过程更加生动有趣。动画效果不仅能够吸引用户注意力，还能缓解等待的焦虑感，提升整体的用户体验。

占位符动画类型

动画类型 效果 适用场景 实现难度
脉冲动画 背景色周期性变化 简单占位符 简单
骨架屏动画 模拟内容加载效果 列表、卡片 中等
旋转加载器 经典的加载指示器 通用场景 简单
进度条动画 显示加载进度 需要进度的场景 中等
弹跳动画 图标或元素的跳动 品牌化场景 简单
淡入淡出 平滑的切换效果 渐进式加载 简单
缩放动画 图标缩放效果 强调状态 简单
旋转渐变 渐变色旋转效果 现代化设计 中等

基础动画实现

1. 脉冲动画

class PulsePlaceholder extends StatefulWidget {
  final Widget child;

  const PulsePlaceholder({super.key, required this.child});

  @override
  State<PulsePlaceholder> createState() => _PulsePlaceholderState();
}

class _PulsePlaceholderState extends State<PulsePlaceholder>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 2),
      vsync: this,
    )..repeat();

    _animation = Tween<double>(begin: 0.3, end: 1.0).animate(
      CurvedAnimation(parent: _controller, curve: Curves.easeInOut),
    );
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return Container(
          color: Colors.grey.shade200.withOpacity(_animation.value),
          child: child,
        );
      },
      child: widget.child,
    );
  }
}

2. 脉冲图标动画

class PulseIconPlaceholder extends StatefulWidget {
  final IconData icon;
  final double size;
  final Color? color;

  const PulseIconPlaceholder({
    super.key,
    required this.icon,
    this.size = 64,
    this.color,
  });

  @override
  State<PulseIconPlaceholder> createState() => _PulseIconPlaceholderState();
}

class _PulseIconPlaceholderState extends State<PulseIconPlaceholder>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _scaleAnimation;
  late Animation<double> _opacityAnimation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(milliseconds: 1500),
      vsync: this,
    )..repeat(reverse: true);

    _scaleAnimation = Tween<double>(begin: 0.8, end: 1.2).animate(
      CurvedAnimation(parent: _controller, curve: Curves.easeInOut),
    );

    _opacityAnimation = Tween<double>(begin: 0.3, end: 1.0).animate(
      CurvedAnimation(parent: _controller, curve: Curves.easeInOut),
    );
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _controller,
      builder: (context, child) {
        return Transform.scale(
          scale: _scaleAnimation.value,
          child: Opacity(
            opacity: _opacityAnimation.value,
            child: Icon(
              widget.icon,
              size: widget.size,
              color: widget.color ?? Colors.grey.shade400,
            ),
          ),
        );
      },
    );
  }
}

3. 骨架屏动画

class SkeletonPlaceholder extends StatefulWidget {
  final Widget child;

  const SkeletonPlaceholder({super.key, required this.child});

  @override
  State<SkeletonPlaceholder> createState() => _SkeletonPlaceholderState();
}

class _SkeletonPlaceholderState extends State<SkeletonPlaceholder>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(milliseconds: 1500),
      vsync: this,
    )..repeat();

    _animation = Tween<double>(begin: -2, end: 2).animate(
      CurvedAnimation(parent: _controller, curve: Curves.easeInOut),
    );
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return ShaderMask(
          shaderCallback: (bounds) {
            return LinearGradient(
              colors: [
                Colors.grey.shade100,
                Colors.grey.shade200,
                Colors.grey.shade100,
              ],
              begin: Alignment.centerLeft,
              end: Alignment.centerRight,
              stops: const [
                0.0,
                _animation.value.abs() / 2,
                1.0,
              ],
            ).createShader(bounds);
          },
          child: widget.child,
        );
      },
    );
  }
}

4. 旋转加载器动画

class RotatingLoader extends StatefulWidget {
  final double size;
  final Color color;
  final double strokeWidth;

  const RotatingLoader({
    super.key,
    this.size = 48,
    this.color = Colors.blue,
    this.strokeWidth = 4,
  });

  @override
  State<RotatingLoader> createState() => _RotatingLoaderState();
}

class _RotatingLoaderState extends State<RotatingLoader>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(milliseconds: 1000),
      vsync: this,
    )..repeat();
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return SizedBox(
      width: widget.size,
      height: widget.size,
      child: AnimatedBuilder(
        animation: _controller,
        builder: (context, child) {
          return Transform.rotate(
            angle: _controller.value * 2 * pi,
            child: CustomPaint(
              size: Size(widget.size, widget.size),
              painter: _CircleLoaderPainter(
                color: widget.color,
                strokeWidth: widget.strokeWidth,
                progress: _controller.value,
              ),
            ),
          );
        },
      ),
    );
  }
}

class _CircleLoaderPainter extends CustomPainter {
  final Color color;
  final double strokeWidth;
  final double progress;

  _CircleLoaderPainter({
    required this.color,
    required this.strokeWidth,
    required this.progress,
  });

  @override
  void paint(Canvas canvas, Size size) {
    final center = Offset(size.width / 2, size.height / 2);
    final radius = (size.width - strokeWidth) / 2;

    // 背景圆环
    final backgroundPaint = Paint()
      ..color = color.withOpacity(0.2)
      ..style = PaintingStyle.stroke
      ..strokeWidth = strokeWidth;

    canvas.drawCircle(center, radius, backgroundPaint);

    // 进度圆弧
    final progressPaint = Paint()
      ..color = color
      ..style = PaintingStyle.stroke
      ..strokeWidth = strokeWidth
      ..strokeCap = StrokeCap.round;

    final startAngle = -pi / 2;
    final sweepAngle = 2 * pi * progress;
    final rect = Rect.fromCircle(center: center, radius: radius);

    canvas.drawArc(rect, startAngle, sweepAngle, false, progressPaint);
  }

  @override
  bool shouldRepaint(_CircleLoaderPainter oldDelegate) {
    return oldDelegate.progress != progress;
  }
}

5. 渐变旋转动画

class GradientRotatingPlaceholder extends StatefulWidget {
  final double size;
  final List<Color> colors;

  const GradientRotatingPlaceholder({
    super.key,
    this.size = 200,
    this.colors = const [
      Colors.blue,
      Colors.purple,
      Colors.pink,
    ],
  });

  @override
  State<GradientRotatingPlaceholder> createState() =>
      _GradientRotatingPlaceholderState();
}

class _GradientRotatingPlaceholderState
    extends State<GradientRotatingPlaceholder>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 3),
      vsync: this,
    )..repeat();

    _animation = Tween<double>(begin: 0, end: 2 * pi).animate(_controller);
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return Transform.rotate(
          angle: _animation.value,
          child: Container(
            width: widget.size,
            height: widget.size,
            decoration: BoxDecoration(
              gradient: LinearGradient(
                colors: widget.colors,
                begin: Alignment.centerLeft,
                end: Alignment.centerRight,
              ),
              shape: BoxShape.circle,
            ),
            child: Center(
              child: Icon(
                Icons.image,
                size: widget.size * 0.3,
                color: Colors.white54,
              ),
            ),
          ),
        );
      },
    );
  }
}

6. 波浪动画

class WavePlaceholder extends StatefulWidget {
  final double height;
  final Color color;

  const WavePlaceholder({
    super.key,
    this.height = 200,
    this.color = Colors.blue,
  });

  @override
  State<WavePlaceholder> createState() => _WavePlaceholderState();
}

class _WavePlaceholderState extends State<WavePlaceholder>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  late Animation<double> _animation;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(milliseconds: 2000),
      vsync: this,
    )..repeat();

    _animation = Tween<double>(begin: 0, end: 2 * pi).animate(_controller);
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return AnimatedBuilder(
      animation: _animation,
      builder: (context, child) {
        return CustomPaint(
          size: Size(double.infinity, widget.height),
          painter: _WavePainter(
            color: widget.color,
            animationValue: _animation.value,
          ),
        );
      },
    );
  }
}

class _WavePainter extends CustomPainter {
  final Color color;
  final double animationValue;

  _WavePainter({
    required this.color,
    required this.animationValue,
  });

  @override
  void paint(Canvas canvas, Size size) {
    final paint = Paint()
      ..color = color.withOpacity(0.3)
      ..style = PaintingStyle.fill;

    final path = Path();

    for (int i = 0; i < 3; i++) {
      final waveHeight = 20.0 * (i + 1);
      final waveLength = size.width;
      final phase = animationValue + i * 0.5;

      path.reset();
      path.moveTo(0, size.height);

      for (double x = 0; x <= waveLength; x += 5) {
        final y = size.height / 2 +
                   sin((x / waveLength) * 2 * pi + phase) * waveHeight;
        path.lineTo(x, y);
      }

      path.lineTo(size.width, size.height);
      path.lineTo(0, size.height);
      path.close();

      canvas.drawPath(path, paint);
    }
  }

  @override
  bool shouldRepaint(_WavePainter oldDelegate) {
    return oldDelegate.animationValue != animationValue;
  }
}

综合应用

7. 图片加载动画组件

class ImageWithAnimatedPlaceholder extends StatelessWidget {
  final String imageUrl;
  final PlaceholderAnimationType animationType;
  final double height;
  final double? width;

  const ImageWithAnimatedPlaceholder({
    super.key,
    required this.imageUrl,
    this.animationType = PlaceholderAnimationType.pulse,
    this.height = 200,
    this.width,
  });

  @override
  Widget build(BuildContext context) {
    return Container(
      height: height,
      width: width,
      child: Image.network(
        imageUrl,
        loadingBuilder: (context, child, loadingProgress) {
          if (loadingProgress == null) {
            return ClipRRect(
              borderRadius: BorderRadius.circular(8),
              child: child,
            );
          }
          return _buildAnimatedPlaceholder();
        },
        errorBuilder: (context, error, stackTrace) {
          return _buildErrorWidget();
        },
        fit: BoxFit.cover,
      ),
    );
  }

  Widget _buildAnimatedPlaceholder() {
    switch (animationType) {
      case PlaceholderAnimationType.pulse:
        return PulsePlaceholder(
          child: Center(
            child: CircularProgressIndicator(),
          ),
        );
      case PlaceholderAnimationType.pulseIcon:
        return PulseIconPlaceholder(icon: Icons.image);
      case PlaceholderAnimationType.skeleton:
        return SkeletonPlaceholder(
          child: _buildSkeletonContent(),
        );
      case PlaceholderAnimationType.rotating:
        return Container(
          color: Colors.grey.shade200,
          child: Center(
            child: RotatingLoader(),
          ),
        );
      case PlaceholderAnimationType.gradient:
        return Container(
          color: Colors.grey.shade200,
          child: Center(
            child: GradientRotatingPlaceholder(size: 100),
          ),
        );
      case PlaceholderAnimationType.wave:
        return WavePlaceholder(height: height);
    }
  }

  Widget _buildSkeletonContent() {
    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        Expanded(
          child: Container(
            margin: const EdgeInsets.all(16),
            decoration: BoxDecoration(
              color: Colors.grey.shade200,
              borderRadius: BorderRadius.circular(8),
            ),
          ),
        ),
        Padding(
          padding: const EdgeInsets.symmetric(horizontal: 16),
          child: Container(
            height: 16,
            width: double.infinity,
            decoration: BoxDecoration(
              color: Colors.grey.shade200,
              borderRadius: BorderRadius.circular(4),
            ),
          ),
        ),
        const SizedBox(height: 8),
        Padding(
          padding: const EdgeInsets.symmetric(horizontal: 16),
          child: Container(
            height: 16,
            width: double.infinity * 0.6,
            decoration: BoxDecoration(
              color: Colors.grey.shade200,
              borderRadius: BorderRadius.circular(4),
            ),
          ),
        ),
      ],
    );
  }

  Widget _buildErrorWidget() {
    return Container(
      color: Colors.grey.shade300,
      child: const Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Icon(Icons.error_outline, size: 48, color: Colors.grey),
            SizedBox(height: 8),
            Text('加载失败', style: TextStyle(color: Colors.grey)),
          ],
        ),
      ),
    );
  }
}

enum PlaceholderAnimationType {
  pulse,
  pulseIcon,
  skeleton,
  rotating,
  gradient,
  wave,
}

使用示例

class MyPage extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return ListView(
      padding: const EdgeInsets.all(16),
      children: [
        const Text('脉冲动画', style: TextStyle(fontSize: 18)),
        const SizedBox(height: 8),
        ImageWithAnimatedPlaceholder(
          imageUrl: 'https://picsum.photos/400/300',
          animationType: PlaceholderAnimationType.pulse,
        ),

        const SizedBox(height: 24),
        const Text('脉冲图标', style: TextStyle(fontSize: 18)),
        const SizedBox(height: 8),
        ImageWithAnimatedPlaceholder(
          imageUrl: 'https://picsum.photos/400/300',
          animationType: PlaceholderAnimationType.pulseIcon,
        ),

        const SizedBox(height: 24),
        const Text('骨架屏', style: TextStyle(fontSize: 18)),
        const SizedBox(height: 8),
        ImageWithAnimatedPlaceholder(
          imageUrl: 'https://picsum.photos/400/300',
          animationType: PlaceholderAnimationType.skeleton,
        ),

        const SizedBox(height: 24),
        const Text('旋转加载器', style: TextStyle(fontSize: 18)),
        const SizedBox(height: 8),
        ImageWithAnimatedPlaceholder(
          imageUrl: 'https://picsum.photos/400/300',
          animationType: PlaceholderAnimationType.rotating,
        ),

        const SizedBox(height: 24),
        const Text('渐变旋转', style: TextStyle(fontSize: 18)),
        const SizedBox(height: 8),
        ImageWithAnimatedPlaceholder(
          imageUrl: 'https://picsum.photos/400/300',
          animationType: PlaceholderAnimationType.gradient,
        ),
      ],
    );
  }
}

最佳实践

  1. 性能优化：避免过于复杂的动画，保持流畅性
  2. 视觉一致性：动画风格与应用整体设计保持一致
  3. 品牌化设计：使用品牌色和设计语言
  4. 适度使用：不要过度使用动画，避免分散用户注意力
  5. 动画时长：通常1-3秒的循环动画效果最佳
  6. 可访问性：考虑偏好设置，允许用户关闭动画
  7. 错误降级：动画失败时提供简单的静态占位符

总结

精心设计的动画效果能够让等待过程变得更加愉悦，提升整体的用户体验。通过合理选择动画类型、控制动画时长和保持性能流畅，可以创建出生动有趣的占位符效果。记住要平衡视觉效果和性能，在吸引用户注意力的同时避免过度设计。

# flutter # harmonyos # 华为
Logo
腾讯云开发者社区

腾讯云面向开发者汇聚海量精品云计算使用和开发经验，营造开放的云计算技术生态圈。

更多推荐

终极指南：Flink SQL连接器版本管理从混乱到有序的升级之路

Apache Flink作为流处理领域的佼佼者，其SQL连接器的版本管理一直是开发者面临的核心挑战。本文将系统讲解Flink SQL连接器版本管理的最佳实践，帮助你轻松应对版本兼容性问题，实现从混乱到有序的升级之旅。## 连接器版本管理的常见痛点 😫在Flink应用开发中，连接器版本管理常常让开发者头疼不已。不同版本的连接器可能导致各种兼容性问题，例如API变更、功能差异甚至运行时错误。

avatar 腾讯云开发者社区

Elasticsearch复杂数据类型终极指南：从入门到精通

Elasticsearch作为功能强大的搜索引擎，支持多种复杂数据类型，让开发者能够灵活处理各种结构化和非结构化数据。本文将带你全面了解Elasticsearch中的复杂数据类型，从基础概念到实际应用，助你轻松掌握数据建模的核心技巧。## 内部对象：构建层级化数据结构在Elasticsearch中，对象类型（Object）是最基础的复杂数据类型之一，用于表示具有嵌套关系的数据。例如，我们可

avatar 腾讯云开发者社区

如何快速搭建Neon无服务器PostgreSQL：面向初学者的完整指南

Neon是一款革命性的无服务器PostgreSQL解决方案，它通过分离存储和计算层，实现了自动扩缩容、类代码式数据库分支以及零级扩展能力。本指南将帮助你从零开始搭建Neon开发环境，体验这款创新数据库的强大功能。## 准备工作：环境要求与依赖项在开始搭建Neon环境前，请确保你的系统满足以下要求：- Linux操作系统（推荐Ubuntu 20.04+或Debian 11+）- Git

avatar 腾讯云开发者社区
