因为需要用到contrib模块的ximgproc，但是发现平时使用的opencv中没有，问了ai才知道这是contrib模块中的，需要重新编译，过程略微烦人，这里给其他人做个参考

1. opencv4.10下载以及contrib下载

opencv下载地址：所有版本地址

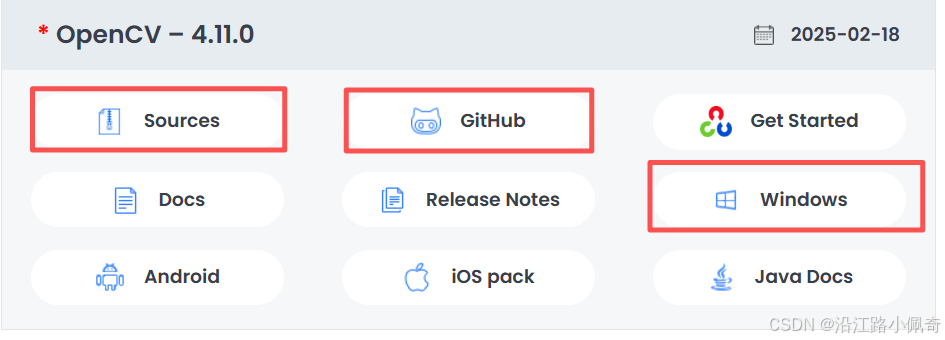

opencv4.10.0下载，下面三个默认随意一个就行，我下载的是windows，会下载一个压缩包

放到自己选定的位置后解压，会得到下面的东西

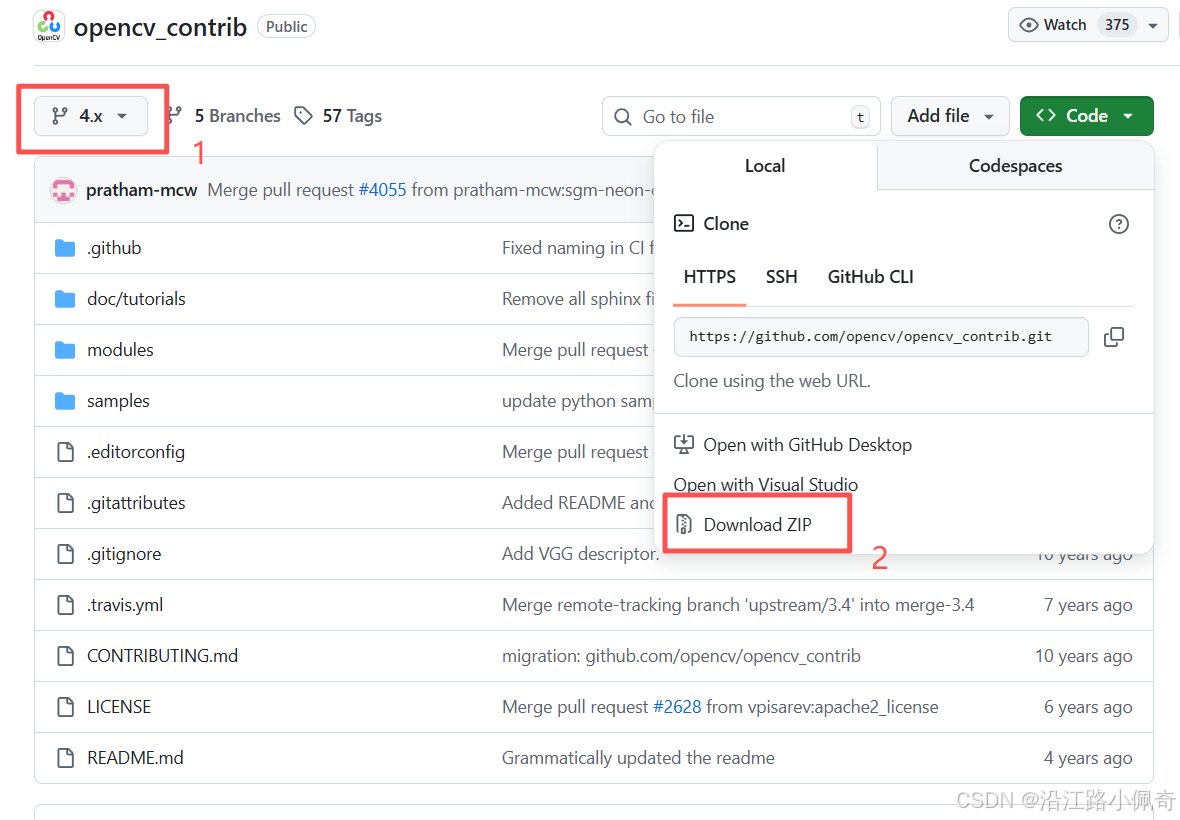

opencv_contrib下载地址：https://github.com/opencv/opencv_contrib，进入以后先确认是不是4.x版本，然后下载压缩包

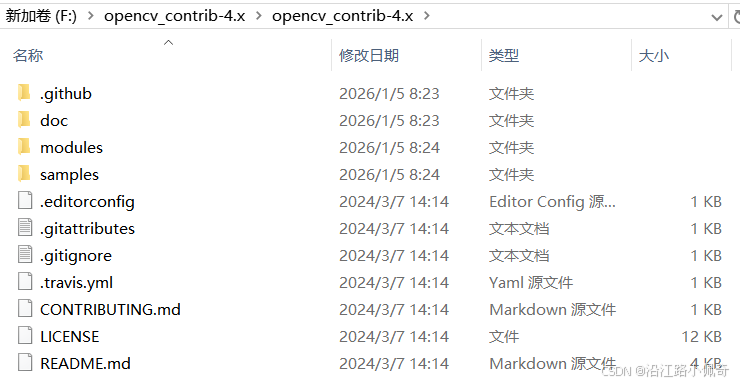

解压缩以后如下：

2. CMake下载

我们需要Cmake软件来编译，下载链接：https://cmake.org/download/

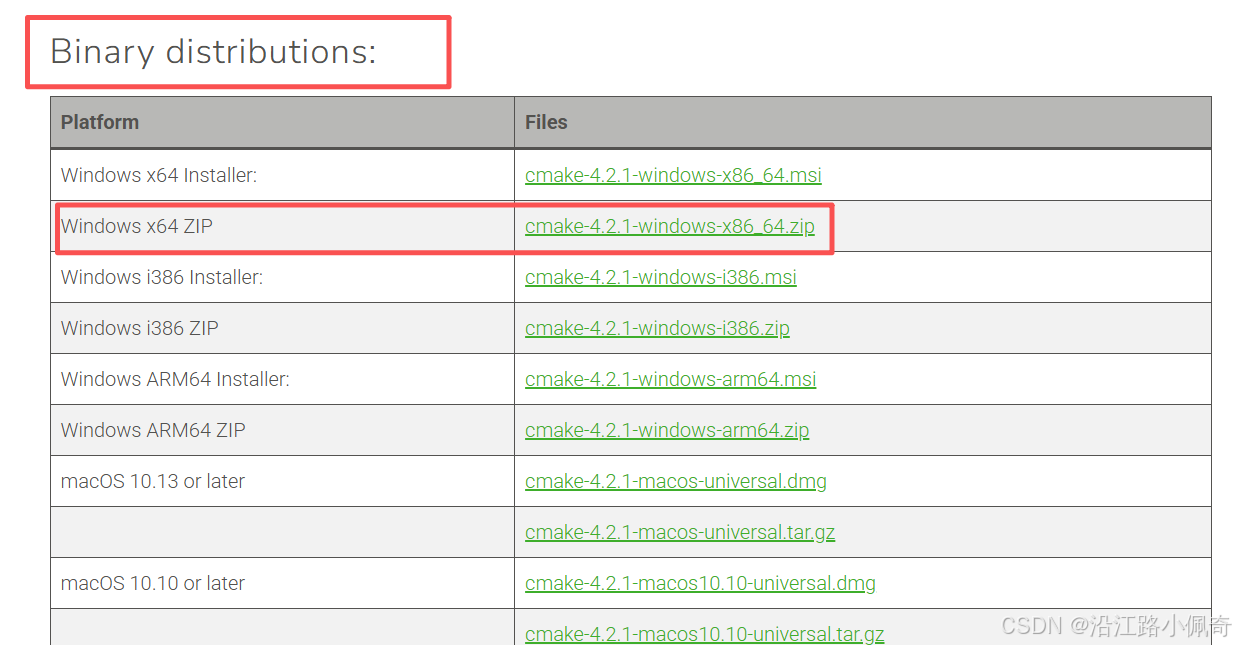

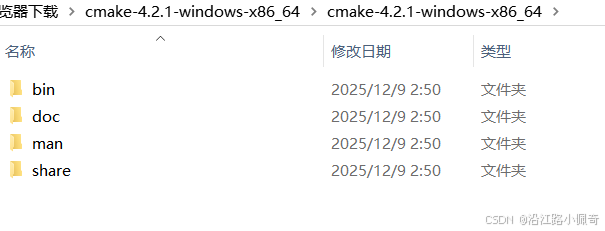

我下载的是4.2.1版本，选择Binary distributions的Windows x64 ZIP，下载完成后解压

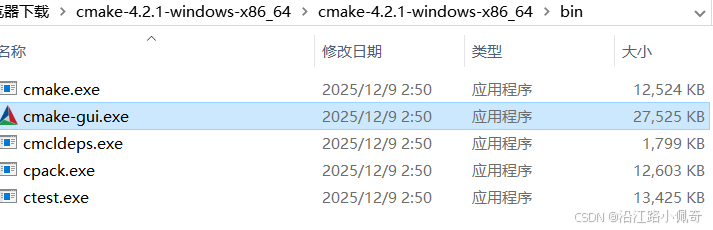

然后在bin目录下找到camke-gui.exe文件，双击打开

3.编译

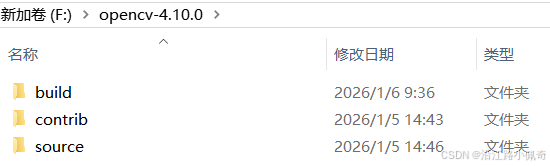

我先把原来opencv4.10.0的所有内容都放在了新创建的source文件夹中，然后创建build，contrib两个文件夹，build为空，一会用来存放编译的文件，contrib文件夹里面放置的是刚才下载的contrib压缩包里面的东西

build为空文件夹

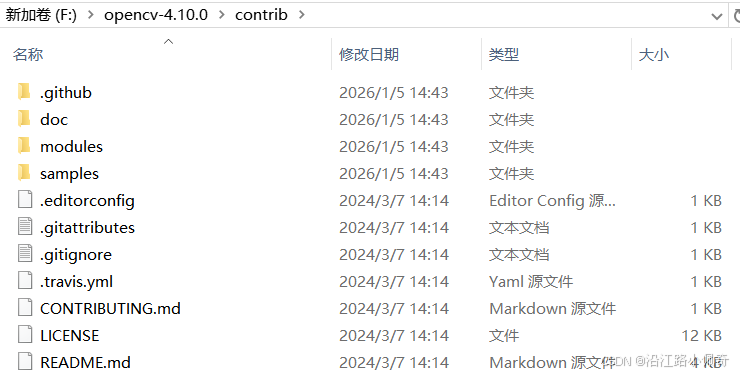

contrib里面内容如下，其实就是把前面下载的contrib压缩包内容复制过来

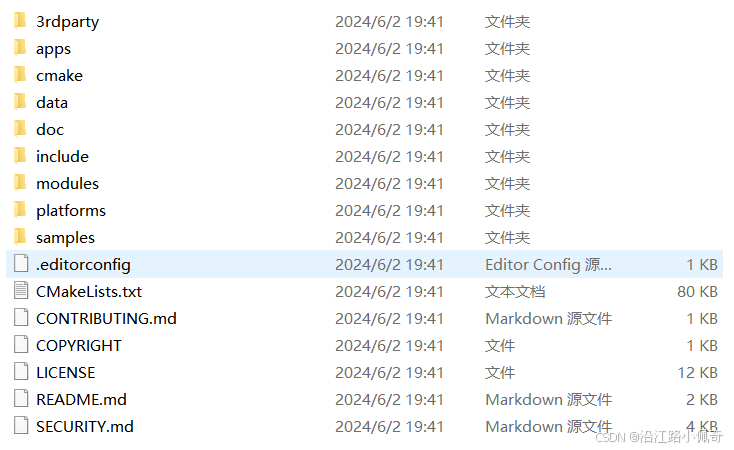

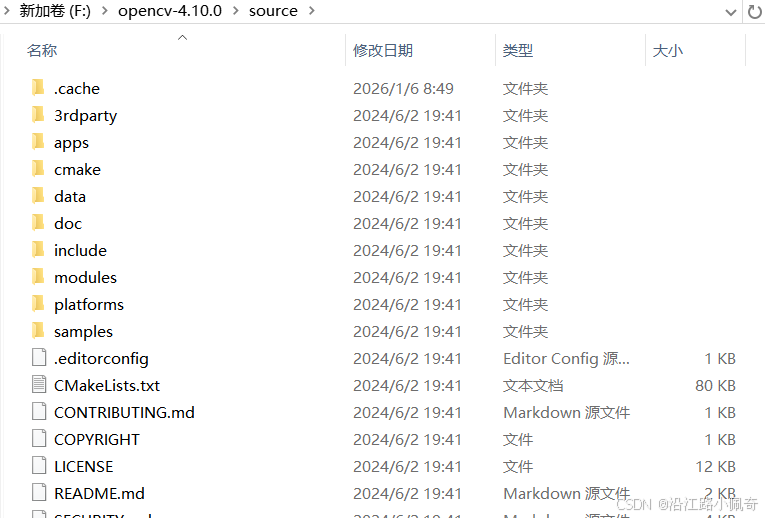

source文件夹内容如下，其实就是前面下载的opencv4.10.0的内容

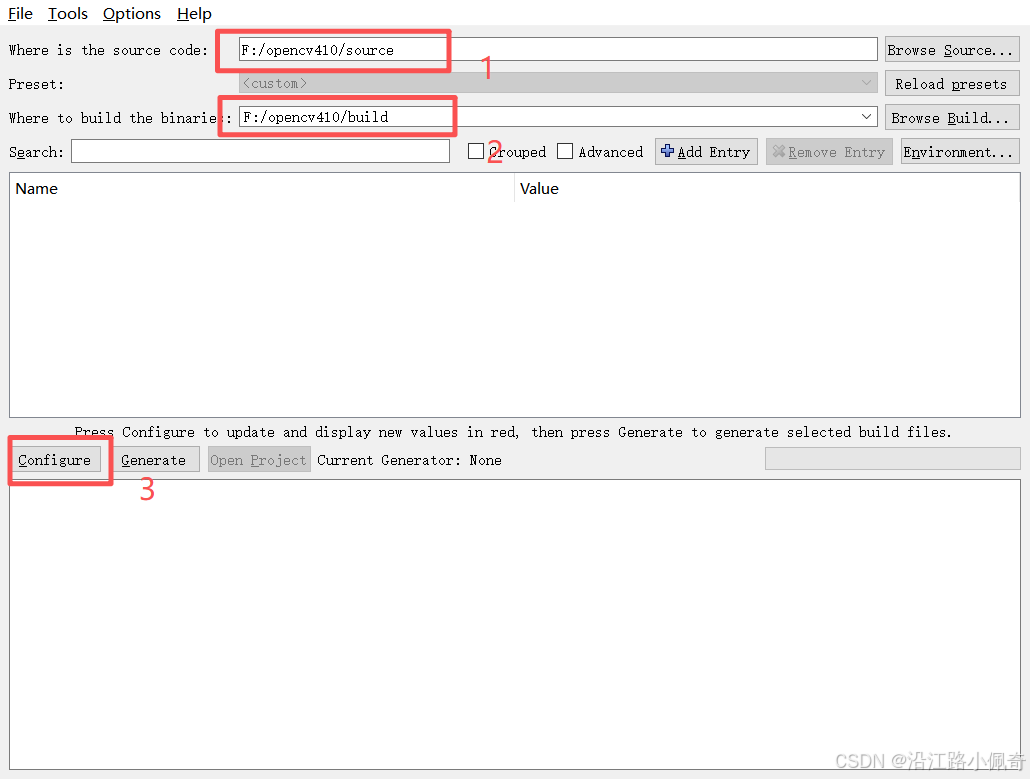

接下来打开cmake，选择源路径和输出路径，然后点击configure按钮，注意此处我已经编译好了，为了演示我重新创建了文件夹，要是前面有路径什么完全跟我一样的请注意此处文件夹变了，你们不用变，按照你们的来

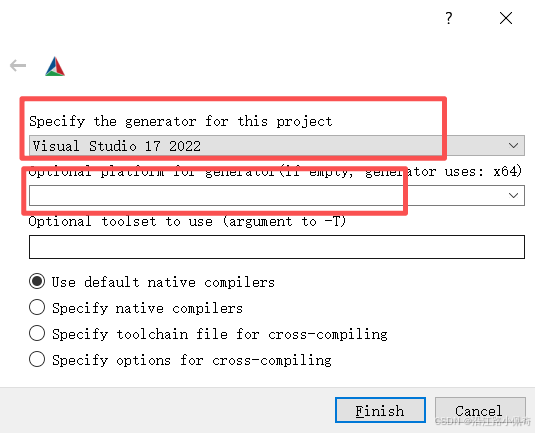

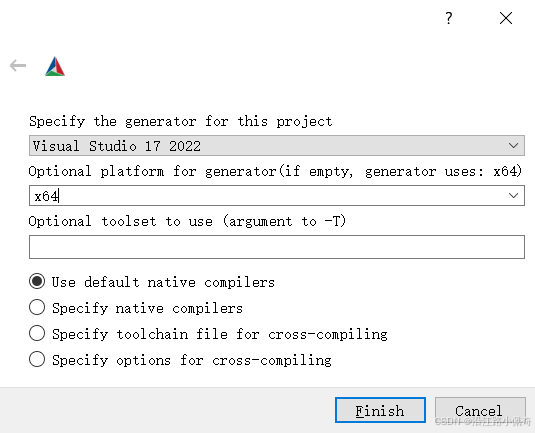

点击configure以后会弹出下面的窗口，需要你选择使用的VS版本和平台

我选择的如下：

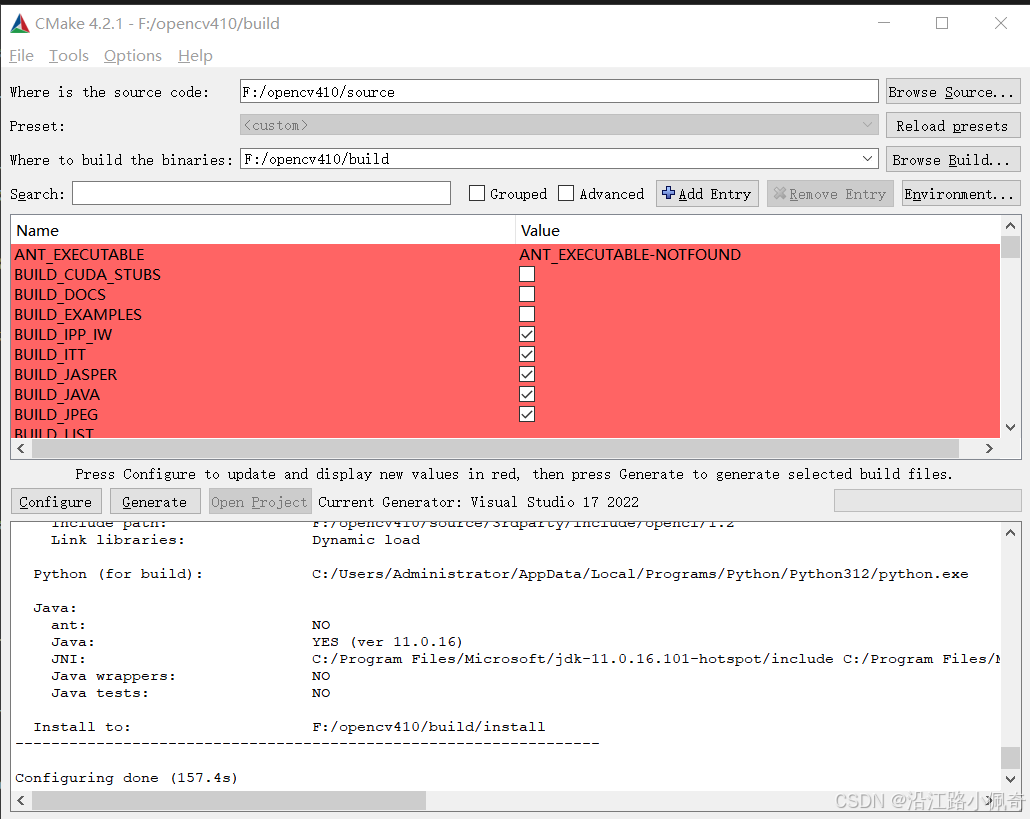

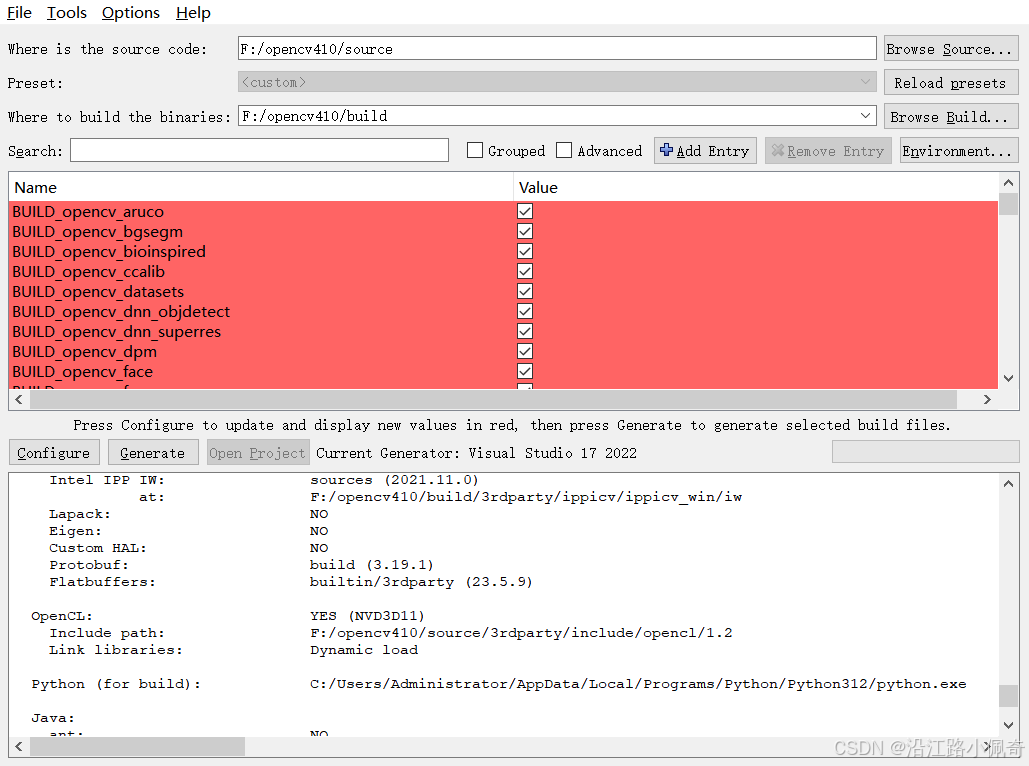

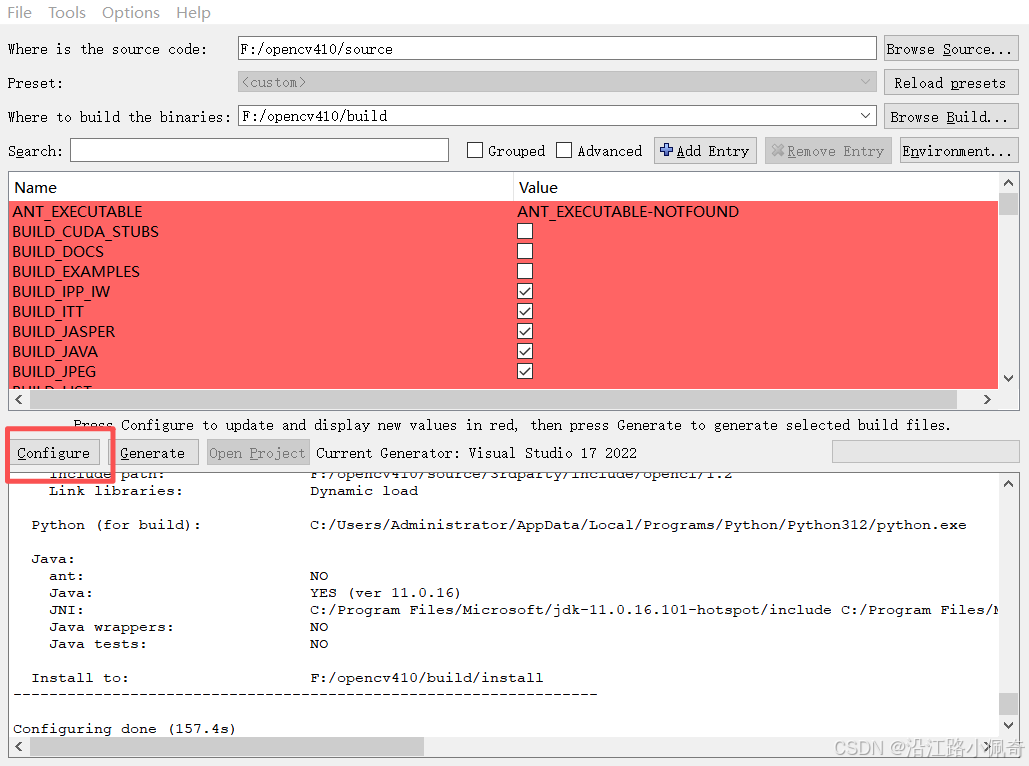

然后点击finish开始配置，配置完成后大概率看到满江红，红色的全是异常

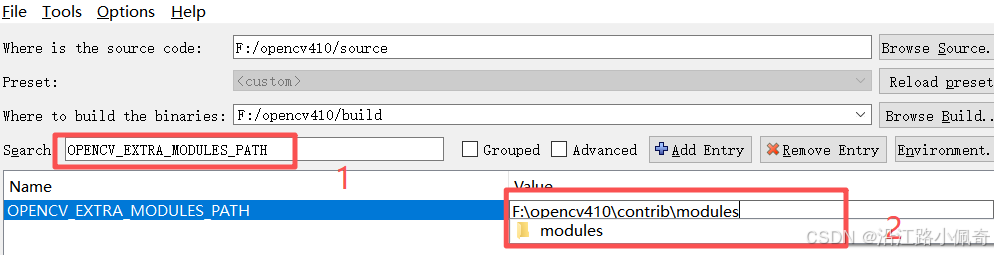

然后在Serach中搜索：OPENCV_EXTRA_MODULES_PATH        搜索的时候一定要注意有没有空格，只要有空格你就找不到了。将路径值改为你的contrib里面的modules路径；注意，必须点一下下面的modules文件夹图标，点完以后会帮你把"\"换成“/”,机器无法识别"\"；

然后继续搜索：搜索的时候一定要注意有没有空格，只要有空格你就找不到了
OPENCV_ENABLE_NONFREE          选中（专利算法模块，SIFT和SURF等）

下面这个也建议勾选上，能生成一个整合的dll，不然你就得一个个添加到引用了

弄完以后再点一次configure按钮，这是第二次点了

然后发现上面还是红的，但是之前是全红，现在有一半都白了

现在还有很多红的原因是缺少很多文件，报错内容大概是这些，基本都是文件缺失

1. CMake Warning at D:/360安全浏览器下载/cmake-4.2.1-windows-x86_64/cmake-4.2.1-windows-x86_64/share/cmake-4.2/Modules/FindBLAS.cmake:1381 (find_package): By not providing "Findnvpl.cmake" in CMAKE_MODULE_PATH this project has asked CMake to find a package configuration file provided by "nvpl", but CMake did not find one. Could not find a package configuration file provided by "nvpl" with any of the following names: nvplConfig.cmake nvpl-config.cmake Add the installation prefix of "nvpl" to CMAKE_PREFIX_PATH or set "nvpl_DIR" to a directory containing one of the above files. If "nvpl" provides a separate development package or SDK, be sure it has been installed. Call Stack (most recent call first): D:/360安全浏览器下载/cmake-4.2.1-windows-x86_64/cmake-4.2.1-windows-x86_64/share/cmake-4.2/Modules/FindLAPACK.cmake:275 (find_package) D:/360安全浏览器下载/cmake-4.2.1-windows-x86_64/cmake-4.2.1-windows-x86_64/share/cmake-4.2/Modules/FindLAPACK.cmake:321 (_lapack_find_dependency) cmake/OpenCVFindLAPACK.cmake:208 (find_package) CMakeLists.txt:831 (include) 2. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): wechat_qrcode: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/wechat_qrcode/CMakeLists.txt:26 (ocv_download) CMake Warning at F:/opencv-4.10.0/contrib/modules/wechat_qrcode/CMakeLists.txt:37 (message): WeChatQRCode: Can't get detect caffemodel file for wechat qrcode. 3. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): wechat_qrcode: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/wechat_qrcode/CMakeLists.txt:26 (ocv_download) CMake Warning at F:/opencv-4.10.0/contrib/modules/wechat_qrcode/CMakeLists.txt:37 (message): WeChatQRCode: Can't get detect prototxt file for wechat qrcode. 4. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): wechat_qrcode: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/wechat_qrcode/CMakeLists.txt:26 (ocv_download) CMake Warning at F:/opencv-4.10.0/contrib/modules/wechat_qrcode/CMakeLists.txt:37 (message): WeChatQRCode: Can't get sr caffemodel file for wechat qrcode. 5. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): wechat_qrcode: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/wechat_qrcode/CMakeLists.txt:26 (ocv_download) CMake Warning at F:/opencv-4.10.0/contrib/modules/wechat_qrcode/CMakeLists.txt:37 (message): WeChatQRCode: Can't get sr prototxt file for wechat qrcode. 6. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/boostdesc: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_boostdesc.cmake:22 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:12 (download_boost_descriptors) 7. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/boostdesc: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_boostdesc.cmake:22 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:12 (download_boost_descriptors) 8. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/boostdesc: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_boostdesc.cmake:22 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:12 (download_boost_descriptors) 9. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/boostdesc: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_boostdesc.cmake:22 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:12 (download_boost_descriptors) 10. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/boostdesc: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_boostdesc.cmake:22 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:12 (download_boost_descriptors) 11. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/boostdesc: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_boostdesc.cmake:22 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:12 (download_boost_descriptors) 12. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/boostdesc: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_boostdesc.cmake:22 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:12 (download_boost_descriptors) 13. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/vgg: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_vgg.cmake:16 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:13 (download_vgg_descriptors) 14. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/vgg: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_vgg.cmake:16 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:13 (download_vgg_descriptors) 15. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/vgg: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_vgg.cmake:16 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:13 (download_vgg_descriptors) 16. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): xfeatures2d/vgg: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/xfeatures2d/cmake/download_vgg.cmake:16 (ocv_download) F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:13 (download_vgg_descriptors) CMake Warning at F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:17 (message): features2d: Boost descriptor implementation is not available due to missing data (download failed: https://github.com/opencv/opencv_contrib/issues/1301) CMake Warning at F:/opencv-4.10.0/contrib/modules/xfeatures2d/CMakeLists.txt:22 (message): features2d: VGG descriptor implementation is not available due to missing data (download failed: https://github.com/opencv/opencv_contrib/issues/1301) 17. CMake Warning at cmake/OpenCVDownload.cmake:248 (message): data: Download failed: 35;"SSL connect error. If this is due to https certificate verification failure, one may set environment variable CMAKE_TLS_VERIFY=0 to suppress it." For details please refer to the download log file: F:/opencv-4.10.0/build/CMakeDownloadLog.txt Call Stack (most recent call first): F:/opencv-4.10.0/contrib/modules/face/CMakeLists.txt:13 (ocv_download) CMake Warning at F:/opencv-4.10.0/contrib/modules/face/CMakeLists.txt:26 (message): Face: Can't get model file for face alignment. 18. CMake Warning (dev) at CMakeLists.txt:1155 (install): Policy CMP0177 is not set: install() DESTINATION paths are normalized. Run "cmake --help-policy CMP0177" for policy details. Use the cmake_policy command to set the policy and suppress this warning. This warning is for project developers. Use -Wno-dev to suppress it.

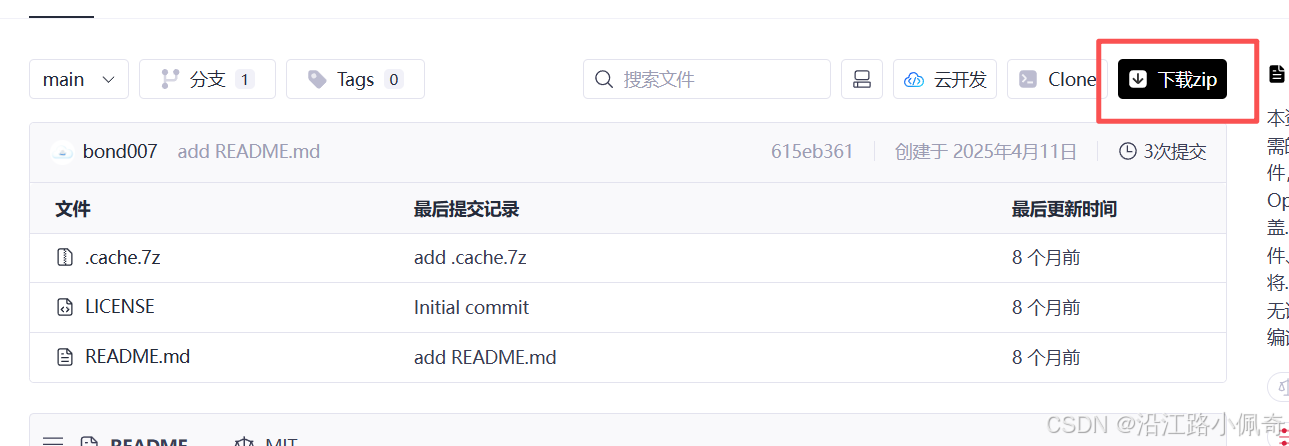

为了方便可以在这个大佬的博客地址https://blog.csdn.net/gitblog_06749/article/details/147173043下载.cache的压缩包来替换出问题的地方

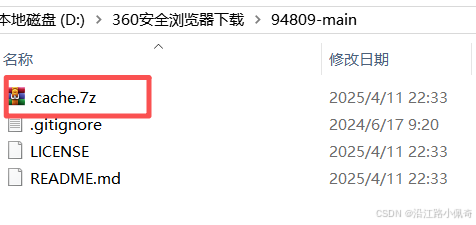

下载以后解压会看到下面的内容，然后解压缩.cache.7z

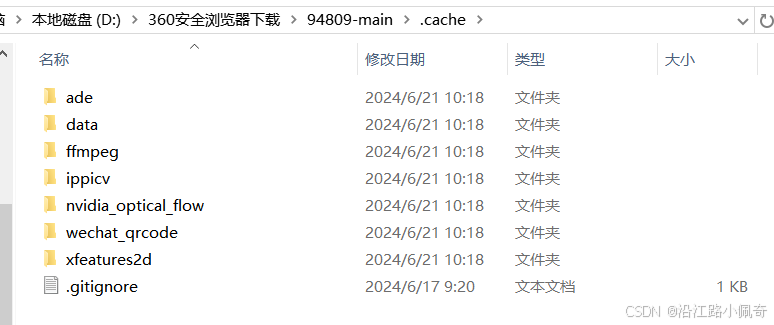

解压后得到：

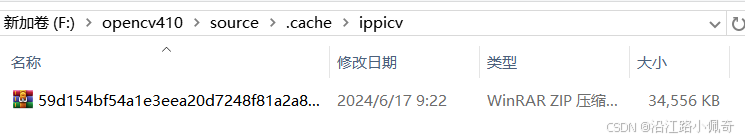

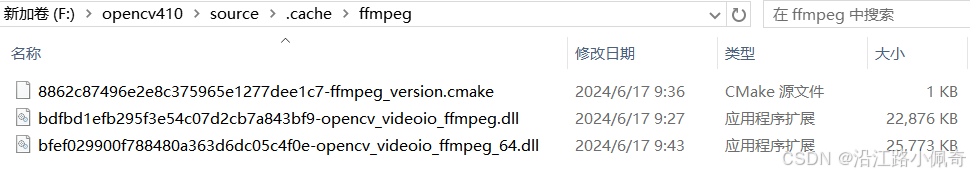

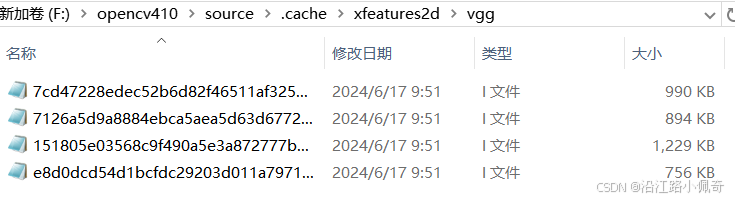

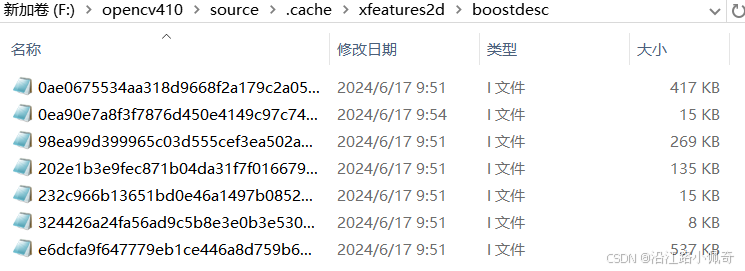

把这些东西全部复制到前面opencv4.10.0里面的source/.cache文件夹下，全部替换，然后查看.cache的ffmpeg、ippicv、xfeatures2d/boostdesc、xfeatures2d/vgg文件夹里面的文件大小是不是0kb，如果不是0kb就说明对了，是0kb那就有问题，再来一遍吧

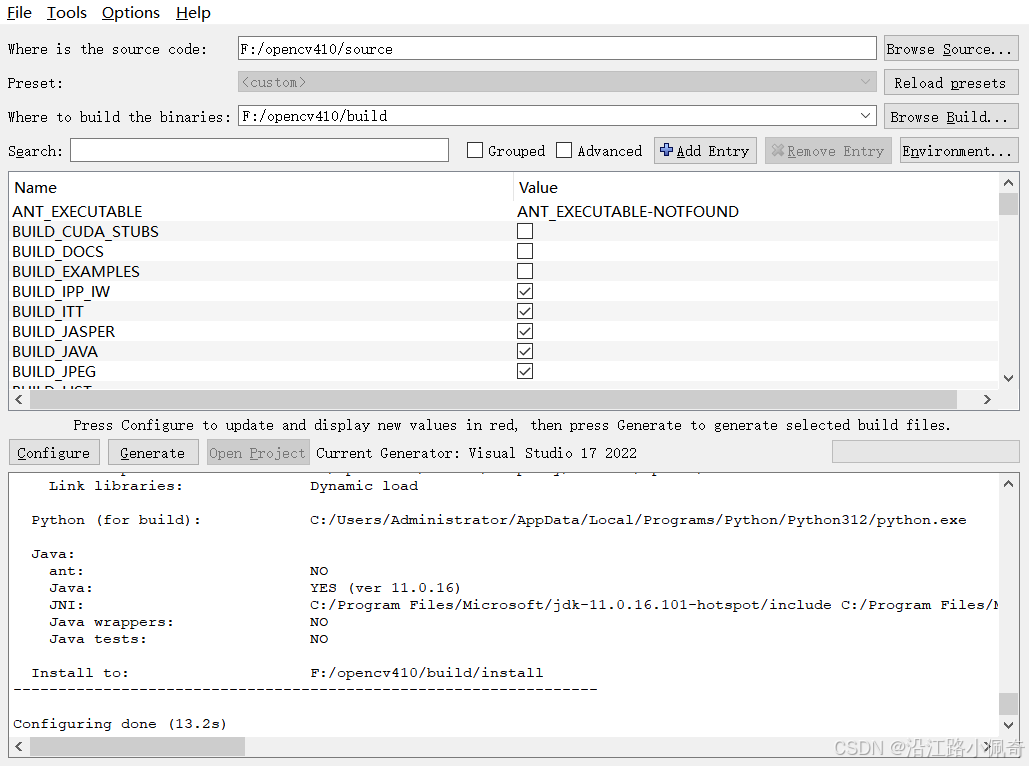

全部替换完成后，再次点击CMake的configure按钮，这是第三次点击了，不出意外的话上面就应该没有红色的了

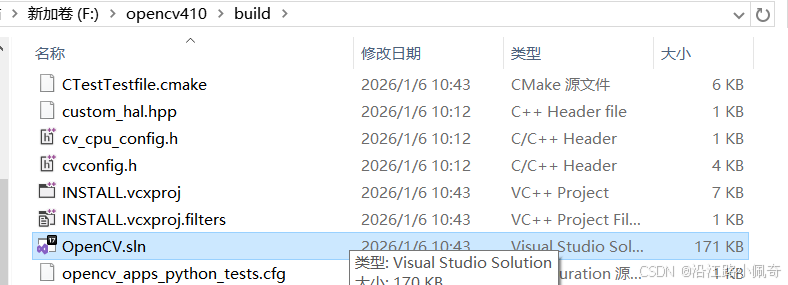

到这基本就完成了，然后点击Generate按钮生成VS项目，生成以后进入build文件夹，找到OpenCV.sln，打开它

4. 生成

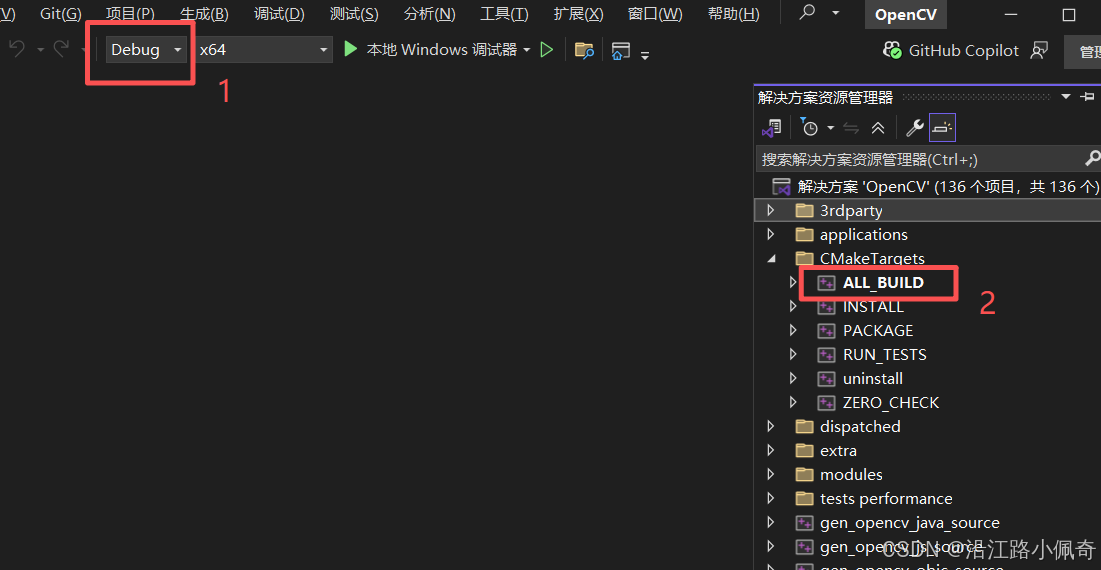

打开以后显示如下，首先将debug改成release，然后右键ALL BUILD项目点击生成,有需要可以把debug也生成一遍，反正我两个都生成了

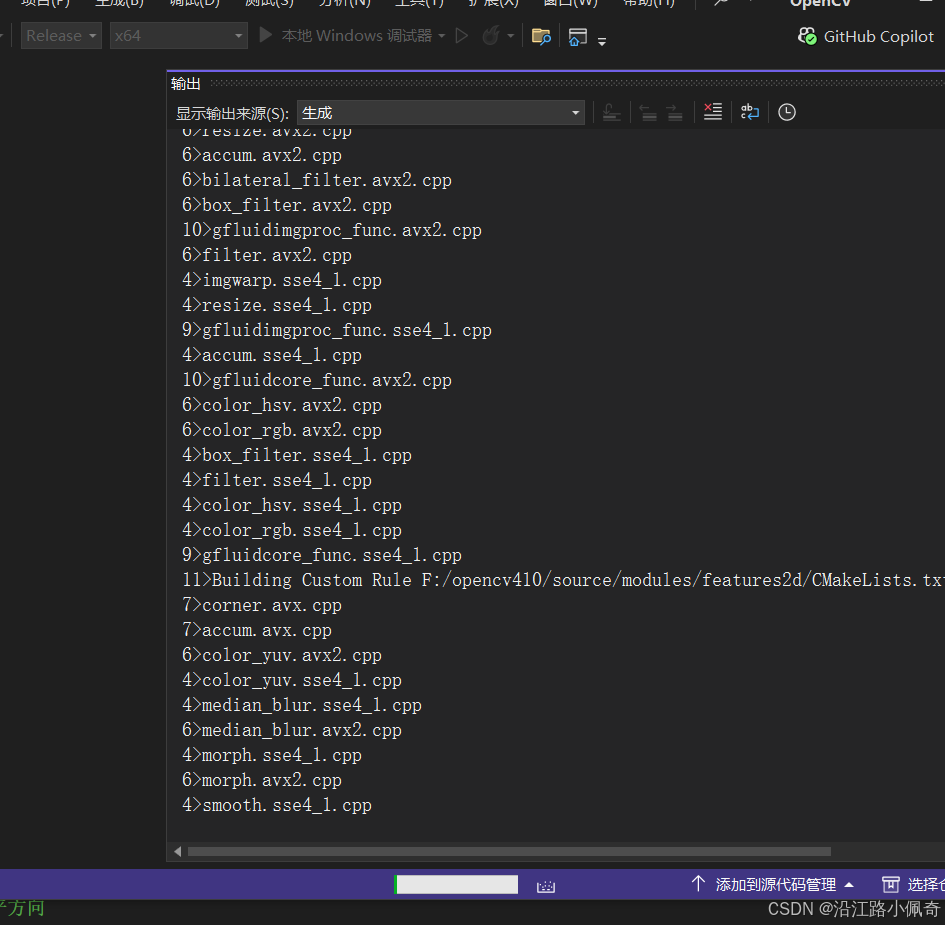

然后就可以去干别的了，这个过程比较久，大概十分钟

然后就有两个结果，一个是生成成功，皆大欢喜，另一个是一堆报错，这个时候肯定是前面camke出问题了，问ai找方法吧，我就是折腾了两天

这样就是生成成功了

最后一步生成INSTALL项目，这一步会将编译好的库文件、头文件复制到你 CMake 中CMAKE_INSTALL_PREFIX指定的目录（比如F:/opencv-4.10.0/build/install），是后续使用 OpenCV 的关键。

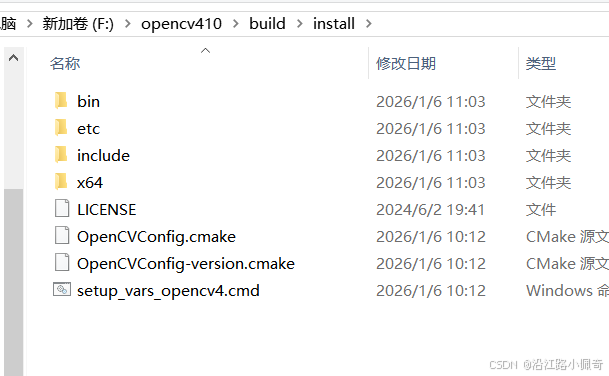

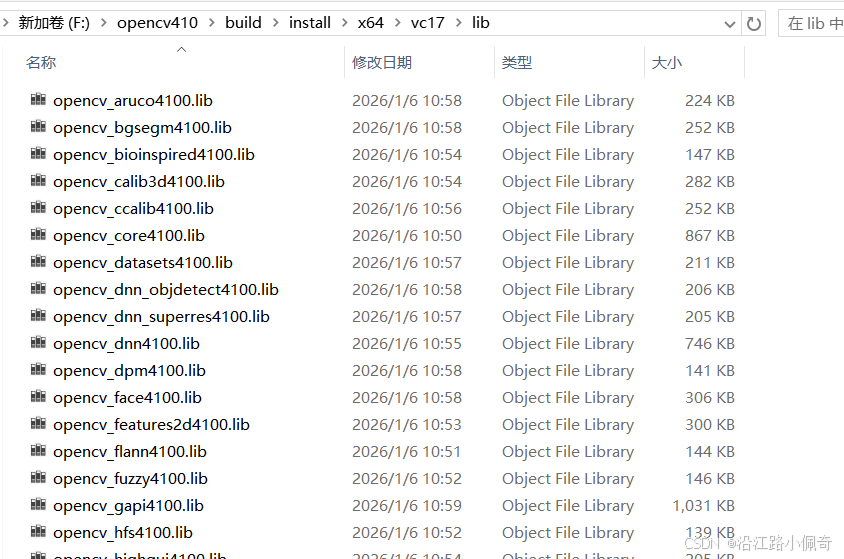

这个生成的就快了，嗖嗖的，生成后在build目录下就能看到install文件夹，里面内容如下，现在可以把这个install文件夹复制到你的项目中使用

如果前面你没有勾选生成BUILD_opencv_world的话，你的lib目录下就会有一堆dll

如果勾选的话最后就只有一个，直接引用就行

以上就全部完成了，仅供参考
