Flutter for OpenHarmony剧本杀组队App实战:个人中心布局实现
本文介绍了一个剧本杀App个人中心页面的Flutter实现方案。页面采用三段式布局:顶部渐变背景用户信息区(包含头像、昵称、等级),中间数据统计卡片(展示游戏场次、组队等数据),底部功能菜单列表(组队、收藏、钱包等12项功能)。代码结构清晰,使用StatelessWidget构建,通过配置化方式管理菜单项,实现模块化开发。关键实现包括:渐变背景设计、圆形头像编辑功能、数据统计卡片布局、功能菜单列表

个人中心是用户管理个人信息、查看游戏数据和访问各项功能的核心入口。本篇文章将详细讲解如何实现一个功能完善的个人中心页面,包括用户信息展示、数据统计和功能菜单列表。

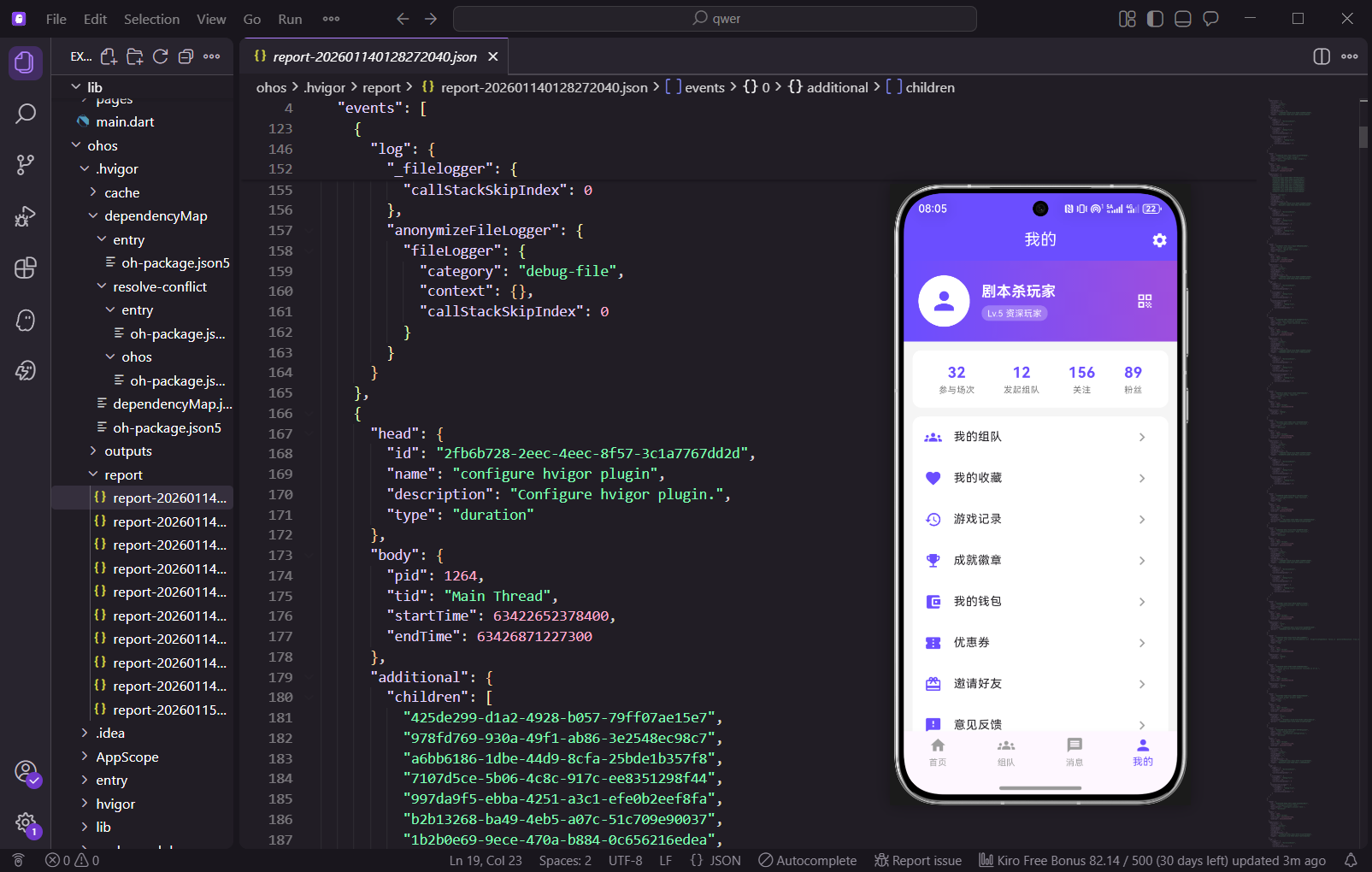

个人中心页面采用经典的三段式布局:顶部用户信息区域使用渐变背景突出展示,中间数据统计区域展示用户的游戏数据,底部功能菜单列表提供各项功能入口。
import 'package:flutter/material.dart';
import 'package:get/get.dart';
import 'settings_page.dart';
import 'my_teams_page.dart';
import 'favorites_page.dart';
import 'edit_profile_page.dart';
import 'history_page.dart';
import 'feedback_page.dart';
import 'about_page.dart';
import 'achievement_page.dart';
import 'level_page.dart';
import 'wallet_page.dart';
import 'invite_page.dart';
import 'coupon_page.dart';
首先导入所需的依赖包和页面文件。Flutter的material库提供了丰富的UI组件,GetX用于路由导航和状态管理。我们还导入了设置页面、我的组队、收藏、编辑资料、历史记录、反馈、关于、成就、等级、钱包、邀请和优惠券等子页面。
/// 个人中心页面
/// 展示用户信息、游戏数据统计和功能菜单
/// 采用渐变背景头部设计,突出用户身份展示
class ProfilePage extends StatelessWidget {
ProfilePage({super.key});
// 用户基本信息数据
final Map<String, dynamic> _userInfo = {
'nickname': '剧本杀玩家',
'level': 5,
'levelName': '资深玩家',
'avatar': '',
};
ProfilePage使用StatelessWidget因为页面数据主要来自服务器,不需要本地状态管理。_userInfo存储用户的基本信息,包括昵称、等级、等级名称和头像。实际项目中这些数据应该从用户状态管理器或API获取。
// 用户统计数据
final Map<String, dynamic> _stats = {
'games': 32,
'teams': 12,
'following': 156,
'followers': 89,
};
// 功能菜单配置列表
final List<Map<String, dynamic>> _menuItems = [
{'icon': Icons.groups, 'title': '我的组队', 'page': 'MyTeamsPage'},
{'icon': Icons.favorite, 'title': '我的收藏', 'page': 'FavoritesPage'},
_stats存储用户的统计数据,包括参与场次、发起组队数、关注数和粉丝数。_menuItems定义功能菜单的配置,每个菜单项包含图标、标题和目标页面。使用配置化的方式可以方便地添加或修改菜单项。
{'icon': Icons.history, 'title': '游戏记录', 'page': 'HistoryPage'},
{'icon': Icons.emoji_events, 'title': '成就徽章', 'page': 'AchievementPage'},
{'icon': Icons.account_balance_wallet, 'title': '我的钱包', 'page': 'WalletPage'},
{'icon': Icons.confirmation_number, 'title': '优惠券', 'page': 'CouponPage'},
{'icon': Icons.card_giftcard, 'title': '邀请好友', 'page': 'InvitePage'},
{'icon': Icons.feedback, 'title': '意见反馈', 'page': 'FeedbackPage'},
{'icon': Icons.info, 'title': '关于我们', 'page': 'AboutPage'},
];
继续定义菜单项配置,包括游戏记录、成就徽章、钱包、优惠券、邀请好友、意见反馈和关于我们。这些功能覆盖了用户在个人中心可能需要的所有操作入口。
Widget build(BuildContext context) {
return Scaffold(
backgroundColor: const Color(0xFFF5F5F5),
appBar: AppBar(
title: const Text('我的'),
centerTitle: true,
elevation: 0,
actions: [
IconButton(
icon: const Icon(Icons.settings),
onPressed: () => Get.to(() => SettingsPage()),
),
],
),
build方法构建页面主体结构。Scaffold设置浅灰色背景,AppBar标题居中显示"我的",右侧放置设置按钮。elevation设为0去除AppBar阴影,与下方渐变头部区域无缝衔接。
body: SingleChildScrollView(
child: Column(
children: [
_buildHeader(),
_buildStatsCard(),
_buildQuickActions(),
_buildMenuSection(),
const SizedBox(height: 20),
],
),
),
);
}
页面主体使用SingleChildScrollView包裹Column,支持内容超出屏幕时滚动。页面分为四个主要区域:头部用户信息、统计数据卡片、快捷操作和功能菜单列表。底部添加间距避免内容紧贴屏幕底部。
/// 构建头部用户信息区域
/// 使用渐变背景突出展示用户身份
Widget _buildHeader() {
return Container(
padding: const EdgeInsets.all(20),
decoration: const BoxDecoration(
gradient: LinearGradient(
colors: [Color(0xFF6B4EFF), Color(0xFF9D4EDD)],
begin: Alignment.topLeft,
end: Alignment.bottomRight,
),
),
头部区域使用Container包裹,设置内边距和渐变背景。渐变从主题紫色(0xFF6B4EFF)过渡到浅紫色(0xFF9D4EDD),从左上到右下的方向增加视觉层次感。
child: Row(
children: [
// 用户头像
GestureDetector(
onTap: () => Get.to(() => EditProfilePage()),
child: Stack(
children: [
const CircleAvatar(
radius: 40,
backgroundColor: Colors.white,
child: Icon(
Icons.person,
size: 45,
color: Color(0xFF6B4EFF),
),
),
头部内容使用Row水平排列头像和用户信息。头像使用GestureDetector包裹实现点击跳转到编辑资料页面。Stack用于在头像上叠加编辑图标。CircleAvatar创建圆形头像,白色背景配合紫色图标。
Positioned(
right: 0,
bottom: 0,
child: Container(
padding: const EdgeInsets.all(4),
decoration: const BoxDecoration(
color: Colors.white,
shape: BoxShape.circle,
),
child: const Icon(
Icons.camera_alt,
size: 14,
color: Color(0xFF6B4EFF),
),
),
),
],
),
),
使用Positioned在头像右下角放置相机图标,提示用户可以更换头像。图标使用白色圆形背景,与头像形成视觉区分。
const SizedBox(width: 16),
// 用户信息
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
_userInfo['nickname'],
style: const TextStyle(
color: Colors.white,
fontSize: 22,
fontWeight: FontWeight.bold,
),
),
const SizedBox(height: 8),
用户信息区域使用Expanded占据剩余空间,Column垂直排列昵称和等级标签。昵称使用白色粗体大字显示,突出用户身份。
GestureDetector(
onTap: () => Get.to(() => LevelPage()),
child: Container(
padding: const EdgeInsets.symmetric(
horizontal: 12,
vertical: 4,
),
decoration: BoxDecoration(
color: Colors.white.withOpacity(0.2),
borderRadius: BorderRadius.circular(12),
),
child: Row(
mainAxisSize: MainAxisSize.min,
children: [
const Icon(
Icons.military_tech,
size: 16,
color: Colors.amber,
),
等级标签使用GestureDetector包裹,点击跳转到等级详情页面。半透明白色背景配合圆角设计,与渐变背景形成层次。Row内放置勋章图标和等级文字。
const SizedBox(width: 4),
Text(
'Lv.${_userInfo['level']} ${_userInfo['levelName']}',
style: const TextStyle(
color: Colors.white,
fontSize: 12,
),
),
],
),
),
),
],
),
),
等级文字显示等级数字和等级名称,使用白色小字体。mainAxisSize设为min让Row宽度自适应内容。
// 二维码按钮
Column(
children: [
IconButton(
icon: const Icon(
Icons.qr_code,
color: Colors.white,
size: 28,
),
onPressed: () => _showQRCode(),
),
const Text(
'我的二维码',
style: TextStyle(
color: Colors.white70,
fontSize: 10,
),
),
],
),
],
),
);
}
右侧放置二维码按钮,点击显示用户的个人二维码。按钮下方添加文字说明,使用半透明白色小字体。
/// 显示二维码弹窗
void _showQRCode() {
Get.dialog(
AlertDialog(
title: const Text('我的二维码'),
content: Column(
mainAxisSize: MainAxisSize.min,
children: [
Container(
width: 200,
height: 200,
decoration: BoxDecoration(
color: Colors.grey[200],
borderRadius: BorderRadius.circular(12),
),
child: const Center(
child: Icon(
Icons.qr_code_2,
size: 150,
color: Color(0xFF6B4EFF),
),
),
),
二维码弹窗使用GetX的dialog方法显示。AlertDialog包含标题和内容区域,内容区域展示二维码图片占位符。实际项目中应该使用qr_flutter等库生成真实二维码。
const SizedBox(height: 16),
const Text(
'扫一扫,加我好友',
style: TextStyle(color: Colors.grey),
),
],
),
actions: [
TextButton(
onPressed: () => Get.back(),
child: const Text('关闭'),
),
TextButton(
onPressed: () {
Get.back();
Get.snackbar('提示', '二维码已保存到相册');
},
child: const Text('保存'),
),
],
),
);
}
弹窗底部提供关闭和保存两个按钮。保存按钮点击后显示提示信息,实际项目中应该调用系统API保存图片到相册。
/// 构建统计数据卡片
Widget _buildStatsCard() {
return Container(
margin: const EdgeInsets.all(12),
padding: const EdgeInsets.symmetric(vertical: 20),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.05),
blurRadius: 10,
offset: const Offset(0, 2),
),
],
),
统计数据卡片使用白色背景、圆角和轻微阴影,与页面背景形成层次区分。margin设置外边距,padding设置内边距。
child: Row(
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
_buildStatItem(
count: _stats['games'].toString(),
label: '参与场次',
onTap: () => Get.to(() => HistoryPage()),
),
_buildDivider(),
_buildStatItem(
count: _stats['teams'].toString(),
label: '发起组队',
onTap: () => Get.to(() => MyTeamsPage()),
),
统计数据使用Row水平排列,spaceEvenly均匀分布各项。每个统计项包含数字和标签,点击跳转到对应的详情页面。使用分隔线区分各项。
_buildDivider(),
_buildStatItem(
count: _stats['following'].toString(),
label: '关注',
onTap: () => _showFollowList(true),
),
_buildDivider(),
_buildStatItem(
count: _stats['followers'].toString(),
label: '粉丝',
onTap: () => _showFollowList(false),
),
],
),
);
}
继续添加关注和粉丝统计项,点击分别显示关注列表和粉丝列表。
/// 构建单个统计项
Widget _buildStatItem({
required String count,
required String label,
required VoidCallback onTap,
}) {
return GestureDetector(
onTap: onTap,
child: Column(
children: [
Text(
count,
style: const TextStyle(
fontSize: 24,
fontWeight: FontWeight.bold,
color: Color(0xFF6B4EFF),
),
),
统计项组件接收数字、标签和点击回调三个参数。数字使用紫色粗体大字显示,突出数据展示。
const SizedBox(height: 4),
Text(
label,
style: TextStyle(
fontSize: 12,
color: Colors.grey[600],
),
),
],
),
);
}
/// 构建分隔线
Widget _buildDivider() {
return Container(
width: 1,
height: 30,
color: Colors.grey[300],
);
}
标签使用灰色小字体显示。分隔线使用Container实现,设置宽度1像素、高度30像素的灰色竖线。
/// 显示关注/粉丝列表
void _showFollowList(bool isFollowing) {
final title = isFollowing ? '我的关注' : '我的粉丝';
final users = [
{'name': '玩家A', 'level': 'Lv.6'},
{'name': '玩家B', 'level': 'Lv.4'},
{'name': '玩家C', 'level': 'Lv.8'},
{'name': '玩家D', 'level': 'Lv.3'},
{'name': '玩家E', 'level': 'Lv.5'},
];
关注/粉丝列表使用底部弹出面板展示。根据isFollowing参数决定显示关注列表还是粉丝列表。users数组存储模拟的用户数据。
Get.bottomSheet(
Container(
height: 400,
decoration: const BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.vertical(top: Radius.circular(20)),
),
child: Column(
children: [
Padding(
padding: const EdgeInsets.all(16),
child: Row(
children: [
Text(
title,
style: const TextStyle(
fontSize: 18,
fontWeight: FontWeight.bold,
),
),
const Spacer(),
IconButton(
icon: const Icon(Icons.close),
onPressed: () => Get.back(),
),
],
),
),
底部面板使用GetX的bottomSheet方法显示。顶部显示标题和关闭按钮,使用Row水平排列。
Expanded(
child: ListView.builder(
itemCount: users.length,
itemBuilder: (context, index) {
final user = users[index];
return ListTile(
leading: const CircleAvatar(
backgroundColor: Color(0xFF6B4EFF),
child: Icon(
Icons.person,
color: Colors.white,
),
),
title: Text(user['name']!),
subtitle: Text(user['level']!),
trailing: isFollowing
? OutlinedButton(
onPressed: () {},
child: const Text('已关注'),
)
: ElevatedButton(
onPressed: () {},
style: ElevatedButton.styleFrom(
backgroundColor: const Color(0xFF6B4EFF),
),
child: const Text(
'回关',
style: TextStyle(color: Colors.white),
),
),
);
},
),
),
],
),
),
);
}
用户列表使用ListView.builder构建,每个用户项显示头像、昵称、等级和操作按钮。关注列表显示"已关注"按钮,粉丝列表显示"回关"按钮。
/// 构建快捷操作区域
Widget _buildQuickActions() {
final actions = [
{'icon': Icons.account_balance_wallet, 'label': '钱包', 'page': WalletPage()},
{'icon': Icons.confirmation_number, 'label': '优惠券', 'page': CouponPage()},
{'icon': Icons.emoji_events, 'label': '成就', 'page': AchievementPage()},
{'icon': Icons.card_giftcard, 'label': '邀请', 'page': InvitePage()},
];
快捷操作区域提供常用功能的快速入口,包括钱包、优惠券、成就和邀请四个功能。
return Container(
margin: const EdgeInsets.symmetric(horizontal: 12),
padding: const EdgeInsets.all(16),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
),
child: Row(
mainAxisAlignment: MainAxisAlignment.spaceAround,
children: actions.map((action) {
return GestureDetector(
onTap: () => Get.to(() => action['page'] as Widget),
child: Column(
children: [
Container(
width: 50,
height: 50,
decoration: BoxDecoration(
color: const Color(0xFF6B4EFF).withOpacity(0.1),
borderRadius: BorderRadius.circular(12),
),
快捷操作使用白色卡片包裹,Row水平排列四个操作项。每个操作项包含图标和文字,图标使用浅紫色背景的圆角方形容器。
child: Icon(
action['icon'] as IconData,
color: const Color(0xFF6B4EFF),
),
),
const SizedBox(height: 8),
Text(
action['label'] as String,
style: TextStyle(
fontSize: 12,
color: Colors.grey[700],
),
),
],
),
);
}).toList(),
),
);
}
图标使用紫色显示,下方文字使用灰色小字体。点击跳转到对应的功能页面。
/// 构建功能菜单区域
Widget _buildMenuSection() {
return Container(
margin: const EdgeInsets.all(12),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(16),
),
child: Column(
children: [
_buildMenuItem(
icon: Icons.groups,
title: '我的组队',
subtitle: '查看参与的组队',
onTap: () => Get.to(() => MyTeamsPage()),
),
功能菜单区域使用白色卡片包裹,Column垂直排列各个菜单项。每个菜单项包含图标、标题、副标题和点击回调。
_buildMenuDivider(),
_buildMenuItem(
icon: Icons.favorite,
title: '我的收藏',
subtitle: '收藏的剧本和店铺',
onTap: () => Get.to(() => FavoritesPage()),
),
_buildMenuDivider(),
_buildMenuItem(
icon: Icons.history,
title: '游戏记录',
subtitle: '历史游戏记录',
onTap: () => Get.to(() => HistoryPage()),
),
继续添加收藏和游戏记录菜单项,每个菜单项之间使用分隔线区分。
_buildMenuDivider(),
_buildMenuItem(
icon: Icons.feedback,
title: '意见反馈',
subtitle: '帮助我们改进',
onTap: () => Get.to(() => FeedbackPage()),
),
_buildMenuDivider(),
_buildMenuItem(
icon: Icons.info,
title: '关于我们',
subtitle: '了解更多信息',
onTap: () => Get.to(() => AboutPage()),
),
],
),
);
}
添加意见反馈和关于我们菜单项,完成功能菜单区域的构建。
/// 构建单个菜单项
Widget _buildMenuItem({
required IconData icon,
required String title,
required String subtitle,
required VoidCallback onTap,
}) {
return ListTile(
leading: Container(
width: 40,
height: 40,
decoration: BoxDecoration(
color: const Color(0xFF6B4EFF).withOpacity(0.1),
borderRadius: BorderRadius.circular(10),
),
child: Icon(
icon,
color: const Color(0xFF6B4EFF),
),
),
菜单项组件使用ListTile实现,leading放置图标容器,使用浅紫色背景和紫色图标。
title: Text(
title,
style: const TextStyle(
fontWeight: FontWeight.w500,
),
),
subtitle: Text(
subtitle,
style: TextStyle(
fontSize: 12,
color: Colors.grey[500],
),
),
trailing: const Icon(
Icons.chevron_right,
color: Colors.grey,
),
onTap: onTap,
);
}
title显示菜单标题,subtitle显示副标题说明,trailing放置右箭头图标提示可点击。
/// 构建菜单分隔线
Widget _buildMenuDivider() {
return Divider(
height: 1,
indent: 70,
color: Colors.grey[200],
);
}
}
菜单分隔线使用Divider组件,设置indent缩进与图标对齐,颜色使用浅灰色。
个人中心页面的设计遵循了移动端应用的标准模式,用户可以快速找到所需功能。渐变背景的头部区域突出了用户身份展示,统计数据卡片直观展示了用户的游戏数据。
快捷操作区域提供了常用功能的快速入口,减少用户的操作路径。功能菜单列表使用ListTile组件,布局规范统一,每个菜单项都有图标、标题和副标题,信息展示清晰。
通过本篇文章的学习,我们完成了个人中心页面的布局实现。这个页面是用户管理个人信息和访问各项功能的核心入口,为用户提供了便捷的操作体验。下一篇文章我们将实现设置功能页面。
欢迎加入开源鸿蒙跨平台社区:https://openharmonycrossplatform.csdn.net
更多推荐
所有评论(0)
